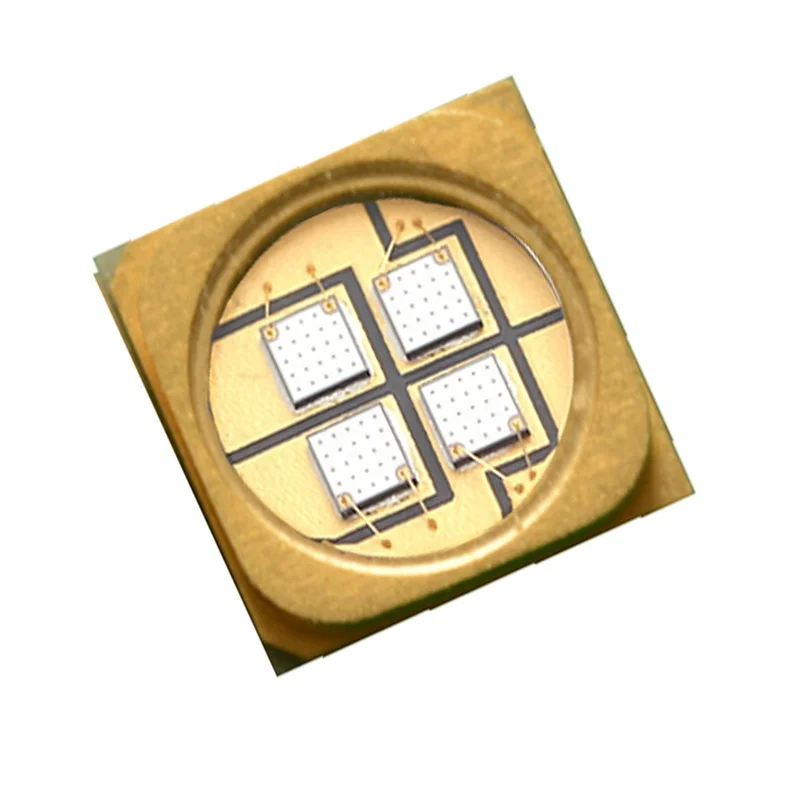

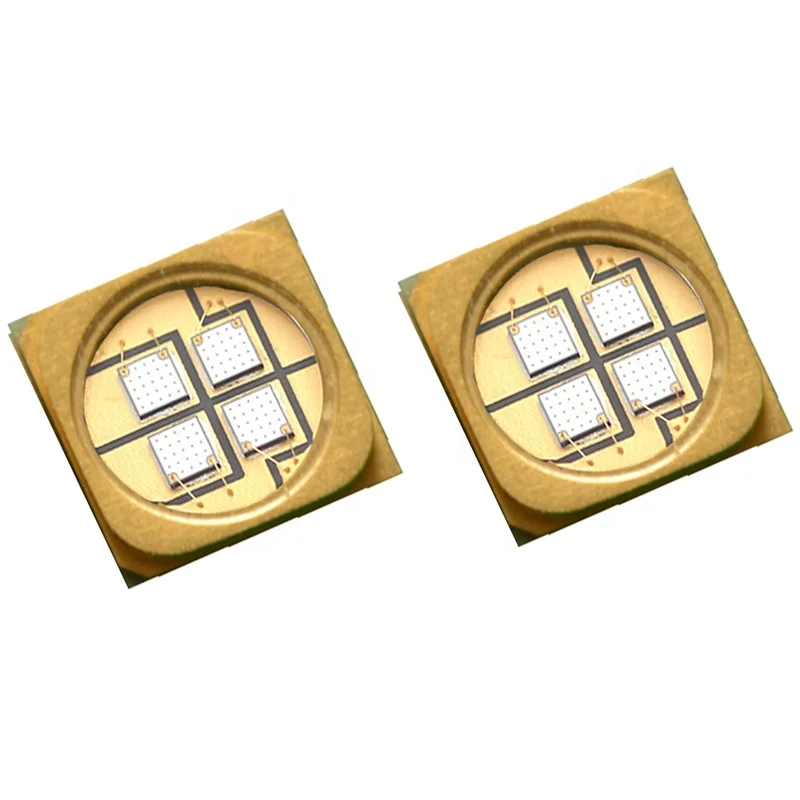

smd 6868 smd 6565 uv led 365nm 385nm 395nm 405nm 415nm led uv diode
- Category: >>>
- Supplier: Shenzhen Leader UV Technology Co. Ltd.
Share on (1600440862066):
Product Overview
Description
Product Description

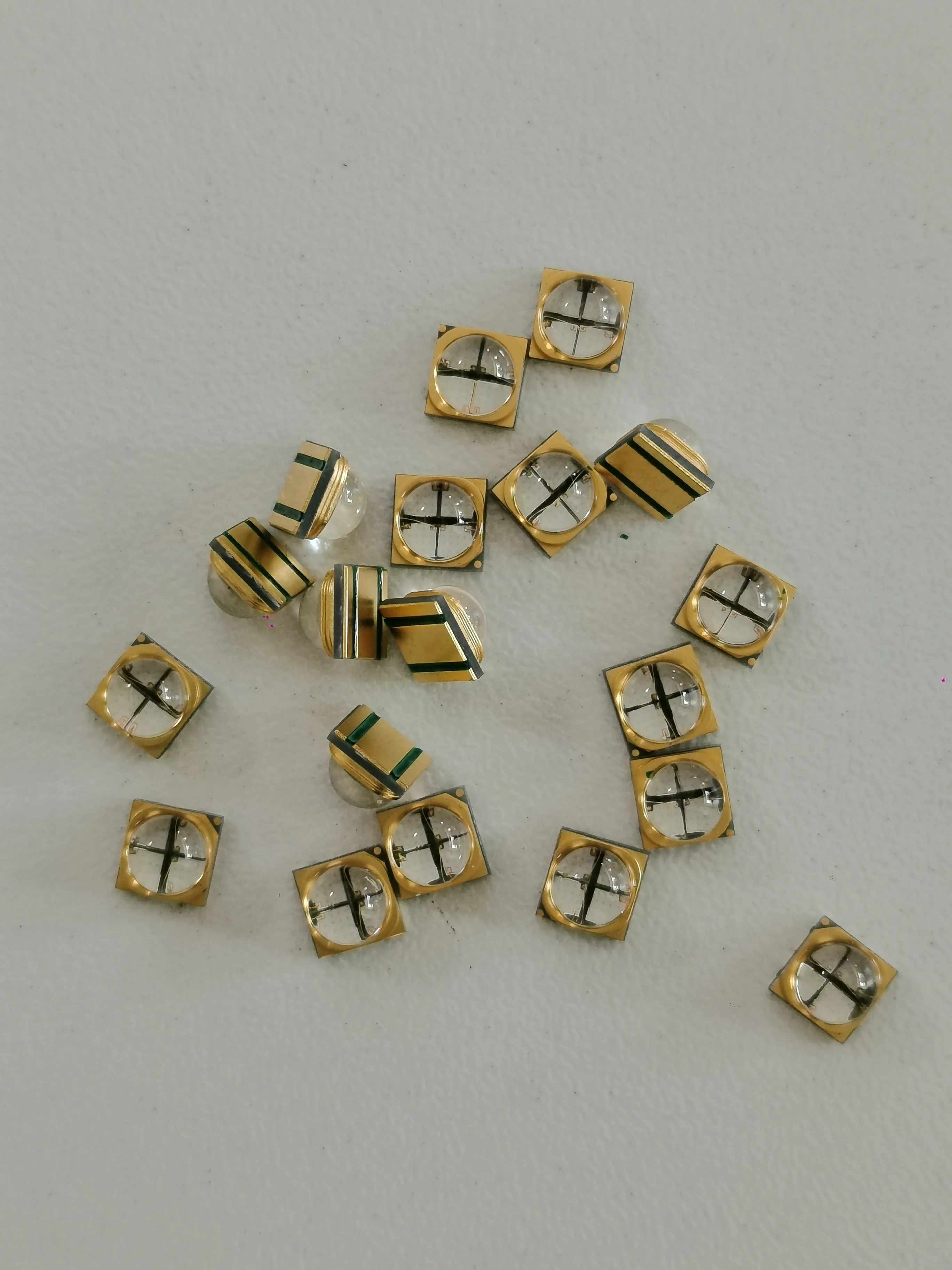

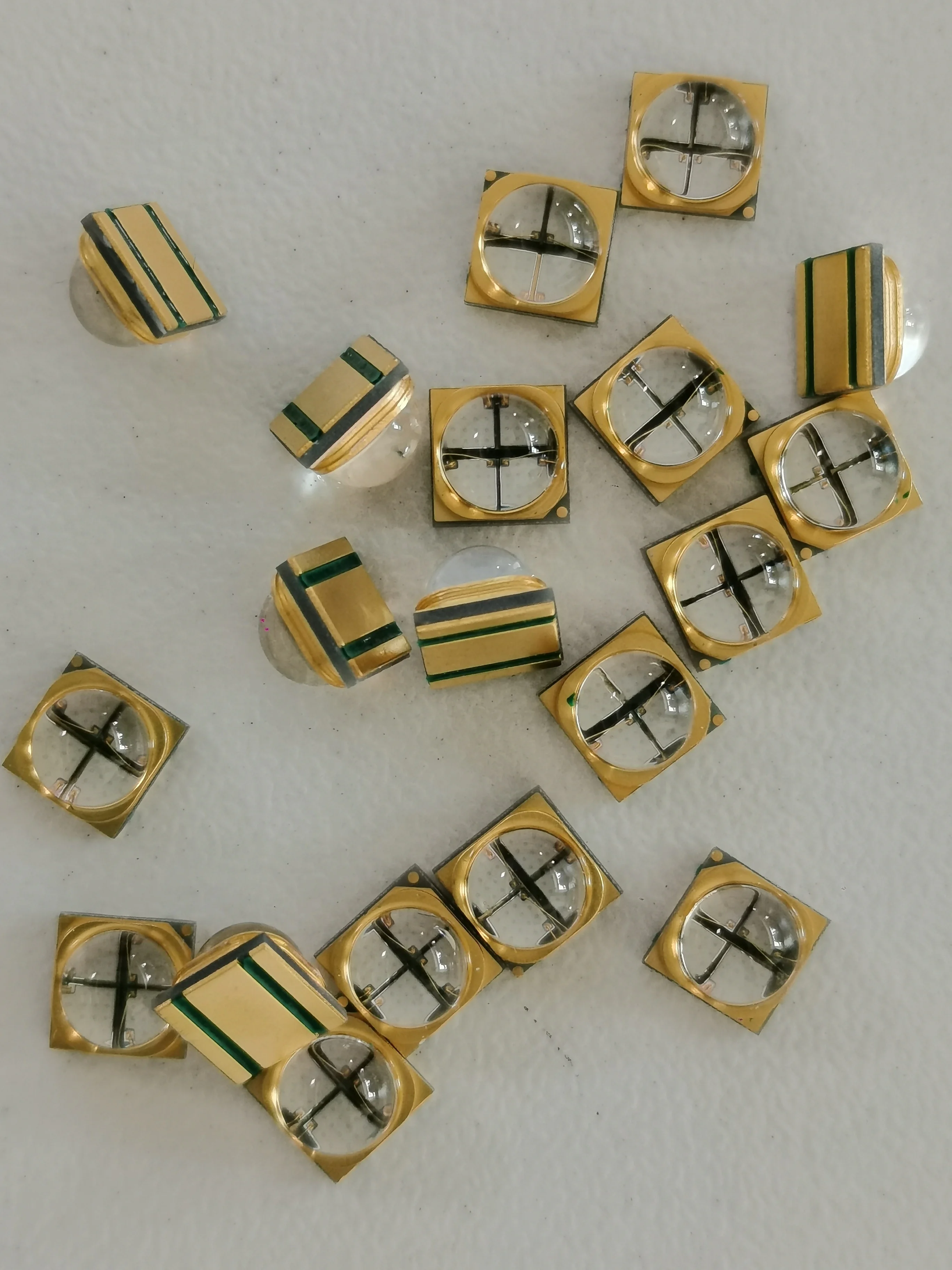

Product show
Professional UV LED manufactory.uv led chip packaging factory. Provide excellent uv led curing solution.
Can customized different size of UV LED as your required.
Can customized different size of UV LED as your required.
Dimension
Unit: mm.
Opto-Electrical Specificaiton
Parameter | Symbol | Min | Type | Max | Unit | Tolerance | Test Conditions |
Forward Voltage (VF) | 1000mA | 6.8 | 7.1 | 7.4 | V | ±0.1V | If/forward current= 1400mA Test temperature=25℃ |
1400mA | 7.1 | 7.4 | 7.7 | ||||
2000mA | 7.4 | 7.7 | 8.0 | ㎂ | |||
Band | ƛ | --- | 395 | --- | nm | ±1nm | |
Radiant flux (θ) | 1000mW | 2000 | 3000 | --- | mW | ±100mW | |
1400mW | 3000 | 4000 | |||||
2000mW | 4000 | 5000 | |||||
Lighting Angle | θ | --- | 45 | --- | deg | ±5 | |
Reverse Current | IR | --- | --- | 20 | ㎂ | ±㎂ | |
Life Time | L70 | 10000 | --- | --- | hour | ±500 |

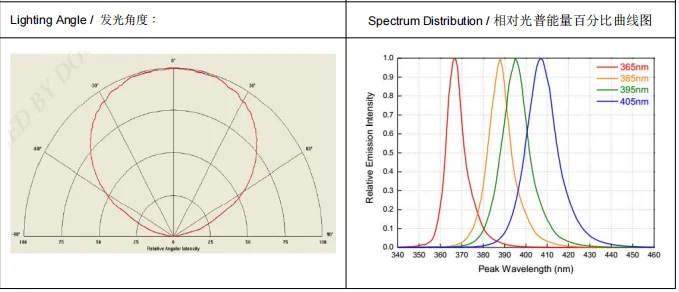

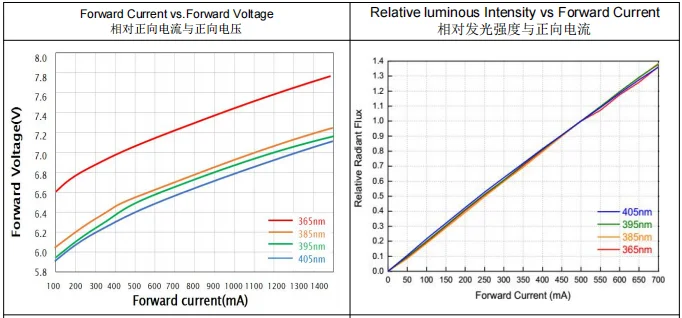

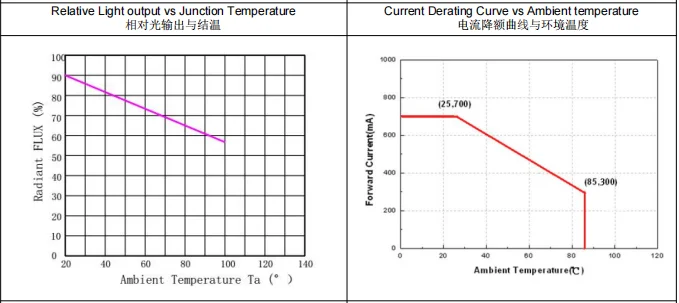

Opto-Electronical Characteristic

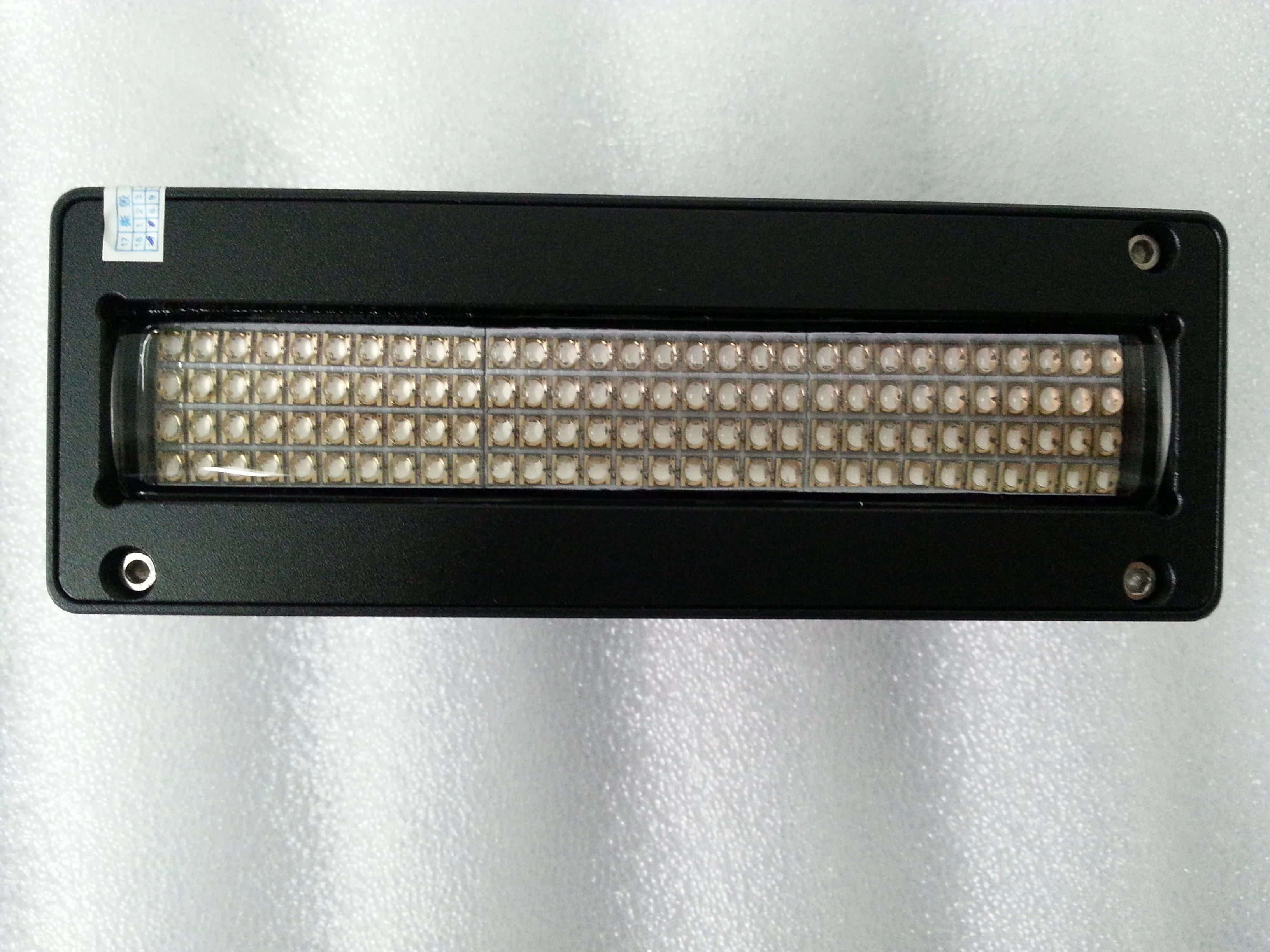

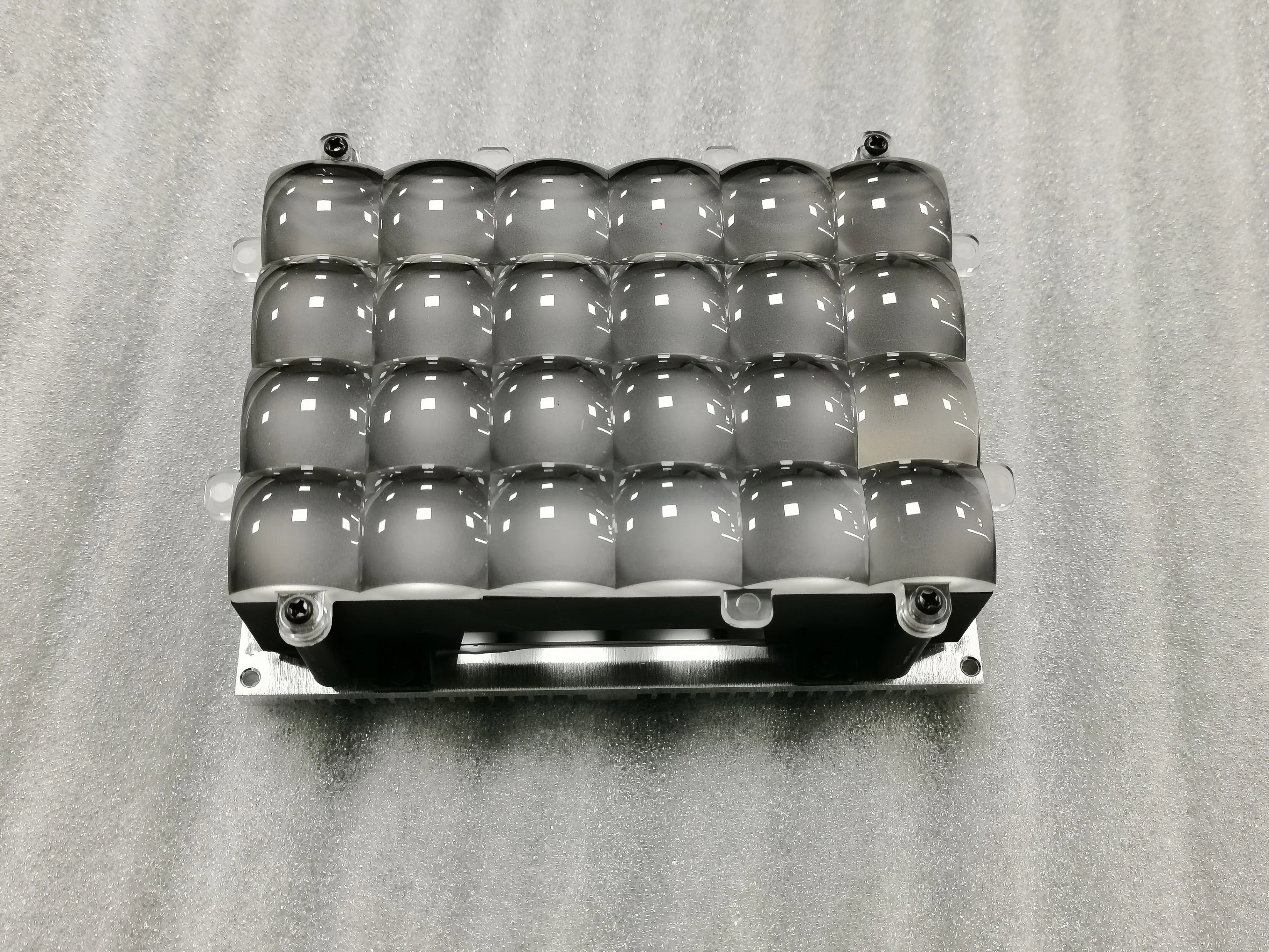

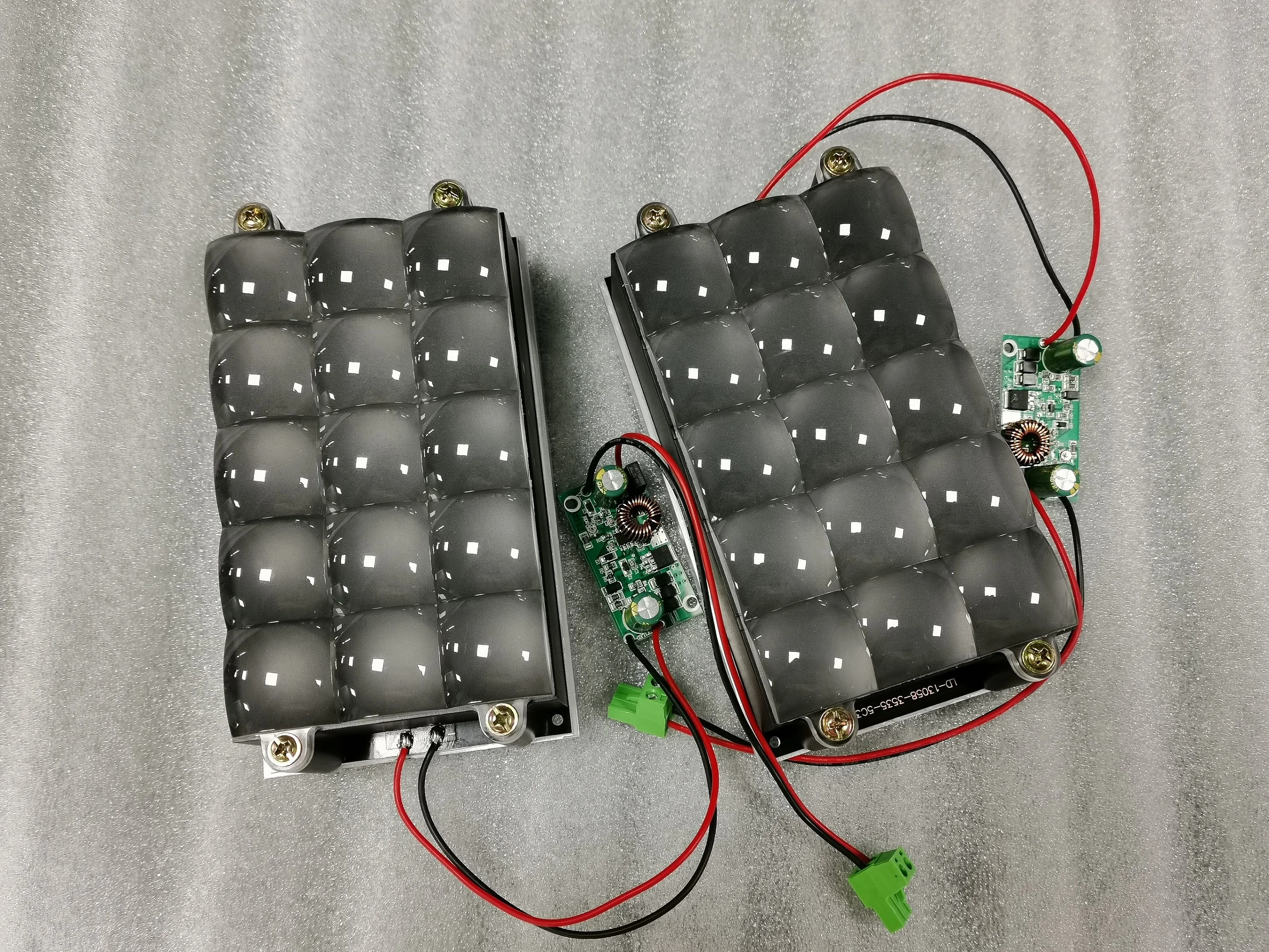

Application

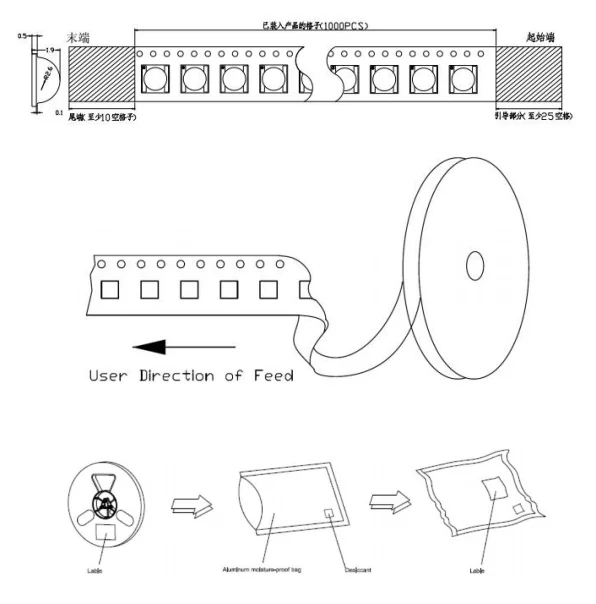

Packaging
Tape and Reel
Tape and Reel
Delivery
Delivery: For small quantity orders we ship by UPS Air-Express,or DHL/FEDEX/TNT Express service, it is safe and fast.
For large quantity orders we will ship by buyer's shipping agent or our factory's cooperated shipping company.
For large quantity orders we will ship by buyer's shipping agent or our factory's cooperated shipping company.
Recommend Products

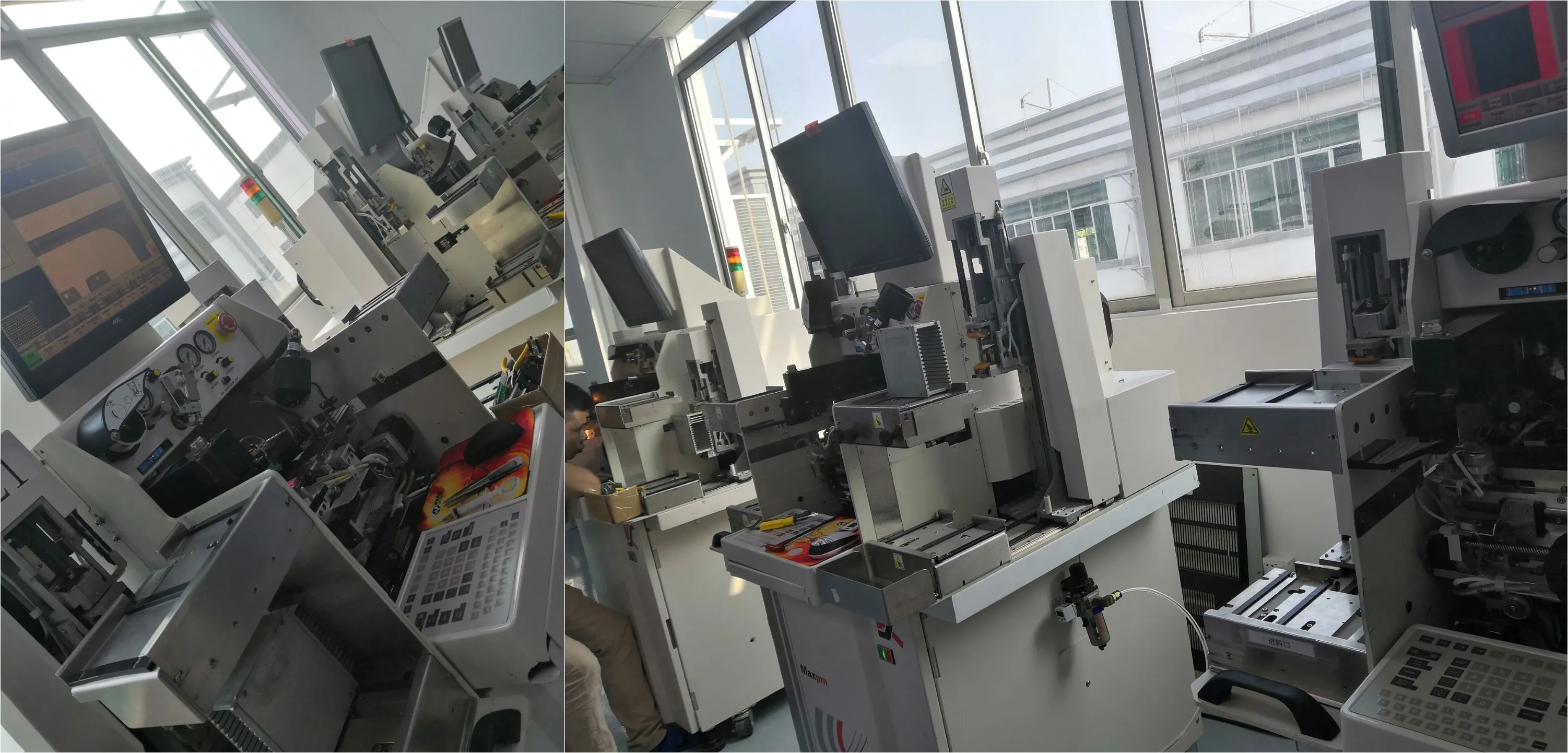

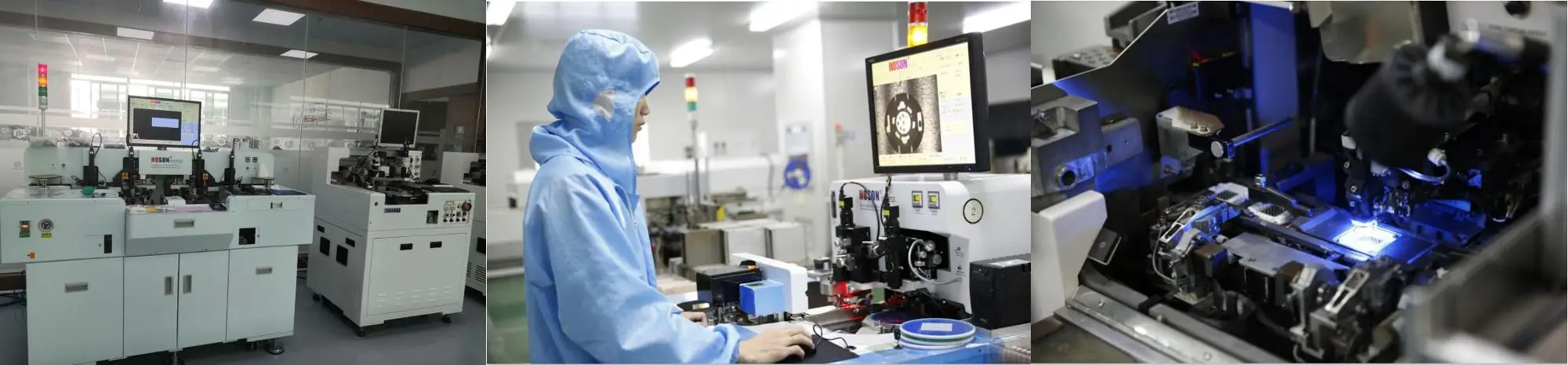

Company Profile

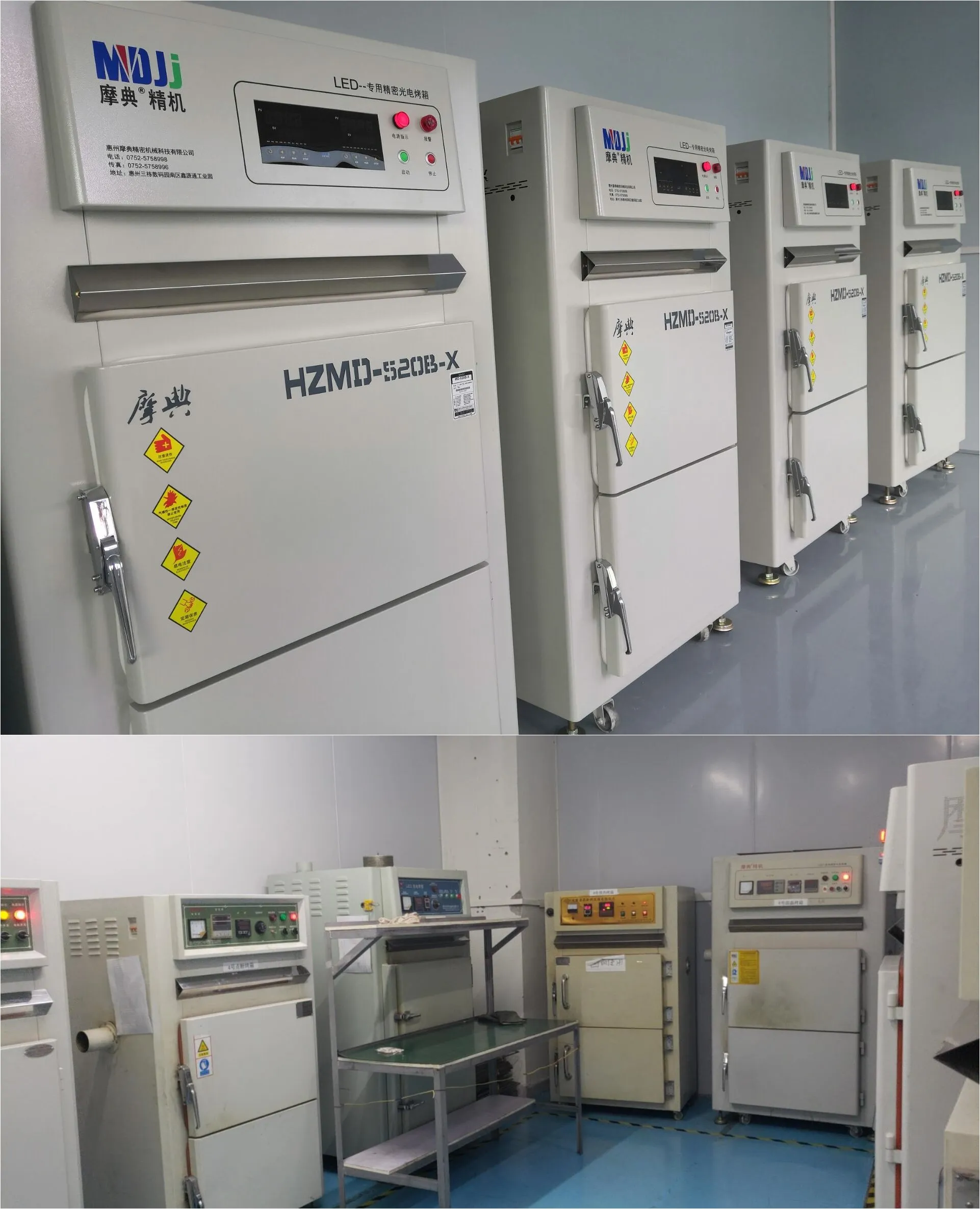

Shenzhen Leader UV Technology Co.,Ltd.,is a leading manufacturer of LED Chip packaging& LED PCB modules & uv led products with well-equipped production & testing facilities.We have professional R&D Technical team,marketing and stable production team to provide wide range,good quality,good service,reasonable prices and customized designs products.The Company is located in Shezhen,covers more than 135000 squre meters with comprehensively implementing the ISO quality management system.With more than 16 years of development and accumulating of industry experience, we has become a powerful scale, strict management, excellent quality, professional led products manufacturers. Our products cover Aluminium PCB,LED PCB module,UV LED,UV LED curing system, UV LED curing device, FR-4 one layer,double layer and multilayer PCBs.
FAQ
1. What about the delivery time?
2-3 working days for samples in stock.13-15 working days for mass production.
2. How can we guarantee quality?
All products are tested before shipment.
3. Are you a factory?what can you buy from us?
Yes, we are factory in Shenzhen.We produce UV LED, uv led module,LED PCB, SMD LED, COB LED.
4.What's your quotation terms ?
EXW
5. Can we customize the products?
Yes, we can produce the products based on your requirement.
6. How to place an order?
You can place order directly on Alibaba, or you can contact us for order details.
7. What payment terms are available?
T/T,Alibaba order,Paypal.
2. How can we guarantee quality?
All products are tested before shipment.
3. Are you a factory?what can you buy from us?
Yes, we are factory in Shenzhen.We produce UV LED, uv led module,LED PCB, SMD LED, COB LED.
4.What's your quotation terms ?
EXW
5. Can we customize the products?
Yes, we can produce the products based on your requirement.
6. How to place an order?
You can place order directly on Alibaba, or you can contact us for order details.
7. What payment terms are available?
T/T,Alibaba order,Paypal.
