Ride on type vibratory efficient drum mini road roller for sale
- Category: >>>
- Supplier: Shandong,Demao,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
Road roller can be use for compaction of soil, asphalt roads, sidewalks, bridges and culverts, parking lot, sports venues and narrow space compaction, vertical vibration, vibration force, compaction efficiency high, high departments on the construction of roads, streets, squares ideal equipment.
Car model | 450 | S600 | 700C |
Working weight (kg) | 300 | 650 | 680 |
Exciting force (kN) | 25 | 30 | 30 |
Amplitude (mm) | 0.6 | 0.6 | 0.6 |
Walking speed (km/h) | 0-4 | 0-4 | 0-4 |
Gradeability(%) | 30 | 30 | 30 |
Vibration frequency (Hz) | 70 | 70 | 70 |
Dimensions (mm) | 1250*600*1000 | 1980*820*1100 | 1600×750×1100 |
Steel wheel size (mm) | Φ430*450*1 | Φ430*600*2 | Φ560*700*1 |
Engine model | Changchai/Changfa 173 or gasoline engine | Changchai/Changfa 178/water cooling R180 | Changchai/Changfa 178 |
Engine power (HP) | 6 | 8 | 8 |
Static line load (N/cm) | 45 | 54 | 45 |
Drive method | Dual hydraulic drive | Hydraulic drive | |
Vibration method | Mechanical vibration | Mechanical vibration | Mechanical vibration |
Way of walking | Two-way hydraulic | Two-way hydraulic | |
Start method | Pull/Electric start | Hand pull/electric start | Pull/Electric start |
Water tank volume (L) | none | 20 | 20 |
Hydraulic oil tank volume (L) | 10 | 20 | 20 |
Car model | 850 | 2T | 4T |
Working weight (kg) | 860 | 2000 | 5000 |
Exciting force (kN) | 35 | 35 | 80 |
Amplitude (mm) | 0.6 | 0.6 | 0.6 |
Walking speed (km/h) | 0-6 | 0-8 | 0-10 |
Gradeability(%) | 30 | 30 | 30 |
Vibration frequency (Hz) | 70 | 70 | 80 |
Dimensions (mm) | 1670x840x1200 | 2200x1200x1580 | 2800*1500*2500 |
Steel wheel size (mm) | Front Φ560*700 Rear Φ430*500 | Φ560*1000*2 | 800*1380*2 |
Engine model | Changchai/Changfa 178/Water-cooled R180 | Changchai/Changfa 192/Hummer H16 | Guosan Changchai water cooling 390 |
Engine power (HP) | 8 | 25 | 28kw |
Static line load (N/cm) | 55 | 57 | 57 |
Drive method | Single drive mechanical rotation | Dual Drive Hydraulic Swivel | Dual Drive Hydraulic Swivel |
Vibration method | Electromagnetic clutch | Fully hydraulic | Hydraulic Dual Vibration |
Way of walking | Bidirectional Hydraulic Single Vibration | Bidirectional Hydraulic Single Vibration | Hydraulic double drive |
Start method | Hand pull/electric start | Hand pull/electric start | Hand pull/electric start |
Water tank volume (L) | 30 | 90 | 140 |
Hydraulic oil tank volume (L) | 6 | 20 | 40 |
Product Display

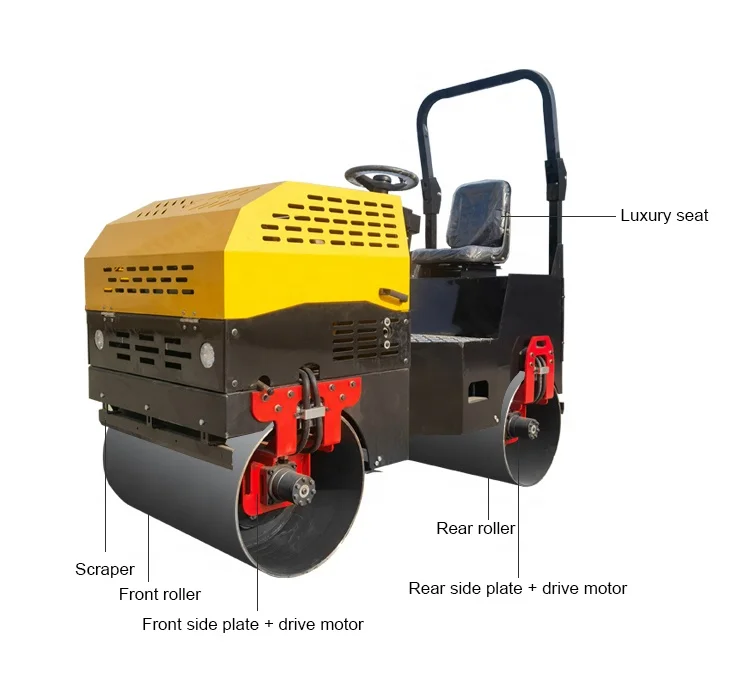

Details Images
Product Application
Mainly used for compaction of asphalt surface, compaction of gravel, sand and other projects. Due to the excellent welt, particularly suitable for foundation ditch, walkways and cycle paths, parking lots and all types of repair works.
Packing & Shipping
Company Profile
VR
FAQ
1.What is the machine advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.
2.How many units can be put in container?
A: 6 units can be in a 20ft container, 13 units can be in a 40HQ container will be fixed with wire ropes.
3.The warranty of the machine and how will you carry out the service?
A: Warranty period: 1 years or1200 working hours manufacturers warranty whichever comes first. One line service is provided 24 hours every day, there are technicians ready to serve for you, they are well trained, they can be assigned to your site and serve for you.
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers.Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.
2.How many units can be put in container?
A: 6 units can be in a 20ft container, 13 units can be in a 40HQ container will be fixed with wire ropes.
3.The warranty of the machine and how will you carry out the service?
A: Warranty period: 1 years or1200 working hours manufacturers warranty whichever comes first. One line service is provided 24 hours every day, there are technicians ready to serve for you, they are well trained, they can be assigned to your site and serve for you.
