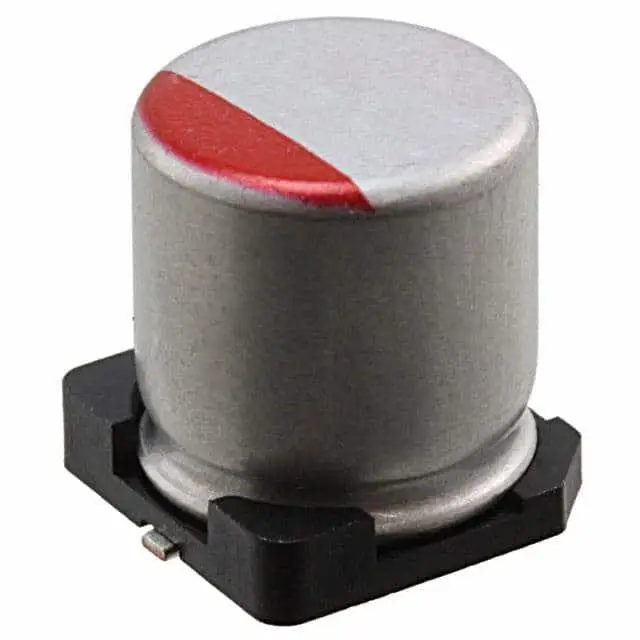

RHS1E101MCN1GSCAP ALUM POLY 100UF 20% 25V SMD

Name: RHS1E101MCN1GSCAP ALUM POLY 100UF 20% 25V SMD
SKU: 1600440987224
Availability: InStock

Price:

Quantity:

Product Information

Model Number	RHS1E101MCN1GS
Type	Aluminum Polymer Capacitor
Place of Origin	China
Brand Name	Original
D/C	Newest
Supplier Type	Agency
Capacitance	100 uF
Cross Reference	-
Media Available	datasheet
Tolerance	±20%
Package Type	Surface Mount
Rated Voltage	25 V
Operating Temperature	-55°C ~ 105°C
Specification	-
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	18mOhm
Applications	General Purpose
Impedance	-
Application	General Purpose
Surface Mount Land Size	0.327 L x 0.327 W (8.30mm x 8.30mm)
Height - Seated (Max)	0.354 (9.00mm)
Size/Dimension	0.315 Dia (8.00mm)
Lead Spacing	-
Ripple Current @ Low Frequency	400 mA @ 120 Hz
Ripple Current @ High Frequency	4 A @ 100 kHz
Lifetime @ Temp	2000 Hrs @ 105°C
Ratings	-
Series	FPCAP, RHS
Warranty	One Year
Package/Case	Radial, Can - SMD
Part Status	In Stock
Sample	Available
