Product Overview
Description
Veinasa-SW RS485 Soil Industry Water Temperature Meter for Measure Digital Thermometer Sensors for Measure
Products Description
Veinasa-SW RS485 Soil Industry Water Temperature Meter for Measure Digital Thermometer Sensors for Measure can be used to measure temperature. This temperature sensors adopts high precision thermistor as induction component, which has the characteristics of high measuring precision and good stability.
The signal transmitter adopts advanced integrated circuit module, which can convert the temperature into the corresponding voltage or current signal according to the different needs of the user.
Can be widely used in meteorology, environment, laboratory, industry and agriculture and other fields of temperature measurement.
Product Paramenters
Product name | water temperature sensor | ||
Measuring range | -50~100℃ | ||
Accuracy | ±0.5℃ | ||
power supply mode | DC 2.5V | ||
DC 5V | |||
DC 12V | |||
DC 24V | |||
Other | |||
output form | £ Current | 4~20mA | |
£ Voltage | 0~2.5V | ||
£ Voltage | 0~5V | ||
£ RS485 | |||
Other | |||
Instrument line length | standard:10m | ||
Other | |||
load capacity | Current-mode output impedance≤300Ω | ||
Voltage-mode output impedance ≥1KΩ | |||
work environment | temperature | -50℃~80℃ | |
humidity | ≤100%RH | ||
Product power consumption | 0.5 mW | ||
Product weight | probe | 145g | |
With Belt collector | 550g | ||
Product Display

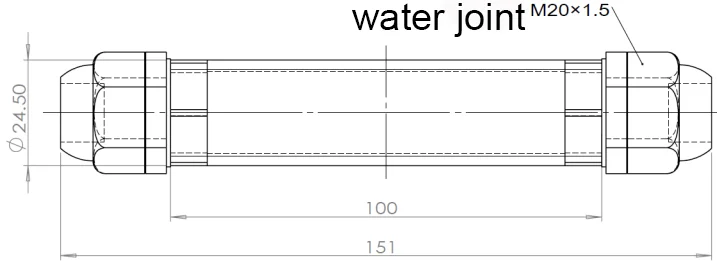

Transmitter dimensions

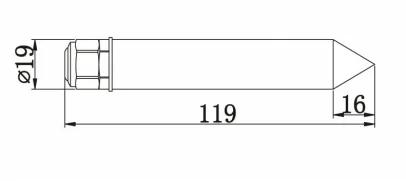

The length of the probe is 135mm and the diameter is 19mm.
About the length of the instrument line: The standard line length is 10 meters.
About the weight of the product: The probe is 145g.
About the length of the instrument line: The standard line length is 10 meters.
About the weight of the product: The probe is 145g.
More features of features of Veinasa-SW:
* Compact size, convenient to install and portable
* Reliable in performance, with special circuit, good linearity
* Strong load capacity, long transmission distance and strong anti-interference ability.
* Compact size, convenient to install and portable
* Reliable in performance, with special circuit, good linearity
* Strong load capacity, long transmission distance and strong anti-interference ability.
(1) If equipped with the collector produced by the Company , connect the sensor directly to the corresponding interface on the collector using the sensor line .
(2) If the transmitter is purchased separately , the wiring sequence of the transmitter shall be as follows:
(2) If the transmitter is purchased separately , the wiring sequence of the transmitter shall be as follows:
Line color | output signal | ||||
Voltage mode | current mode | Communication type | |||
Red | Power source positive | Power source positive | Power source positive | ||
Black (green) color | Power ground | Power ground | Power ground | ||
yellow | Voltage signal | Current signal | A+/TX | ||
Blue | B-/RX | ||||

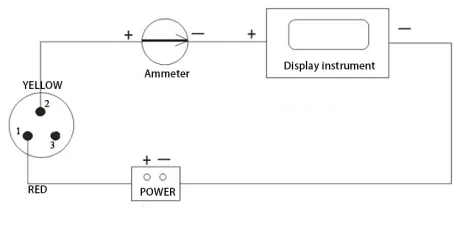

(3)Transmitter voltage, current two output wiring:
Application Field
Major application fields of Veinasa-SW RS485 Soil Industry Water Temperature Meter for Measure Digital Thermometer Sensors for Measure:
1.Meteorology, environment
2.Laboratory, industry, smart farm, agriculture
1.Meteorology, environment
2.Laboratory, industry, smart farm, agriculture
3.Industry
4.Other fields of temperature measurement
