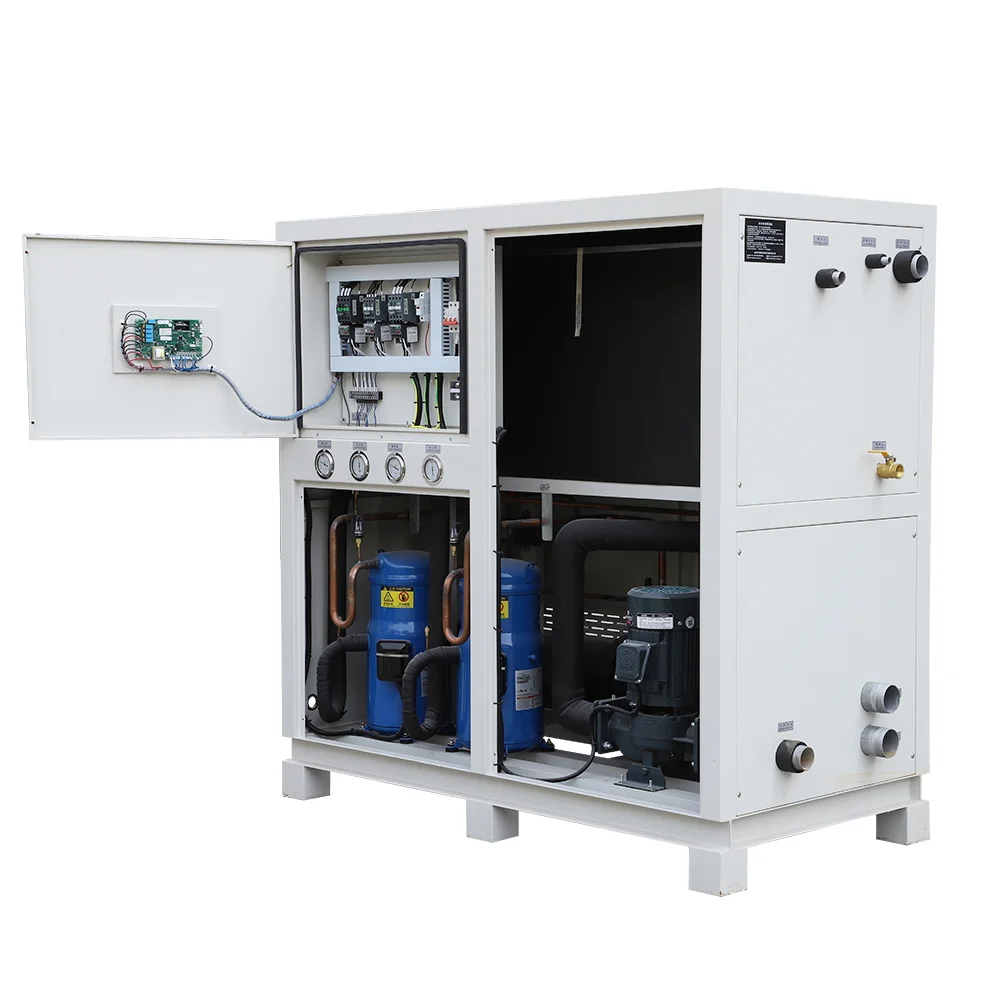

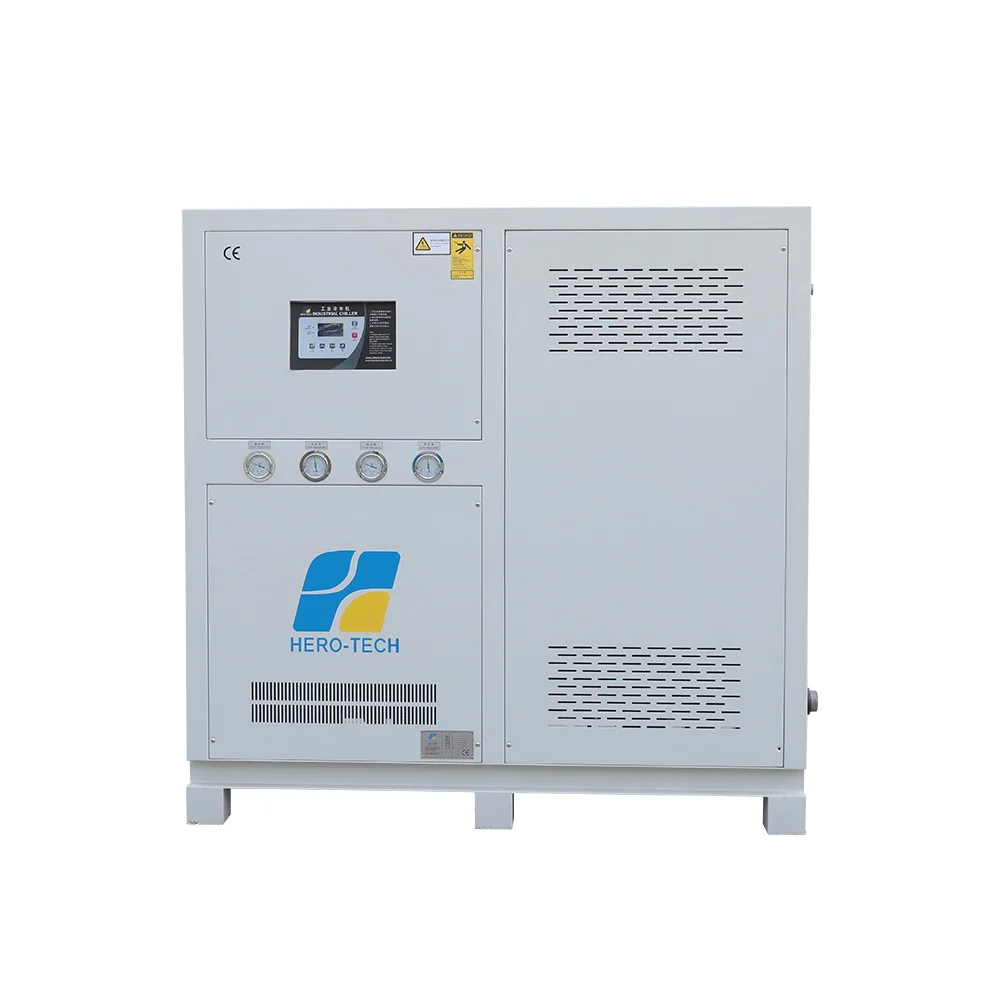

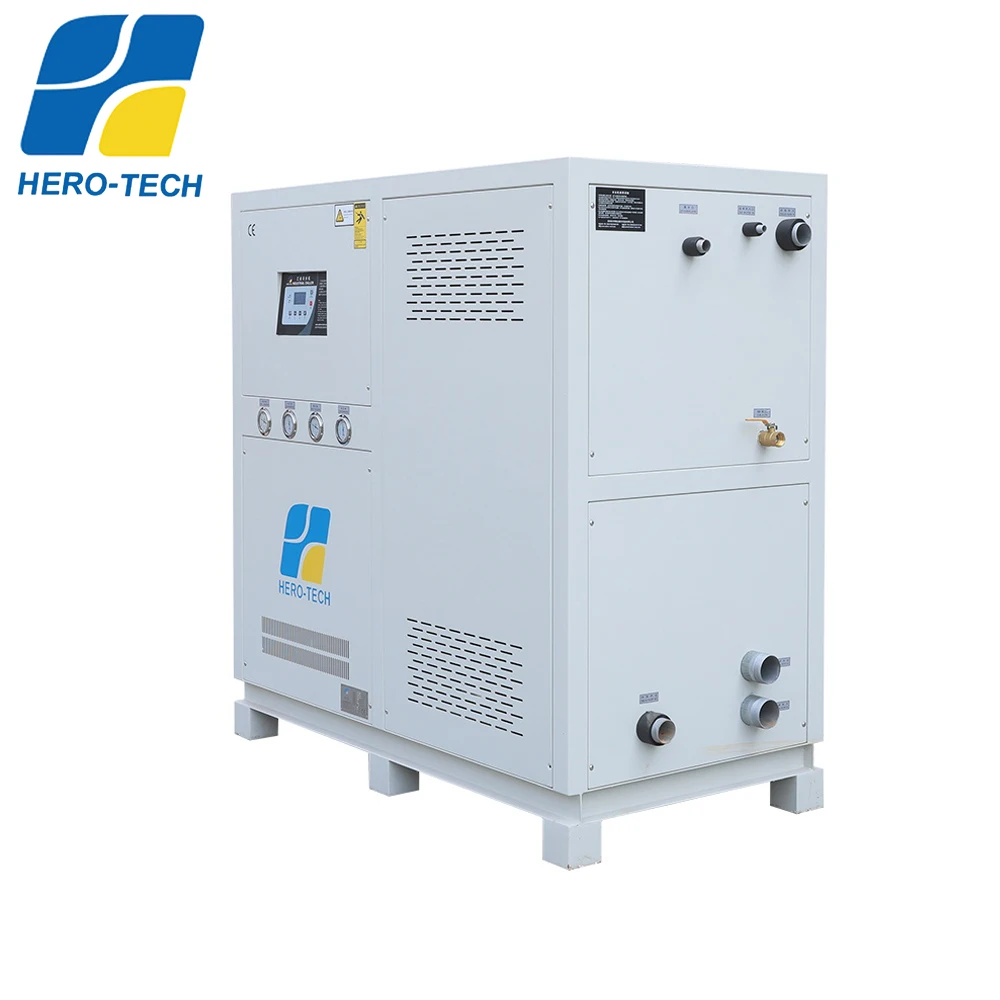

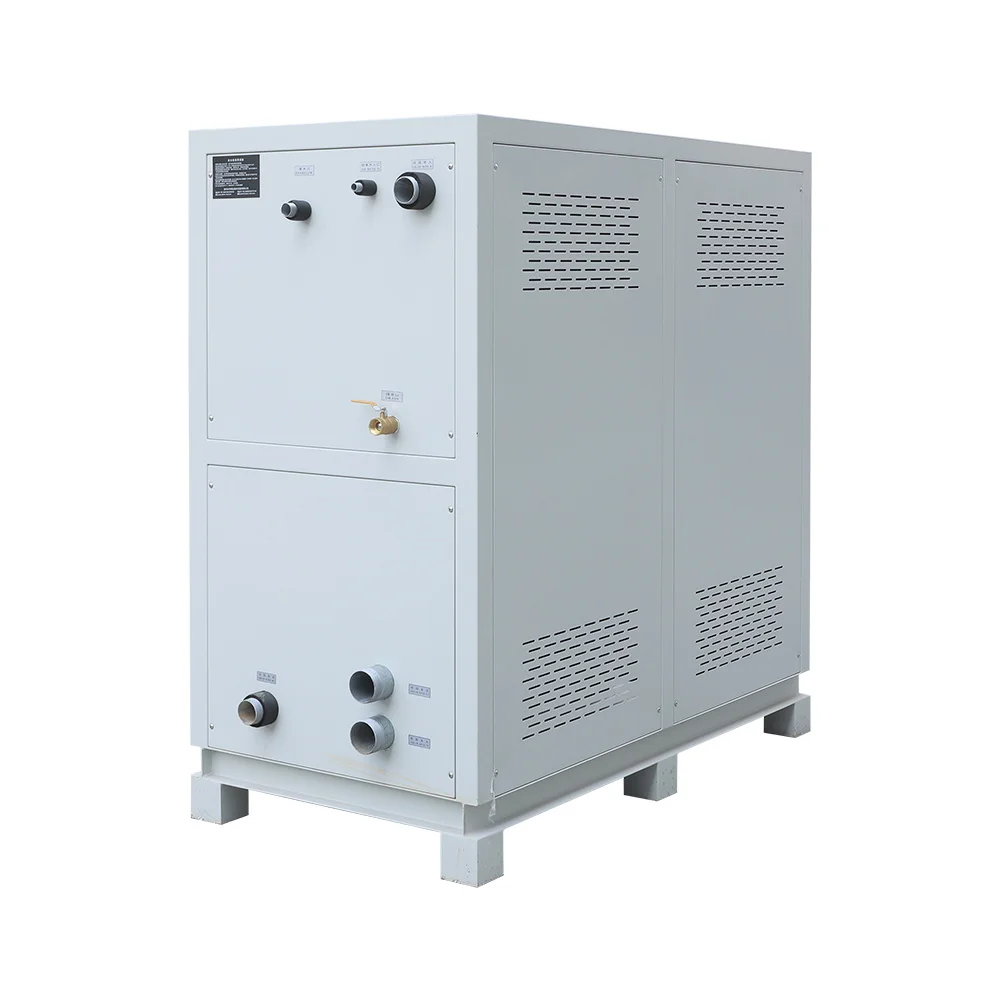

50KW 15hp Industrial Water Cooled Scroll Water Chiller for Plastic Industry Shell and Tube Tank with Copper Coil Hermetic Scroll

Product Overview

Description

HTI-W series industrial chiller is mainly applied in Plastic & Rubber industry, it can accurately control the molding temperature and shorten the molding circle, increase the product quality and improve the production efficiency. They are widely used in Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplate, Semi-conductor testing, Water jet, Vacuum coating, Construction and Military.

Product Parameters

50KW 15hp industrial water cooled scroll water chiller for plastic industry

Model			HTI-15WD
Nominal cooling capacity	7ºC	kcal/h	41228
		kw	47.94
	12ºC	kcal/h	50722
		kw	58.98
Input power		kw	12.02
Power source			3PH 380V~415V 50HZ/60HZ
Refrigerant
Type			R22/R407C
Control			Thermostatic expansion valve
Compressor
Type			Hermetic-scroll
Power		KW	4.91*2
Evaporator
Type			tank with copper coil/shell and tube
Chilled water volume		m3/h	7.74
Tank volume		Iiter	330
Pipe connection		Inch	2-1/2
Pump
Pump power		Kw	2.2
Pump lift		m	20
Condenser
Type			Shell and tube
Cooling water volume		m³/h	9.37
Pipe connection		inch	2
Safety devices			Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection
Dimension
Length		mm	1650
Width		mm	850
Height		mm	1650
Net weight		KG	420
The above specifications are according to the following design conditions: 1. Chilled water inlet/outlet temperature 7ºC/12ºC. 2. Cooling water inlet/outlet temperature 25ºC/30ºC. Cooling capacity of R407C unit will be 5% lower than R22 unit We reserve the right to modify the specifications without further notice.



Product details

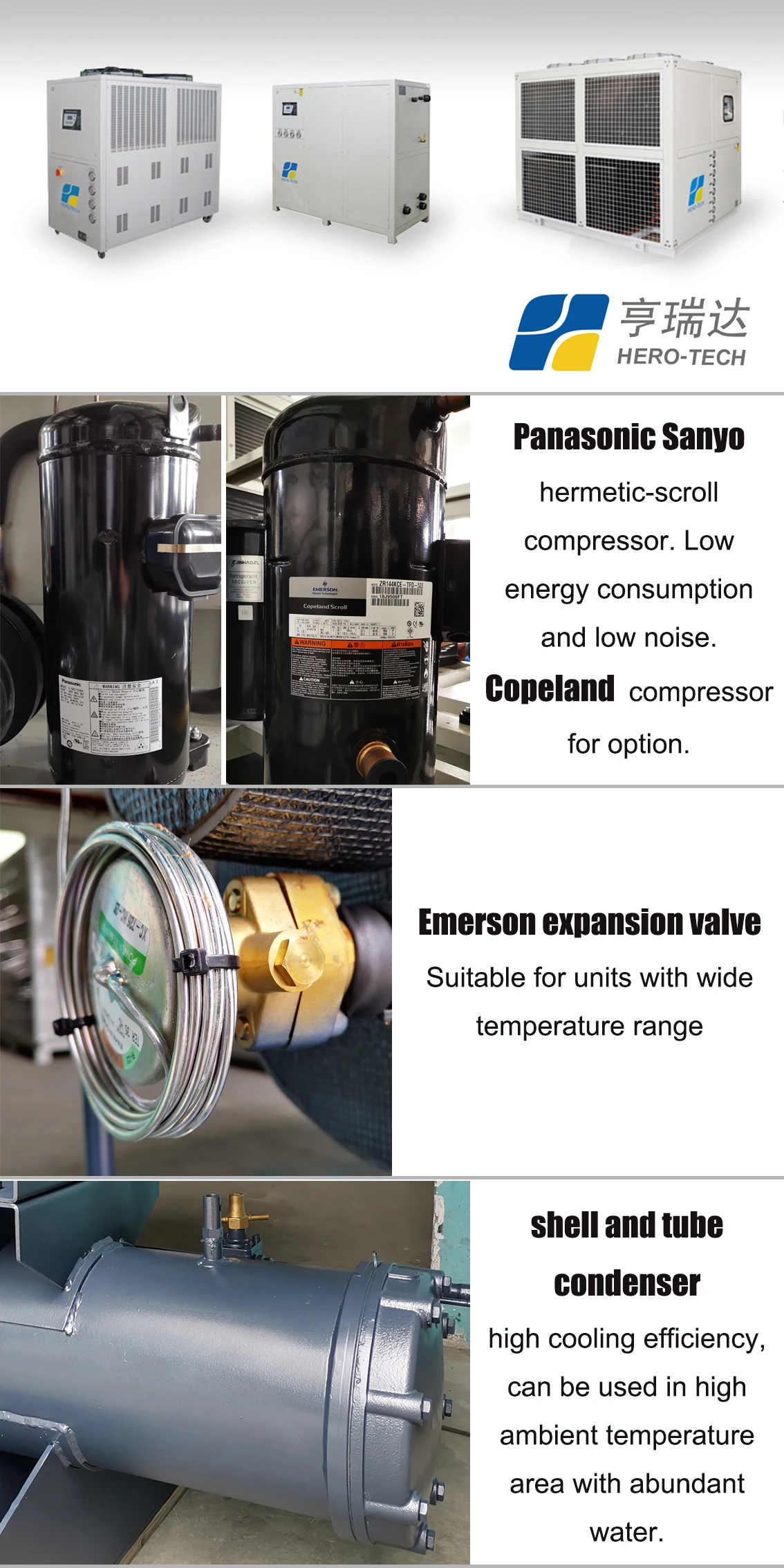

Design features
1.Self-processing components: Condenser, Evaporator, SS storage tank and Cabinet self-processing.

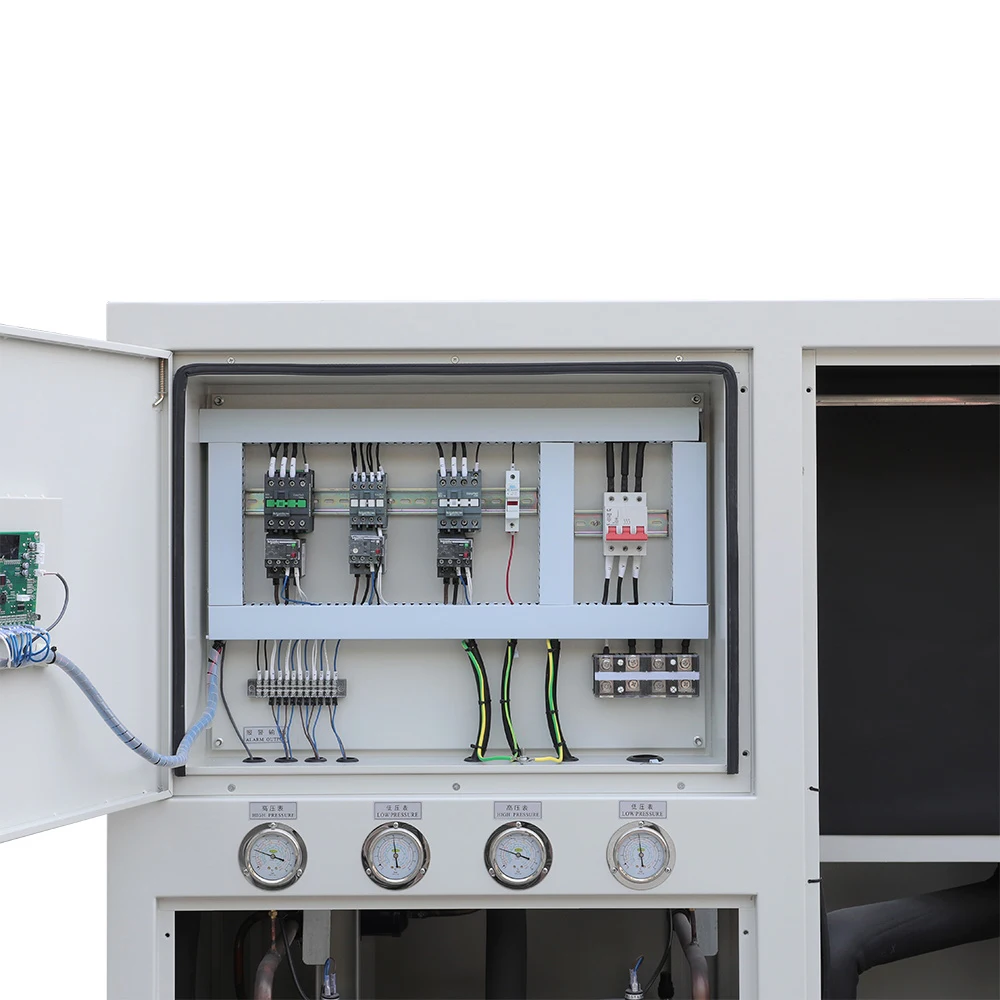

2.Schneider electrical components.

3.Evaporator : copper coil built in SS tank evaporator, easy for cleaning and installation (plat type, shell and tube available on request). The innovative evaporator-in-tank configuration ensure a steady water temperature offered, as the evaporator also cools the tank itself, reduces ambient heat again, and increases the efficiency.

4.Refrigerant: R22 charged, CFC free type R407C, R410A, R134A for option.

5.Energy efficient solutions: our specialists are aware of the rising cost of energy and the pressure to reduce energy consumption, and offer many energy saving products that favor life time costs including variable speed pump & fan packages and energy efficient refrigeration products.

6.Multi-protection devices ensure the chiller unit running safety.

-Compressor inner protection,

-over current protection,

-high/low pressure protection,

-over temperature protection,

-High discharge temperature alarm

-flow rate protection,

-phase sequence/phase missing protection,

-low level coolant protection,

-anti freezing protection,

-exhaust overheat protection

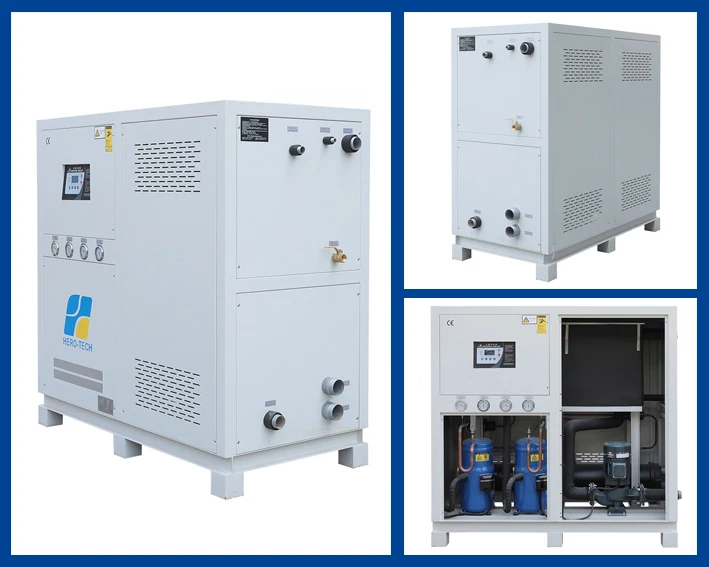

Product Show

Application

                              Our chillers are exported to more than 50 countries all over the world



About us

Hero-Tech refrigeration Equipment Co., Ltd, subordinated to Hero-Tech Group, was founded in Shenzhen Guangdong Province in 2005, with registered capital RMB5,000,000.00. And we have our own heat exchanger processing factory and Casing processing factory.

Since its inception, Hero-Tech adhered to Germany technique and management and passed certification of ISO9001:2000 and CE. 20 years experience in industrial refrigeration made Hero-Tech front-runner status in China. Meanwhile, oversea sales network was built and improved, covering dozens of countries and areas, such as the Occident, Middle-East, South-East Asia and Australia. It brings continuing rapid growth of annual export volume. Till the end of 2019, export value contributes more than 70% of the annual sales turnover.

“Professional, therefore take the lead”. After years of development, Hero-Tech has domestic and foreign customers consistent high praise because of excellent product performance and high efficiency service.

Exhibition



Q1: Could you help us to recommend the model for our project?
A1: Yes, we have engineer to check the details and choose the correct model for you. Based on the following:

Cooling capacity; If you don’t know, you can offer the flow rate to your machine, temperature in and temperature out from your using part; Environment

temperature; Refrigerant type, R22, R407c or other, pls clarify; Voltage; Application industry; Pump flow and pressure requirements;

Any other special requirements.

Q2: How to ensure your product with good quality?
A2: All our products with CE certificate and our company Strictly comply with ISO900 quality management system. We use the worldwide famous brand accessories, such as DANFOSS, COPELAND, SANYO, BITZER, HANBELL compressors, Schneider electrical components, DANFOSS/EMERSON refrigeration components.

The units will be fully tested before package and The packing will be carefully checked.

Q3: What's the warranty?
A3: 1 year warranty for all parts; Whole life labor free!

Q4: Are you a manufacturer?
A4: Yes, we have more than 23 years in industrial refrigeration business. Our factory located in Shenzhen; Welcome to visit us at anytime. Also have patent on the chillers’ design.

Q5: How can I place an order?
A5: Contact our online customer service, or call us via Cel number +86 15920056387 directly.
