Panel Beam Saw Machine Highest Speed Best Quality
- Category: >>>
- Supplier: ALLAME MAKINA VE BILISIM SANAYI TICARET LIMITED SIRKETI
Share on (1600441499472):
Product Overview
Description
Product Overview

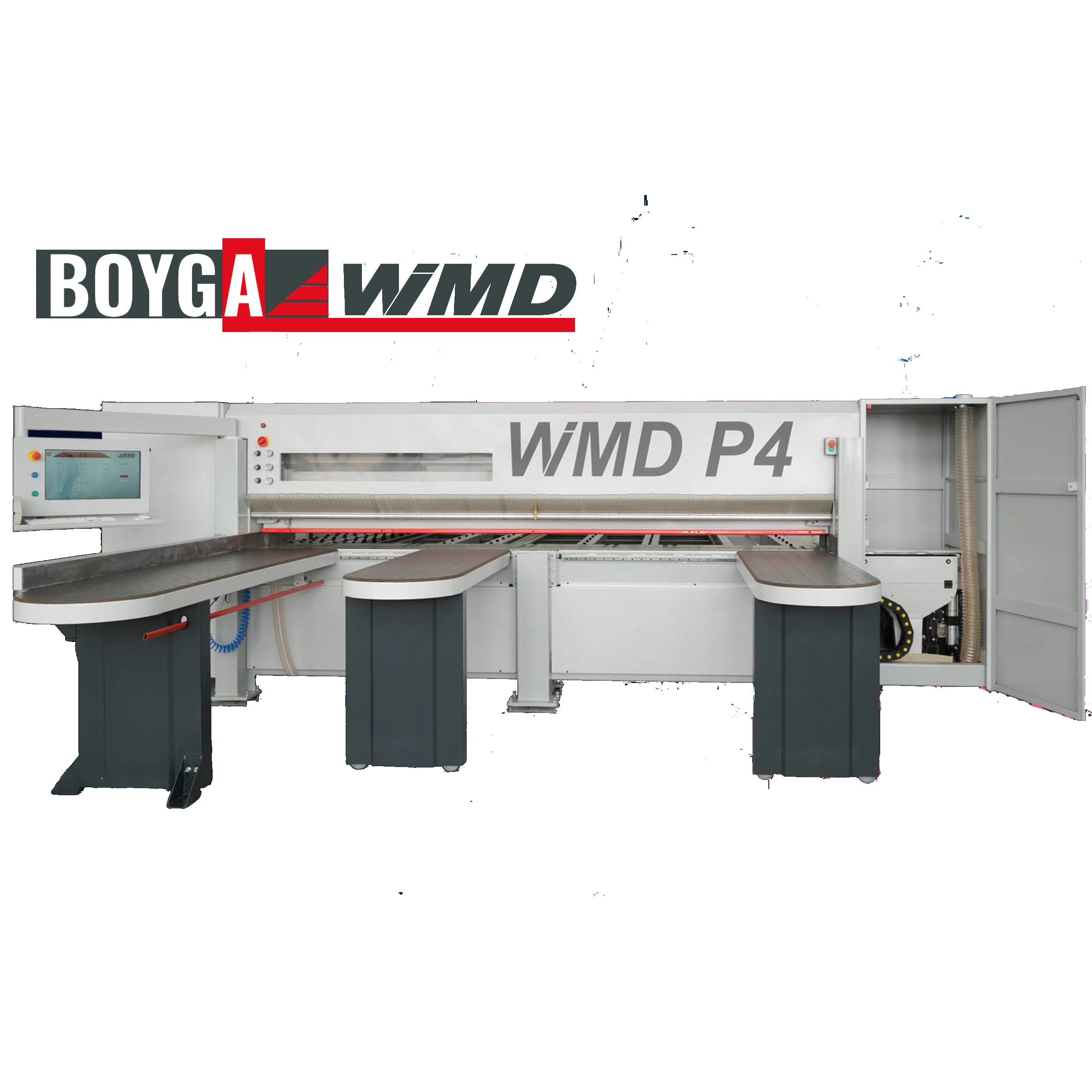

High Precision Panel Beam Saw Machine
Phone&Whatsapp :+90 552 694 59 34
FEATURES AT A GLANCE
Software features
1. Optimization program (100% Made in Turkey) KOPEKSPER Ø
* An algorithm developed for 15 years that offers both horizontal and vertical raw mixed cutting options for the most efficient
and fastest cutting.
•Unlimited size and plate entry.
•Defining edge band hole channel.
•Ability to design barcode/label design as desired.
•Ability to obtain cost material and waste reports
2. Machine interface program (100% Made in Turkey)
•Program name: WMD Work
•Sequential or individual cutting option for projects.
•Option to skip cut and pick up where you left off.
•Activating/deactivating features such as saw step, overprint step, use of side support, use of plotter, barcode extraction as
needed.
•End-to-end/ end-to-end cut option.
•Easy display of edge band, part description and part dimensions on the cutting screen.
•Simulated cutting assistant that prevents the operator from making mistakes during cutting.
•Energy saving with automatic saw/drawer motor on and off.
•Ability to silence all engines with the pause button during tea breaks during lunch breaks and continue cutting with the continue
button when returning (energy saving).
•Reclining circle mode.
•Manual cut-to-length mode.
•Plotter Trial mode.
•Automatic Saw Parking.
•Program name: WMD Work
•Sequential or individual cutting option for projects.
•Option to skip cut and pick up where you left off.
•Activating/deactivating features such as saw step, overprint step, use of side support, use of plotter, barcode extraction as
needed.
•End-to-end/ end-to-end cut option.
•Easy display of edge band, part description and part dimensions on the cutting screen.
•Simulated cutting assistant that prevents the operator from making mistakes during cutting.
•Energy saving with automatic saw/drawer motor on and off.
•Ability to silence all engines with the pause button during tea breaks during lunch breaks and continue cutting with the continue
button when returning (energy saving).
•Reclining circle mode.
•Manual cut-to-length mode.
•Plotter Trial mode.
•Automatic Saw Parking.
•To be able to view the Production Information, to be able to view the number of cut plates and the number of parts removed.
•Maintenance Assistant (the system that warns the operator to service the machine at the time of maintenance).
•Alarm Assistant (presenting to the operator what should be done in case of an alarm in the machine, together with video photos
and documents).
•Ability to adjust cutting speeds that change automatically depending on the plate and thickness.
•Maintenance Assistant (the system that warns the operator to service the machine at the time of maintenance).
•Alarm Assistant (presenting to the operator what should be done in case of an alarm in the machine, together with video photos
and documents).
•Ability to adjust cutting speeds that change automatically depending on the plate and thickness.
3. Manual Edit/Drawing Program (100% native)
* Program Name: WMD Manual Draw
•3- Manual Edit/Drawing Program(100% native)
•Adding/removing parts using the mouse to the gaps in the templates formed in the optimization.
•Preparing a cutting template on the plate by using the mouse, as if drawing on paper from scratch
•Machine cutter saw speed 0-120 m/min. adjustable from the screen
•If the machine saw speed is selected automatically, it will cut fast for 18mm thickness.
•Saw cutting speed automatically decreases as part thickness increases
•There is an automatic deceleration option in front shaving and back shaving (to prevent the cutting saw from tilting)
•Pre-shaving standby mode: When ten trimming cuts are finished, ten curtains are opened, falling cheetahs are taken, and the
start is pressed again.
* Program Name: WMD Manual Draw
•3- Manual Edit/Drawing Program(100% native)
•Adding/removing parts using the mouse to the gaps in the templates formed in the optimization.
•Preparing a cutting template on the plate by using the mouse, as if drawing on paper from scratch
•Machine cutter saw speed 0-120 m/min. adjustable from the screen
•If the machine saw speed is selected automatically, it will cut fast for 18mm thickness.
•Saw cutting speed automatically decreases as part thickness increases
•There is an automatic deceleration option in front shaving and back shaving (to prevent the cutting saw from tilting)
•Pre-shaving standby mode: When ten trimming cuts are finished, ten curtains are opened, falling cheetahs are taken, and the
start is pressed again.
General Features
* Working with all optimization programs suitable barcode printer
* Plotters and plotters that move independently of each other. cutter groups
* Panel door style with pressure adjustable holders cutting materials without breaking possibility
* Easy to use operator control panel
* Automatic cutting, Reclining circle mode, Manual four cutting and Semi-automatic cutting mode different cutting application
* Easily optional scriber saw group Possibility to open and close
* Easy troubleshooting and alarm system: Malfunctions and problems in the machine are illustrated on the screen. shows as. How
to alarm warning and fault simple thanks to the video explaining how to fix it faults can be easily fixed.
* During the cutting, there is no problem in the jaw group. safety alarm in case of opening for a reason system exists.
* Saw control and tracking system: Adjusted When the number of plates is reached, it notifies the operator that it is time to
change the saw.
* Finger protection safety system
* Double side brace: 2800 mm side brace distance
* Operator table: 700 x 2500 mm in size and 2 movable 555 x 2500 mm tables.
* Certificate of conformity with CE safety standards.

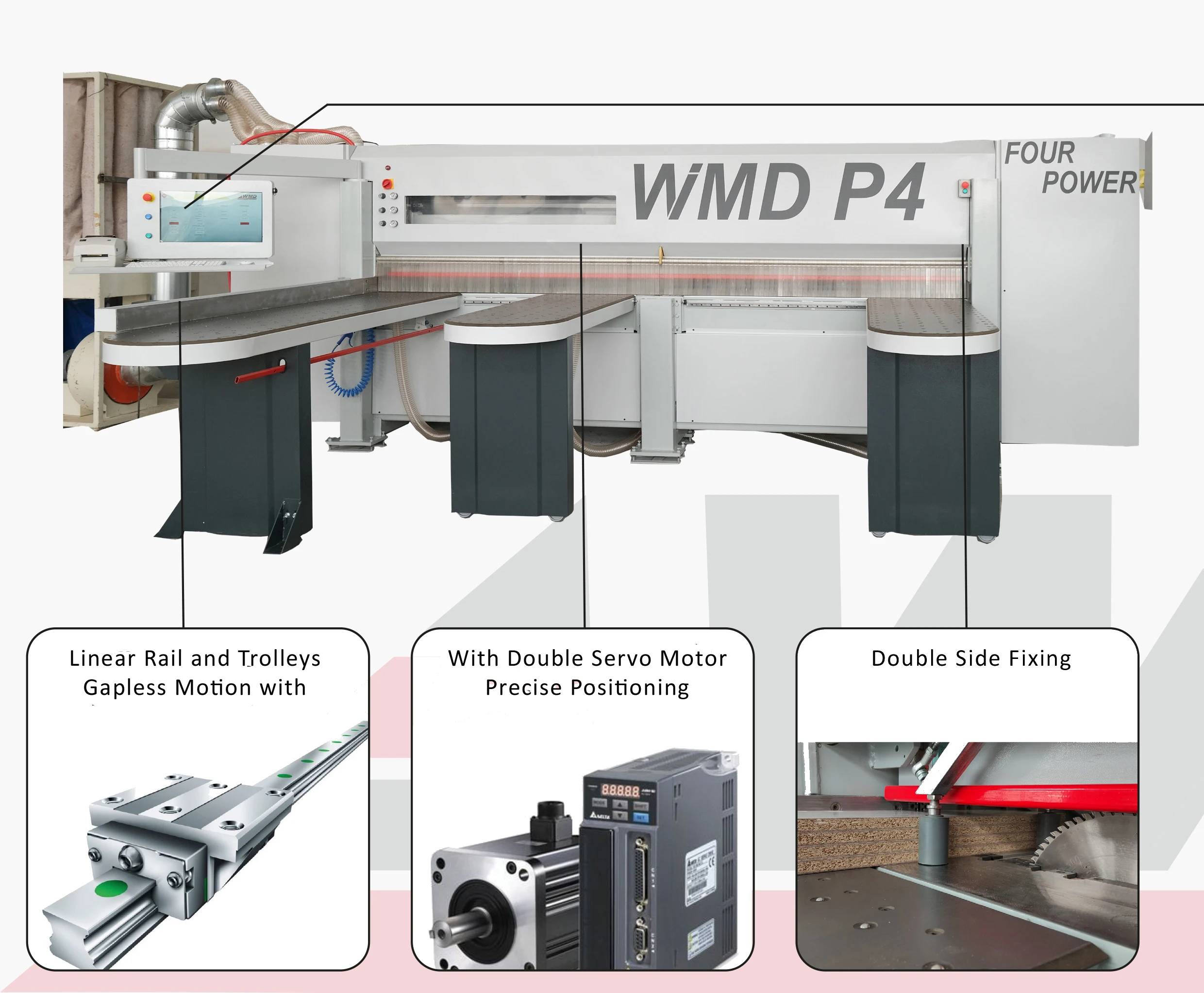

* Rail and car group are moved on all moving axes with rack gear set.
* Working with all optimization programs suitable barcode printer
* Plotters and plotters that move independently of each other. cutter groups
* Panel door style with pressure adjustable holders cutting materials without breaking possibility
* Easy to use operator control panel
* Automatic cutting, Reclining circle mode, Manual four cutting and Semi-automatic cutting mode different cutting application
* Easily optional scriber saw group Possibility to open and close
* Easy troubleshooting and alarm system: Malfunctions and problems in the machine are illustrated on the screen. shows as. How
to alarm warning and fault simple thanks to the video explaining how to fix it faults can be easily fixed.
* During the cutting, there is no problem in the jaw group. safety alarm in case of opening for a reason system exists.
* Saw control and tracking system: Adjusted When the number of plates is reached, it notifies the operator that it is time to
change the saw.
* Finger protection safety system
* Double side brace: 2800 mm side brace distance
* Operator table: 700 x 2500 mm in size and 2 movable 555 x 2500 mm tables.
* Certificate of conformity with CE safety standards.
* Rail and car group are moved on all moving axes with rack gear set.
