Factory Supply 630MM Other Hand Tools Cheap Price Plastic Scraper Plumbing Tools Hdpe Fitting Pipe Scraper
Product Description

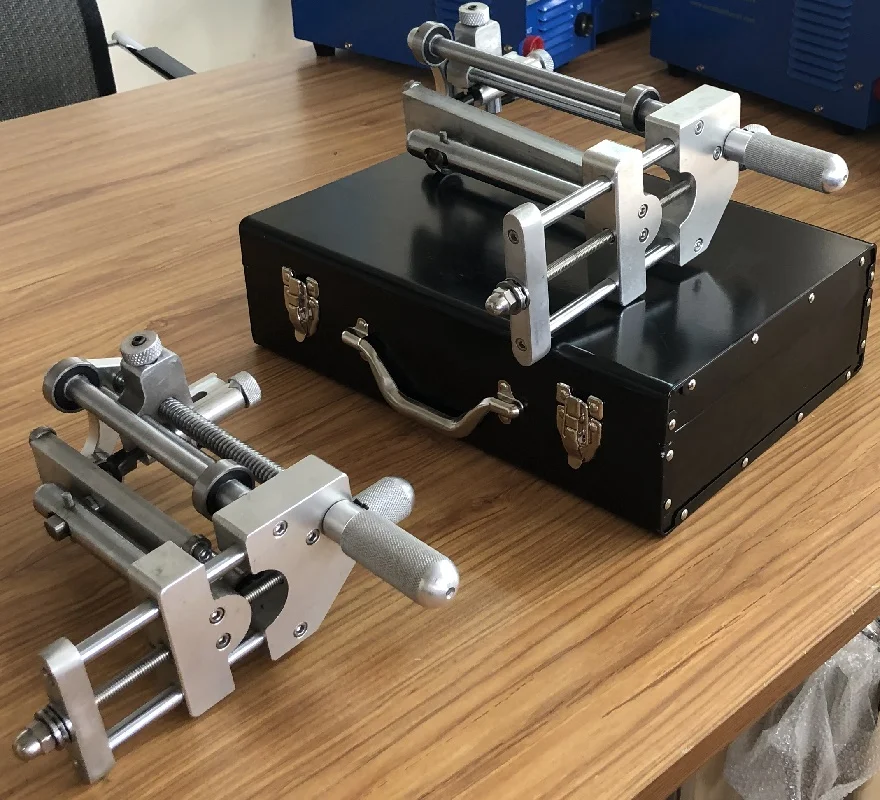

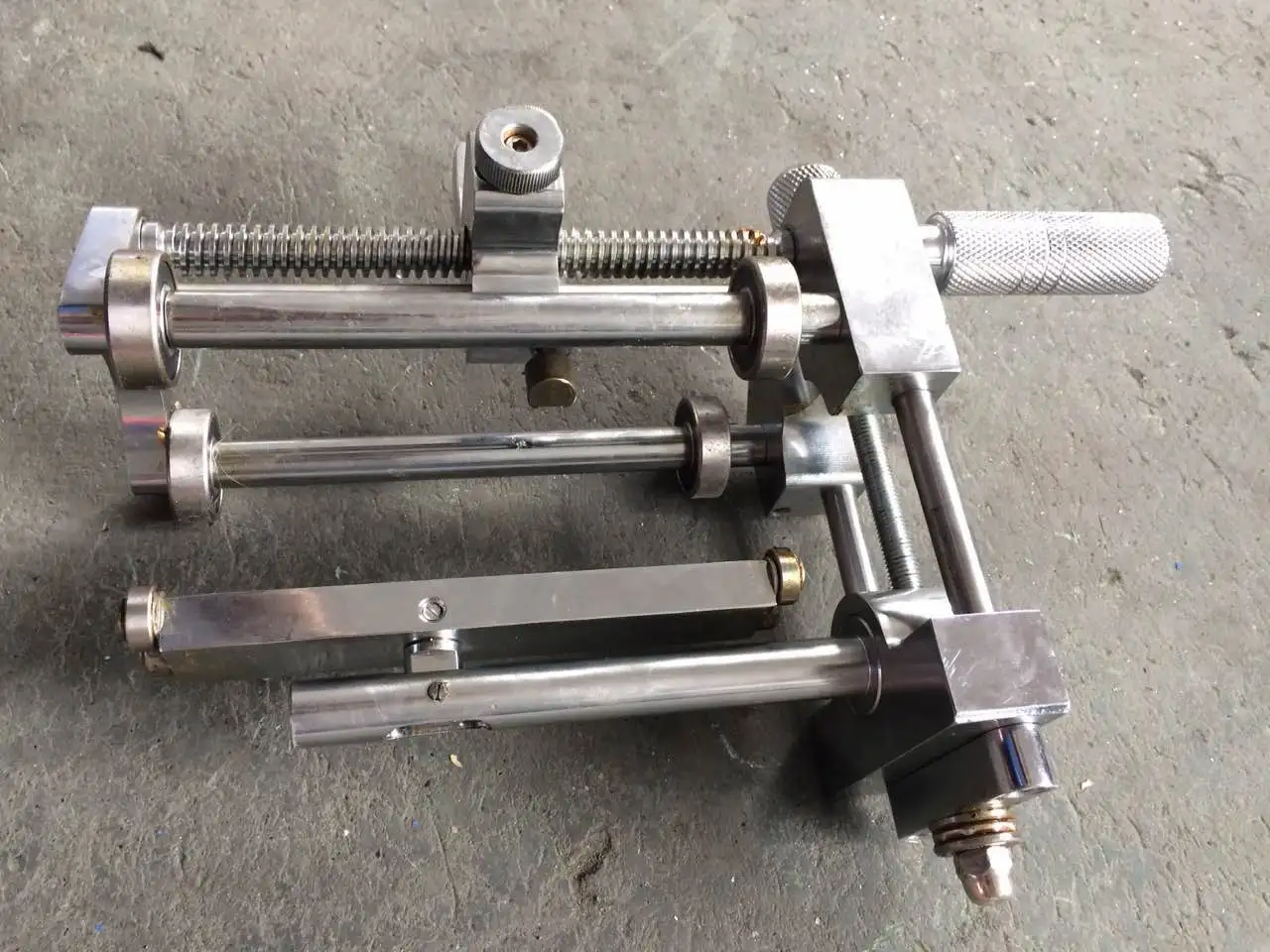

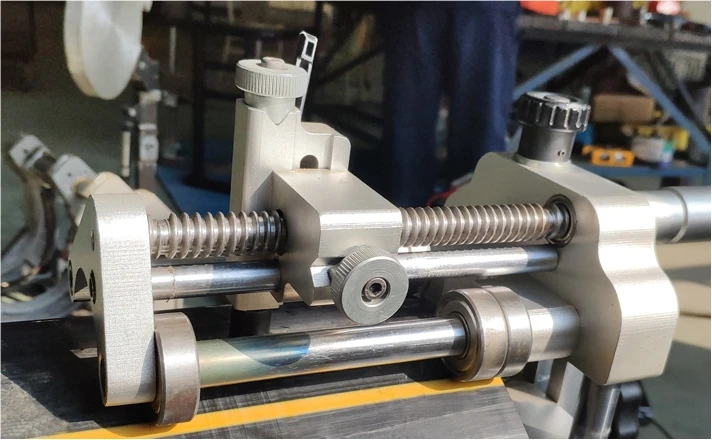

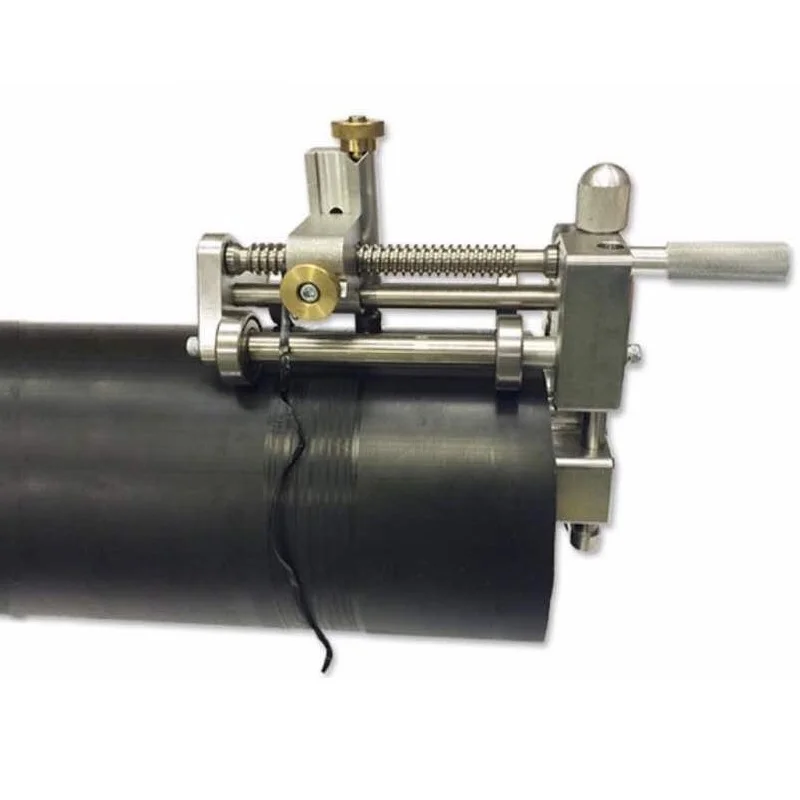

63-400mm HDPE Plastic PE Pipe Scraper Hand Tool Rotating Pipe Scraper
Professional rotary scrapers, essential to prepare the plastic pipes and fittings before electrofusion welding.By adjusting the telescopic fixture, it can effectively adapt to the scraping of different pipe diameters by the scraper. The scraping is continuous, even if the pipe is deformed, the scraping effect can still meet the desired needs. At the same time, the
position of the surface to be scraped can be adjusted according to the welding depth of the electrofusion coupler.
position of the surface to be scraped can be adjusted according to the welding depth of the electrofusion coupler.
Model | Working Range (out Diameter) | Working Range (inner Diameter) | Maximum scraping depth(mm) | Diamension(mm) | Weight(kg) |
PF-TC200 | 63~200MM | 55~192MM | 129MM | 425X305X125MM | 3.8KG |
PF-TC400 | 63~400MM | 55~365MM | 150MM | 425X305X125MM | 3.8KG |
PF-TC800 | 200~800MM | 182~728MM | 225MM | 430X340X130MM | 5.2KG |
Application

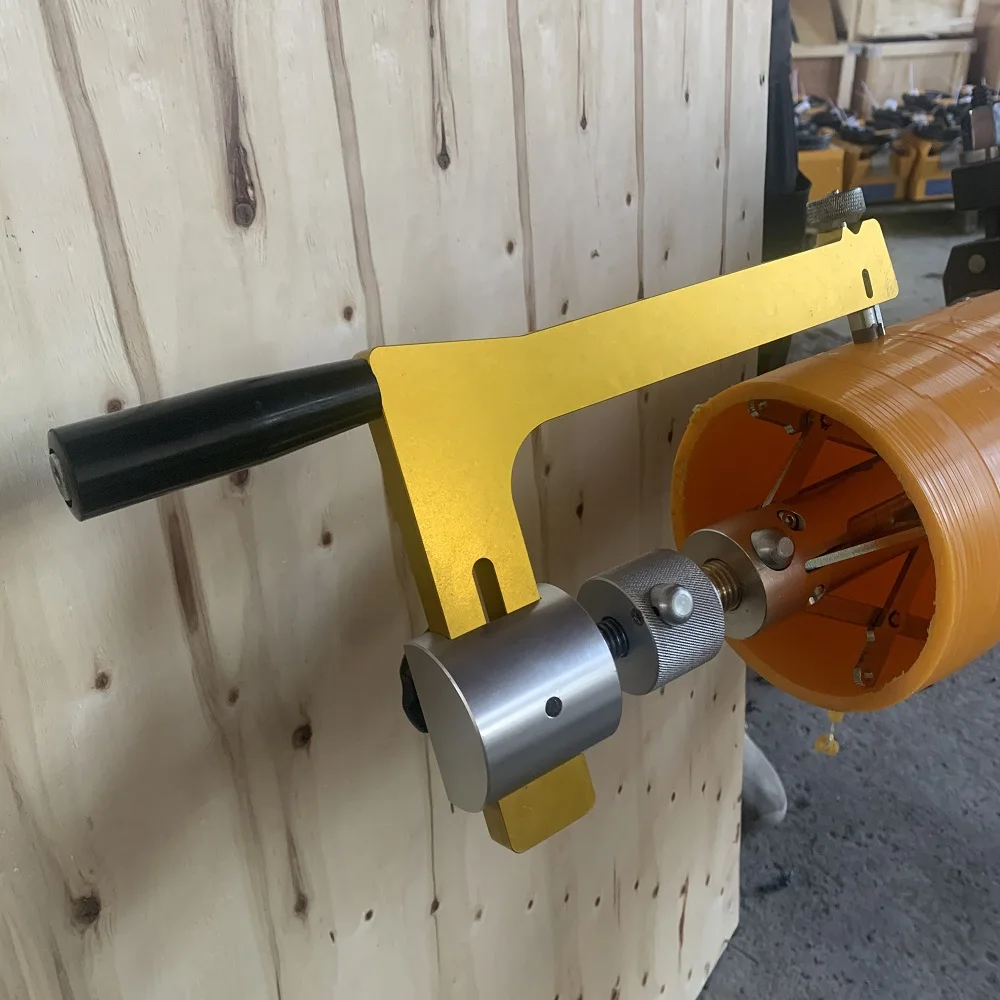

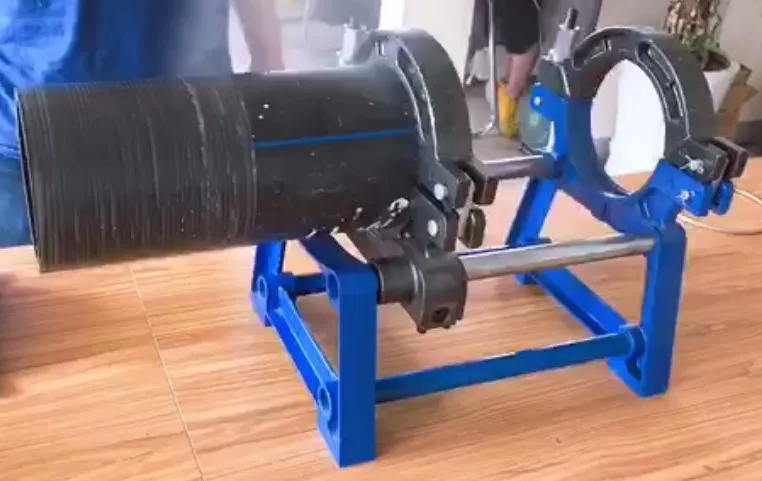

scrape off the oxide layer on the surface of the pipe
scrape off the oxide layer on the surface of the pipe
Socket the pipe(scrape off the oxide layer) to the electrofusion coupler
Connect the electrofusion coupler to machine
Scan the bar code on the EF coupler surface
Start to weld after read the data by scan
Recommend Products
PFS Series Scraper
The tools has an adjustable chuck covering all the diameter of the working range, and a blade holders orbital arm.The PFS series guarantees a constant and regular removal of the shaving. The scrapers blade holder permits the scraping of the entire electrical sleeve's lenght, most useful when doing on site repairs.
Model | Working Range (out Diameter) | Working Range (inner Diameter) | Maximum scraping depth(mm) | Diamension(mm) | Weight(kg) |
PFS200 | 75~200MM | 61~192MM | 129MM | 453x185x63MM | 2.6kg |
PFS400 | 110~400MM | 91~391MM | 150MM | 550x350x90MM | 5.5kg |

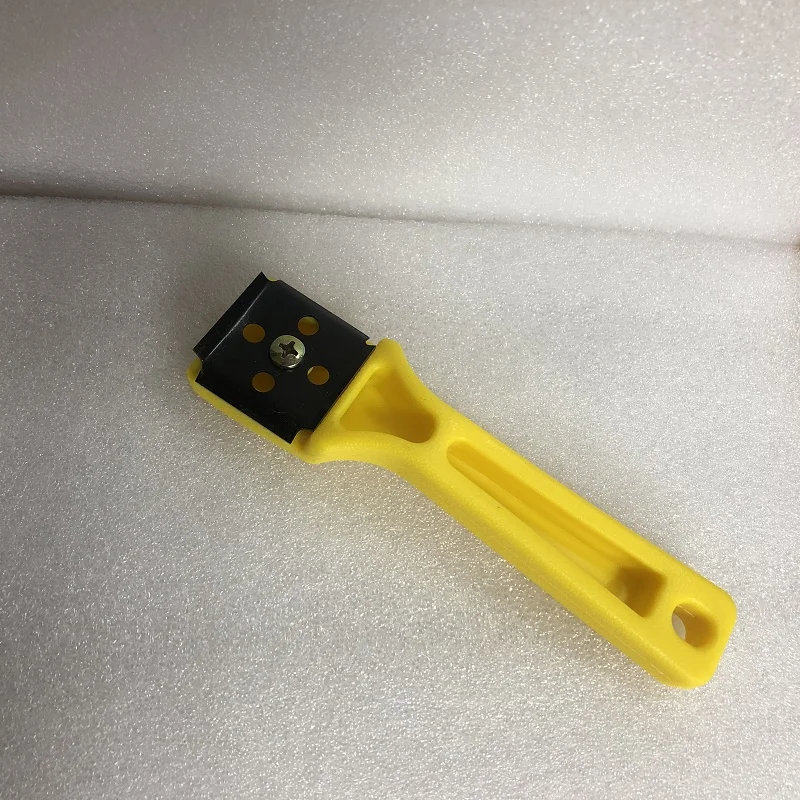

Manual Scraper
Working range up to 63mm,
Scraper size:200x50x30mm
Weight: 0.10kg
Color:Yellow,Red

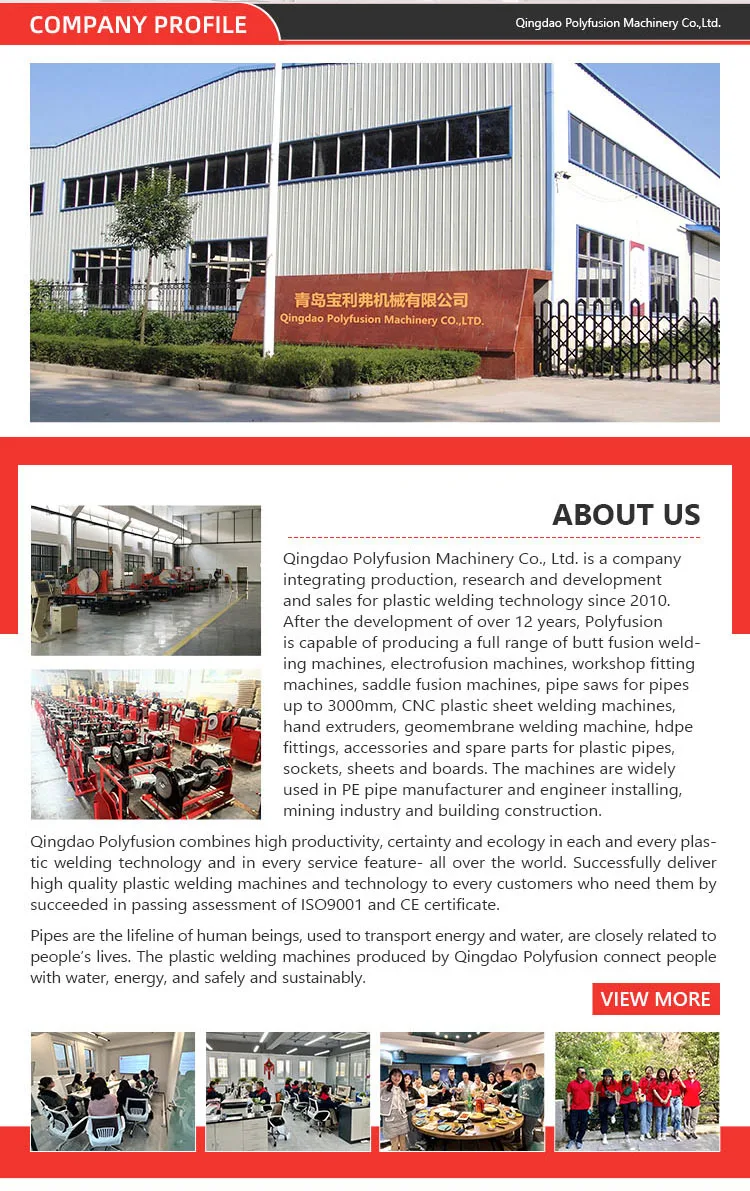

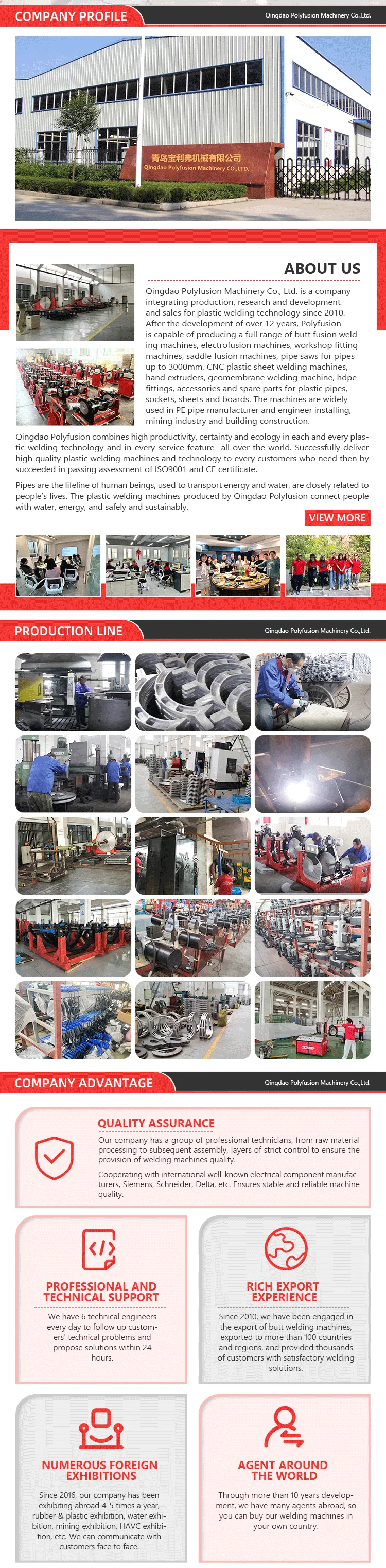

Company Profile

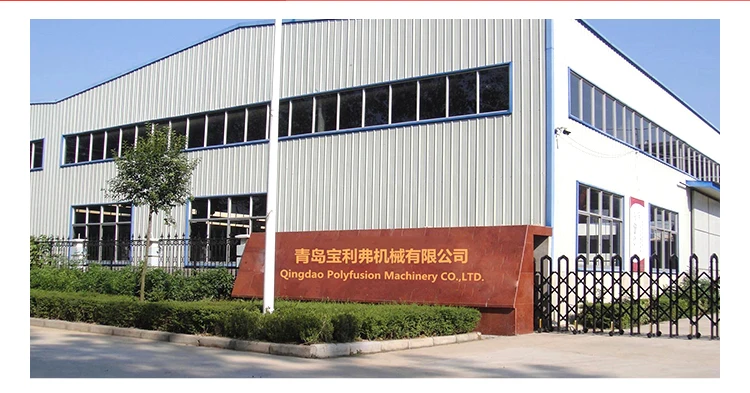

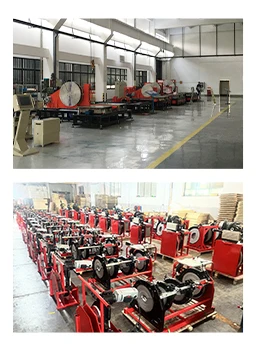

Qingdao Polyfusion Machinery Co., Ltd. is a company integrating production, research and development and sales for plastic welding technology since 2010. After the development of over 12 years, Polyfusion is capable of producing a full range of butt fusion welding machines, electrofusion machines, workshop fitting machines, saddle fusion machines, pipe saws for pipes up to 3000mm, CNC plastic sheet welding machines, hand extruders, geomembrane welding machine, hdpe fittings, accessories and spare parts for plastic pipes, sockets, sheets and boards. The machines are widely used in PE pipe manufacturer and engineer installing, mining industry and building construction.
Qingdao Polyfusion combines high productivity, certainty and ecology in each and every plastic welding technology and in every service feature- all over the world. Successfully deliver high quality plastic welding machines and technology to every customers who need them by succeeded in passing assessment of ISO9001 and CE certificate.Pipes are the lifeline of human beings, used to transport energy and water, are closely related to people’s lives. The plastic welding machines produced by Qingdao Polyfusion connect people with water, energy, and safely and sustainably.
