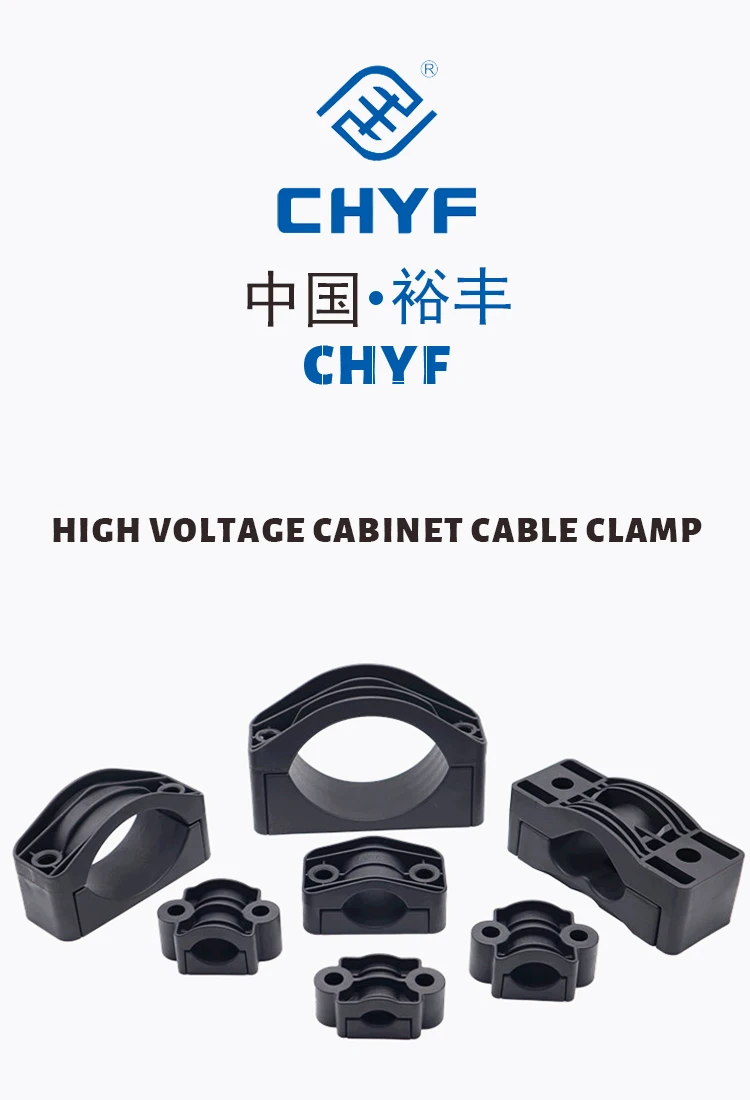

Best quality 90 150MM PA66 High Voltage Fireproof Cable Clamp Electrical Plastic Cable Clamp for Fixing Wires
- Category: Cable Clips >>>
- Supplier: Yufeng,Electric,Co.,Ltd.
Share on:
Product Overview
Description
Products Description

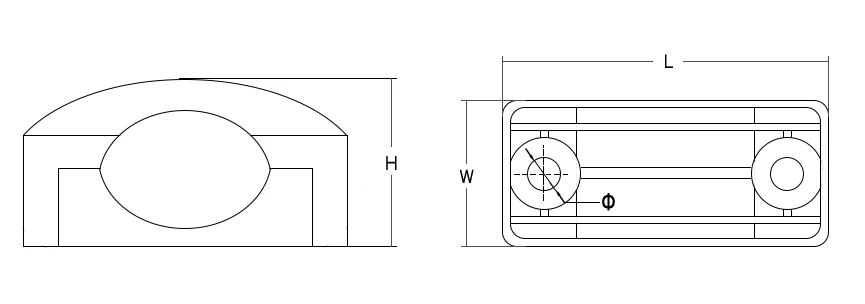

Drawing
Type | L*W*H (mm) | Applicable Cable | Hole Distance (mm) | Screw Size |
XXS (K13-25) | 89*48*32 | 13-25 | 60 | M12 |
XS (K20-36) | 89*58*36 | 23-41 | 60 | M12 |
Small (K36-52) | 108*60*50 | 35-52 | 74 | M13 |
Medium (K55-75) | 115*60*52 | 36-60 | 82 | M13 |
Large (K75-95) | 130*60*66 | 47-75 | 97 | M14 |
XL (K90-150) | 150*60*87 | 65-100 | 120 | M14 |
XXL (K160-230) | 195*65*124 | 97-150 | 160 | M14 |

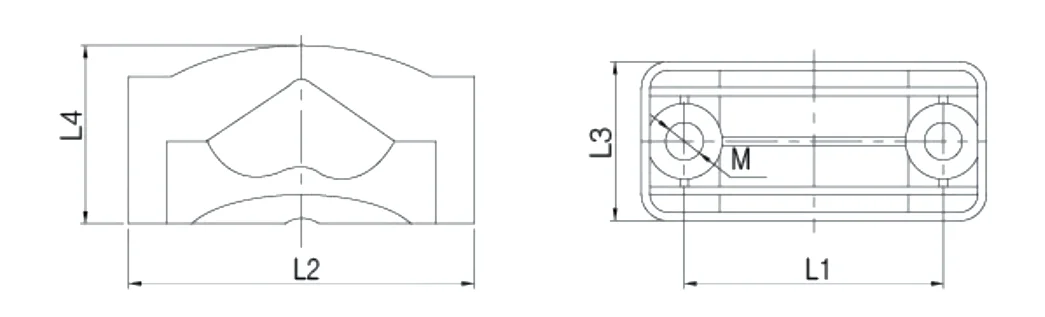

Type | Applicable cable outer diameter | L1 | L2 | L3 | L4 | M |
SY27-38 | 3*27-38 | 125 | 180 | 75 | 75 | 15.5 |
SY38-51 | 3*38-51 | 145 | 195 | 80 | 100 | 15.5 |
SY51-69 | 3*51-69 | 170 | 220 | 85 | 130 | 15.5 |
SY69-90 | 3*69-90 | 215 | 252 | 90 | 163 | 15.5 |

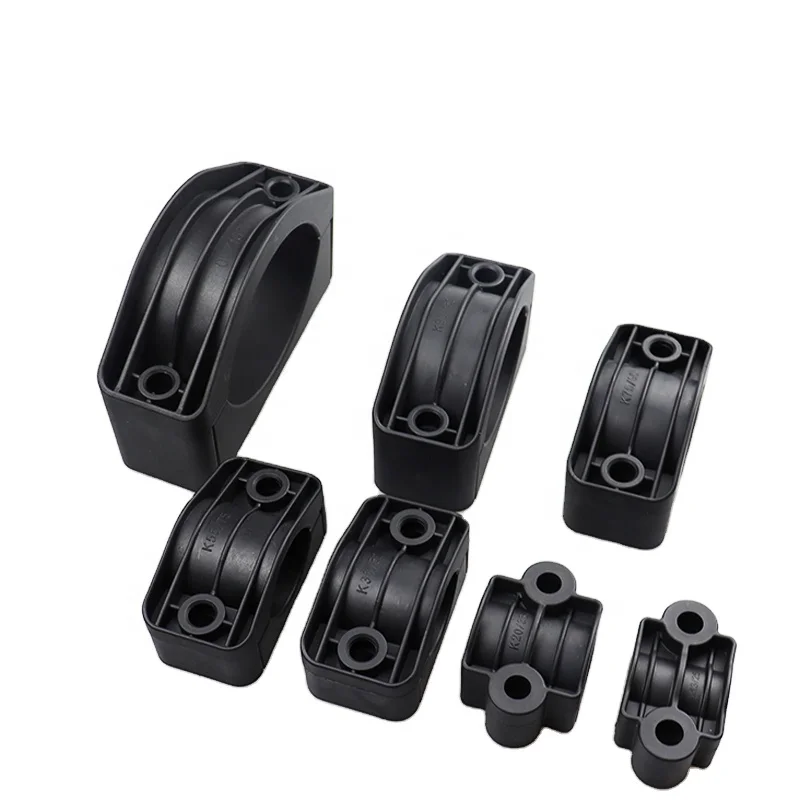

Product Photograph
