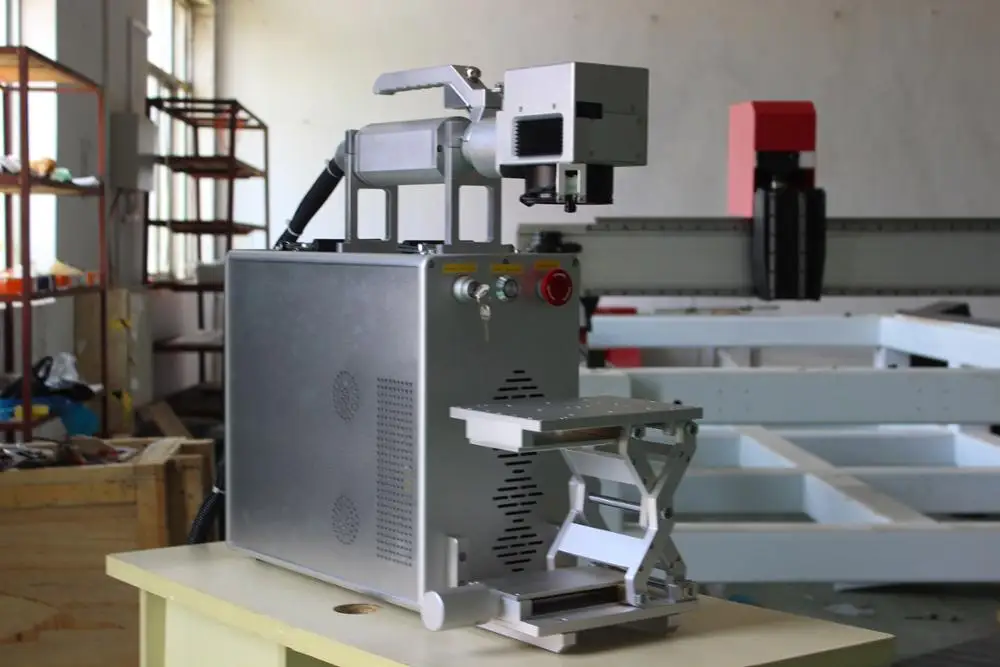

20W Fiber Portable Laser Date Logo Engraver HandHeld Marking Machine
20W Fiber Portable Laser Date Logo Engraver HandHeld Marking Machine
20W Fiber Portable Laser Date Logo Engraver HandHeld Marking Machine
20W Fiber Portable Laser Date Logo Engraver HandHeld Marking Machine
20W Fiber Portable Laser Date Logo Engraver HandHeld Marking Machine
20W Fiber Portable Laser Date Logo Engraver HandHeld Marking Machine
20W Fiber Portable Laser Date Logo Engraver HandHeld Marking Machine

20W Fiber Portable Laser Date Logo Engraver HandHeld Marking Machine

Share on (1600441932521):


Price:$1,500.00

Quantity:


Product Overview

Description



Product Description

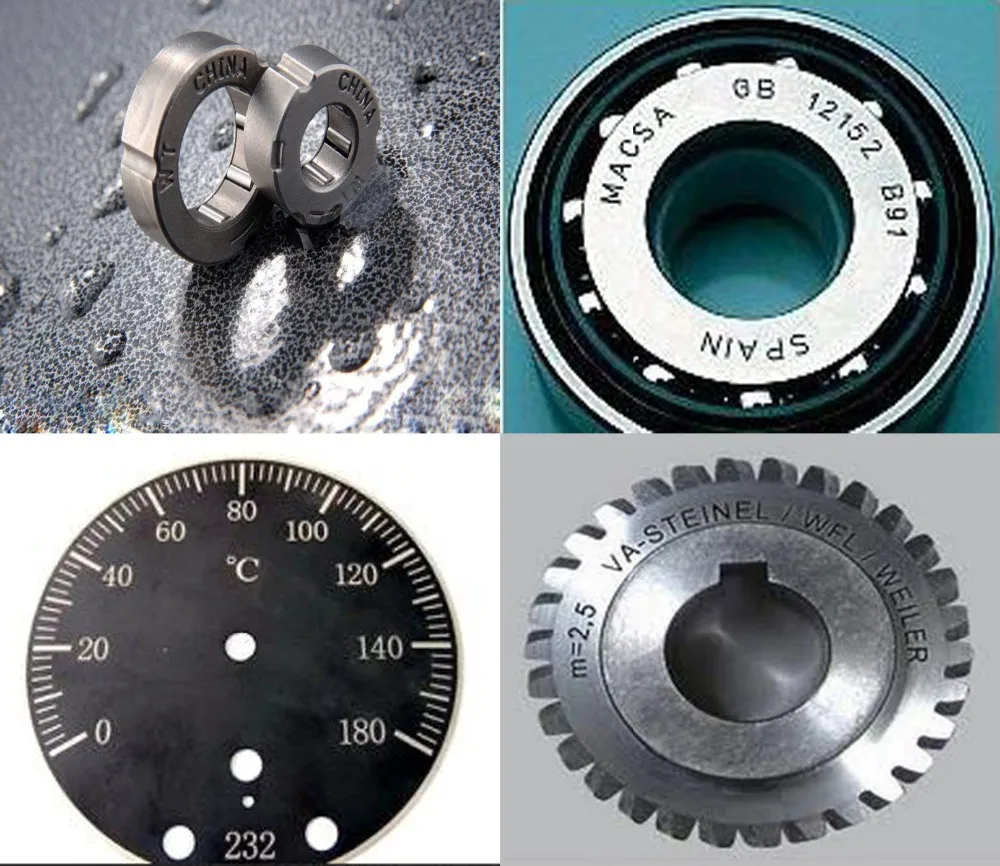

Applicable Industries

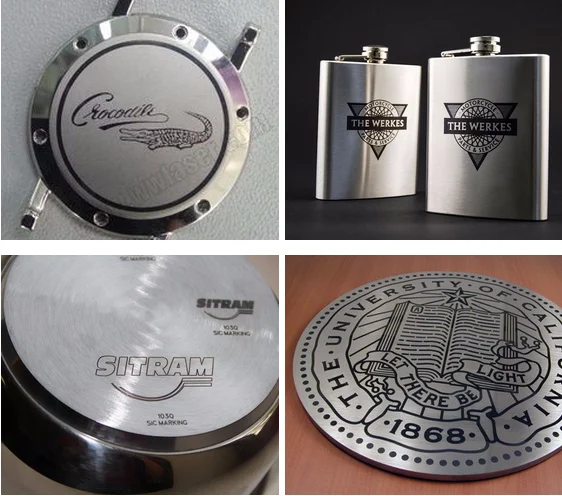

Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits(IC), electrical appliances, communication products, sanitary ware, tool, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

Applicable Materials

Metals(including rare metals), engineering plastic, electroplating materials, coating materials, plastics, rubber, epoxy, resin, ceramic, plastic, ABS, PVC,PES, steel, titanium, copper and other materials.



Technical Parameter
Model
TH-B
Working Area
100*100mm/200*200mm/300*300mm working area
Laser Power
20w/30w/50w Raycus Laser Source
Wavelength
1064nm
Making minimum characters
0.3mm
Marking Line width
0.03mm
Cooling Type
Air-Cooled
Indicate Light
Red(optional double red light)
Rotary Table
Optional
Marking Speed
≤7000mm/s
Marking Depth
0-0.5mm
Beam Quality
＜1.5
Marking Format
Graphics, text,barcodes,two-dimensional code,automatically marking the date,batch number,serial number,frequency,etc.
Repeatability accuracy
±0.001mm
Controlling Software
Ezcad
Software Supported Format
bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
Working Voltage
AC/220V/50HZ(Customizable 110v British American)
Laser Model Life
>100000hours
The Whole Life
More than 15 years
Packing size
80*27*70cm
Net Weight
65kgs




Main Features

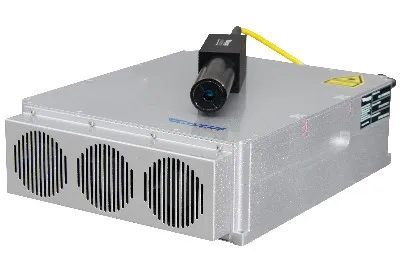

1) Fiber laser source with lifetime 100, 000 hours, long lifetime.

2) Consumables free, no maintenance, cost effective.

3) High quality laser beam, fine marking.

4) High marking speed, low energy consumption.

5) Permanent marking effect, easy for trace ability.

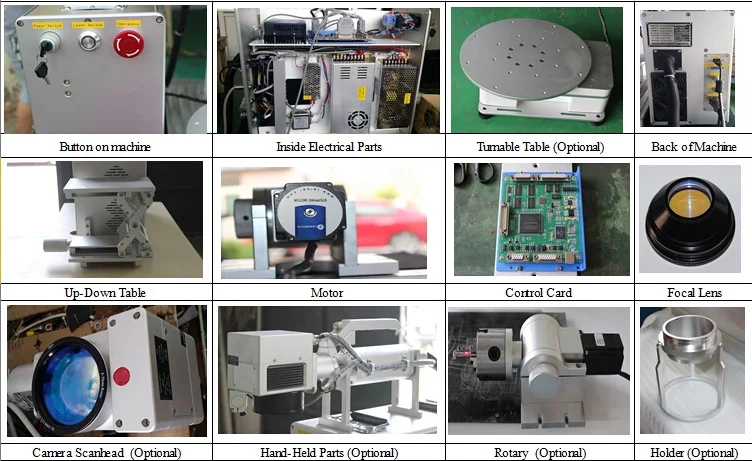

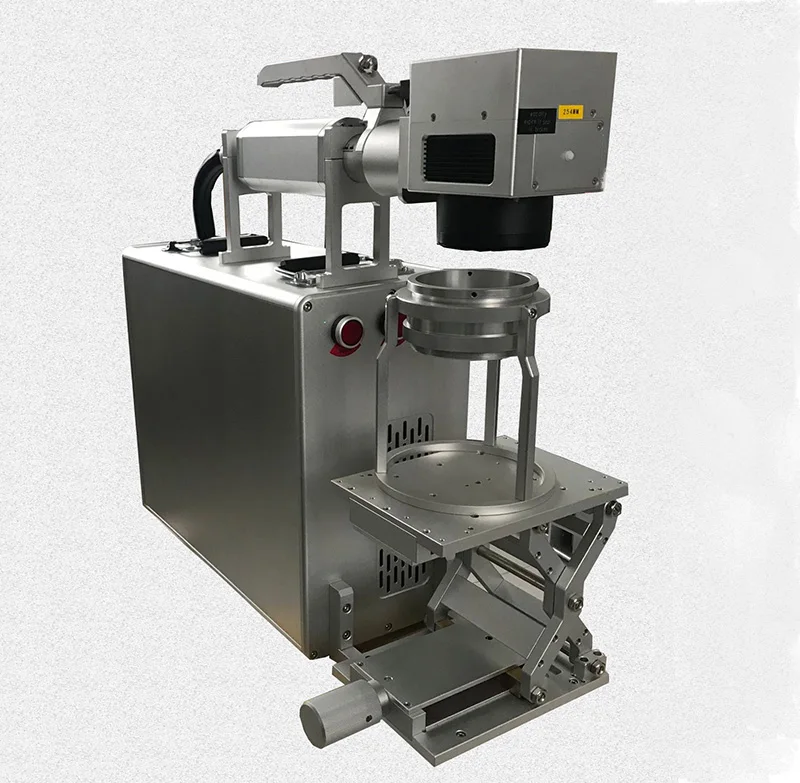

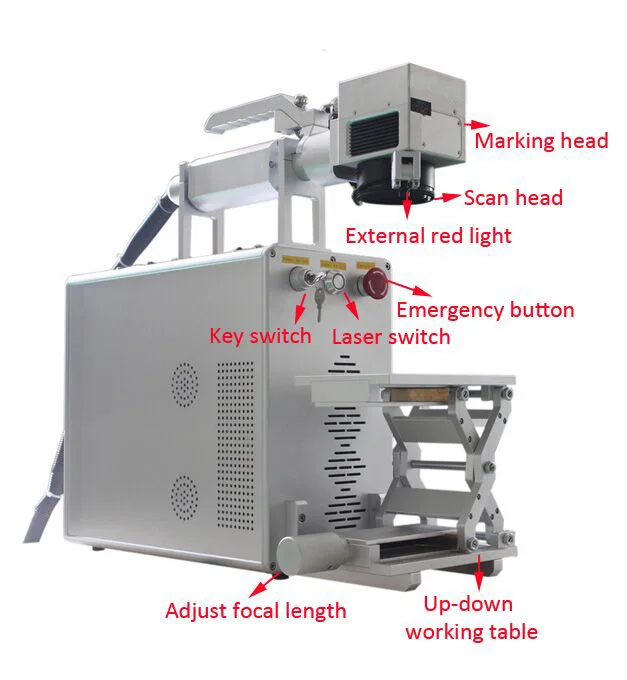

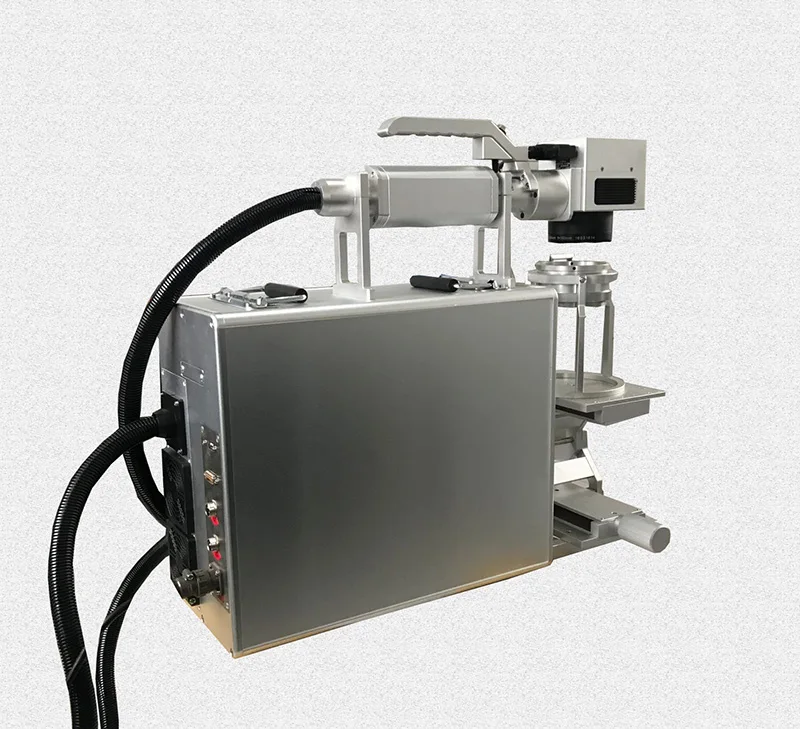

Detailed Images






 Main Feature
1.High conversion efficiency ,more than30%.
2.Free of maintenance.No need adjust laser path.
3.Comparative advantage.The processing speed is 2-3 times than the traditional marking mahine.
4.Compact design.The size of the machine is very small,potable.Suitable for mobile and fixed working.
5.Wide range of application.The fiber laser marking machine can mark on all kinds of metal materials and some kinds of nonmetal materials.
6.10 years life. Ultra-low running cost.The service life of the laser module if more than 100000hours.The unit power of the whole machine is no more than 0.5kw.
7.Most advanced.New style fiber laser marking machineis the 3rd-generation laser marking machine which is manufactured by the most advanced laser technology in the current of the word.
8.High Marking Speed.With high repeat frequency of the pulse,power output steadily,energy surge of single pulse is lower than 1%,can achieve high speed marking,and control the depth and shape of the facula.
9.Easy Operating.Afford the specific marking software based on windows,which is real-time adjust the laser power and pulse frequency.You can edit what you need to mark directly by the specific marking software and the graphic software such as Auto CAD,CORELdraw of photoshop.
10.Delicate marking.High quality laser beam(near to the limit of diffration,exporting TEM00 fundamental transverse mode,M2 near to1,expanding angle of laser beam is only 1/4 of the diode laser marker).Therefore it is very suitable for delicate marking.from quivering and resonance during long time work.


Related Products




Packing&Shipping




1.Our wooden case is after fumigation treatment.

2.Needn’t timber inspection,saving shipping time.

3.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.

4.Avoiding all damages that could happen in the delivery process.

Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.

5.The out most is wooden case with fixed form work.

6.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.

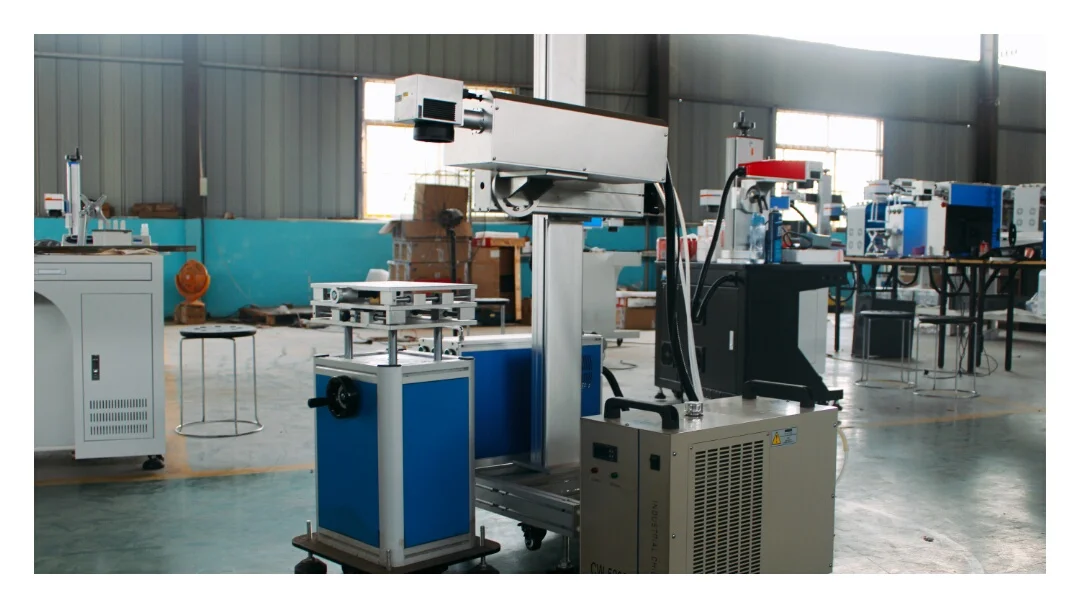

Company Introduction

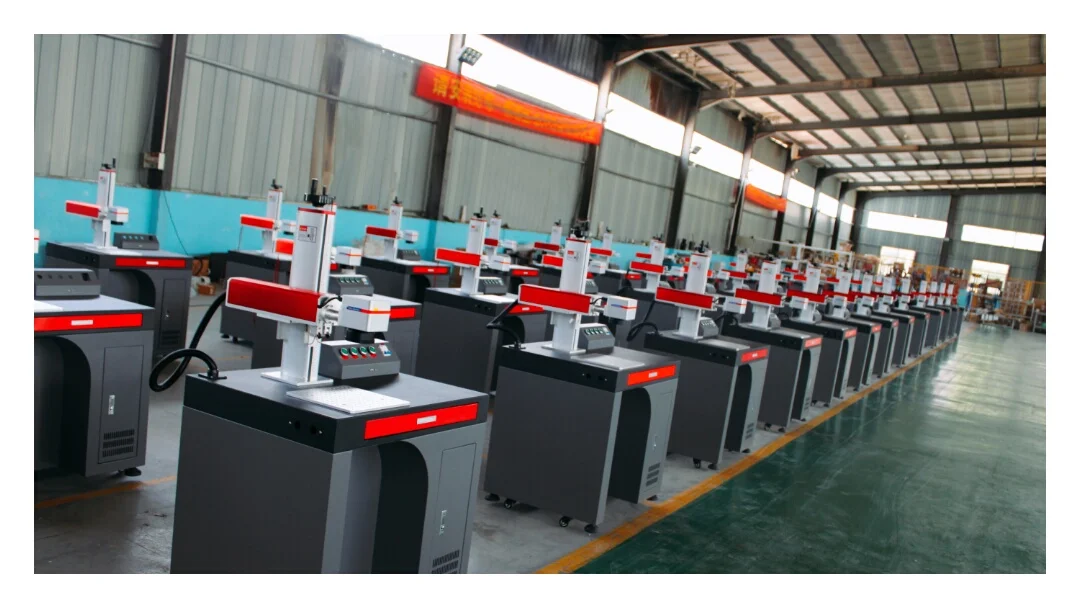

1, JINAN TIANHONG Mechanical Equipment Co., Ltd. Located in the beautiful "spring city " Jinan, is a professional CNC Machine company with manufacturing,R&D and marking.



2, Jinan Tianhong supply various CNC product such as advertising, application. Art and Craft, Organic Glass, Mould, Marking, Automobile Industry, Textile Machinery, Electronics, and so on.



3, We are specialized in providing solution for global customers with quality products and efficient services. "High Quality, Customer First" is the corporate management purpose. We have got good reputation and many agents all over the world especially in North America, European, Middle East and South Asia



4,With the abundant professional knowledge and R&D department support, Jinan Tianhong has finished many miracles and still trying our best to do better.





FAQ


1) This is the first time I use this kind of machine, is it easy operate?

There are english manual or guide video that show how to use machine.

If there is still have any question, we can talk from phone or skype.

2)Can you recommend a MACHINE to me,thanks?

Yes, In order to recommand you the suitable machine, please tell me the max working area, materials to do .

3) If machine have any problem after I ordered it, how could I do?

Free parts send to you in machine warranty period if machine have any problem.

Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.

4) MOQ ?

Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you

5)Payment terms

a. T/T in advance

b. L/C is acceptiable

c.West Union for Samller Amount

6)Delivery terms

Gnerally it will be be delivery within 5 working days after get the payment.



After Sales Service




TH LASER Service Support
1) 24 Hours online service.
2) 24 months warranty for the whole machine except for wearing parts.
3) Engineers available to service machinery overseas and also remote assistance.

1.Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

2.After-Sales Service:
* Training how to install the machine, training how to use the machine in our factory. We provide food and accommodation.
* Engineers available to service machinery overseas.

3.Training
Jinan Tianhong Mechanical Equipment Co.,Ltd supply free technical training for all customers all over the world until the workers from buyer can operate the machine normally and individually. Mainly training are as follow:
*Training for Control software operation
*Training for normatively turning on/off operation of the machine
*Instruction of technical parameters, as well as their setting ranges
*Basic daily cleaning and maintenance for the machine
*Solutions for common hardware problems
*Training for other questions and technical suggestions during daily production

4.Training can be processed in the following ways:
*Workers of customers can come to our factory in Shandong, China to get the most professional hand-by-hand training.
*We can send engineers to customers’ country and do training for workers in customers’ target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
*Remote training through Internet tools like Team-viewer, Skype and other instant communication softwares.
