IKX3L 2022 new arrival Good quality factory directly best sell hot sale good stability milling CNC machine
- Category: >>>
- Supplier: Liuzhou Gluck Imp& Exp Co. Ltd.
Share on (1600441997140):
Product Overview
Description
Product Overview

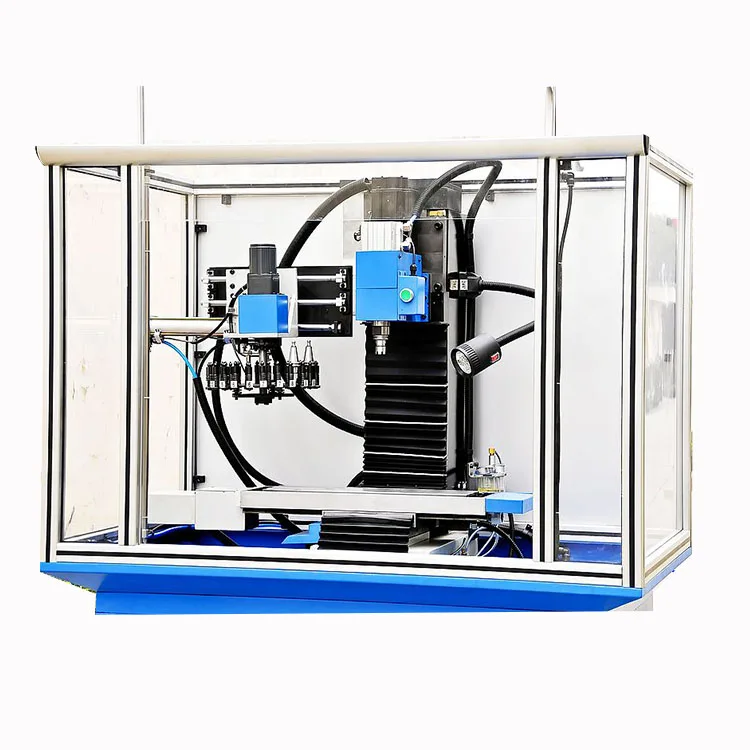

CNC MILLING CENTER with high cost performance
-Blow of ring
-Pneumatic door
-One key type lubrication

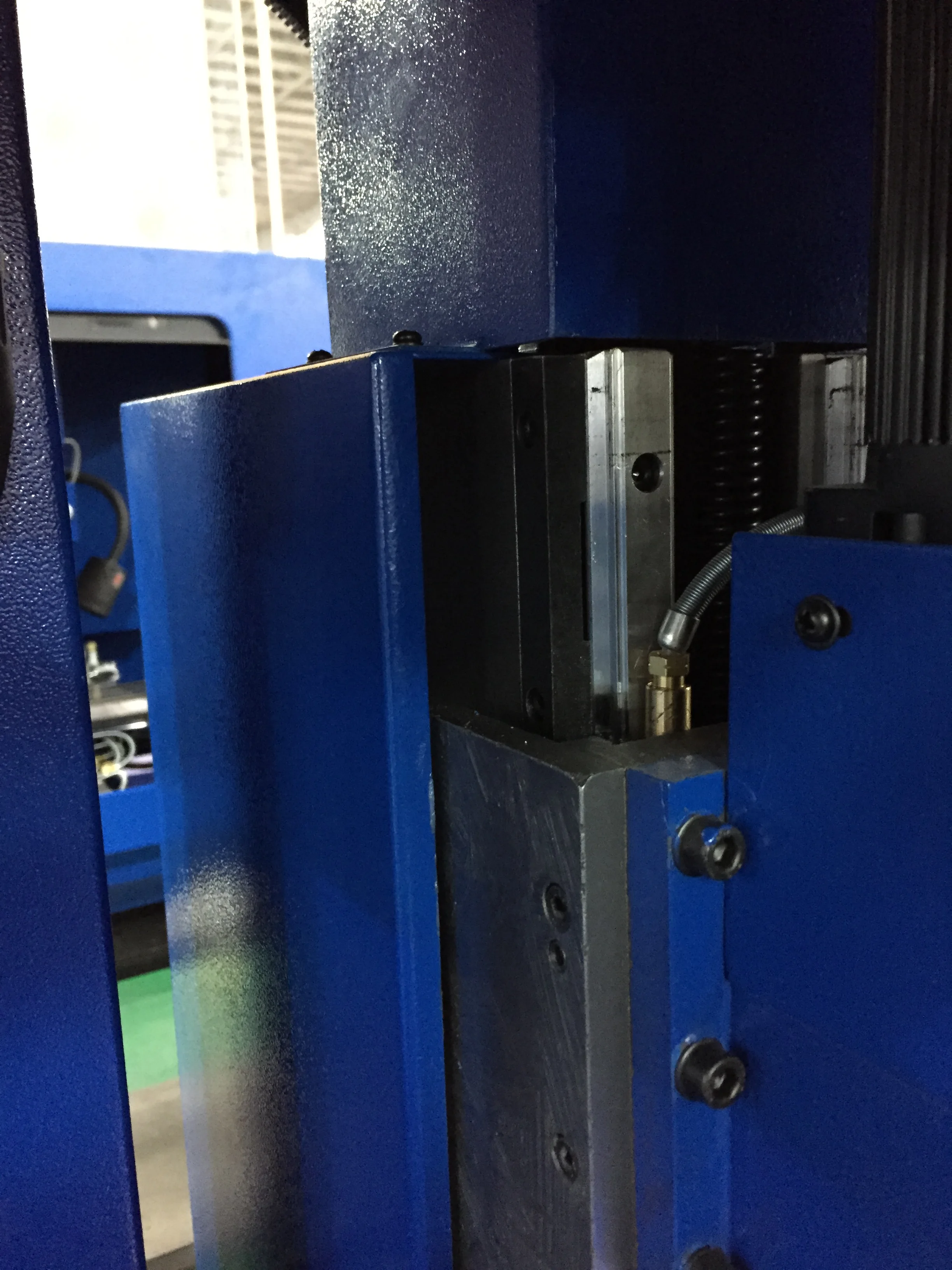

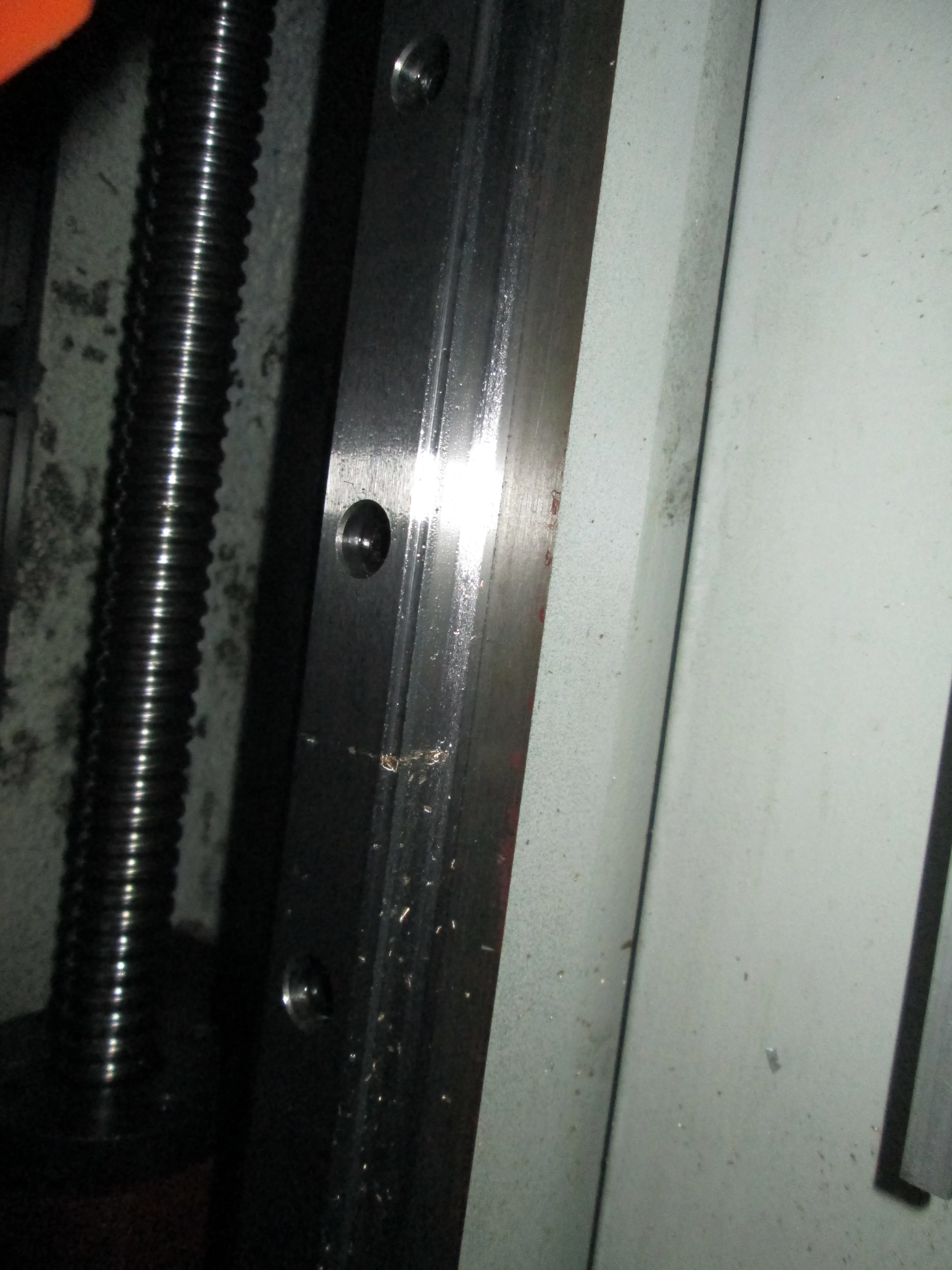

-linear rails
system;
-LED working light;
-4th axis (optional)
-Cooling system (optional)
-Hand wheel (optional)
-Transparent cover (Optional)
-LED working light;
-4th axis (optional)
-Cooling system (optional)
-Hand wheel (optional)
-Transparent cover (Optional)
IKX1 CNC MILLING CENTER | ||||
TABLE | Table size | 400×145mm | ||
T slot | 3×12×40 | |||
Max. load | 20kg | |||
TRAVEL | X travel | 230mm | ||
Y travel | 152mm | |||
Z travel | 170mm | |||
Spindle nose to table | 70-240mm | |||
Spindle center to column | 200mm | |||
SPINDLE | Spindle taper | ISO20 | ||
Spindle motor | 1000w | |||
Spindle speed | 5000r/min | |||
FEED | Rapid feed | 2000mm/min | ||
Power of X/Y | 3N/m | |||
Power of Z | 3N/m | |||
Tool number | 4 | |||
TOOL CHANGER | Max.tool diameter | 10mm | ||
Max.tool length | 110mm | |||
Max.tool weight | 0.5Kg | |||
Time of tool changing | 8s | |||
Positioning accuracy | ±0.015mm | |||
ACCURACY | Repeatability accuracy | ±0.005mm | ||
Pneumatic supply | 0.6 MPa | |||
OTHERS | Power | 230V/110V | ||
Weight（NW/GW） | 280/350kg | |||
Dimension | 1040×860×940/1170×960×1100mm | |||
Irregular workpieces for different materials;
4 station tool magazine;
1000W brushless motor;
Powerful, high torque;
PRODUCT CONFIGURATION
Hand wheel

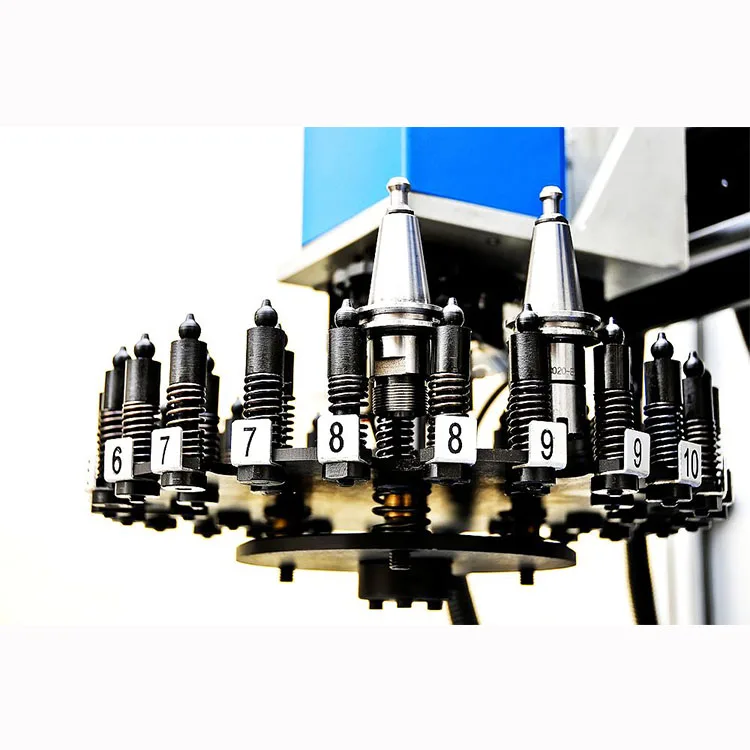

4 station ATC

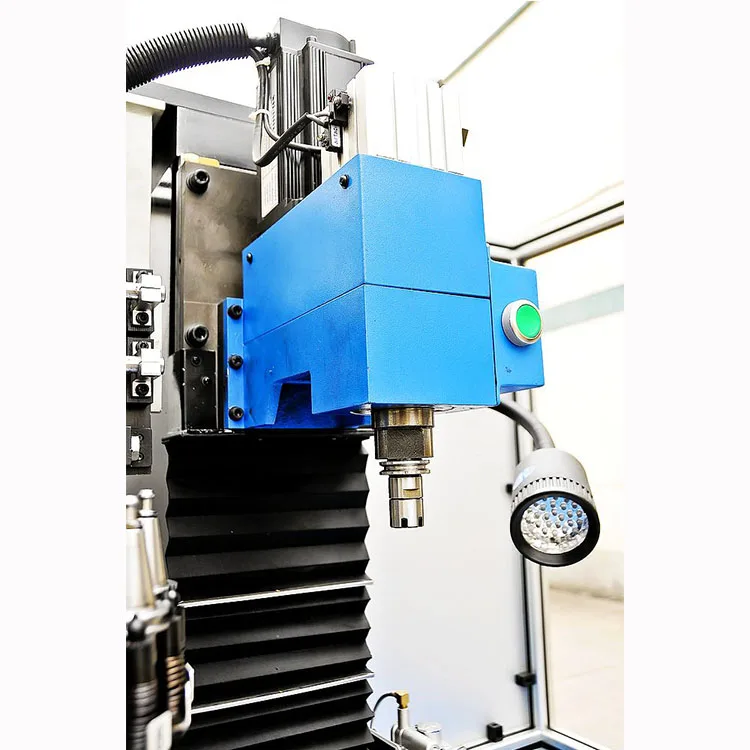

ISO20/ER16 spindle tapar
SIEG system
A PC-based control system. A software (in CD) was supplied with machine, loaded into your computer, connecting PC to machine via LAN.
SIEMENS system
SIEMENS system is popular in the world, and it's closer to the industrial use. There is a cost-effective version
SIEMENS 808D ADVANCE, not only with practical function, but also could save more money for you.
SIEMENS 808D ADVANCE, not only with practical function, but also could save more money for you.
Related Products
Packing&Shipping
Port of loading: Shanghai China.
Port of destination: as arranged.
By Express, by Sea,by Air Cargo,depend on your choice.
Company Introduction
Our Exhibition
Exhibition in Switzerland
Exhibition in Vietnam
China Import and Export Fair (Canton Fair)
Exhibition in India
Exhibition in Australia
Main Market
Exhibition in Japan
Light Industry Market
Hobby Market
Education Market
ISO 9001
CE for milling machine
CE for lache machine
FAQ
Q1: Is your company a factory or a trading company?
A1: We are a factory with more than 12 years of production experience. It alsohas an office in Liuzhou City, Guangxi Province, China.
Q2: Where is the factory and how can I get there?
A2: Our factory is located in Shanghai, China. We warmly welcome you.
Q3: What are your main products?
A3: We focus on various CNC machine tools,such as CNC lathes, CNC milling machines and CNC vertical machining centers.
Q4: What is the control of your lathe? Can I change it to another brand?
A4: The standard control of our lathe is GlaxoSmithKline. You can also change other controls, such as FANUC, Siemens, etc
Q5: How to select the most suitable machine?
A5: Please tell us your requirements for the machine, or you can send us product drawings, and our engineers can help you choose Best model.
Q6: What are your terms of payment?
A6: Our terms of payment are 30% t / T in advance and 70% t / T before delivery.
Q7: When is your delivery time?
A7: After receiving the deposit, the machine order takes 30-45 days. If some special models will be longer, we will give you the corresponding answer.
Q8: What is the minimum order quantity and product warranty period?
A8: One year, one set (except for special models)
Q9: What is a delivery package?
A9: Carton packing, wooden case
Q10: How does your company conduct quality control?
A10: ISO9001 and CE quality control
After Sales Service
Professional Servce from Professional Team
One year guarantee for whole machine.
7*24 hours before and after sales service.
Providing training, technical consulting service.
A team with well qualified technicians and service personnel。
