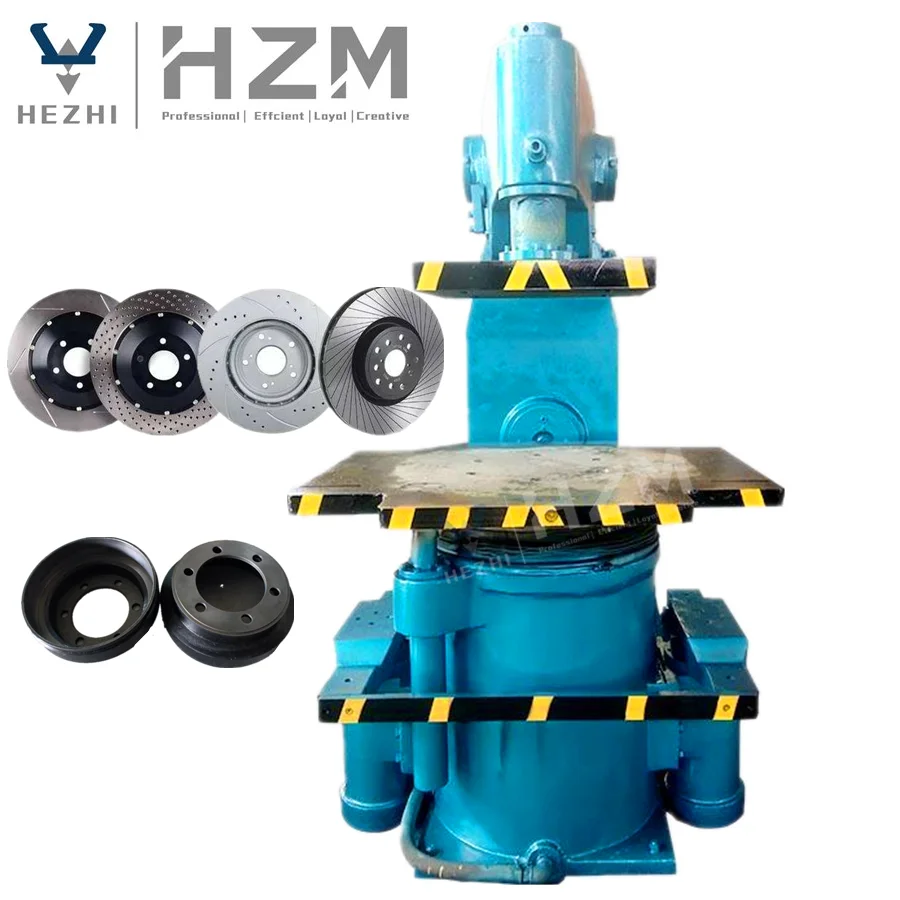

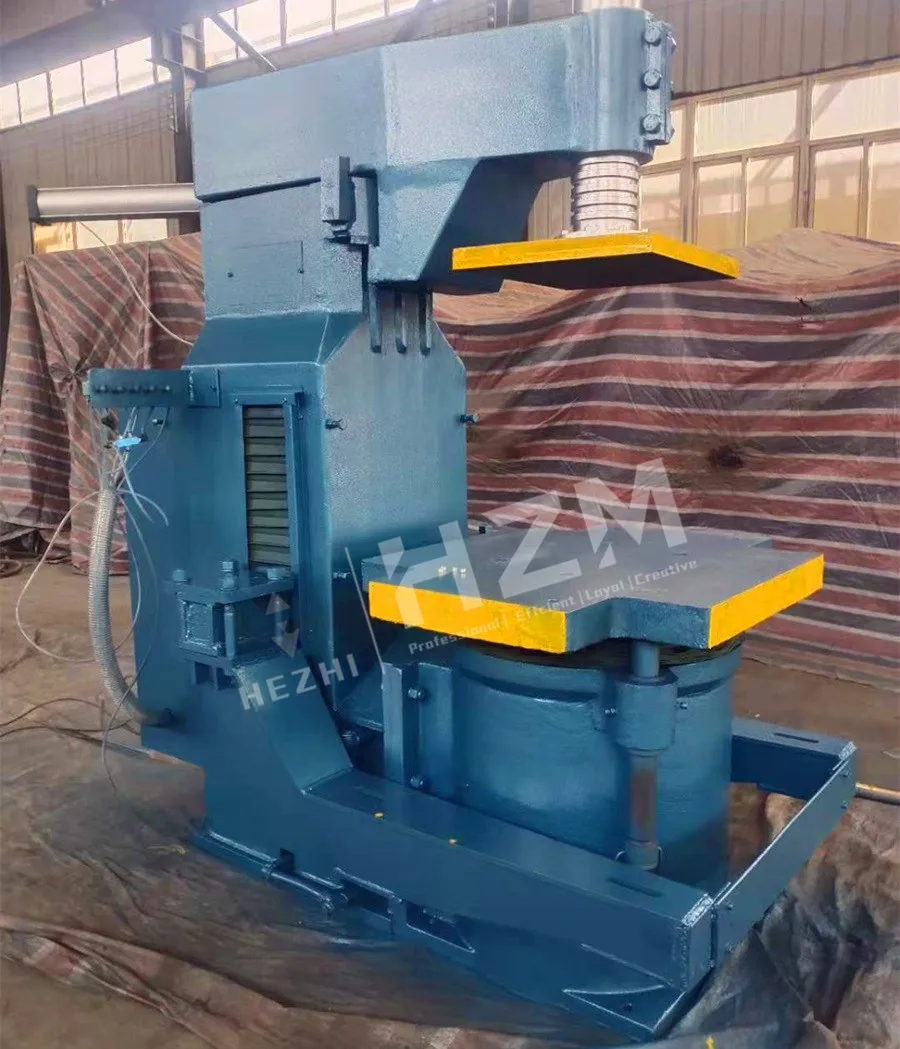

Jolt squeeze manhole cover molding machine also called compact table,it is Z14 Series moulding machine for green sand casting production.
the compaction green sand casting squeeze molding machine consists of a table,a shock piston,a true iron compaction piston, a compaction cylinder,etc.
Jolt Squeeze molding machine is full buffer,high frequency,low amplitude,pneumatic micro-vibration compaction molding machine,Using spring buffer, pneumatic micro-seismic mechanism can reduce the impact of shock on the foundation.
The green sand manhole cover jolt squeeze molding casting machine is economic molding solution for manual and simply automatic clay sand casting production. Jolt squeeze molding machine do not need big floor space. And it is flexible to increase molding machines when casting production increasing.

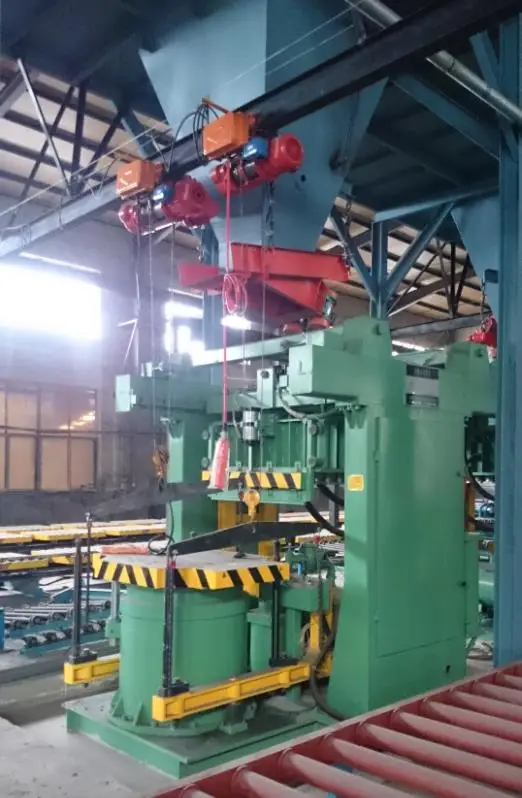

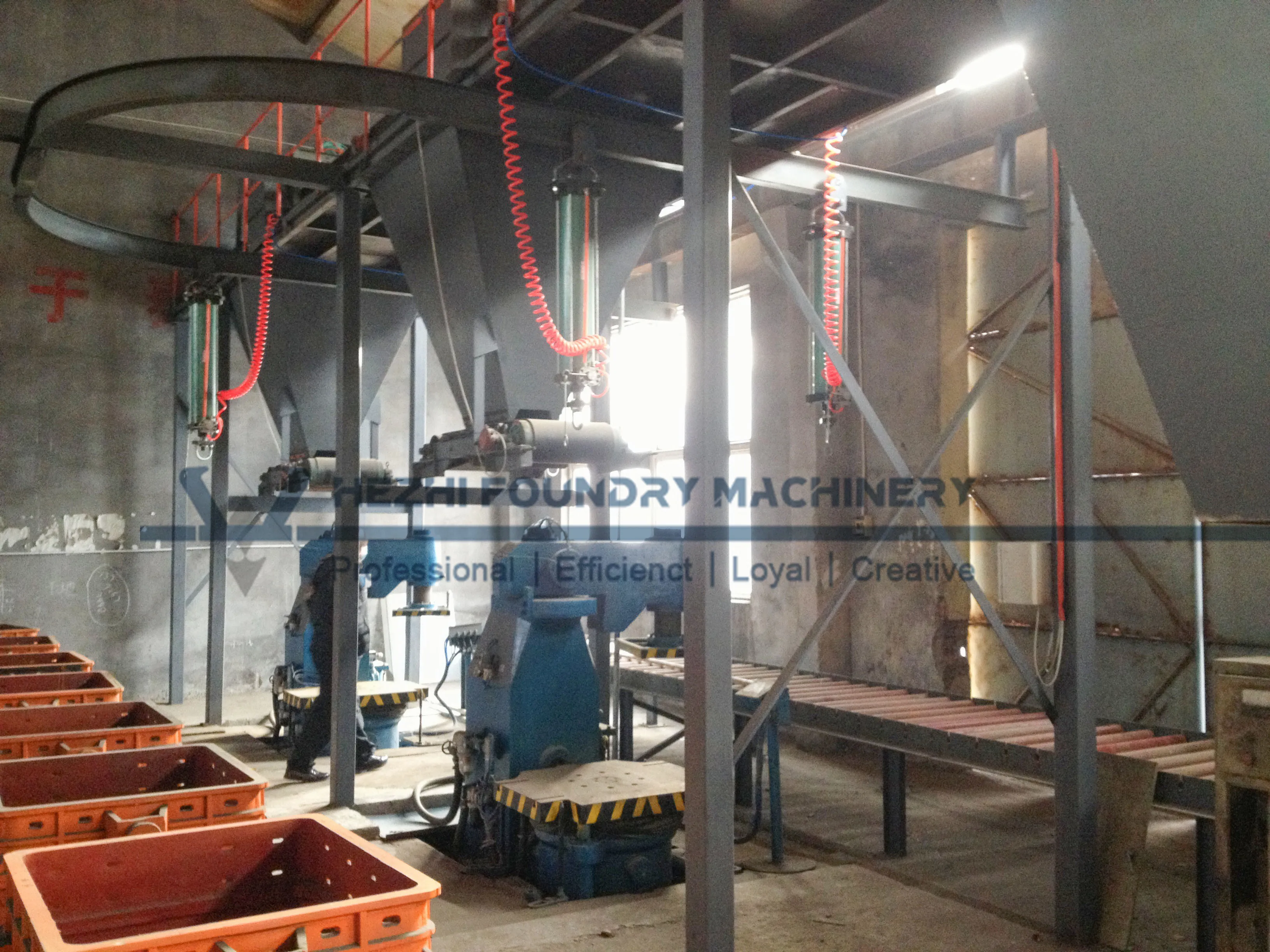

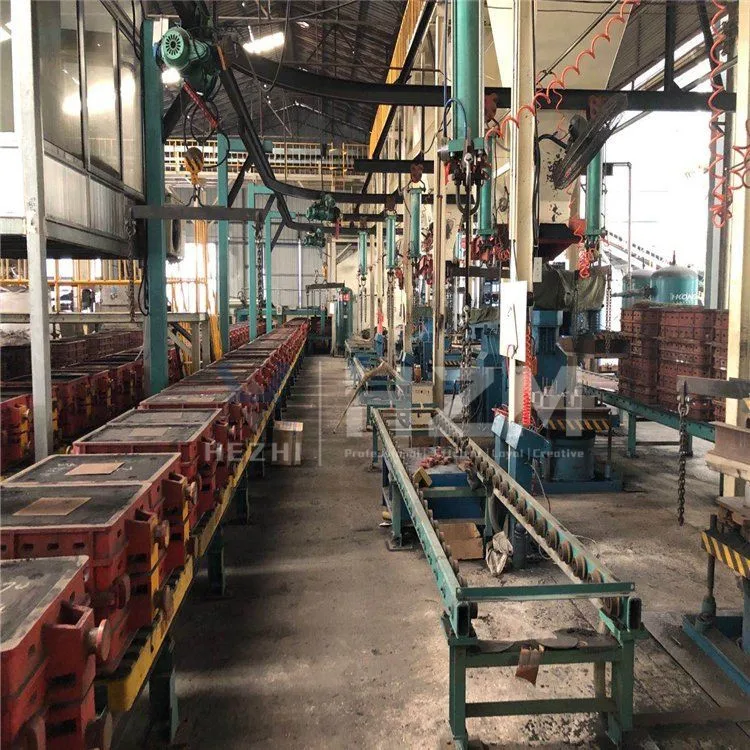

Jolt squeeze molding machine can be operated for manual casting foundry and also adapts to simple casting line. Pneumatic cranes can be used to hang up and transfer finished molds.

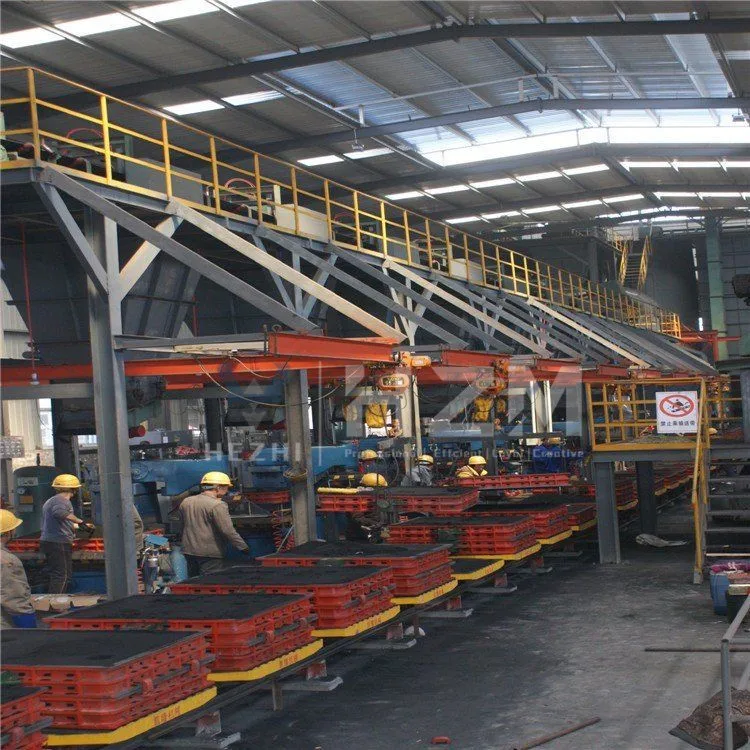

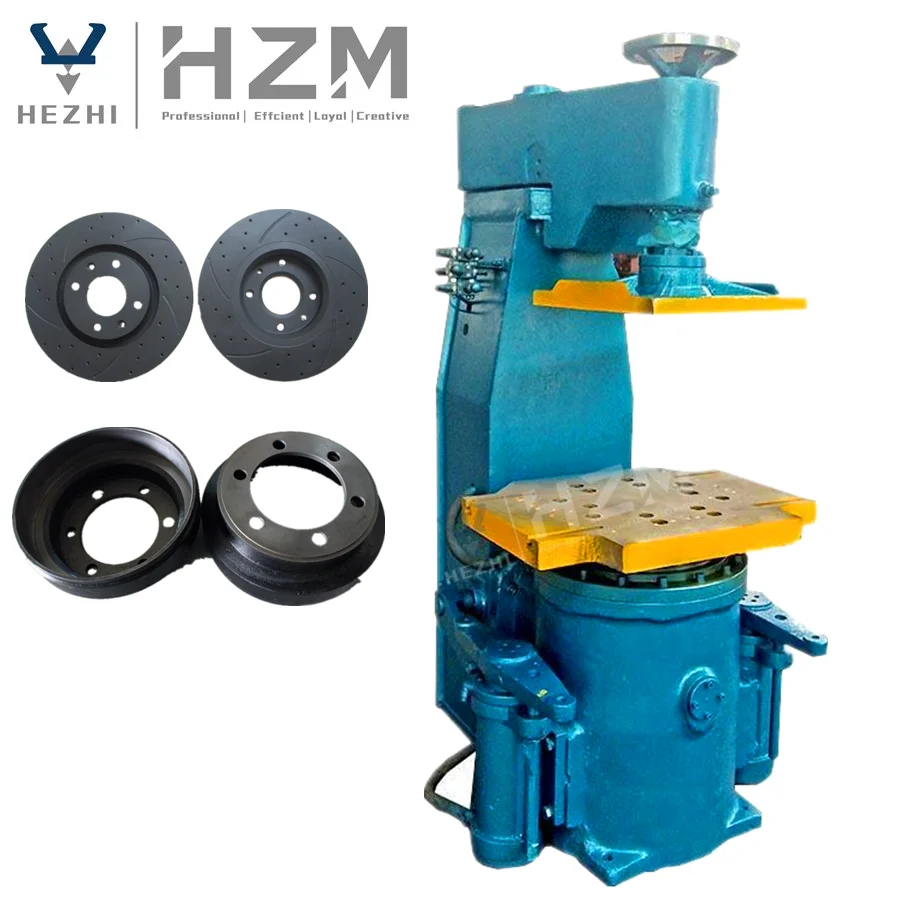

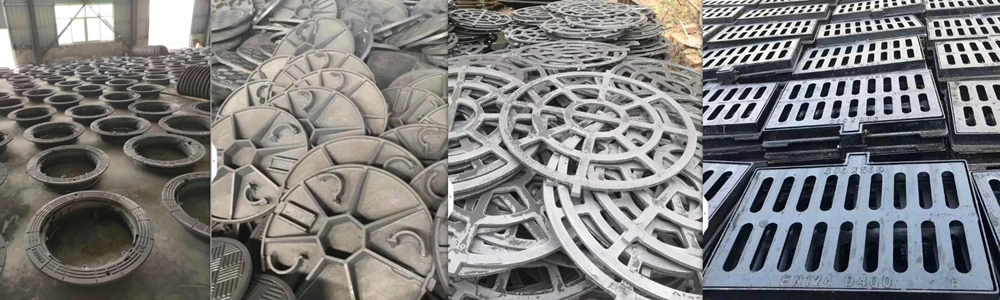

Below are finished manhole cover made by Jolt Squeeze Moulding Machine:(for your ref)
Model | Z1450 | Z1460 | Z1470 | Z1490 | Z14100 | |||||
Table Size | 600×560 | 700×600 | 880×700 | 1100×800 | 1400×1030 | |||||
Sand Flask | 500×400 | 600×500 | 700×600 | 1000×800 | 1300×900 | |||||
Sand Flask Height | <250 | <250 | <250 | <400 | <400 | |||||
Capacity | 25-35molds | 25-36molds | 25-37molds | 25-38molds | 25-39molds | |||||
Compaction cylinder diameter | 380 | 420 | 470 | 630 | 650 | |||||
Air pressure | 0.6mpa | 0.6mpa | 0.6mpa | 0.6mpa | 0.6mpa | |||||
Squeeze Force | 68,047 | 83,127 | 104,097 | 187,035 | 199,098 | |||||
Air consumption | 0.3m3/mold | 0.4m3/mold | 0.6m3/mold | 0.9m3/mold | 1.6m3/mold | |||||
Ram-jolt cylinder diameter | 150mm | 200mm | 220mm | 330mm | 360mm | |||||
Stripping distance | 200mm | 250mm | 250-300mm | 350mm | 350mm | |||||
Payload | 560 | 720 | 1040 | 1600 | 2240 | |||||
Weight | 1.5T | 2.1T | 3T | 6.5T | 9T | |||||
Height Shorten | -150mm | -150mm | -150mm | -170mm | -300mm | |||||
We manufacture and design full scope of green sand casting equipment. including Green Sand Mixer, Sand Feeder and Conveyor, Sand Moulding machine and Sand Reclamation Machine. We also design customised production line of green sand casting Machines. | ||||||||||

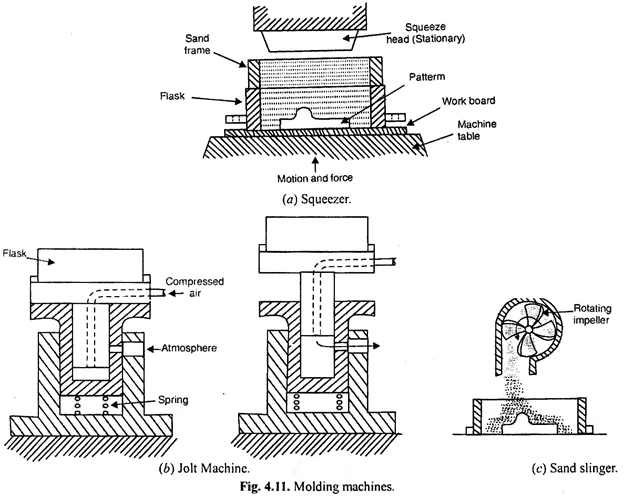

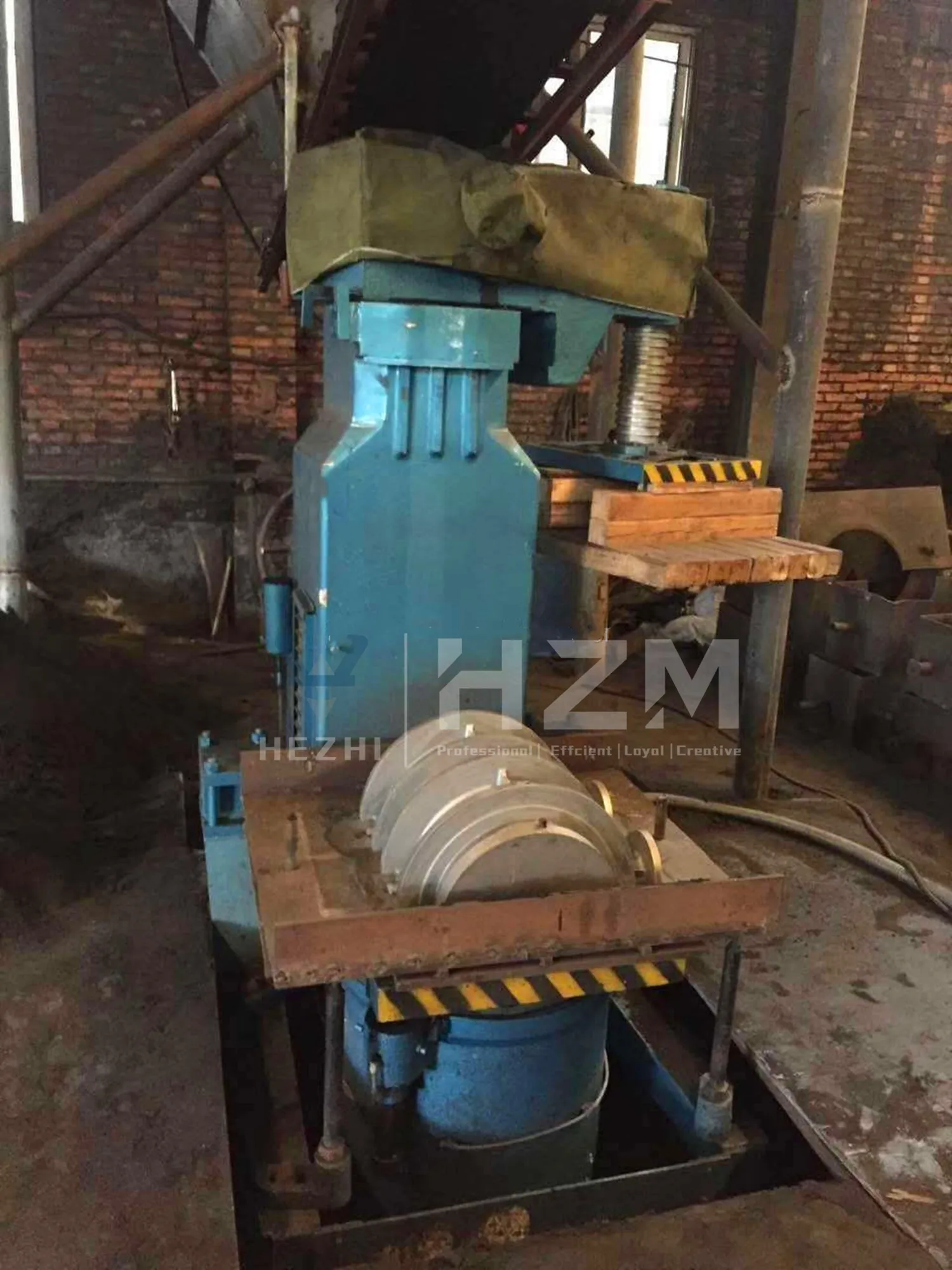

Jolt Squeeze Molding Machine:
The worktable fall and collide with floating shock-iron,and the sand was tighted slightly, and then to compaction,get the top and
bottom of sand mould are tight.
bottom of sand mould are tight.

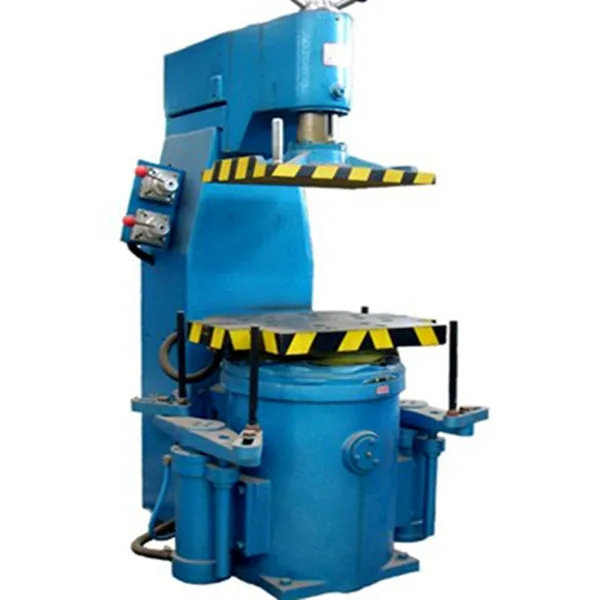

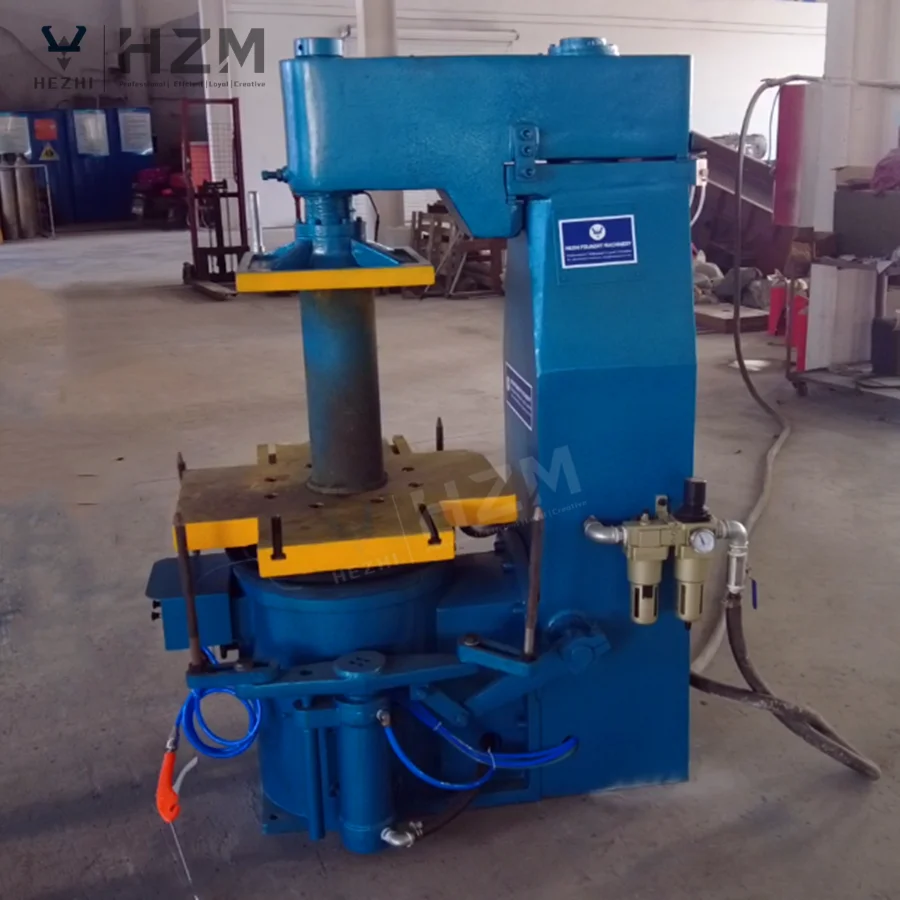

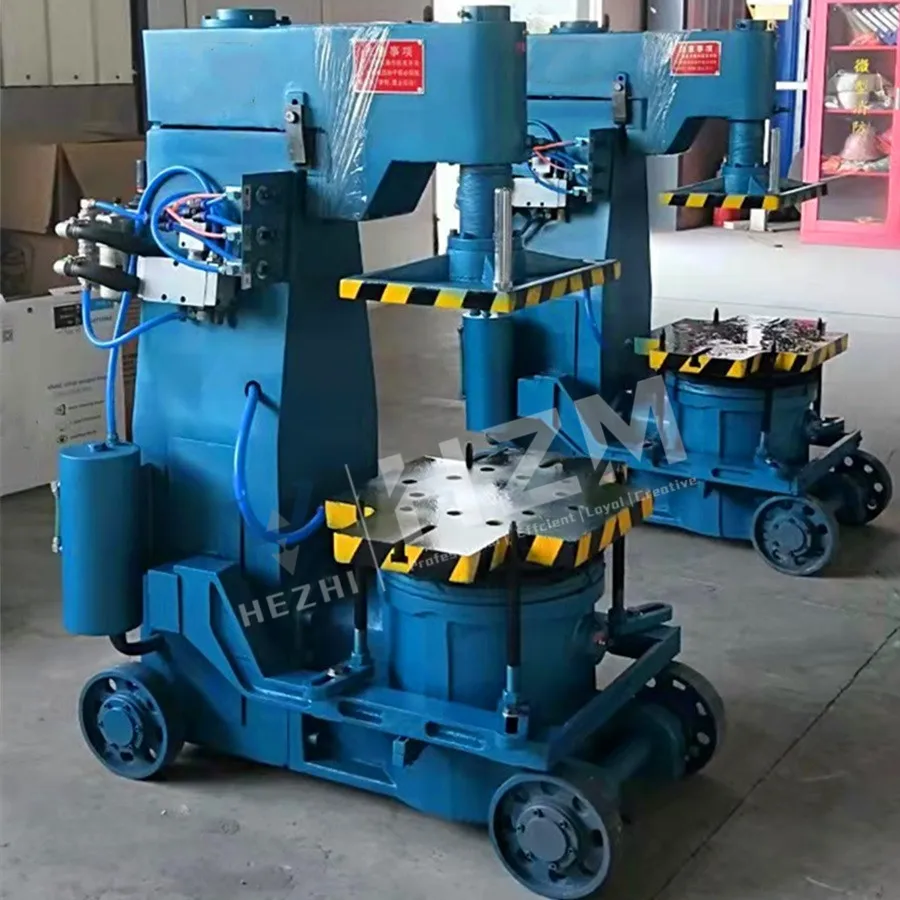

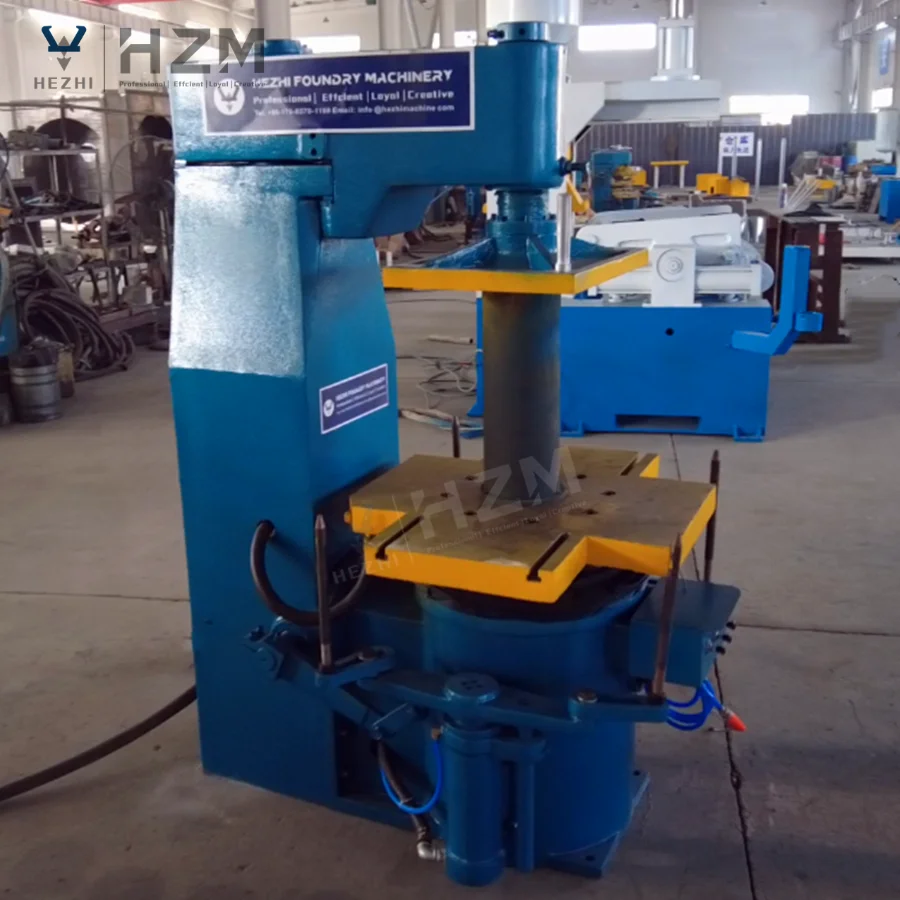

HZ - Z1460 and HZ - Z1470

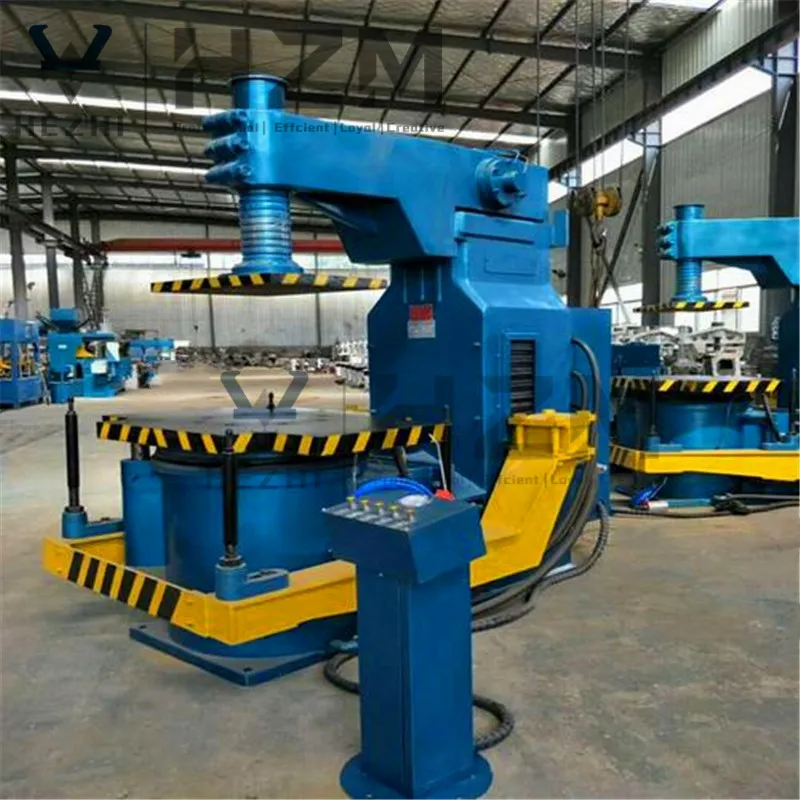

HZ - Z1490 and HZ - Z14100

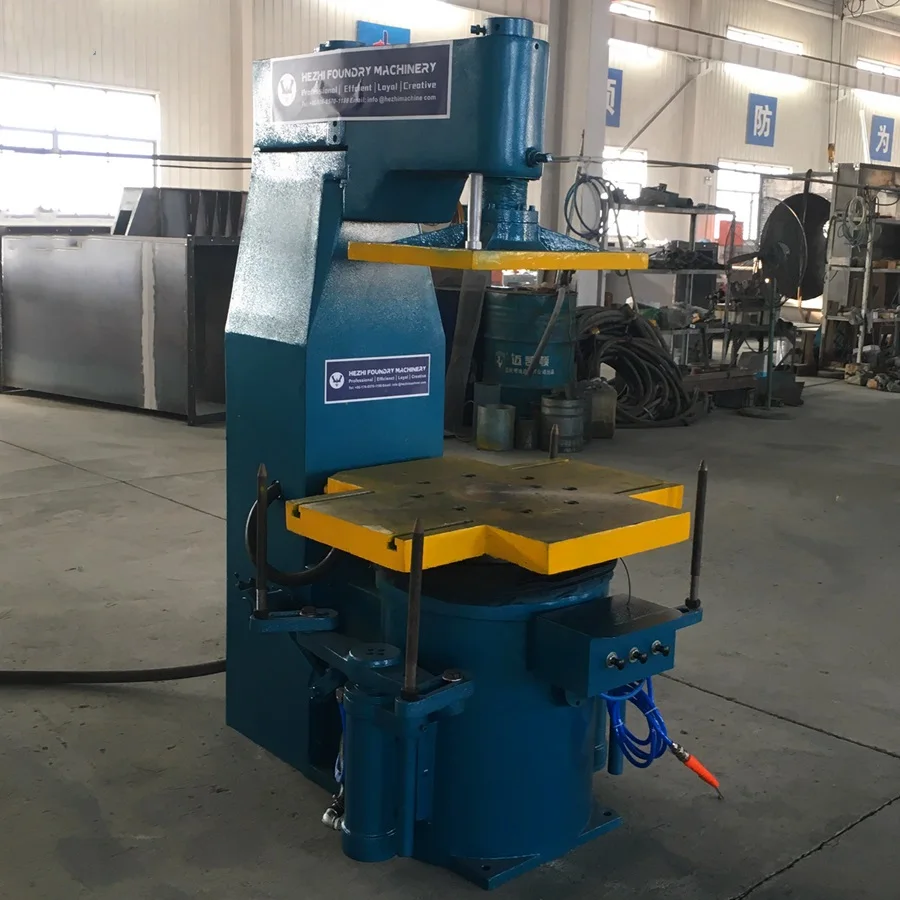

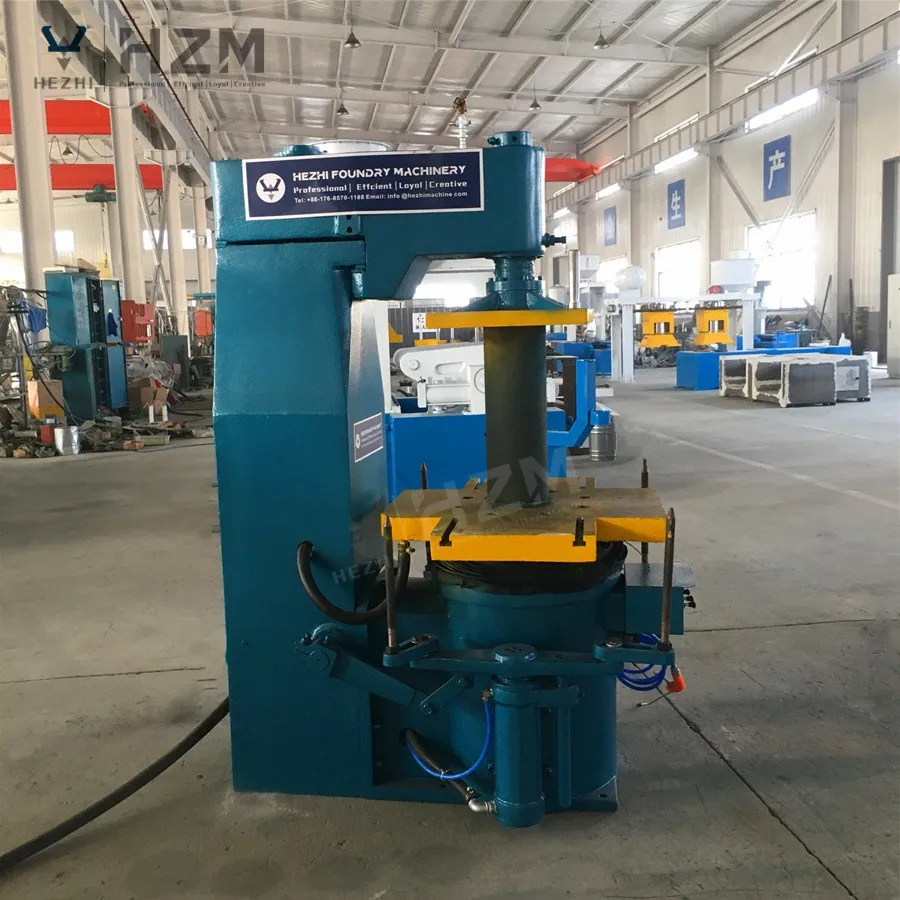

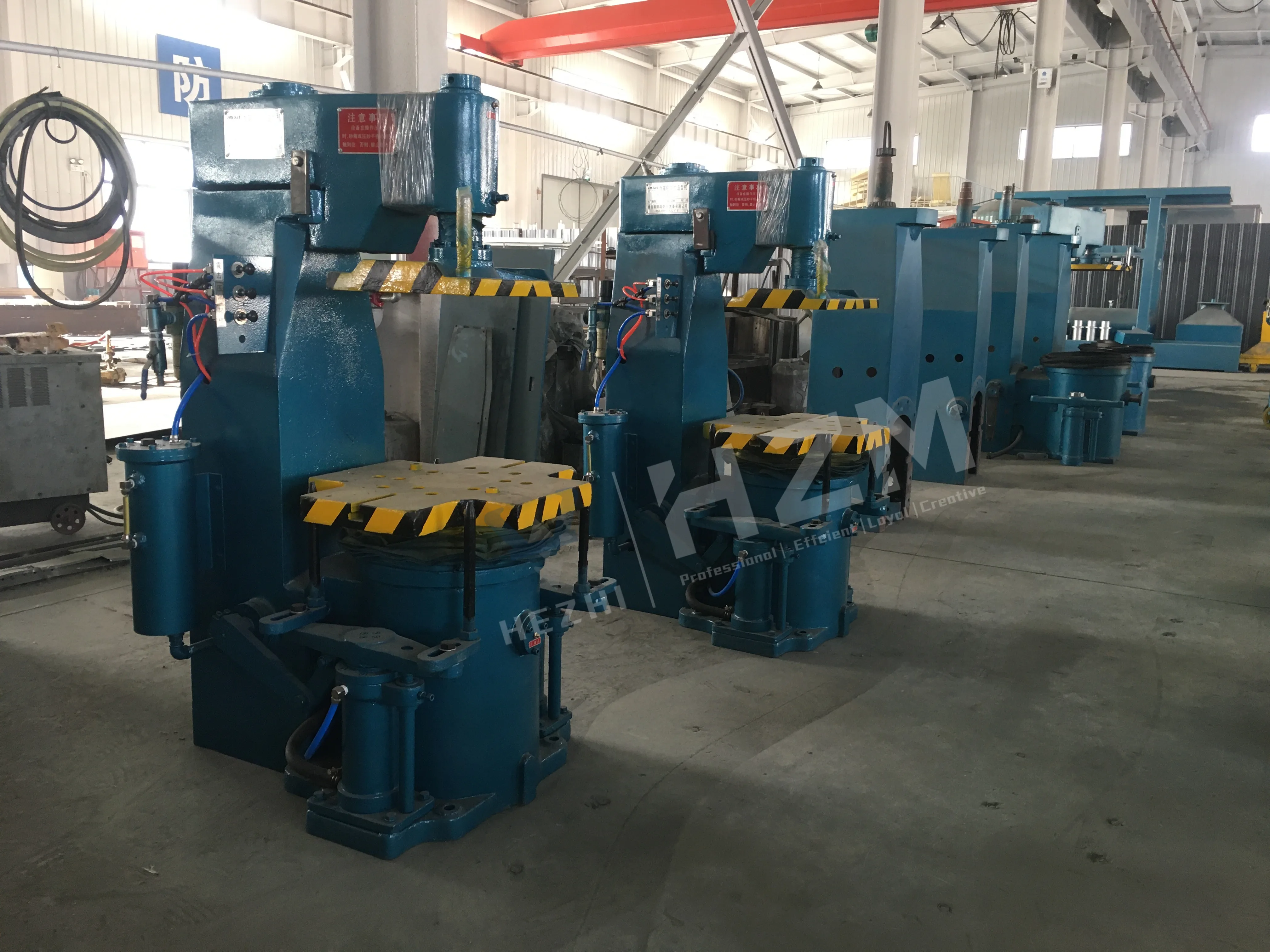

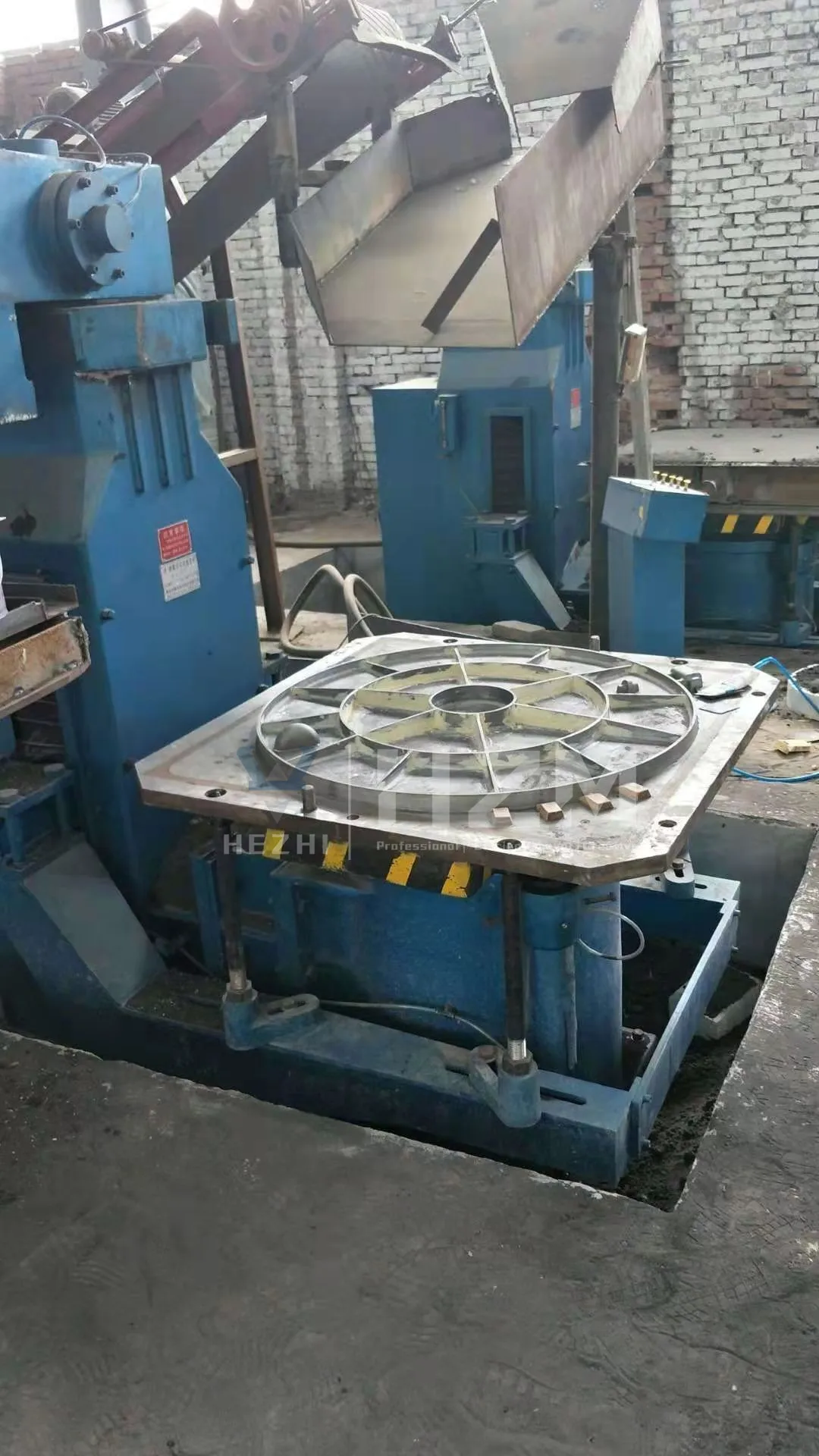

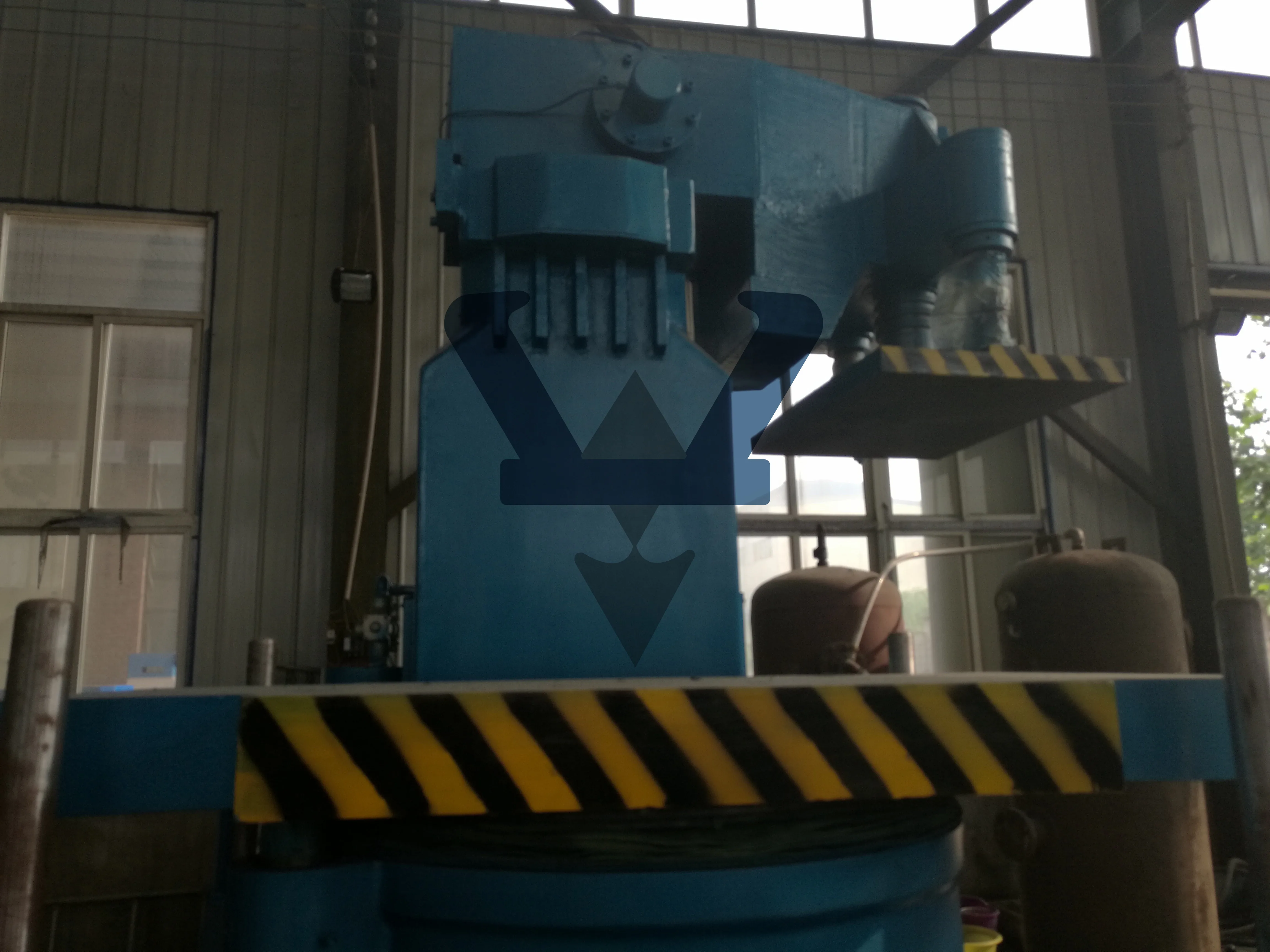

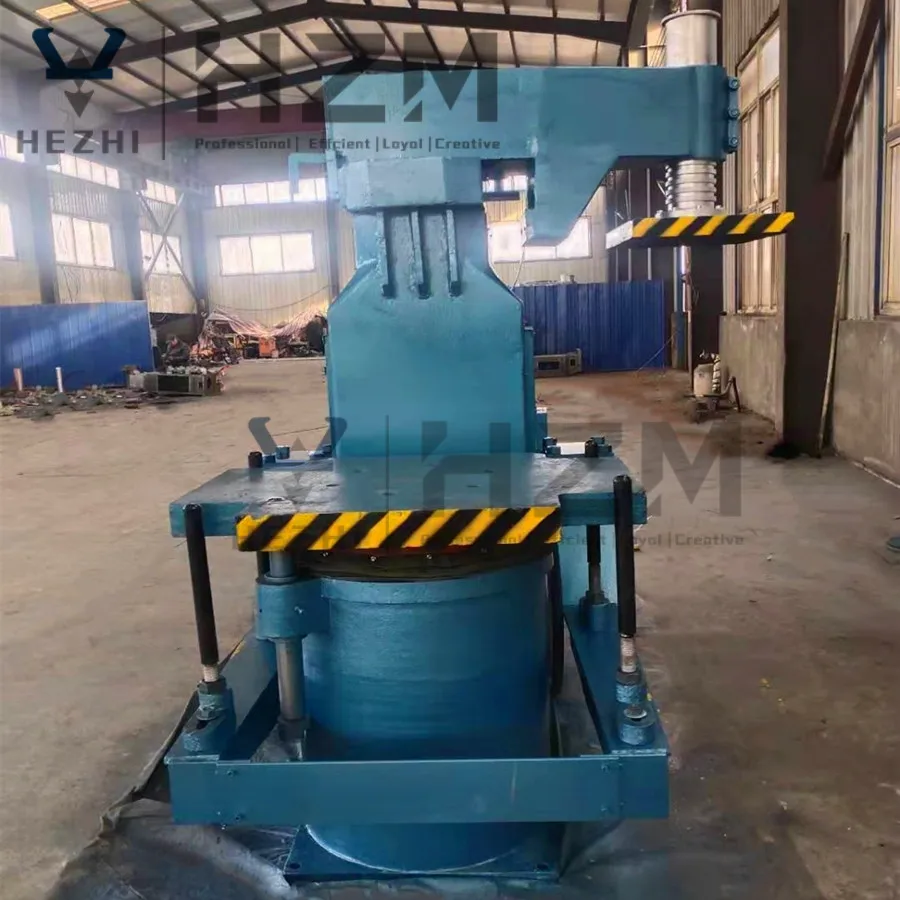

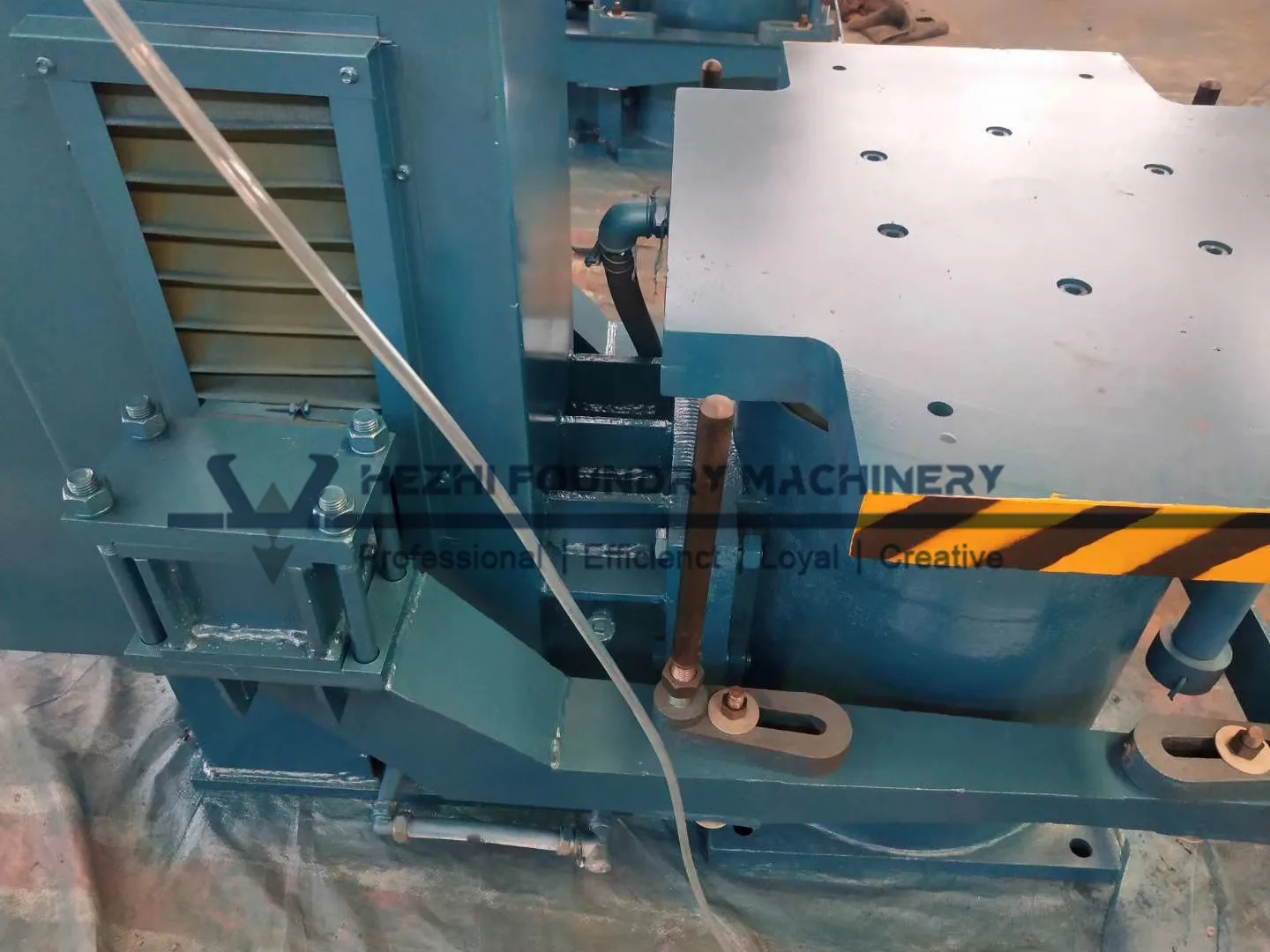

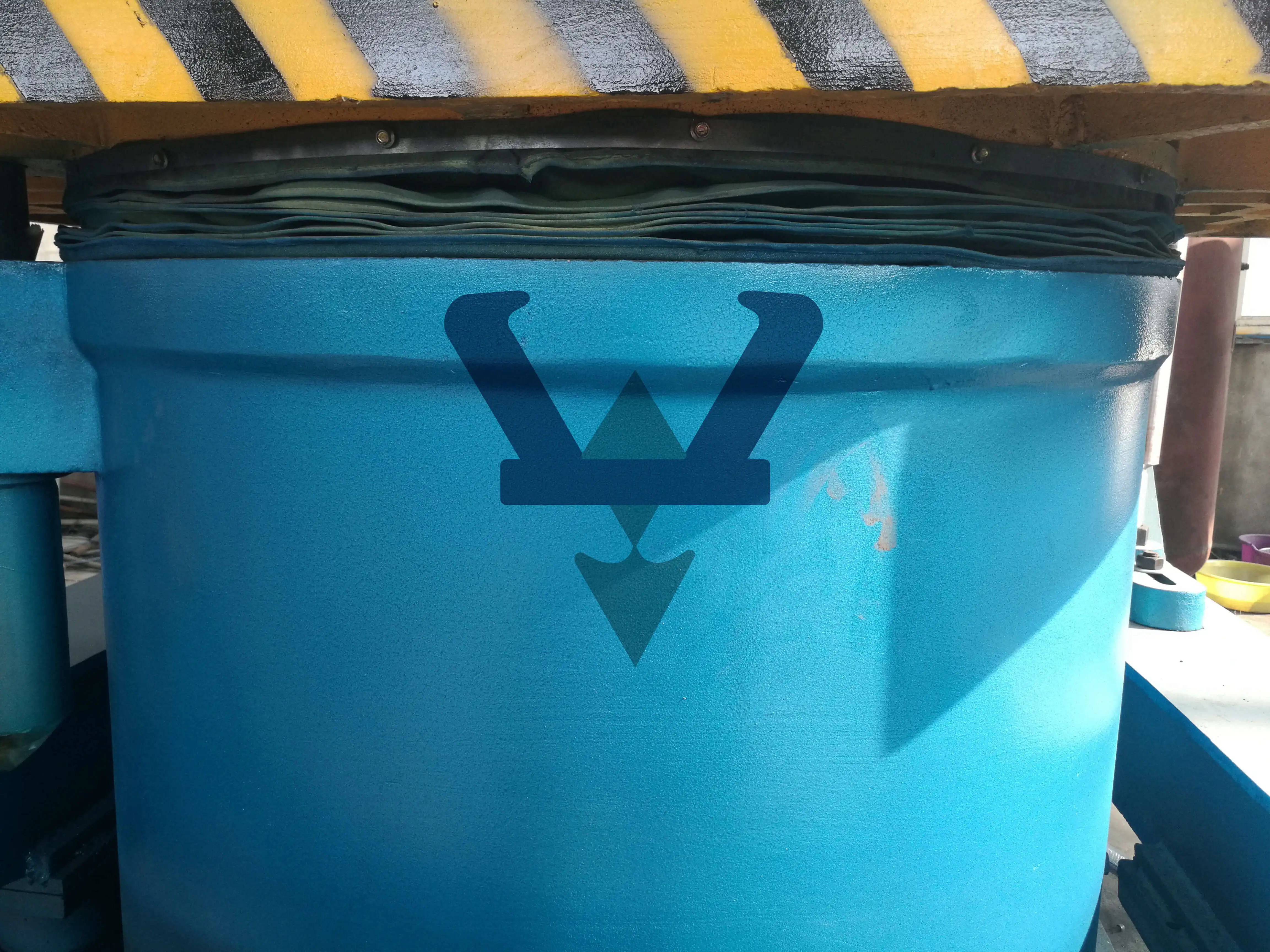

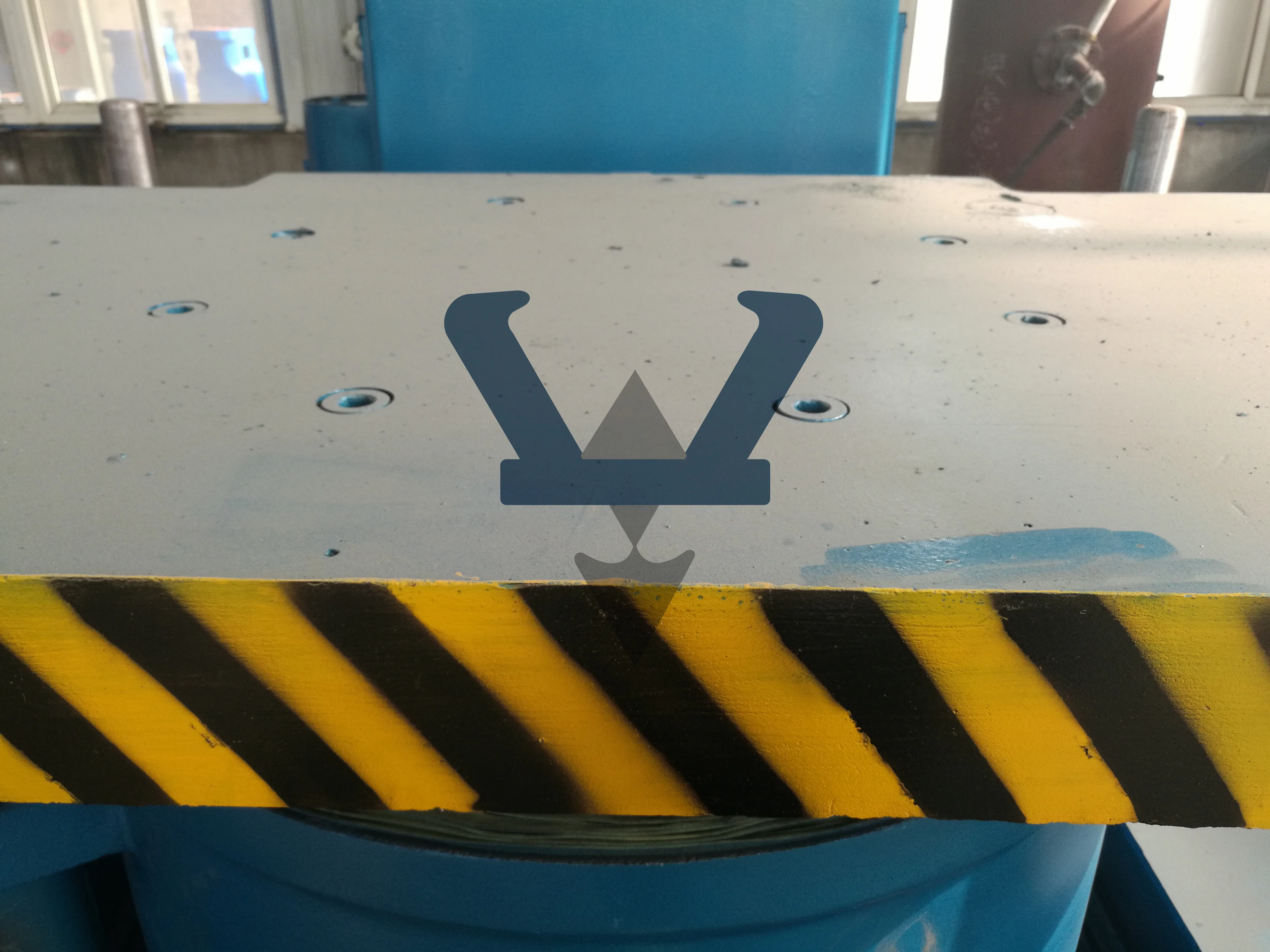

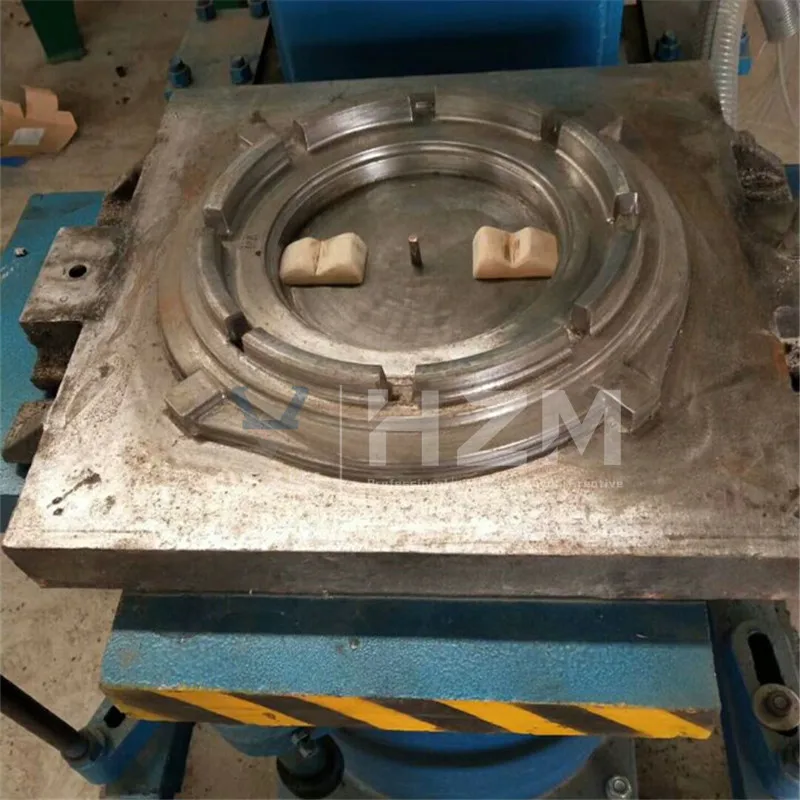

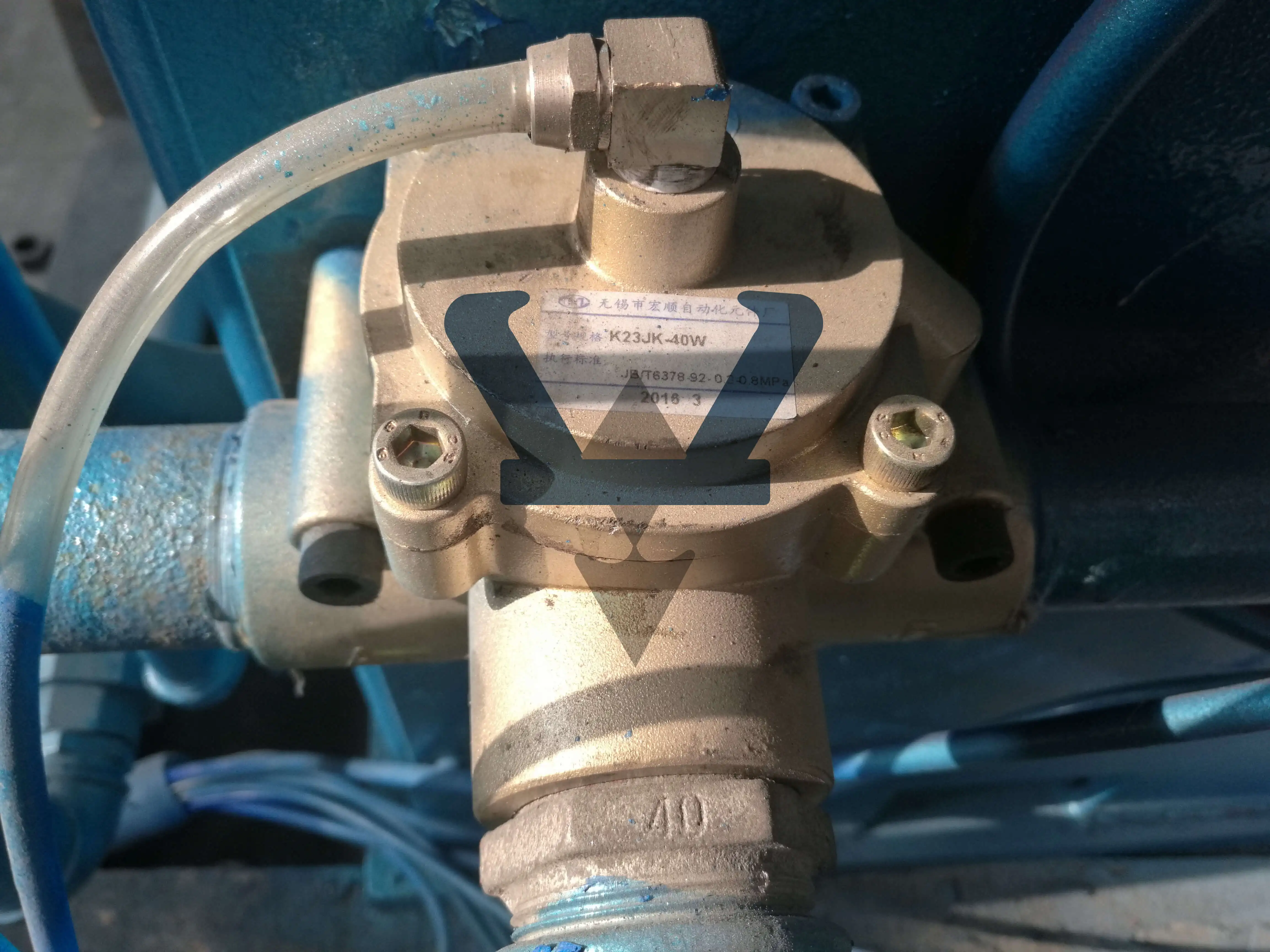

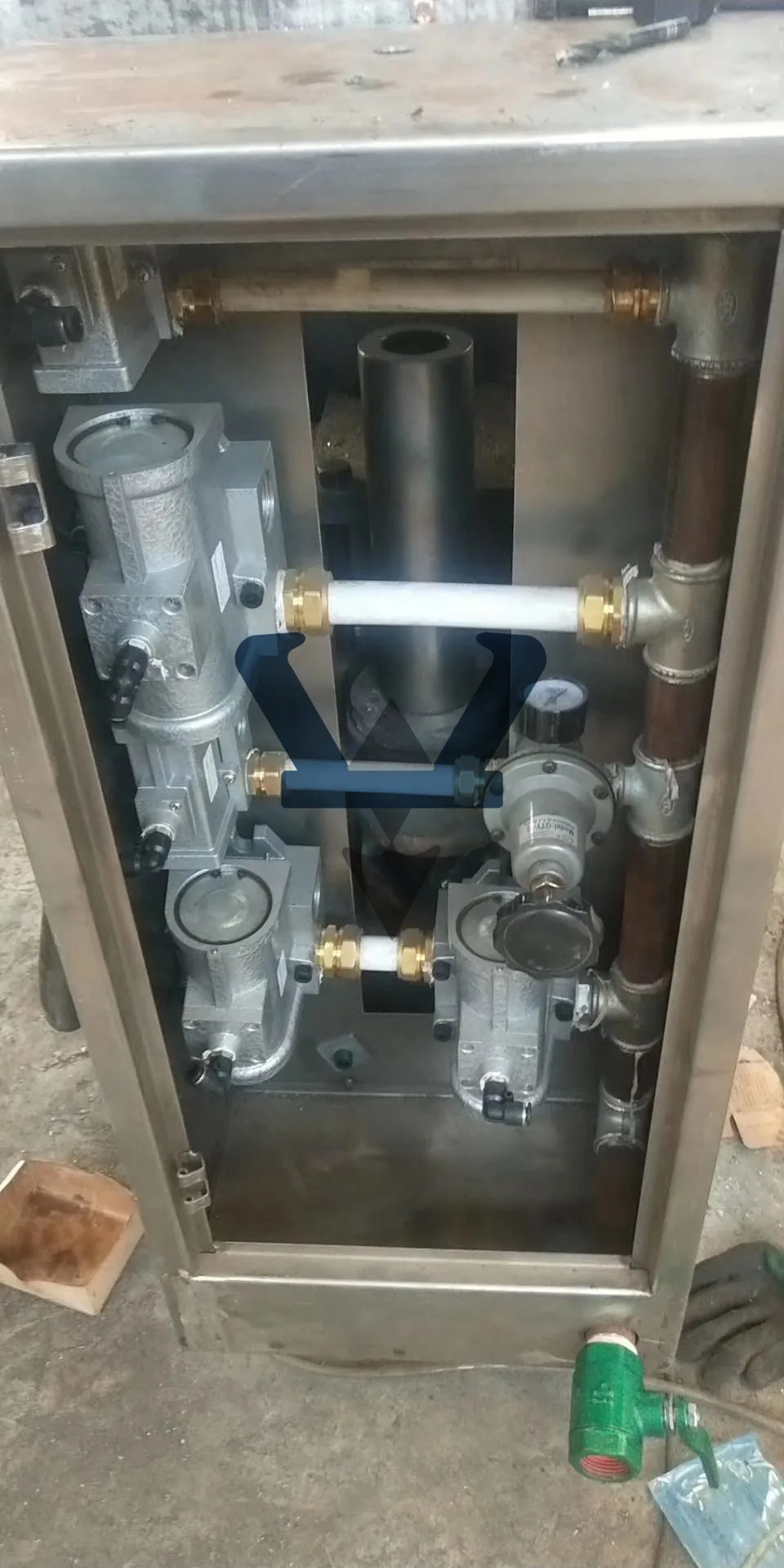

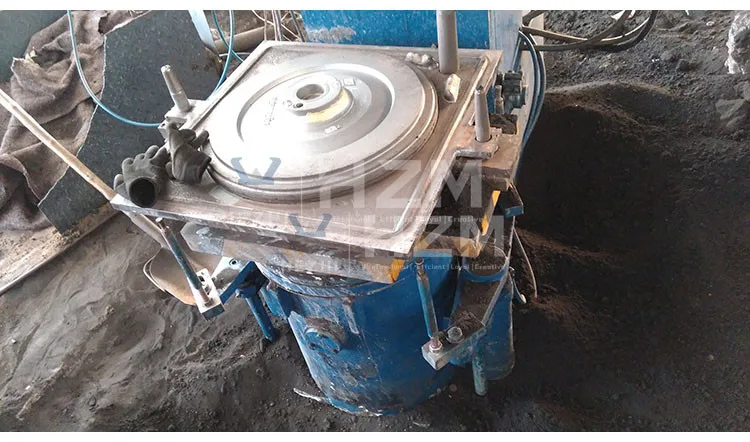

Detail Pictures of jolt squeeze molding machine:

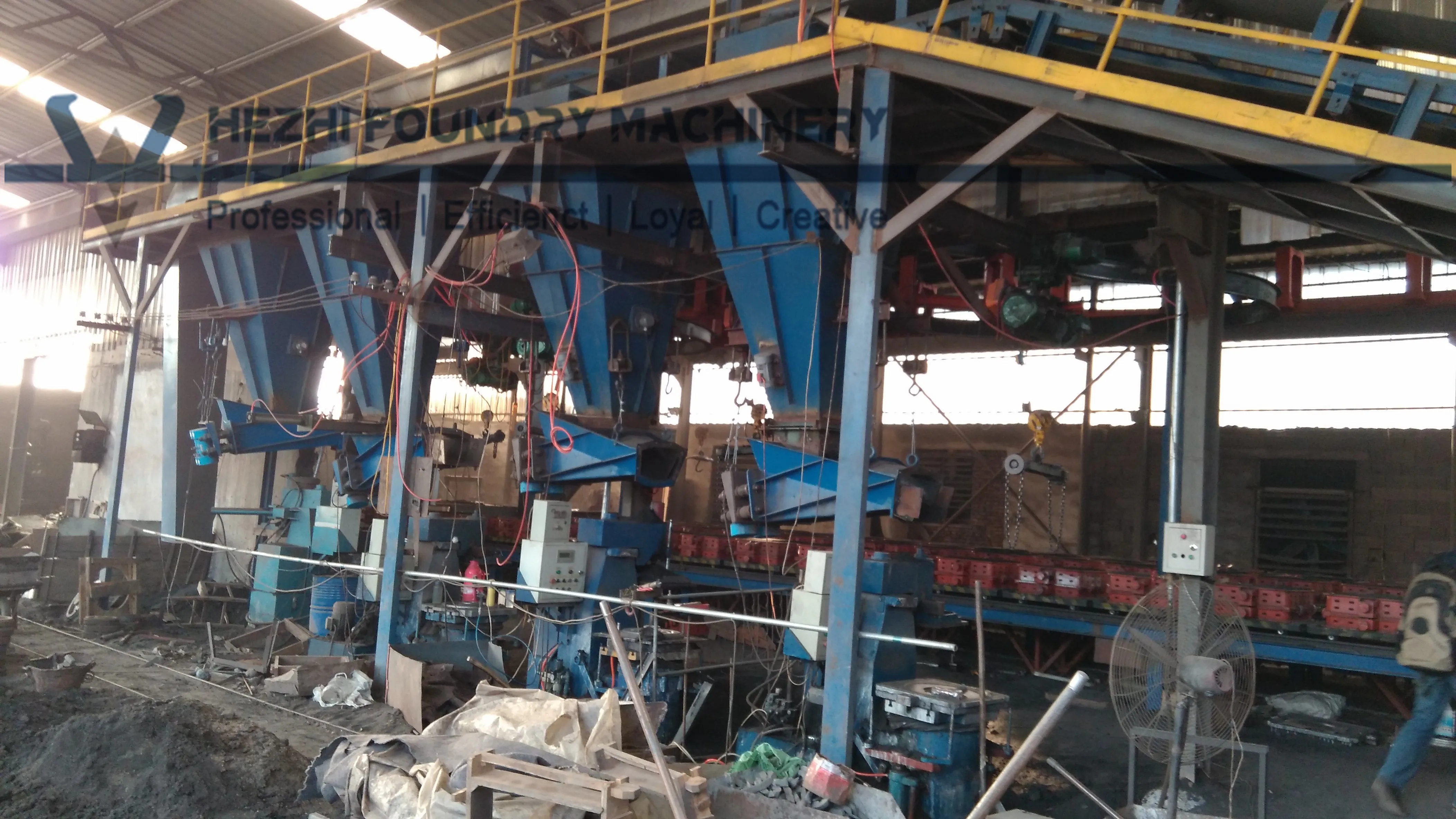

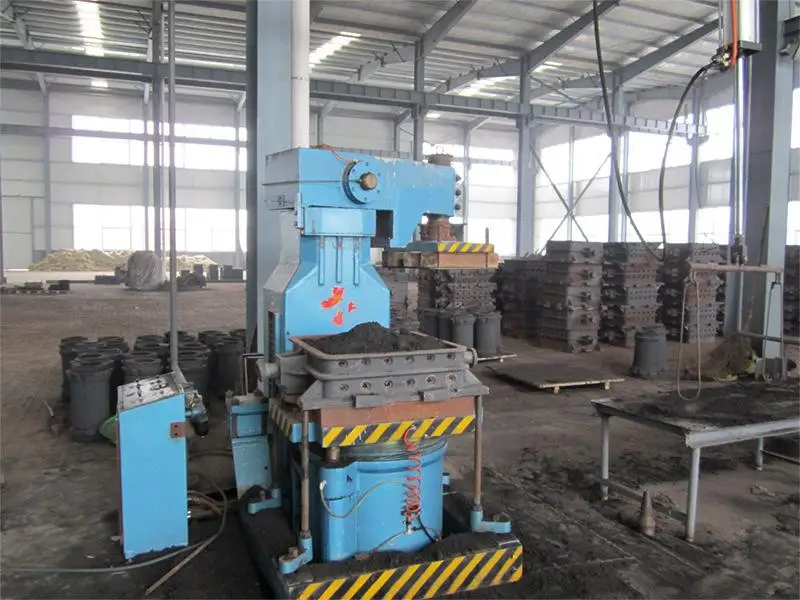

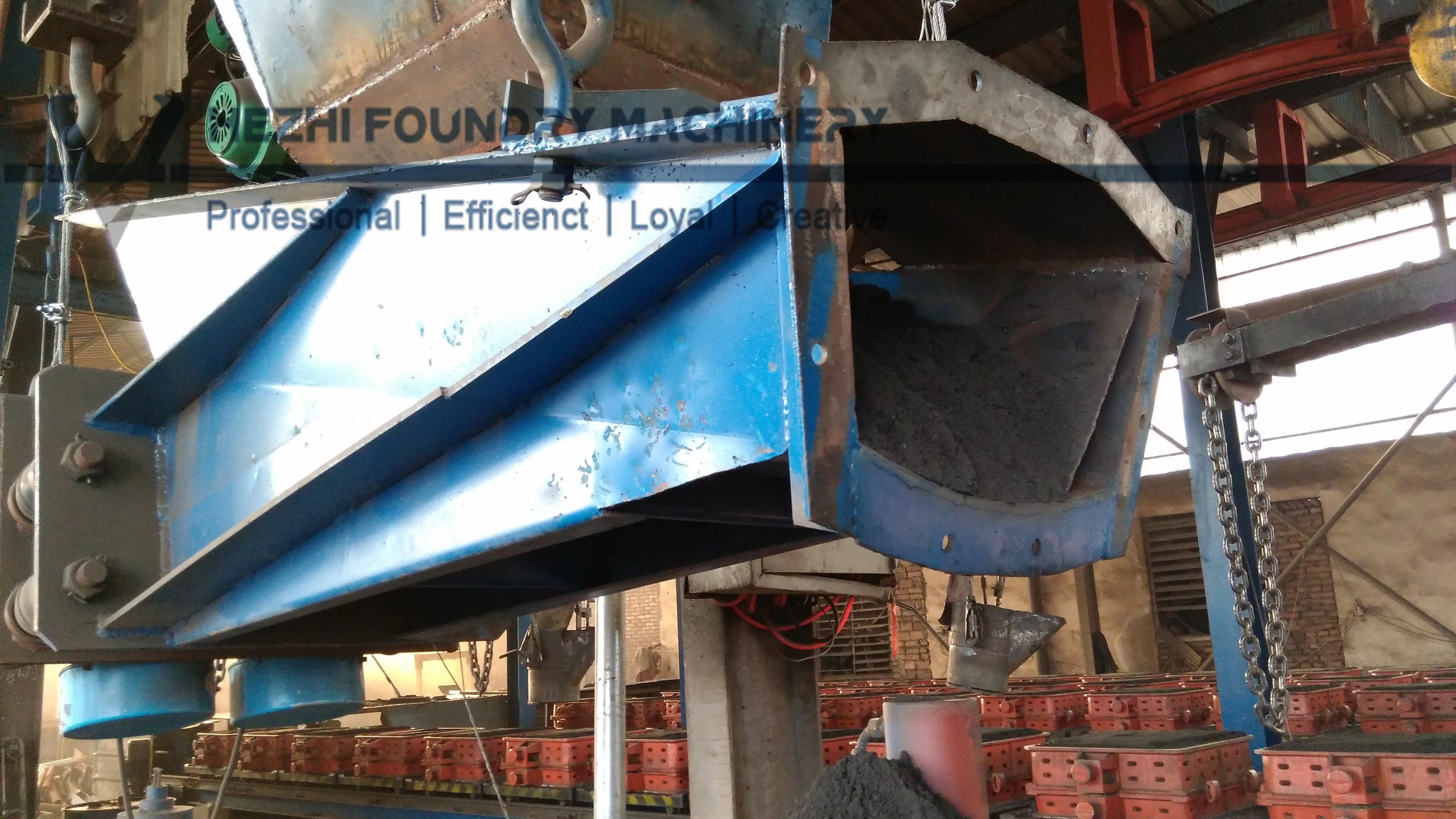

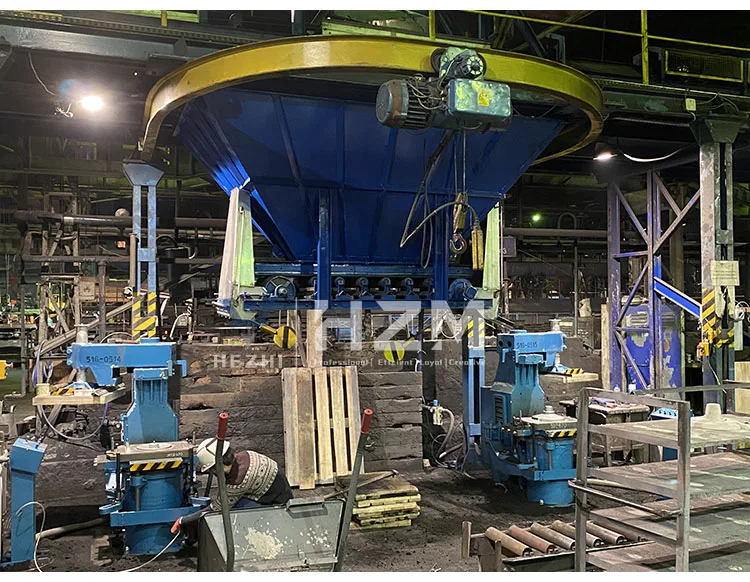

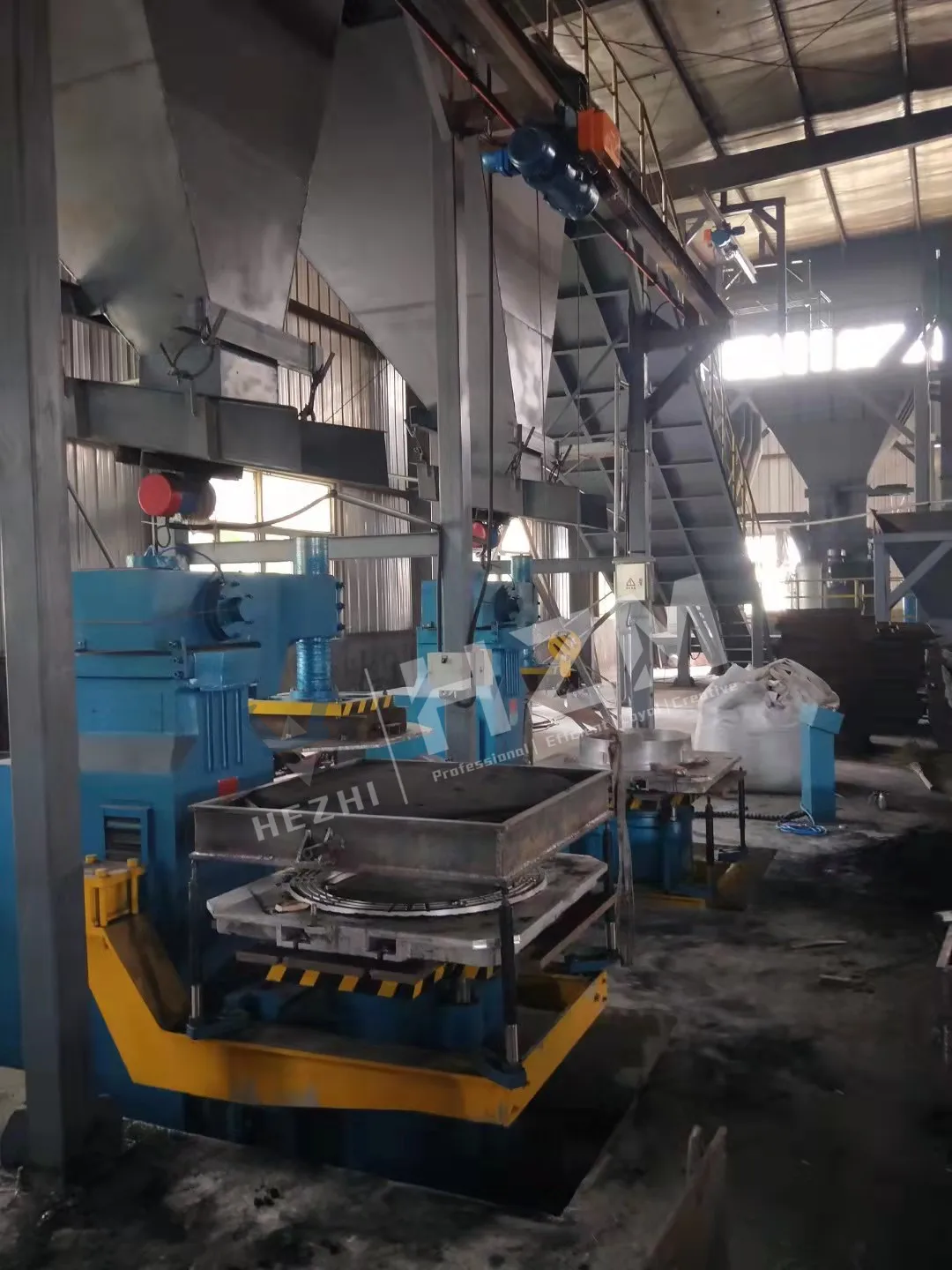

Application & Production :

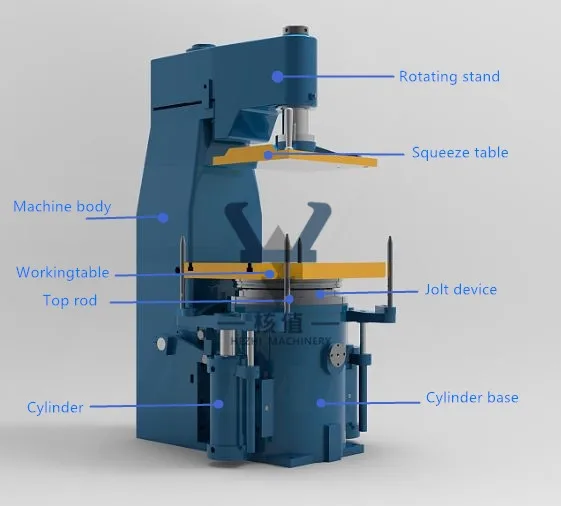

3D Drawing of jolt squeeze molding machine:
Squeeze Part
Colum Part
Jolt Part
Sand Slinger :

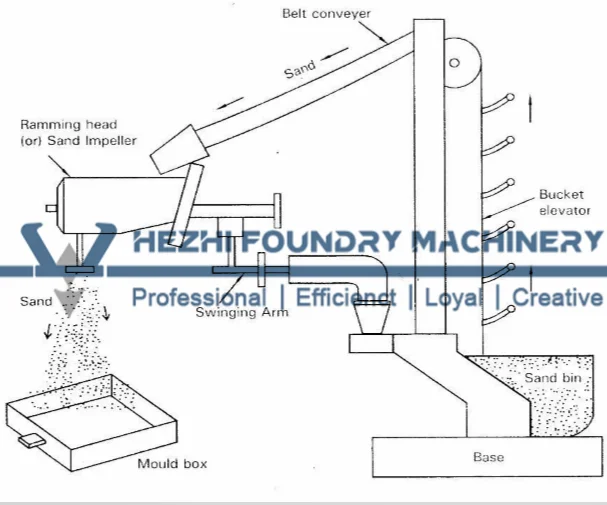

•A sand slinger is an automatic machine equipped with a unit that throws sand rapidly and with great force into the mould box. Figure shows a sand slinger. Sand slinger consists of a rigid base, sand bin, bucket elevator, belt conveyor, ramming head (sand impeller) and a swinging arm.
• In operation, the pre-mixed sand mixture from the sand bin is picked by the bucket elevator and is dropped on to the belt conveyor.
• The conveyor carries the sand to the ramming head, inside which there is a rotating impeller having cup shaped blades rotating at high speeds.
Qingdao Hezhi is a manufacturer for Foundry Machinery & Shot Blasting Machine since 2005.
Products cover Moulding Equipment,Sand Reclamation Equipment, Sand Mixer, Dust Collector and full-line Shot Blasting Machines.
Products cover Moulding Equipment,Sand Reclamation Equipment, Sand Mixer, Dust Collector and full-line Shot Blasting Machines.
We owned 3600m2 work shop area for production with 2x10 cranes.
Another 2600m2 space is planned for extension.
ISO9001 is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products.
3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.
Our philosophy: Professional, Efficienct, Loyal,
Our mission: To creat core vlaue for our customer, our staff and our company.
Choose Hezhi,Get factory price and reliable Foundry Machinery!
Another 2600m2 space is planned for extension.
ISO9001 is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products.
3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.
Our philosophy: Professional, Efficienct, Loyal,
Our mission: To creat core vlaue for our customer, our staff and our company.
Choose Hezhi,Get factory price and reliable Foundry Machinery!
Q:What to do if the shock force is insufficient?
A:Check whether the compressed air pressure is appropriate. If there is sand or dust jam between the shock cylinders, the shock cylinders should be disassembled and washed.
A:Check whether the compressed air pressure is appropriate. If there is sand or dust jam between the shock cylinders, the shock cylinders should be disassembled and washed.
Q: How many days do you need to produce this machine?
A: It depends on the size of the machine. Usually 20-30days for shot blasting
machine and green sand machine.45days for production line equipments.
Q: What's your machine quality guarantee?
A: Usually it's one year. We will choose the world famous brand components to keep our machine in perfect working condition.
Q: Can you instal the machine overseas?How long will it take?
A: YES, we have rich-experienced install team to instal the machine for our customers worldwide.
More questions please contact with Anna, my phone No. is 0086 1995325 9235
