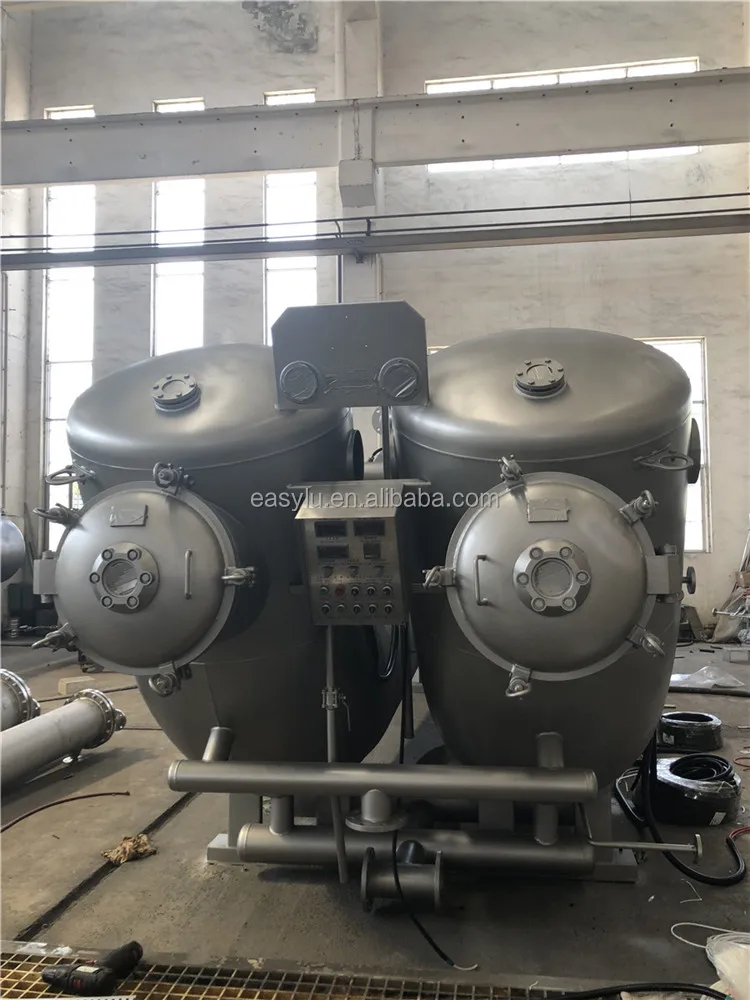

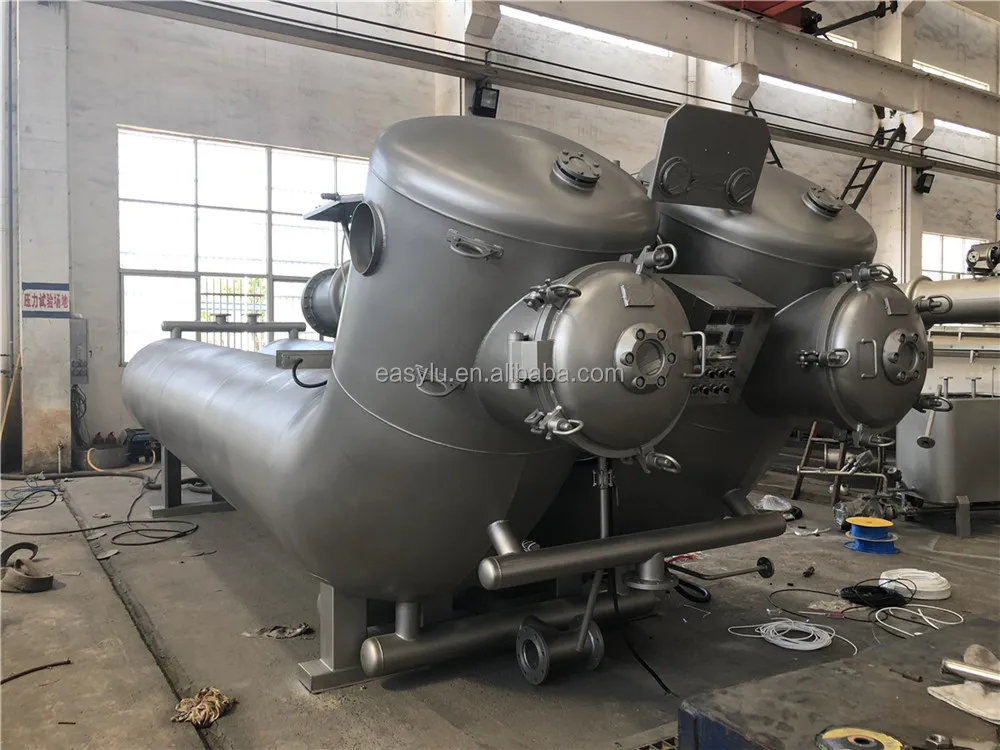

High Temperature high pressure cloth Dyeing Machine
- Category: >>>
- Supplier: Buentex Machinery Trading Co. Ltd.
Share on (1600442076705):
Product Overview
Description
Product Description
Applicable fabrics: woven fabric, knitted fabric; thick and heavy fabric, thin and light fabric; natural fiber, synthetic fiber
and blended fabrics. Suitable materials: polyester, cotton, viscose, wool, acrylic, nylon, tencel, rayon, modal, and blended
fabrics.
and blended fabrics. Suitable materials: polyester, cotton, viscose, wool, acrylic, nylon, tencel, rayon, modal, and blended
fabrics.
Model | Tube qty. | Capacity: kg | Main pump power: kw |
BTJ-1 | 1 | 200-250 | 15 |
BTJ-2 | 2 | 400-500 | 30 |
BTJ-4 | 4 | 800-1000 | 55 |

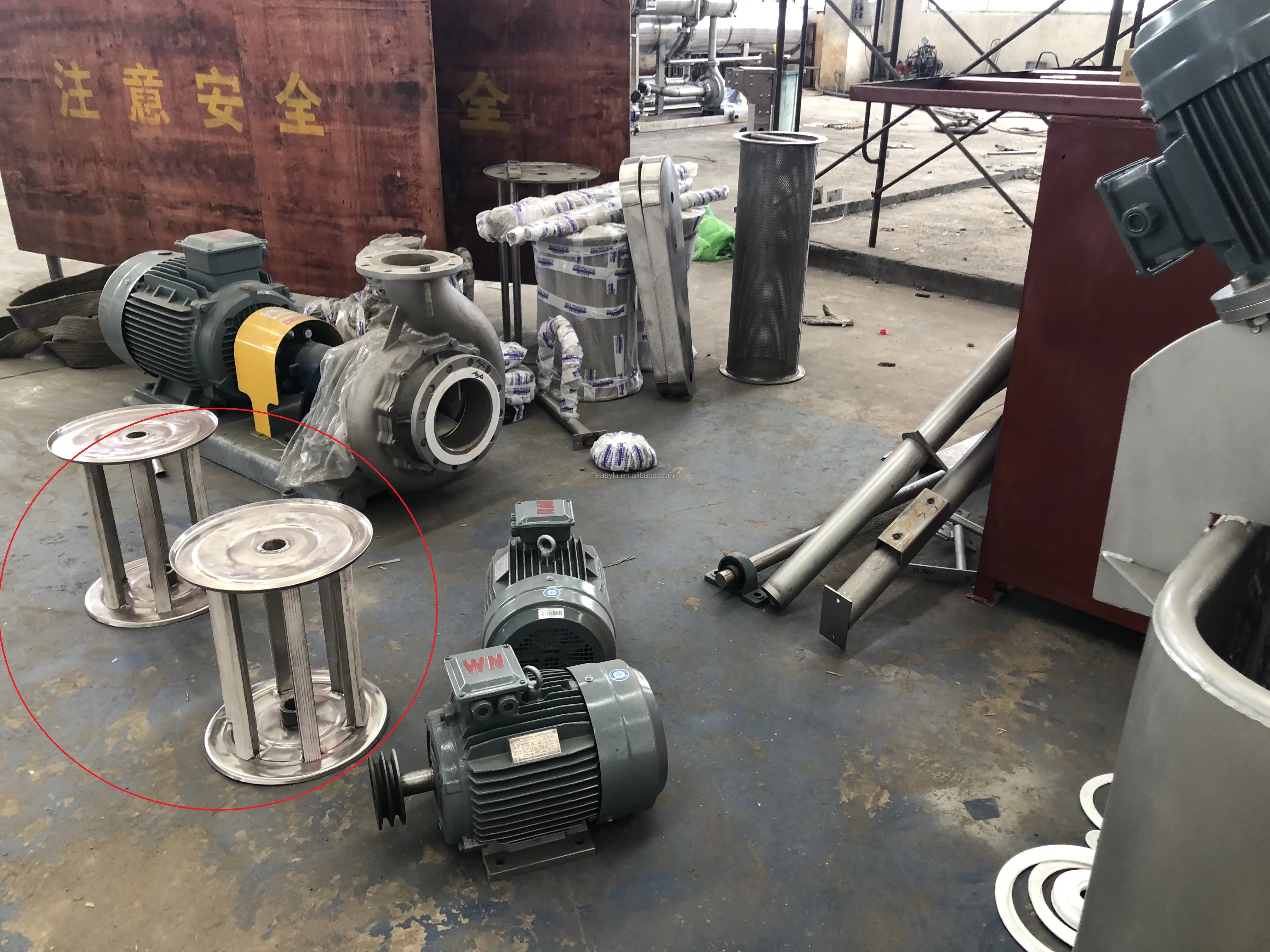

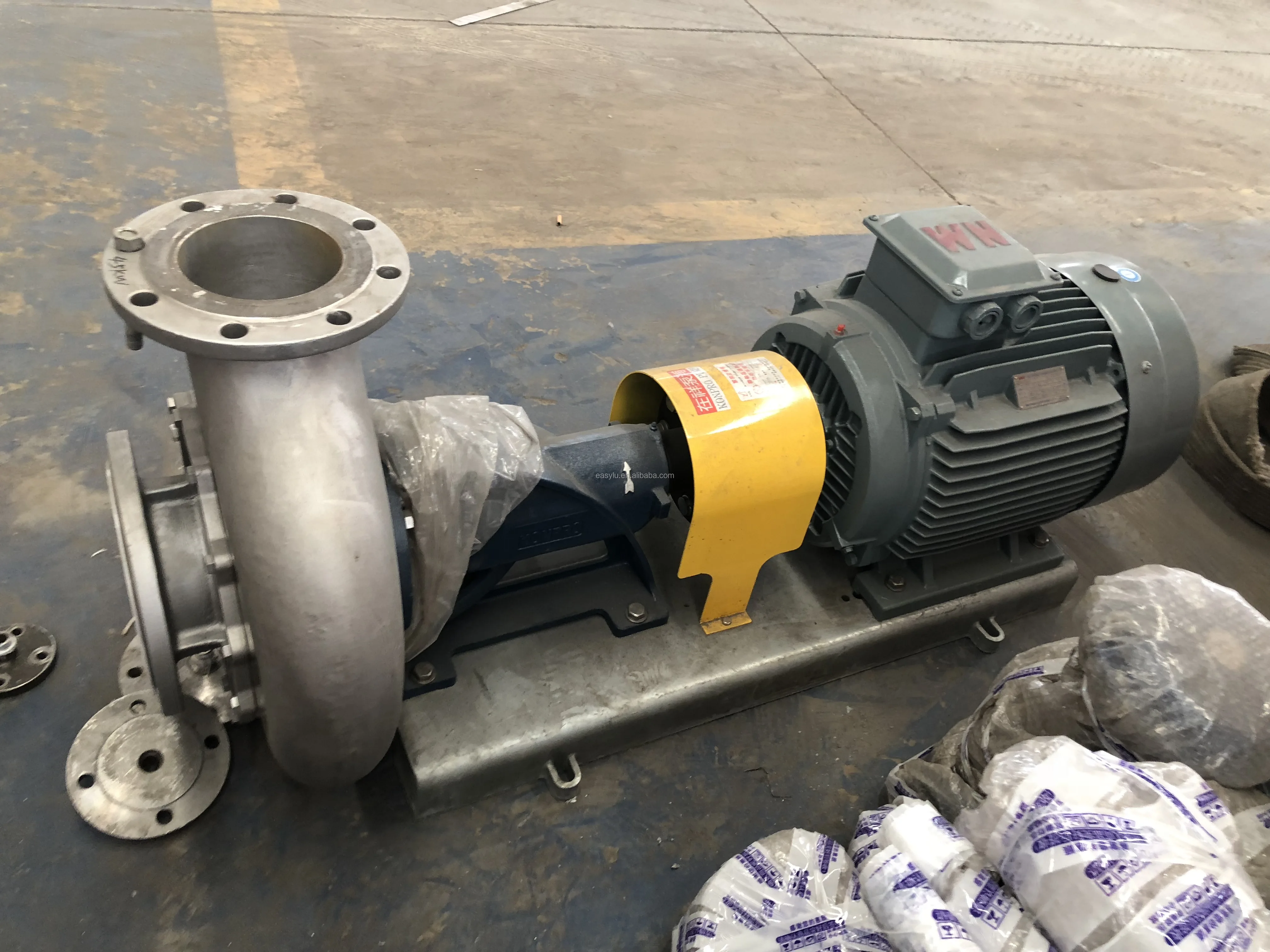

Circulating pump
Stainless steel casted,low energy consumption, centrifugal type circulating pumb, the mechnical capacity can bear very strong load, suitable for operation under high temperature high pressure.The tremendous flow rate make the temperature diffuse in the dye box system, even more in the complete dyeing system.
Heat Exchanger
High efficient tabulation type heat exchanger ensure temperature increased from 20 degree to 130 degree within 20 min, cooling down from 130 degree to 80 degree within 15 min, special suitable for rapid dyeing process.

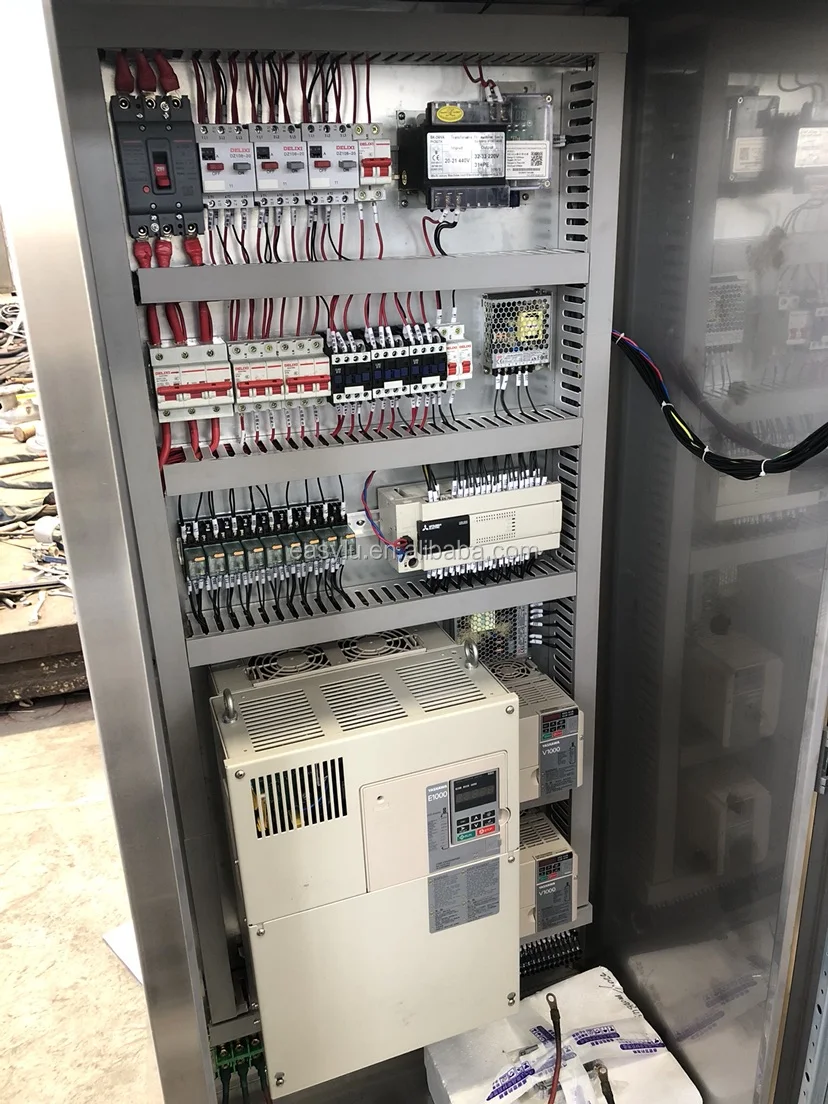

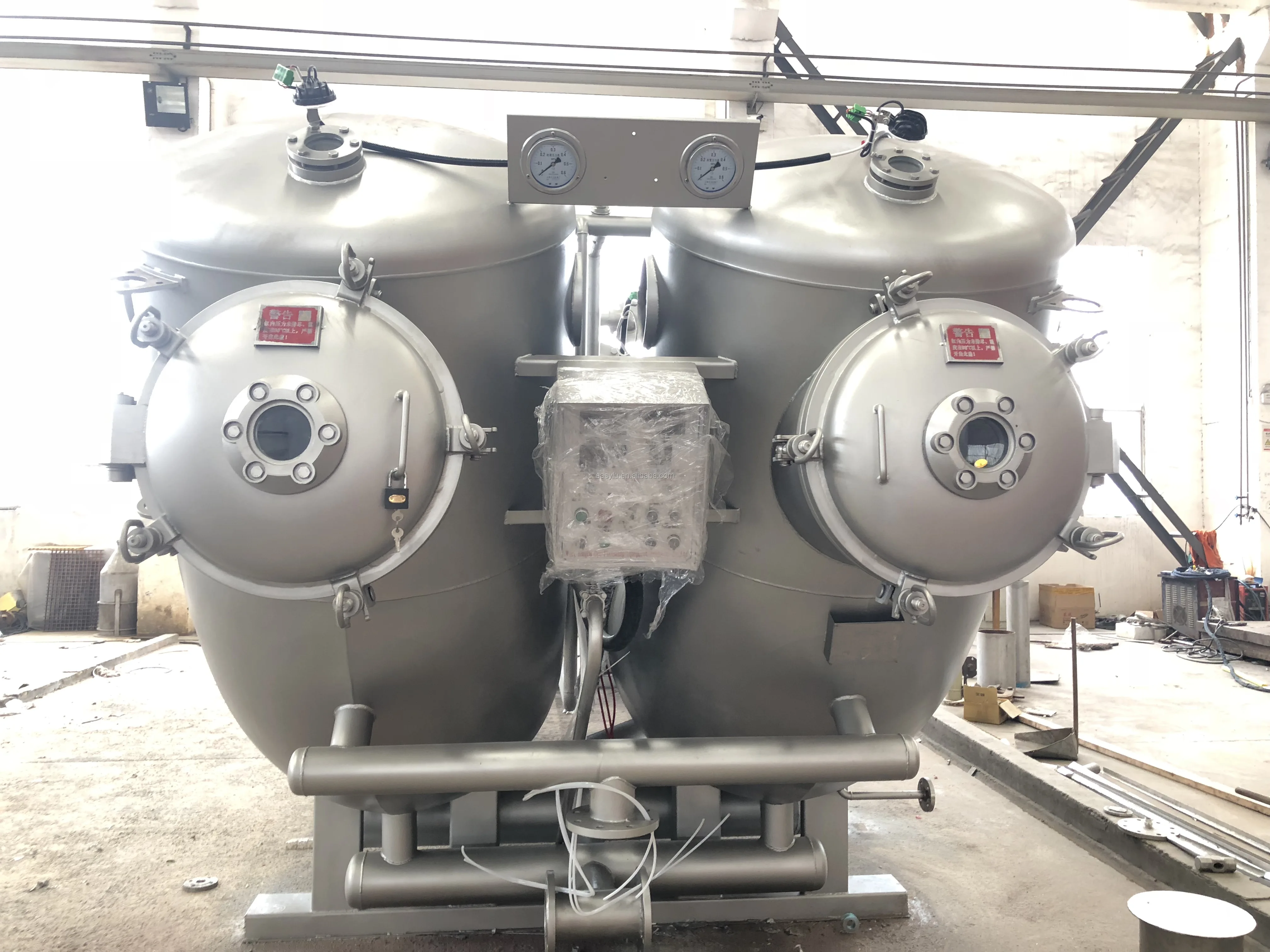

Detailed Images
Size Information
Model | Length: mm | Width: mm | Height mm |
BTJ-1 | 7400 | 2000 | 2300 |
BTJ-2 | 7400 | 3440 | 2300 |
BTJ-4 | 7400 | 6430 | 2300 |

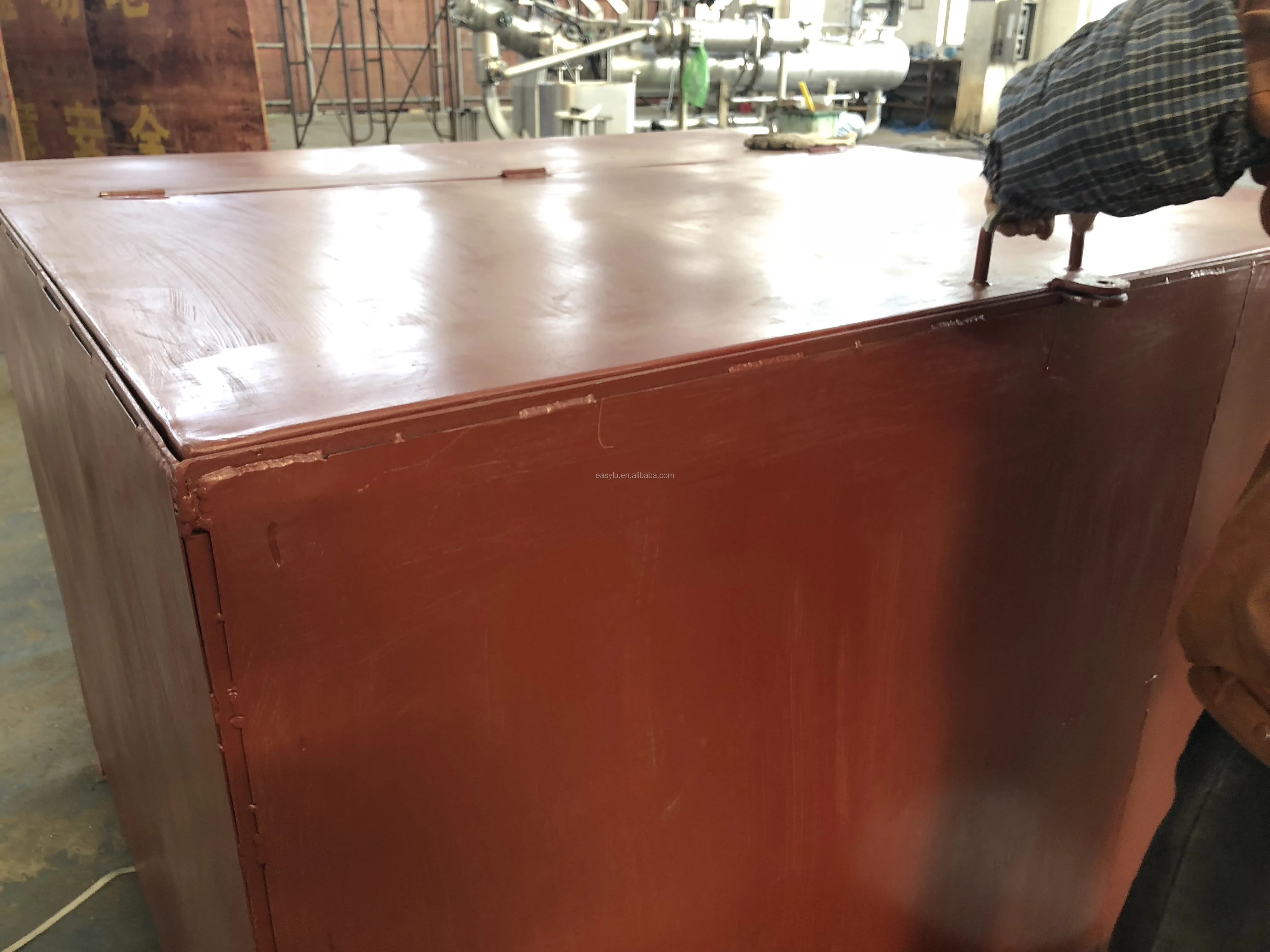

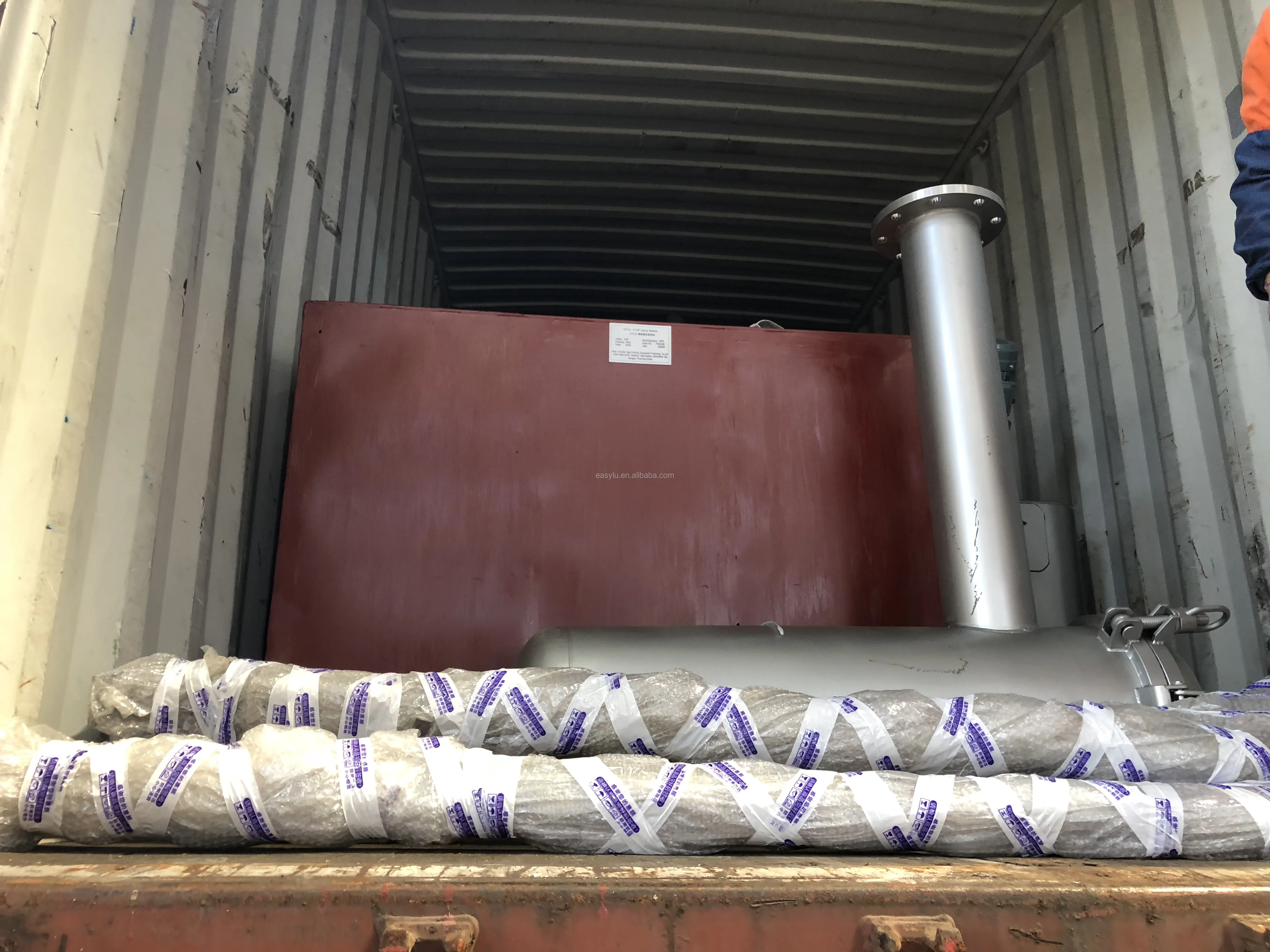

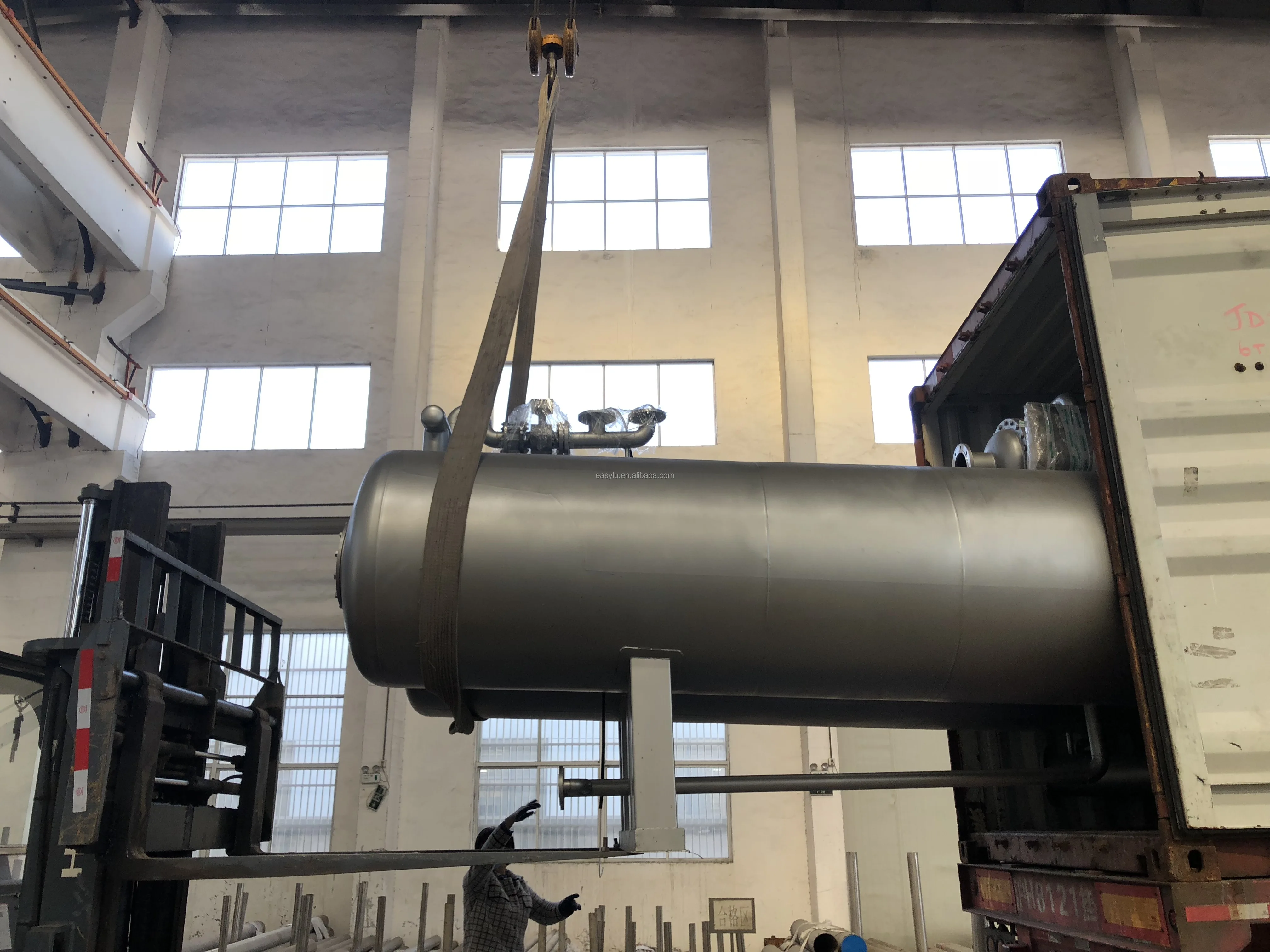

Packing&Shipping
40'HQ x 1
