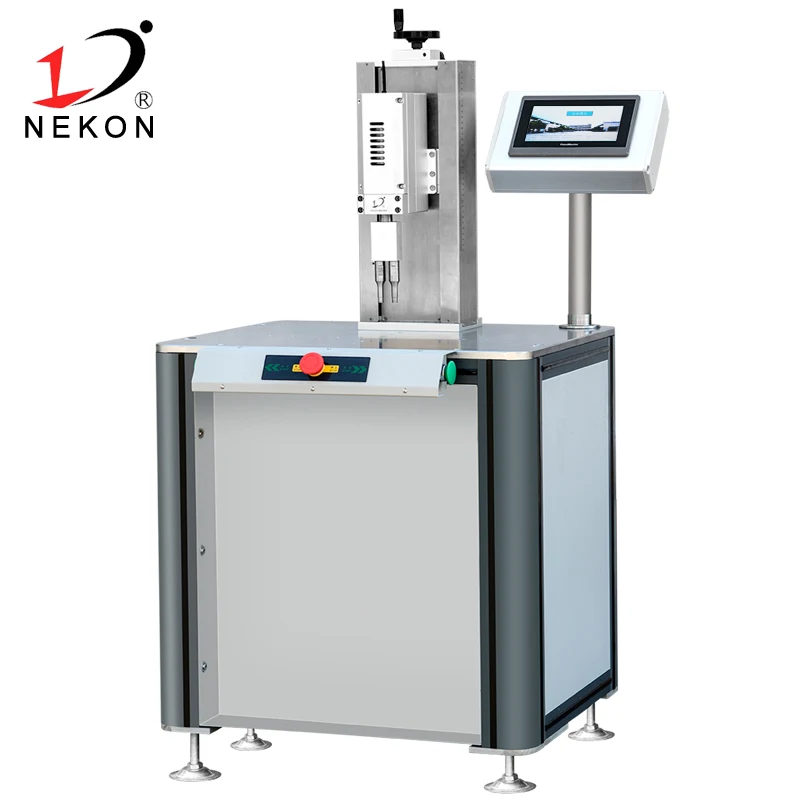

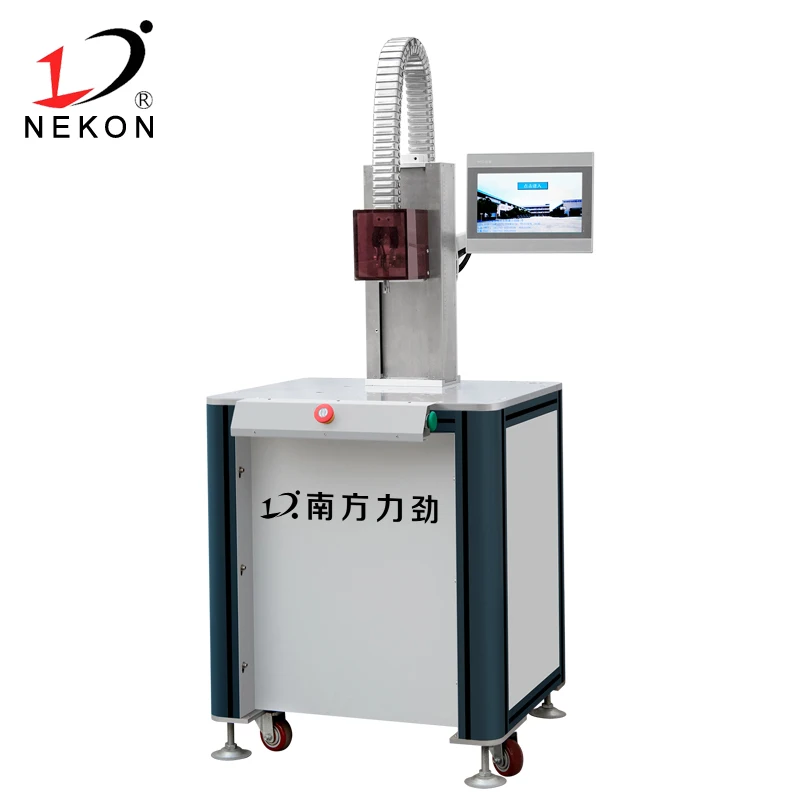

Semi Automatic Manufacturing Machine Ultrasonic Spot Welder For Welding Plastic Parts

Product Overview

Description

Semi Automatic Manufacturing Machine Ultrasonic Spot For Welding Plastic Parts





Power:	1kw
Frequency:	50 hz
Power:	220 v
Welding area:	12mm
Drive mode:	pneumatic/servo
Action principle:	pulse power supply



Working principle:

Super-audio welding is put two plastic products into melted and joined together by hot head(weld mold),which by loading a certain pulse to make hot head heat up quickly,then temperature of connected parts raised enough to melt them together.

Advantages of the super audio welding machine:

• The servo control system controls the welding head to move up and down quickly, small noise. The falling speed and the rising speed can be set according to the welding effect of the product.

• AC output, the welding current is pulsed AC (small ripple), heat concentration to improved welding thermal efficiency, small spacing, suitable for fast heat conduction of the workpiece , stable welding process,longer electrode life.

• Stable output temperature, the energy can be subdivided according to the workpiece size(4 sub-segments)

It can fine-tune the welding energy during temperature keeping to avoid over-melting, which can keep stable temperature control even when welding on a workpiece with fast heat conduction..

• Three-stage heating setting function with temperature ramp-up function for complex welding needs.

• Fault diagnosis and alarm functions such as temperature abnormality and abnormality.

• Touch screen display, easy to operate, display various parameters and real-time temperature at each stage,meanwhile,it can display each section of the heat curve (the graph of each section of the heating process will slowly move to the left) to facilitate monitoring of the welding process.

• Thermocouple closed-loop online feedback control to improve the accuracy of temperature control, disconnection alarm to avoid temperature out of control burnt out the workpiece and the welding head (warning below 5 degrees).

• The machine is equipped with a dual temperature temperature probe (one probe for the machine head welding head, one for the customer side) For special temperature detectors, the controller has a temperature calibration function (calibrated with a dedicated instrument).

• The humanized design of the mechanism, flexible adjustment, good mechanical firmness, greatly improved welding quality, suitable welding requirements for different products.
