Product Overview
Description

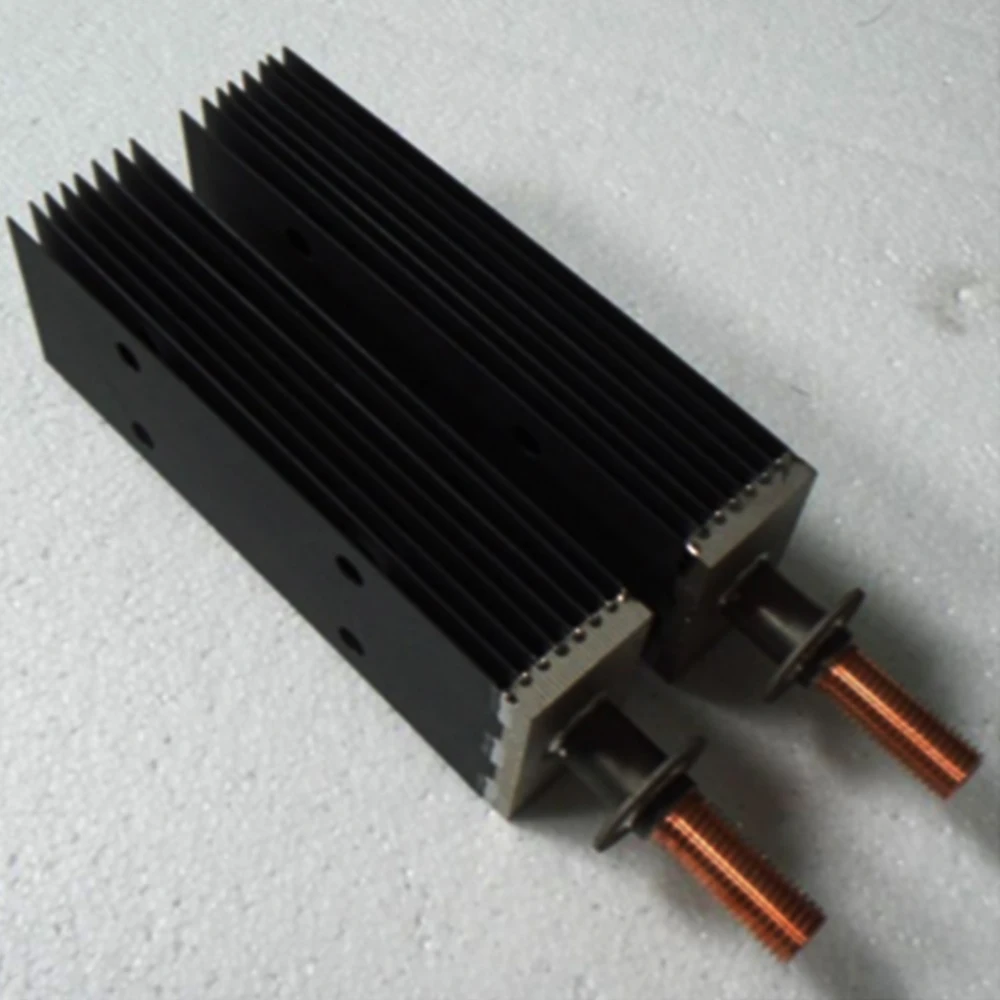

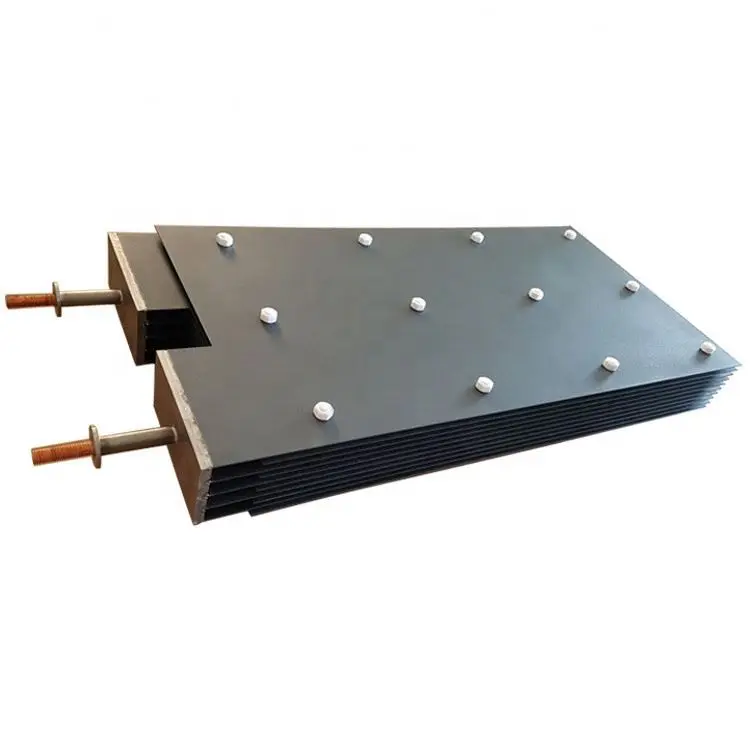

Name | MMO/DSA Ruthenium Oxide Titanium anodes/electrodes | ||||||

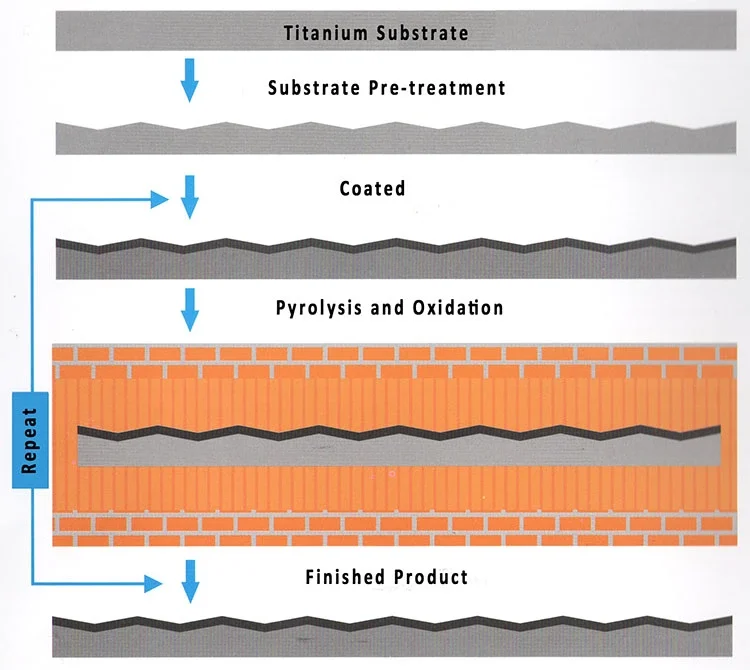

Technology | Sand blasting, Acid washing and Brush coating, baking | ||||||

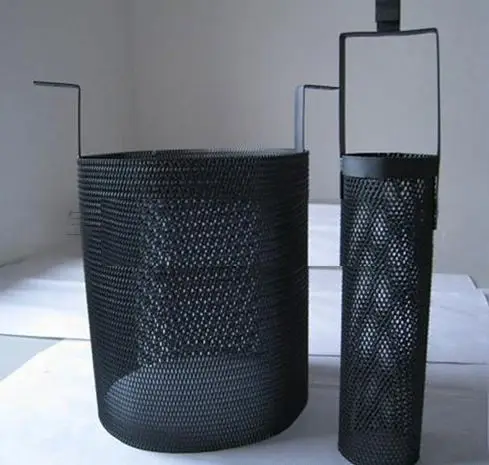

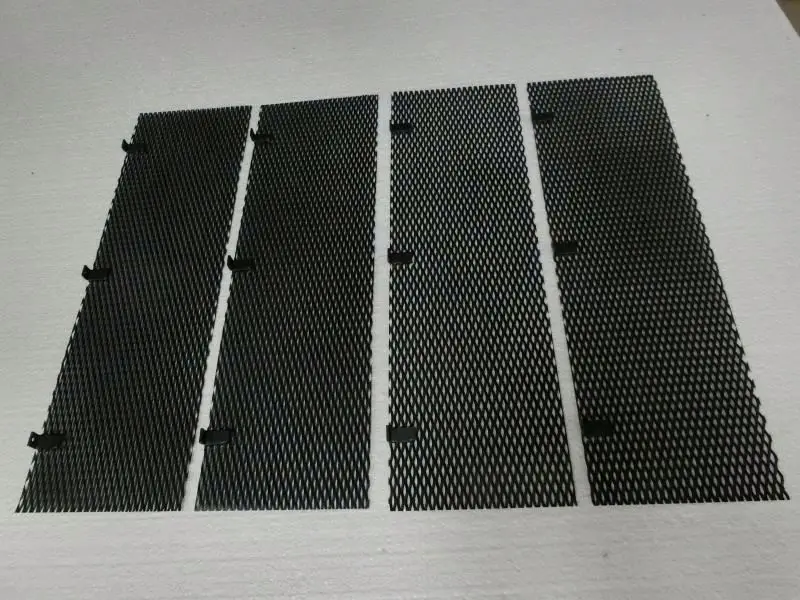

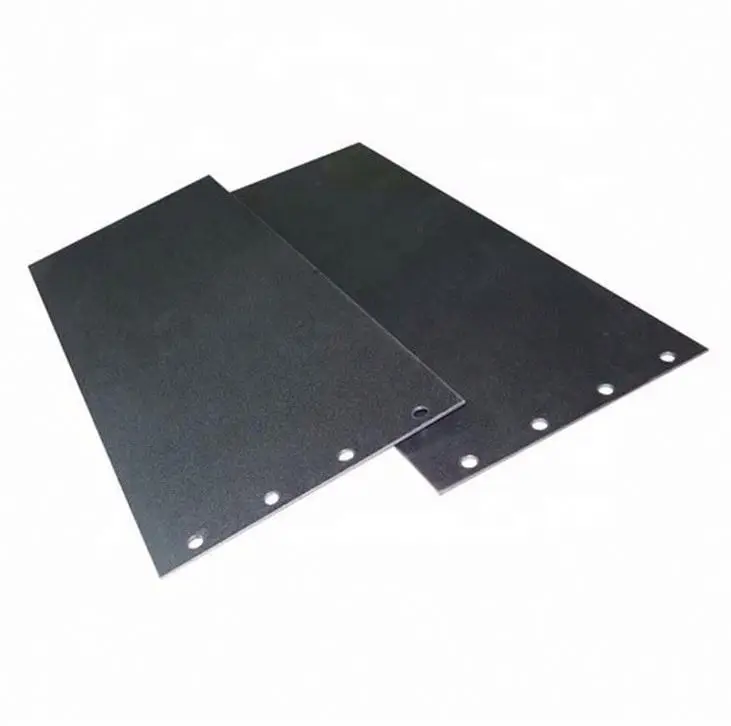

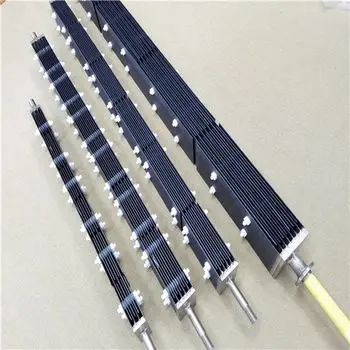

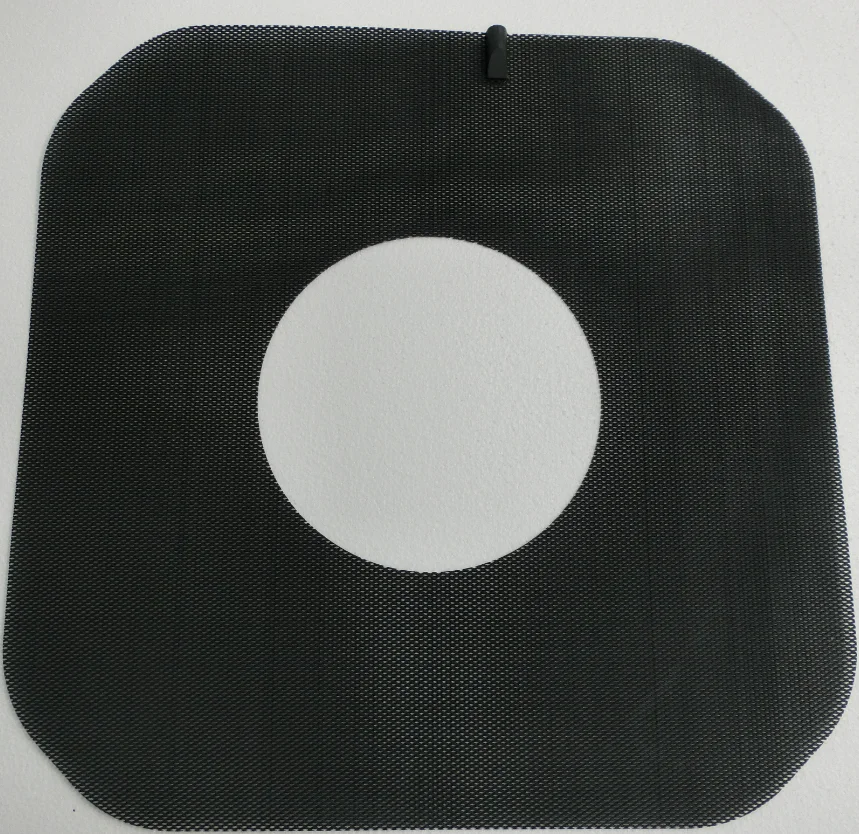

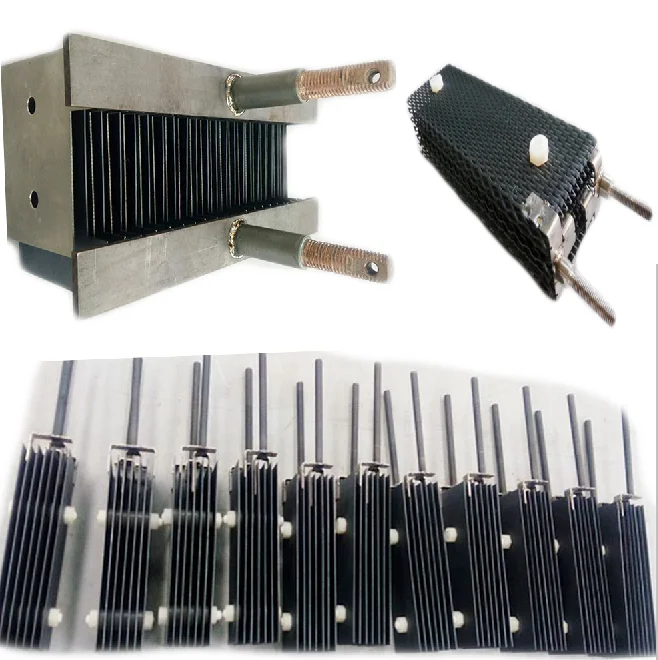

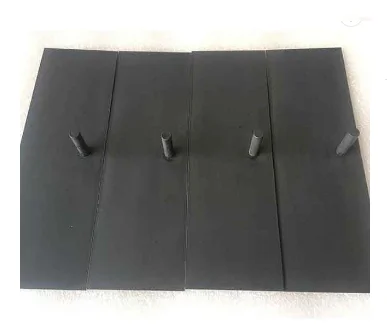

Dimension & Shape | Plate/Tube/Rod/Mesh shape, different dimension is available according to client's drawing | ||||||
Coating type | Ruthenium & Iridium Coated Titanium Anode RuO2, IrO2, TiO2 Mixed Ru-Ir oxide Mixed Ru-Ir-Sn oxide Mixed Ru-Ti oxide | ||||||
Working Parameter | Current density≤3000A/M2 Temperature<60°C Max content of Fluoride ion is 200PPM Coating content:· RuO+IrO 8--25 g/m2 | ||||||
Advantage | Effective, environmental and quick method of electroplating High current efficiency High anti-corrosion property Long working life Keep the operating voltage stably Small size & light weight Repetitive titanium matrix. Etc. | ||||||
Note | Titanium anode also called MMO anode,DSA & Insoluble anode/Cathode also be provide/Small sample order available | ||||||

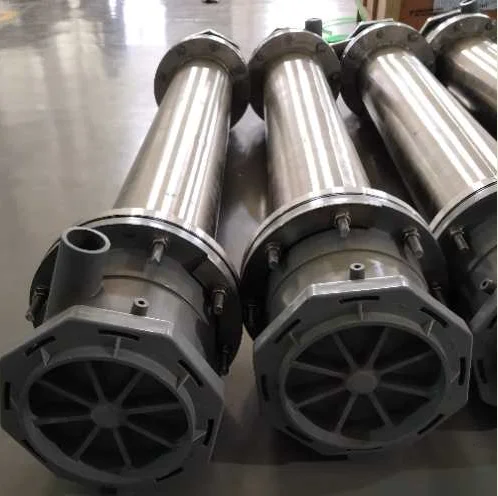

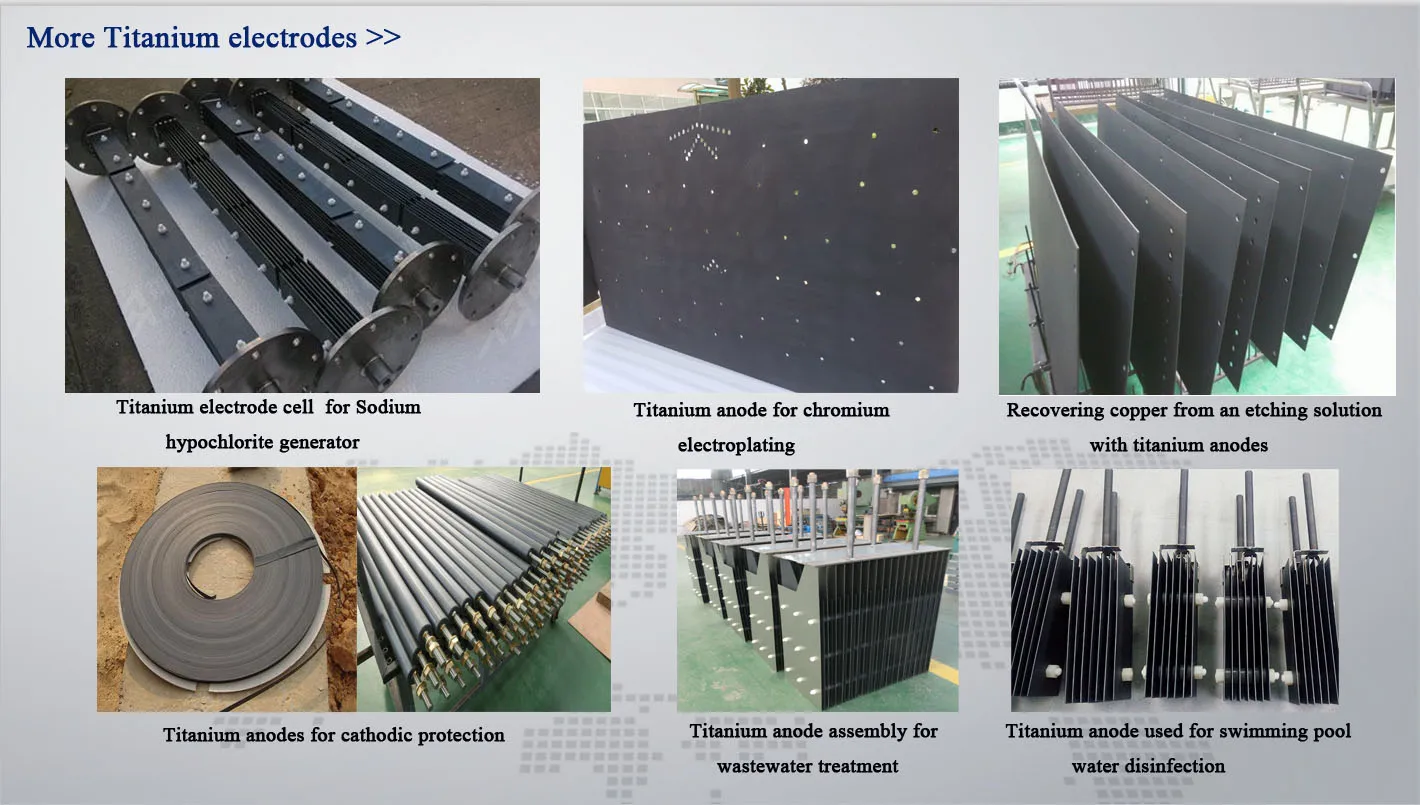

Application | Wionizer or water electrolysis *Making alkaline and acidic water Waste/Swage/ Recycled water treatment *Organic sewage treatment, *Chemical sewage treatment, *Pesticide sewage treatment, *Drinking water disinfection, *Bleaching & dyeing, *Swimming pool *Domestic sewage treatment, *Hospital sewage treatment, *Food industry disinfection etc. Sodium Hypochlorite Generator & Chlorinator *Swimming pool water treatment *Water sterilization & water purification, *Anti-fouling,etc Sea water electrolysis or Electrodialysis *Desalination, *Material recycling in the waste water, *Paper making, *Chemical, medical industry, *Light industry, *Metallurgy, *Making fresh water, etc. Chlor-Alkali Industry *Caustic soda and chlorine production | ||||||
Test items | Test Conditions | Requirements | |||
Binding force | Colorless transparent tape paste | Black tape without leaving obvious traces | |||
Φ12mm round shaft bend 180° | No peeling at the bend | ||||
Uniformity test | X-ray fluorescence spectrometer | ≤15% | |||
Coating thickness | X-ray fluorescence spectrometer | 2-10μm | |||
Chlorine evolution Electric potential | 2000A/m2,Saturated NaCl,25±2℃ | ≤1.08V | |||
Chlorine evolution polarizability | 200/2000A/m2,Saturated NaCl,25±2℃ | ≤35mV | |||
Enhanced life test | 40000A/m2,1mol/L H2SO4,40±2℃ | ≥45h(Ir+Ru 8g) | |||
Enhanced weight loss | 20000A/m2,8mol/L NaOH,95±2℃,Electrolysis 4h | ≤10mg | |||
