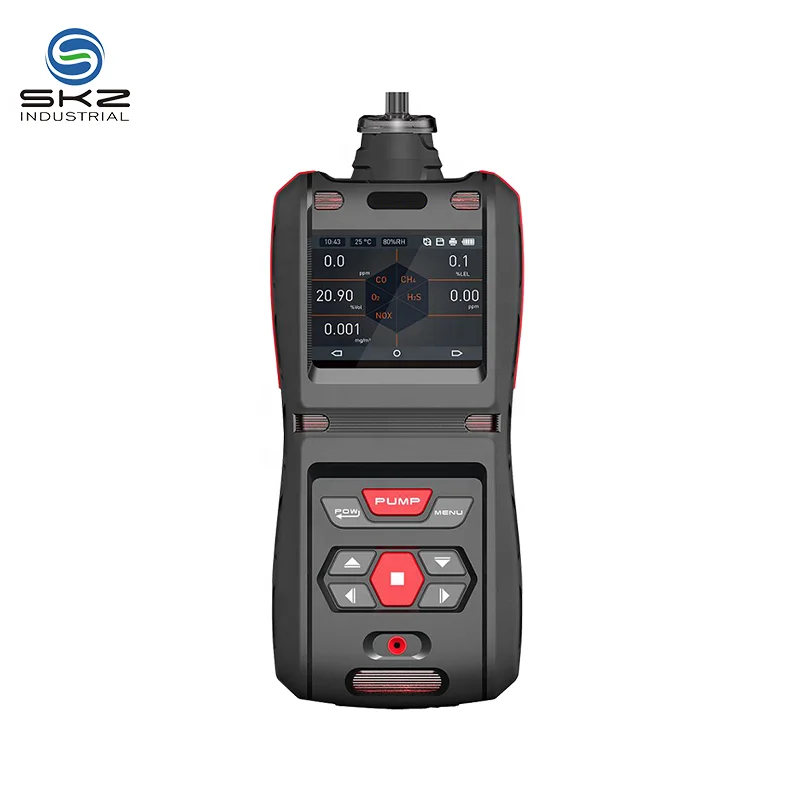

Портативный 0-1000ppm водорода SKZ2050-5-H2 анализатор чистоты газа Концентрации Детектор метр

It is used to quickly detect the concentration of various gases and the measurement of ambient temperature and humidity, and alarm if the measurement exceeds the limit.

It is suitable for detecting gas concentration in pipelines or confined spaces and atmospheric environments; gas leakage or high concentration single gas purity where various background gases are nitrogen or oxygen. There are more than 500 kinds of detected gases.

Features:

It can detect 1~5 kinds of gases at the same time, and the unit can be switched:

  Optional units: PPM, mg/m3, VOL%, LEL%, PPHM, ppb, mg/L

 Built-in pumping measurement, integrated water vapor and dust filter, quick response, support long-distance sampling, built-in water vapor and dust filter to prevent damage to sensors and instruments due to water vapor and dust, can be used in high humidity, high dust environment.

The sampling distance is larger than 10m, and the special gas circuit design can be directly detected; negative pressure or positive pressure -0.5 ~2 kg of gas has no effect on the measurement result.

Rich man-machine interface

The 2.5-inch high-definition color screen displays real-time concentration, alarm, time, temperature, humidity, storage, communication, power, charging status, concentration unit, gas molecular formula, gas name and other information; the menu interface uses high-definition simulation graphics to display the function names of each menu.

Large-capacity data storage function, support multiple storage methods

Support this machine to view and delete data, you can also upload the data to the computer through the USB or RS232 interface, and use the upper computer software to analyze the data and store and print.

Three display modes can be switche

Concentrations of 1-5gases are displayed at the same time, the concentration of single-channel gas is displayed circularly in large font, and real-time curve display.

Graphic display

  Reflect the trend of gas concentration changes over a period of time in the form of a curve.

Data recovery function

 You can choose to recover partly or completely to avoid worries caused by mis-operation.

Can set to display the maximum, minimum, and average values.

Standard USB charging, with charging protection function, support USB plug

It can be charged by a computer or a power bank, compatible with mobile phone chargers

It has overcharge, over-discharge, overvoltage, short circuit, and overheat protection

5-level accurate power display

The detector can work normally when charging.

High-precision temperature and humidity measurement (optional).

Support real-time detection or timing detection

The pump can be turned off when not testing to extend the start-up time.

Multiple alarm methods, multi-directional three-dimensional indication of alarm status when alarming

Including sound and light alarm, vibration alarm, visual alarm on the display screen. The alarm types include: concentration alarm, under-voltage alarm, and fault alarm.

Multiple alarm mode settings

Low alarm, high alarm, interval alarm, weighted average alarm.

Mistaken operation recognition function

Mis-operation of concentration calibration is automatically identified and prevented, which can avoid defects caused by human factors.

Zero point automatic tracking, long-term use will not be affected by zero point drift.

Multi-level calibration of target points to ensure linearity and accuracy of measurement.

Logging

Record calibration log, maintenance log, troubleshooting countermeasures, reminder of the expiration of sensor life, reminder of the next concentration calibration time.

Meet the design requirements of intrinsically safe circuit, anti-static, anti-electromagnetic interference.

Protection grade reaches IP66, waterproof, dustproof, explosion-proof and shockproof.
