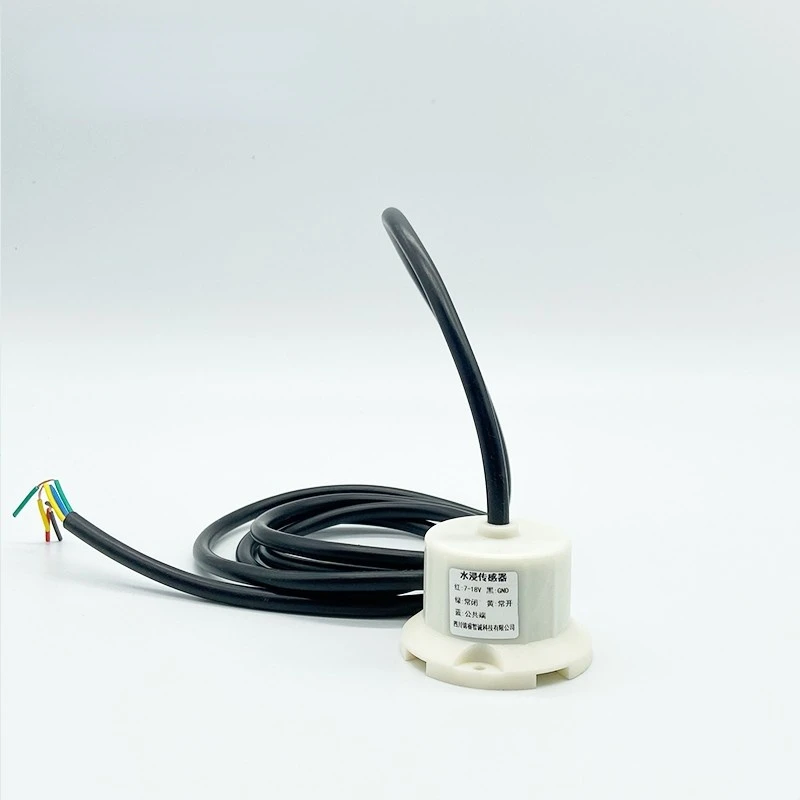

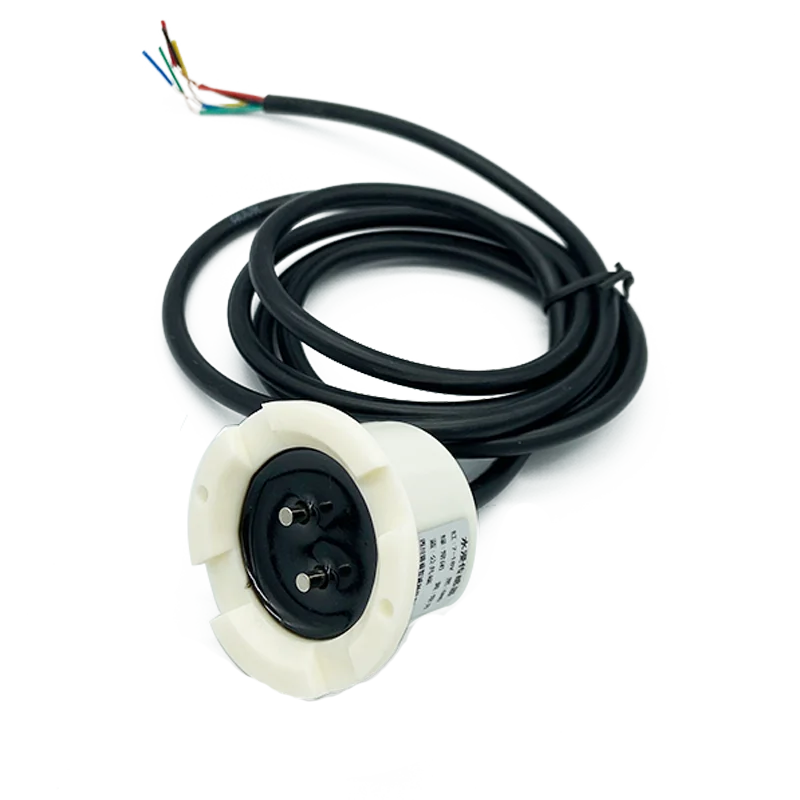

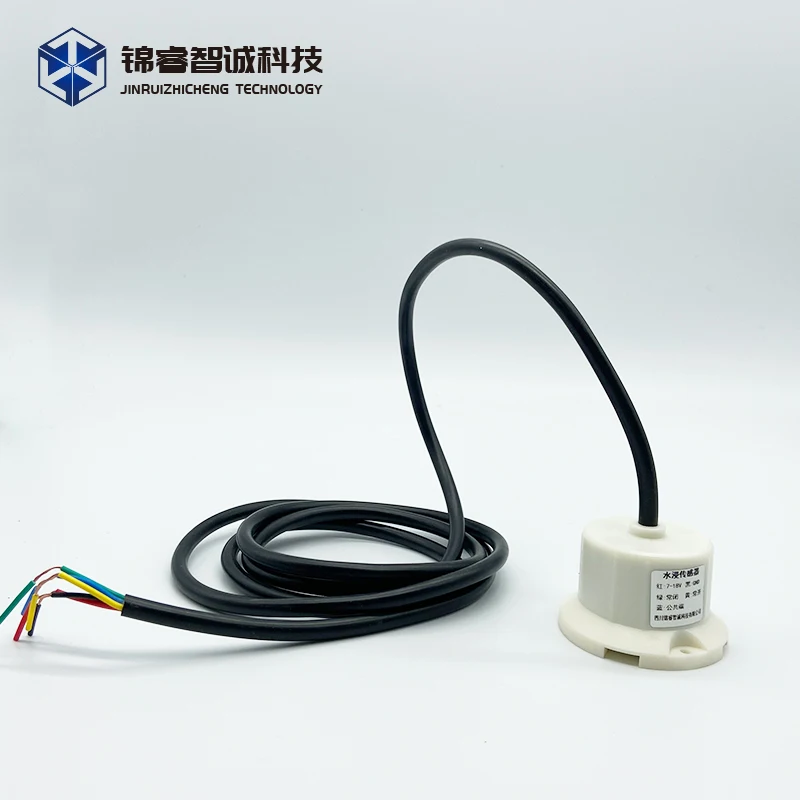

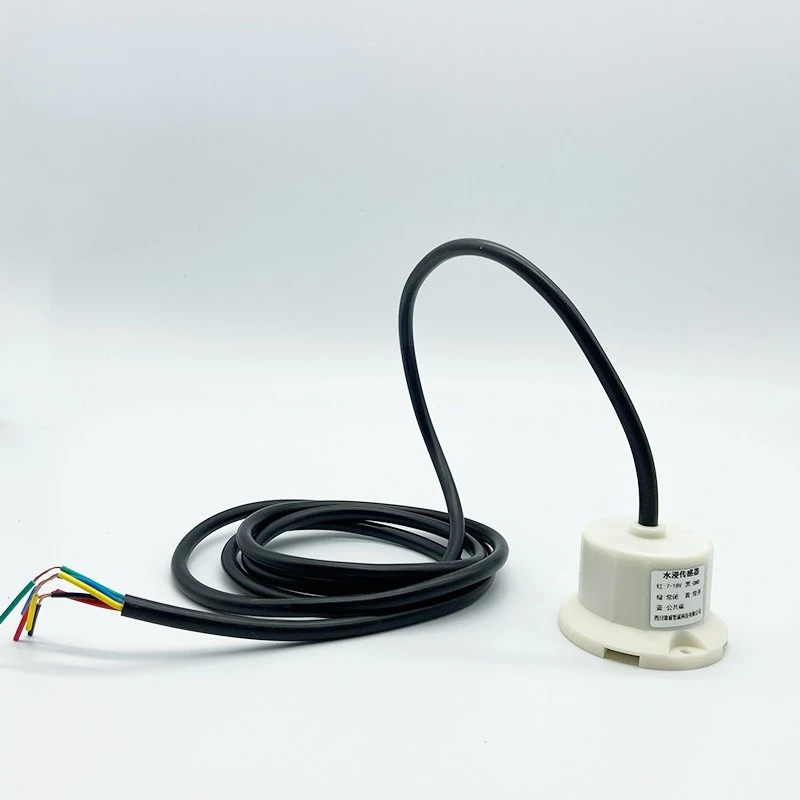

wholesale high technical 1.5m cable water leakage detector for security alarm system
- Category: >>>
- Supplier: Sichuan Jinruizhicheng Technology Co. Ltd.
Share on (1600442899641):
Product Overview
Description
Factory directly wholesale water leakage detector/water leak detection equipment/water
Factory directly wholesale water leakage detector/water leak detection equipment/water
Product Description
Factory directly wholesale water leakage detector/water leak detection equipment/water
The isolated water immersion detector changes the impedance after the detection electrode is immersed in water. The signal processing circuit amplifies, shapes, and compares the input signal of the water immersion, and outputs a dry contact or high-low level change signal, indicating whether there is water at the location of the detector.
Main technology parameter
Project Parameters Working power ：DC5V, 12V, 7~18V, 24V optional
Factory directly wholesale water leakage detector/water leak detection equipment/water
Working temperature： -20℃~60C
Working humidity ：0%RH~100%RH False
alarm rate ：<100ppm
alarm rate ：<100ppm
Static power consumption ：<0.008W
Alarm power consumption： MAX0.6W@18V
Output form： Relay output NC\\NO selectable
Load capacity ：Relay output, ≤1A
Load capacity ：Relay output, ≤1A
Waterproof grade ：IP68
Material: 316 stainless steel probe, abs shell, effective anti-corrosion
Factory directly wholesale water leakage detector/water leak detection equipment/water
Specification
item | value |
Warranty | 2 years |
Customized support | OEM, ODM |
Place of Origin | China |
Sichuan | |
Brand Name | JRZC |
Model Number | JRWIER12 |
Color: | White |
Material: | 316 stainless steel probe, abs shell, effective anti-corrosion |
Material: | ABS |
Application: | Widely |
Power supply: | 12V( DC5V, 12V, 7~18V, 24V ,7-24V optional) |
Feature: | Economical |
Output: | Relay output NC\\NO selectable |

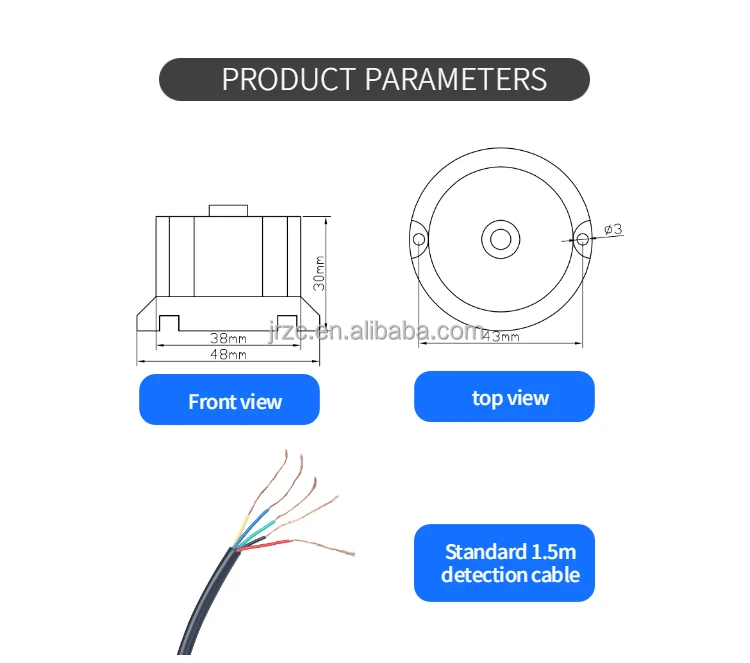

Size | 48*48*30mm |

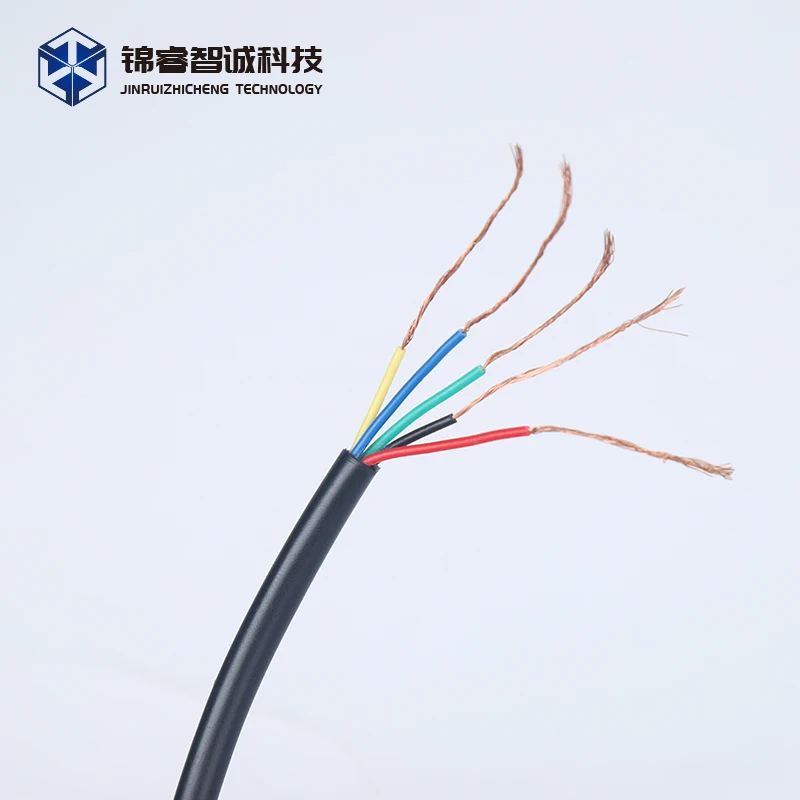

Cable: | Cable: Standard 1.5m detection cable |

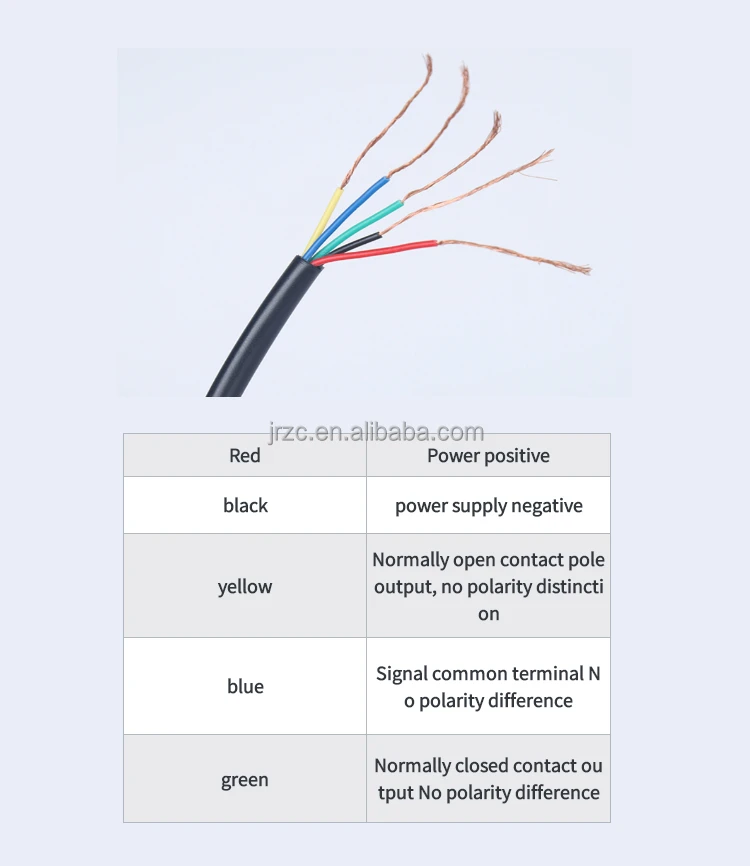

Electrical wiring

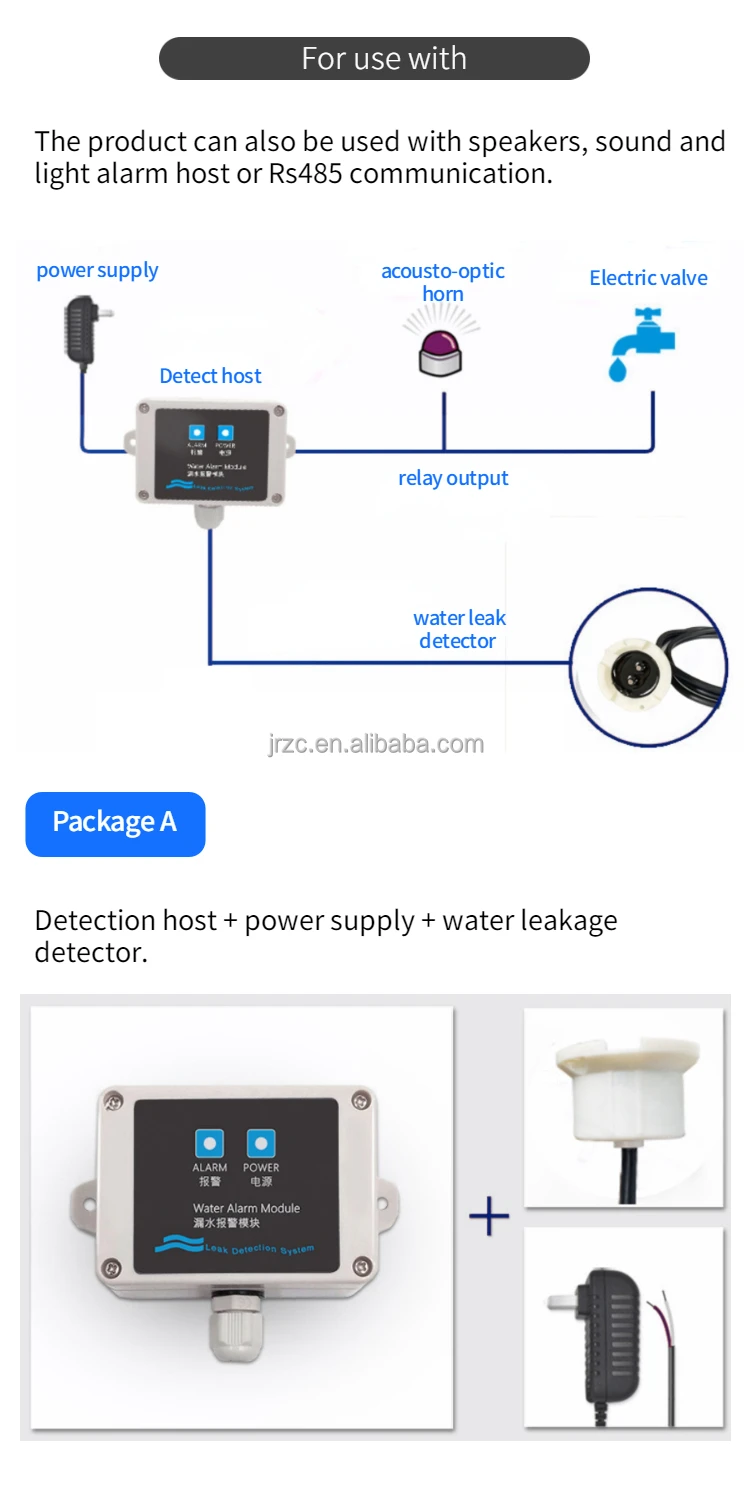

Configuration
Factory directly wholesale water leakage detector/water leak detection equipment/water
◆ High sensitivity, fast response time, no false alarms;
◆Isolation design, safe and reliable;
◆Integrated fully sealed design,
safe and easy to use;
safe and easy to use;

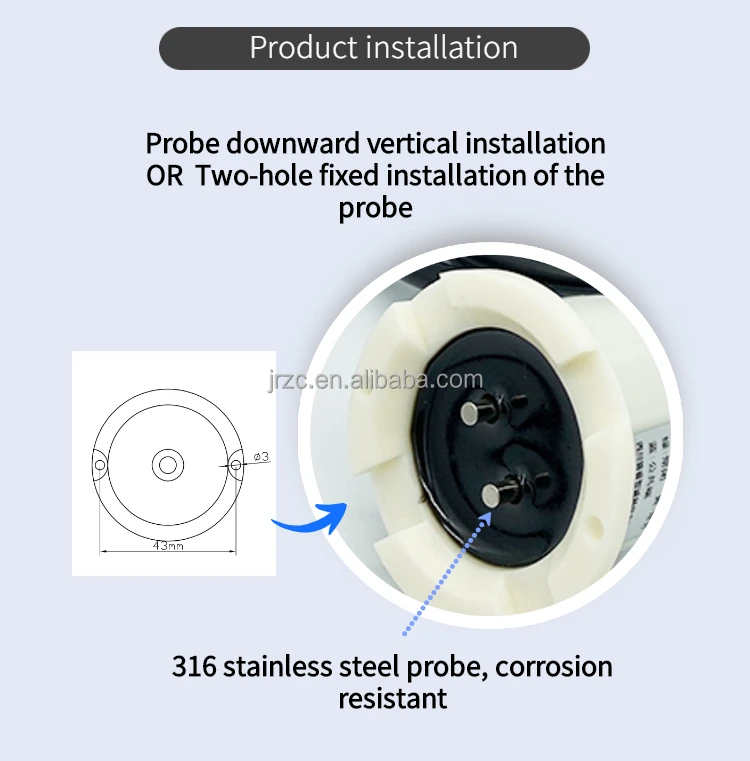

◆ Designed with fixed mounting holes, which can be To adjust the sensing depth, alarm when the water reaches
a certain height.
a certain height.
Company Profile
Sichuan JRZC technology co., LTD is a leading transmission solution provider in China.
JRZC is engaged in industrial sensor, communication gateway, iand measurement control technology solution. We have won good reputation for high quality products and sincere service.
JRZC insists on the policy that"technology first, exquisite design, customer satisfied" we are careful with every detail. Every drawing has to be considered and revised repeatedly. Every products is the thought of designer.
JRZC is engaged in industrial sensor, communication gateway, iand measurement control technology solution. We have won good reputation for high quality products and sincere service.
JRZC insists on the policy that"technology first, exquisite design, customer satisfied" we are careful with every detail. Every drawing has to be considered and revised repeatedly. Every products is the thought of designer.

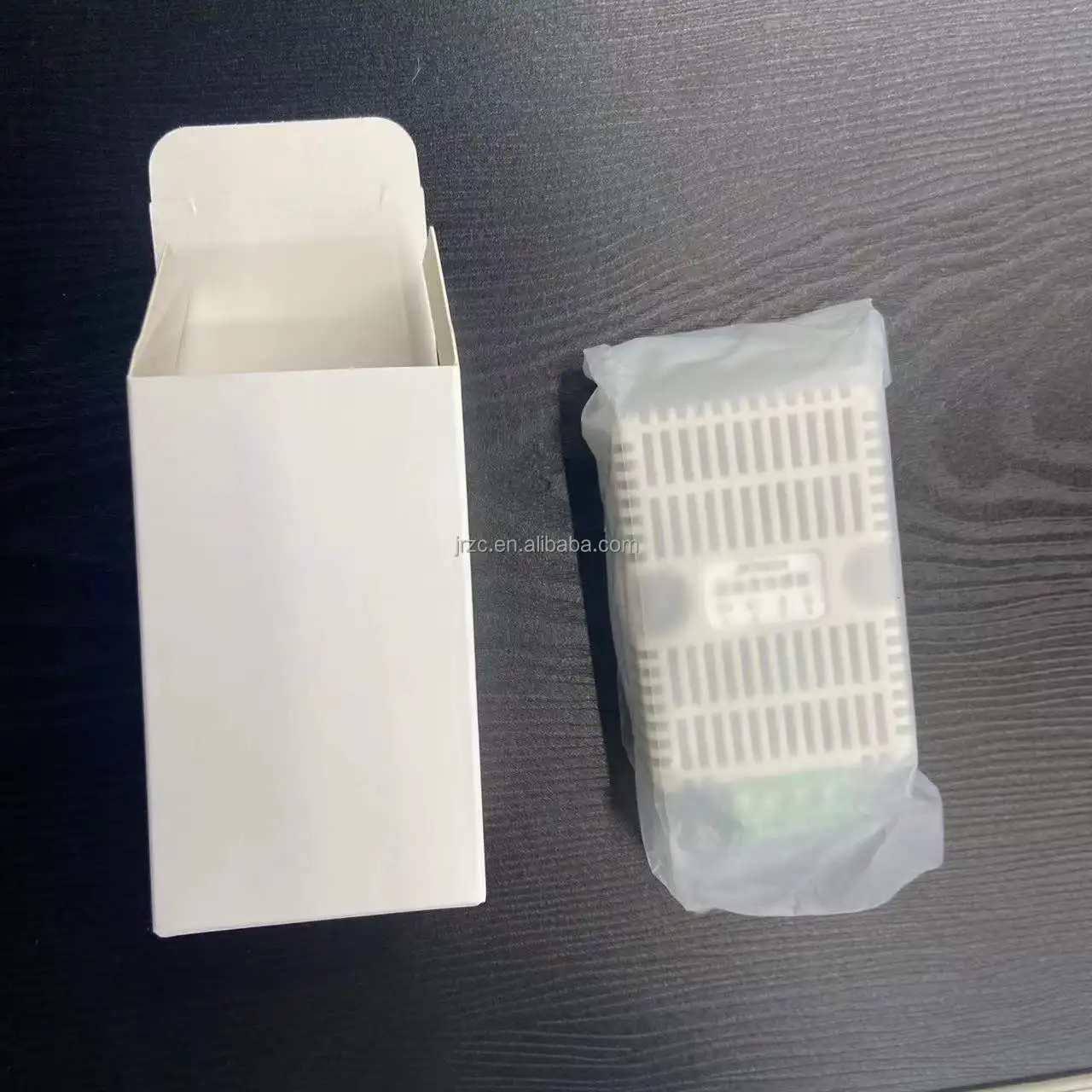

Packing & Delivery
Box size: 4*5*8.5cm, product weight: 50g
