Diamond Driving Light Bar 13inch 20inch 60w 100w Led Light Bar DRL Light Bar 12V 24V 4x4 Atv IP68 ECE R112
- Category: >>>
- Supplier: Brighter LED Lighting Co. Ltd.
Share on (1600443038017):
Product Overview
Description
Product Description
Features:
A.The most popular size 20inch.
B.Unique design with diamond shape.

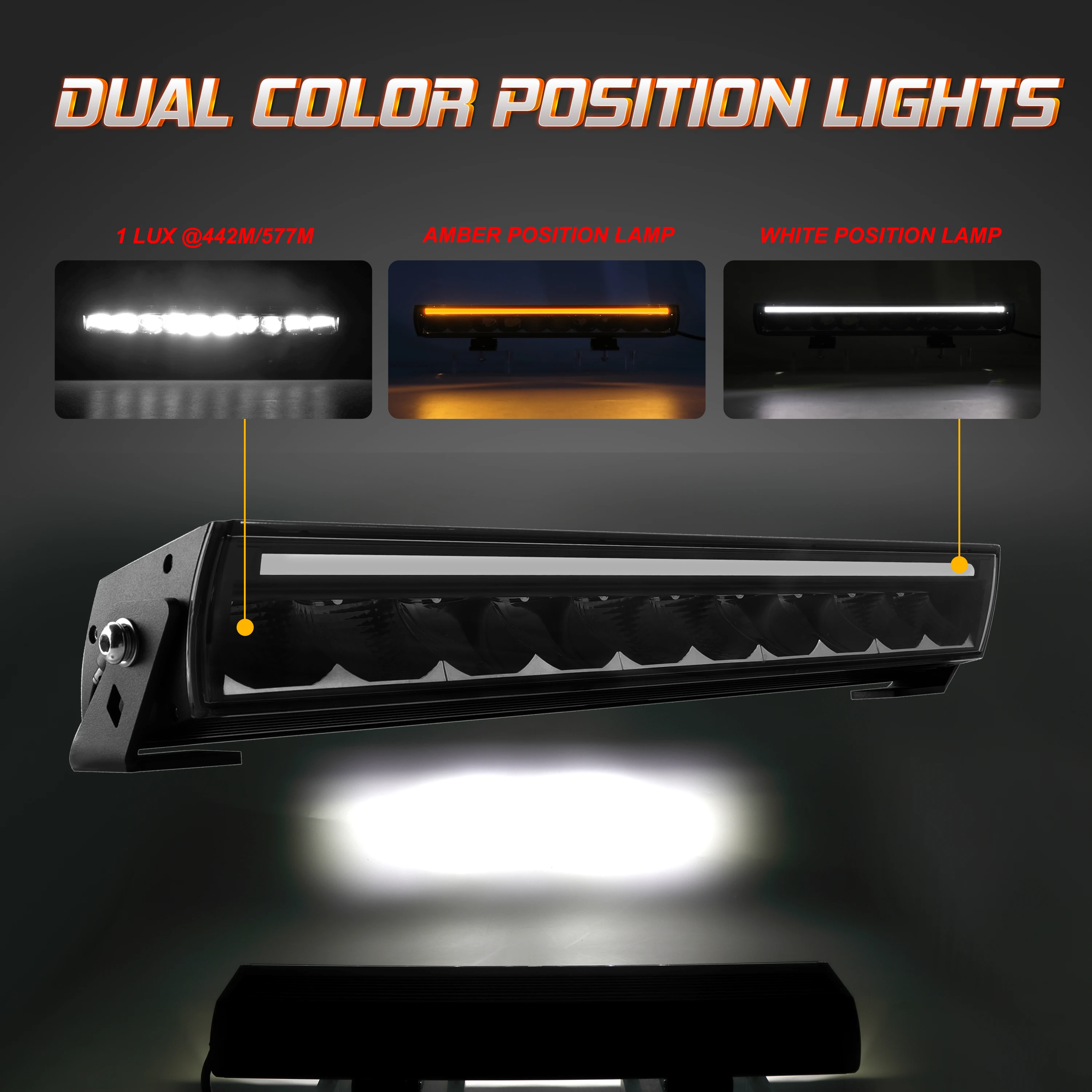

C.With "water flow" dual color park light.

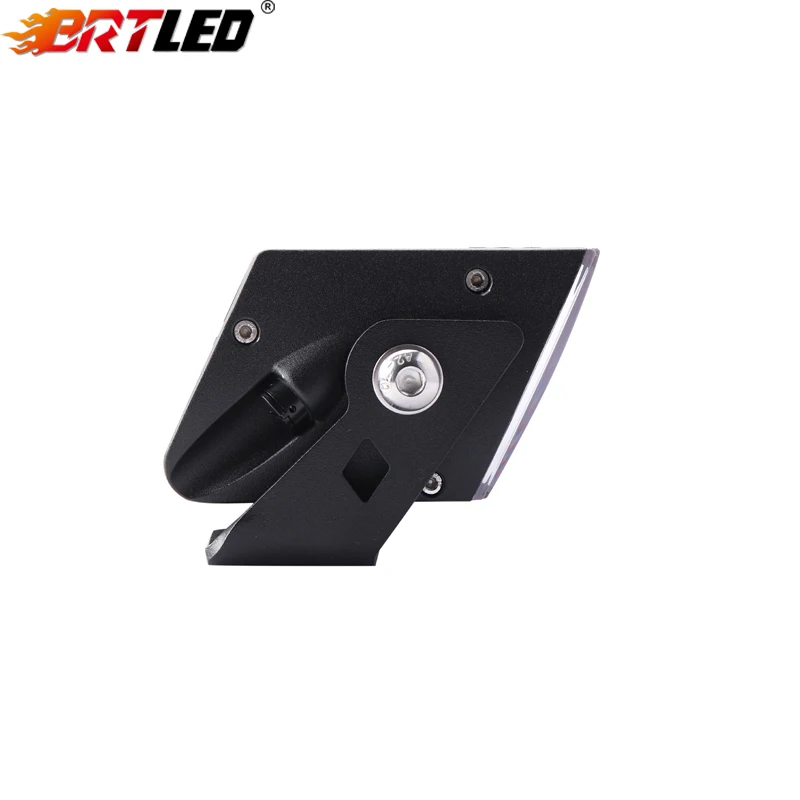

D.Dual mounting way:side and bottom bracket.
E.Emark R112,R7,R10 approved.

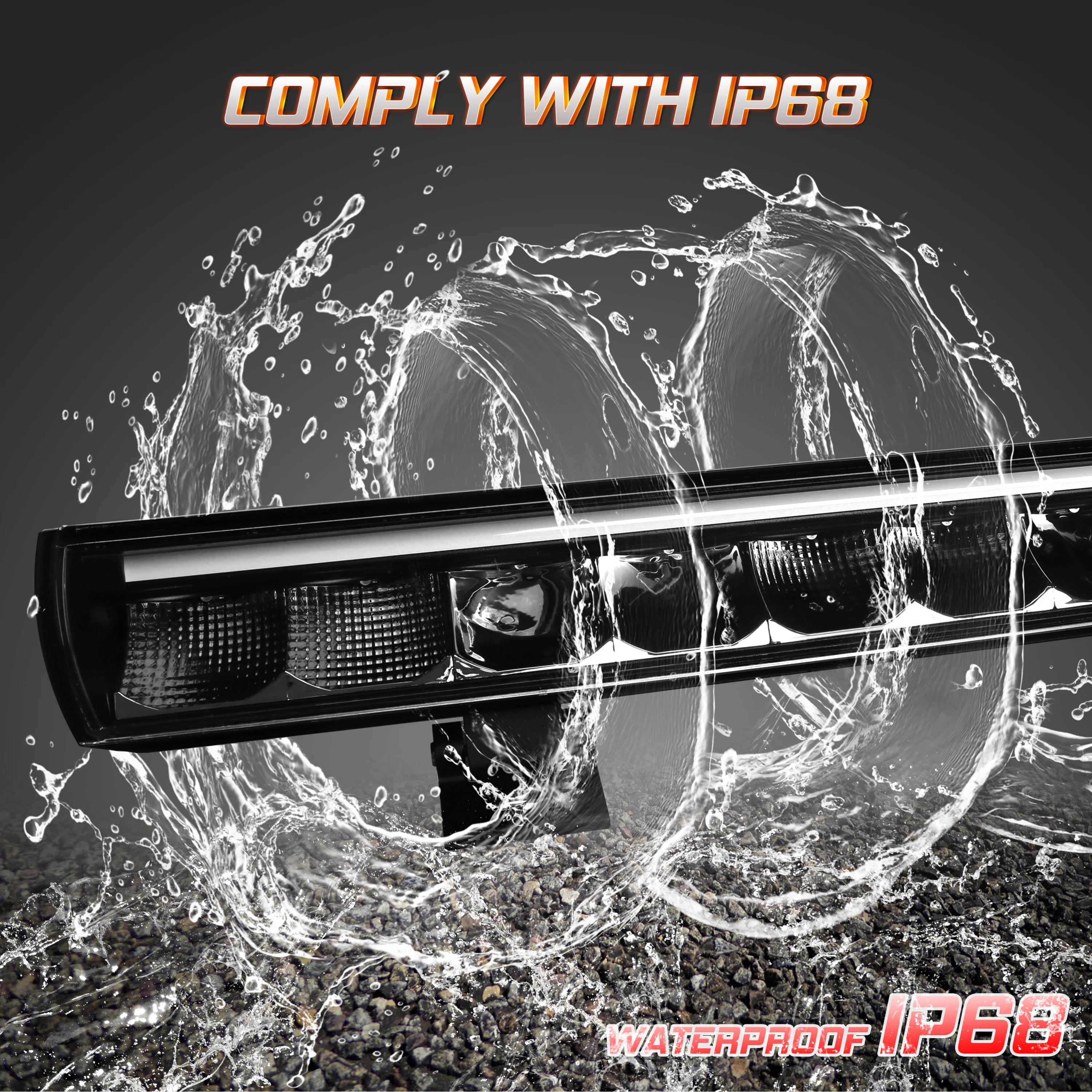

F.IP68/IP69K waterproof rate.
Specification
BL0610S2(13inch)
LED: | 6pcs* 10W LEDS | Beam: | Driving beam/spot beam | ||
Voltage: | 9-36V DC | Lux: | 1Lux@370m/1Lux@458m | ||
Size: | 324*58*81 mm | IP Rate: | Comply with IP68/IP69K | ||
Lumen: | Raw lumen:5700LM Effective lumen:4845LM | Certificate: | ECE R112/R7/R10 REF.30 | ||
BL1010S2(20inch)

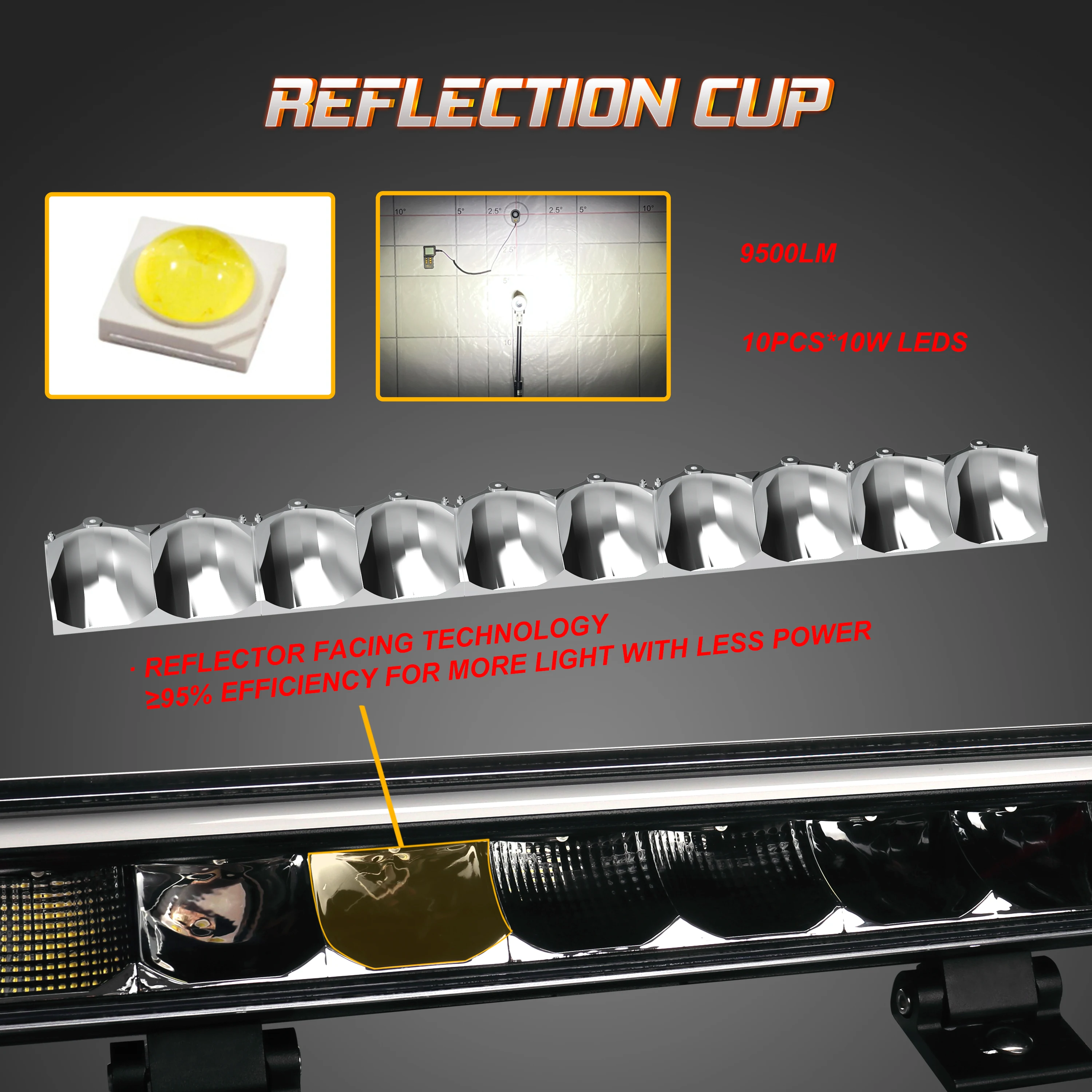

LED: | 10pcs* 10W LEDS | Beam: | Driving beam/spot beam | ||
Voltage: | 9-36V DC | Lux: | 1Lux@442m/1Lux@577m | ||
Size: | 516*58*81mm(20inch) | IP Rate: | Comply with IP68/IP69K | ||
Lumen: | Raw lumens: 9500Lm Effective Lumens: 8200Lm | Certificate: | ECE R112/R7/R10 REF.45 | ||

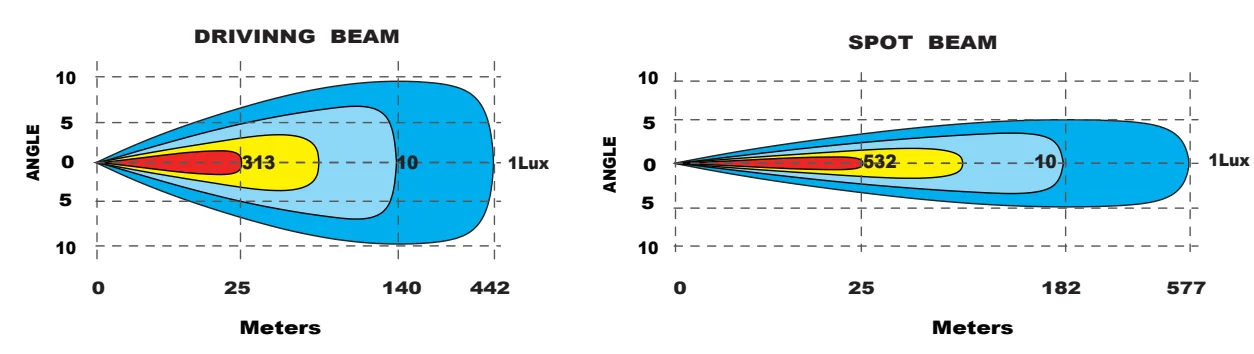

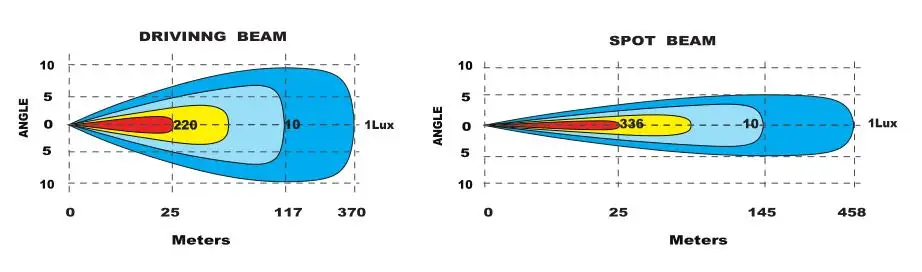

Beam Pattern
BL0610S2(13inch)
BL1010S2(20inch)

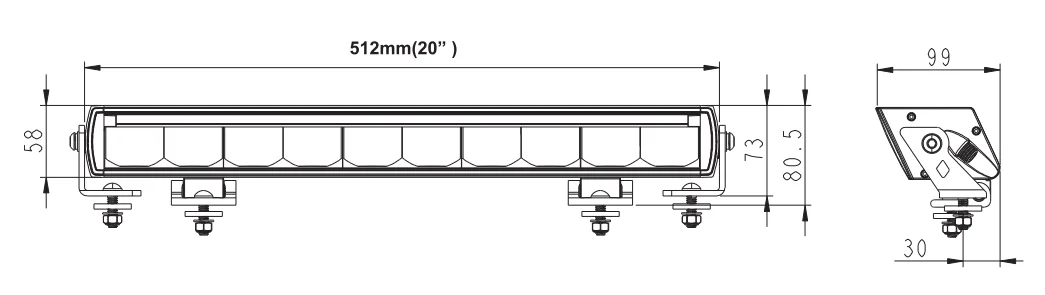

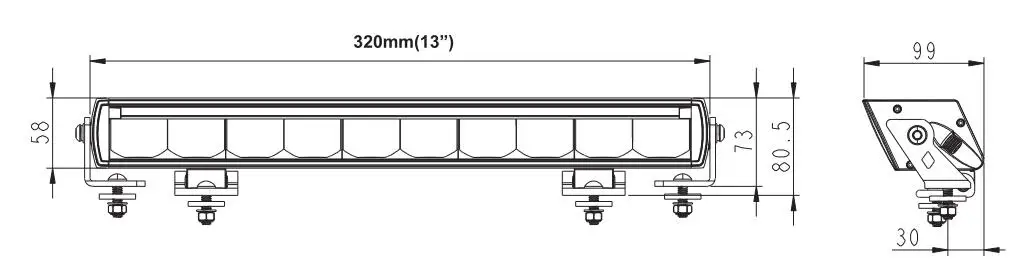

Dimension
BL060S2(20inch)
BL1010S2(20inch)

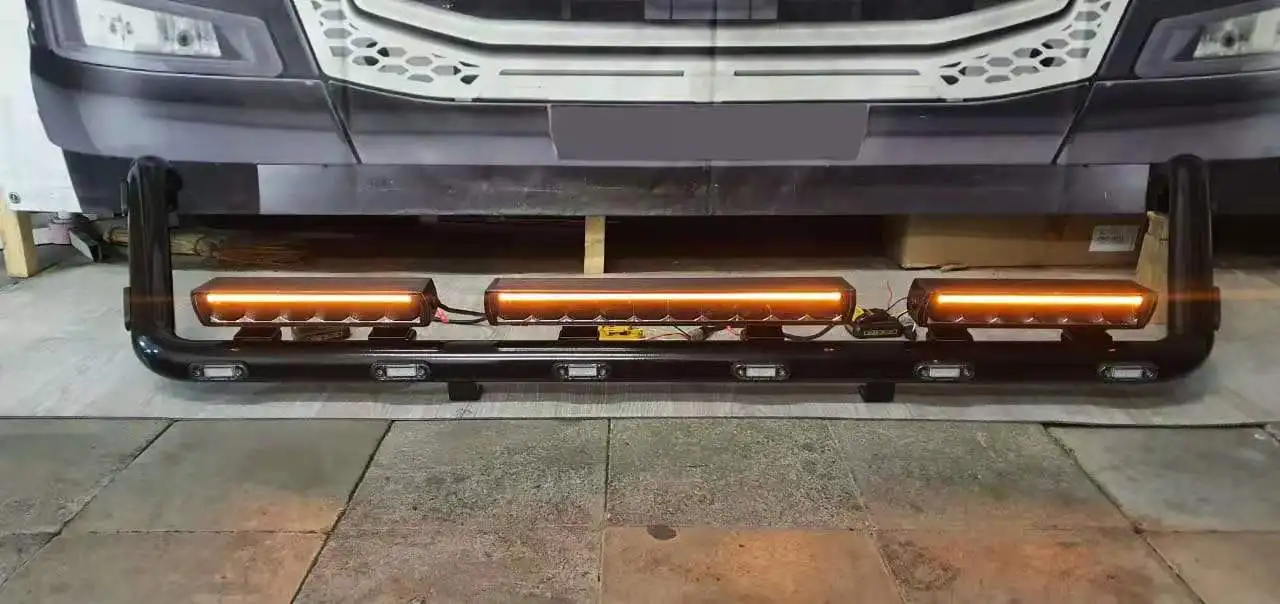

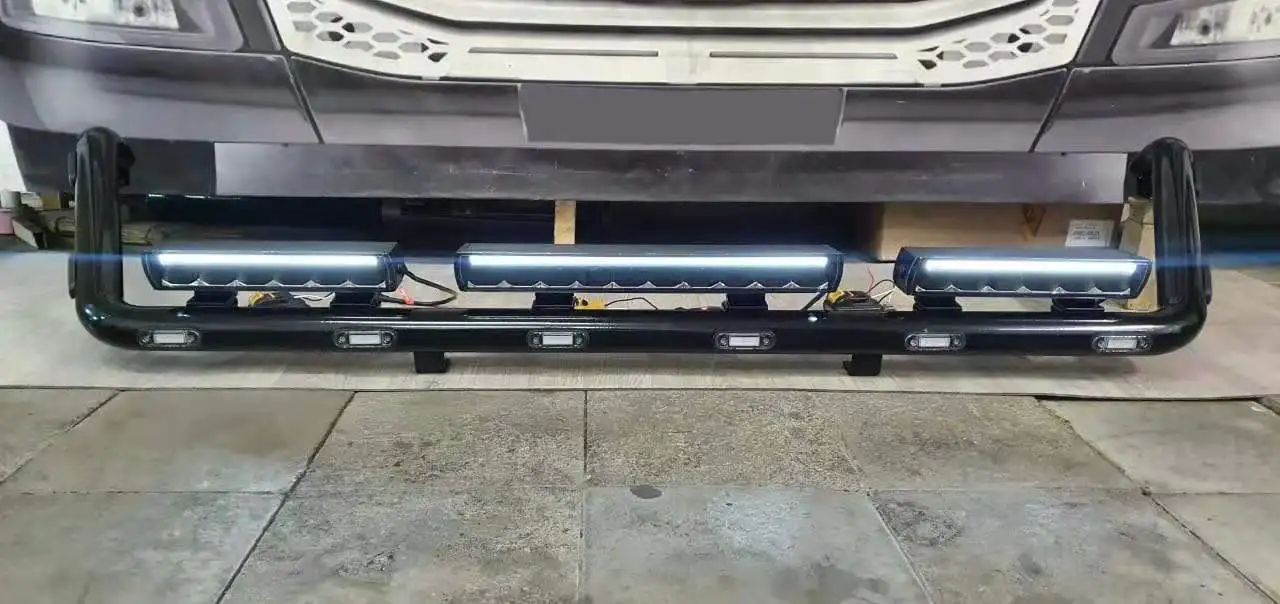

Application
