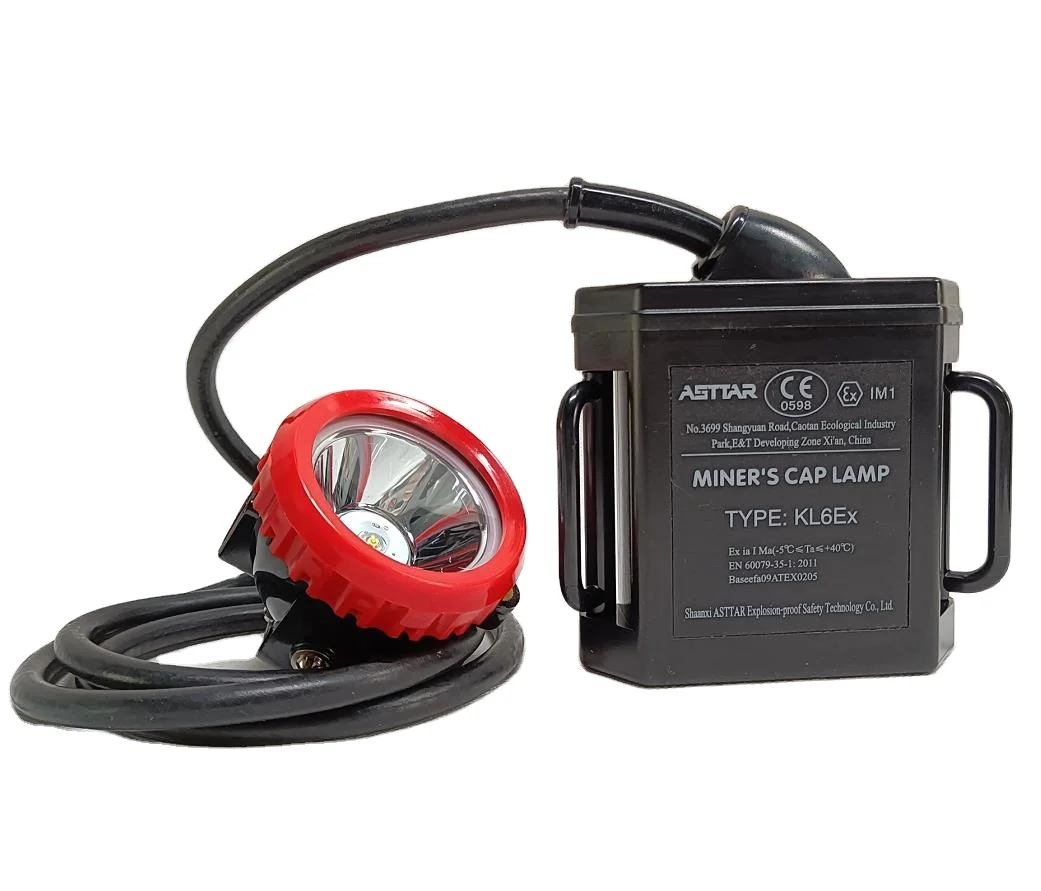

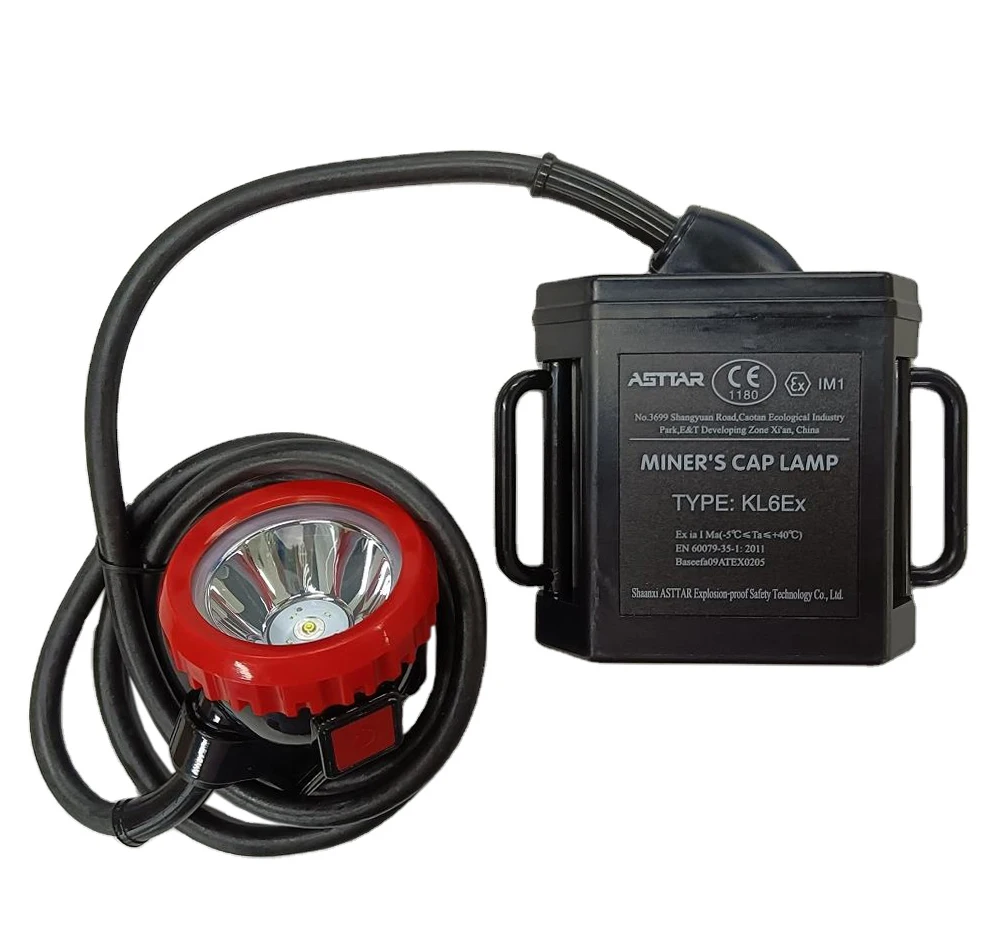

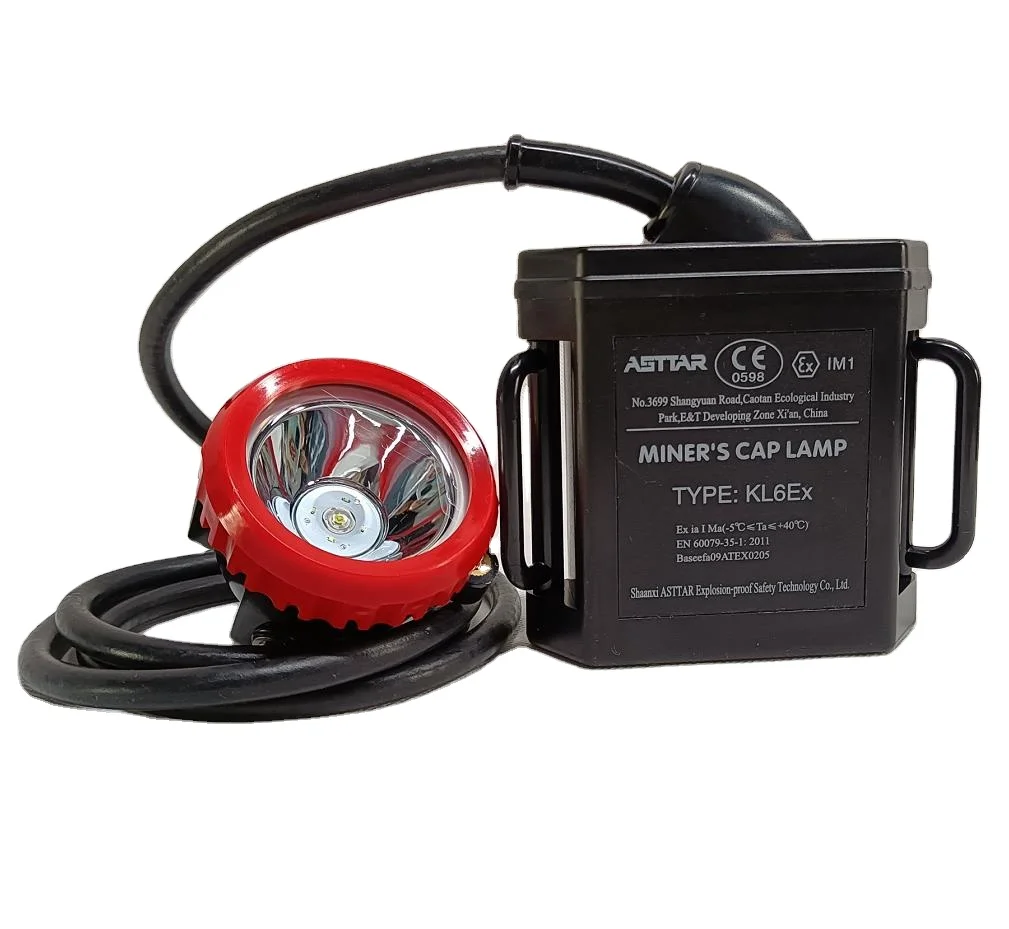

ATEX certified Led underground miner headlamp 7000lux 630g

Product Overview

Description

ATEX Explosion-proof led underground mining lights headlamp



Specification

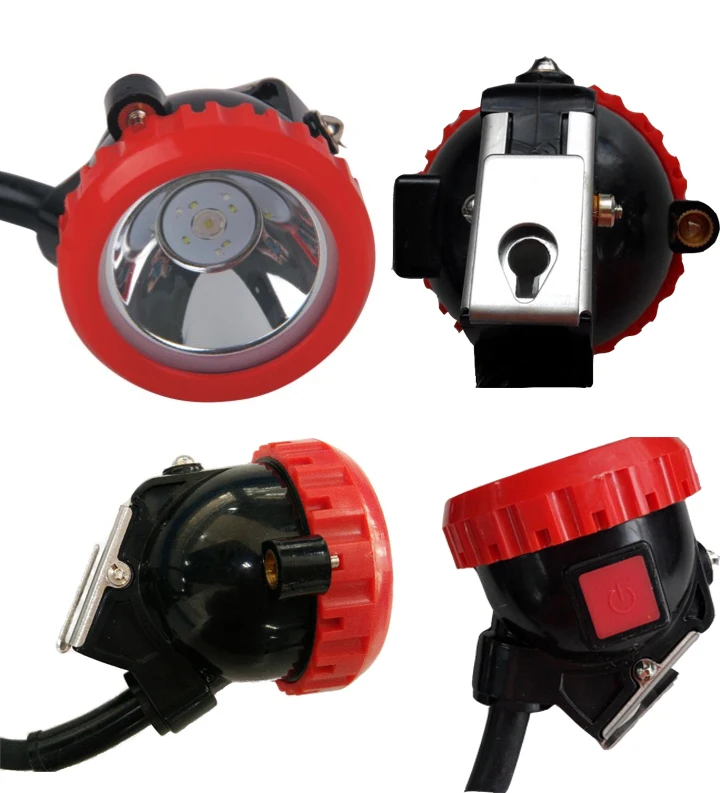

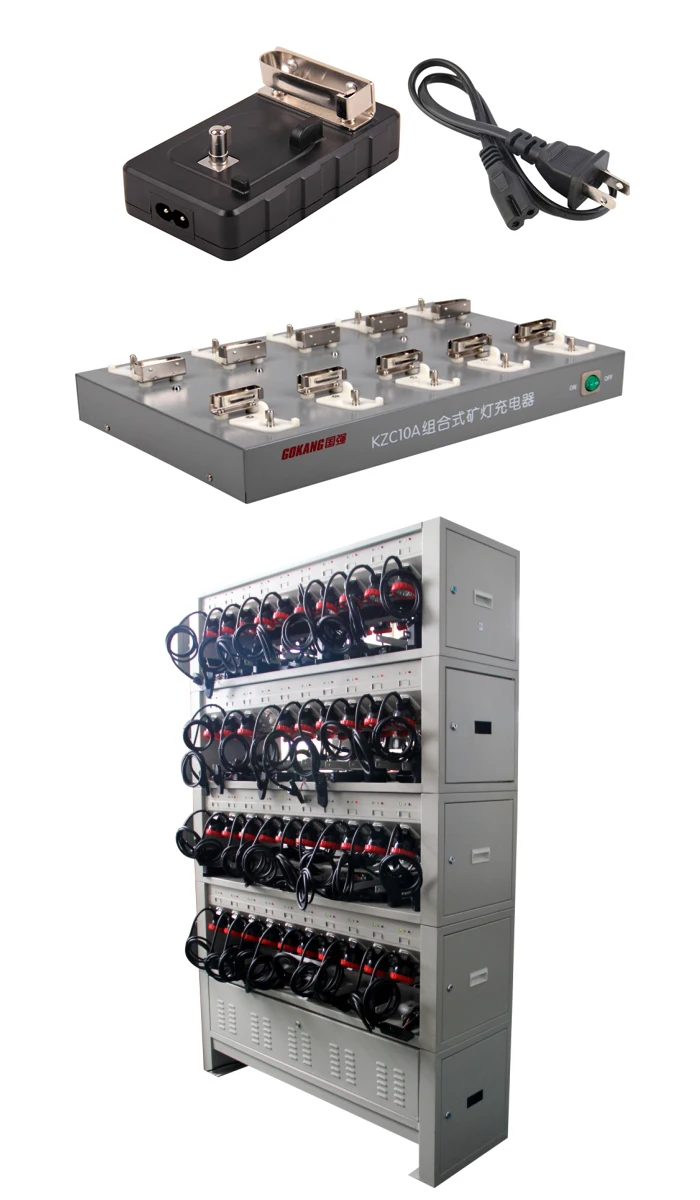

They own Europe Coal Mine Explosion-proof Certificate-ATEX. Main light adopt LEDs, has a high brightness and long life span. The switch of head lamp adopts light-touch electronic switch, good seal and easy to use, With the microprocessor control chip inside, it has multi-function for self-protection, intelligent managing the process of charging and discharging, and can be charged by all kinds of chargers. It has Lithium manganic battery pack, which has no memory, free of maintenance, environment protection, safe and reliable. The product is widely used for lighting in the environment where flammable and explosive gases exist.



K--- Miner’s Cap Lamp

L--- Li-ion battery

6--- Rated capacity of battery(Ah)

Ex--- Explosion-proof



Item			KL6Ex
Battery style			Li-ion
Rated capacity			6Ah
Rated voltage			3.7V
Lighting time			20h
Main light source	Working current		0.28 A
	Max luminance (1m apart from the lamp)	When lighting begins	>7000lx
		After lighting for 11h	>6000lx
Sub-light source rated power			0.06A
Life of cap lamp			2 years
Charging Voltage			(6-8)V
Charging time			≤10h
Explosion protection			Ex ia I Ma
Protection grade			IP65

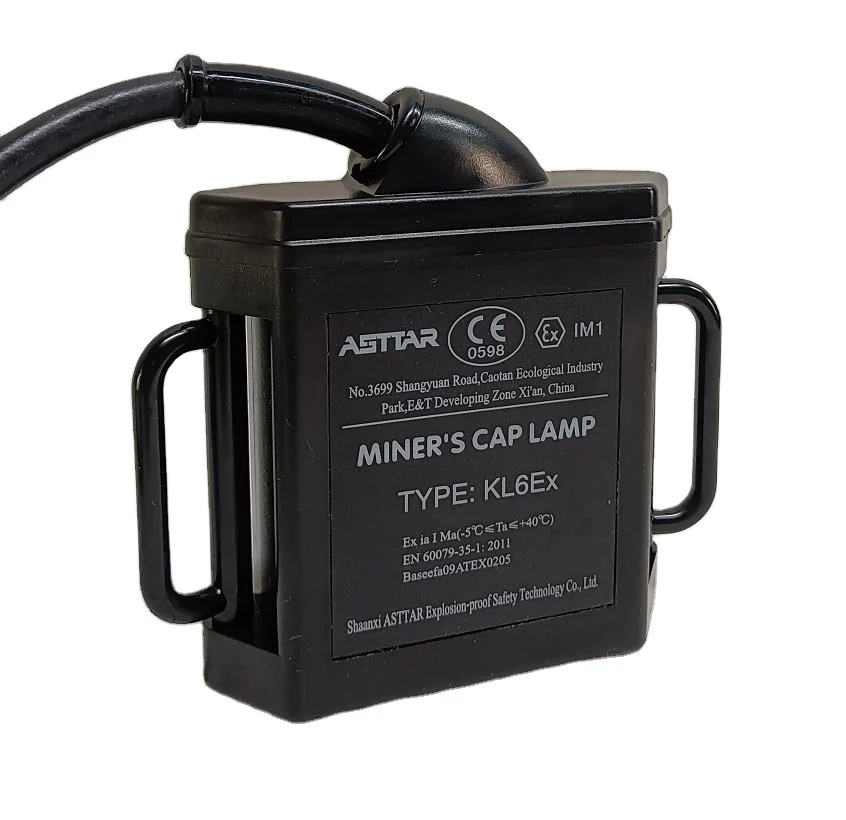

Dimensions of battery case			105×31×120 mm
Weight			0.63kg

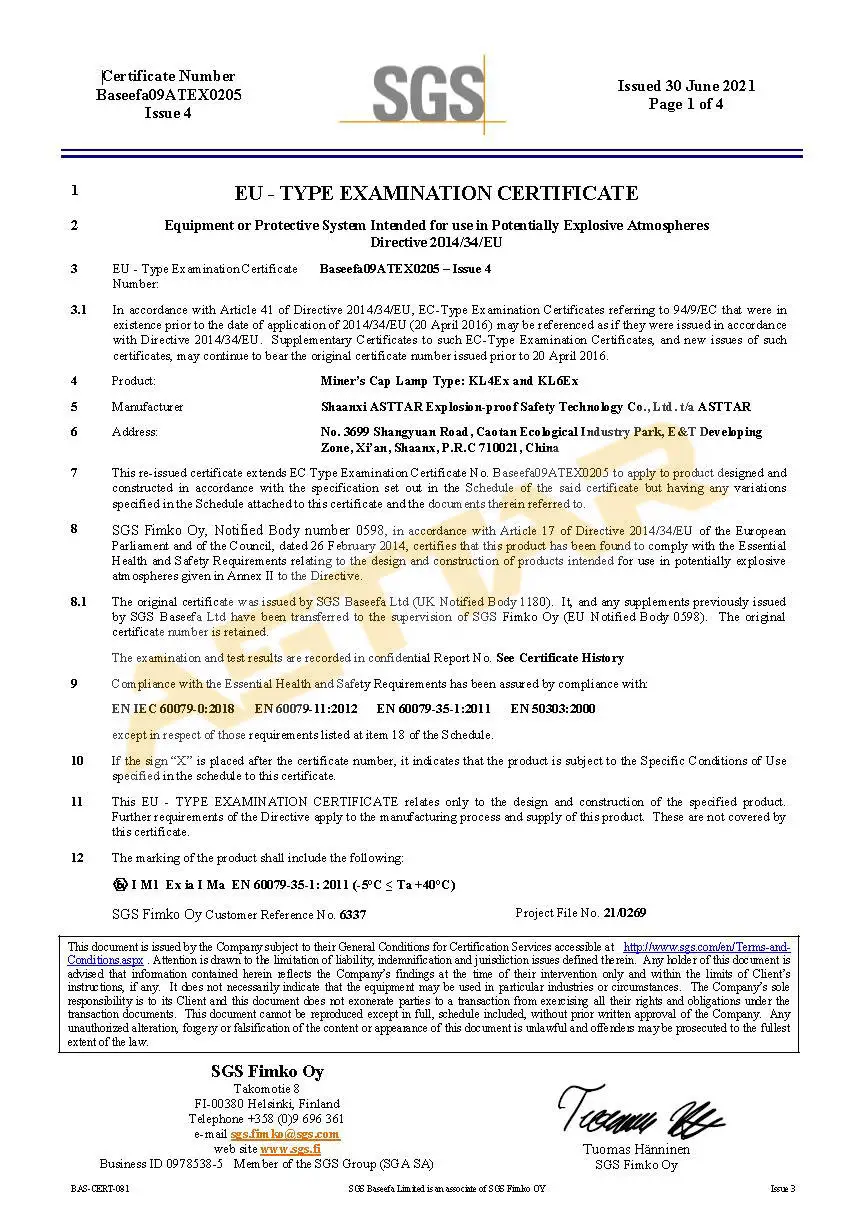

Certificate













Related products

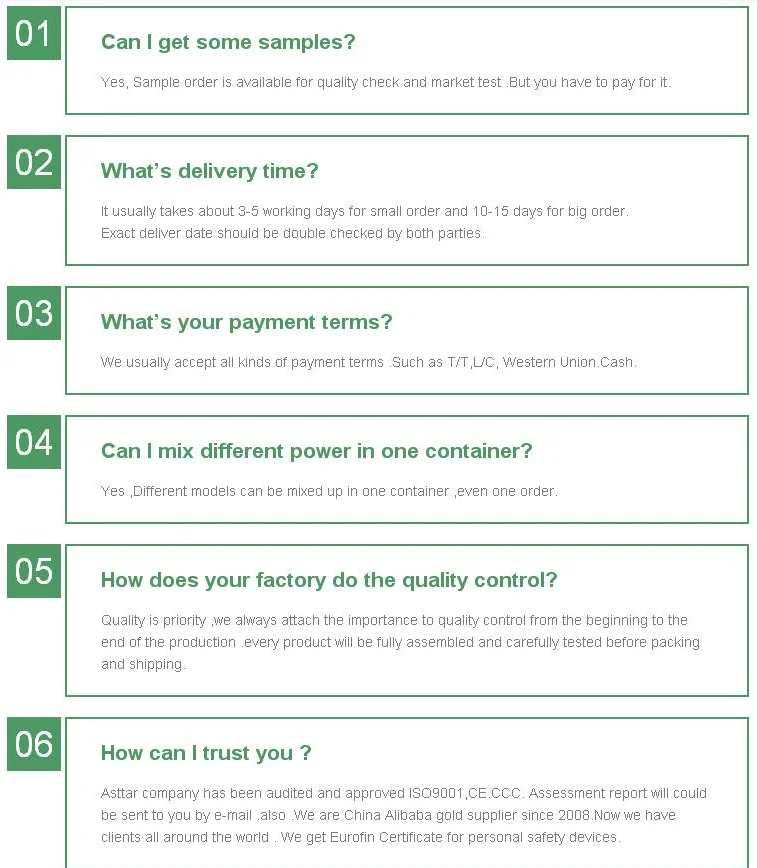

FAQ

Our workshop

With ISO9001, CE authorized lab on respiratory devices for PPE directive, more than 20  years’ experience, ODM, OEM service provided, ASTTAR is specialized in developing and manufacturing of explosion-proof safety technology and products. We mainly export products of three categories:

1. Mining underground rescue product

2. Mining explosion-proof lamp

3. Mining explosion-proof instrument and meter

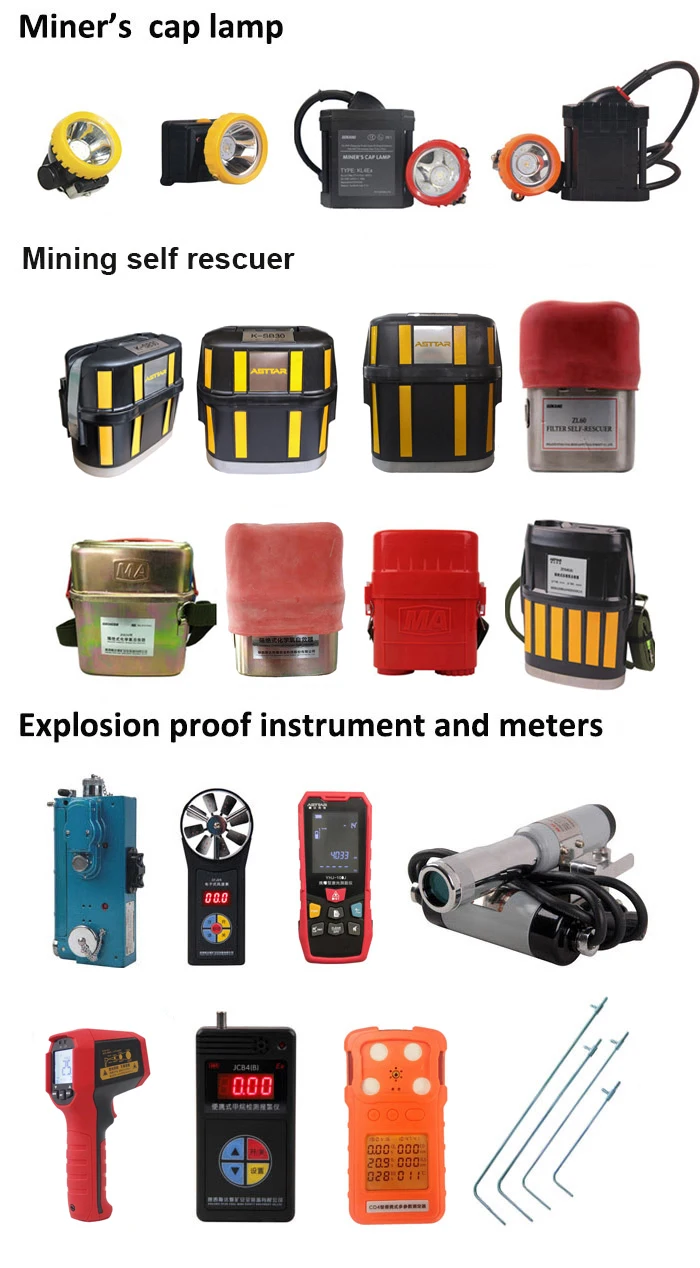

Our main products:
