24 Hour commercial community Self service water and bag cube ice vending machine for selling
- Category: >>>
- Supplier: Zhangjiagang City Bottling Machinery Co. Ltd.
Share on (1600443243264):
Product Overview
Description
Products Description
Self-service ice vending machine
1, Material: Stainless Steel (304) and powder-coated steel
2, Waterproof steel cabinet, safety, tidy and healthy
3, Stainless steel vending compartment
4, Digital vend counter to record the vending situation
4, Source water: Tap water
5, The high efficient spray ice technology with circulated water making the ice square and transparent
Selling with bulk ice and bagged ice at the same time
2, Waterproof steel cabinet, safety, tidy and healthy
3, Stainless steel vending compartment
4, Digital vend counter to record the vending situation
4, Source water: Tap water
5, The high efficient spray ice technology with circulated water making the ice square and transparent
Selling with bulk ice and bagged ice at the same time
Item | 160KG Model | 320KG Model | 450KG Model | 900KG/day Model | ||
Voltage | AC 220V 50Hz/ 60Hz | AC 220V 50Hz/60Hz | 3phase AC 380V 50Hz/3phase AC 220V 60Hz | |||
Total Power | 2.5KW | 3.3KW | 4.0KW | 5.8KW | ||
Rated Current | 220V/11.5A | 220V/15A | 18.2A | 380V/15.3A 220V/26.4A | ||
24 hours capacity | 160KG/20℃ | 320KG/20℃ | 450KG/20℃ | 900KG/20℃ | ||
Ice cube size | 22mm×22mm×22mm | 22mm×22mm×22mm | ||||
Ice mold cell number | 198 | 396 | 540 | 1080 | ||
Compressor power | 1P | 2P | 3P | 6P | ||
Refrigerant | R404a | R404a | ||||
Ice making type | Circulating spray | Circulating spray | ||||
Cooling type | Fan cool ing | Fan cool ing | ||||
Ice tank capacity | 110L | 150L | ||||
Source water | Municipal water | Municipal water | ||||
Source water prssure | ＞0.2MPa | ＞0.2MPa | ||||
Source water flow rate | ＞500L/H | ＞500L/H | ||||
Circulating tank refill rate | ＞5L/min | ＞5L/min | ||||
Compressor power | 1.1KW | 1.1KW | ||||
Air compressor capacity | ≥6.2M³/H | ≥6.2M³/H | ||||
Air compressor maximum working pressure | 0.8MPa | 0.8MPa | ||||
Air tank capacity | 30L | 30L | ||||

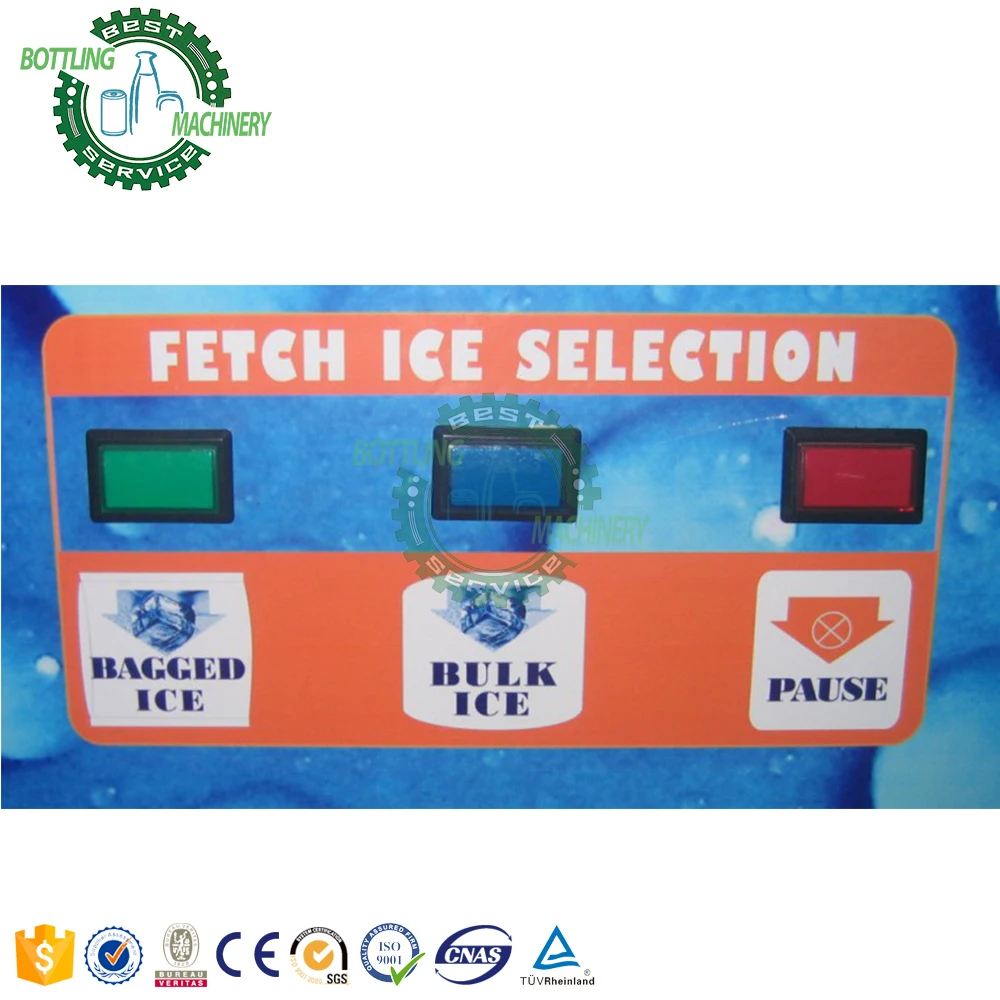

Ice selling way | bag ice + bulk ice | bag ice + bulk ice | ||||
Price method | Unit price×Weight | price×Weight | ||||
Payment method | IC Card/Bill/Coin/Give Change/GSM Remote Monitor (Can Choose by different needs) | IC Card/Bill/Coin/Give Change/GSM Remote Monitor (Can Choose by different needs) | ||||

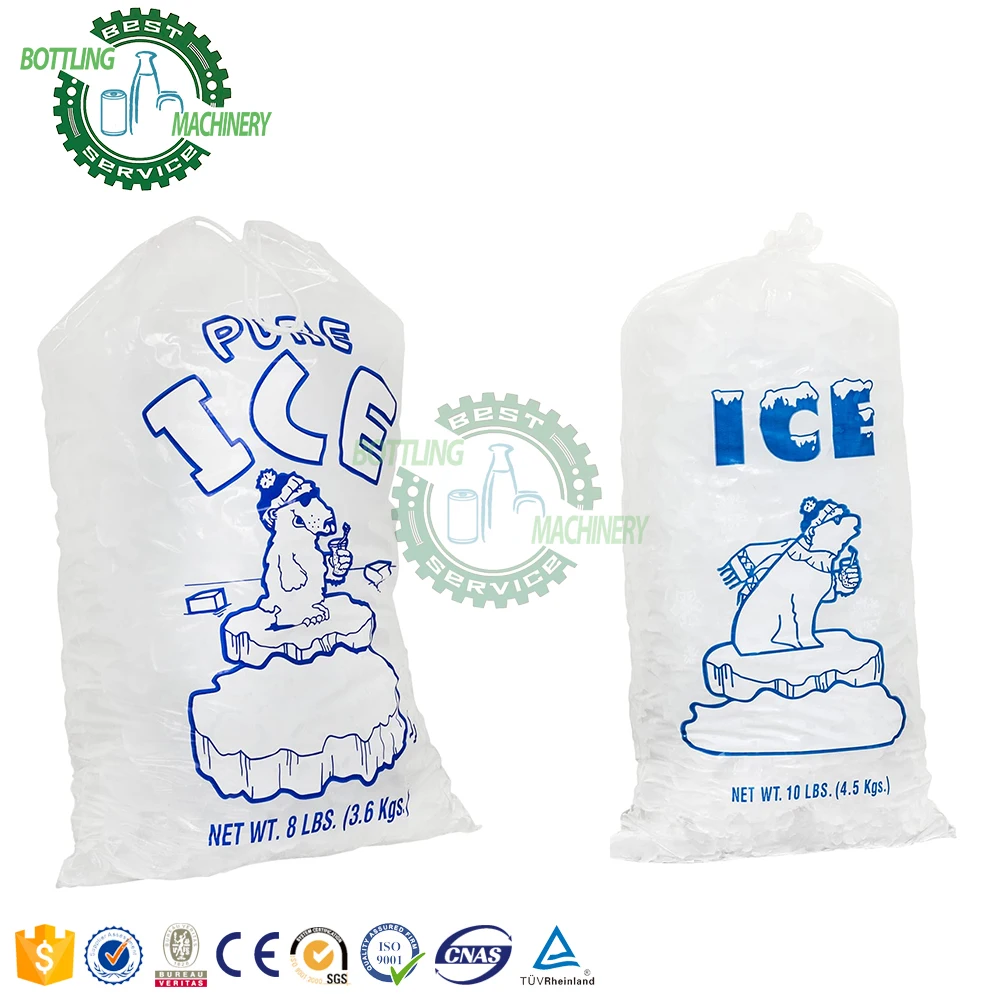

Ice bag dimension | 1-4KG ice bag 300mm×560mm 5-7KG ice bag 300mm×750mm | 1-4KG ice bag 300mm×560mm 5-7KG ice bag 300mm×750mm | ||||
Bag type | Break even roll bag | Break even roll bag | ||||
Bag QTY per roll | 300mm×560mm-250pcs/roll 300mm×750mm-200pcs/roll | 300mm×560mm/250pcs 300mm×750mm/200pcs | ||||
Machine dimension | W110cm×D120cm×H230cm | W170cm×D135cm×H230cm | ||||
Inlet water/Drange | G1/2 Male thread | G1/2 Male thread | ||||

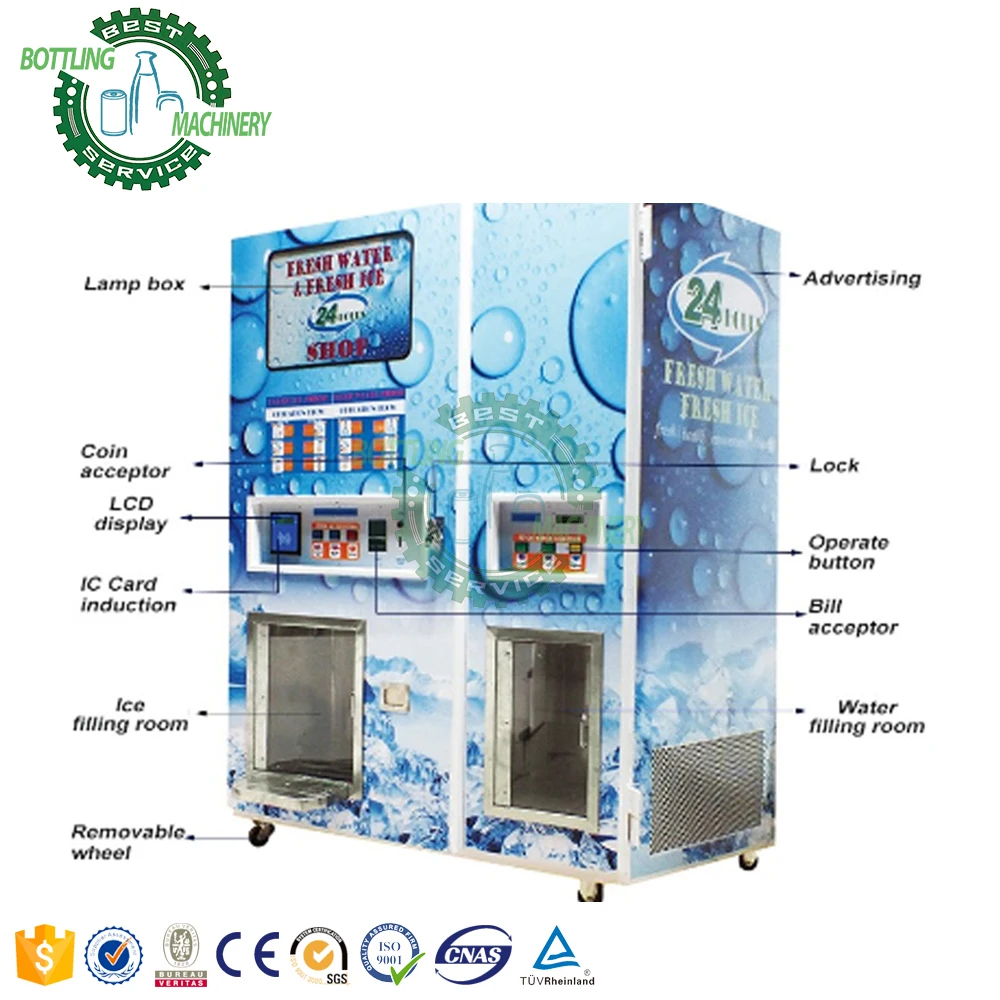

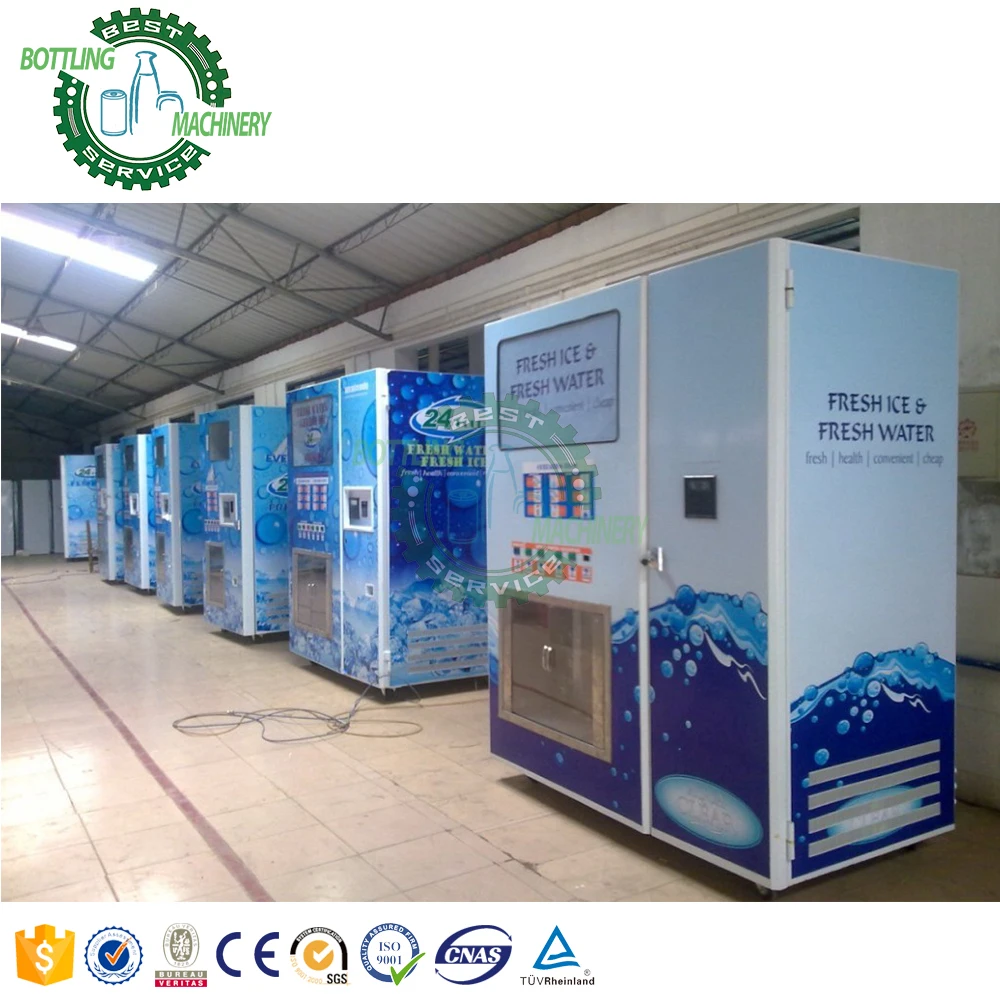

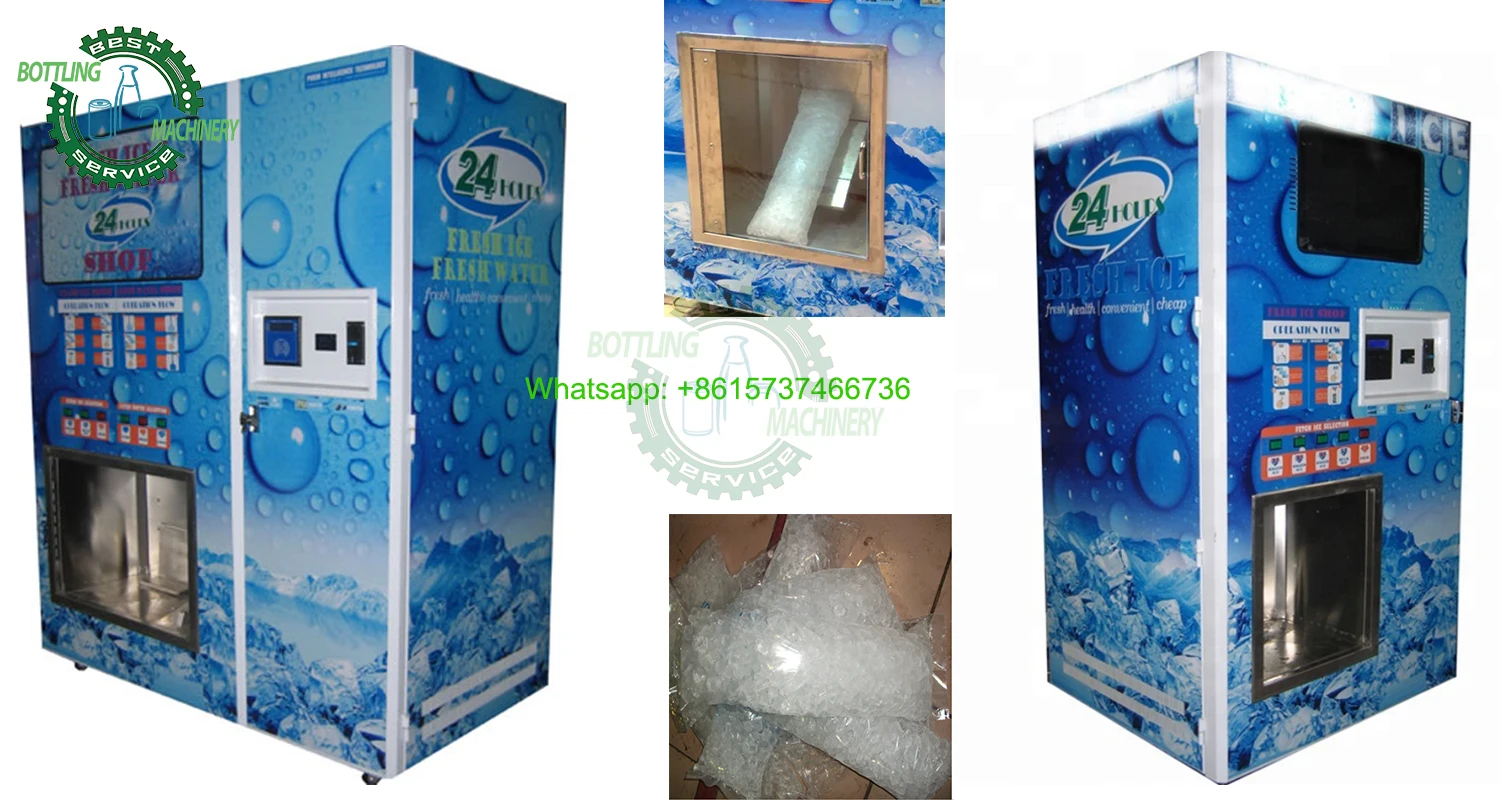

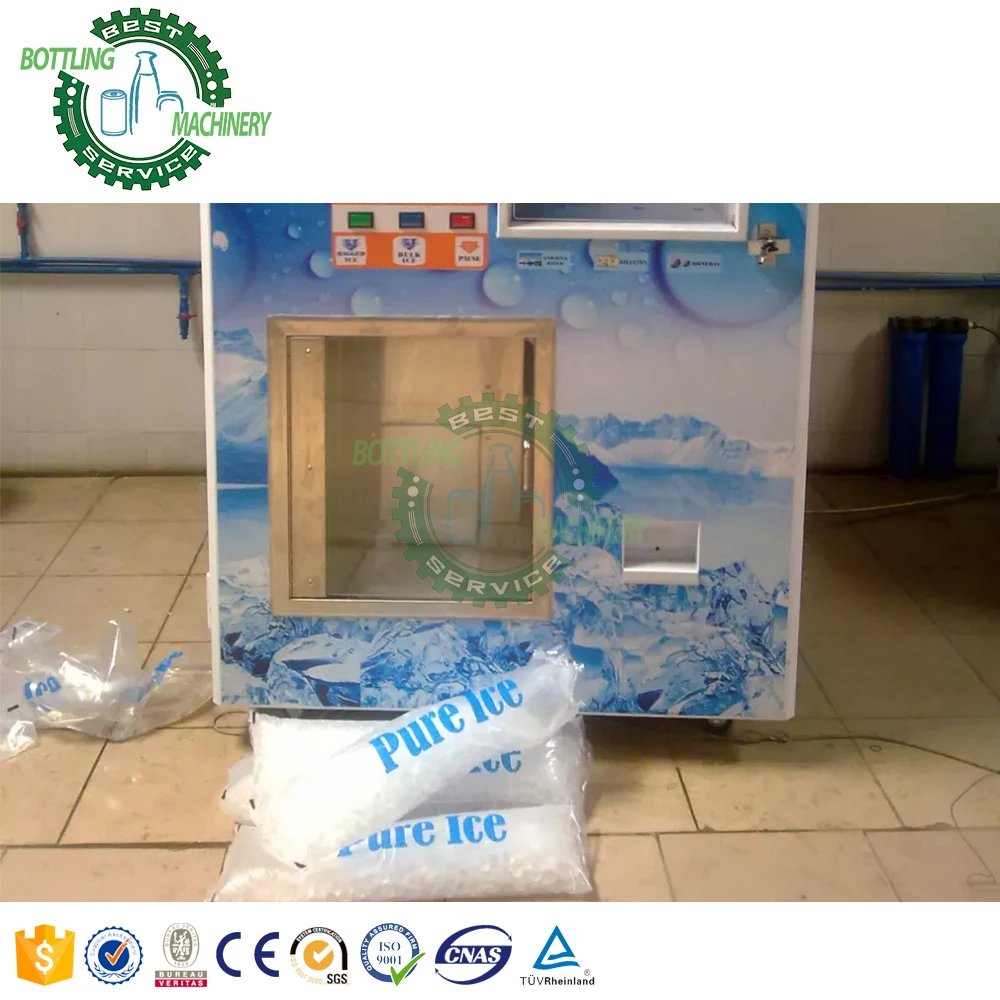

Self-service water and ice vending machine

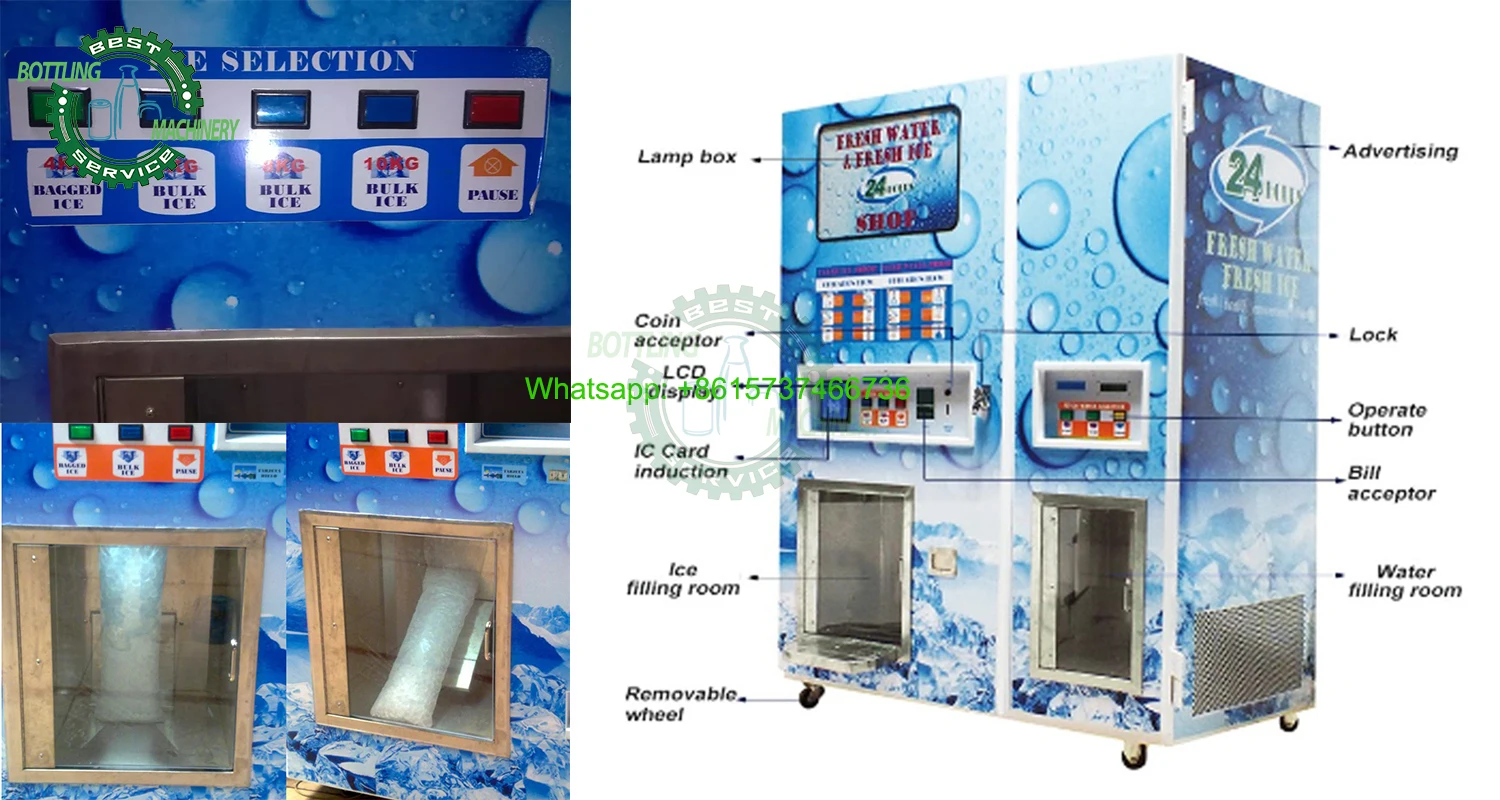

1. Luxurious waterproof steel cabinet, front-door-open design, safe and hygenic, durable and easy to install.
2. All parts contacting with ice and water adopt food grade stainless steel #304.3. Advanced Intelligent coin, bill and IC card payment control system.
4. Fully automatic purification, ice making, ice packing and vending.
5. Highly efficient and stable bagging system, dispensing bag, filling ice in the bag and sealing the bag automatically.
6. Optional bulk ice dispensing and auto bagged ice to meet customer’s requirements.
7. Automatic machine stop for water full and shortage of ice/water/bag with alarm.
8. Advanced Reverse Osmosis purification system, NSF standard.
User of RO production water machine want to replace filter element to keep water quality good for long time , the cycle of
replacing filter element according to good or bad of water source and mineral composition ,or use water detector to check.
replacing filter element according to good or bad of water source and mineral composition ,or use water detector to check.
Material:stainless steel (304) for the water tank and powder coated for the machine body
Dimension: W180cm×D100cm×220cm including the wheel's high
Waterproof steel cabinet,safety, tidy and healthy
Stainless steel vending compartment with Coin-operated,
Stainless steel vending compartment with Coin-operated,
with induction IC card and bill accepter for payment system
Intelligent separate coin/coin changer, automatically store coin
Digital vend counter to record the vending situation
Power supply: 220V AC, 50Hz/110V AC,60Hz
Source water: tap water
Water Vending Features:
Delivery pump flow rate: 8L per minute
Advanced RO purification technology, water quality in accord with the international standards
9-stage filtration, No ozone bottle washed
24 hours uninterrupted UV disinfection, guaranty the water quality
Convenient to replace filters and easy to maintain
Ice vending features:
Use efficient spray ice film to make ice, automatically supply water, make ice, with bagging system
Intelligent separate coin/coin changer, automatically store coin
Digital vend counter to record the vending situation
Power supply: 220V AC, 50Hz/110V AC,60Hz
Source water: tap water
Water Vending Features:
Delivery pump flow rate: 8L per minute
Advanced RO purification technology, water quality in accord with the international standards
9-stage filtration, No ozone bottle washed
24 hours uninterrupted UV disinfection, guaranty the water quality
Convenient to replace filters and easy to maintain
Ice vending features:
Use efficient spray ice film to make ice, automatically supply water, make ice, with bagging system

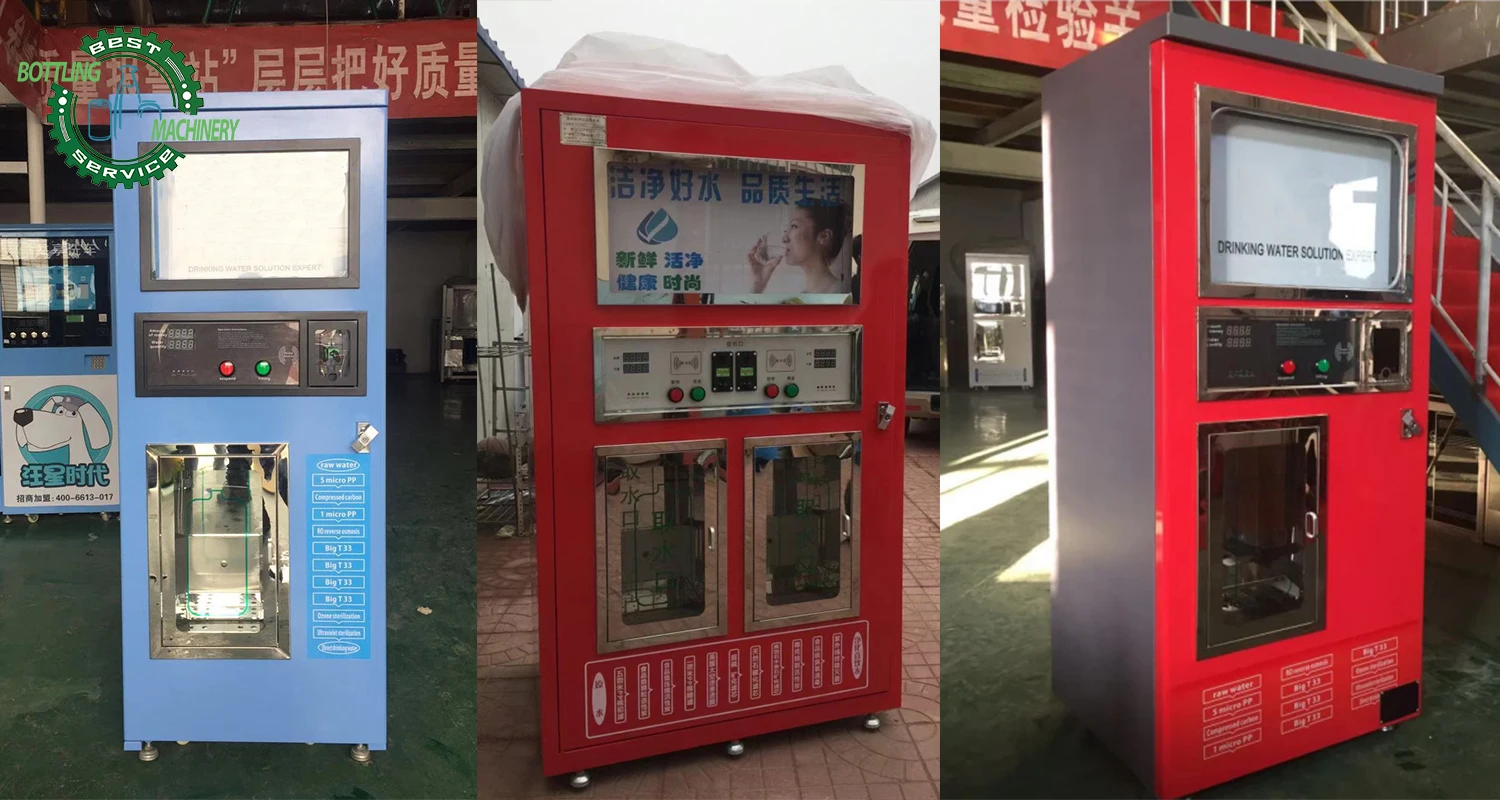

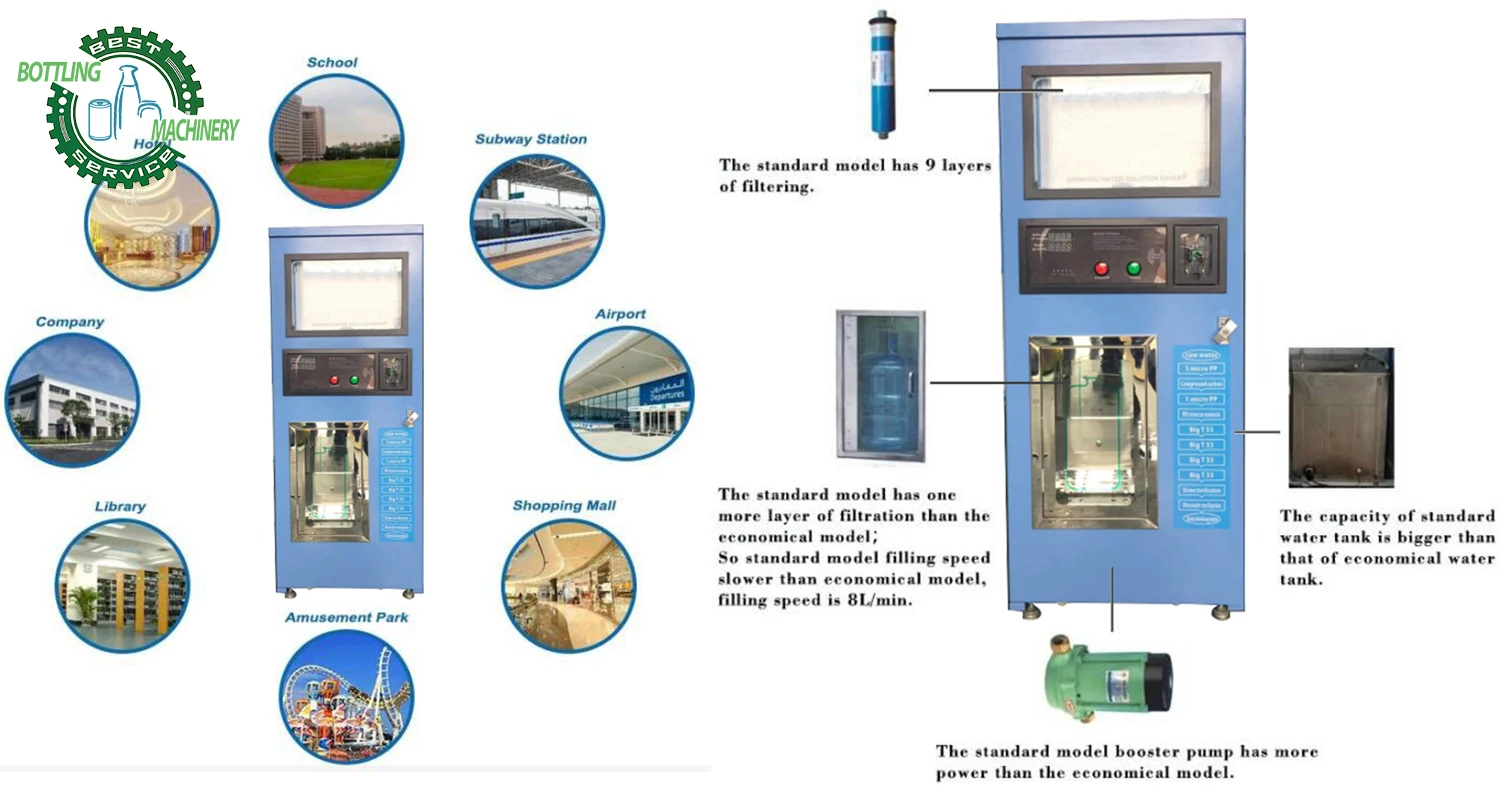

Self-service RO water dispenser
Our Self-service water dispenser does not have the function of coin, only the function of card payment.
1. You can configure a large number of recharge cards, and then you can sell them to consumers. Consumers can swipe their cards to get water. If there is no money in the cards, you can recharge them with the recharge machine.
2. You can configure a recharge machine and only purchase a small number of recharging cards. When the consumer comes to buy water, you can swipe the card to sell water to the customer.
3. If the machine is in your retail store, you can also choose to sell water in cash transaction.
It’s a kind of fresh water purified by filtering, infiltrating and adsorbing the tap water, so as to achieve the goal of purifying the water. It does not need man-made, storefront and covers an area of only 1 square metre. 24-hour on-site water production, all-weather self-service supply, consumers bring their own containers, using IC smart card swipe the machine, and then press the filling key, you can complete the entire purchase process.
Characteristic：
With the development of economy and the improvement of people's living standard, people pay more and more attention to the quality of life. Water is the source of life. Every household needs water. The emergence of water vending machine facilitates people to drink fresh water. It can be installed in residential areas, streets, supermarkets, schools, units and other venues. It can sell water automatically 24 hours, which facilitates people's requirements for drinking water and achieves a convenient way of drinking water.
Performance：
1. The machine body adopts static plasma cutting of galvanized cold-rolled steel plate, carbon dioxide protection welding process, lathe finishing and forming, and the inner and outer surfaces are treated with topcoat for anti-corrosion, waterproof and beautification.
2. Internal membrane system, the treated water quality can reach direct drinking.
3. The power system adopts electric drive technology. The water vending machine runs smoothly, has no noise and low energy consumption.
4. Make the automatic control program accurate.
1. You can configure a large number of recharge cards, and then you can sell them to consumers. Consumers can swipe their cards to get water. If there is no money in the cards, you can recharge them with the recharge machine.
2. You can configure a recharge machine and only purchase a small number of recharging cards. When the consumer comes to buy water, you can swipe the card to sell water to the customer.
3. If the machine is in your retail store, you can also choose to sell water in cash transaction.
It’s a kind of fresh water purified by filtering, infiltrating and adsorbing the tap water, so as to achieve the goal of purifying the water. It does not need man-made, storefront and covers an area of only 1 square metre. 24-hour on-site water production, all-weather self-service supply, consumers bring their own containers, using IC smart card swipe the machine, and then press the filling key, you can complete the entire purchase process.
Characteristic：
With the development of economy and the improvement of people's living standard, people pay more and more attention to the quality of life. Water is the source of life. Every household needs water. The emergence of water vending machine facilitates people to drink fresh water. It can be installed in residential areas, streets, supermarkets, schools, units and other venues. It can sell water automatically 24 hours, which facilitates people's requirements for drinking water and achieves a convenient way of drinking water.
Performance：
1. The machine body adopts static plasma cutting of galvanized cold-rolled steel plate, carbon dioxide protection welding process, lathe finishing and forming, and the inner and outer surfaces are treated with topcoat for anti-corrosion, waterproof and beautification.
2. Internal membrane system, the treated water quality can reach direct drinking.
3. The power system adopts electric drive technology. The water vending machine runs smoothly, has no noise and low energy consumption.
4. Make the automatic control program accurate.
How to choose the suitable RO water dispenser you need? | ||||
Model | RO membrane | Amount of people can be supplied | ||
400GPD | 3013*1 | 100-200 users | ||
600GPD | 3012*2 | 150-300 users | ||
800GPD | 3013*2 | 200-400 users | ||
1600GPD | 4040*1 | 400-800 users | ||
3200GPD | 4040*2 | 800-1600 users | ||
11 stages of water treatment processes:
1, The first stage 20 inch 5 micron pp cotton filter element can filter the sediment in the water, rust and other large visible objects.
2, The second stage is 20 inch granular activated carbon, which can filter the peculiar smell, residual chlorine, colloid and some heavy metals in the water.
3, The third stage is 20 inch sintered activated carbon, which can filter the peculiar smell, residual chlorine, colloid and some heavy metals in the water.
4, The fourth stage, 20 inch 1 micron pp cotton filter element, intercepts the sediment and rust in the water again to protect the RO membrane.
5, The fifth stage RO reverse osmosis membrane is used to filter harmful substances such as bacteria, heavy metals, microorganisms and residual pesticides in water.
6, The sixth grade large t33 coconut shell activated carbon improves the taste and softens the water quality, and the water quality is sweet.
7, The seventh grade big t33 coconut shell activated carbon improves the taste and softens the water quality, and the water quality is sweet.
8, The eighth grade small t33 coconut shell activated carbon improves the taste, softens the water quality and makes the water sweet.
9, The ninth grade small t33 coconut shell activated carbon improves the taste, softens the water quality and makes the water sweet..
10, Level 10 ozone sterilization, sterilization and algaecide.
11, The 11th level UV sterilization ensures the purity of water again.
2, The second stage is 20 inch granular activated carbon, which can filter the peculiar smell, residual chlorine, colloid and some heavy metals in the water.
3, The third stage is 20 inch sintered activated carbon, which can filter the peculiar smell, residual chlorine, colloid and some heavy metals in the water.
4, The fourth stage, 20 inch 1 micron pp cotton filter element, intercepts the sediment and rust in the water again to protect the RO membrane.
5, The fifth stage RO reverse osmosis membrane is used to filter harmful substances such as bacteria, heavy metals, microorganisms and residual pesticides in water.
6, The sixth grade large t33 coconut shell activated carbon improves the taste and softens the water quality, and the water quality is sweet.
7, The seventh grade big t33 coconut shell activated carbon improves the taste and softens the water quality, and the water quality is sweet.
8, The eighth grade small t33 coconut shell activated carbon improves the taste, softens the water quality and makes the water sweet.
9, The ninth grade small t33 coconut shell activated carbon improves the taste, softens the water quality and makes the water sweet..
10, Level 10 ozone sterilization, sterilization and algaecide.
11, The 11th level UV sterilization ensures the purity of water again.
Consumables: | ||||||
Item | Size | Life | unit | |||
1 stage: 5um PP | 20inch | 1-3month | 1 PC | |||
2stage: granular activated carbon filter | 20inch | 3-6month | 1 PC | |||
3stage: sintered activated carbon filter | 20inch | 3-6month | 1 PC | |||
4stage: 1um PP | 20inch | 1-3month | 1 PC | |||
RO membrane | 4040 | 12-18month | 1 PC | |||
RO membrane | 4021 | 12-18month | 1 PC | |||
RO membrane | 3013/3012 | 12-18month | 1 PC | |||
6stage T33 filter element | Big T | 6-12month | 1 PC | |||
7stage T33 filter element | Big T | 6-12month | 1 PC | |||
8stage T33 filter element | Small T | 6-12month | 1 PC | |||
9stage Mineralized filter element | Small T | 6-12month | 1 PC | |||
10stage Ozone sterilization | 12W | 20000hours | 1 PC | |||
11stage UV sterilization | 200mm | 20000hours | 1 PC | |||
Water tank | 160L | / | 1 PC | |||
Small Pump | 160-400 | / | 1 set | |||
Big Pump | 2-9X7 | / | 1 set | |||
Recharge machine | Hand hold | / | 1 set | |||
company profile
ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. is located in Zhangjiagang city which is core of beverage machinery producer collection in China. Integrated the industry advantages and its own development in R&D, production, sales, after sales service,
BOTTLING MACHINERY is ready to serve more and more customers with our full range products and best service.BOTTLING MACHINERY is very critical in the choice of raw materials and spare parts. Korea 304 /316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.
BOTTLING MACHINERY is ready to serve more and more customers with our full range products and best service.BOTTLING MACHINERY is very critical in the choice of raw materials and spare parts. Korea 304 /316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.
We are the supplier who can design and manufacture for all kinds beverage production plant (pure drinking water, mineral water,carbonated drinks, juice, tea and beer, etc.)
Customer's service:
1. ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. can provide turn-key project for you, we can design the beverage factory plan according to your idea.
2. BOTTLING MACHINERY company have professional design team, our engineers can draw bottle samples and flow chart of workshop for you .
3. BOTTLING MACHINERY company can give you the best quotation for all kinds of beverage production, as long as you tell us which kind of drink you want to produce, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass bottle or can, etc.
After service:
1. We send our engineers to your factory to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the goods shipping to you:
a. Machines layout drawing.
b. Electricity diagram.
c. Machine certificate.
d. General manual book/maintenance book.
3. After one year guarantee, the seller provides payable spare parts and technician's VISITING maintenance service.
1. ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. can provide turn-key project for you, we can design the beverage factory plan according to your idea.
2. BOTTLING MACHINERY company have professional design team, our engineers can draw bottle samples and flow chart of workshop for you .
3. BOTTLING MACHINERY company can give you the best quotation for all kinds of beverage production, as long as you tell us which kind of drink you want to produce, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass bottle or can, etc.
After service:
1. We send our engineers to your factory to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the goods shipping to you:
a. Machines layout drawing.
b. Electricity diagram.
c. Machine certificate.
d. General manual book/maintenance book.
3. After one year guarantee, the seller provides payable spare parts and technician's VISITING maintenance service.
Packing&Delivery of BOTTLING
1. Our machines are packed by wooden case.
2. The delivery date of this machine is within 10-25 days after payment.
2. The delivery date of this machine is within 10-25 days after payment.
FAQ
Q:Are you a manufacturer or trade company?
A:We are a manufacturer in beverage bottling machine field more than 10 years, located at Leyu town, ZhangJiaGang, 2 hours from Shanghai, We will pick you up from Shanghai Pudong Airport to visit our factory.
Q:Do you have any certification?
A:SGS,ISO,CE etc
Q:What about the delivery time?
A:Usually 20-30 Working days for most kinds of machines
Q:What about the machine’s capacity?
A:1000 - 20000 bottles per hour based on 500ml bottle.
Q:The after-sale service
A:12 months warranty.
A:We are a manufacturer in beverage bottling machine field more than 10 years, located at Leyu town, ZhangJiaGang, 2 hours from Shanghai, We will pick you up from Shanghai Pudong Airport to visit our factory.
Q:Do you have any certification?
A:SGS,ISO,CE etc
Q:What about the delivery time?
A:Usually 20-30 Working days for most kinds of machines
Q:What about the machine’s capacity?
A:1000 - 20000 bottles per hour based on 500ml bottle.
Q:The after-sale service
A:12 months warranty.
We can solve basic questions by telephone, email, whatsapp, wechat and video call.
Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines.
Operating manuals will be sent with machines or by email.
We also have overseas service center
Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle?
A:Yes. Maybe you just need some spare little parts to change.
Q: If I want to purchase the machine, what information do I need to tell you?
A:a. What kind beverage you want to produce?
b. bottle volume? 250ml, 330ml, 500ml, 750ml, etc.?
c. Producing capacity requirement? How many bottles per hour?
d.Raw water analysis report .
e.Voltage and altitude.
Q:What kinds of product you supply?
A: Drink water/juice/carbonated drink filling line for bottle or can.
5 gallon/20L bottle water filling line.
Water treatment system.
Bottle blowing molding machine.
Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines.
Operating manuals will be sent with machines or by email.
We also have overseas service center
Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle?
A:Yes. Maybe you just need some spare little parts to change.
Q: If I want to purchase the machine, what information do I need to tell you?
A:a. What kind beverage you want to produce?
b. bottle volume? 250ml, 330ml, 500ml, 750ml, etc.?
c. Producing capacity requirement? How many bottles per hour?
d.Raw water analysis report .
e.Voltage and altitude.
Q:What kinds of product you supply?
A: Drink water/juice/carbonated drink filling line for bottle or can.
5 gallon/20L bottle water filling line.
Water treatment system.
Bottle blowing molding machine.
After packing system(label machine, PE film shrink packing machine, carton machine)
Sachet water packing line
Contact us
MS YOLANDA
5 years’ experience in foreign trade sales
Major in International business at Yantai UniversityWhatsapp/Wechat: +8615190564896Email:yolanda@zjgbottlingmachinery.com
MR PHIL LANE
8 years’ experience in foreign trade sale
Major Architecture, skilled CAD drawing, physical structureChina College English Test-6
Whatsapp/Wechat: +8615737466736
EMail:admin@zjgbottlingmachinery.com
EMail:admin@zjgbottlingmachinery.com
MR ANDY
6 years in foreign trade sales
Major in mechanical engineering at universityProficiency in photoshop drawing
Whatsapp/Wechat: +8613306249269
Email:sales1@zjgbottlingmachinery.com
Email:sales1@zjgbottlingmachinery.com
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
