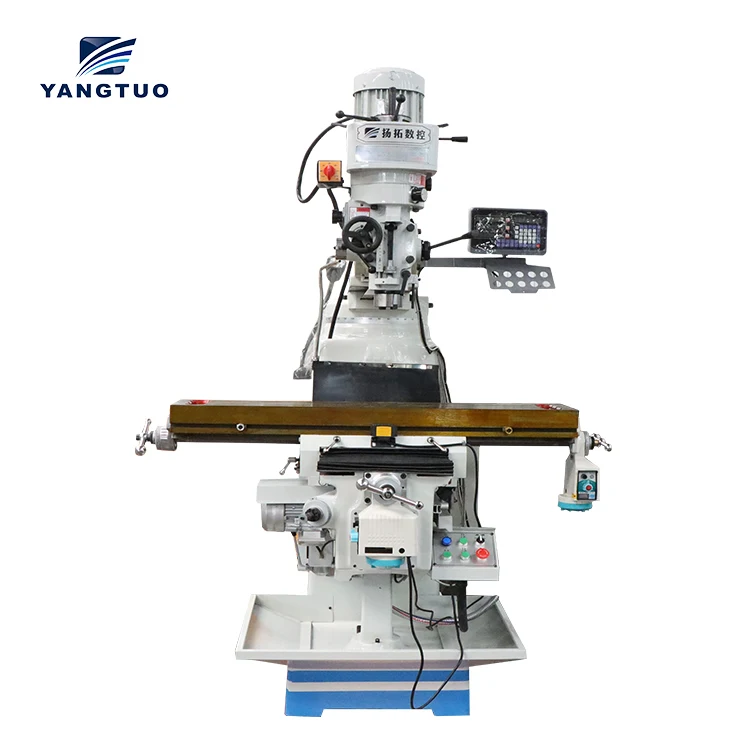

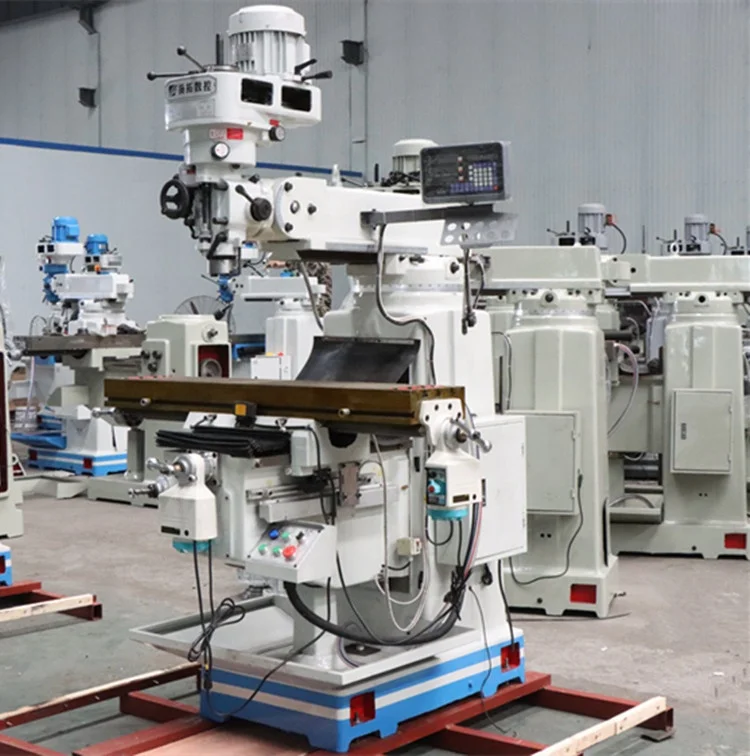

X6325 Turret universal milling machine high speed Milling Machine for sell
- Category: >>>
- Supplier: Shandong Yangtuo CNC Machine Tool Co. Ltd.
Share on (1600443364007):
Product Overview
Description
China hot sell Metal Vertical Turret Milling Machine X6325
The main performance characteristics:

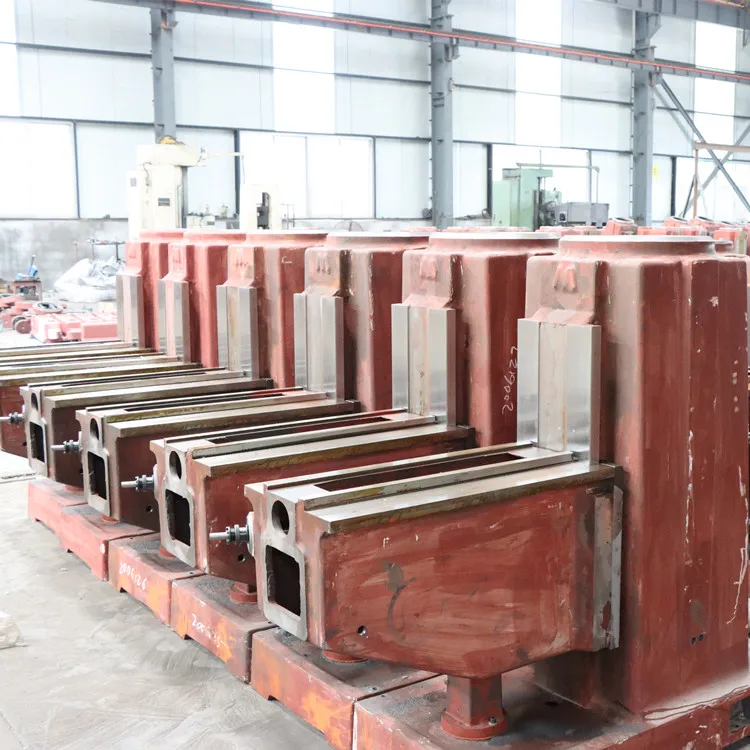

1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after
fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Application:
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline
etc..Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after
fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Application:
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline
etc..Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Specifications | Units | X6325 |
Table size | mm | 1270x254(10”x50”) |
Table travel | mm | 780/400/400 |
T slot(number-width-pitch) | mm | 3-16-50 |
Spindle taper | standard:R8 Optional:ISO40 | |
Spindle speed range | rpm | standard:16 steps 50HZ:65-4500 60HZ:80-5440 |
optional（variable）65-4000 | ||
Spindle travel | mm | 127 |
Spindle feed range | mm | 0.04,0.08,0.15 (3 steps) |
Distance between spindle nose and table surface | mm | 90-510 |
Distance between spindle axis and table surface | mm | - |
Main motor power | kw | 2.2 |
Head rotation (left - right ) | ° | ±90° |
Head rotation (front - rear) | ° | ±45° |
Weight | kg | 1400 |
Overall dimension | mm | 1550x1650x2250 |
Detailed Images

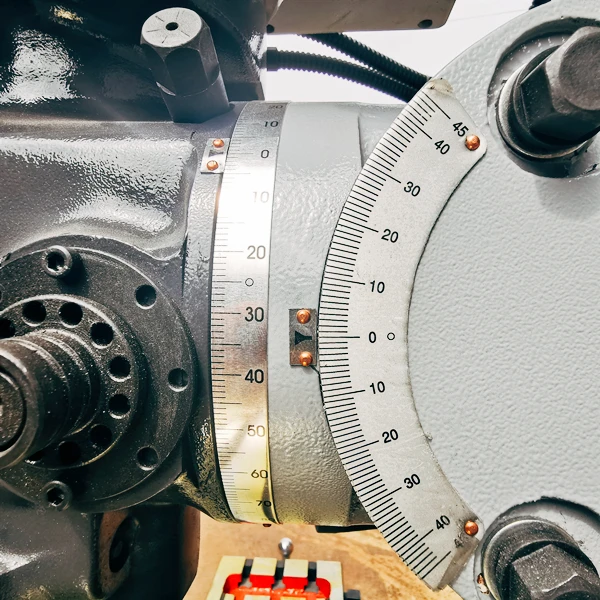

TAIWAN TURRET MILLING HEAD
Turret milling head can swivel 45 degrees (front-rear)
rotate 90 degrees (left-right)

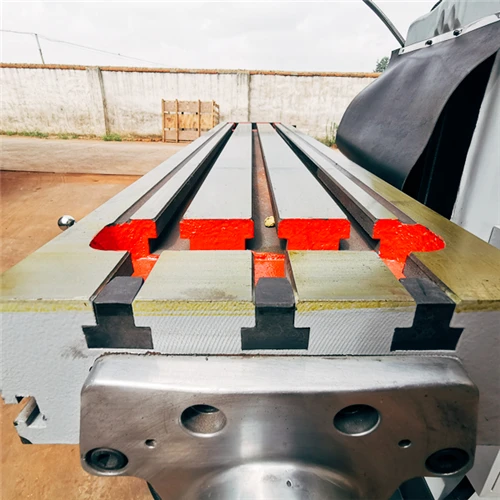

WORKTABLE
Ultra-auto quenching,precision grinding and scraping guide
x/y/ AUTO FEED
X/Y axis auto feed Z axis electric lifiting improve processing time
Z AUTO FEED
Z axis electric lifiting improve processing time

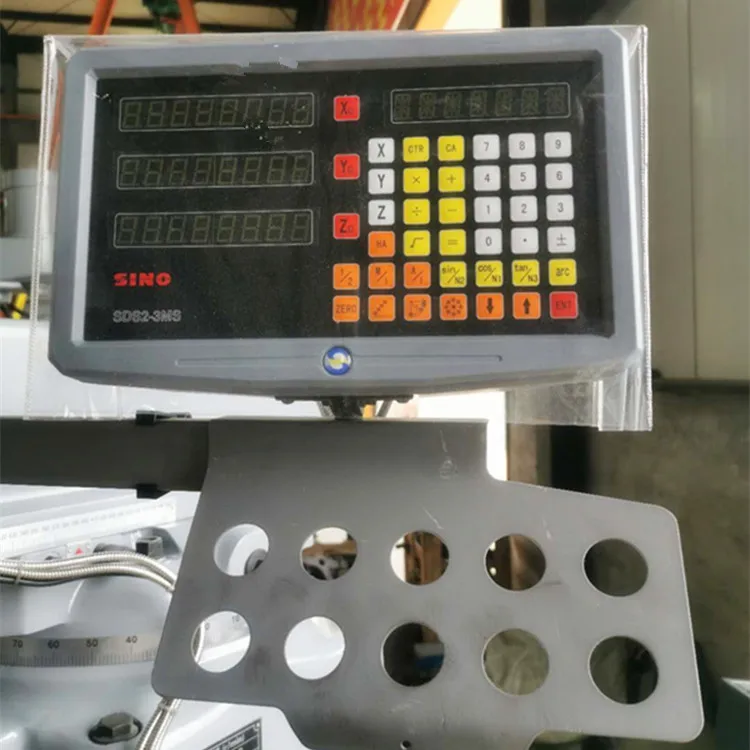

3 AXIS DRO
3 axis digital readout is optional need extra cost
