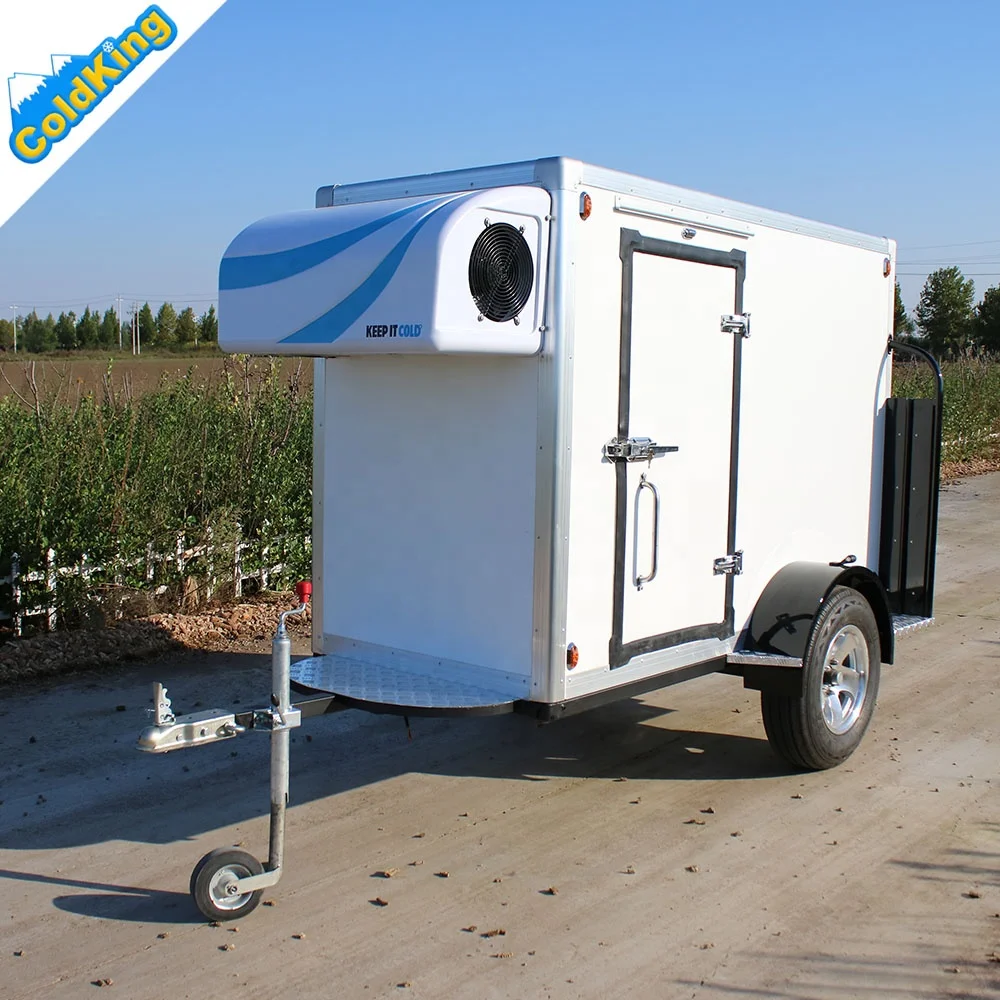

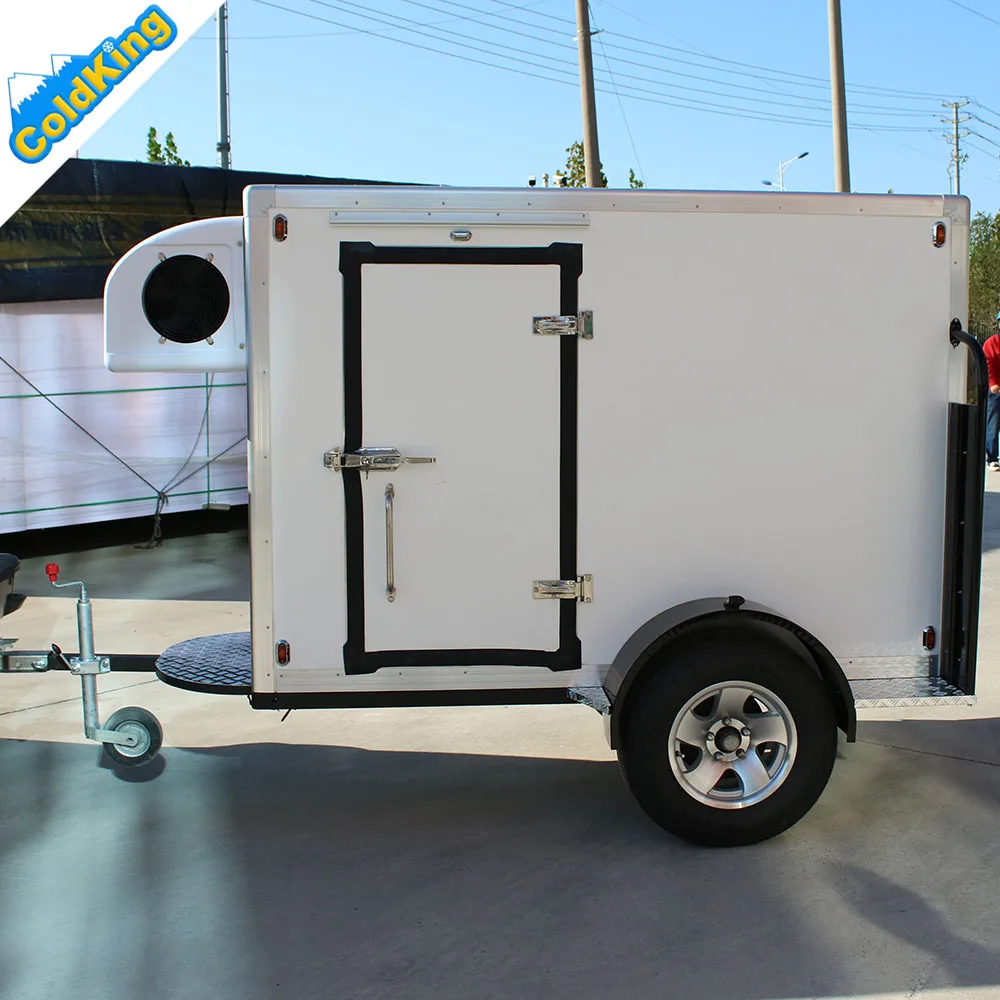

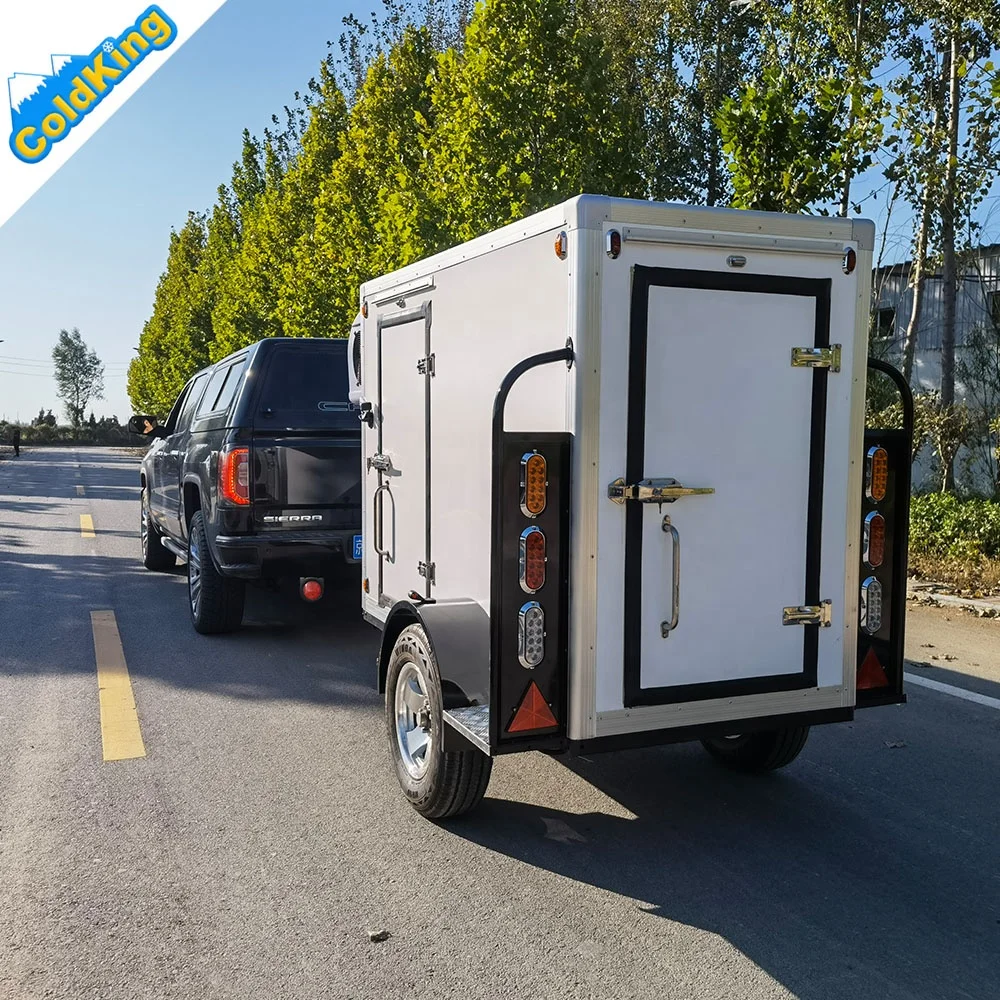

ATOP 7.2ft/2.2m length reefer trailer box body used GVW 1500Kgs single rubber torsion axle small utility trailer
ATOP 7.2ft/2.2m length reefer trailer box body used GVW 1500Kgs single rubber torsion axle small utility trailer
ATOP 7.2ft/2.2m length reefer trailer box body used GVW 1500Kgs single rubber torsion axle small utility trailer
ATOP 7.2ft/2.2m length reefer trailer box body used GVW 1500Kgs single rubber torsion axle small utility trailer
ATOP 7.2ft/2.2m length reefer trailer box body used GVW 1500Kgs single rubber torsion axle small utility trailer
ATOP 7.2ft/2.2m length reefer trailer box body used GVW 1500Kgs single rubber torsion axle small utility trailer
ATOP 7.2ft/2.2m length reefer trailer box body used GVW 1500Kgs single rubber torsion axle small utility trailer

ATOP 7.2ft/2.2m length reefer trailer box body used GVW 1500Kgs single rubber torsion axle small utility trailer

Share on (1600443373993):


Price:

Quantity:


Product Overview

Description



Trailer Chassis Specifications




Main Specifications
Trailer Chassis Overall Length
988+2200mm (With Coupler)
Drawbar Length
845mm
Trailer Chassis Overall Width
1500mm
Available Length For Box Body
2200mm
Trailer Chassis Overall Height
756mm (With Fender)
Available Width For Box Body
1000mm
Main Frame Materials
Steel Square Tube
Main Frame Specifications
50mm x 70mm
Cross Member Materials
Steel Square Tube
Cross Member Specifications
50mm x 50mm
Carling Materials
Steel Square Tube
Carling Specifications
40mm x 40mm
Drawbar Frame Materials
Steel Square Tube
Drawbar Frame Specifications
50mm x 100mm
Surface Treatment
HDG (Hot Dipped Galvanizing) With Painting
Trailer Chassis Color/Finish
Black/Blue/Yellow/White
Other Trailer Chassis Color/Finish
Optional


Axles & Suspension Specifications
Axle Number
1
Axle Type
Rubber Torsion Axle
Axle Capacity
1500Kgs/Axle
Total Axle Capacity
1500Kgs
Suspension Type
Underslung Suspension
Leaf Spring Number
None




Tire & Brake System Specifications
Tire
ST205/75R14
Tire Diameter/Section Witdth
664mm/205mm
Wheel Hub
10 Inch
Rim Size
14 Inch

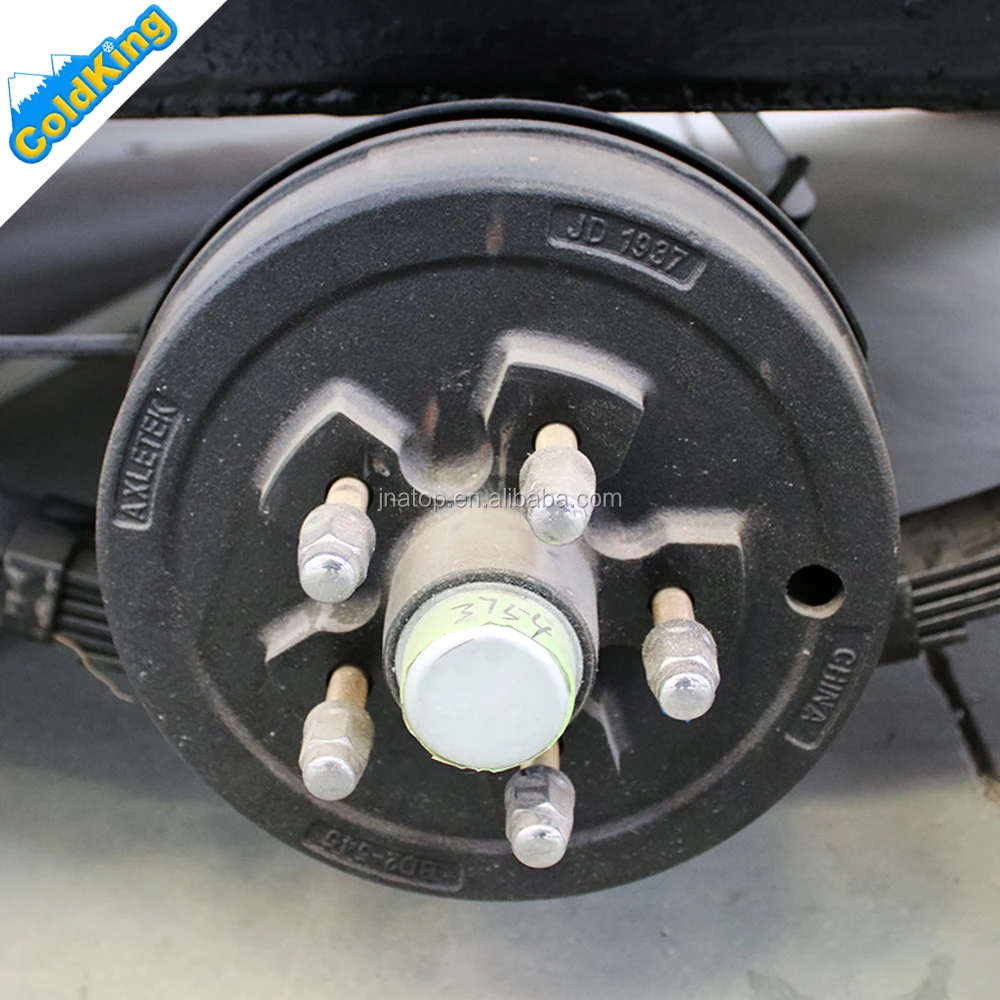

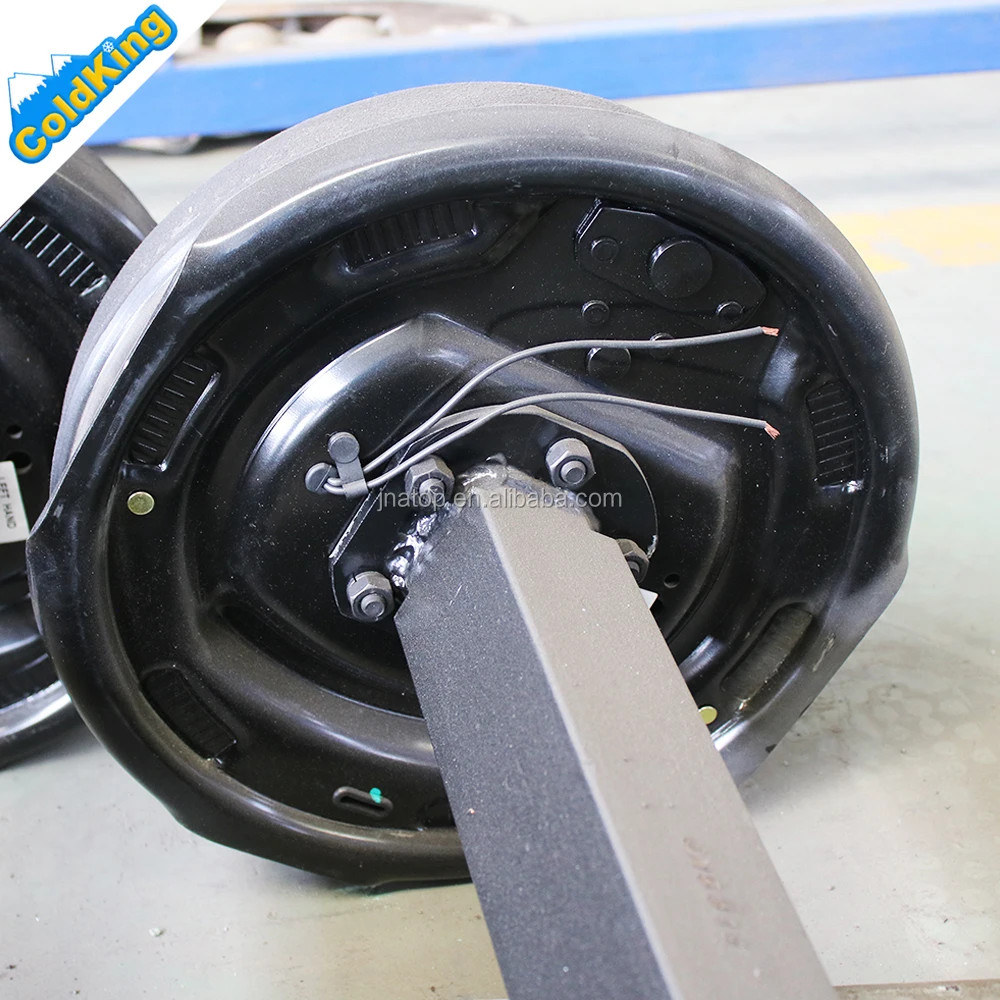

Braking System

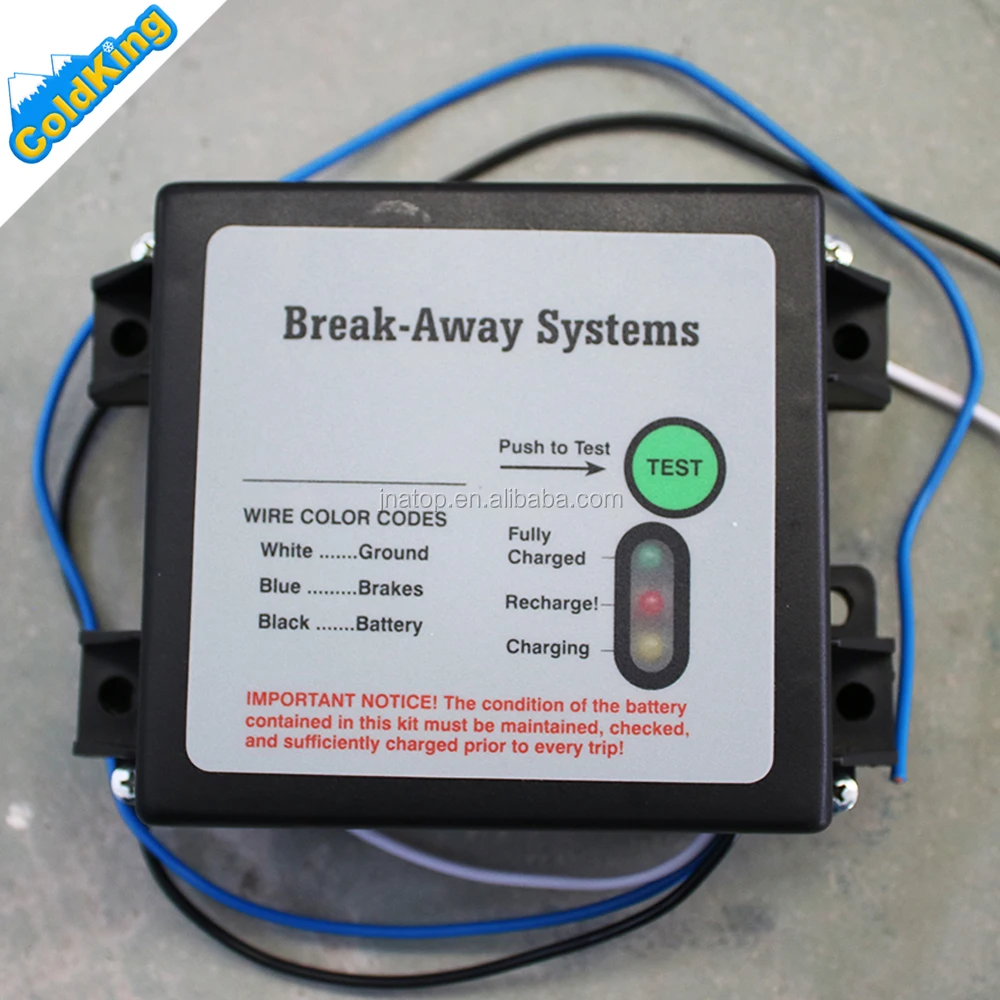

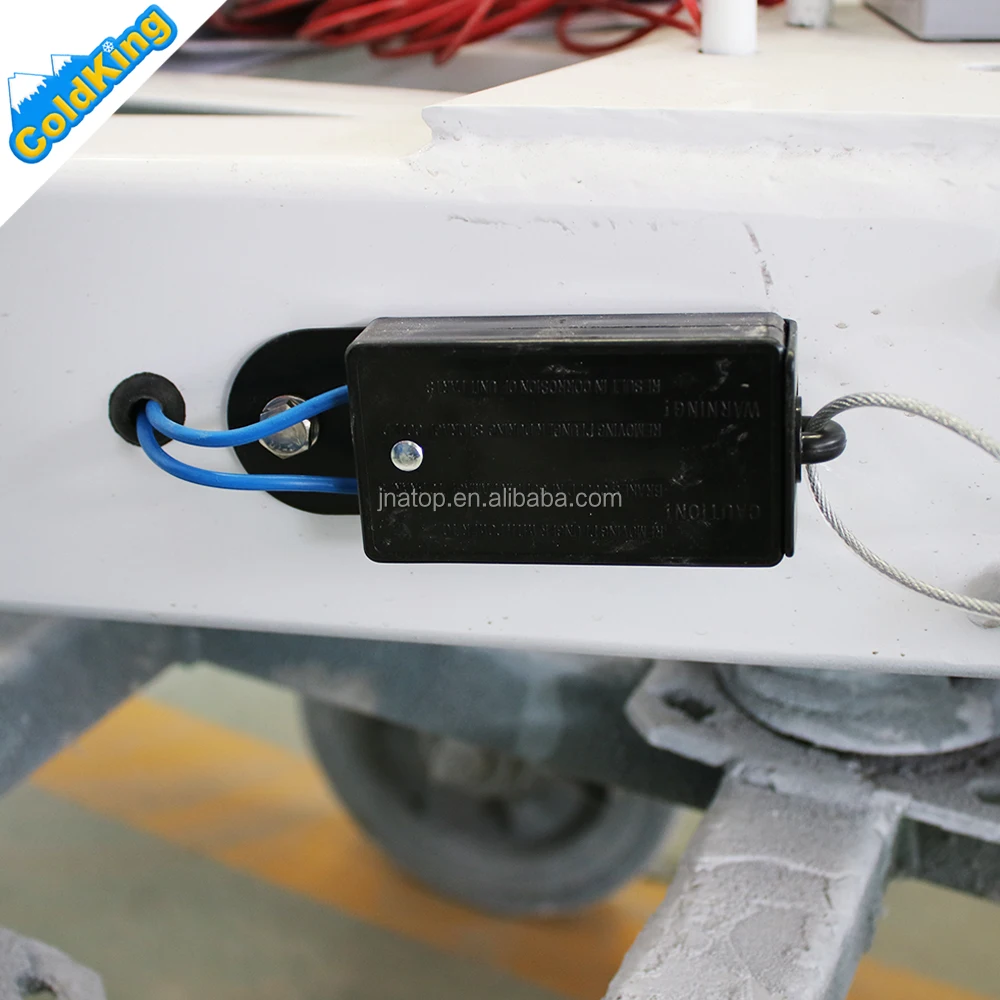

Electric Magic Brake System with Emergency Brake Protector Powered by 4.5Ah Battery

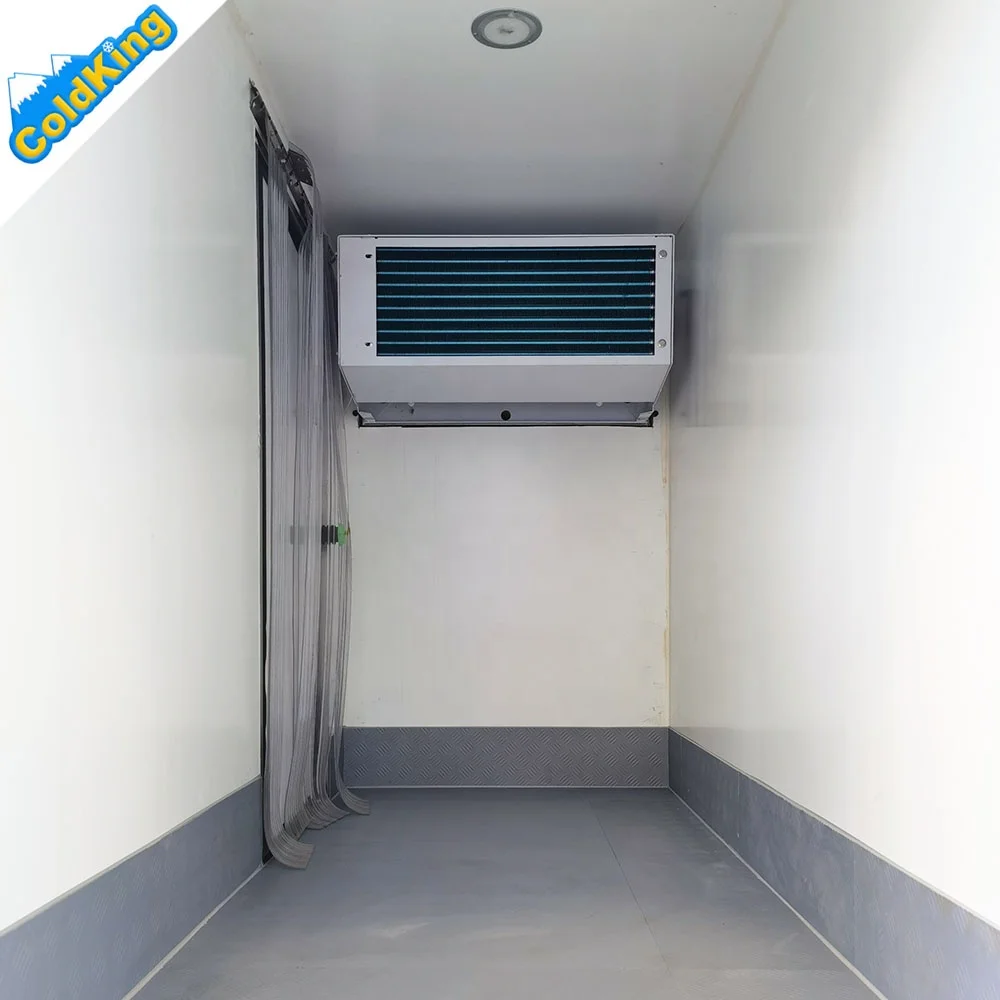

Refrigeration Unit Voltage
110-240V/1 Phase




Lighting System
Lights Type
LED
Lighting System
12V/24V

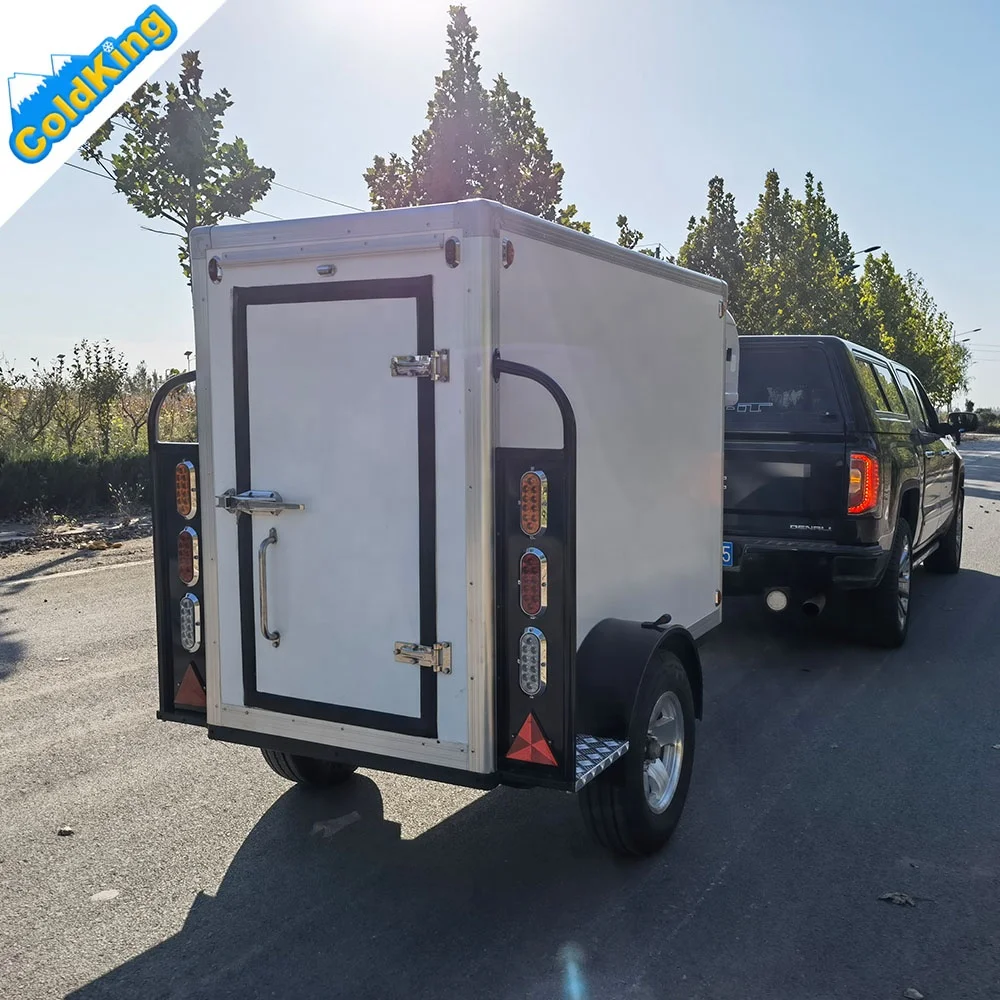

Tail/Stop Lights
2 Pcs Red LED Lights
Lighting System Certification
DOT/CE
Rear Turn Signal Lights
2 Pcs Amber LED Lights
Refrigeration Unit Voltage
110-240V/1 Phase
License Plate Light
1 Pc White LED Light
Reversing Light
2 Pc White LED Light
Fender Marker Lights
2 Pcs White/Red LED Light
Lighting Harness
7-Pins Plug Wiring Harness


Towing System Configuration
Coupler
Straight Tube Mount/A-Frame Mount
Drawbar Type
Straight Tube/A Frame
Ball Size
Other
Tongue
2" Tube
Trailer Jack Type
Side Wing/Top Wing Set Back Jack
Trailer Jack Mount Position
Side/Centerline
Trailer Jack Foot
Roller/Sand Foot
Safety Chains
G70, Froged Latch Hook


FAQ


1. who are we?
We are based in Shandong, China, start from 2014,sell to South America(30.00%),Southeast Asia(15.00%),North America(10.00%),Africa(10.00%),Central America(8.00%),Domestic Market(7.00%),Oceania(5.00%),South Asia(5.00%),Eastern Europe(5.00%),Mid East(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Refrigerated Trucks,Refrigeration Units,Cold Rooms,Tow Trucks,Ice Cream Trucks

4. why should you buy from us not from other suppliers?
Group Company Established Manufacture Factories In Jinan,Taian,Guangzhou,Shenyang & HongKong, Export Company In Jinan. 18 Years Engaged in The Innovative Design & Production of Tailor-Made Products As Per Customers' Special Demand. Exported To 60 Countries

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,CPT,DDP,DDU,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish
