specifications, schematic drawing see diagram 3 or 4. Connect the serial number [with the host generator plug] in Figure 3 or Figure 4 to the socket on the front panel of the host generator (see number 9 in Figure 6), connect the white point on the connector to the white point on the host generator Align, tighten. Before connecting the transducer to the host generator, make sure that the transducer connector is clean and dry. Fully insert the handle connector, making sure that it is properly connected to the host generator. (To disconnect the transducer, pull the connector close to the host generator connector firmly.

Note:If the transducer and transducer joystick cable is separation, should first connection

transducer and transducer joystick cable.

Confirm that the connector and receptacle are dry and clean.

To ensure that the Hand piece transduce connecting small red dot on the joint aligned with the red dot Hand piece transduce. (to disconnect transducer and transducer joystick cable connection, near the metal end of the transducer handles firmly pull out.)

2.6 Installation completed

Complete the steps above, the system installed, see diagram 5.

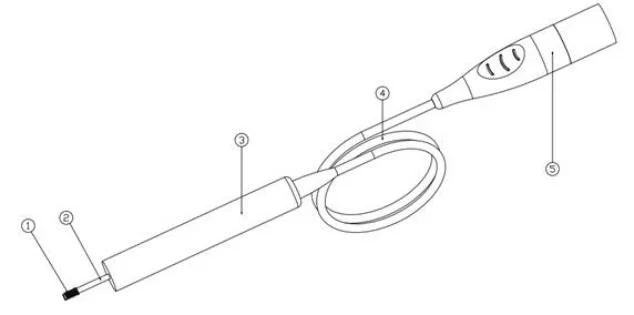

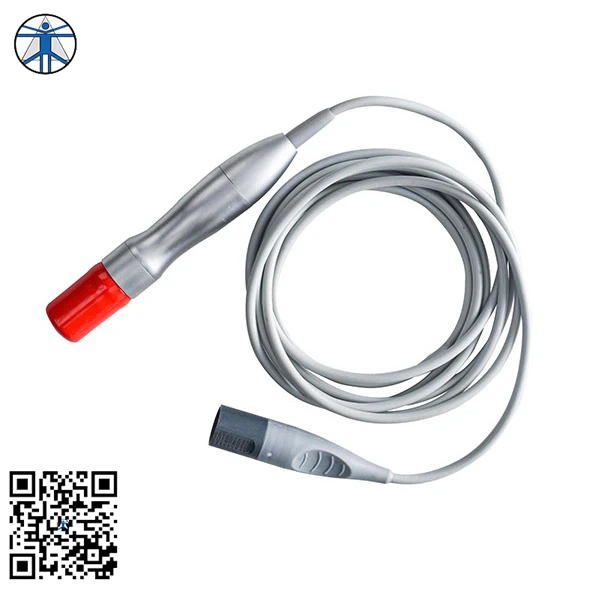

Diagram3:Hand piece transduce HPT55.5B

1With the Hand piece scalpel connection screw 2Transducer 3 Transducer shell

4Cable 5Connected to the generator plugs
