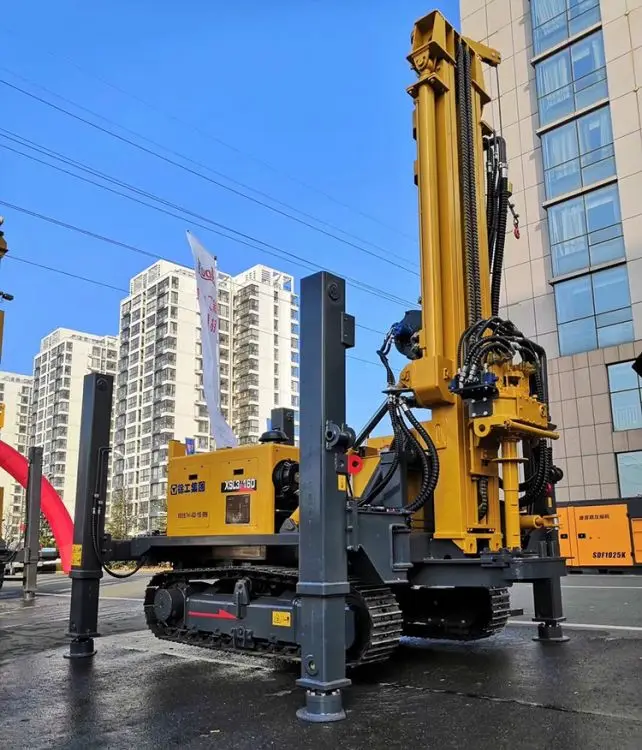

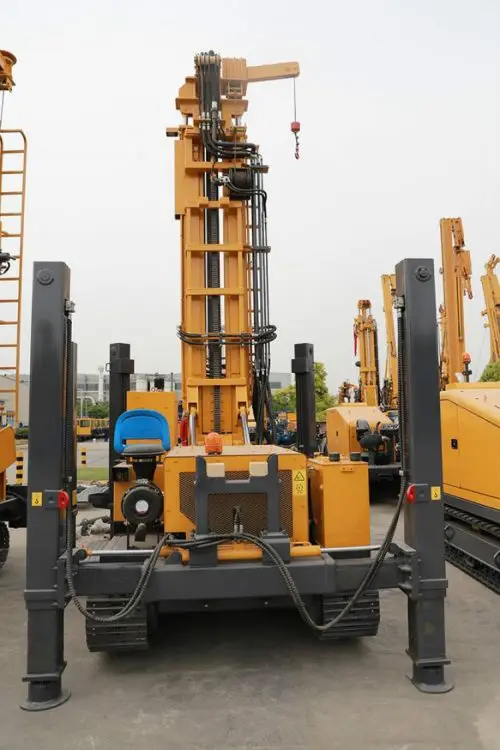

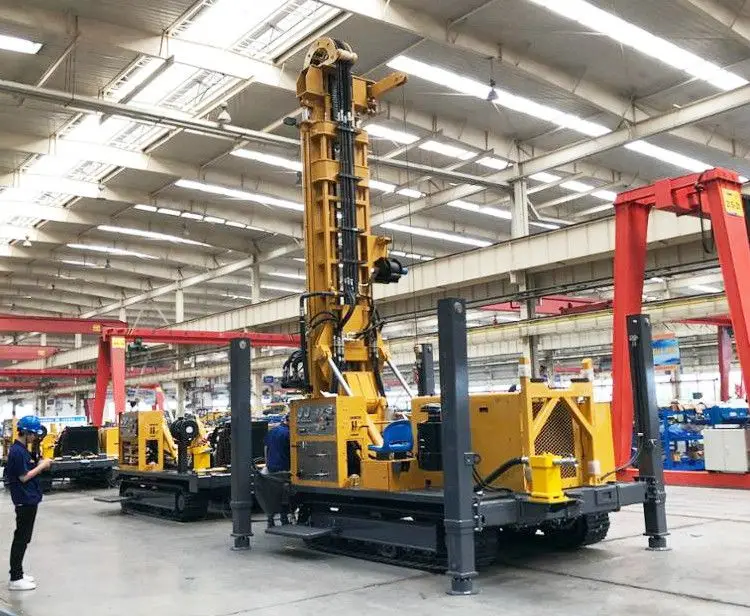

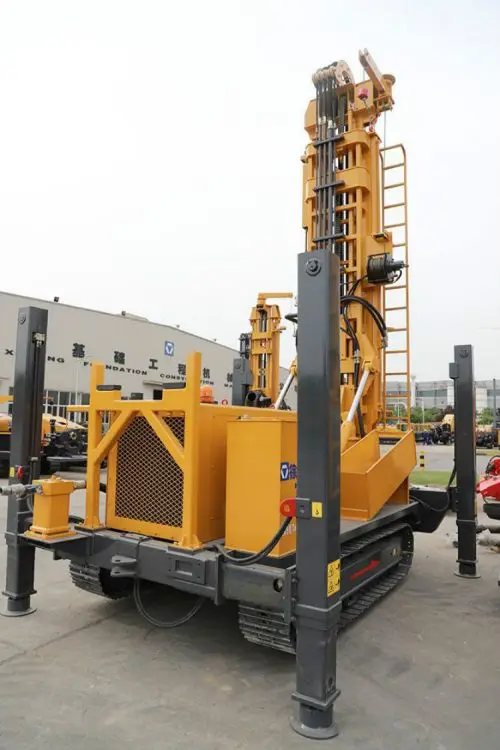

Low price 1200m Depth Hydraulic Water Well Drilling Rig XSCL12/600 China Well Drilling Rig Machine
- Category: >>>
- Supplier: RISEN Construction Machinery (Shanghai) Co. Ltd.
Share on (1600443432100):
Product Overview
Description
Hot Product Links
Depth 1200m Hydraulic Water Well Drilling Rig
XSL12/600 China Well Drilling Rig Machine
Product Description
| XSC/XSL series deep(water) well drilling rig uses full hydraulic control and the top drive to drive the rotation of drilling tools with very high drilling efficiency. Reasonable overall layout uses the tractor-mounted or all terrain chassis for transportation with good maneuverability. |
| Very flexible in difficult roads, it can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc., and can also be used for coal-mine gas exploitation or salvage work. |
| The top-mounted driving head principal shaft has a great drift diameter, which is suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands of well-drilling in different terrain strata. |
| Performance Characteristics: |
| 1. With good travelling performance, which adapts to severe road conditions such as muddy road, sand, snowfield, upland etc. |
| 2. Reduces the wearing of the drill stem thread, and increases service life of the drill stem. Adapt to the reverse circulation construction. |
| 3. Ensures good drilling performance and improves working efficiency. |
| 4. Reduces the number of workers and work intensity on the job site. |
| 5. With no shock when start and stop, the control is highly accurate and energy-efficient. |
| 6. Realizes loading and unloading drill stem without assistance of workers and reduces work intensity. |
| 7. Insulates the noise and dust of the job site efficiently and improves operating environment greatly. |
Main Parameter
| Item | Unit | Parameter |
| Drilling capability | - | - |
| Drilling Depth | m | 1200(Φ89) |
| Max.diameter of working floor | mm | Φ500 |
| Feeding system | - | - |
| Max.lifting capacity | KN | 600 |
| Max.feeding capacity | KN | 160 |
| Max.lifting speed | m/min | 31 |
| Max.feeding speed | m/min | 45 |
| Stroke | mm | 5000 |
| Top drive | - | - |
| Max.torque | N.M | 20000/10000 |
| Max.speed | r/min | 70/140 |
| I.D | mm | Φ105 |
| Floating distance | mm | 60 |
| Max.tilting angle | ° | / |
| Deck engine | - | - |
| Type | - | YCA08260-T301 |
| Rated power | KW | 191 |
| Main winch | - | - |
| Hoisting capacity | KN | ks |
| Tool winch | - | - |
| Hoisting capacity | KN | 15 |
| Breakout device | - | - |
| Max.breakout torque | N.M | / |
| Vise clamping range | mm | / |
| Foam pump | - | - |
| Max.flow | L/min | 35 |
| Max.pressure | Mpa | 4 |
| Mud pipe | - | - |
| I.D | mm | Φ76 |
| Max.pressure | Mpa | 8 |
| Chassis | - | - |
| Drive mode | - | Crawler chassis |
| Rated power | kw | / |
| Highest speed | km/h | 3 |
| Max.climbing gradient | % | 39 |
| Working dimension | mm | 6450×3290×9420 |
| Transportation dimension | mm | 9100×2250×3030 |
| Weight | t | 18 |
Our Factory
RISEN ConstructionMachinery (Shanghai) Co., Ltd is engaged in developing, manufacturing andexporting construction machines in the areas of building, mining, energy andlogistic engineering. Offering 8 major categories, 38 product line and morethan 1000 models, RISEN is able to provide complete equipment package to theclients from all walks of life.We are a wholesaler of many brands in China, a professional exporter of construction machinery and a one-stop solution provider. Our team has over 15 years of experience in this field.
From the factory to our customer's destination, we will conduct all-round supervision.We can also helpto sign purchase ordercontracts, test product quality, guarantee timelydelivery, and accomodate special orders.
