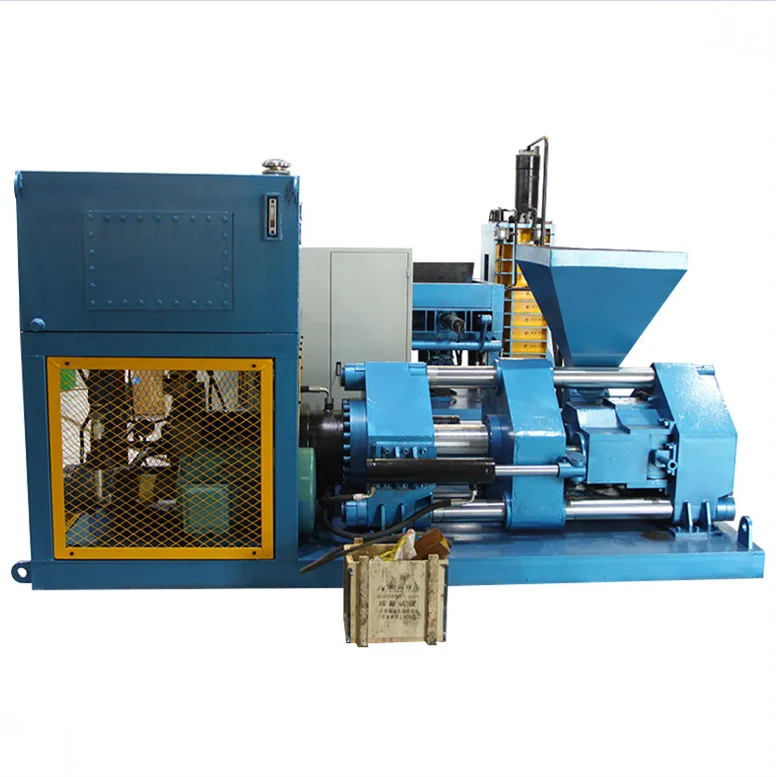

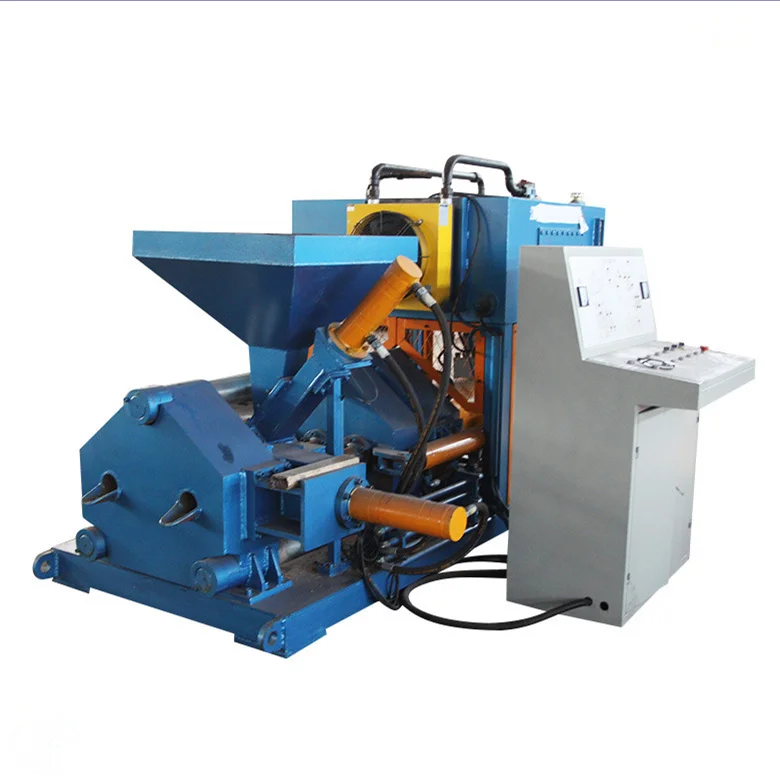

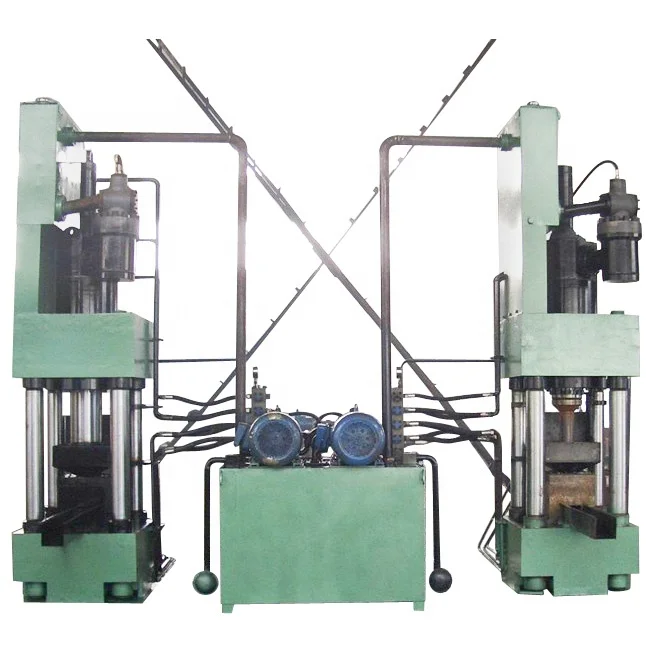

Y83 360 Aluminum Steel Shavings Press Briquette Making Machine

Product Overview

Description



1. Applications

Metal Scrap Briquetting Press (chip packing machine) is suitable for aluminum alloy factory, steel casting factory, aluminum casting factory, copper casting factory, etc.

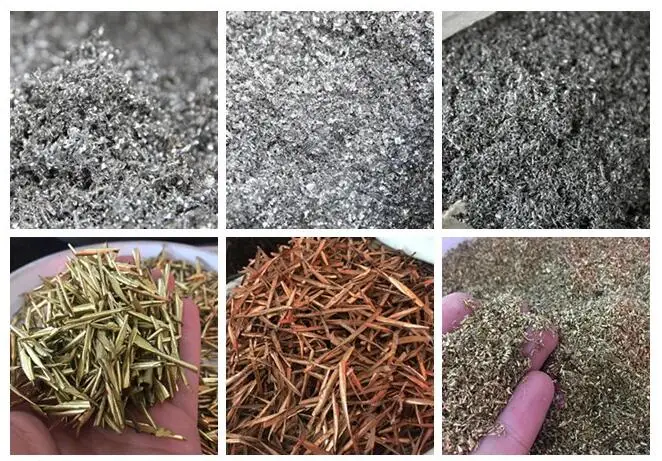

To compress and pack the aluminum chip, steel chip, iron chip, and copper chips for melting down.
It can replace the waste steel, pig iron, aluminum ingot and waste copper as raw materials and reduce the fire loss.

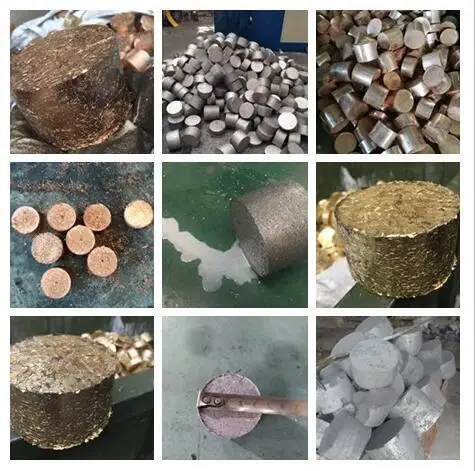

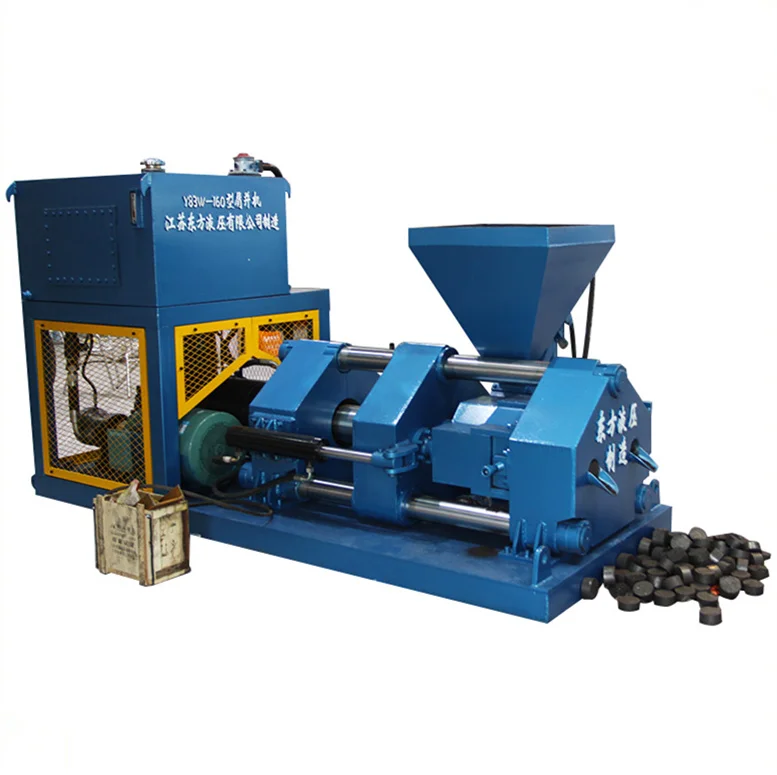

This equipment can press coldly the cast iron chip, steel chip, copper chip and aluminum chip into 3~6 kg cylinder caky blocks, easy for transportation, furnace casting. After the iron chip has been pressed, the densities reach 5 ~ 6T / m³ .

The machine can also adopt the domestic and imported hydraulic elements and electric components fitted with automatic feeding, weighing and other devices. Which Y83-500 hydraulic metal scrap briquetting plant for copper design, briquette density reaches over 7T / m³ , is ideal to press and pack the lead and brass ideal products.



Raw materials:

1.Coal powder/coal fine/coal dust

2.Charcoal powder/charcoal fine/charcoal dust

3.Gypsum/Desulfurization Gypsum/quicklime/slaked lime/

4.Activated carbon/carbon black

5.All kinds of metal powder/Manganese/magnesium/copper/iron

6.Iron oxide/aluminum oxide/clay

7.Some other type powder.





Technical Parameter

Model	Nominal Force(kn)	Power(kw)	Production (T/h)	Bale Size(mm)

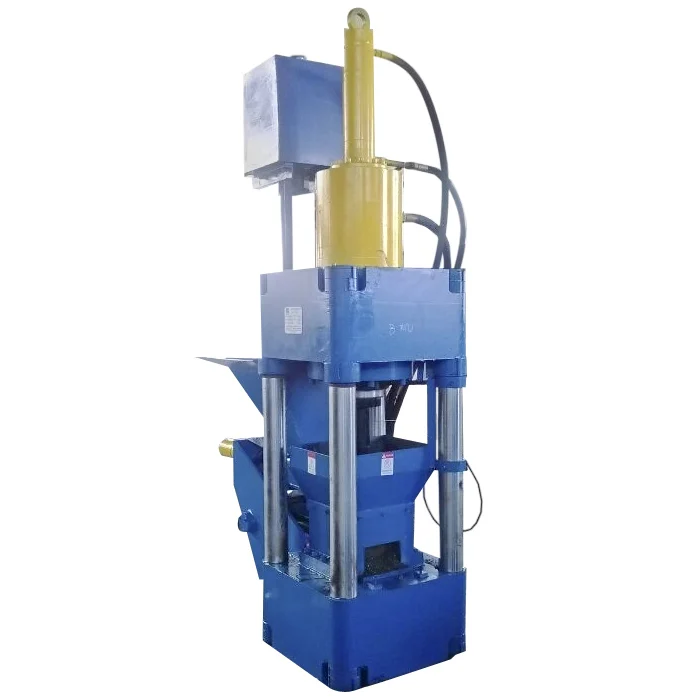

Y83-250	2500	18.5	6~7	φ90×70-100
Y83-315	3150	30	8~12	φ90×80-100
Y83-360	3600	30	10~12	φ90×70-100
Y83-400	4000	37	10~18	φ120×70-130
Y83-500	5000	37	10~20	φ130×70-130
Y83-630	6300	45	20~30	φ150×100-120
Y83-800	8000	75+55	40~55	φ150×140-180
Y83-1000	10000	55+37	55~65	φ240×200-250
Y83-1250	12500	75+55	75~90	φ240×200-250
