Gold coated Quartz IR Heating Emitter Short Wave Infrared Tube Emitter Lamp for Cutting Glass

Share on:

Price:$85.00 - $130.00
Price in USD:Details


Product Overview


Product Description

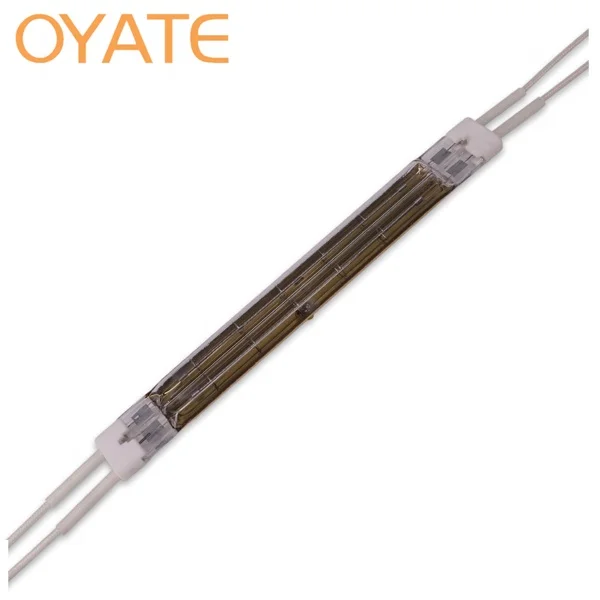

Infrared Heater Lamp


 Filament Tungsten, Carbon fiber
 Tube Color Clear, White, Gold,
 Wavelength 1.3µm, 2.5µm
 Voltage 24-600V
 Power 50-4000W
 Color Temp 2450K, 1200K
 Common Diameter 11*23mm, 15*33mm
 Life Time 5000Hours





*High efficiency.
*Economical to run.
*Have a fast response switching on and off time.

*Effectively transmit and focus heat on materials.

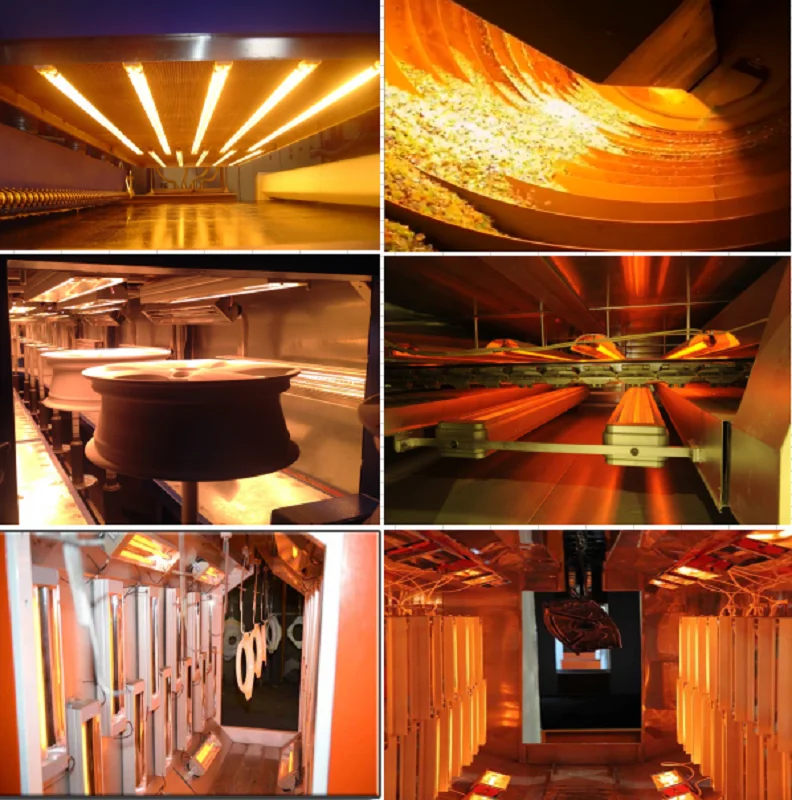

Infrared Heat Lamp For Drying Systems



Infrared Heat Lamp For Industrial Processing




1.Infrared Heating For Plastics Process

 IR drying of coatings on plastics IR stretching or shrinking plastics
 IR Heating For Plastic Packaging IR heating for blow moulding of PET bottles


2.Infrared Heating For Photovoltaic Industry

 IR heating for string soldering

 IR preheating for sputtering processes


3.Infrared Heating For Printing Industry

 IR curing ink on cloth IR drying for inkjet-based CTP plates

  IR drying of printing products ,such as using in banners machine


4.Infrared Heating For Food And Chemical Industry

 IR heating for disinfection of tableware IR heating of chicken and vegetables
 IR heating of natural herbal medicine IR heating for removing snow and ice


5.Infrared Heating For Glass Industry

 IR preheating of car glass IR drying of coatings on glass

 IR heating for manufacturing and cutting laminated glass


6.Infrared Heating For Textiles Industry

 IR drying of coatings on textiles IR heating for laminating of fabrics


7.Infrared Heating For Electronic Industry

Coatings on electronic components The aging of the electronic components


OYATE Infrared Heat lamp

Short Wave Halogen IR Lamp

Medium Wave Carbon IR Lamp

Short -Medium Wave IR Lamp


Clear IR LampWhite IR LampGold IR LampRuby IR LampAccessories


Twin Tube IR LampJacketed IR LampShaped IR lamp Applications




Infrared is divided into 3 segments by wavelengths measurements

* 1.3 μm Short wave infrared

* 1.6 μm Short-medium wave infrared

* 2.5 μm Medium wave infrared

The Advantages Of OYATE Heat Lamp

Carbon fiber heat lamp

*High-priced imported carbon fiber filament.

*The finished filament is smooth and does not fluff.

*The optimum power and maximum longevity.

Guartz glass tube

*High quality high-temperature quartz glass.

*Is totally transparent at IR radiation.

*Twin tube—more heat under the same conditions.-02

Reflector heat lamp

*To transmit and focus heat more efficiently on the material

*According to the specific application and customers’ needs.

*We usually applies gold, white and ruby reflectors on heat lamp.

Ruby & All gold heat lamp

*Reduce the brightness of visible light.

*Reduce wavelength, increase heat.

White heat lamp

*Imported ceramic white plating material.

*The white reflector coating is stable, not easy to fall off.

Gold heat lamp

*Imported gold plated material,gold water plated.

*Reflect heat use,Stronger reflection efficiency.

*Reflection effect is better than white plated.



Company Information


OYate Lighting Electrical Co,Ltd, a leading manufacturer in quartz products, infrared lamps in Lianyungang city of China, founded in 2008 with Over 12 years of experience in the industry and enable to acquire deep knowledge of production processes and solid skills in many areas of various applications.

Our customers include a lot of World Fortune 500 enterprises, such as China HuaWei, China Dong Feng Motor, Canada ONEX, USA II-VI Group and so on.


OEM Service

OEM Service

Thanks to its long track record and wide set of products always in stock, We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer’s specific technical instructions.

We can product many sizes and types heat lamp according to customers requirement,  and so on.If have drawing is beat, then we can do samples for you.


OYATE Factory Test Standards

 Life Test Standard
 Rated voltage 1.2 times power 72 hours
 Withstand voltage test
 Insulation Resistance test
 Cold resistance ≥200MΩ(500VDC)
 Leakage Current Test
 Wire tensile test


Packaging & Shipping

Packaging & Shipping

 MOQ 10Piece
 Certification CE, ROHS, Reach, ISO9001
 Payment T/T,Western Union,MoneyGram,Paypal,L/C,D/A,D/P,
 Packaging  Details White box single packing, 5Pieces/rolls,Customize color box
 Port Shanghai ,Qingdao ,Lianyungang
 Delivery Time

 3-8 Days(For Samples)  13-20 Days(For Mass Production)
