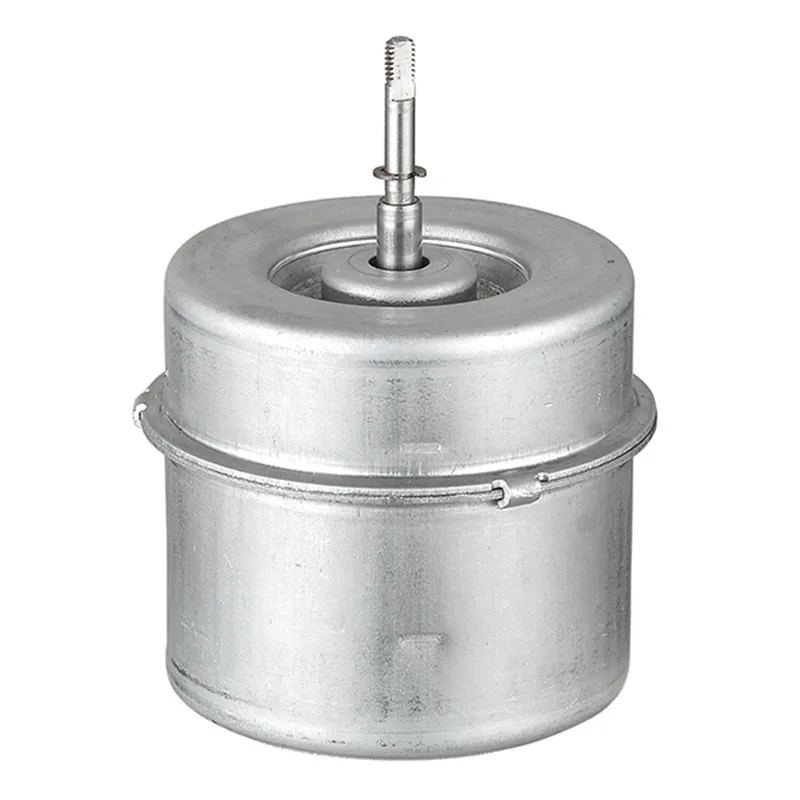

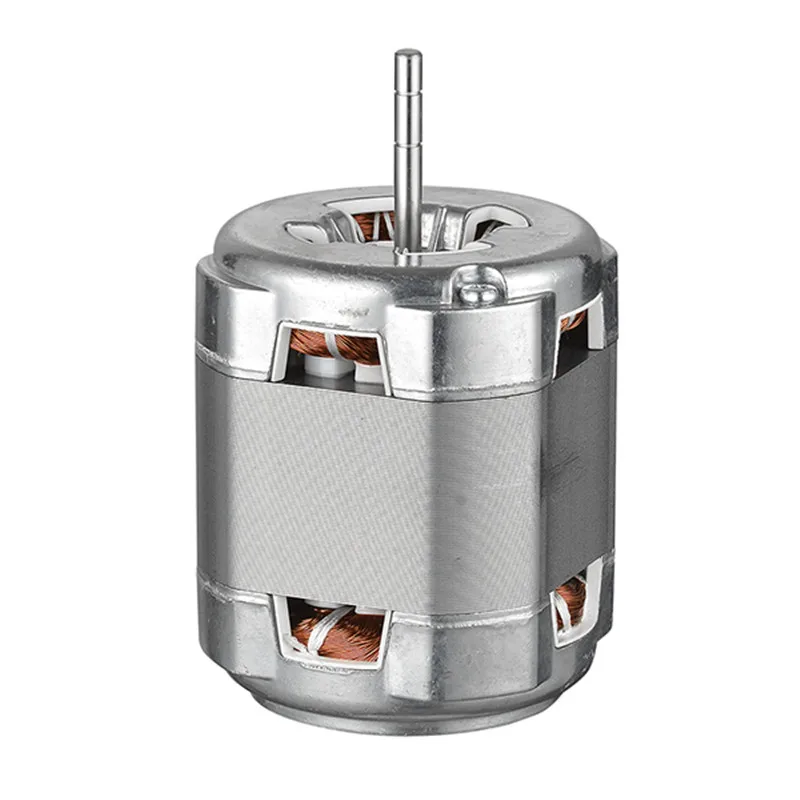

Capacitor motor YY60 series for exhaust fan and range hood
- Category: >>>
- Supplier: Yangzhou Tuanrui Electric Co. Ltd.
Share on (1600443971337):
Product Overview
Description

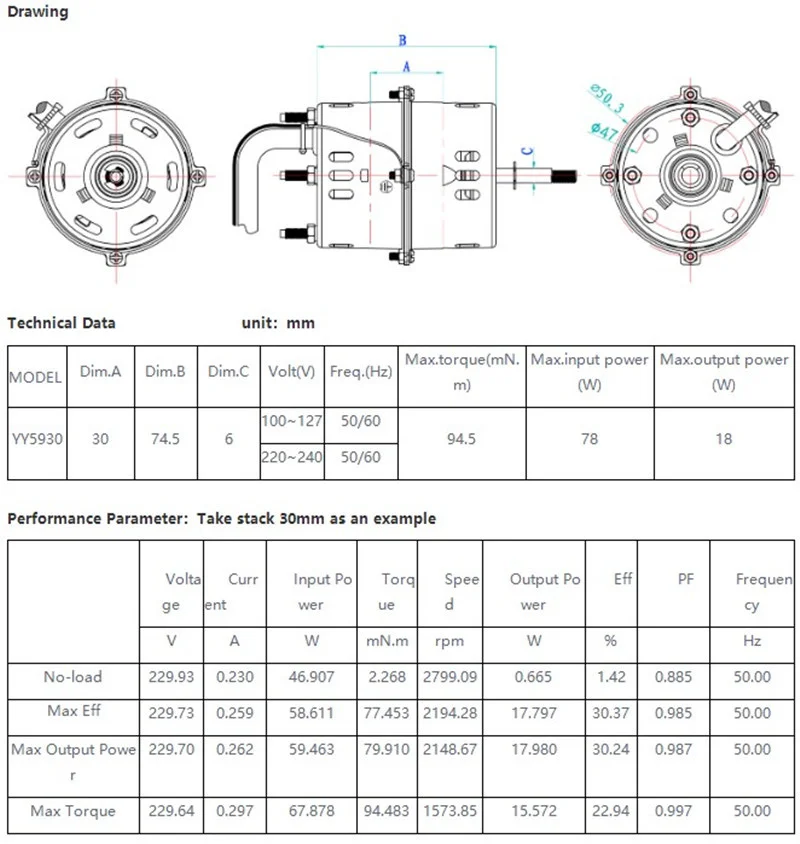

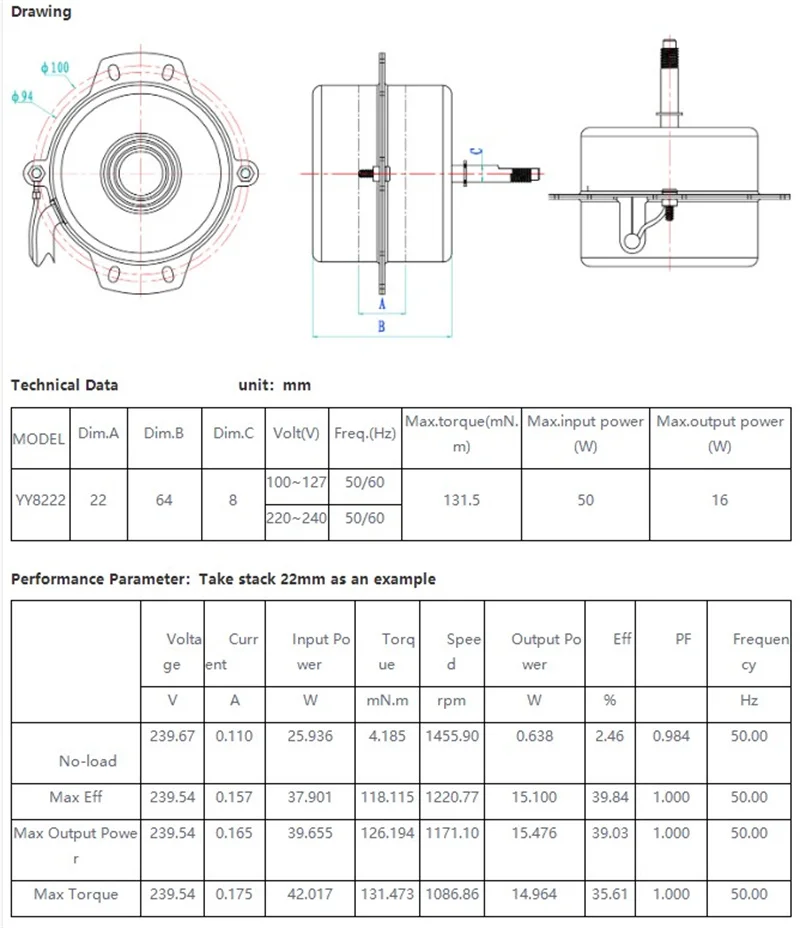

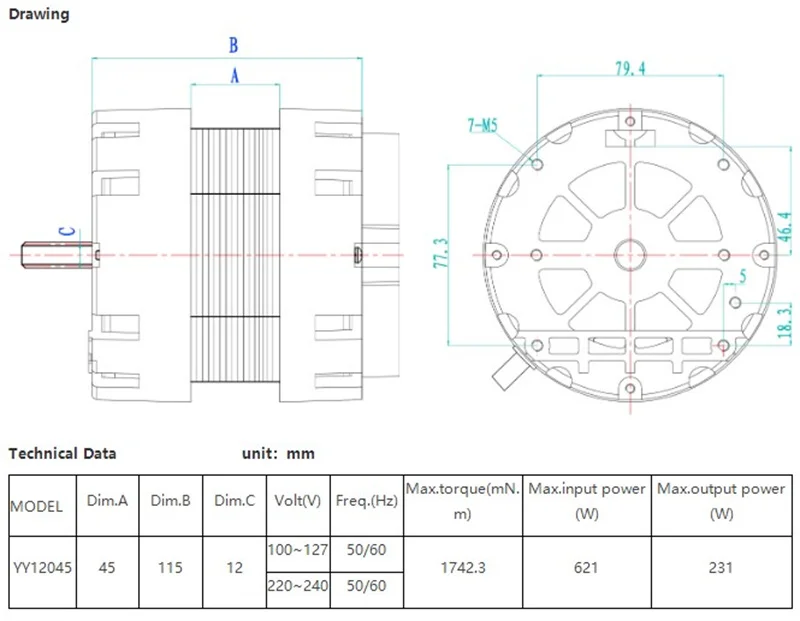

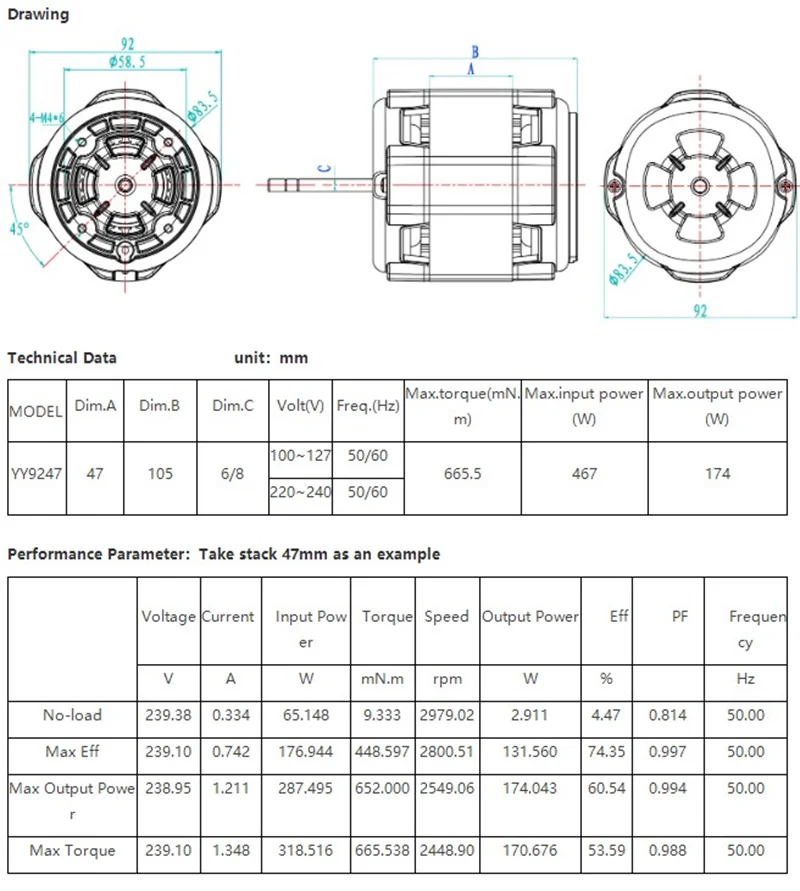

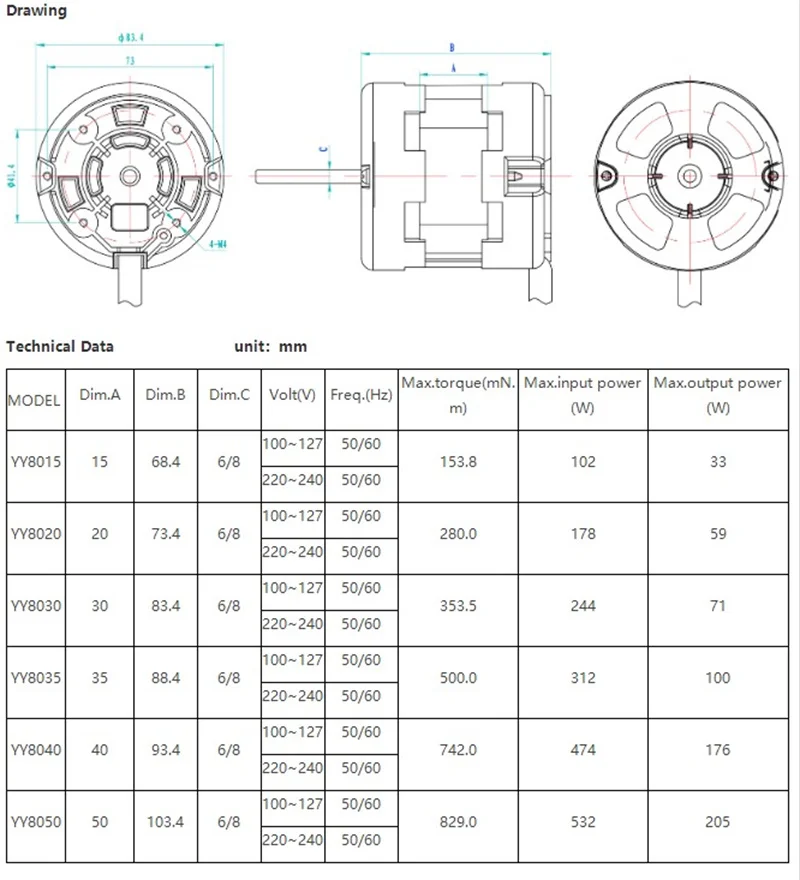

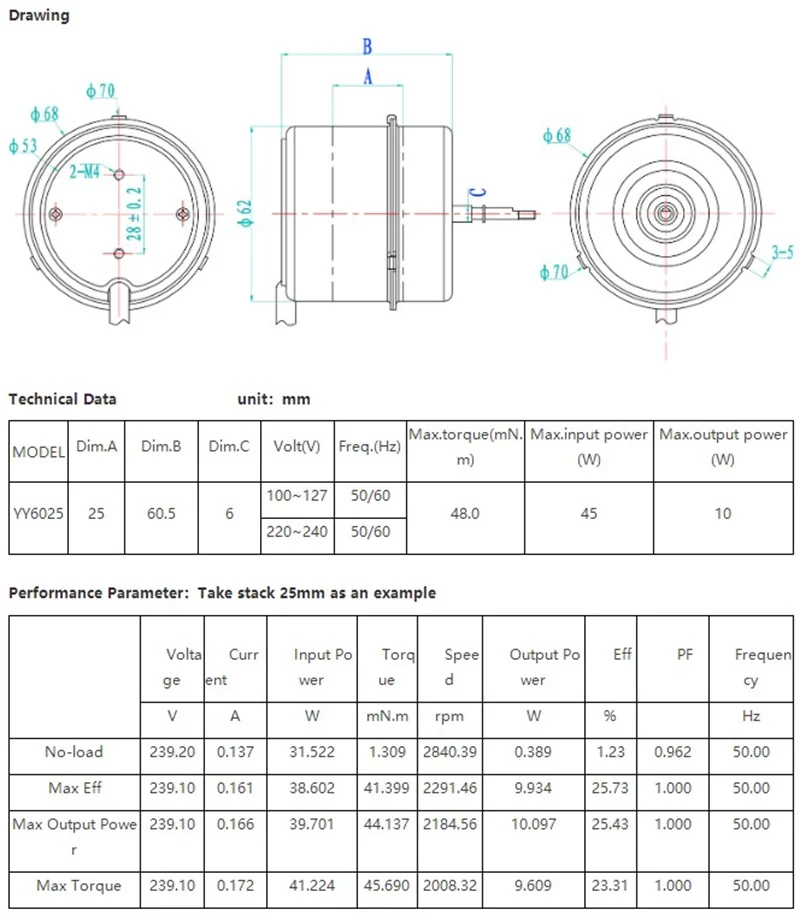

Detailed Images
Product Description

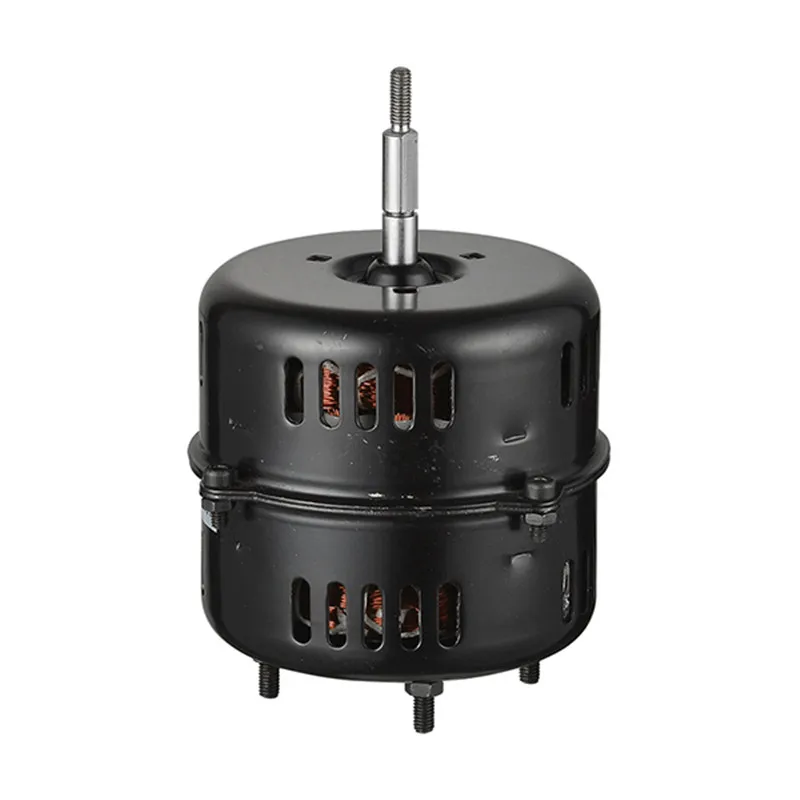

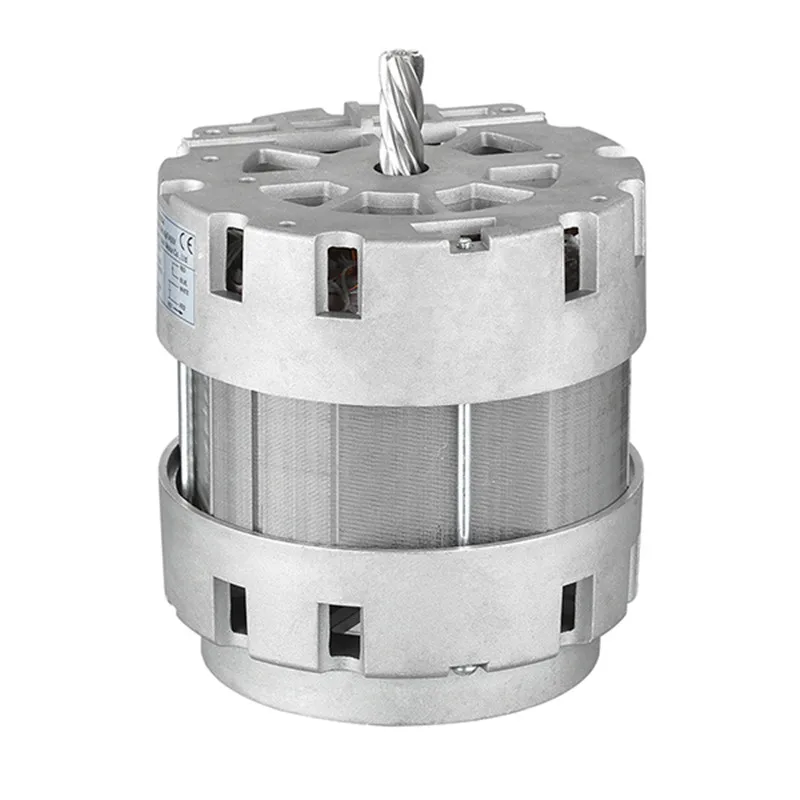

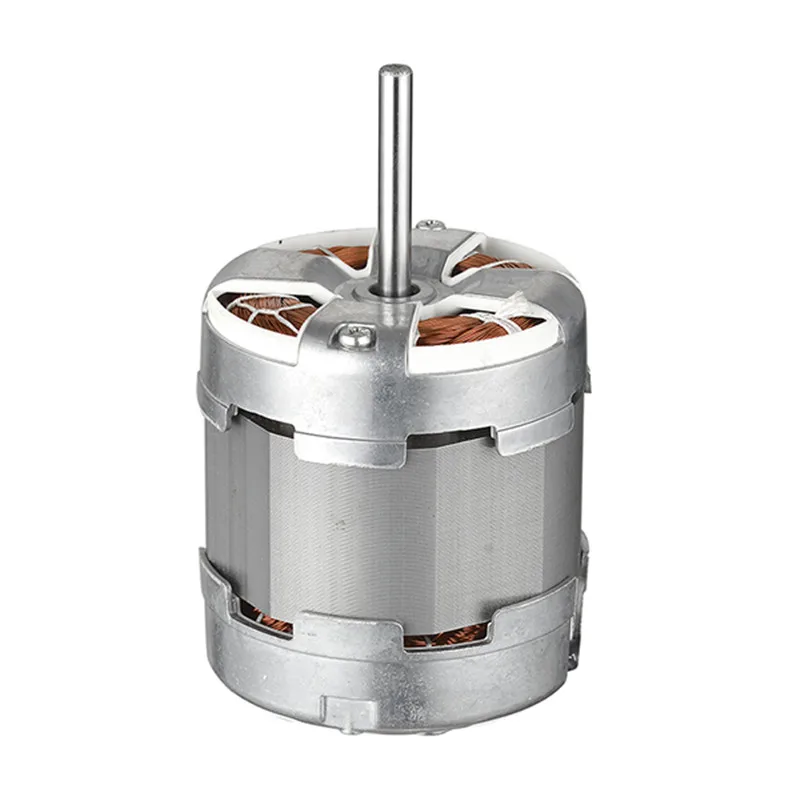

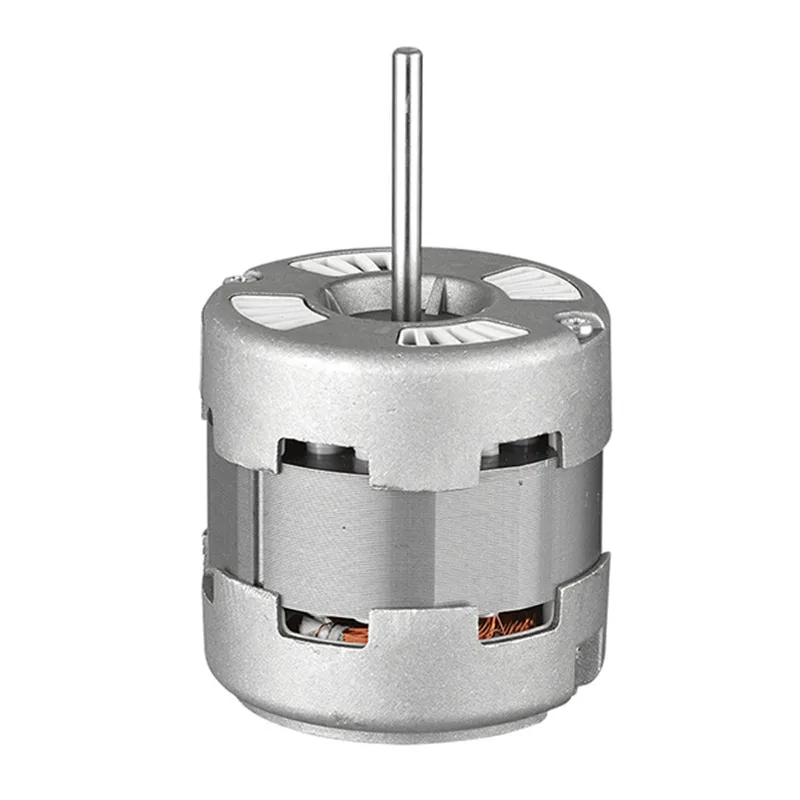

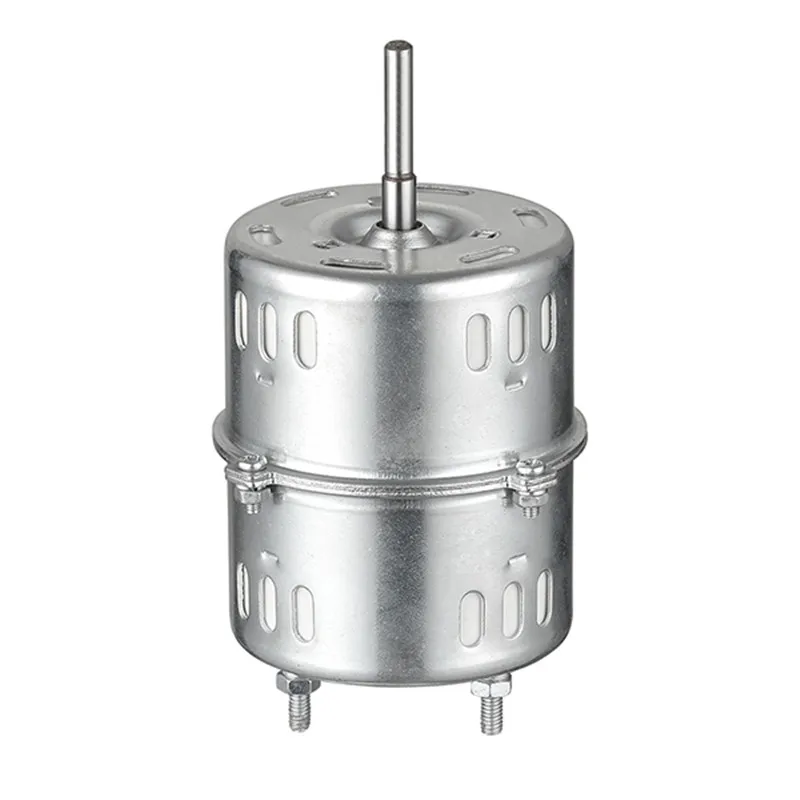

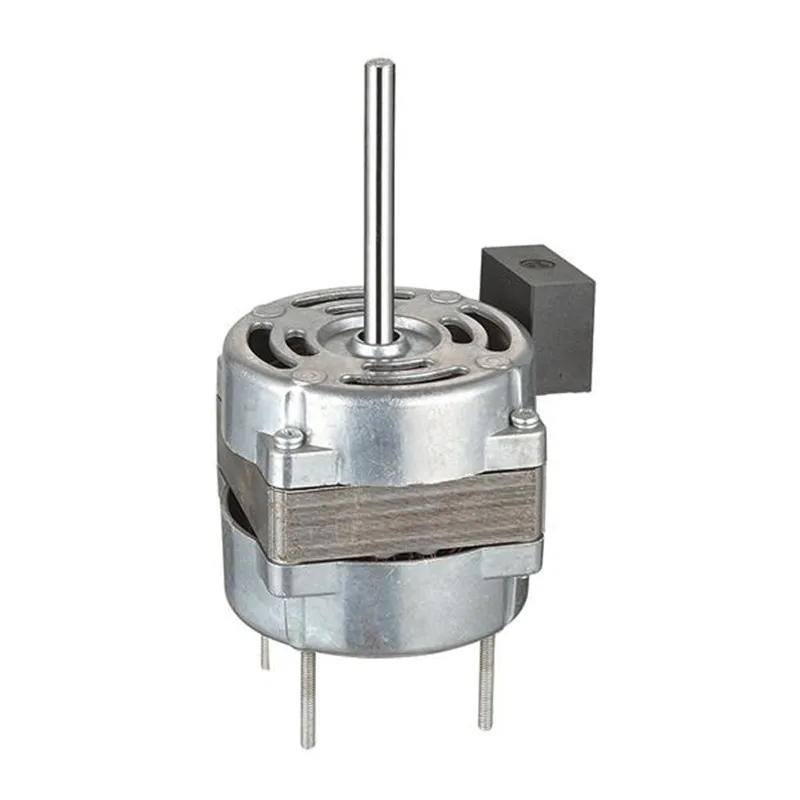

capacitor motor
Principle and use:The capacitor motor is provided with a main winding and a secondary winding (starting winding) on the stator winding, and a starting capacitor is connected in series in the starting winding, so that the electrical phase angle of the main and secondary windings is 90 degrees after power-on, so that a larger starting torque can be generated. to start the rotor. The motor has simple structure, quick start and stable rotation speed, and is widely used in household appliances such as electric fans, exhaust fans, and range hoods.
Features:
A: Simple structure, quick start and stable speed;
B: The motor is easy to switch between reverse and forward operation;
C: Low noise, high energy efficiency, long life

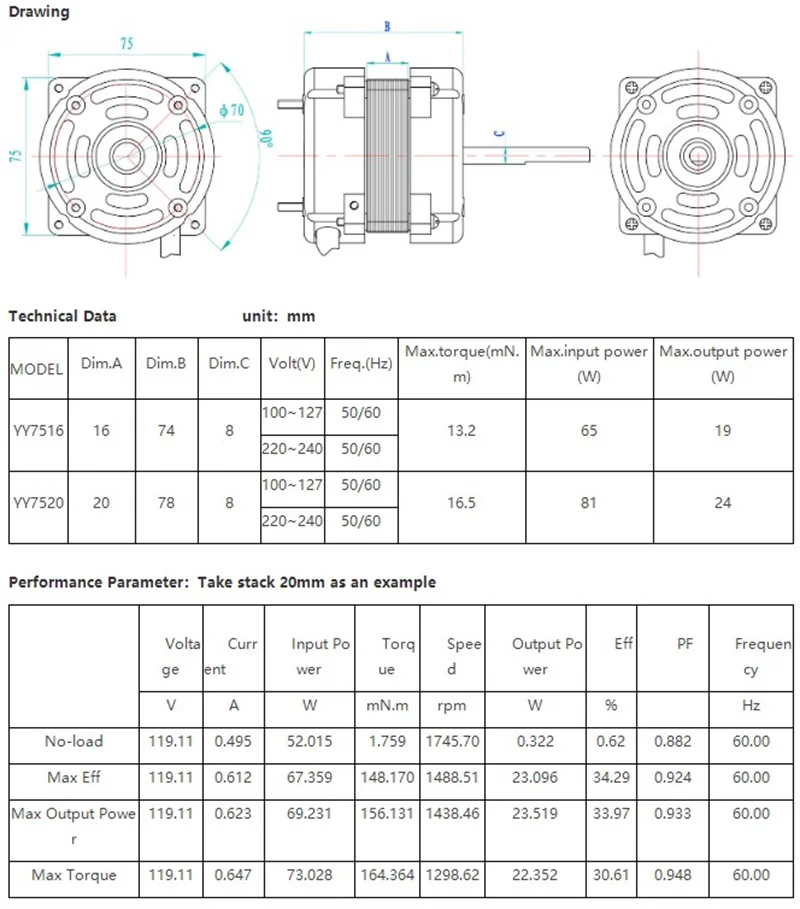

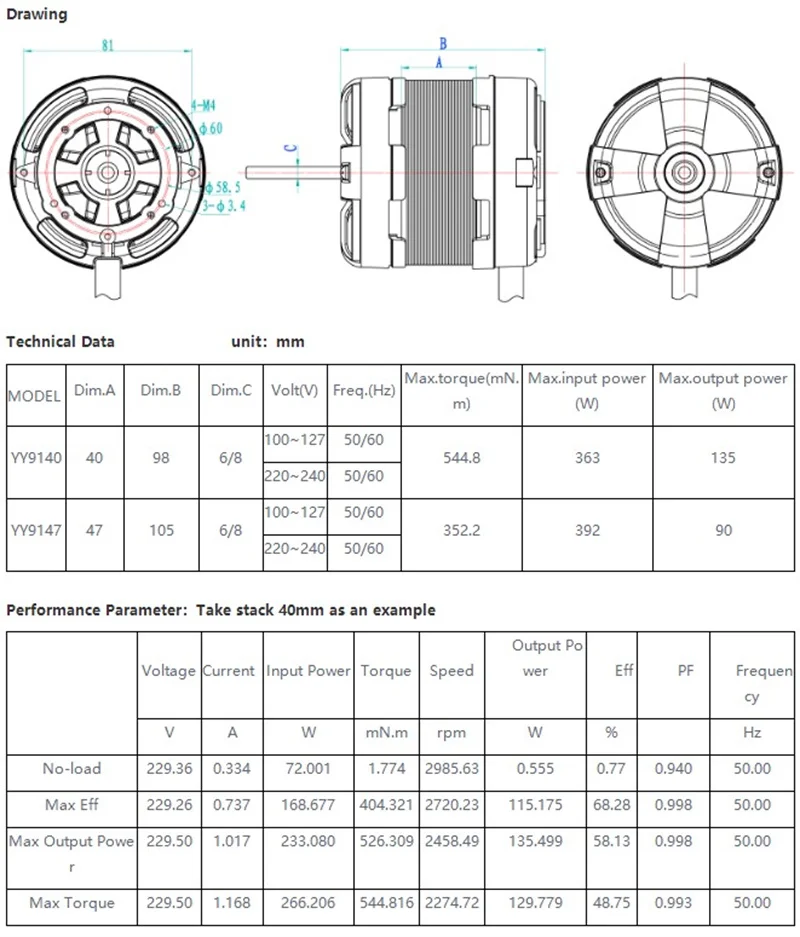

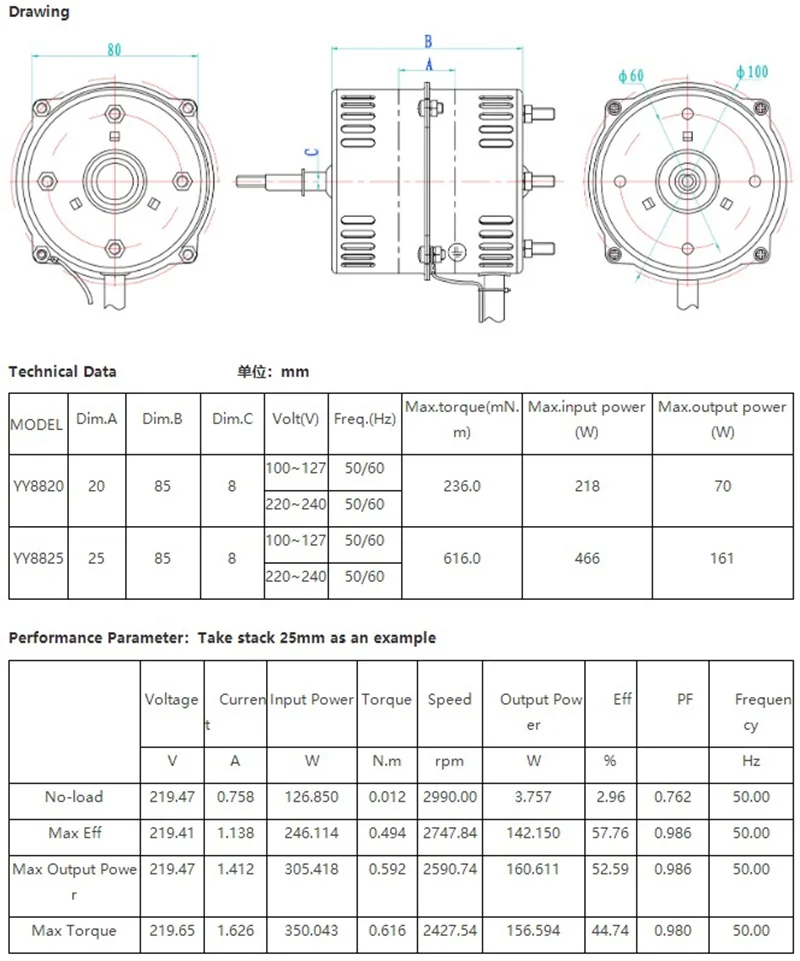

Product general characteristic parameters:
Voltage …………………… 100~240V
Frequency …………………… 50/60Hz
Power …………………… 10-700W
Insulation class …………………… B/F/H
Noise level ……………………<43dB(A)
Life …………………… 3000 hours Min
Core thickness: 14~50mm
Shaft diameter: φ5/φ6/φ8/φ12
Packaging and delivery
• Packaging Details Carton box or wooden box for Electric Heating Heater
• Delivery Time 10 days for Electric Heater .
• Delivery Time 10 days for Electric Heater .
