Factory Price High Strength Customized Black nylon 66 Material PA66 Granules
- Category: PA >>>
- Supplier: Shandong Xianglong New Materials Corp.
Share on (1600444038411):
Product Overview
Description
Products Description
Physical Properities
Items | Test Method | Test Condition | Unit | Values | ||||
Physical | ||||||||
Density | ISO 1183 | 23℃ | g/cm3 | 1.56 | ||||
Balanced water absorption | ISO 62 | 50%RH | % | 1.2 | ||||
Saturated water absorption | ISO 62 | 23℃ | % | 3.7 | ||||
Molding shrinkage parallel/perpendicular | ISO 294-4 | 23℃ | % | 0.1-0.4 | ||||
Mechanical | ||||||||
Tensile break strength | ISO 527-2 | 5mm/min | MPa | 250 | ||||
Elongation at break | ISO 527-2 | 5mm/min | % | 2.5 | ||||
Tensile modulus | ISO 527-2 | 1mm/min | MPa | 18000 | ||||
Flexural strength | ISO 178 | 2mm/min | MPa | 360 | ||||
Flexural modulus | ISO 178 | 2mm/min | MPa | 17000 | ||||
Charpy notched impact | ISO 179/1eA | 4J,23℃ | kJ/m2 | 15 | ||||
Charypy non-notched impact | ISO 179/1eA | 4J,23℃ | kJ/m2 | 90 | ||||
Thermal | ||||||||
Melting point | ISO 11357-3 | 10℃/min | ℃ | 260 | ||||
Heat distortion temperature | ISO 75-2/A | 1.80Mpa | ℃ | 240 | ||||
Flammability | ||||||||
Flame retardant | UL94 | 1.5mm | / | HB | ||||
HPA-G5043 is a 50% glass fiber reinforced, heat stablilised polyamide 6.6 with high rigidity and strength. Parts molded of HPA-G5043 have outstanding mechanical properties such as high strength and stiffness combined with high heat deflection. The notched impact strength is increased at elevated and low temperatures due to the fiber skeleton built in the parts. The fiber reinforcement reduces creep significantly. The very isotropic shrinkage in the molded parts minimizes the warpage. Complex parts can be manufactured with high reproducibility by injection molding. Can be used for substituting die cast metal with the advantage of Weight reduction, no corrosion problems, no post treatment.
Application - Automotive Engineering, Metal Replacement
Engine and gears
Radiator system
Fuel supply system
Suspension
Interior, Exterior
Engine and gears
Radiator system
Fuel supply system
Suspension
Interior, Exterior
Related Products

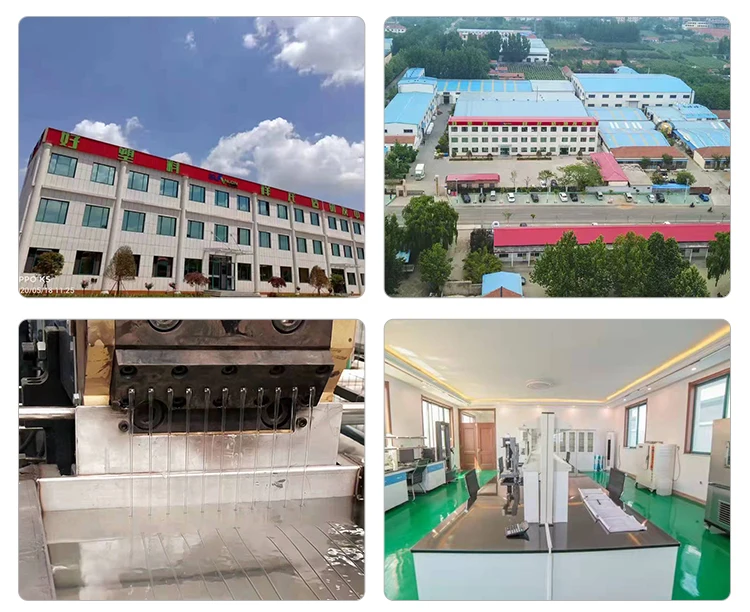

Company Information
Shandong Xianglong New Materials Corp. was established in 2012. We’re a high-tech enterprise dedicated to the research and development, production and sales of speciality nylon, nylon 66 and modified engineering plastics.
Xianglong is located in Linqu, Shandong Province, covering an area of more than 30,000 square meters; equipped with 16 sets speciality nylon polymerization lines of independent intellectual property rights, more than 20 sets Coperion production lines, and is equipped with weightlessness scales and leading testing equipment.
Xianglong has a professional R&D team and cooperates with industry well-known experts to successfully overcome the key technology of long-chain nylon continuous polymerization, set up long-chain nylon continuous polymerization production line with an estimated production capacity of 6,000 tons/year.
Xianglong is on the way to be leading supplier of specialty polyamide worldwide. Feel free to contact us if any request.
Xianglong is located in Linqu, Shandong Province, covering an area of more than 30,000 square meters; equipped with 16 sets speciality nylon polymerization lines of independent intellectual property rights, more than 20 sets Coperion production lines, and is equipped with weightlessness scales and leading testing equipment.
Xianglong has a professional R&D team and cooperates with industry well-known experts to successfully overcome the key technology of long-chain nylon continuous polymerization, set up long-chain nylon continuous polymerization production line with an estimated production capacity of 6,000 tons/year.
Xianglong is on the way to be leading supplier of specialty polyamide worldwide. Feel free to contact us if any request.
Customer Photos
Exhibition
Certifications
Package And Shipping
FAQ
Q1. Are youtrading company or Manufacturer?
A.We are factory
Q2.About Material
A.We can customize the material according to customers' requirement.
Q3. About Color
A.We can match the material color according to the appointed Pantone/RAL#.
Q4. About Inspection
A.We have standard inspect procedure and full set of test equipment.
Q5. About Quality
A.All the products must be tested strictly according to the testing procedure before shipment.
Q6. About Delivery Period
A.Normally delivered in 10-15 working days after the confirmation of order& payment. And it varies according to the material and quantity.
A.We are factory
Q2.About Material
A.We can customize the material according to customers' requirement.
Q3. About Color
A.We can match the material color according to the appointed Pantone/RAL#.
Q4. About Inspection
A.We have standard inspect procedure and full set of test equipment.
Q5. About Quality
A.All the products must be tested strictly according to the testing procedure before shipment.
Q6. About Delivery Period
A.Normally delivered in 10-15 working days after the confirmation of order& payment. And it varies according to the material and quantity.
