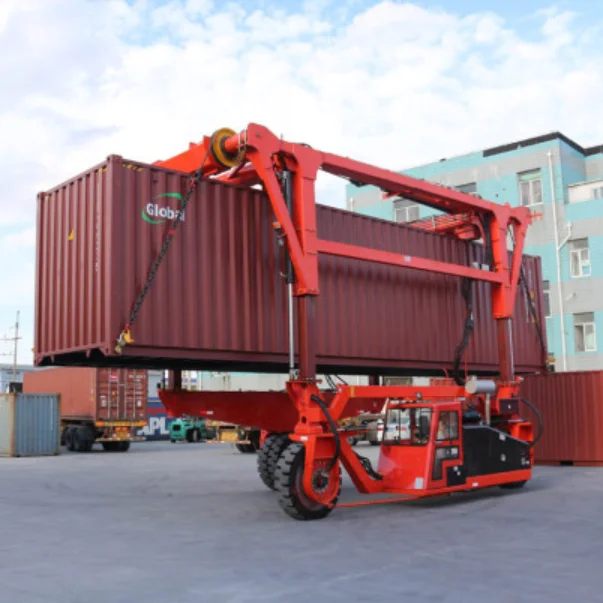

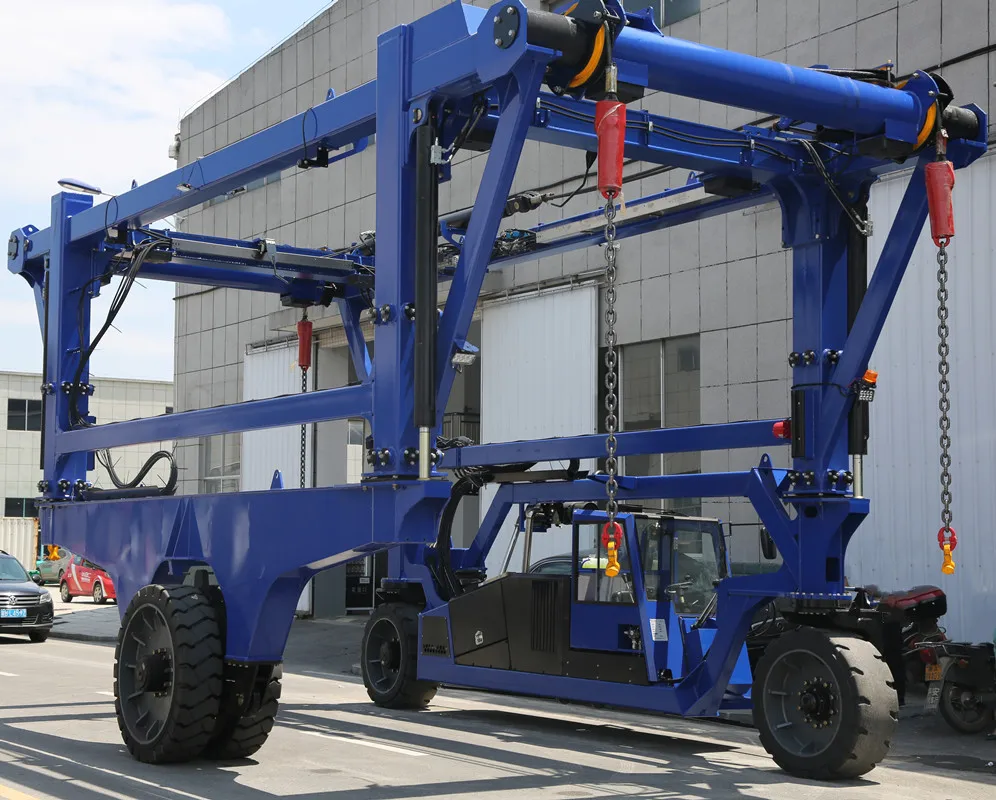

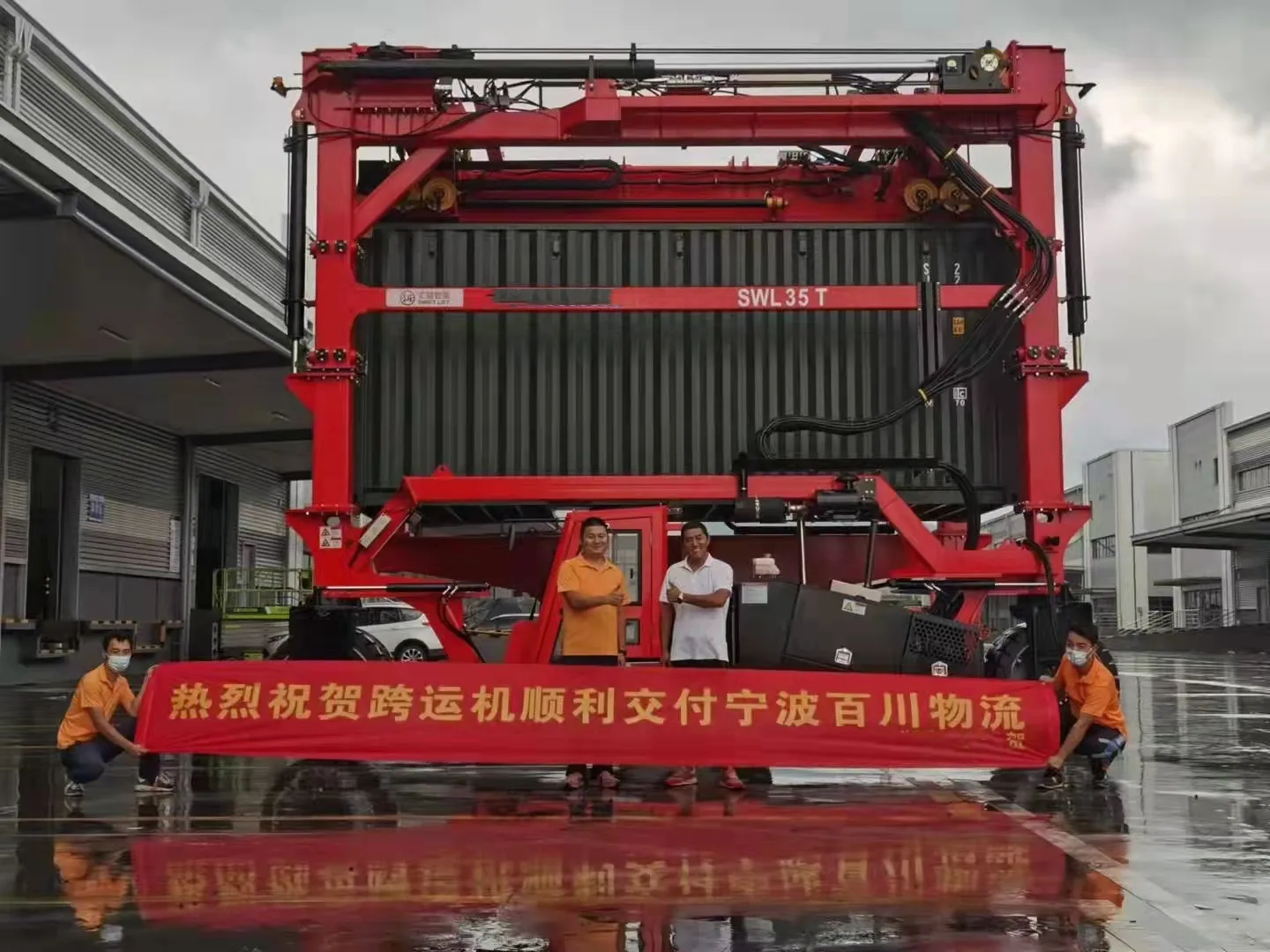

High quality workshop trackless rubber tyre mobile gantry crane 45t straddle carrier shipping 20ft 40ft container gantry cran
- Category: >>>
- Supplier: Liuyang Economy And Technology Development Area High Tech Import & Export Co. Ltd.
Share on (1600444063258):
Product Overview
Description
Product Overview
PRODUCT SPECIFICATIONS
High quality workshop trackless rubber tyre mobile gantry crane 45t straddle carrier shipping 20ft 40ft container gantry cran
Basic Parameter | HKY3531-3-2 | HKY3533-4-2 | HKY12065-1 |
Lifting weight | 35T | 45T | 120T |
Dimension(L*W*H) | 7100*5000*5500 | 10000*5800*7000 | 12000*8210*6900 |
Inner width | 3100mm | 3400mm | 6500mm |
Wheel base | 6000mm | 6500mm | 9000mm |
Min Ground clearance | 300mm | 600mm | 300mm |
Deadweight | 17T | 29T | 120T |
Engine | Cummins/Weichai | Weichai 170KW | Weichai（247KW) |
Travel Pump(closed travel) | Hytek/Linde/Danfoss | Linde/Danfoss | Linde/Danfoss |
Travel speed(Unladen) | 8KM-10KM | 9KM-12KM | 5KM-3KM |
Travel speed(Loaden) | 6KM-8KM | 7KM-10KM | 5KM-3KM |
Turning Radius | 7000mm | 8500mm | 15000mm |
Gradeability(Unladen/Loaden) | 15%/6% | 15%-5% | 15%-5% |
Maniopulation | Steering wheel (can be romote control) | Steering wheel (can be romote control) | Steering wheel (can be romote control) |
Tires(Solid tire) | 1100(2 pcs)+1300(2 pcs) | Solid Tires 1800 | Solid Tires 1800 |
Lifting Tools | Customized oversized Load spreader | Customized oversized Load spreader | Customized oversized Load spreader |
ADVANTAGES:
1 Capable of handling 20ft, 30ft, 40ft and 45ft containers
2 Models of different tonnages can be customized: 35t 45t 50t 80t 100t 120t, etc.
3 Used for moving containers from trailer to ground and to eliminate containers being left on trailers for long periods of time
4 Max 120,000 kg in lifting capacity
5 Equipped with wide tires, can be used on rugged or unstable terrains
6 Enables to move oversize disproportionate loads
7 Can Travel Fully Loaded
8 Can be easily broke down and moved to a new location
2 Models of different tonnages can be customized: 35t 45t 50t 80t 100t 120t, etc.
3 Used for moving containers from trailer to ground and to eliminate containers being left on trailers for long periods of time
4 Max 120,000 kg in lifting capacity
5 Equipped with wide tires, can be used on rugged or unstable terrains
6 Enables to move oversize disproportionate loads
7 Can Travel Fully Loaded
8 Can be easily broke down and moved to a new location
It's better to give below detail parameters when you send enquiry to us:
1. Lifting capacity:___?tons or what type cntainers you need to lift
2.Span:___meters ( Distance between two wheel centers)
3.Lifting height:__?meters
4.Work duty: __?hours you need the crane to work? what's the full load percentage?
5.Power supply: __?V __?HZ
2.Span:___meters ( Distance between two wheel centers)
3.Lifting height:__?meters
4.Work duty: __?hours you need the crane to work? what's the full load percentage?
5.Power supply: __?V __?HZ

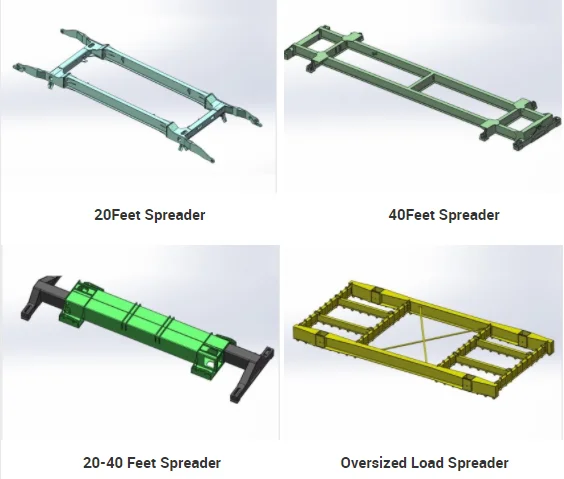

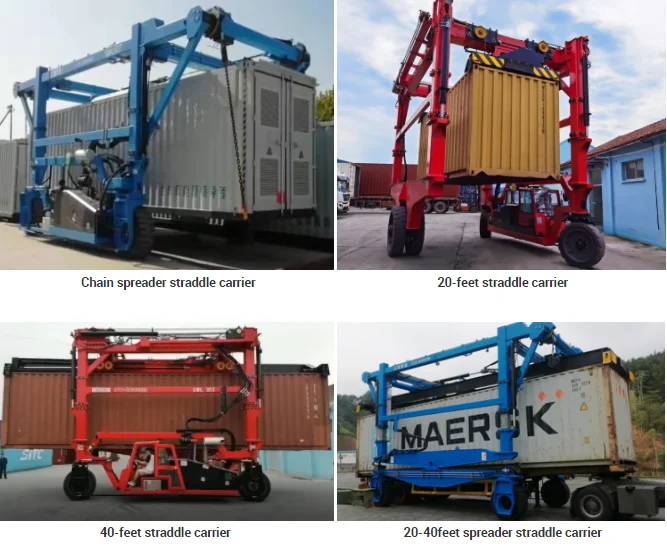

Optional Accessories

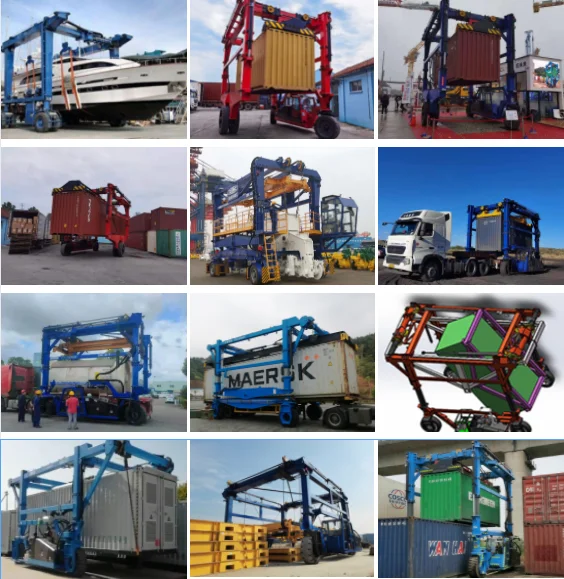

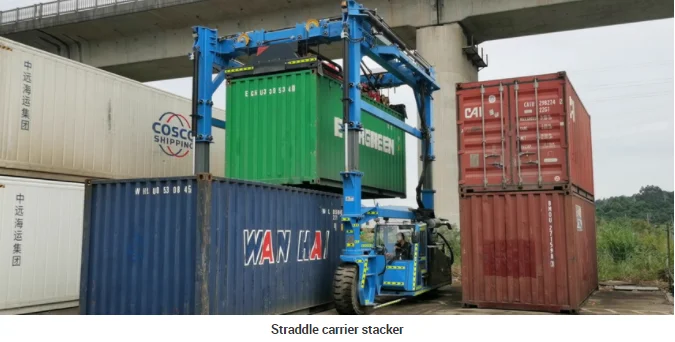

Successful Project
(1)Warranty:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
(2)Spare parts: LiuYang is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
(3)Installation & Maintenance: LiuYang is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
(4)Training: LiuYang offer perfect facilities and comfortable environment and can provide training services to different users.The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards,laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
(5)Technical Advice: LiuYang can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.
(3)Installation & Maintenance: LiuYang is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
(4)Training: LiuYang offer perfect facilities and comfortable environment and can provide training services to different users.The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards,laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
(5)Technical Advice: LiuYang can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.
Company Profile
Liuyang Economy and Technology Development Area High Tech Import & Export Co., Ltd
Our company was established in 2006 which is specialized in Ship machinery, engineering machine ,oil extraction, automobile industry, agricultural machinery, construction machinery engines,diesel generator set. Everyday production capacity is 1000 pieces.The product quality is reliable, fast delivery, custom-made, OEM, hundreds of engineers, mature production process and craftsmanship!

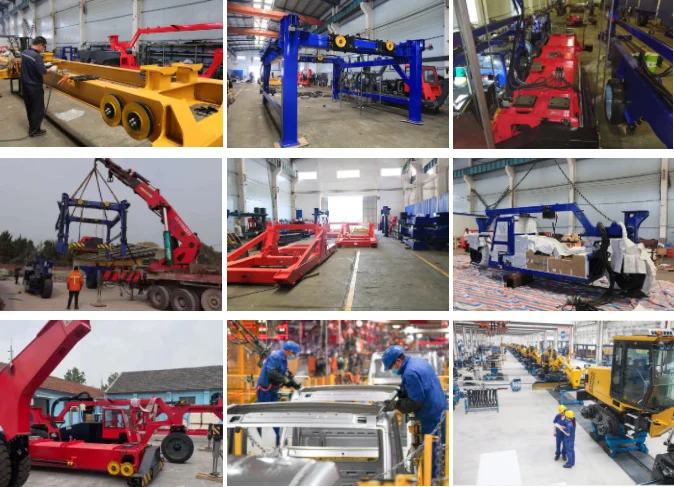

Looking forward to communicating and cooperating with friends all over the world!Factory Workshop
Certifications

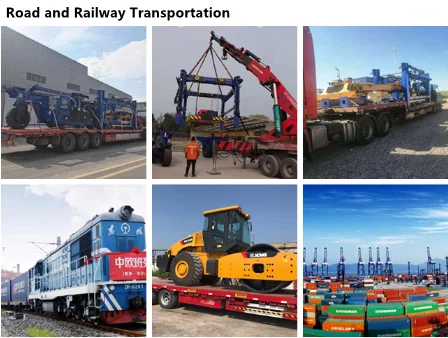

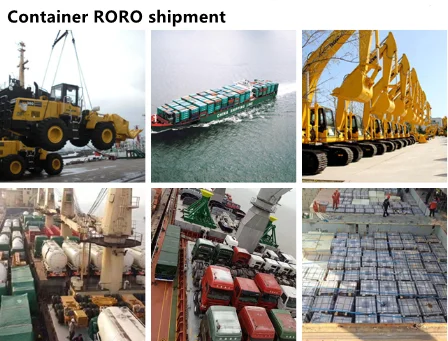

Product packaging
FAQ
Q1: Why should I choose you?
1. after sales service support in different languages; 2. Guidance of installation and commissioning on site can be provided by factory-trained technicians or local Authorized Service Center;
3. Technical training can be carried out for customers in the factory or on the job site
4. Plenty of original spare parts with proven quality are all available from our central stocks in HUNAN Province and alldistributors'depots;
5. All kinds of technical documents in different languages.
Q2:Where is your factory located?
A:Our factory is located in HUNAN
Q3: How many do you produce every month?
A: We can produce 100 pcs every month.
Q4: Can you use our brand?
A: Yes, OEM is available.
Q5: What is delivery time?
A: It depends on the order quantity .Normally our lead-time is 7-30 days
