Chain Stitch embroidery quilting sewing machine for comforter quilt Industrial computerized single multi needle quilting machine
- Category: Quilting Machines >>>
- Supplier: Kaifeng Youdo Machinery Co. Ltd.
Share on (1600444099675):
Product Overview
Description
Product Overview
Industrial computerized single multi needle quilting machine

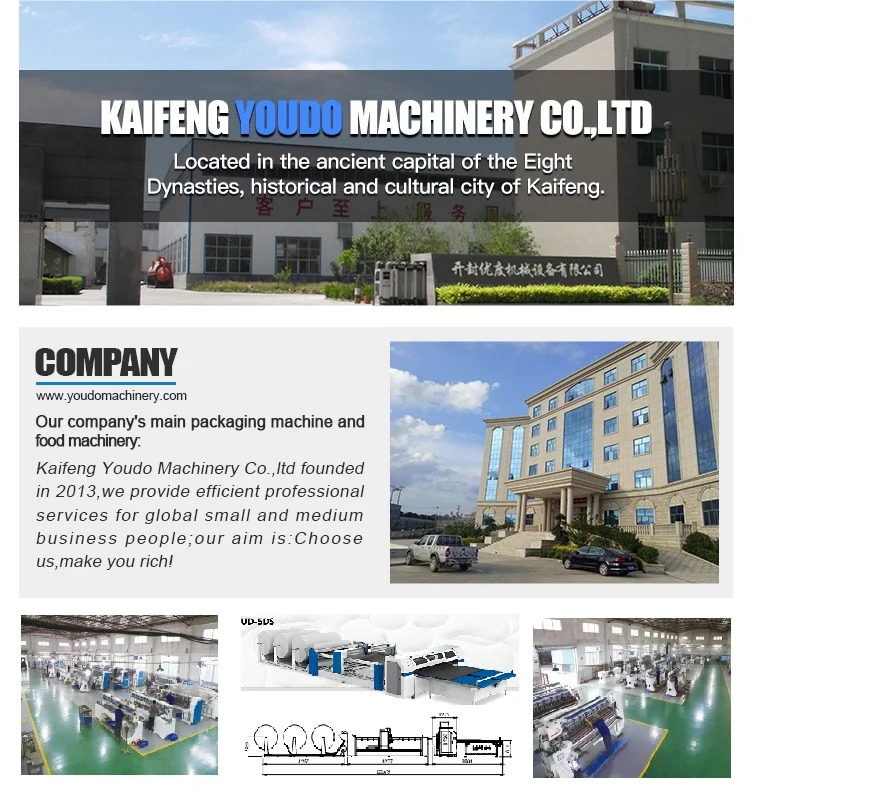

Specializing in the art industry, Youdo has been focusing on the quilting equipment industry for more than ten years. In the face of the fiercely competitive market, we are actively developing, relying on professionalism, keeping up with the development of social trends, we always insist on the investment and research and development of quilting technology, and create a variety of advanced quilting equipment to meet the needs of different countries and countries. productivity needs of the region.
FEATURES AT A GLANCE
Honorary certificate and qualification
The correct market positioning and specialization in the surgical industry have also made Youdo "leading quilting intelligence and sharing efficient output", which is a user-trusted reputation.
Leading the future of the industry with innovation and serving global users with professionalism are the eternal goals that Youdo is committed to pursuing.
PRODUCT SPECIFICATIONS
FEATURES
1.Advanced computerized control system and mechanical manufacturing processing make sure the production.
2.Needle and platen adopts double rocker mechanism without CAM, avoid the oil stain on the fabric effectively.
3.Advanced and practical at the end of the line break infrared detection automatically shut down.
4.Inveter controlled spindle motor, automatic needle, saddle and roller adopt high performance servo driver.
5.Spindle motor speed digital controlling, maximum speed is 1000 rpm, stitch distance adjustable 3-8 mm.
6.360°s freedom and independent step quilting.
7.A new generation computerized control system, quilting high precision, without too much modified pattern.
8.Editing the method of CAD drawing, easy to learn, drawing precision.
9.Quilting length can be set after the completion of the set down, and can automatically return to zero.
10.Infrared sensor automatically stop, more secure the operating.
11.Auto-track operated pattern, the running status detection automatically. the machine running status in contro.
2.Needle and platen adopts double rocker mechanism without CAM, avoid the oil stain on the fabric effectively.
3.Advanced and practical at the end of the line break infrared detection automatically shut down.
4.Inveter controlled spindle motor, automatic needle, saddle and roller adopt high performance servo driver.
5.Spindle motor speed digital controlling, maximum speed is 1000 rpm, stitch distance adjustable 3-8 mm.
6.360°s freedom and independent step quilting.
7.A new generation computerized control system, quilting high precision, without too much modified pattern.
8.Editing the method of CAD drawing, easy to learn, drawing precision.
9.Quilting length can be set after the completion of the set down, and can automatically return to zero.
10.Infrared sensor automatically stop, more secure the operating.
11.Auto-track operated pattern, the running status detection automatically. the machine running status in contro.

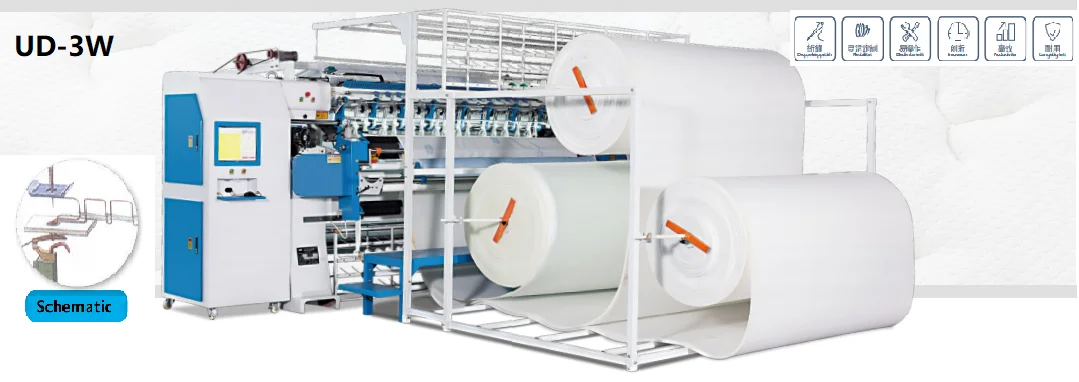

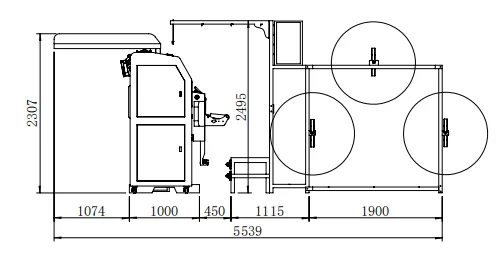

UD-3W Computeried chain stitch Multi needle quiting machine | ||||
1 | Dimension | 5400*1650*2300 | ||
2 | Weight | 4500kg | ||
3 | Quilt width | 2450 | ||
4 | Space between nedle rows | (50.8,76.2127)5"(76.2,76.2,152.4)6" | ||
5 | Space between needles | 25.4 | ||
6 | X stroke | 304.8 | ||
7 | Quilting thickness | ≤60 | ||
8 | Stitch | 3-8 | ||
9 | Output | 60-230(m/hour) | ||
10 | Modle of needle | 24/180 23/160 22/140 21/130 | ||
11 | Spindle speed | 500-1000r/min | ||
12 | Rated voltage | 380V/220V(50HZ/60HZ) | ||
13 | Power | 8KW | ||
FEATURES
1.Touch screen operation interface, the operation is easy and convenient.
2.Hidden knife design, make the operation more convenient and secure.
3.Using infrared cutting fixed length function, high precision, fabric cutting neat.
4.Work stability, a little vibration, low noise, high efficiency.
5.Conveyor belt output finished product, Saveing man power.

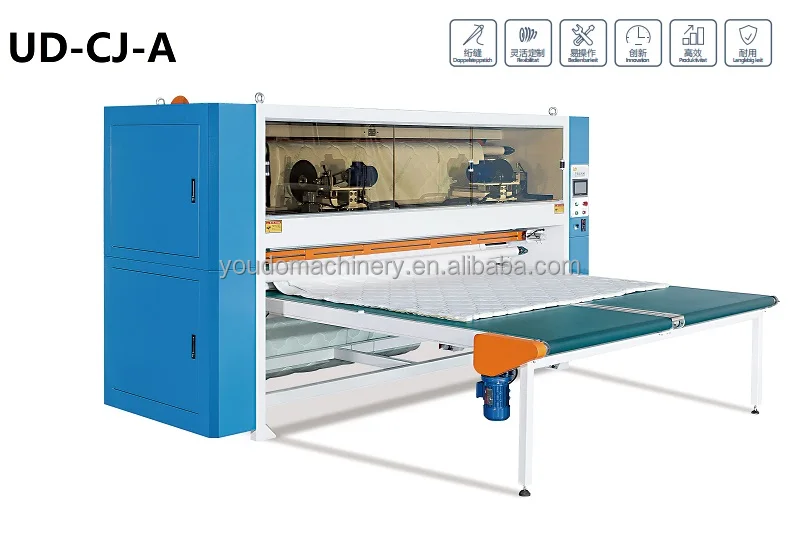

UD-CJ-A Computerized Panel Cutting Machine | ||||
1 | Dimension | 3500*3750*2100mm | ||
2 | Ouilt width | ≦2400mm | ||
3 | Quiting thickness | ≤80 | ||
4 | Out put | 7000mm/min | ||
5 | (AC)Rated voltage | 380V/220V (50HZ/60HZ) | ||
6 | Power | 5.5KW | ||
7 | Over all weight | 2300KG | ||

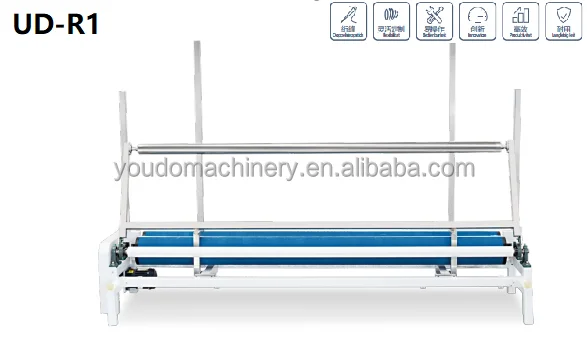

UD-R1 Mattress Rolling Machine | ||||
1 | Working speed | 0-15m/s | ||
2 | Winding width | 2500mm | ||
3 | Power | 220V.50HZ | ||
4 | Total power | 380W | ||
PRODUCT CONFIGURATION
maximum speed is 1000 rpm.
stitch distance adjustable 3-8 mm.
360°s freedom and independent step quilting.
SALES AND SERVICE NETWORK
Successful Project

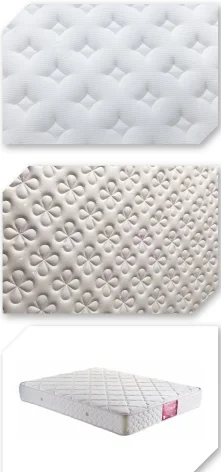

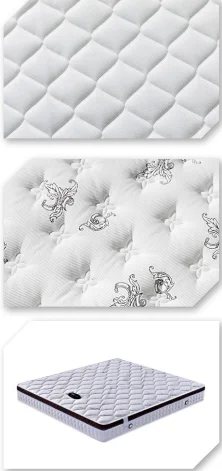

Shuttleless Quilting Machine Pattern
Purpose: clothes, bedding, shoes, hat, bag, seeping-bag, nightgown, glove and home decoratin.

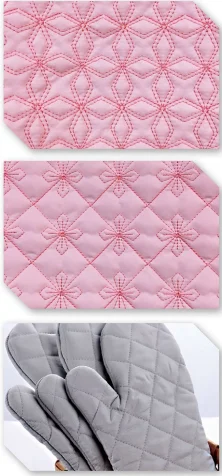

Shuttle Quilting Machine Pattern
Purpose: clothes, bedding, shoes, hat, bag, seeping-bag, nightgown, glove and home decoratin.
