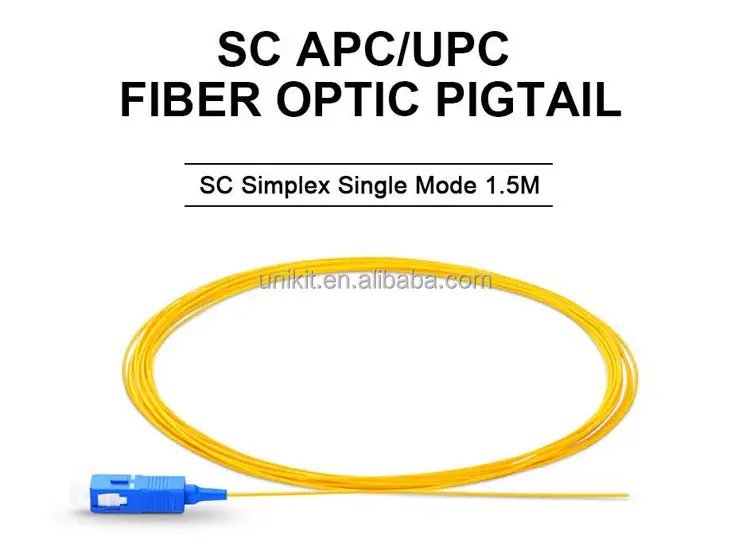

Factory Customization Single Mode Multi mode Simplex LSZH G657A Fiber Pigtail SC APC/UPC 0.9mm/2.0mm/3.0mm Fiber Pigtail
- Category: >>>
- Supplier: Jiangsu Unikit Optical Technologies Co. Ltd.
Share on (1600444390366):
Product Overview
Description
Product Description

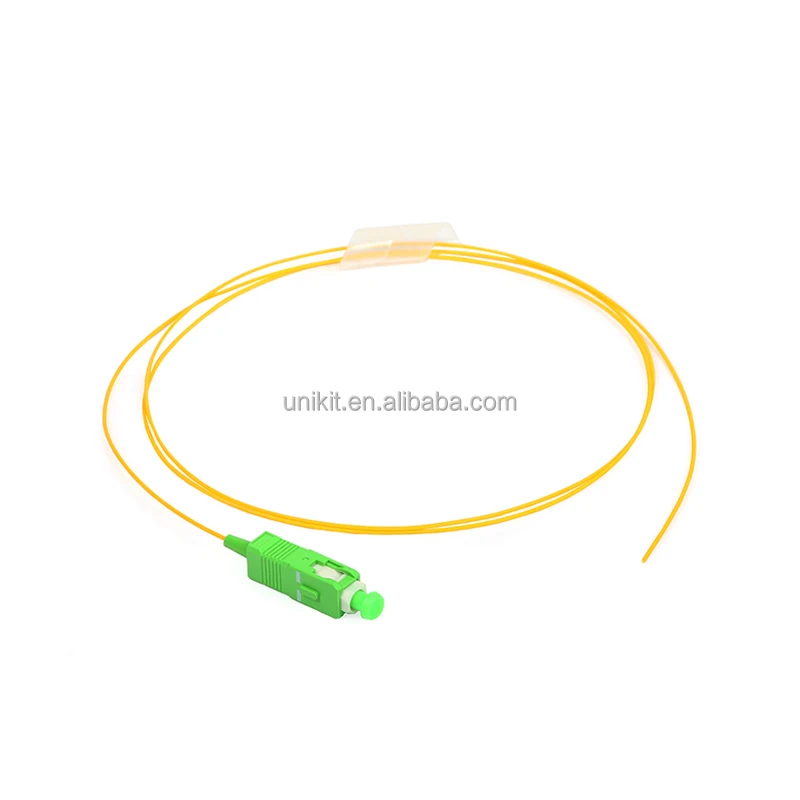

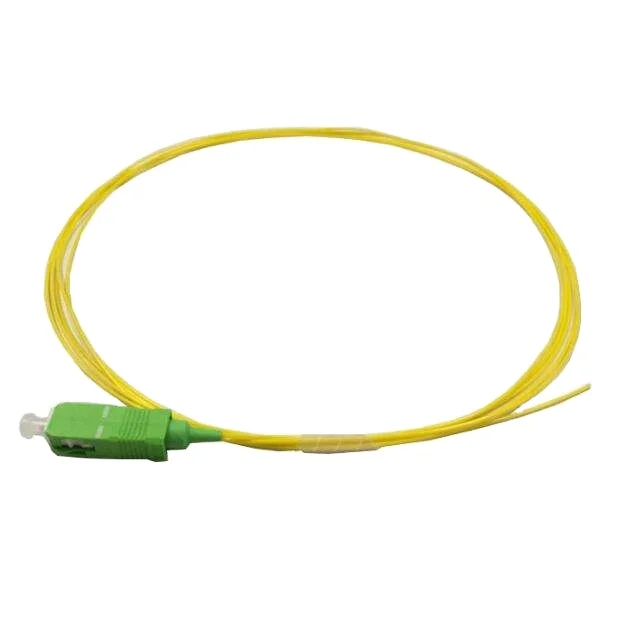

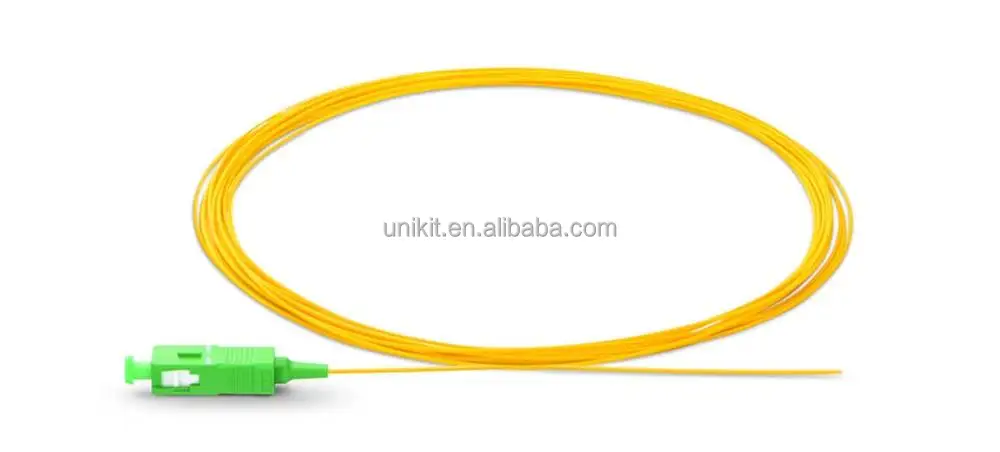

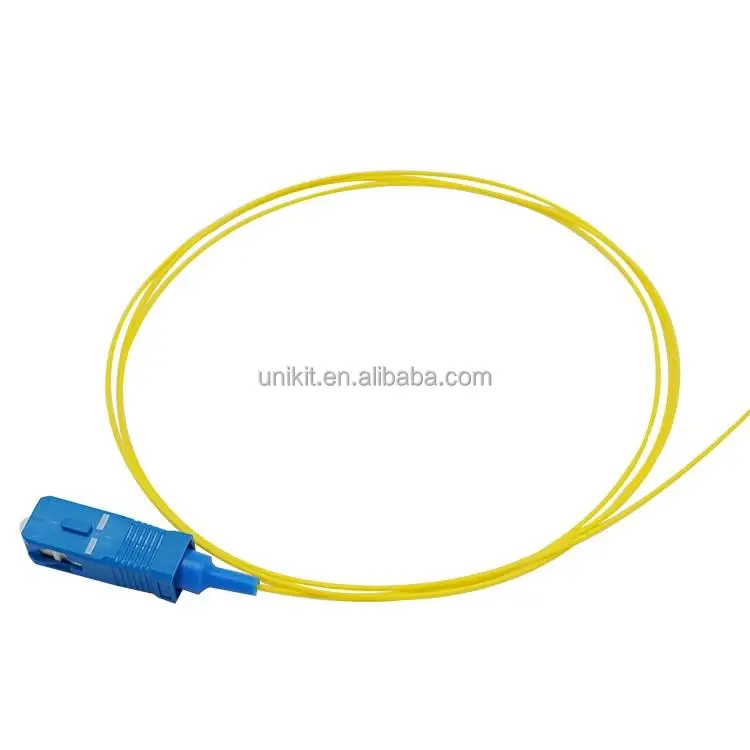

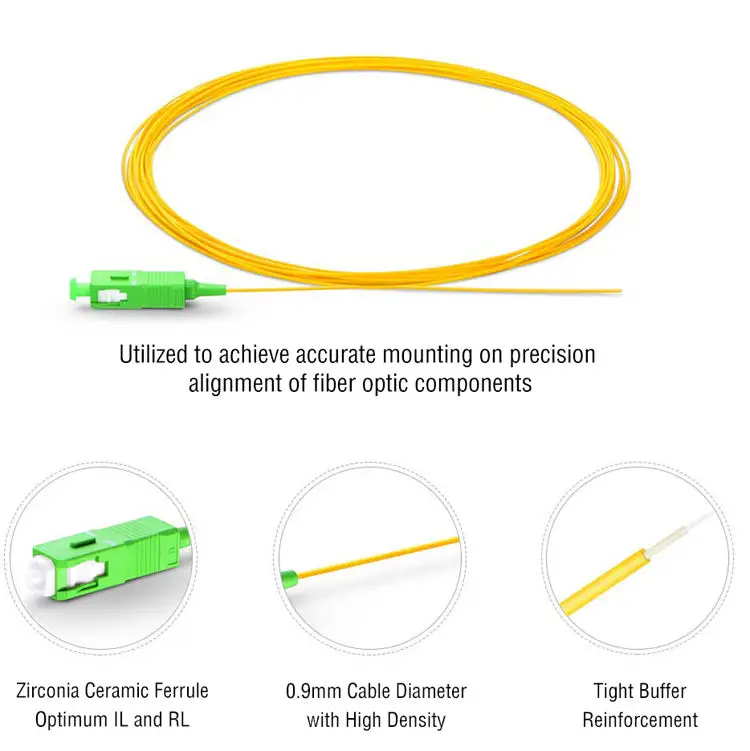

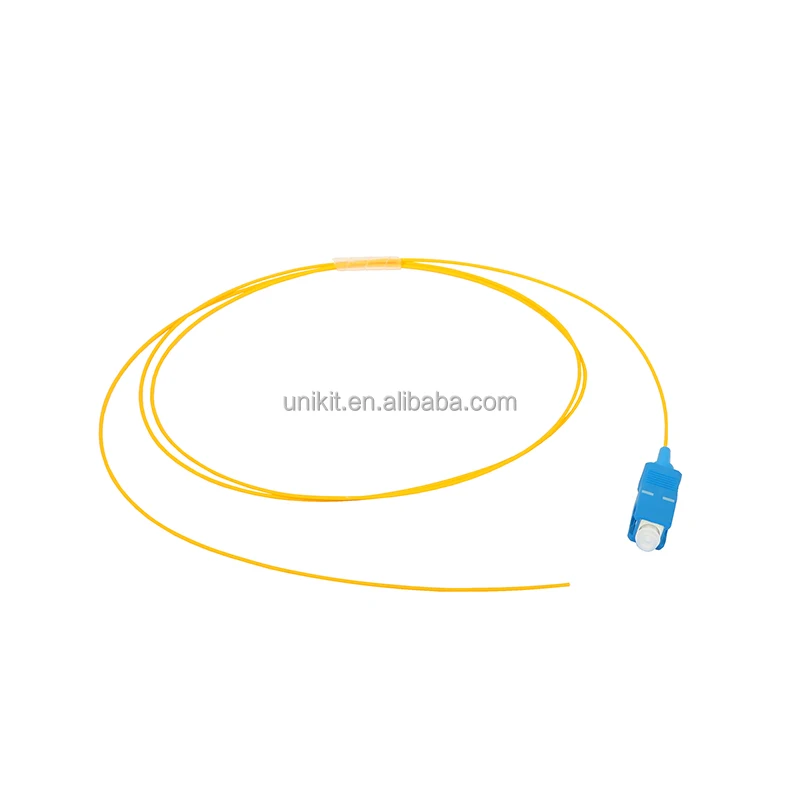

Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Pigtail series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
Specification

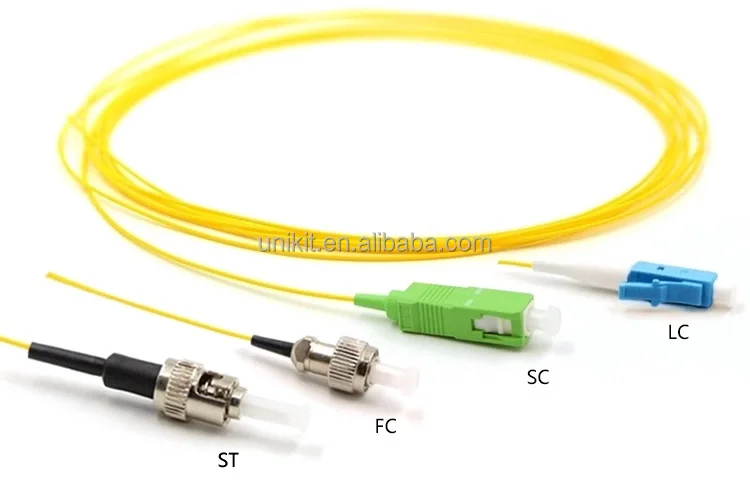

1. SC, LC, FC, ST connector available;
2. Superior qualified standard PC, APC, UPC polishing
3. φ0.9mm, φ2.0mm, φ3.0mm cable optional;
4. Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
5. Available in fiber bunch, ribbon fan-out, pigtail available;
6. Simplex and duplex connector available;
7. Low IL and High RL;
8. Good exchange ability and good durability;
Customized specifications are welcomed
2. Superior qualified standard PC, APC, UPC polishing
3. φ0.9mm, φ2.0mm, φ3.0mm cable optional;
4. Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
5. Available in fiber bunch, ribbon fan-out, pigtail available;
6. Simplex and duplex connector available;
7. Low IL and High RL;
8. Good exchange ability and good durability;
Customized specifications are welcomed
Item | Parameter |
Type | Fiber Optic Pigtail |
Brand Name | UNIKIT/OEM |
Use | FTTX |
Connector Type | LC, SC, FC, ST Connector Optional |
Mode | SM,MM(50/125um,62.5/125um) |
Cable Dimension | 0.9 mm/2.0mm/3.0mm |
Ferrule End Face | APC or UPC |
Return Loss | ≥50dB(PC/UPC)；≥60dB(APC) |
Insertion Loss | ≤0.3dB |
Cable Jacket | PVC/LSZH |
Length | Customized Lengths(1m/2m/3m...+ |
Operating Temperature | -40~85℃ |
Fiber Type | G652D/G657A/OM1/OM2... |
Color | Yellow or Customized |
Repeatability | >1000 Times |
