5GHz 19dBi Mimo Sector Antennas for Ubiquiti ROCKET M5 wifi antenna
- Category: >>>
- Supplier: WIS NETWORKS LIMITED
Share on (1600444429040):
Product Overview
Description
Product Paramenters
Features

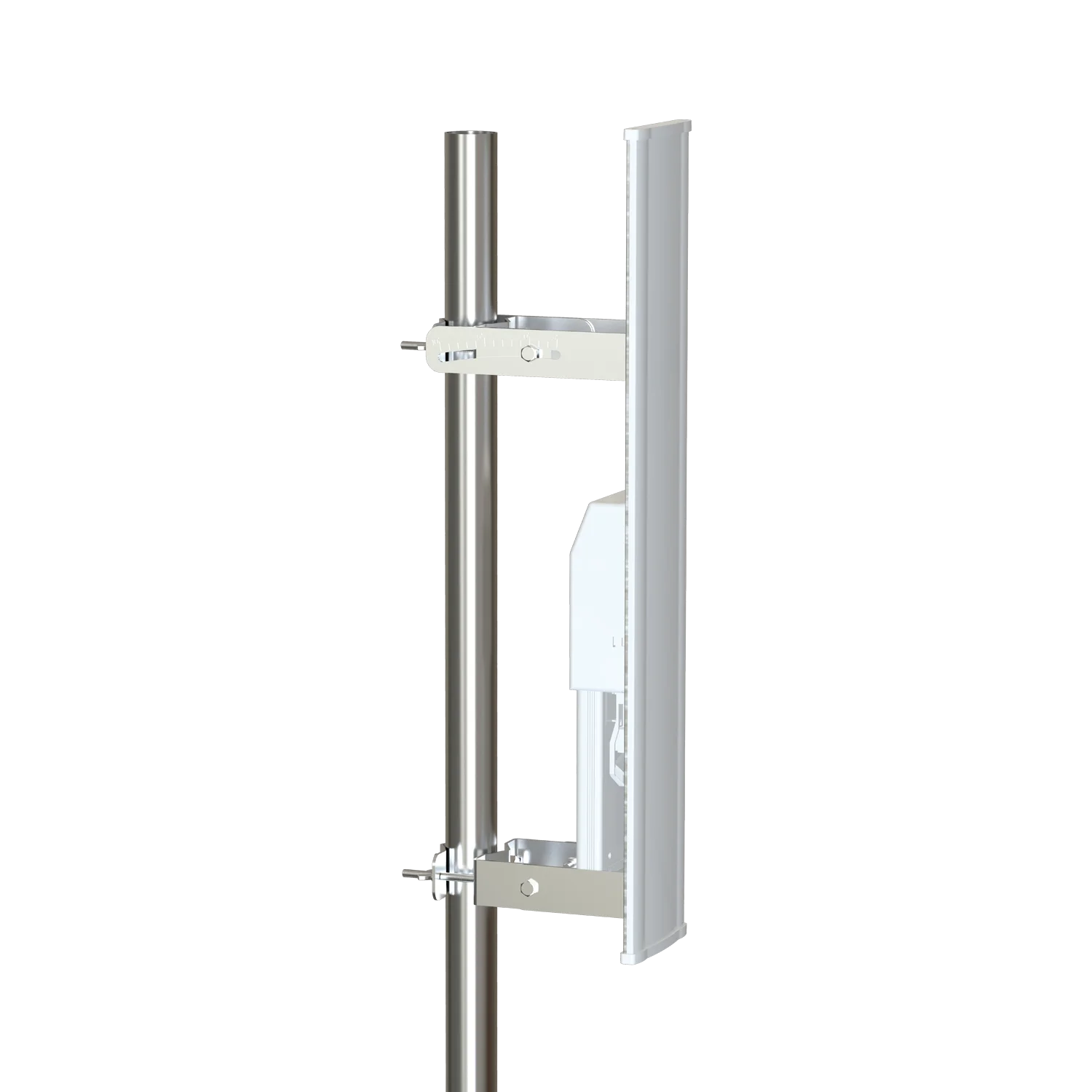

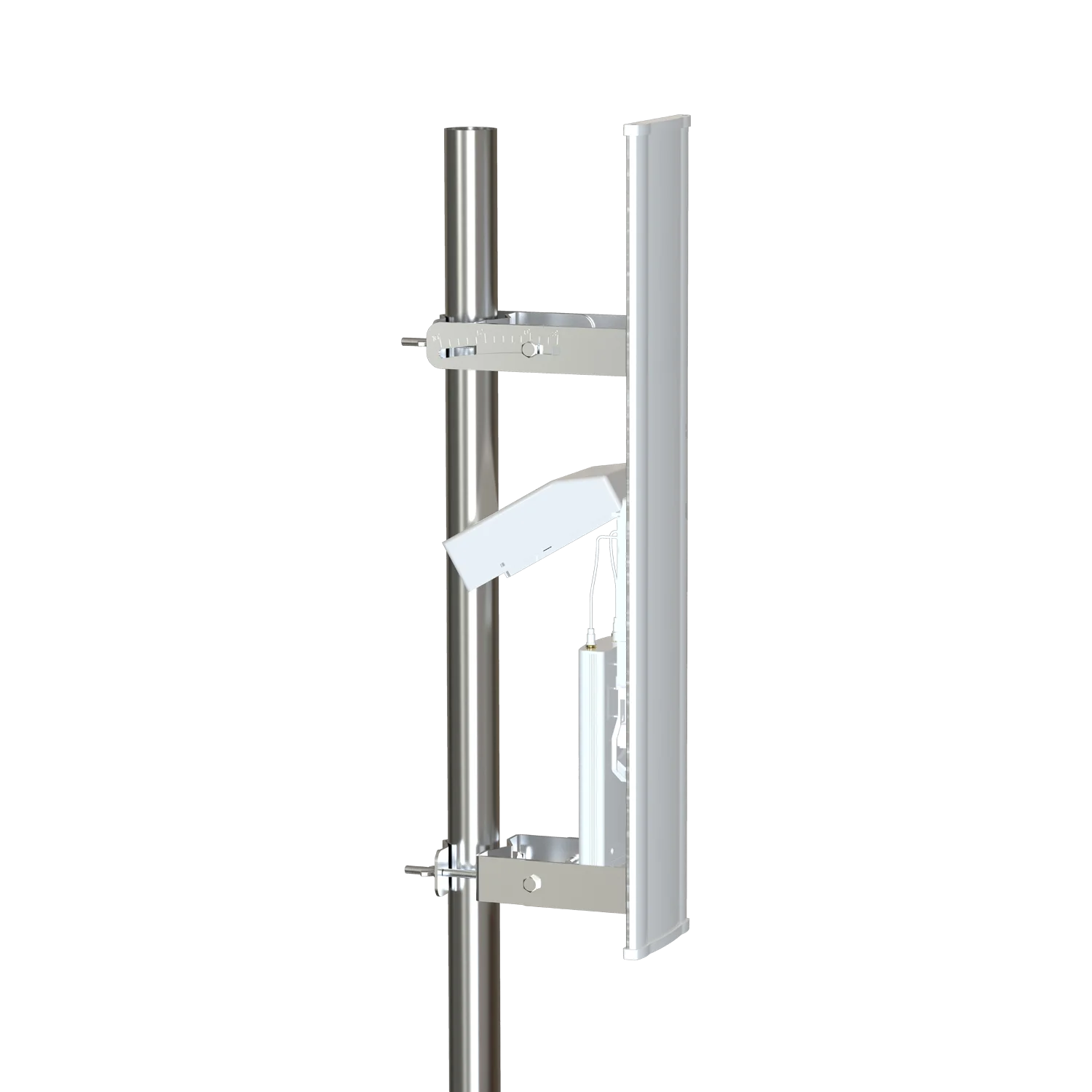

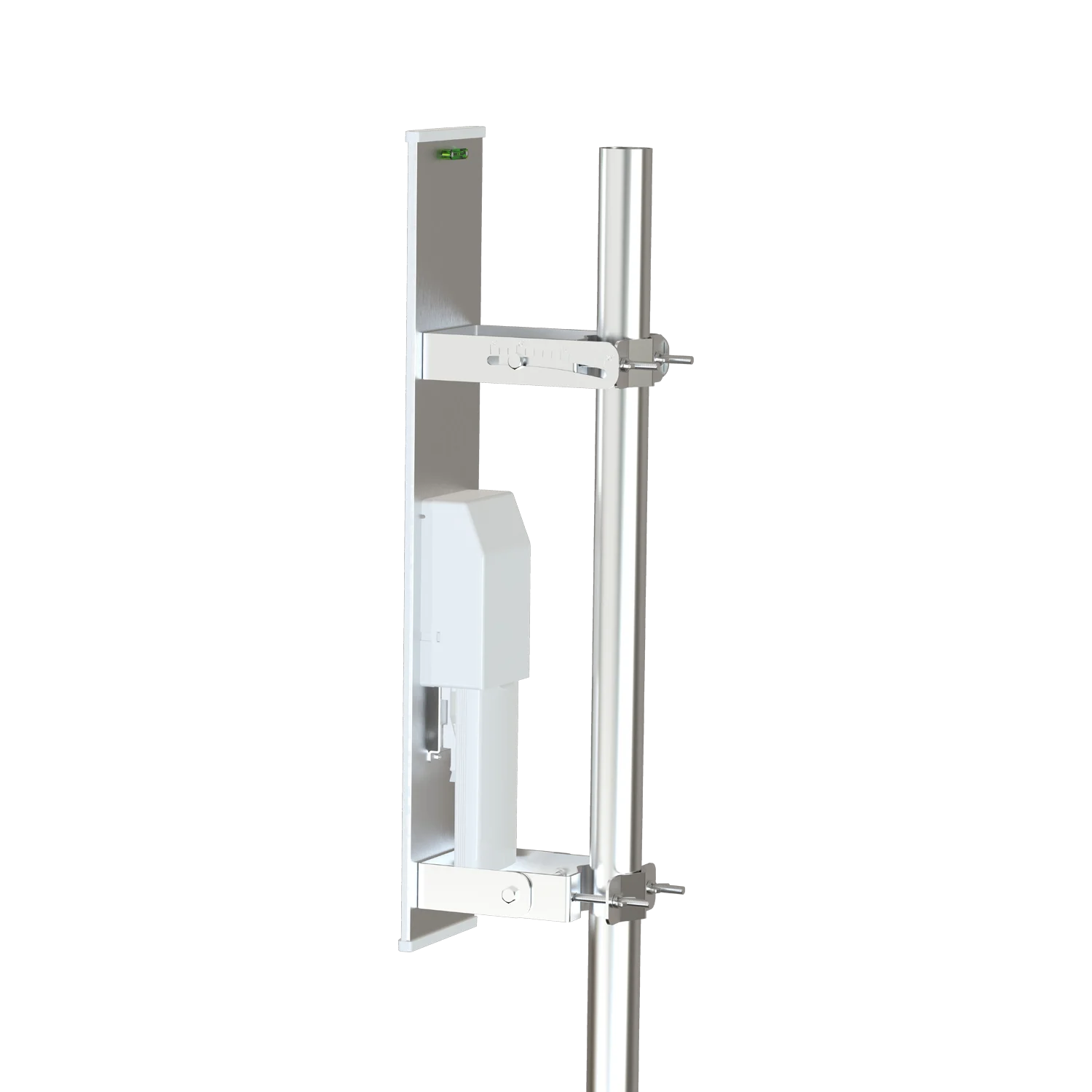

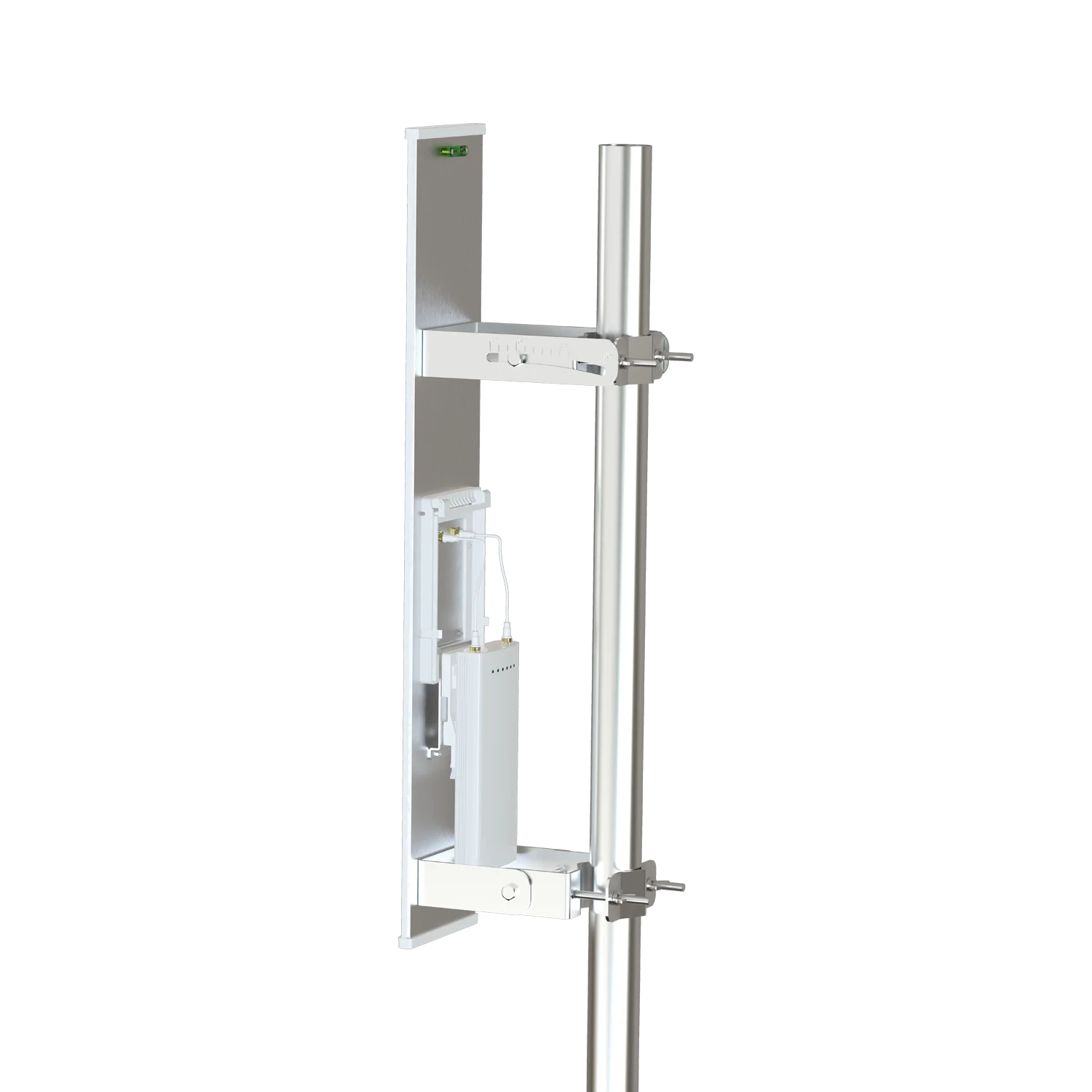

he LANBOWAN ANT5158D19B-120DP is a 5 GHz 120 degree 19 dBi H/V dual polarized sector antenna. These sector antennas come with heavy duty mounting brackets with an easy-attach system and stainless steel hardware. LANBOWAN 5 GHz sectors have an exceptional F/B ratio and designed for channel reusability on towers between sectors. This sector antenna is designed with two N connections.
Model | ANT5158D19B-120DP |
Frequency range | 5150-5875MHz |
Gain | 19dBi |
VSWR | <2.0 |
Polarization | Dual Slant (V/H) |
Isolation | >25dB |
Front to Back Ratio | >25dB |
Azimuth Beam Width | 120° |
Elevation Beam Width | 4° |
Maximum Power | 50W |
Impedance | 50Ω |
Lighting protection | DC Ground |
Connector | 2 * RPSMA Female |
Antenna Size | 78.5×15×2cm |
Antenna Weight | 4kg |
Antenna color | white |
Diameter of the Pole | Φ30mm to φ60mm |
Mechanical Tilt | ± 15° |
Operational Temperature | -40°C to +70°C (-32°F to +158°F) |

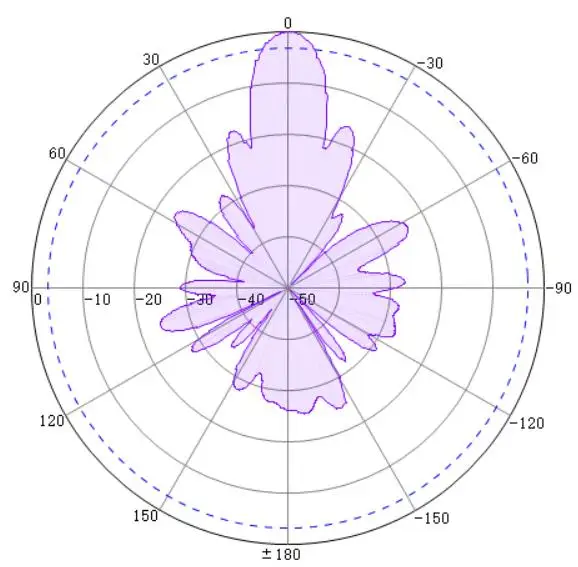

Antenna Patterns
