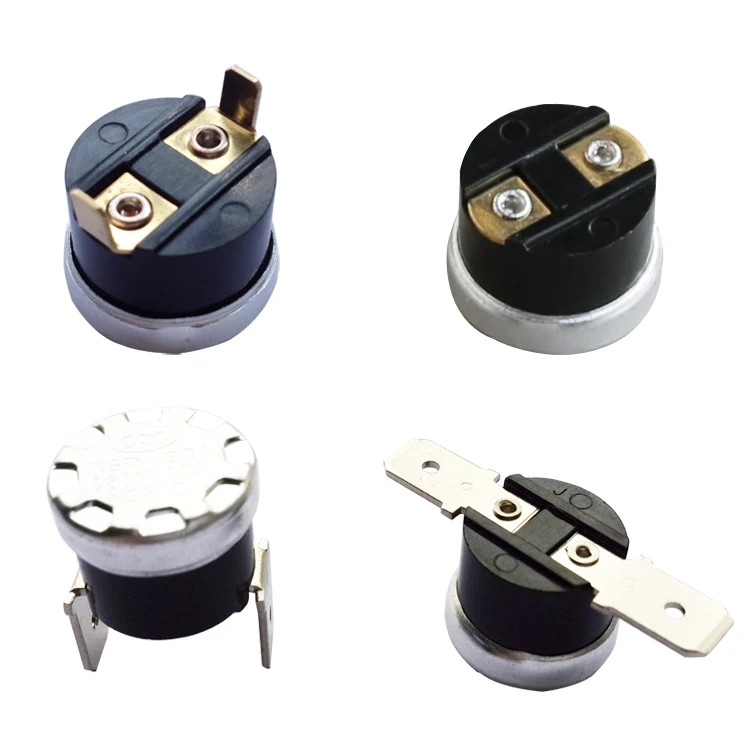

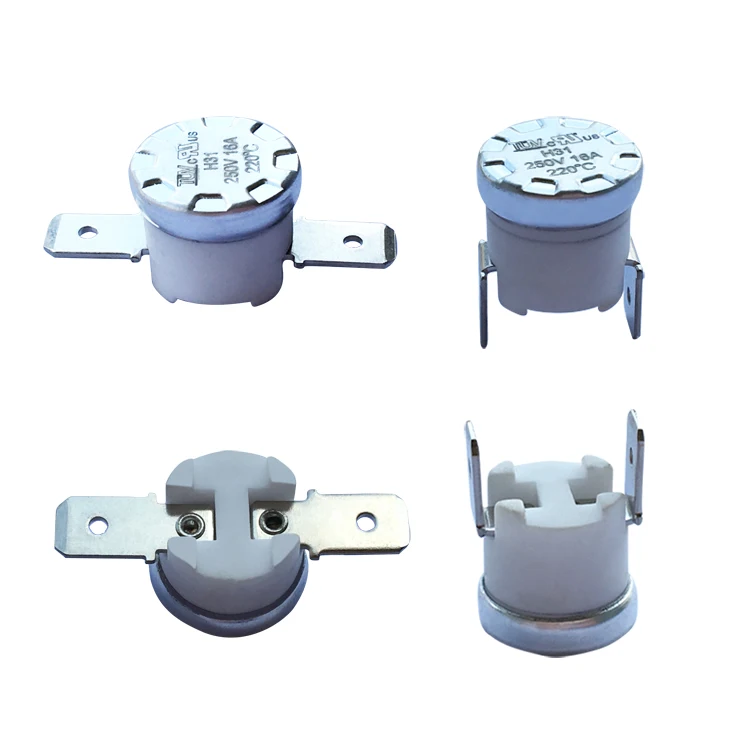

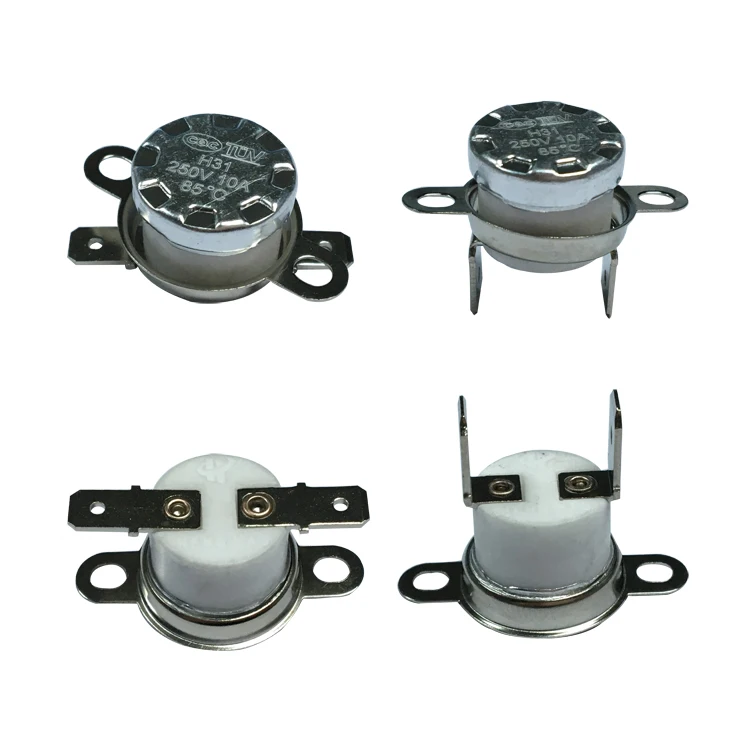

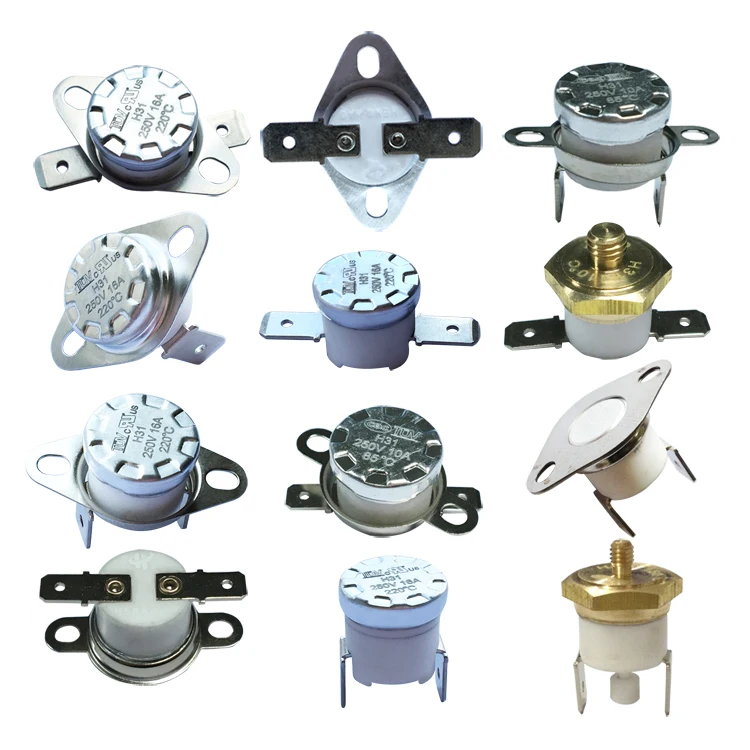

Manual reset thermal switch KSD301 bi metal thermostat
- Category: >>>
- Supplier: Dongguan City Heng Hao Electric Co. Ltd.
Share on (1600444442340):
Product Overview
Description
Products Description
Voltage & Current | AC 125V max 15A; AC250V 5A 10A 15A max 16A |
Action Temperature | 0 to 25 degrees, or according to client's request. |
Temperature deviation: | ±3 / ±5 / ±10 degree or according to client's request |
Circuit resistance | ≤50mΩ (Initial value) |
Insulation resistanc | AC50Hz 1500V / min, no breakdown blinding (Normal State) |
Life cycle | ≥100000 times |
Contact type | Normally closed or Normally open |
Two kinds of mounting bracket | movable or immovable |
Terminal type | a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm b. Terminal Angle: bending angle: 0~90°C optional |
House | plastic or ceramic. |
Temperature sensor face | aluminum cap or copper head. |
Use for | It is used as temperature control for household electric appliances and widely applied in coffee pots, automatic toasters, laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, water dispensers, etc. |
Certificate approved | UL CQC TUV KC ROHS |
