Product Overview
Description
2 wire Video Door Phone Intercom System with 7 Inch HD Screen Monitor Night Vision Door Entry System for Villa Security
We provide 2-wire video intercom system for 1,2,3,4,6,8,12,16,20,32 and 128 units apartment.
The 2-wire system required only two wires, power, audio, video and control signal all transmitted by a 2-wire cable, non polarity,
central power supply. Use Plug -in connectors and DIP switchers for rapid installation.Integrated Multi functions with simple
operation makes the system more attractive, Flexible cable connection to wire, support in -out, branching and mixed mode.Dual
intercom communication between indoor units;inner picture memory and extended SD card recording, CCTV camera integrated, call
transfer via IP module to mobile phone.
Product Features:

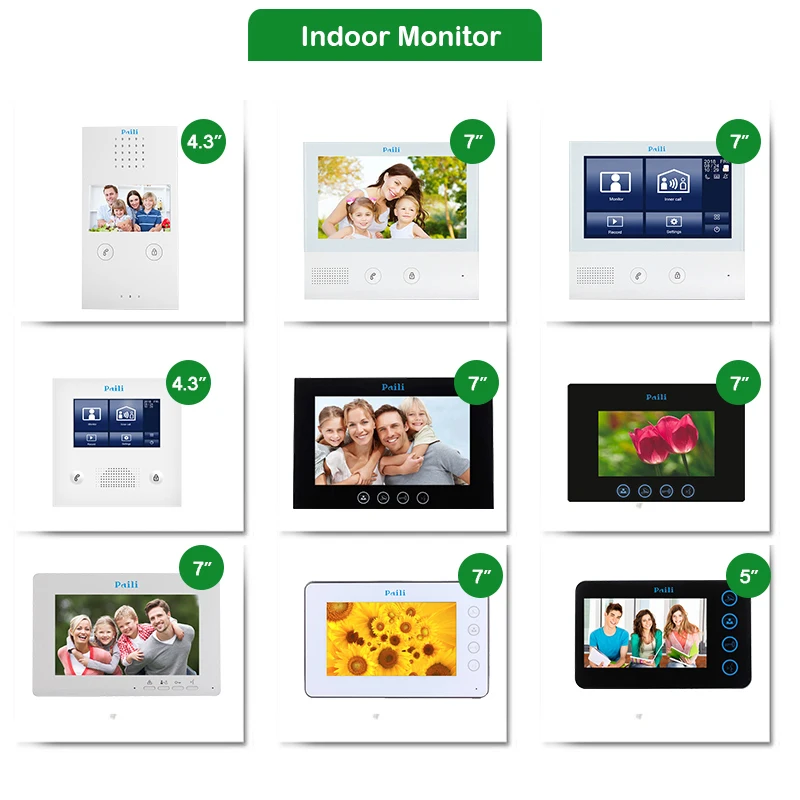

5, 7, 10 inch full glass panel monitor with high resolution
Stainless steel door station panel with wide angle fisheye camera
High white LED for night view
Large name plate display with backlit
1,2,3,4,6,8,12,20,32 call button for choice
Picture& video recording, SD card and CCTV camera extension.
RFID key fob tag proximity access
UP to 4 door station with 128 indoor units.
The 2-wire system required only two wires, power, audio, video and control signal all transmitted by a 2-wire cable, non polarity,
central power supply. Use Plug -in connectors and DIP switchers for rapid installation.Integrated Multi functions with simple
operation makes the system more attractive, Flexible cable connection to wire, support in -out, branching and mixed mode.Dual
intercom communication between indoor units;inner picture memory and extended SD card recording, CCTV camera integrated, call
transfer via IP module to mobile phone.
Product Features:
5, 7, 10 inch full glass panel monitor with high resolution
Stainless steel door station panel with wide angle fisheye camera
High white LED for night view
Large name plate display with backlit
1,2,3,4,6,8,12,20,32 call button for choice
Picture& video recording, SD card and CCTV camera extension.
RFID key fob tag proximity access
UP to 4 door station with 128 indoor units.
Product Description

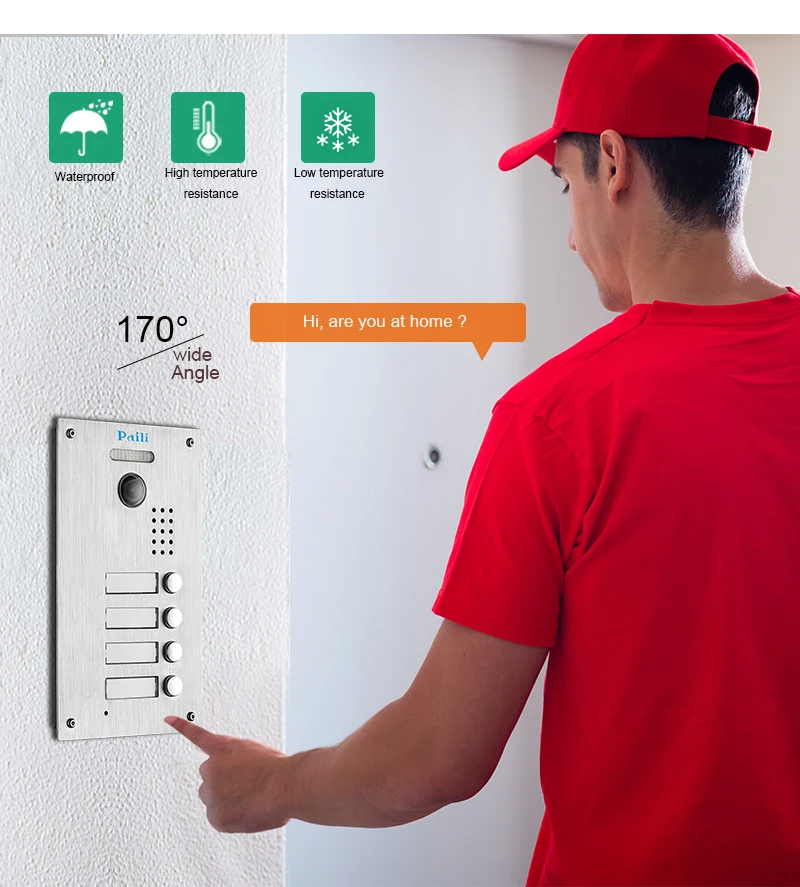

Door station | Model | PL738-4 |
Material | Stainless steel panel | |
Power supply | DC 24V | |
Power consumption | Standby 20mA, working 110mA | |
Camera | CMOS wide angle fisheye lens | |
Visual angle | 170º | |
Button | 1/2/3/4/8 | |
Unlock power output | DC 12V, 300mA(Internal power) | |
Protection | IP 54 | |
Installation | Flush mounting | |
Working temperature | -25°C~55°C | |
Wiring | 2 wire (Non-polarity) | |
Dimension | 180*105*32mm |

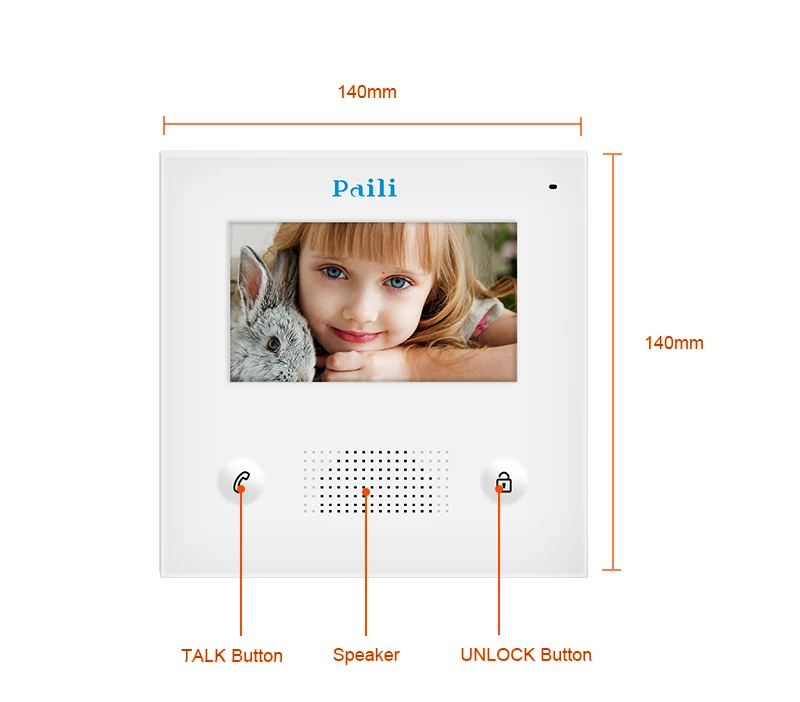

Indoor Monitor | Model | PL431 |
Screen | 4.3 inch color digital TFT screen | |
Color | White | |
Resolution | 480*272 pixels | |
Power supply | DC 24V | |
Power consumption | Standby 15mA, working 400mA | |
Working temperature | -10ºC ~ 45ºC | |
Wiring | 2 wire (Non-polarity) | |
Installation | Surface mounting | |
Dimension | 140*140*20mm |
Specification
Packing & Delivery
standard export packing
Company Profile

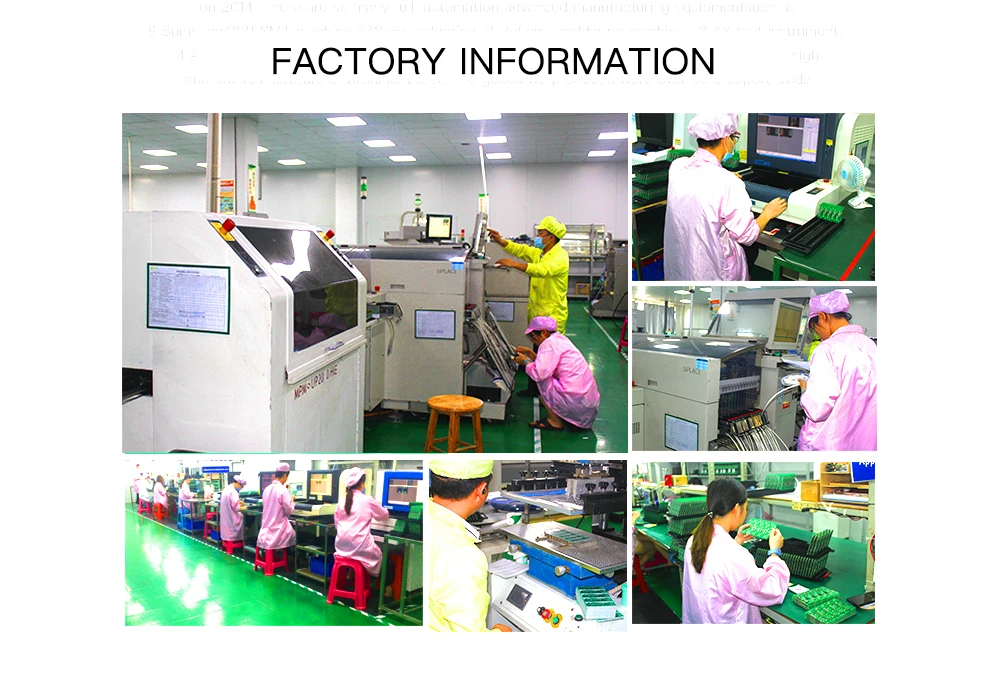

Paili Technology CO.,LTD is one of the leading professional manufacturers which develops and produces Video Door Phones in Guangzhou, China, supported by the Chinese government as the most importantly developed company.
Paili has been supplying and developing Villa Video Door Phone, Apartments Video Intercom, and Office Video Intercom over 10 years. There are 4 options of cabling, such as 2-wire, 4-wire, 5-wire, 8-wire, CAT6e in all video doorphones. With the advanced technology developments, Paili is going to work on TCP/IP & WIFI video intercom in the near years.
Paili has been supplying and developing Villa Video Door Phone, Apartments Video Intercom, and Office Video Intercom over 10 years. There are 4 options of cabling, such as 2-wire, 4-wire, 5-wire, 8-wire, CAT6e in all video doorphones. With the advanced technology developments, Paili is going to work on TCP/IP & WIFI video intercom in the near years.
FAQ
FAQ
Q: What is the Minimum Order Quantity (MOQ)?
A: No MOQ for sample order, 100pcs per model for regular order, 500pcs per model for OEM order.
Q: Can you put my brand name (logo) on the products?
A: Yes, of course. We have 9 years of OEM manufacturing experience.
Q: How much do I need to pay for your OEM service?
A :No need to pay extra cost for our OEM service when your order quantity up to our OEM MOQ.
Q: What payment method do you accept?
A: T/T, Western Union, PayPal etc.
Q: What is the lead time of your products?
A: 1-3 business days for sample order,3-10 days for MOQ order, 10-30 days for mass production orders (based on different
quantities).
Q: How will you deliver my goods to me?
A: We always ship sample order and MOQ order by Express ( Door To Door), such as DHL,UPS.
Q: How long do I need to wait before my goods arrive?
A: 5-7 days for air freight, 3-5 days for international express. 20-40 days for sea transportation.
Q: What is your product quality?
A: Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our products
quality.
Q: How long is your products quality warranty?
A: We provide one year factory quality warranty.
