Product Overview

Description



LITHIUM BATTERY RECYCLING PLANT

Mainly recovers metal and black powder on the positive and negative plates of the battery. So as to make profits from sales.




BACKGROUND

At present, the research on the recycling of waste lithium batteries is mainly focused on the recovery of high-value anode precious metals cobalt and lithium. Copper in the negative electrode of waste lithium battery (content up to 35%) is an important production raw material widely used. Based on the structural characteristics of lithium batteries, our company adopts an environmentally-friendly physical separation process to realize efficient separation and recovery of waste lithium batteries.



PRODUCT DESCRIPTION

The pretreatment process of Electric Car Traction Battery Lithium Ion Battery Recycling Machine mainly comprises the following steps: after discharging the recovered waste batteries, crushing, magnetic separation, air separation, crushing, gravity separation, screening and other processes are carried out by mechanical equipment.

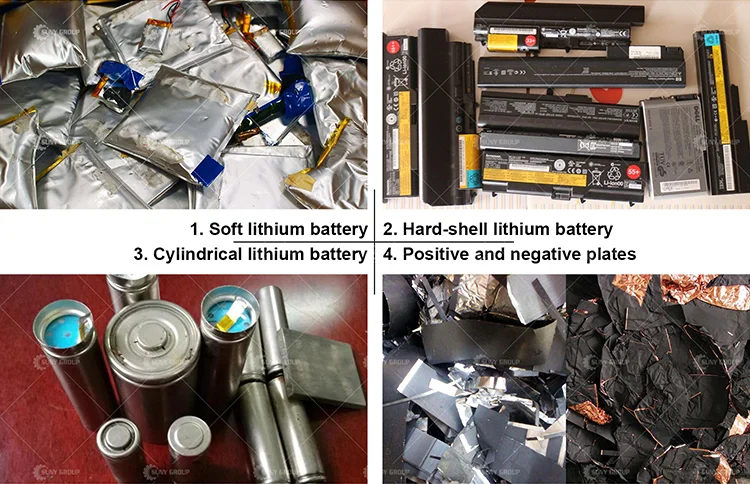

RAW MATERIALS

The Electric Car Traction Battery Lithium Ion Battery Recycling Machine is used for dismantling and recycling the soft package battery, cellphone battery, shell battery, cylindrical battery etc. Different types of lithium batteries have different recycling procedures.

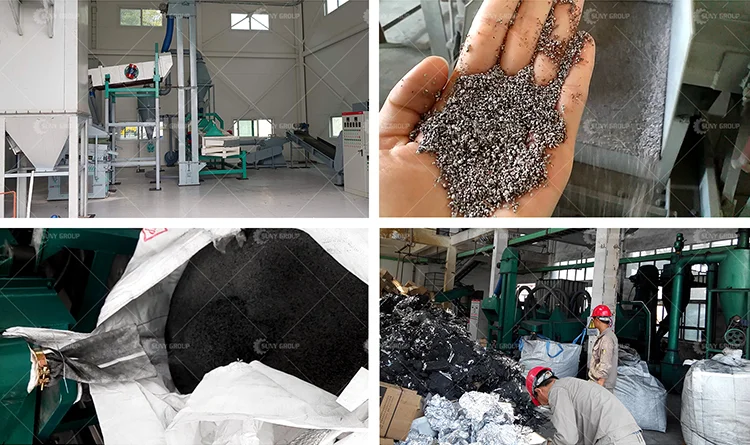

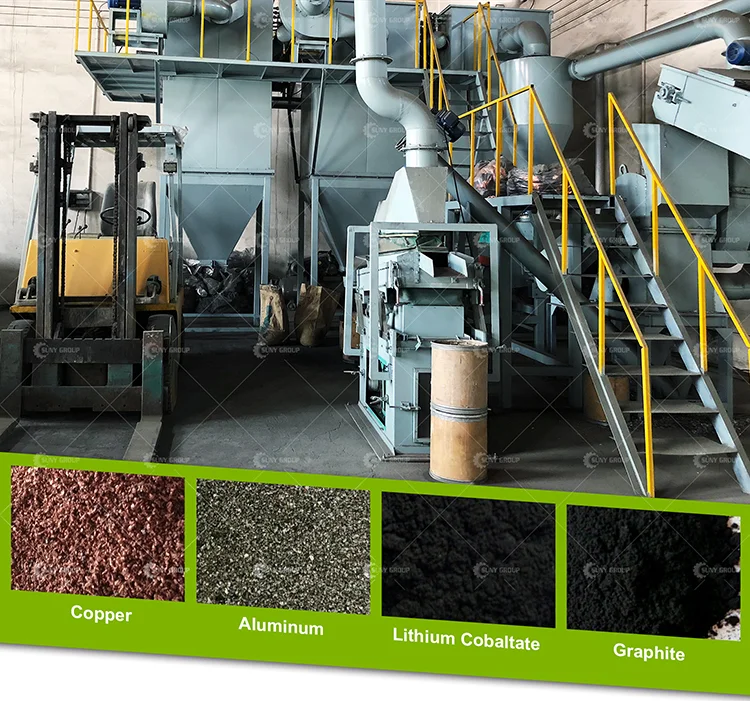

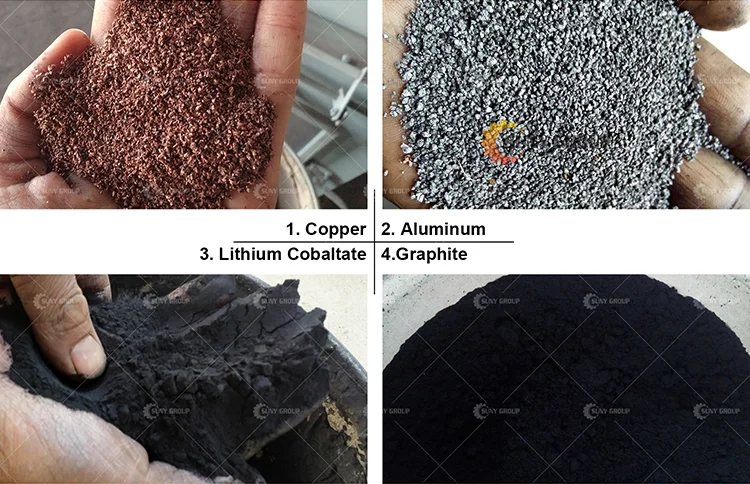

FINAL PRODUCTS

The final products of Electric Car Traction Battery Lithium Ion Battery Recycling Machine is graphite powder, cobalt acid lithium,aluminum and copper.

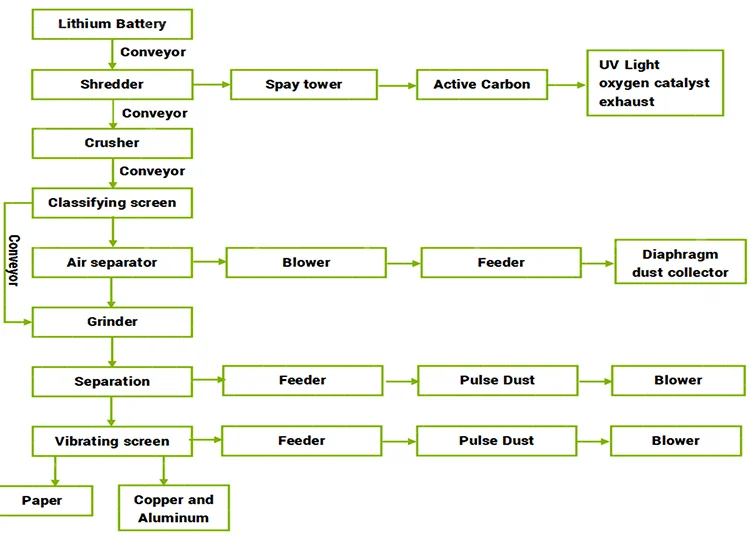

TECHNOLOGICAL PROCESS

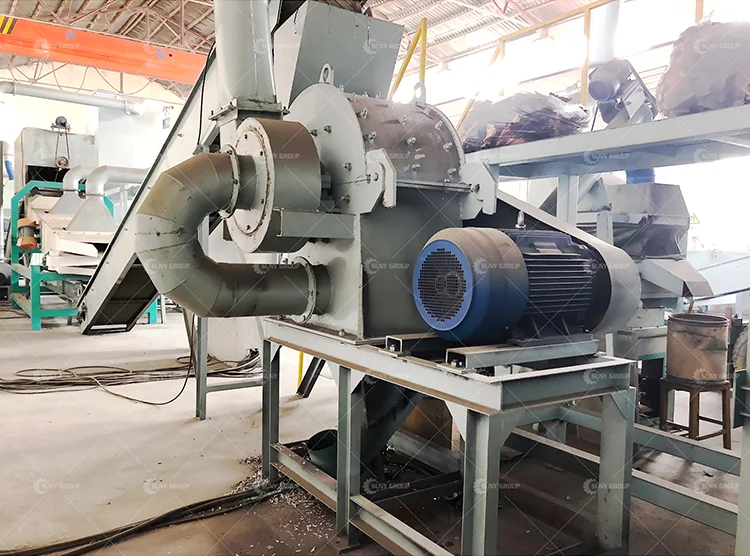

Shredder -- Hammer Crusher -- Grinder -- Separation Machine -- Pulse Dust Collector -- Classifying Screen -- Magnetic Machine -- Gravity Separator -- High-pressure Blower





ENVIRONMENTALLY FRIENDLY

Electric Car Traction Battery Lithium Ion Battery Recycling Machine adopts water spray facility and activated carbon device used to absorb odors and pulse dust collecter for dust adsorption.











TECHNICAL PARAMETERS


Model
Capacity
ZYLDC-500
500 Kg/H
ZYLDC-1000
1000 Kg/H
ZYLDC-1500
1500 Kg/H
ZYLDC-2000
2000 Kg/H
ZYLDC-2500
2500 Kg/H
WORKING PERFORMANCE

Raw Material
Lithium Battery
Final Product
Mainly Copper, Aluminum, Lithium Cobalt Oxide, Graphite Powder



NOTE:

Working voltage:380±10V(415V ,440V also can be custom);
(If you want more detailed parameters and quotations, please contact us)



We Are The First Factory

In Henan Province To Develop The Lithium Battery Recycling Plant



TECHNICAL STANDARDS


Feature Item
Indicator Requirments
Recovery Rate of Metallic Aluminum
>98%
Powder Recovery Rate
>98%
Content of Powder In Metal Aluminum
<2%
Content of Metallic Aluminum In Powder
<2%
Other
Contain dust collecter with not pollute
Qualified Rate
99%
Failure Rate
<1%
CMR
≥1.67



WELCOME TO OUR FACTORY TO INSPECT THE EQUIPMENT

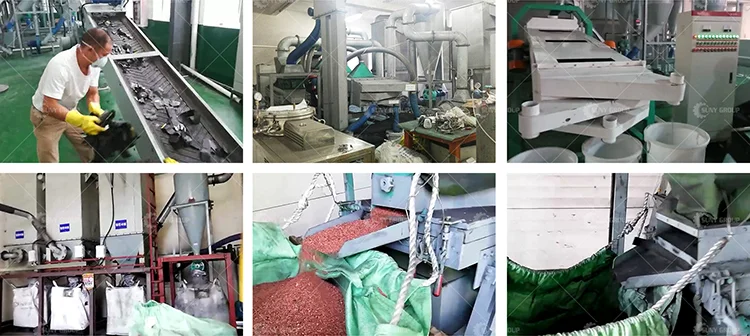

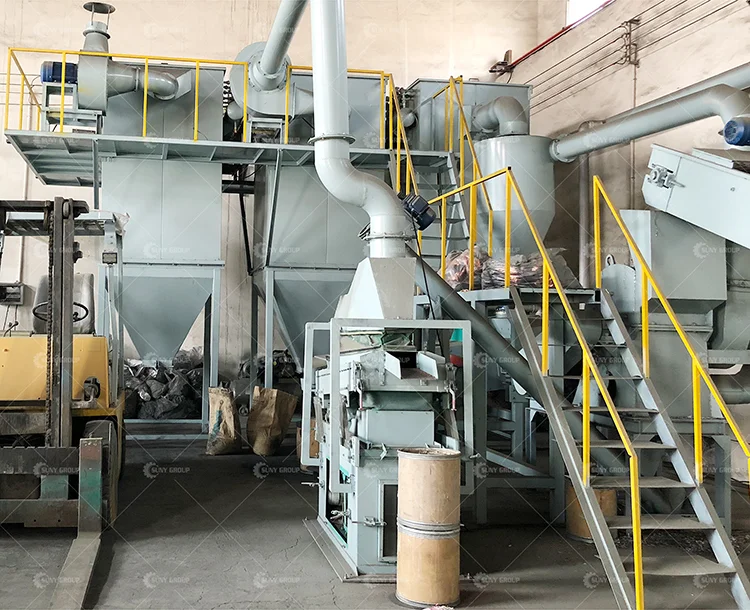

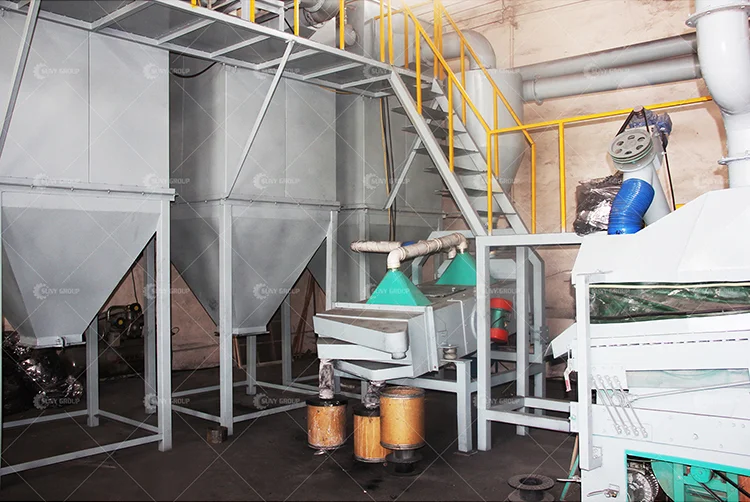

CUSTOMER WORKSITE
