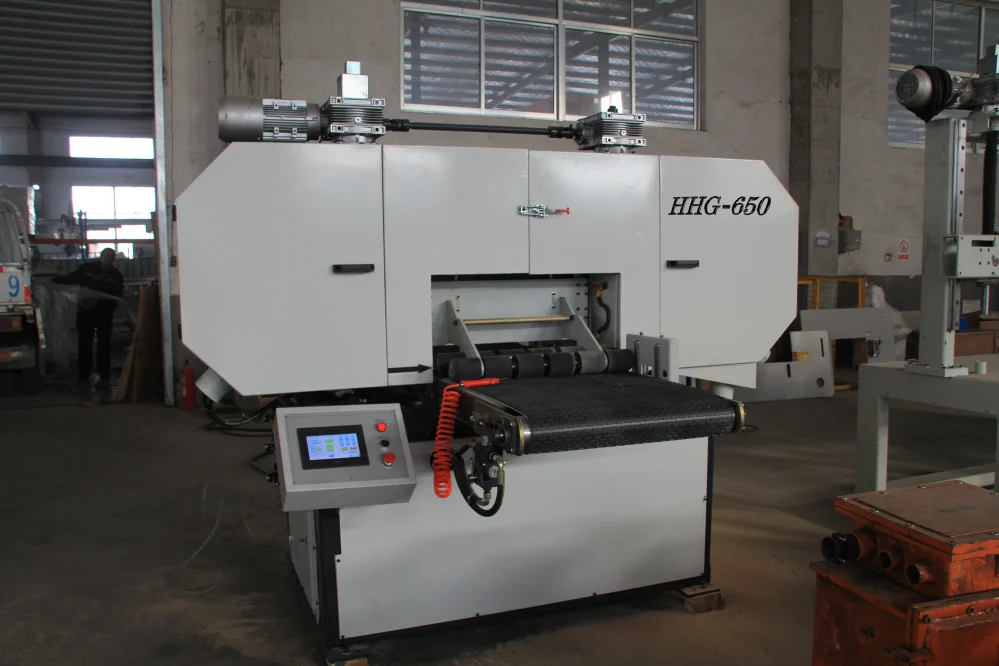

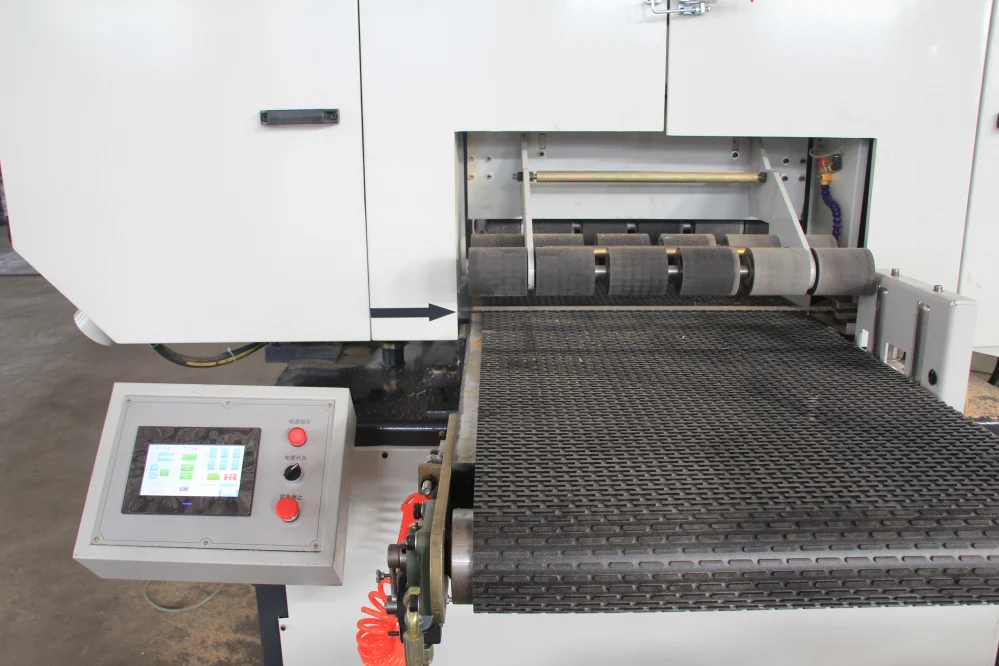

Automatic band saw machine HHG650 Horizontal bandsaw saw machines
- Category: >>>
- Supplier: Qingdao Haixun Intelligent Equipment Co. Ltd.
Share on (1600444523905):
Product Overview
Description
Product Description
Detailed configuration of heavy duty horizontal band saw:
1.The pressure structure of the pressing wheel is fundamentally changed, and the center of gravity of the pressing wheel is always vertically up and down in front of the saw tooth when working, so as to ensure that the saw is not clamped when working and reduce the heating degree of the saw blade.
1.The pressure structure of the pressing wheel is fundamentally changed, and the center of gravity of the pressing wheel is always vertically up and down in front of the saw tooth when working, so as to ensure that the saw is not clamped when working and reduce the heating degree of the saw blade.
2.Solid frame: thick plate and thick square pipe welding are used, 14mm thick integral beam structure, more stable than the ordinary type, and then through heat treatment, the body of the whole machine rigid, anti-corrosion ability is strong.The weight of the machine is about 2 tons, which guarantees the stability of the machine.

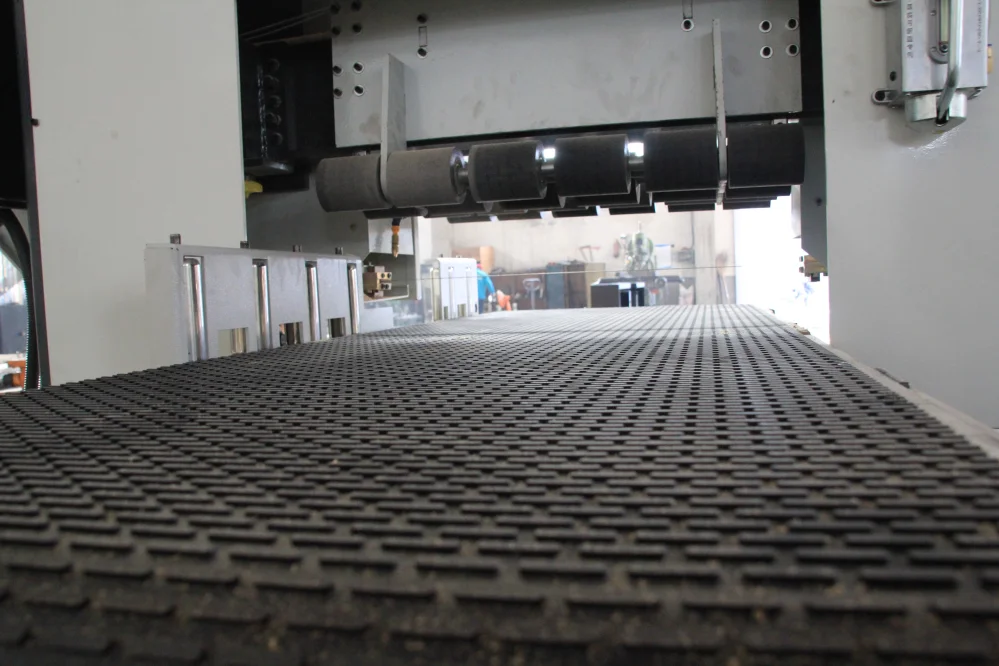

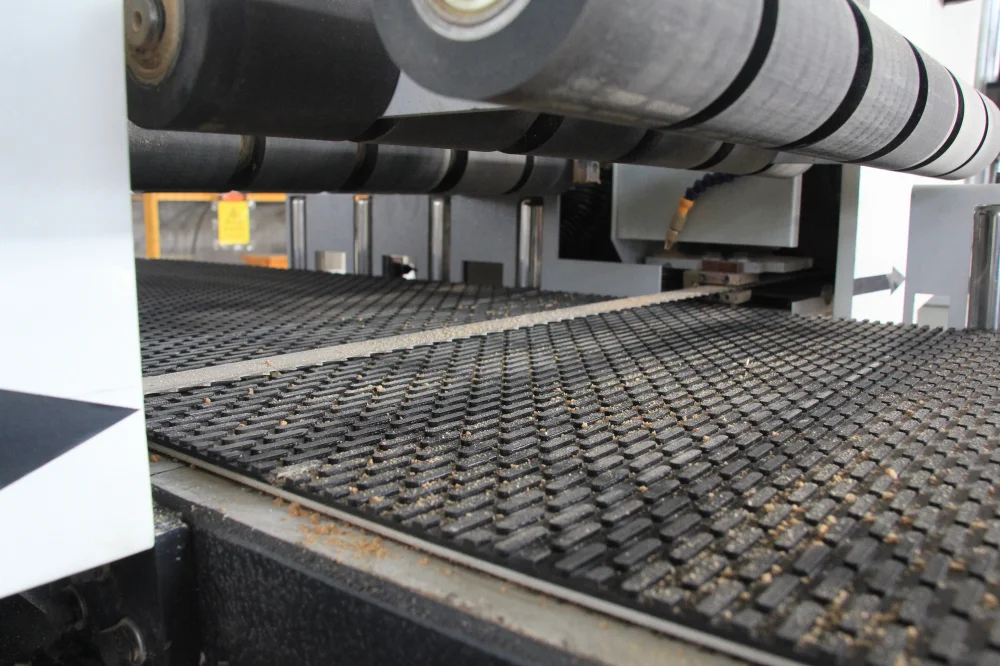

3.Work table: the platform does not move, the saw head rises and falls instead, the stability is strong, for the ultra long wood, may use the extended platform.The working table USES the marble of iron bag 10 centimeters thick, can bear 2 tons or so feed wallop and do not break, finish mesa level off smooth through milling technology.Reduce conveyor belt friction and vibration and prevent stress deformation and affect the sawing effect.
4. Lifting system: the use of two Taiwanese brand ABBA precision screw rod, can lift the height of the free equipment, convenient to adjust the thickness of the saw plate, accurate positioning, compared with the traditional four guide sleeve chain lifting, high precision.

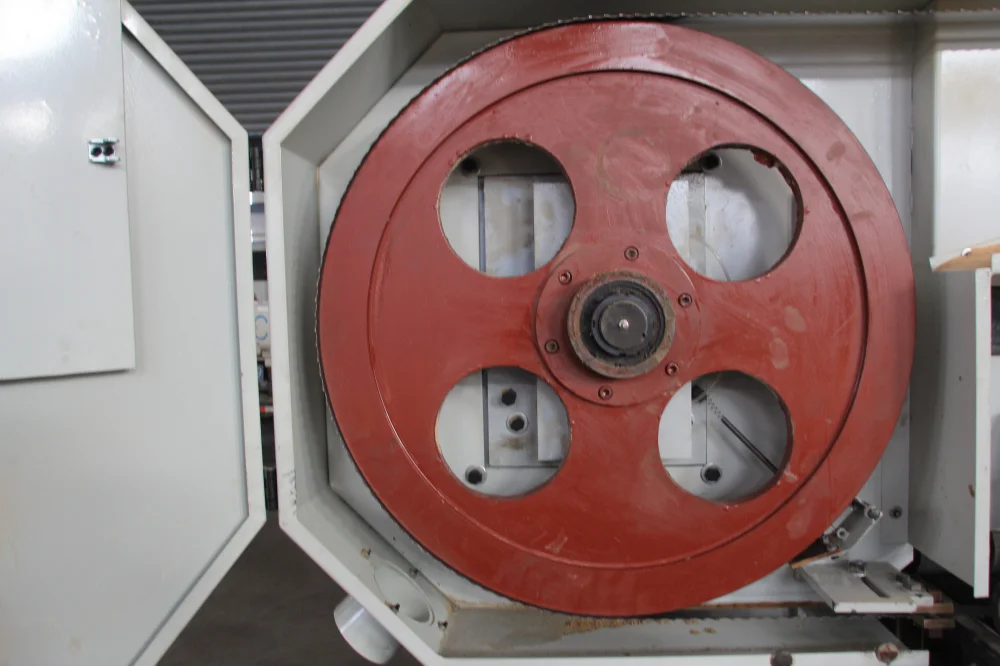

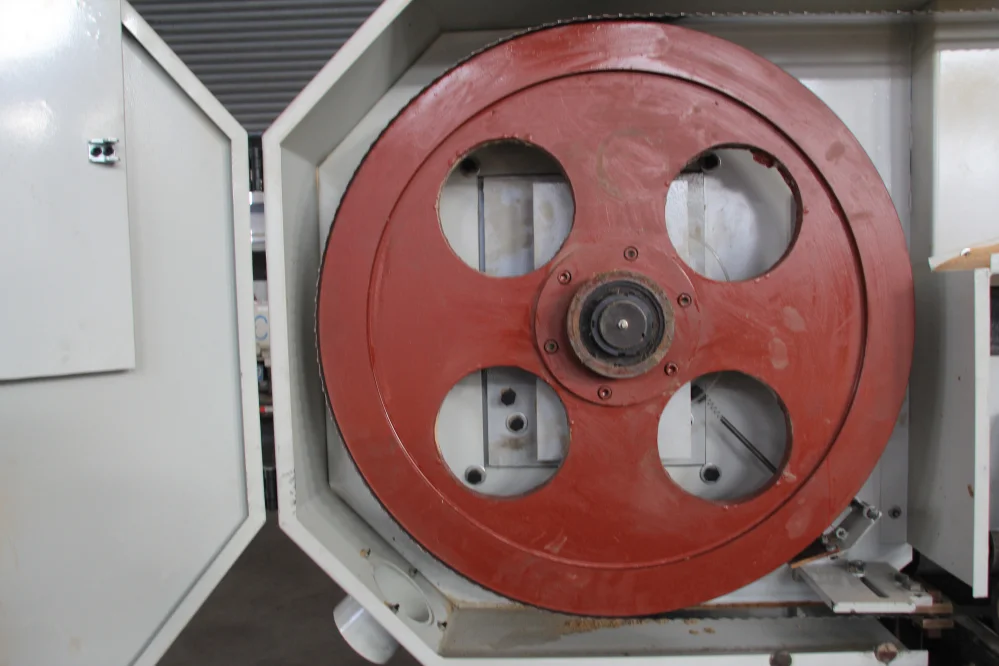

5. Saw wheel: the national standard steel with high hardness is precisely processed into a saw wheel with a diameter of 700mm and a thickness of 42 through ten procedures. It is larger than the traditional band saw wheel and has a large contact surface with a better stability and wear resistance. At the same time, the outer circle of saw wheel is designed with parallel belt to increase the friction of saw blade, reduce the heat of saw blade, and extend the use time of saw blade, which can work continuously for 24 hours.
6.Water spraying device: when the saw blade is sawing, the heat is high. The water spraying device atomizes the water and sprays it on the saw blade to cool down and lubricate it.
Specification
Max.working width | 400mm | 650mm |
Saw wheel diameter | 730mm | 730mm |
Max.working thickness | 400mm | 400mm |
The thinnest cut thickness | 0.2mm | 0.2mm |
error | ±0.15mm | ±0.15mm |
Saw blade lifting height | 400mm | 400mm |
Feed speed | 0-20m/min | 0-20m/min |
Main motor power | 15KW | 18.5kw |
Feeding way | hydraulic | hydraulic |
Lifting motor | 1.1KW | 1.1kw |
volume | 2500*2100*2000mm | 2500*2300*2000mm |
The weight of the | 1800kg | 2000kg |
Detailed Images
Packing & Delivery
Company Profile
1.QINGDAO HAIXUN have been committed to the research and manufacture of edge banding machines. A technology-knowledge-intensive enterprise specializing in the manufacture of woodworking machinery and equipment integrating development, manufacturing, sales and service.
2.The main products include: semi-automatic edge banding machines, automatic edge banding machines, manual edge banding machines, panel saws, CNC machining centers, woodworking drills, mechanical accessories, etc. Our products are widely used in custom furniture, solid wood furniture, solid wood carving, etc. We can provide you with high-quality products at competitive prices.
3.Our products have obtained CE certificates. Our main products are as follows: semi-automatic edge banding machine, automatic edge banding machine, manual edge banding machine, panel saw, CNC machining center, woodworking drill row, mechanical accessories, etc.
