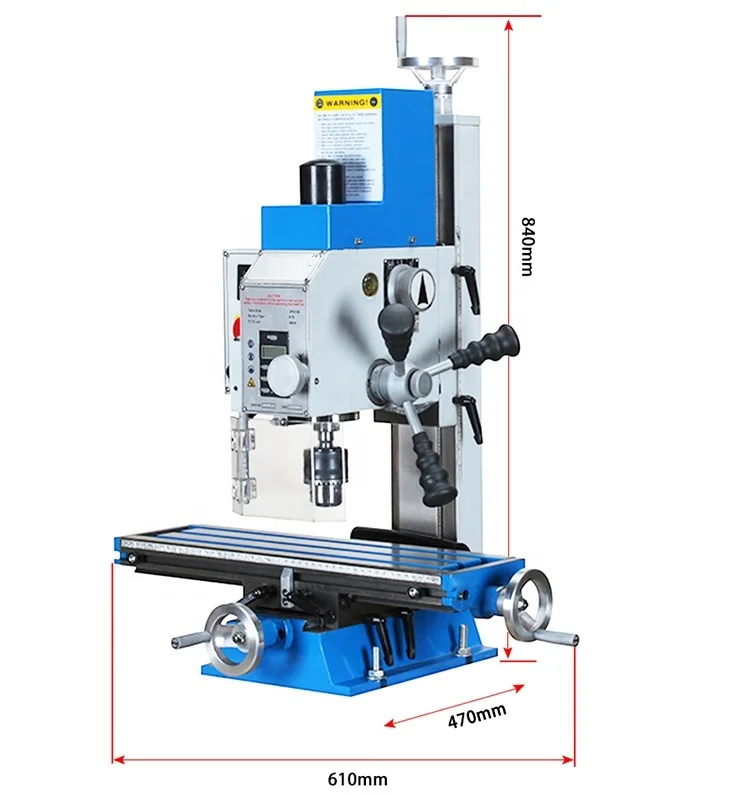

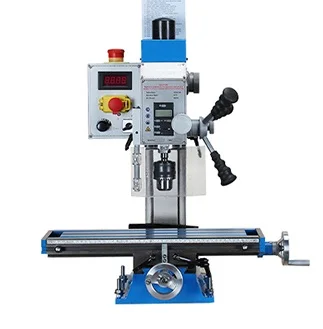

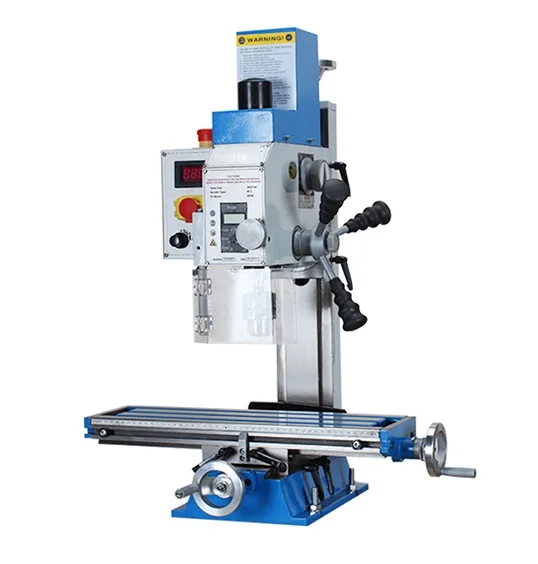

Mini manual metal milling and drilling machine WMD16V/ JYZX16V

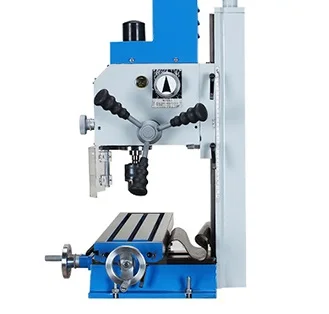

1. ± 45 degree Vertical direction to do rotary spindle box

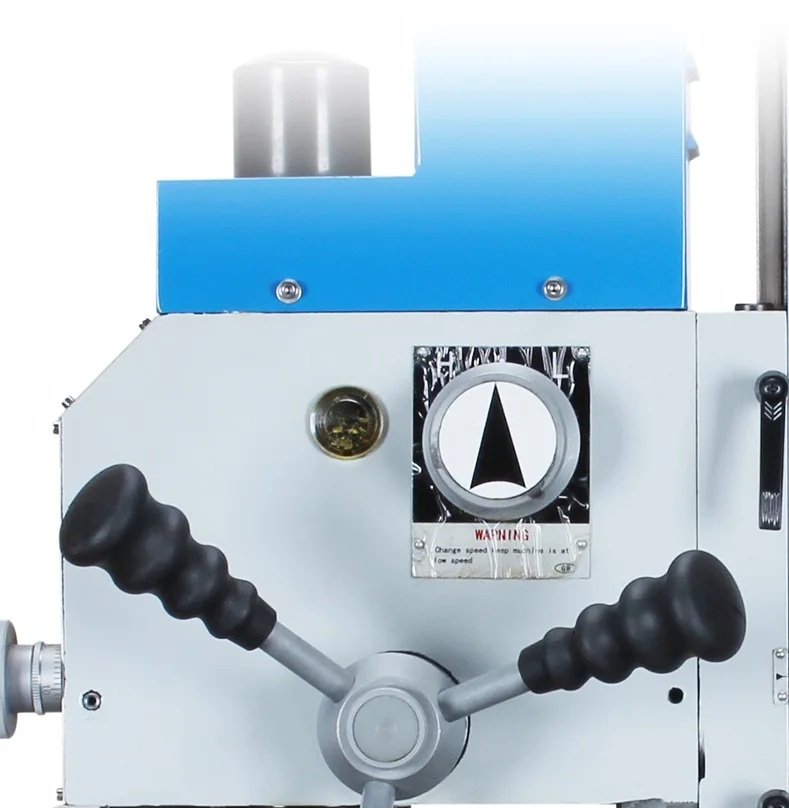

2. Spindle micro feed
3. Spindle lock
4. Table limit position adjustable
5. Accurate positioning and strong, rigid, cutting power
2. Spindle micro feed
3. Spindle lock
4. Table limit position adjustable
5. Accurate positioning and strong, rigid, cutting power
Model | WMD16 V |
Max. drilling capacity | dia 16mm |
Max. face milling capacity | dia 52mm |
Max. end milling capacity | dia 16mm |
Working range | 175mm |

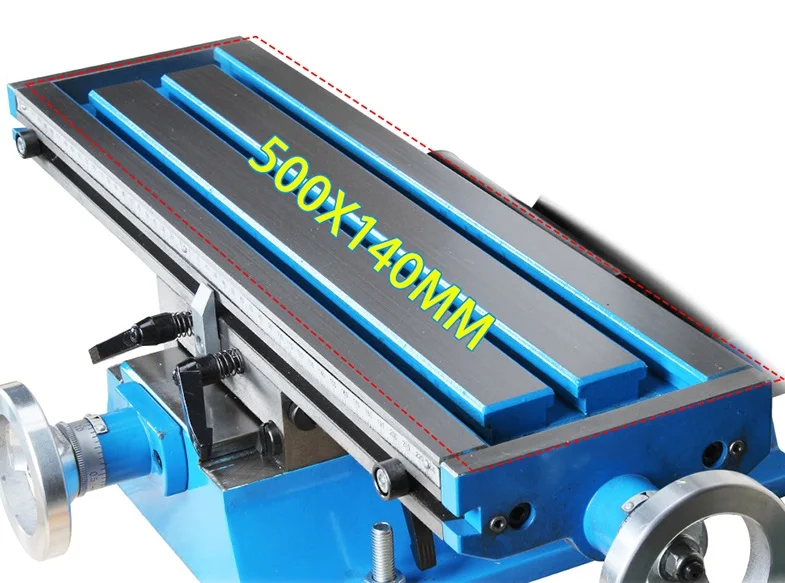

Working table size | 500*140mm |
T-slot size | 10mm |
X-axis travel | 320mm |
Y-axis travel | 160mm |
Z-axis travel | 220mm |
Taper of spindle bore | MT2/M10 |
Sleeve travel | 52mm |
Range of spindle speeds | 50-3000rpm |

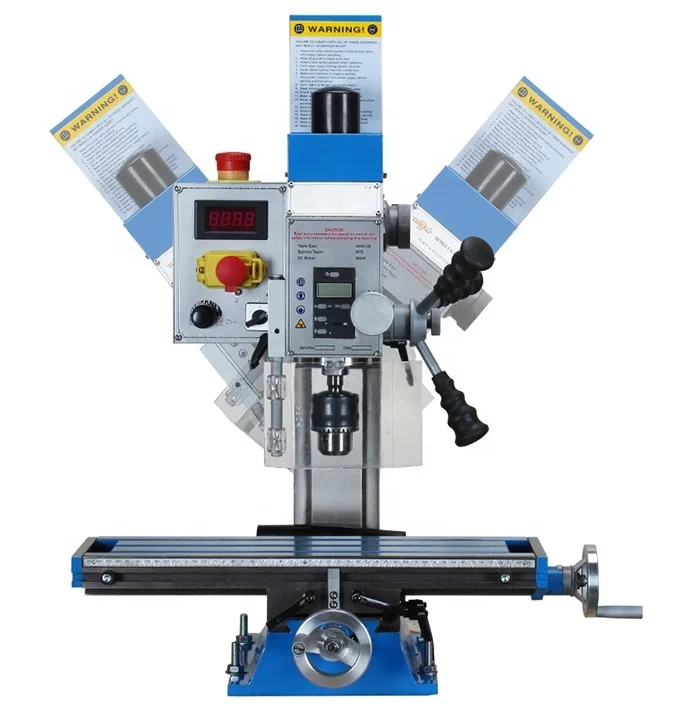

Headstock tilt left & right | ±90 degree |
Motor power | 650W |
NW/GW | 70/90Kg |

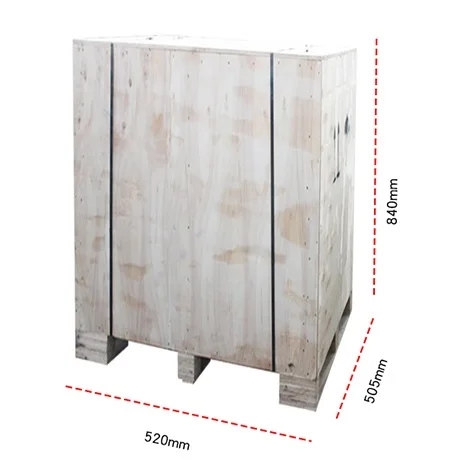

Package size (L×W×H) | 520*510*840mm |

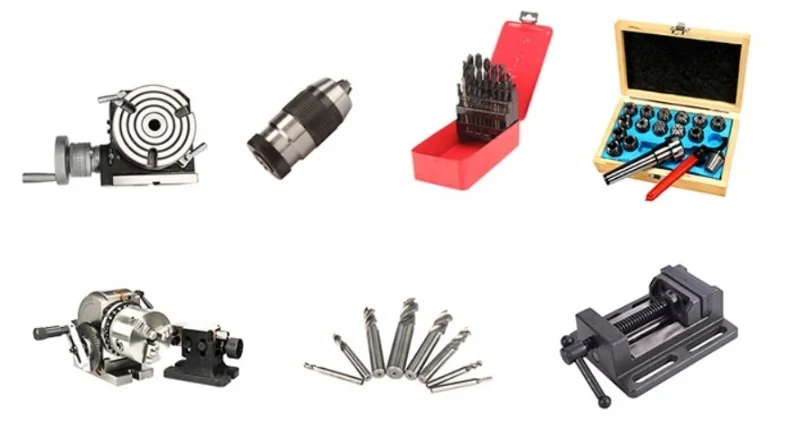

Optional accessories
Company information
Customer Review
FAQ
Q1: How long guarantee period you offer?/ how is warranty?
A1: 12 month guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2: Free replacing parts available in the warranty period.
Cost-value replacing parts available beyond the warranty period.
Quick action and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes, free training in our factory or engineer overseas service available as customer requirements(relative cost born
A1: 12 month guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2: Free replacing parts available in the warranty period.
Cost-value replacing parts available beyond the warranty period.
Quick action and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes, free training in our factory or engineer overseas service available as customer requirements(relative cost born
by customer.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide different kinds processing solutions for customers, in order to meet different requirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to visit our factory at any time. The more you know us, the more you trust us! So you can rest assured on our quality products and our best services.
Q6: Where is your factory located?
A6: Our factory is located in Kunming city, Yunnan province, in the southwest of China.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide different kinds processing solutions for customers, in order to meet different requirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to visit our factory at any time. The more you know us, the more you trust us! So you can rest assured on our quality products and our best services.
Q6: Where is your factory located?
A6: Our factory is located in Kunming city, Yunnan province, in the southwest of China.
