forced manganese js concrete mixer self loader electric commercial cement mixer 240v backhoe bucket concrete mixer

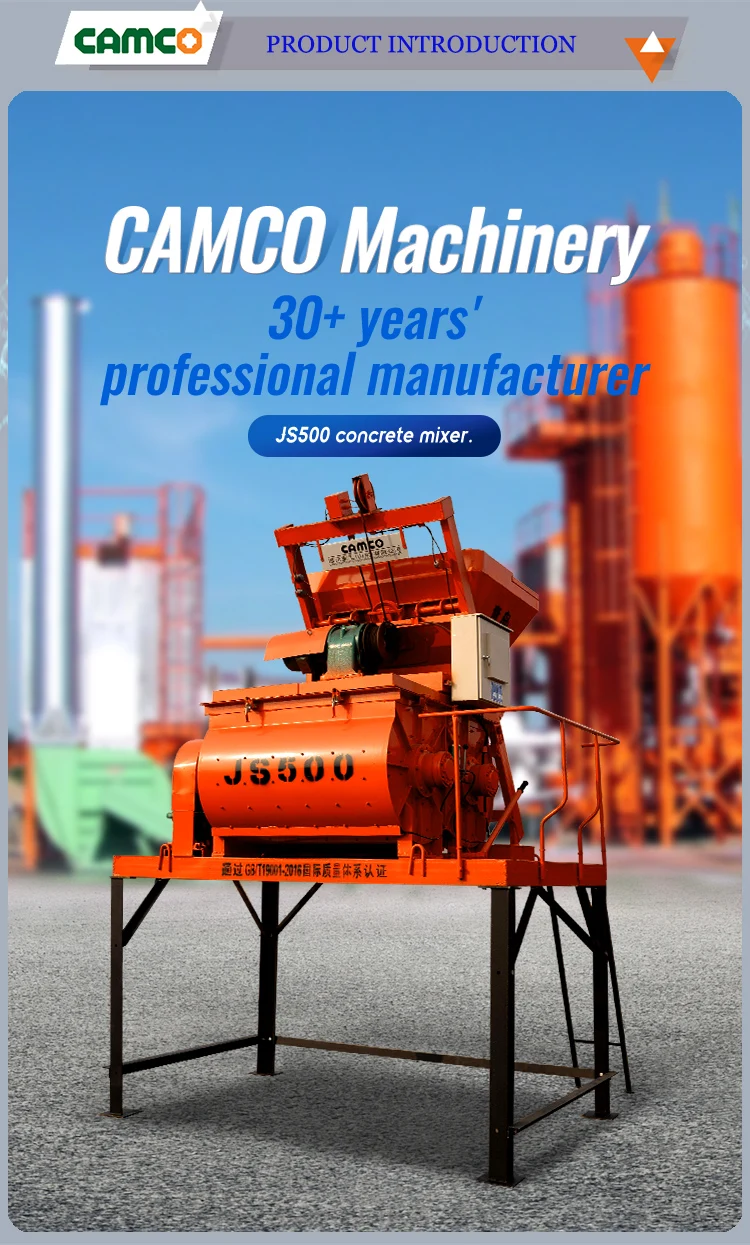

J500-1

JS500 concrete mixer, a kind of dual-shaft compulsory mixer.The structure is reasonable innovative layout with easy maintenance.This machine has the dual superiority of stand alone operation and forming simple concrete mixing plant with PLD series dosing machine, and can also provide supporting host to the mixing palnt. It is suitable for all kinds of small, medium and large precast plants as well as industrial and civil egineering projects such as roads, bridges, water, docks, etc







































































Model


JS500


JS750


Charging capacity(L)


800


1200


Discharging capacity(L)


500


750


Productivity(m³/h)


≥25


≥35


Cycle time(s)


72


72


Maximum particle size of aggregate (mm)





≤40/50





≥40/60


Mixing blade


2X7


2x7


Wear-resisting liner plate thickness(mm





20


20


Mixing motor(kw)


18.5


30





Winding motor(kw)






5.5





7.5


Overall dimension L×W×H(mm)


3000*2500*2600


3100*2600*2580


Total weight(kg)


3000


5000


Container loading plan(40HQ)





4





4

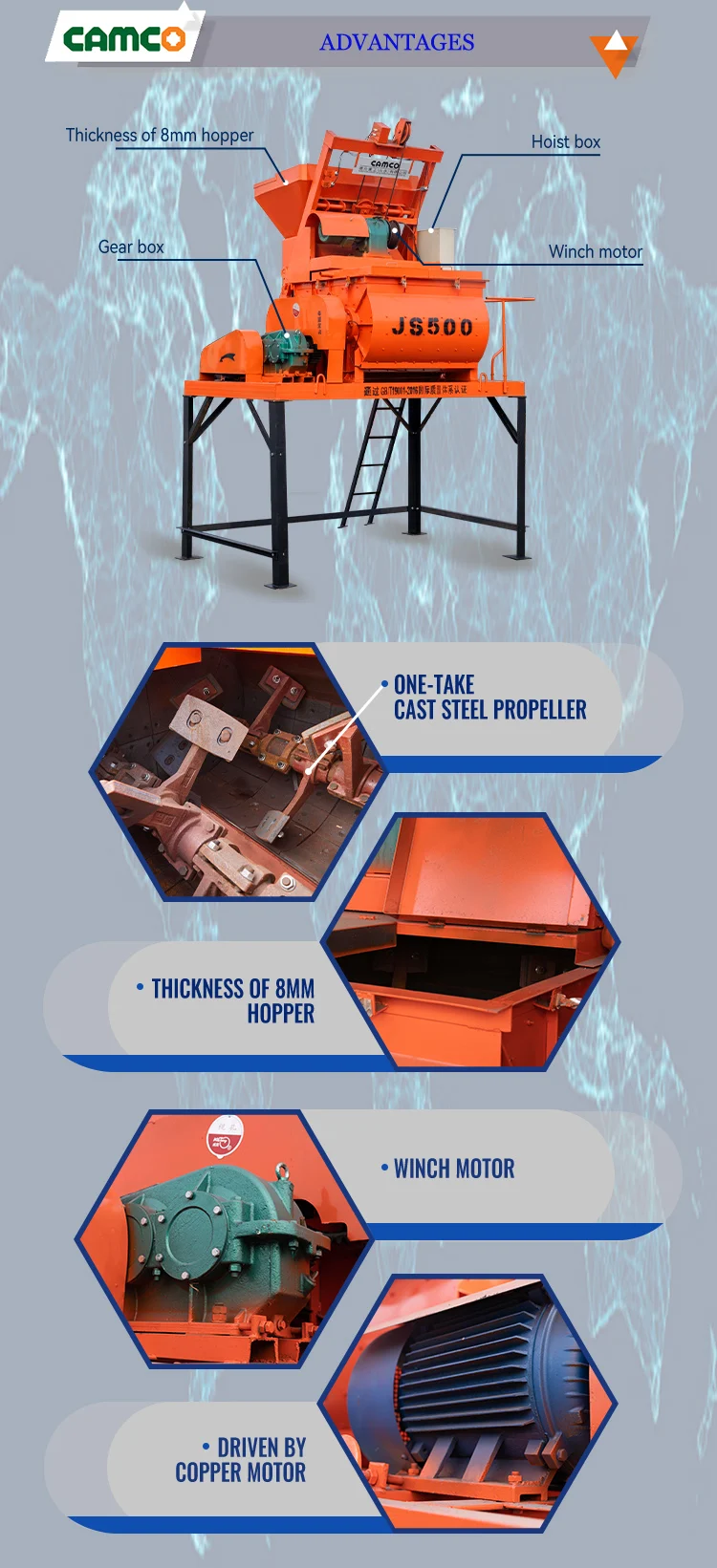

J500-2

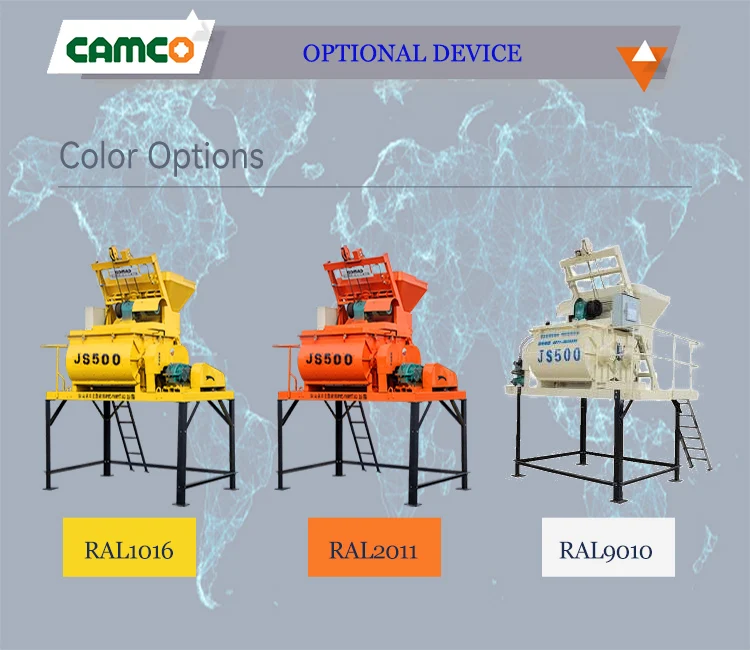

J500-3

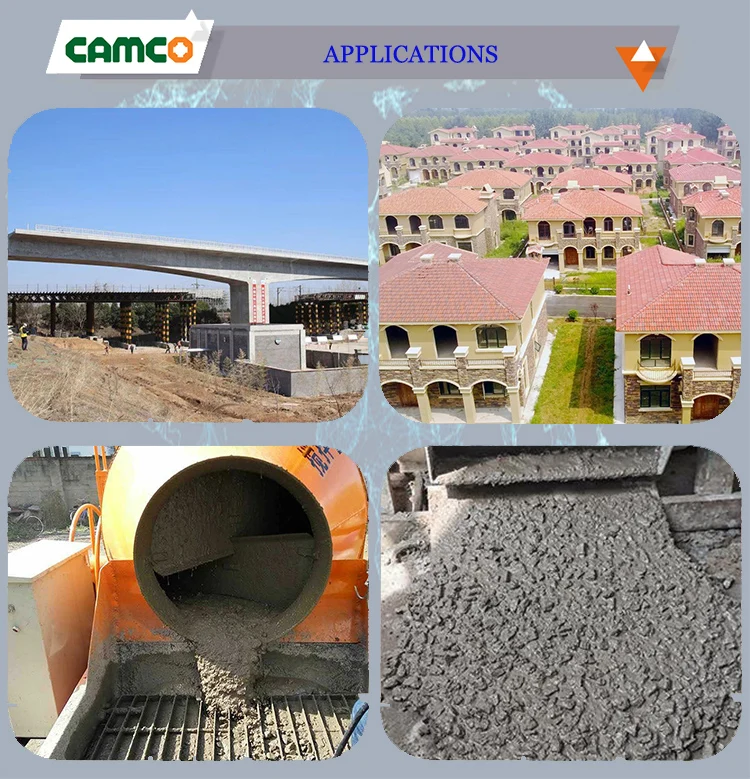

J350-3

J350-5

Camco Group was established on June 16, 1998 and headquartered in China. Now with 9 subsidiaries in Zambia, Malawi, Kenya and Cameroon, we have first-class products and perfect services, focusing on customized procurement supply chain for domestic and foreign customers. Over 20 years’ experience in Equipment and Machine business, we would like to offer one-stop solution for our customers. What we can offer is not only about agriculture machinery, agricultural processing machinery, aquaculture equipment, construction machinery and power equipment, but also the perfect after-sales as well as a comprehensive contractor for international purchasing.

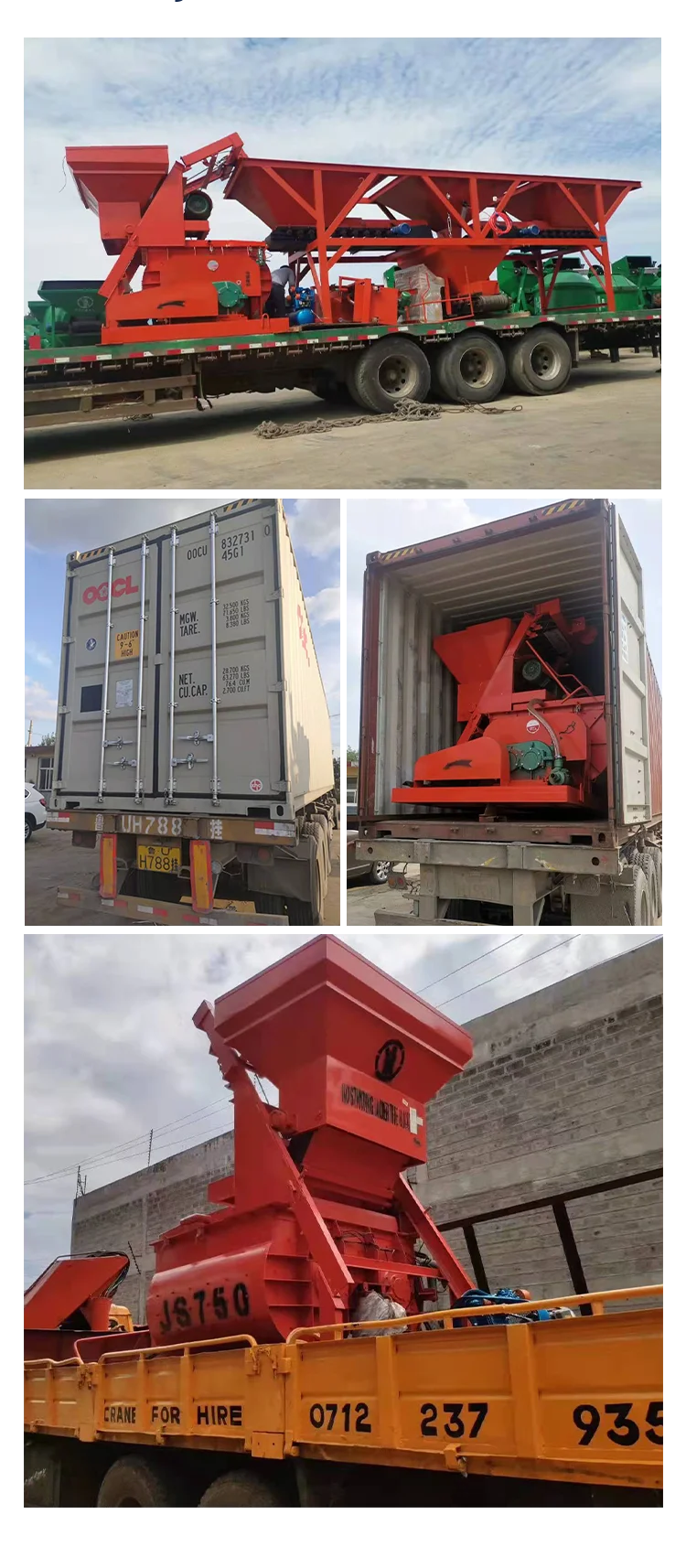

J500-6

1. How long do you warranty your concrete mixer machine?
A:We shall guarantee that the commodity for 1 year, excluding the wearing parts, and we will offer our customers the wearing parts
2: What should I do if I experience a problem on our equipment?
A: You could email us the photos to show what happens or call us, and our service line is available 24/7, and then we will feedback you immediately. We can support local service in some of the countries.
Q.How can we install the machine?
A:Our engineer will make installation drawing before we send the machine, and we can send an engineer to your country for the machines installation.
