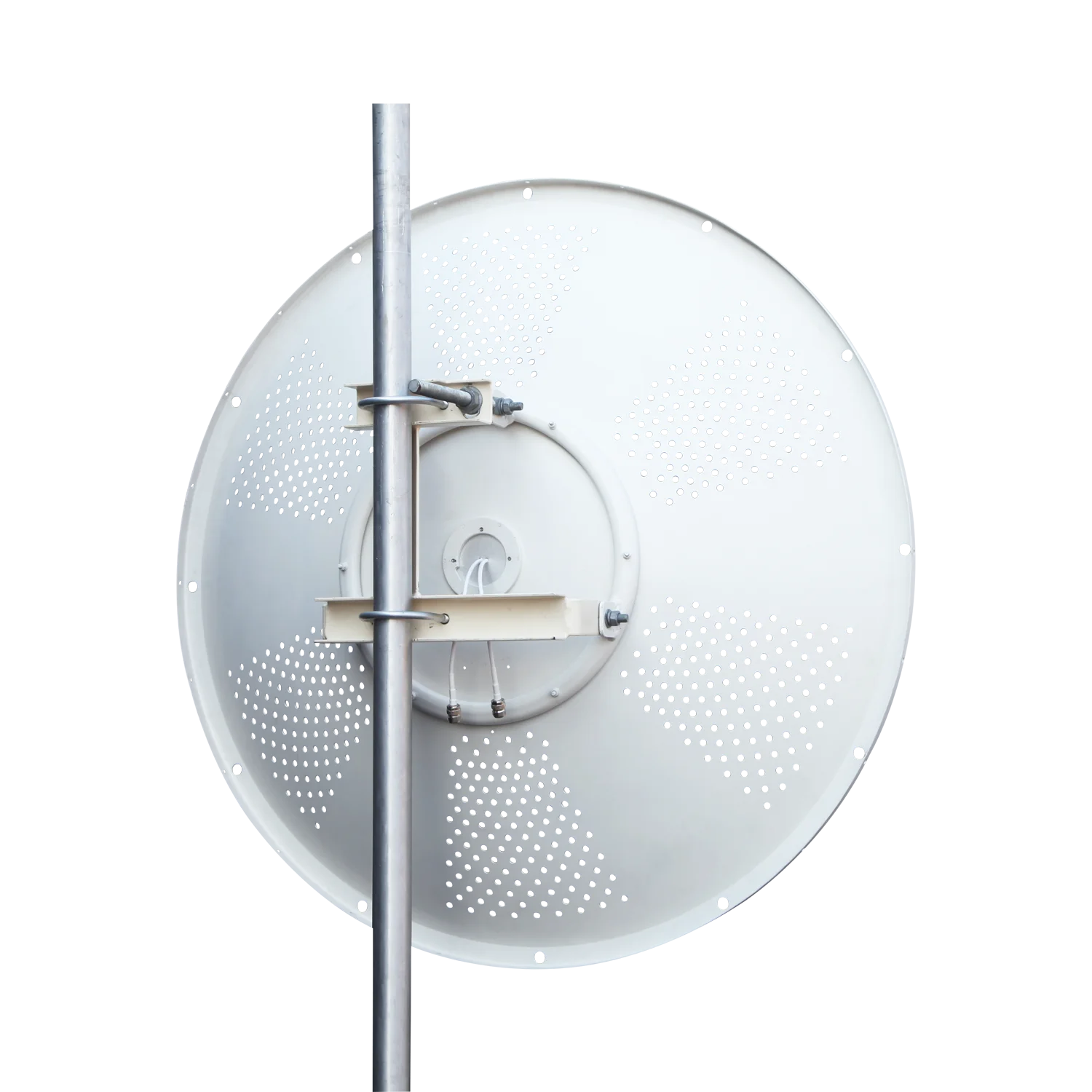

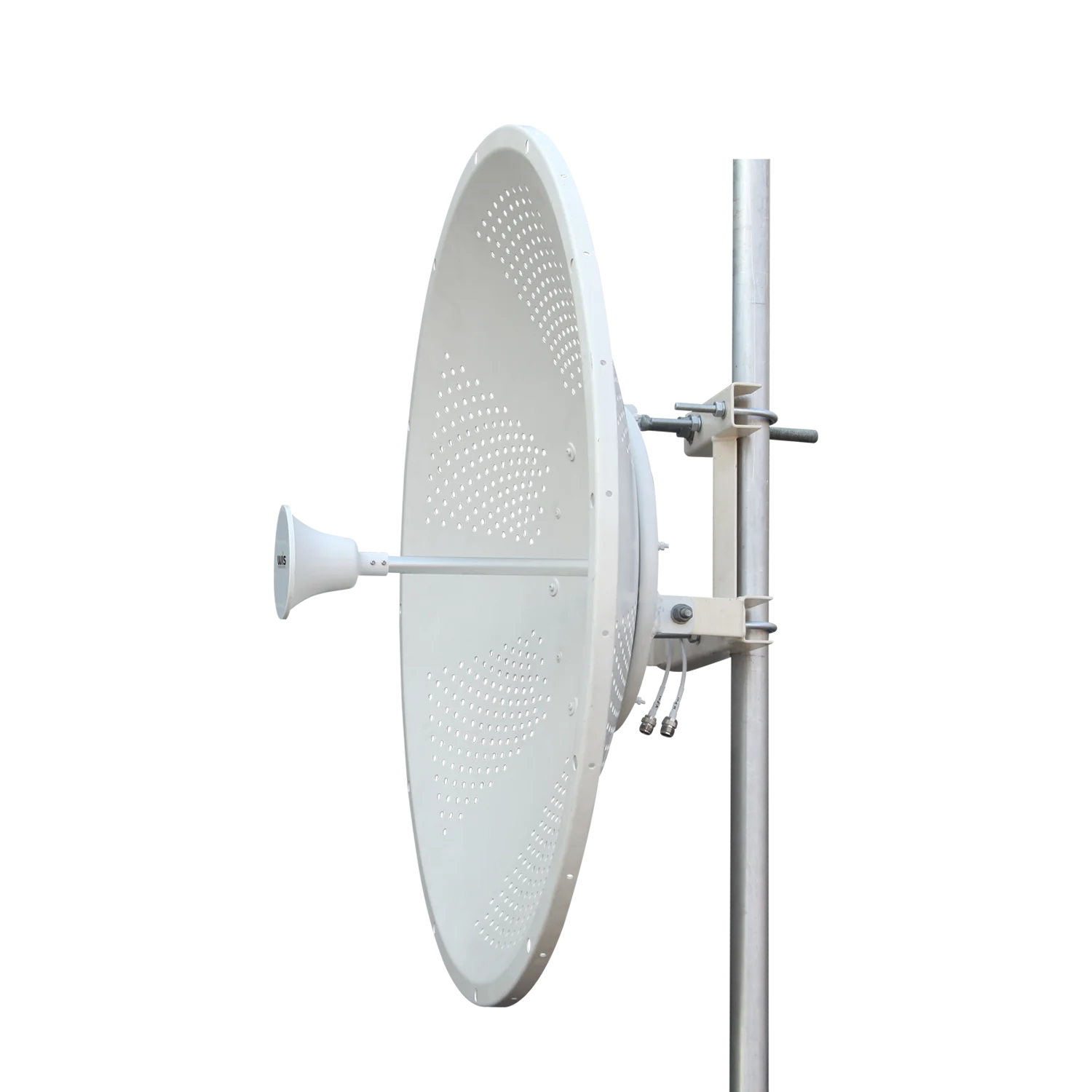

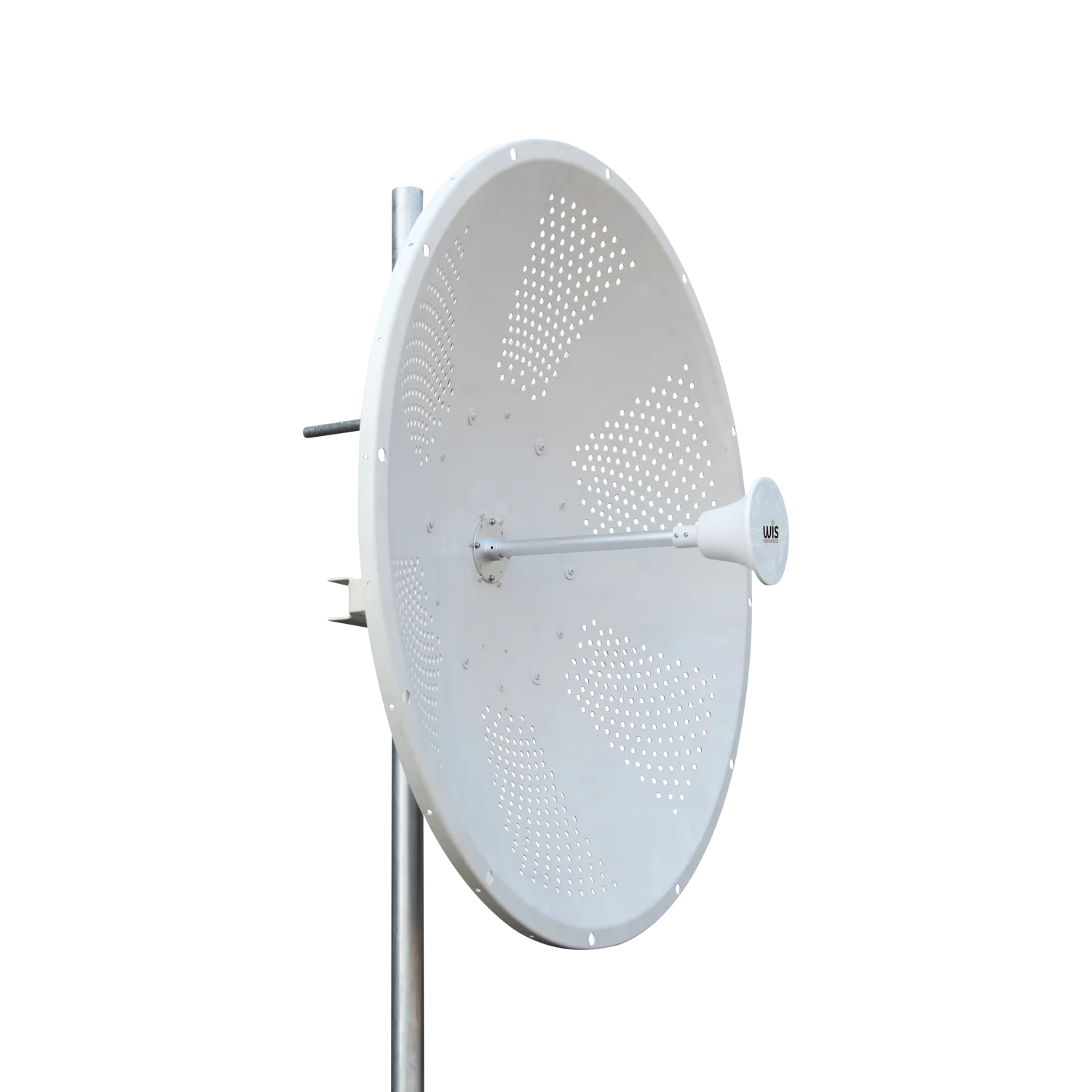

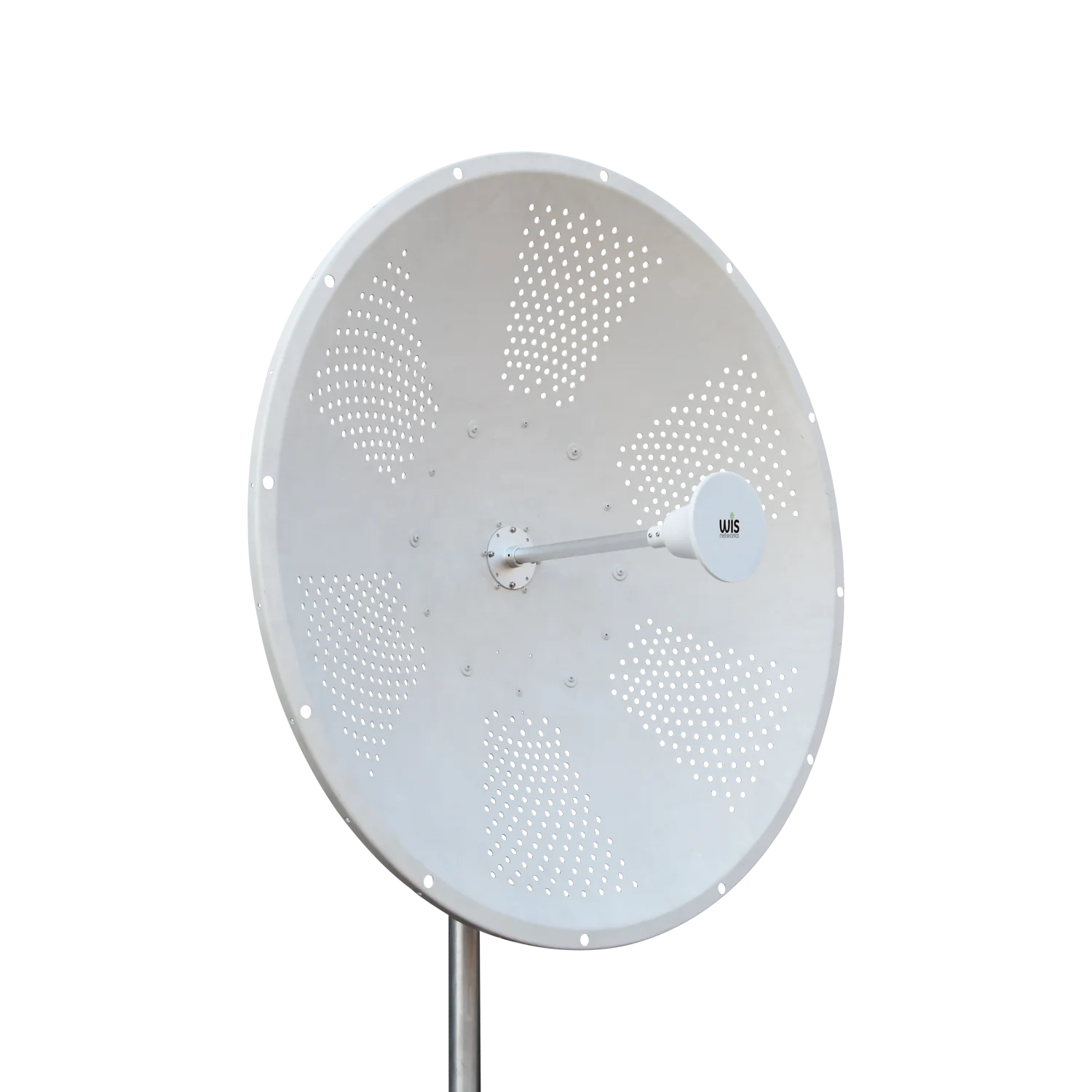

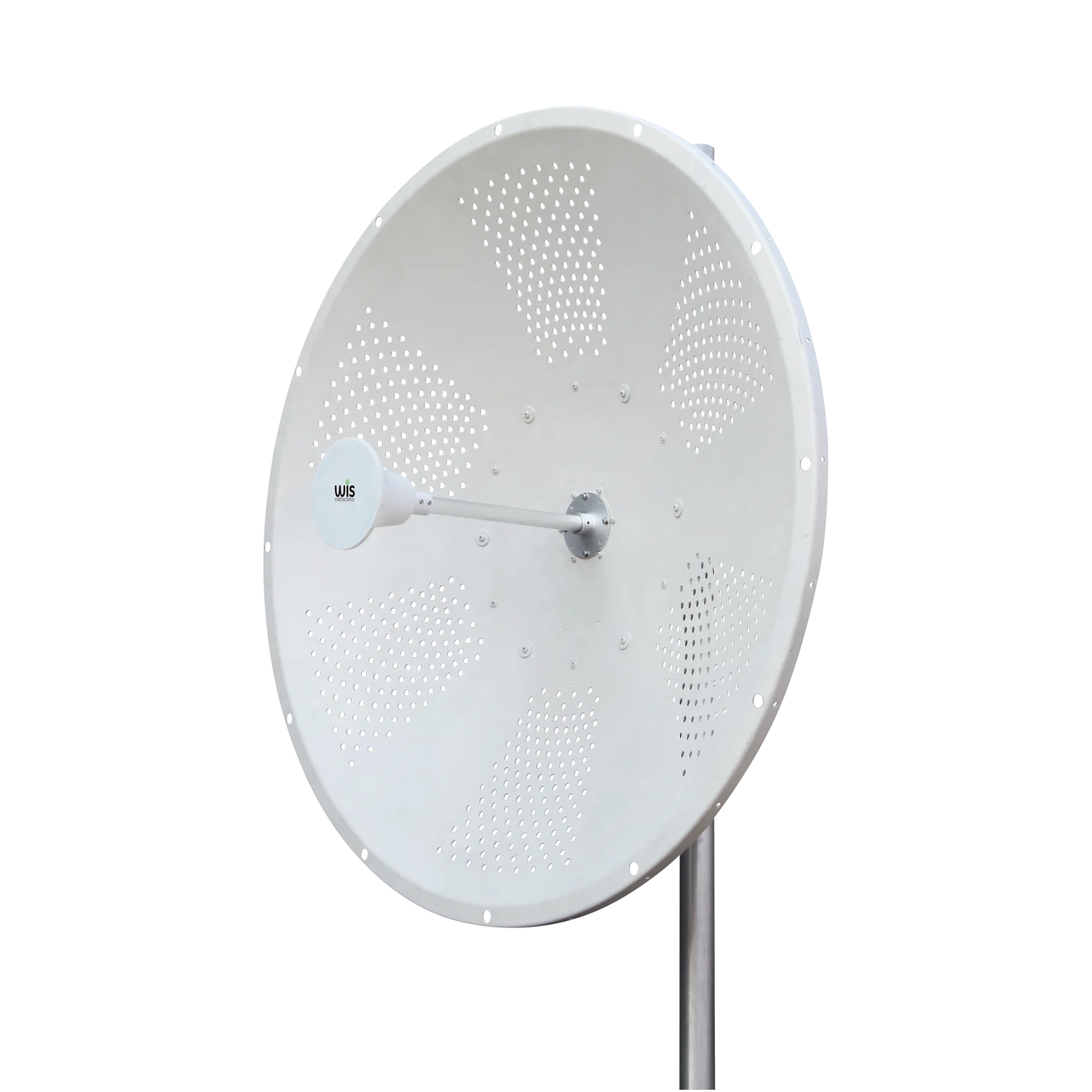

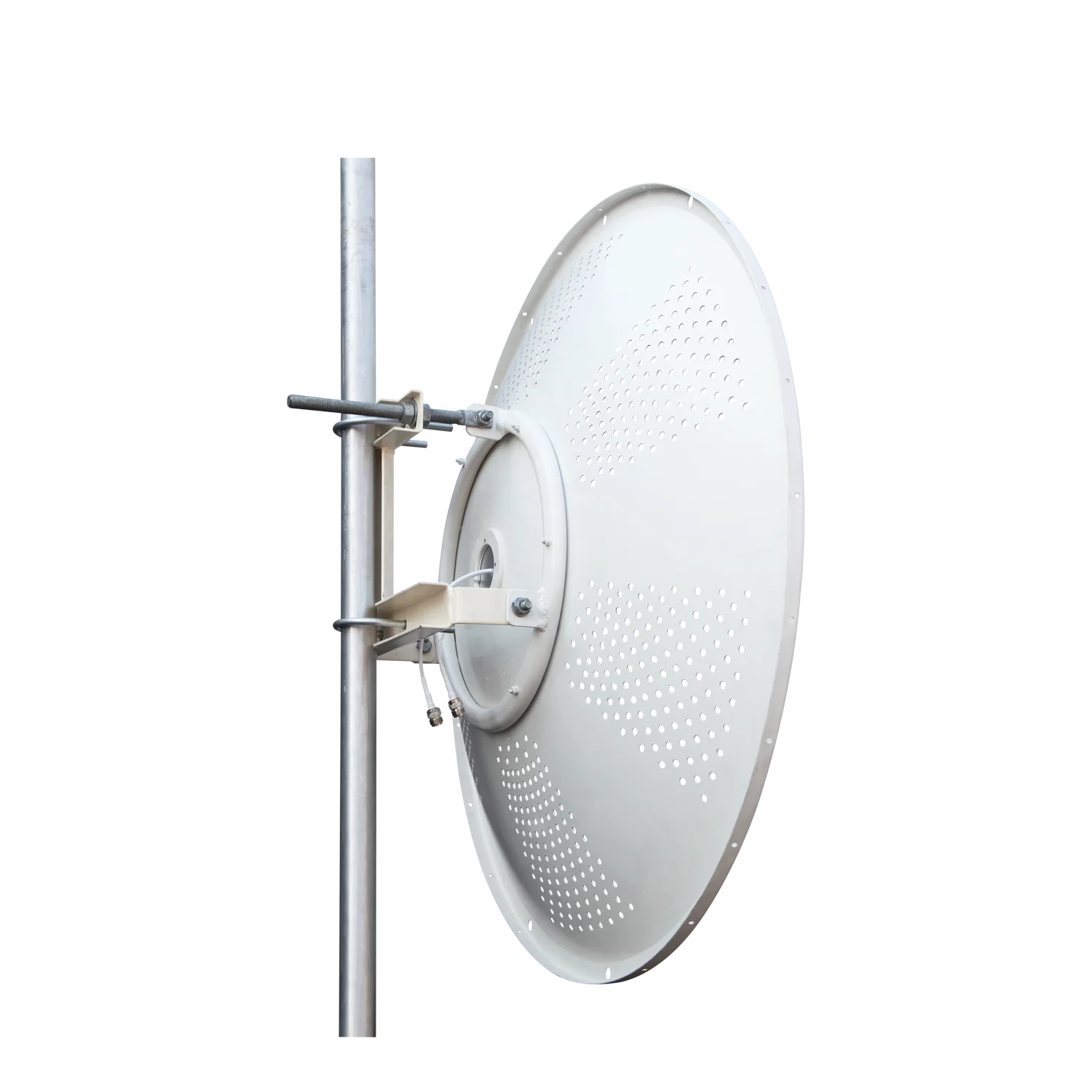

2.3 2.7GHz 0.9m 27dBi mimi Dish Antenna for ubnt rocket m2 and ac
- Category: >>>
- Supplier: WIS NETWORKS LIMITED
Share on (1600444568372):
Product Overview
Description
Products Description
Features
● 2.3-2.7GHz Frequency
● 27dBi High Gain
● 2x2 MIMO
● Double Dual Slant (V/H or ±45°)
● 27dBi High Gain
● 2x2 MIMO
● Double Dual Slant (V/H or ±45°)
Application
● 2.4 GHz ISM band
● IEEE 802.11b/g/n wireless LAN, WiFi systems
● Long range directional applications
● Point to point and point to multi-point applications
● Wireless bridges and backhaul applications
● IEEE 802.11b/g/n wireless LAN, WiFi systems
● Long range directional applications
● Point to point and point to multi-point applications
● Wireless bridges and backhaul applications
Product Paramenters
Electrical | ||
Model | ANT2327D27PA-MIMO | |
Frequency Range | 2.3-2.7GHz | |
Gain | 27dBi | |
VSWR | <2.0 | |
Polarization | Dual Slant (V/H or ±45°) | |
Isolation | >25dB | |
Front to Back Ratio | >25dB | |
Horizontal Beam width | 8° | |
Vertical Beam width | 8° | |
Maximum Power Per Port | 50W | |
Impedance | 50Ω | |
Lighting protection | DC Ground | |
Mechanical | ||
Connector | 2 * N Female | |
Antenna Size | φ0.9m | |
Antenna Weight | 10kg | |
Antenna color | white | |
Diameter of the Pole | Φ30mm to φ80mm | |
Mechanical Tilt | ± 15° | |
Operational Temperature | -40°C to +70°C (-32°F to +158°F) | |
