Product Overview

Description

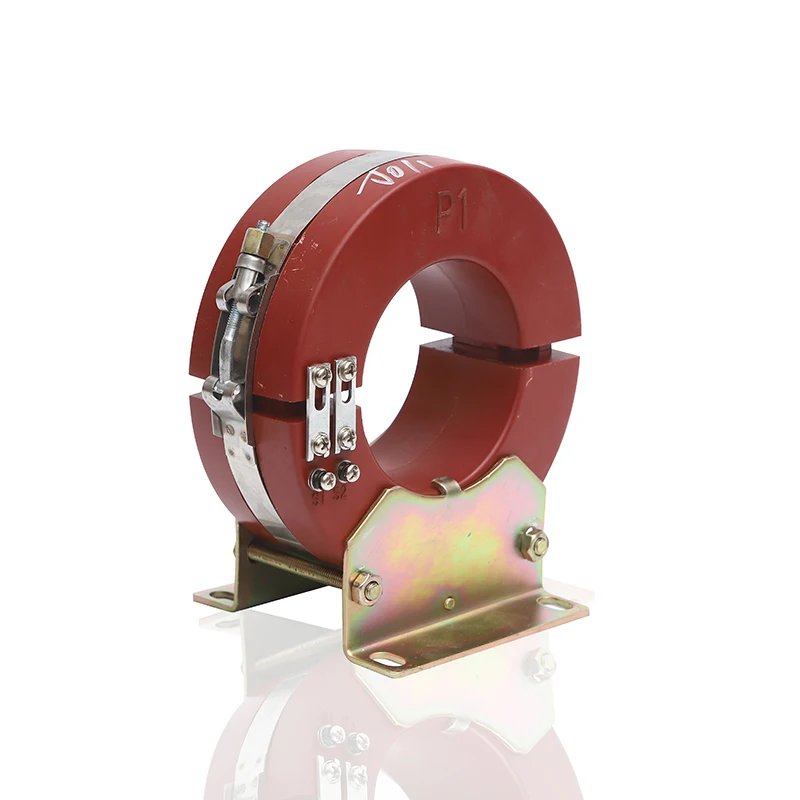

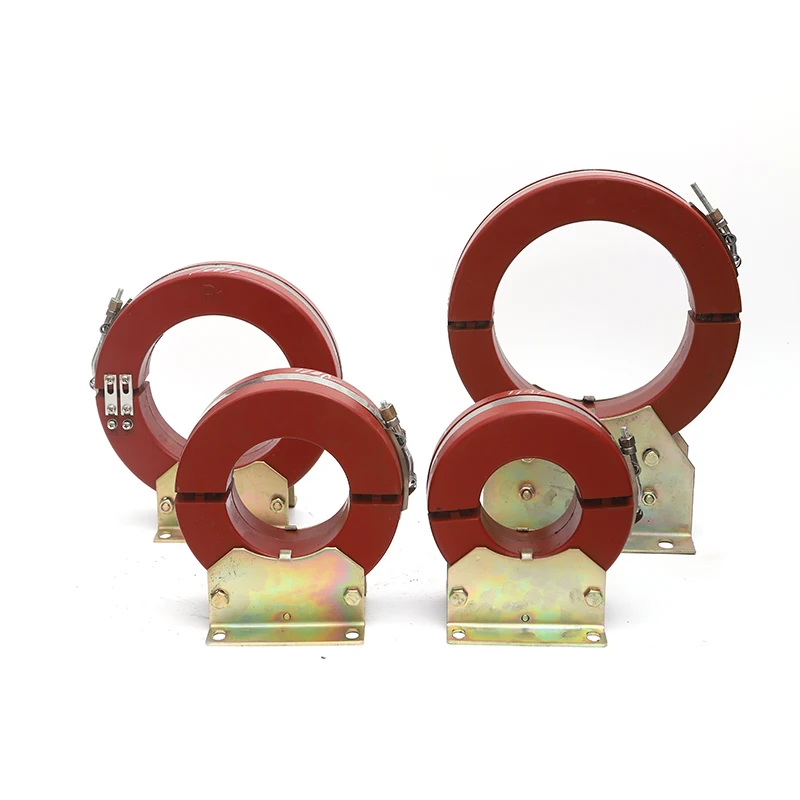

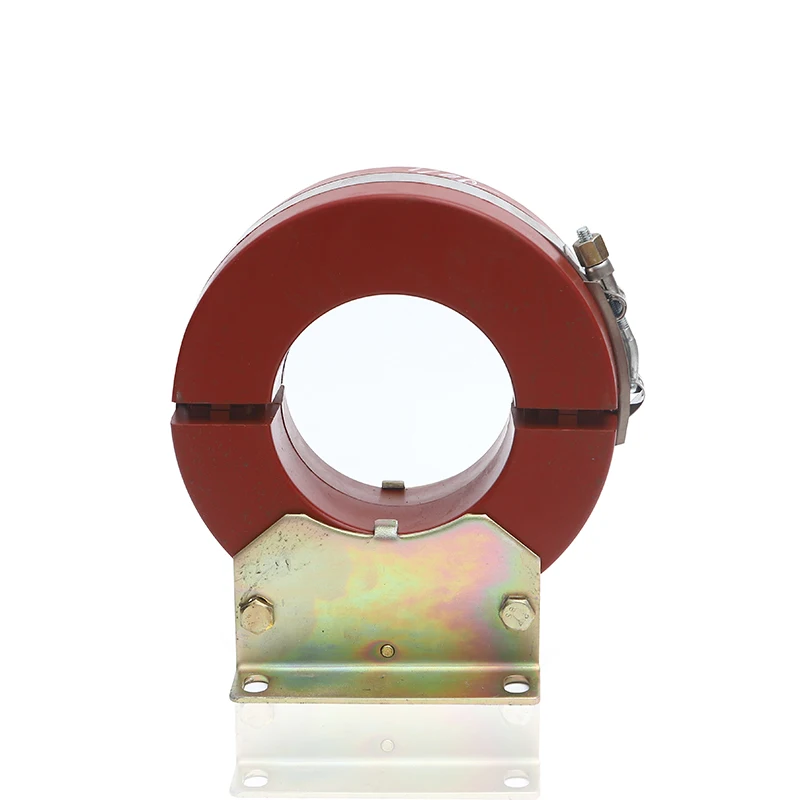

LCT-2,3,4,7 hot sale zero sequence current transformer CT

Hot Sale Zero Sequence Current Transformer LCT-2 3 4 7 CT

Type designation:



Summary  240v 110v step down transformer transformer 200kva small transformer current transformers 5a hot sale zero sequence current transformer CT

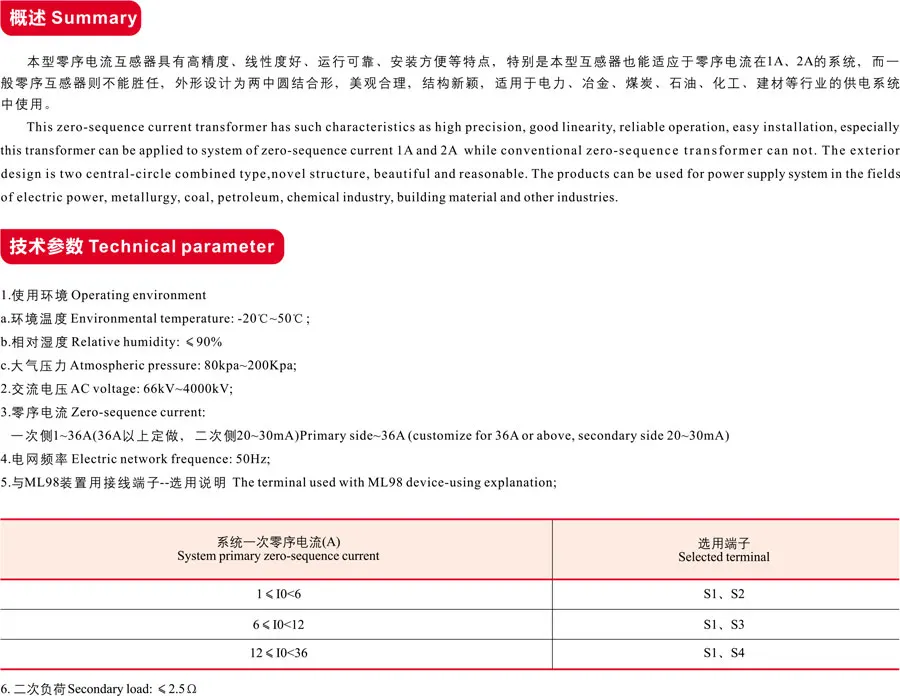

This zero-sequence current transformer has such characteristics as high precision. Good linearity, reliable, reliable operation, easy installation, expecially this transformer can be applied to system of zero-sequence current 1A and 2A while conventional zero-sequence transfomer can not. The exterior design is two central-circle combined type, novel structure, beautiful and reasonable. The products can be used for power supply system in the fields of electric power, metallurgy, coil, petroleum, chemical industry, building material and other industries.

Main Technical parameter current transformers 5a hot sale zero sequence current transformer CT

1,Operating environment 240v 110v step down transformer transformer 200kva small transformer

a,Environmental temperature:-20℃~50℃

b, Relative humidity:≤90% 240v 110v step down transformer transformer 200kva small transformer

c, Atmospheric pressure:80kpa~200kpa

2, AC Voltage:66kV~4000kV

3, Zero-sequence current:

Primary side 1~36A(customize for 36A or above, secondary side 20~30mA)

4, Electric network frequency:50Hz

System primary zero-sequence current(A)	Selected terminal
1≤I0<6	S1, S2
6≤I0<12	S1, S3
12≤I0<36	S1, S4



5, The terminal used with ML98 device-using explanation
