Product Overview
Description
After-sales Service Provided: | Engineers available to service machinery overseas,Video technical support, Online support, Free spare parts, Field installation, commissioning and Trainning, Field Maintenance and Repair Service |
After Warranty Service: | Video technical support, Online support, Free spare parts, Field installation, commissioning and Trainning, Field Maintenance and Repair Service |
Local Service Location: | Indonesia, Peru, Chile, New Zealand, Japan,Australia |
Certification | CE,ISO |
Transport Package | Wooden Case |
Trademark | FAMOUS |
Origin | China |
HS Code | 84778000 |
Supply Ability | 30Sets/Year |
Products Description
Product Description:

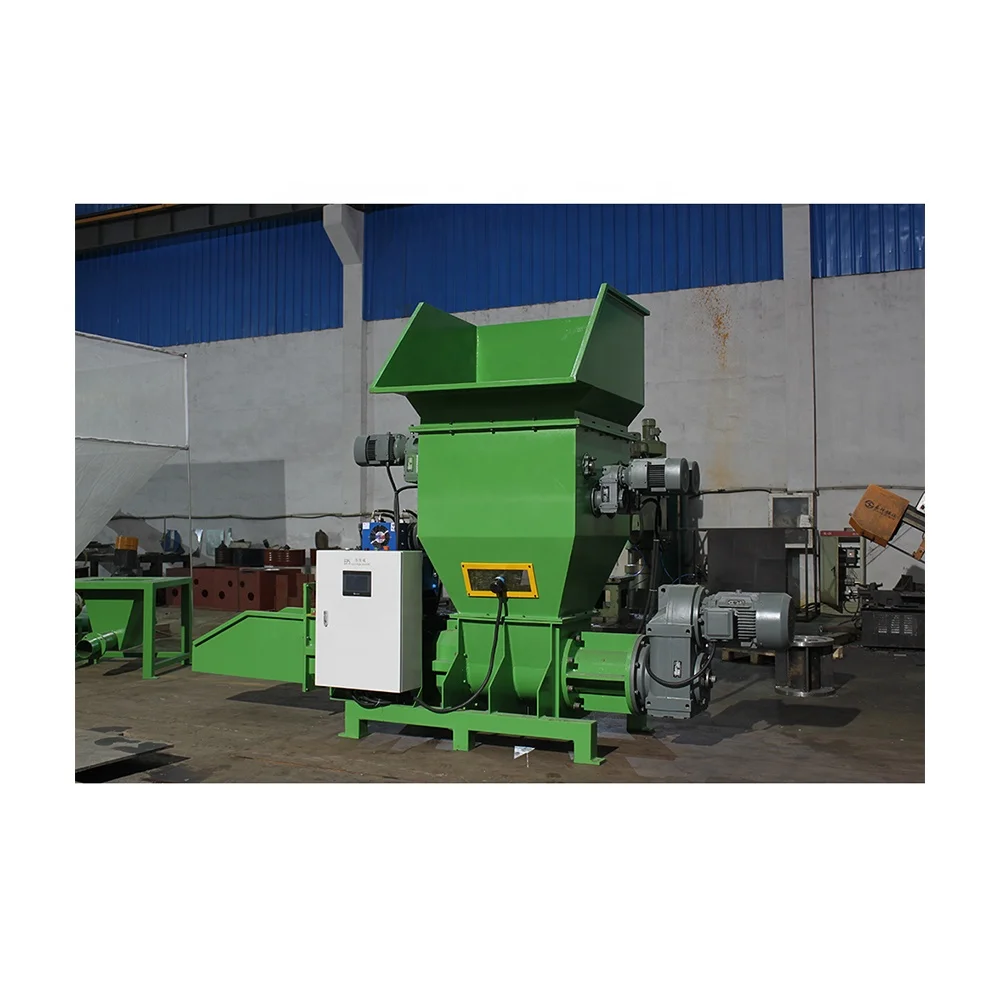

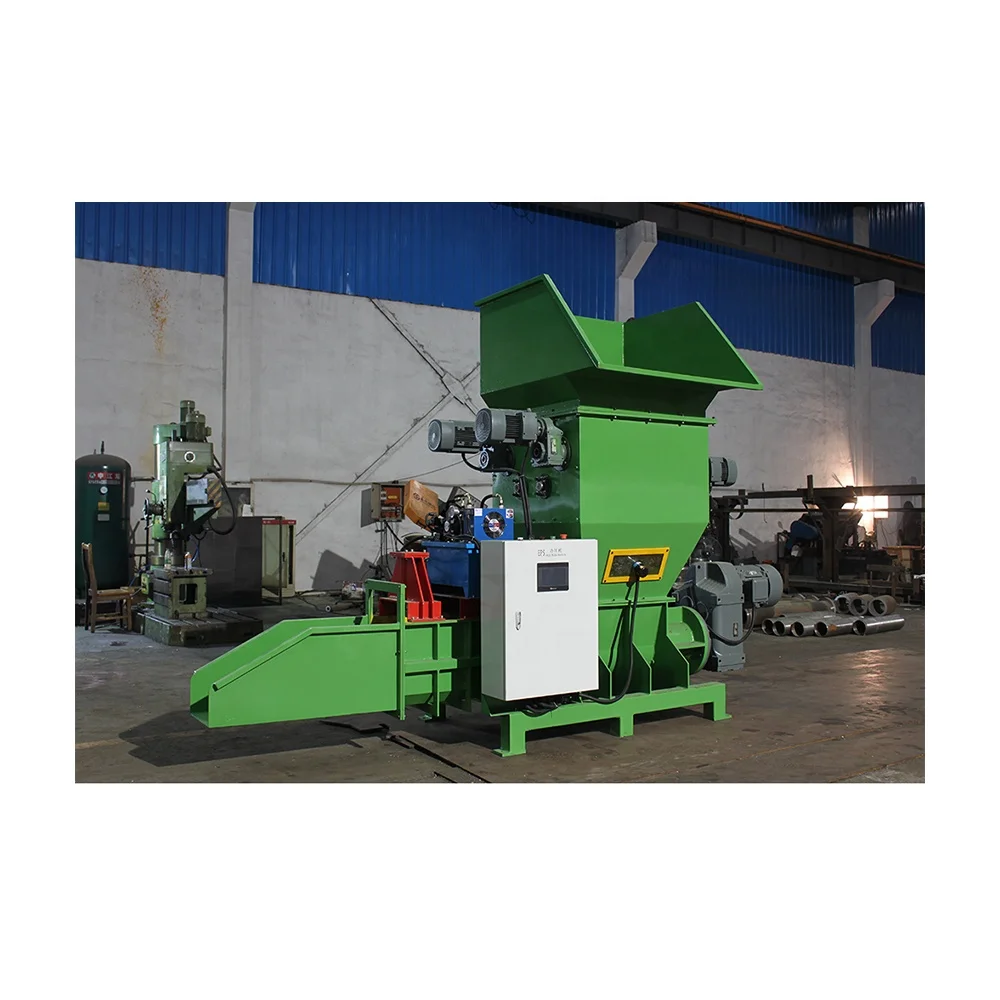

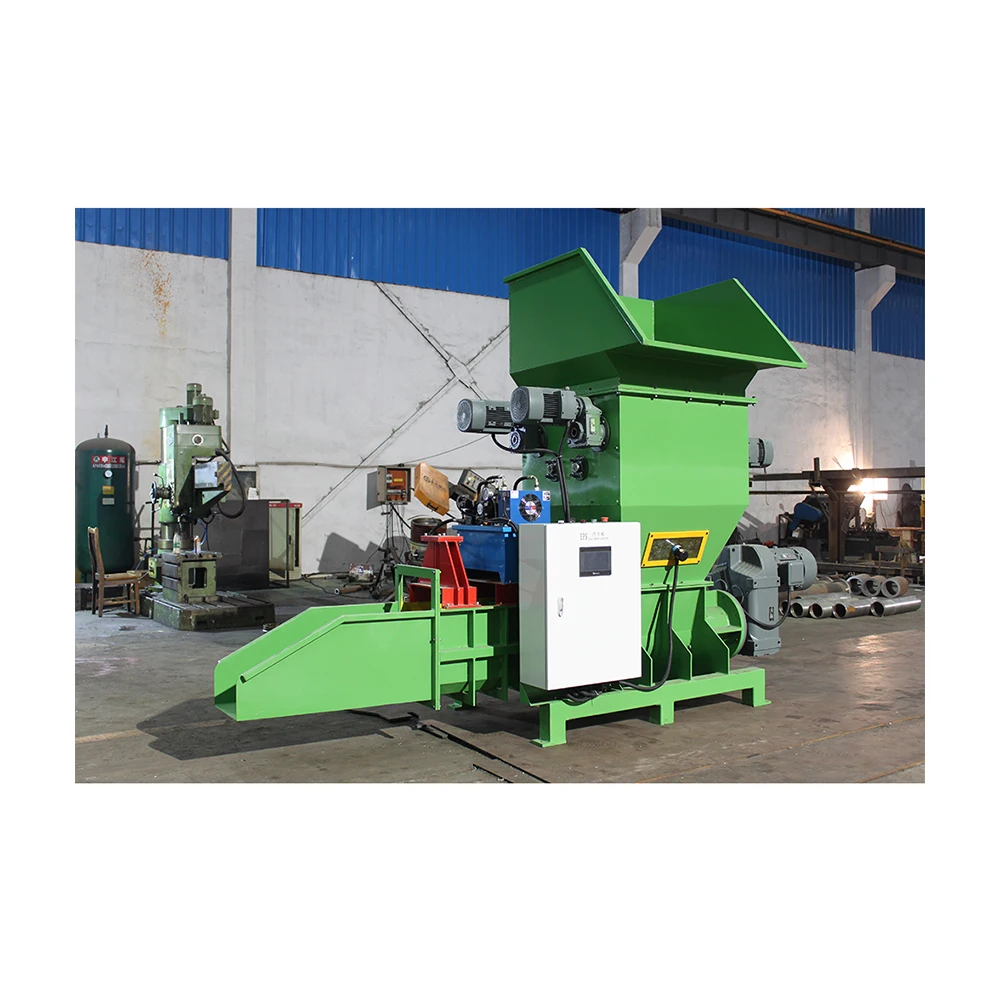

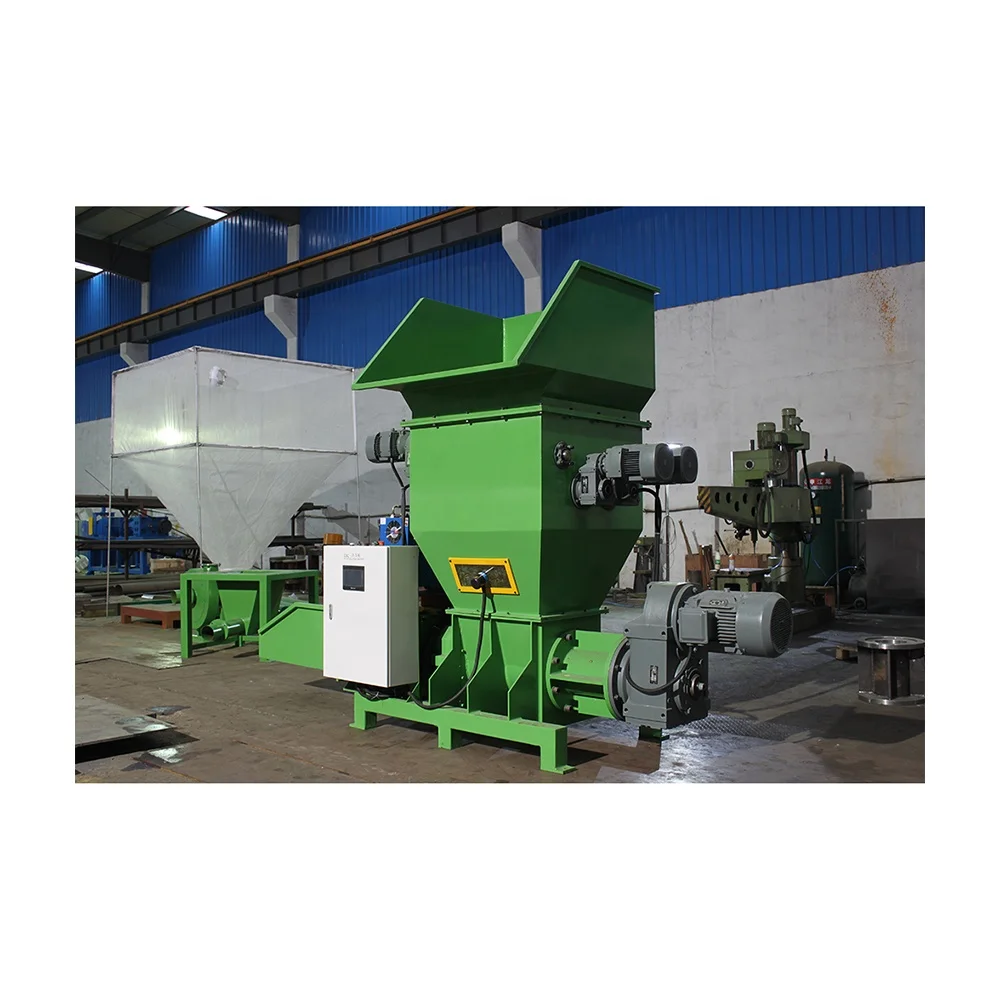

High capacity styrofoam compression production line is a machine to reduce the size of expanded polystyrene foam and expanded polypropylene foam for easier transportation. It is also known as EPS densifier and EPS compactor. It is widely used in sea food processing plant, electronic factories, white goods and black goods stores, and the supermarkets. Polystyrene compactor makes it profitable for municipalities and businesses to recycle EPS.
Main features:
1. Compacting expanded polystyrene with a density of 300-350kg/m3
2. Save costs for transport and land fill
3. Save space and handling by dealing with the EPS in a quick and efficient manner
4. Generate income from sales of the compacted EPS blocks, save power consumption
5. No heat is added to the process
1. Compacting expanded polystyrene with a density of 300-350kg/m3
2. Save costs for transport and land fill
3. Save space and handling by dealing with the EPS in a quick and efficient manner
4. Generate income from sales of the compacted EPS blocks, save power consumption
5. No heat is added to the process
Working principle:
Put the polystyrene foams into the crushing bin, and the motor drives the crushing bin to break the foams(Polystyrene beehive box) into small pieces. The foams that pass will be screened through the filter screen. Those that pass will enter the squeezing bin, while those that don't will continue to break until they pass. The extrusion bin is fed by motor driven screw. There is a water tank between the discharge channel and the extrusion bin. Two water pipes are connected on the water tank for water circulation and cooling effect. When the screw transfers small pieces of foam to the front of the outlet, the surface of the outlet is covered with a layer of 304 stainless steel, and the upper part is pressed by a hydraulic pump, so it is difficult to extrude the foam during the discharge. Wait for the foam block to be pushed out by the screw. When the hydraulic pump drops down and there is no material, the cover plate and the upper surface of the discharge channel can form a negative Angle and wait for the accumulation of foam blocks, and then repeat the previous action in a cycle.
Suitable Products:
EPS cold compactor is specially used for EPS plastic foam and polystyrene foam, such as foam box, EPS foam board, EPS foam fast food box, etc.
Product applications:
The large foam compactor is used to compress the capacity of EPS foam plastics, increase the density, compress the EPS foam into lumps, greatly reduce the volume of EPS foam, facilitate the recovery, stacking, storage and transportation of foam plastics, save space and reduce transportation costs, and increase economic benefits.
Product applications:
The large foam compactor is used to compress the capacity of EPS foam plastics, increase the density, compress the EPS foam into lumps, greatly reduce the volume of EPS foam, facilitate the recovery, stacking, storage and transportation of foam plastics, save space and reduce transportation costs, and increase economic benefits.
FMS-CP Line:
Product Parameters:
Model | FMS-CP LINE |
Screw Diameter | Φ350mm |
Input size | 1000mmx900mm |
Screw rotation speed | 42rpm |
Crusher blades | 10+11+10+11sets |
Blade rotation speed | 120rpm |
Main motor | 15kw |
Crusher motor | 2.2kw*4sets |
Hydraulic motor | 1.5kw |
Production size | 380x380mm |
Product Details

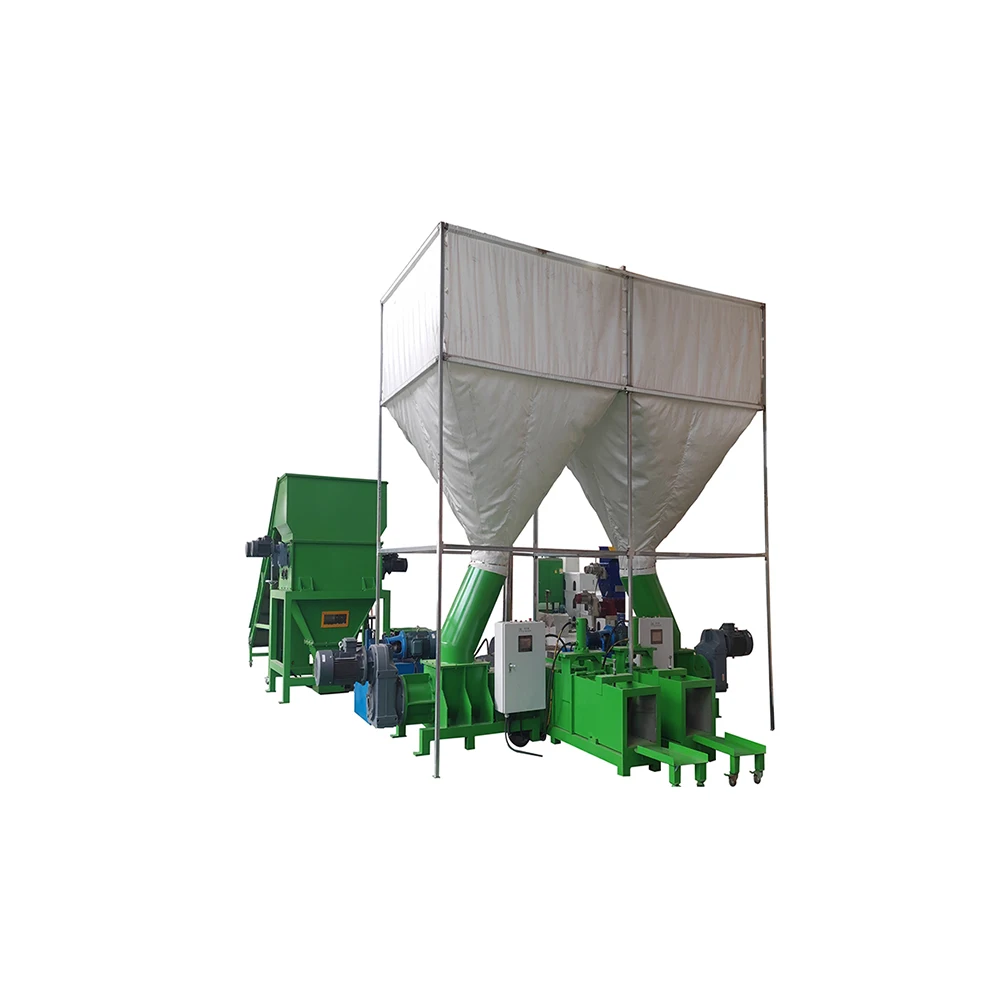

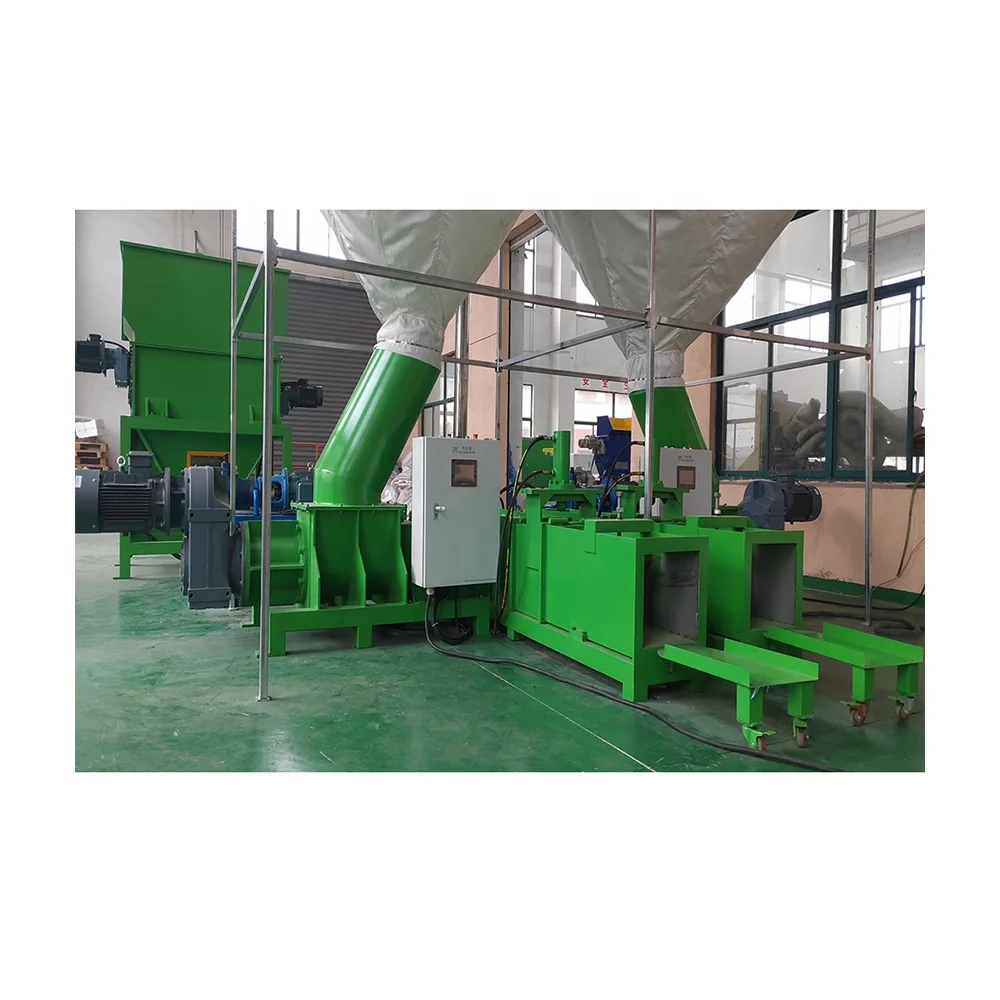

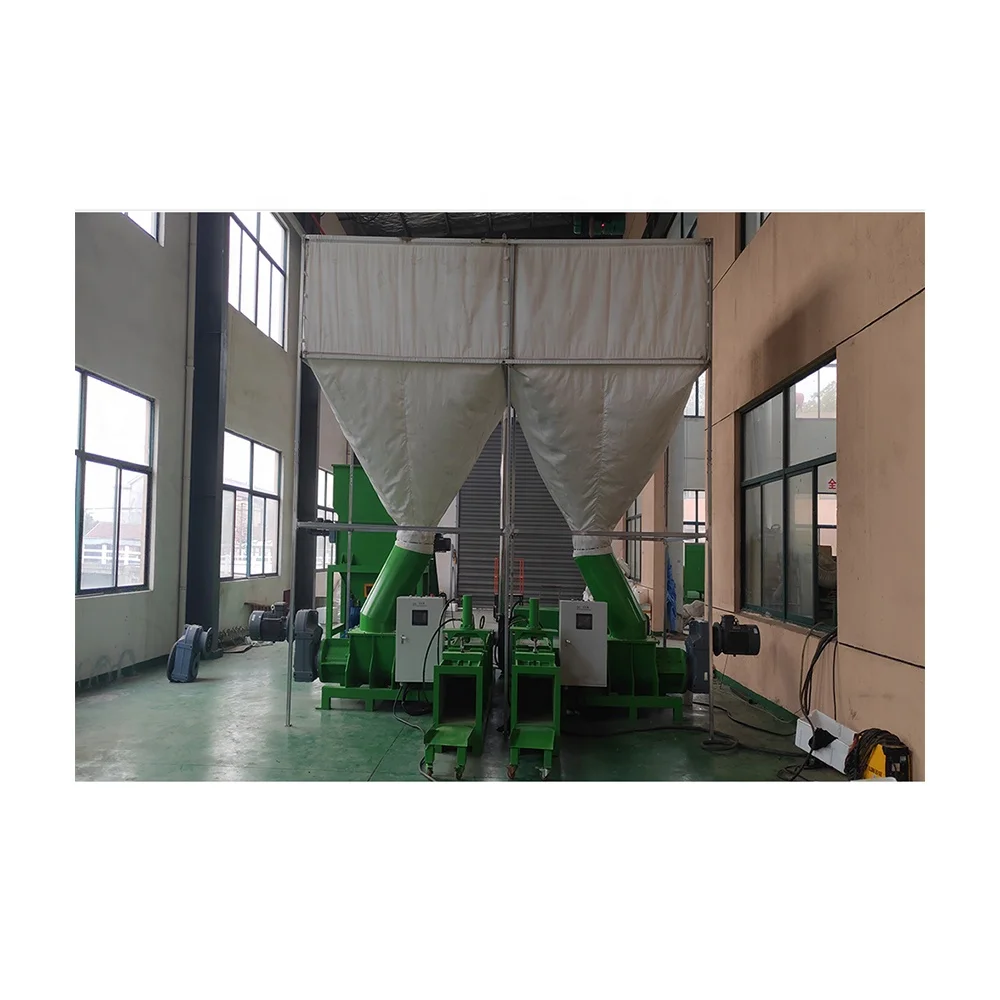

The FMS-CP compacting line adopt the conveyor belt, fan blowing and silo system to increase the capacity of the line.
Mainly use in large size recycling center, big sea food market
and the big distribution center.
Mainly use in large size recycling center, big sea food market
and the big distribution center.
Belt conveyor is for foam material feeding.
Gear box brand: TONGLI
Motor brand: SIEMENS BEIDE
.
Control system: PLC with SIEMENS touch screen
Final Products
SUZHOU FAMOUS MACHINERY CO.,LTD. is a professional manufacturer of plastic recycling machine in China. With a scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market.
We have been producing our goods with mature techniques and first-class quality. We have our own machining factory, so we are able to offer solutions for the recycling of most recyclable materials.
We have been producing our goods with mature techniques and first-class quality. We have our own machining factory, so we are able to offer solutions for the recycling of most recyclable materials.
