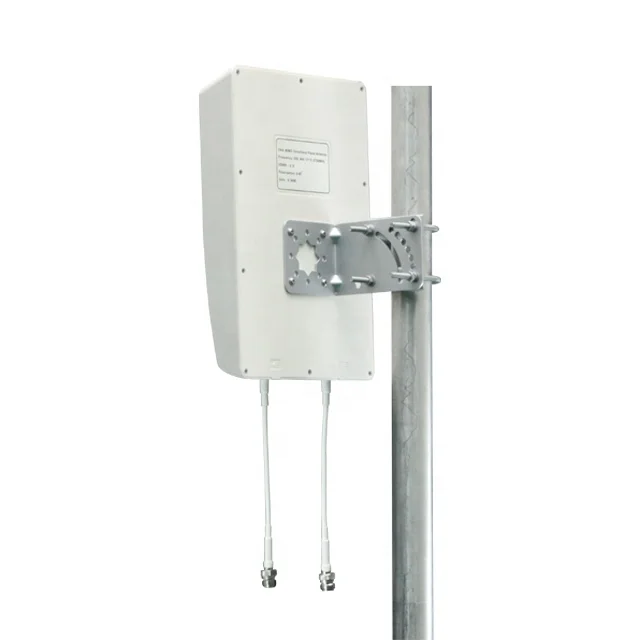

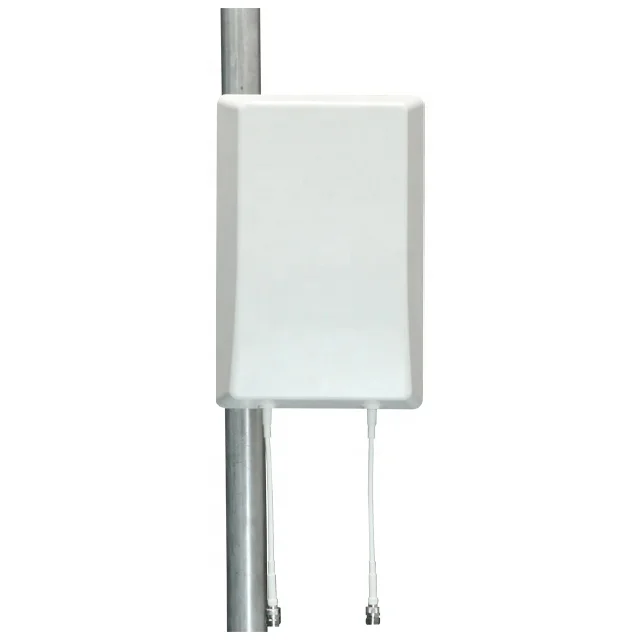

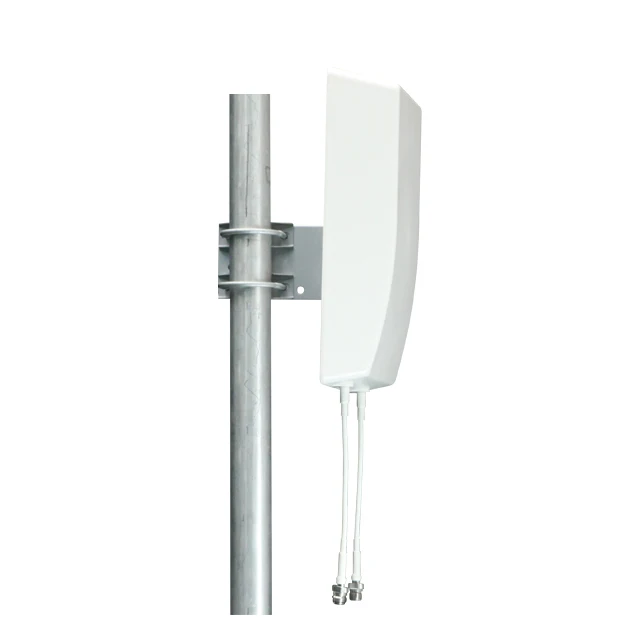

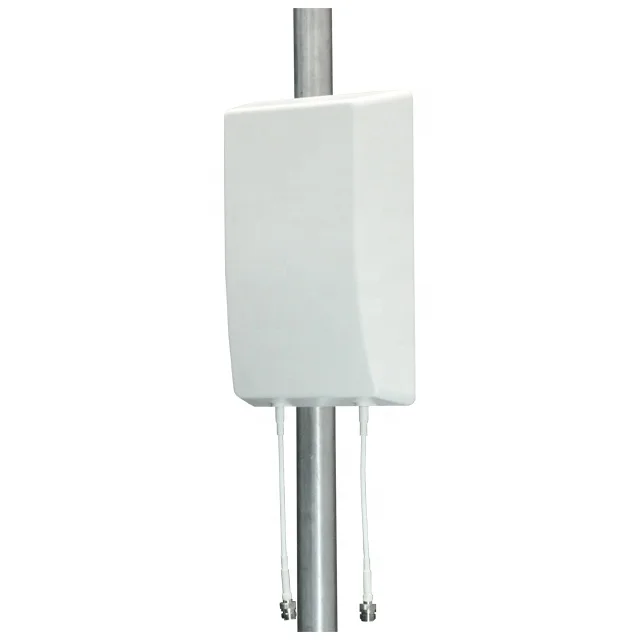

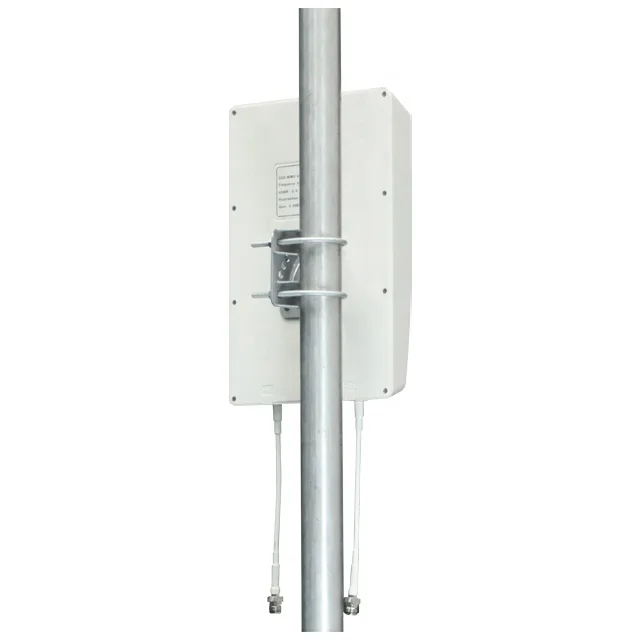

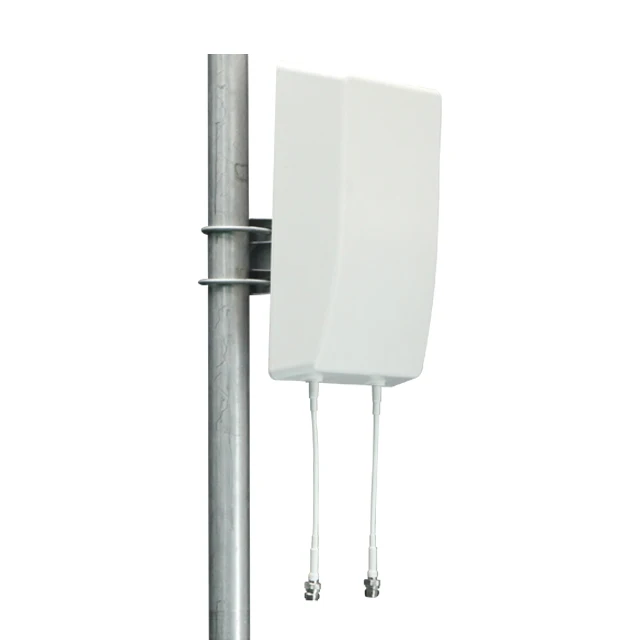

698 4000MHz 15dBi Directional Panel Pctel Antenna for Huawei 5G H112 and TS9 Connectors antennas for communications
- Category: >>>
- Supplier: WIS NETWORKS LIMITED
Share on (1600444797658):
Product Overview
Description
Product Paramenters
Features
* Frequency coverage for 700 MHz, 850 MHz, AWS and PCS bands
* Internal combiner eliminated the need for separate coax cables for each frequency
* Supplied with tilt and swivel mast bracket
* Weatherproof ABS
* Internal combiner eliminated the need for separate coax cables for each frequency
* Supplied with tilt and swivel mast bracket
* Weatherproof ABS
Application
* LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M applications
* Cellular networks
* DAS (Distributed Antenna Systems)
* IEEE 802.11b/g WiFi applications
* Public safety
* Cellular networks
* DAS (Distributed Antenna Systems)
* IEEE 802.11b/g WiFi applications
* Public safety
Model | ANT0640D15S-XP |
Frequency range | 698-960/1710-4000MHz |
Gain | 5/15dBi |
VSWR | <2.0 |
Polarization | Dual Linear (±45°) |
Isolation | >20dB |
Front to Back Ratio | >15dB |
Horizontal Beamwidth | 45° to 80° |
Vertical Beamwidth | 25° to 80° |
Maximum Power | 50 W |
Impedance | 50 ohm |
Lighting protection | DC grounded |
Connector | N Female or customized |
Antenna Size | 315x200x73 mm |
Antenna Weight | 1Kg |
Antenna color | white |
Diameter of the Pole | Φ30-50mm |
Operational Temperature | -40°C to +70°C (-32°F to +158°F) |
