low cost cnc lathe machine CK5112 wheel cnc lathe for sell
- Category: >>>
- Supplier: Zaozhuang City Tengdong Machine Tool Co. Ltd.
Share on (1600444906671):
Product Overview
Description
Company Profile
Product Description

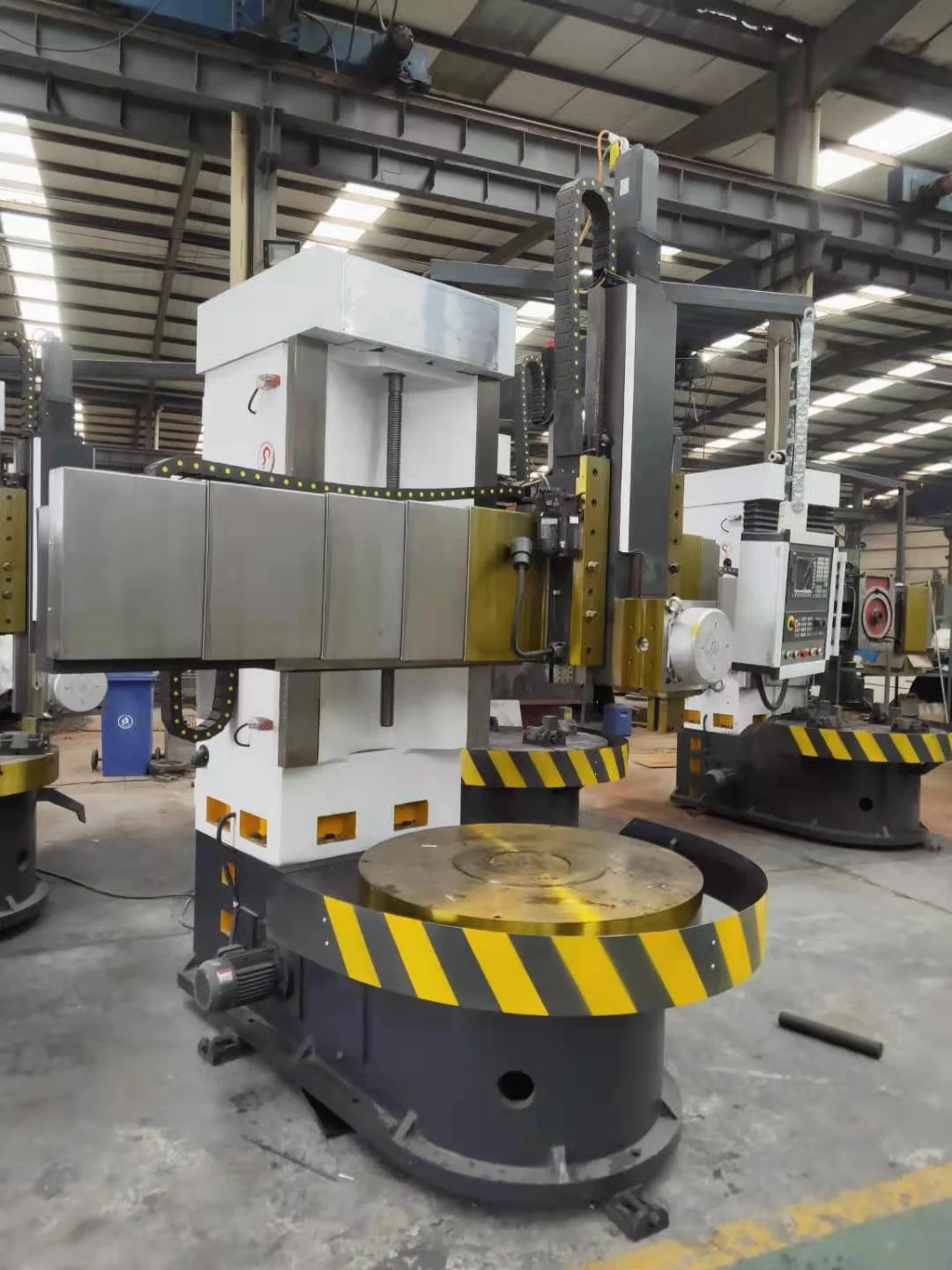

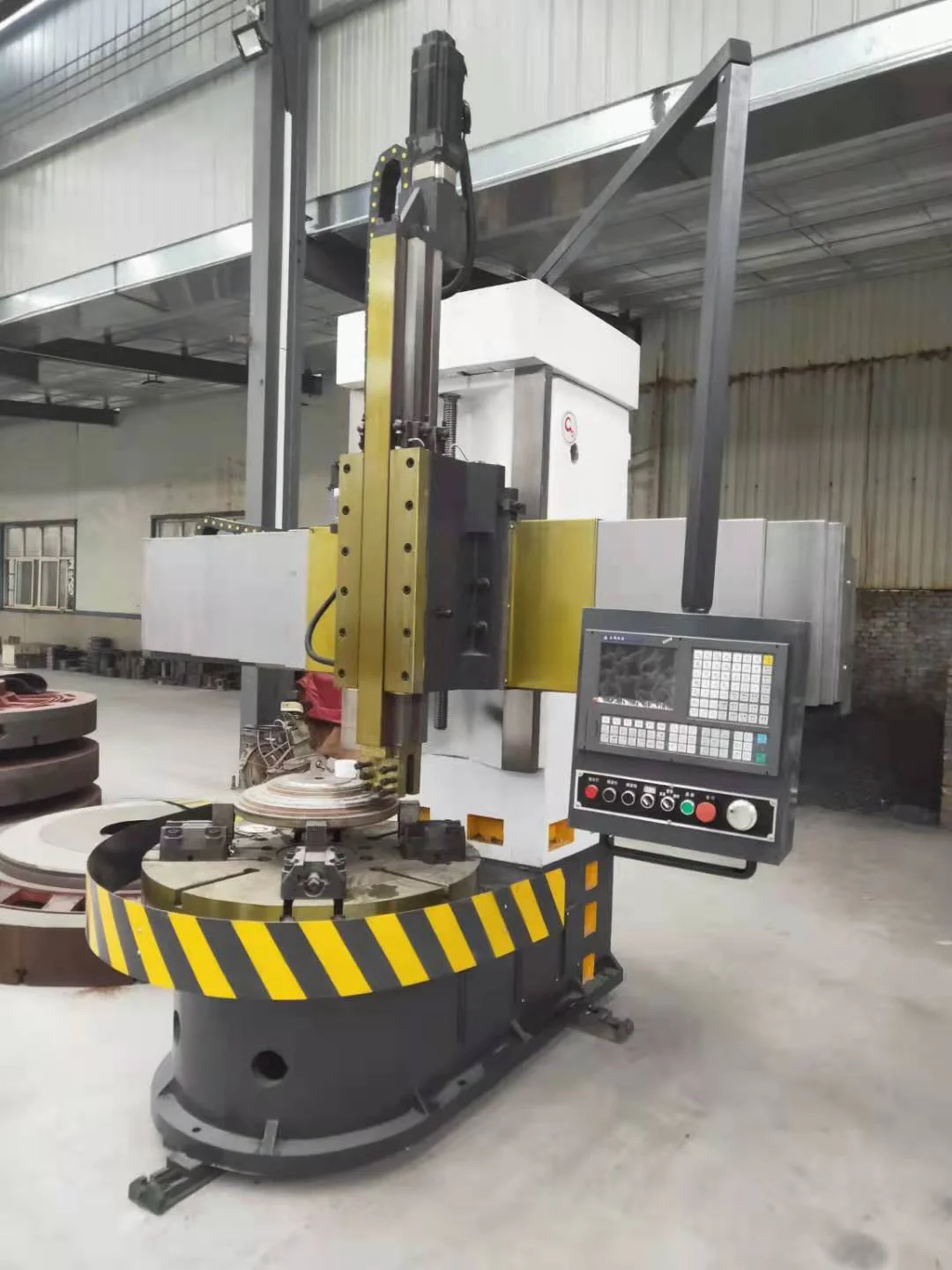

Characteristics CK5112 Vertical Lathe
Vertical Chinese metal lathe is suitable to process ferrous metal, nonferrous metals and partial non-metallic material, and could achieve the processing of turning of the end face, inside and outside cylindrical surface, inside and outside circular conical surface and drilling, expanding, reaming of the hole. The vertical lathe machine cutting action is controlled by the PLC, and feeding axis is driven by the AC asynchronous servo motor, with touch screen display and hand-held pulsed. Main transmission is driven by the spindle AC servo motor, hydraulic gear change and two gears stepless speed regulation. Tool rest adopts the T-type ram manual 5-tool position tool table structure with good rigidity and convenient tool change. Worktable is manual 4-jaw single movement chuck.
Specification
Specification | CK5112 | ||
Max. Swing diameter | 1200mm | ||
Worktable diameter | 1000mm | ||
Max.height of workpiece | 1000mm | ||
Max. Workpiece weight | 1500kg | ||
Worktable rotating | range | 5--120r/min | |
levels | Stepless | ||
vertical&side tool holder feeding | range | 0.8--86mm | |
Levels | stepless | ||
Max.cutting force of vertical tool holder | 1200kg | ||
Total cutting force | 2000kg | ||
Max. torque | 1250kg/m | ||
Vertical tool holder stroke | horizontal | 700mm | |
vertical | 500mm | ||
Crossbeam stroke | 650mm | ||
Crossbeam fast move speed of vertical&side tool holder | 1.8m/min | ||
Crossbeam lifting speed | 0.44m/min | ||
Arbor section dimension(width*height) | 30*40mm | ||
Main motor power | 15kw | ||
Overall dimension(length*width*height) | 2360*2277*3100mm | ||
Weight | 7000kg | ||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
Q2.What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q3.How soon can I receive the goods?
A:Most of our products are in stock, and we will arrange shipment around a week after payment is completed.
Q4.Can I trust you?
A:Sure, we’re Alibaba Gold Suppliers , Alibaba Assessed Supplier , Alibaba Trade Assurance Supplier.
Q5.What is the package? Is it suitable for shipment?
A:Machine is by waterproof cloth to covered.And be packed by standard exported wooden case with steel foot.. It is very much strong for oversea transportation.
Q6.Are you manufacturer?
A: Yes, we are a manufacturer of machine tools,we have our own technical team, and about 100,000 sq.m workshop, welcome to visit us!
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
Q2.What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q3.How soon can I receive the goods?
A:Most of our products are in stock, and we will arrange shipment around a week after payment is completed.
Q4.Can I trust you?
A:Sure, we’re Alibaba Gold Suppliers , Alibaba Assessed Supplier , Alibaba Trade Assurance Supplier.
Q5.What is the package? Is it suitable for shipment?
A:Machine is by waterproof cloth to covered.And be packed by standard exported wooden case with steel foot.. It is very much strong for oversea transportation.
Q6.Are you manufacturer?
A: Yes, we are a manufacturer of machine tools,we have our own technical team, and about 100,000 sq.m workshop, welcome to visit us!
