High quality China 4HP 5HP 10HP 12HP single cylinder 4 stroke air cooled small diesel engine with electric start motor
High quality China 4HP 5HP 10HP 12HP single cylinder 4 stroke air-cooled small diesel engine with electric start motor
High quality China 4HP 5HP 10HP 12HP single cylinder 4 stroke air-cooled small diesel engine with electric start motor
High quality China 4HP 5HP 10HP 12HP single cylinder 4 stroke air-cooled small diesel engine with electric start motor
High quality China 4HP 5HP 10HP 12HP single cylinder 4 stroke air-cooled small diesel engine with electric start motor
High quality China 4HP 5HP 10HP 12HP single cylinder 4 stroke air-cooled small diesel engine with electric start motor
High quality China 4HP 5HP 10HP 12HP single cylinder 4 stroke air-cooled small diesel engine with electric start motor

High quality China 4HP 5HP 10HP 12HP single cylinder 4 stroke air cooled small diesel engine with electric start motor

Share on (1600444917866):


Price:$205.00 - $229.00

Quantity:


Product Overview

Description



Product details

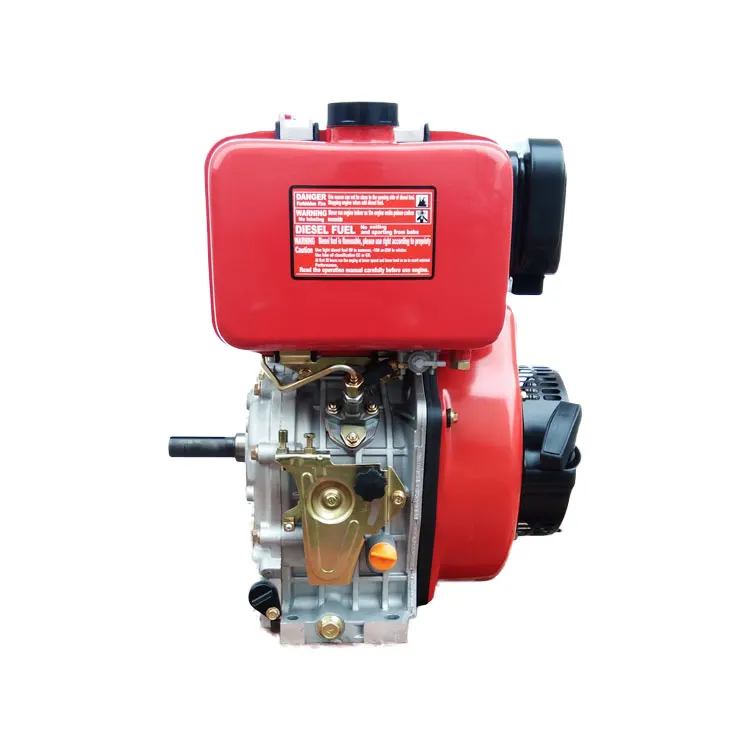

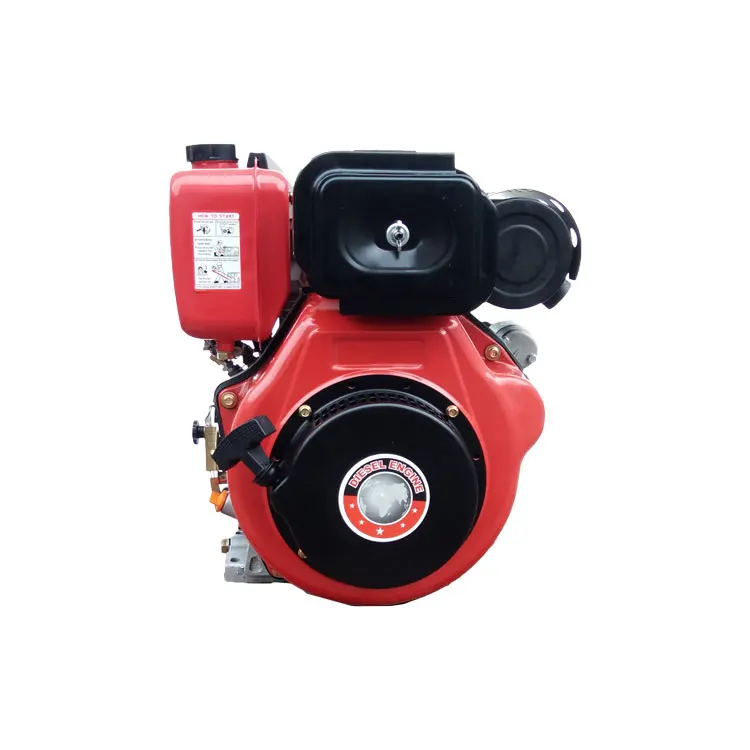

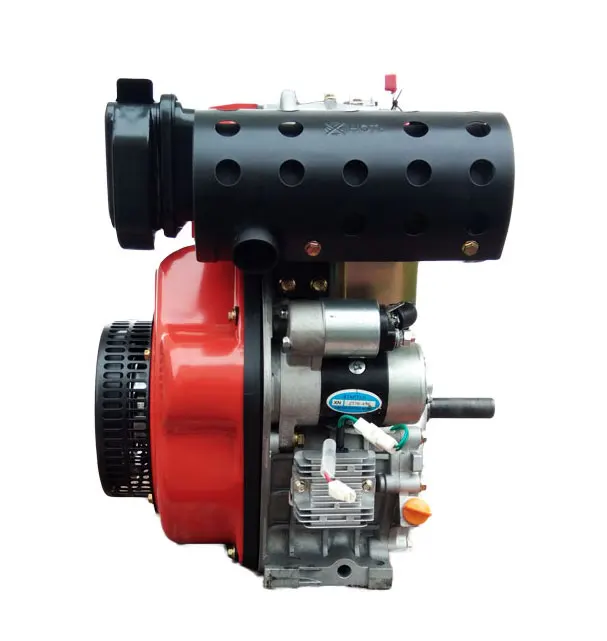

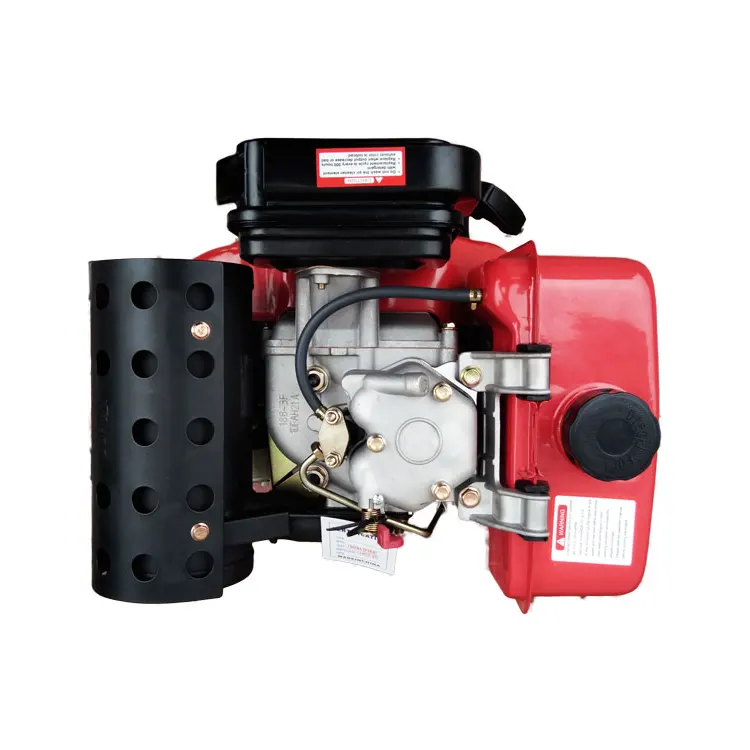

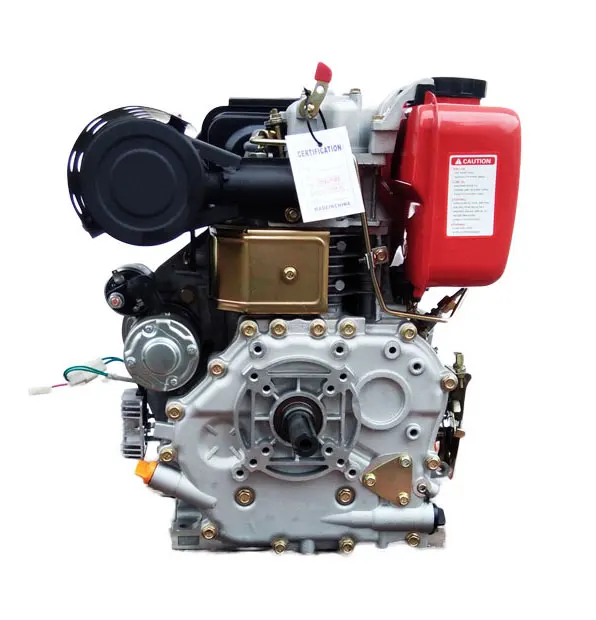

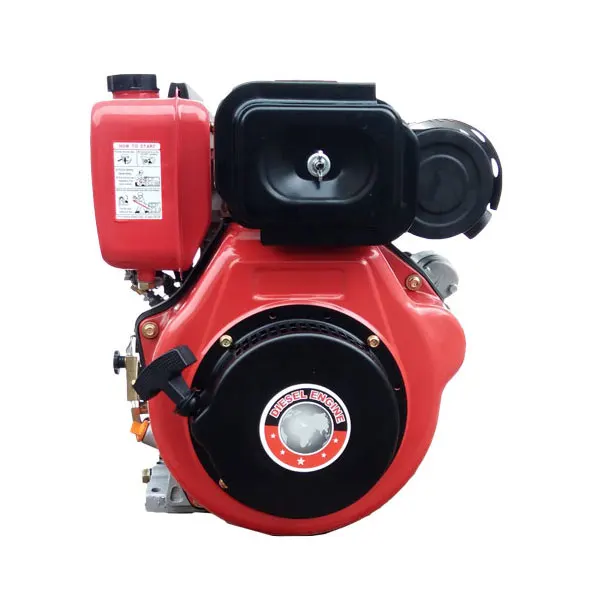

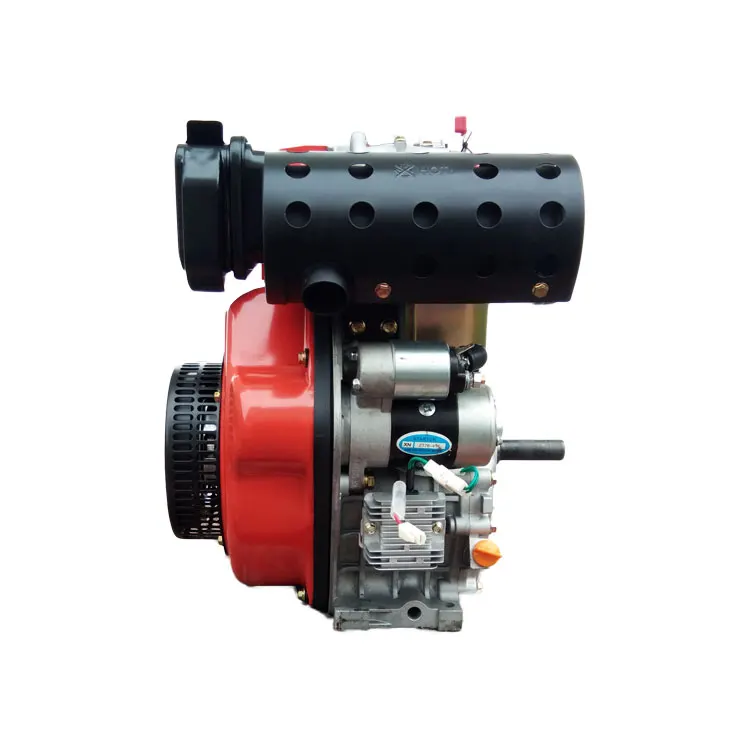

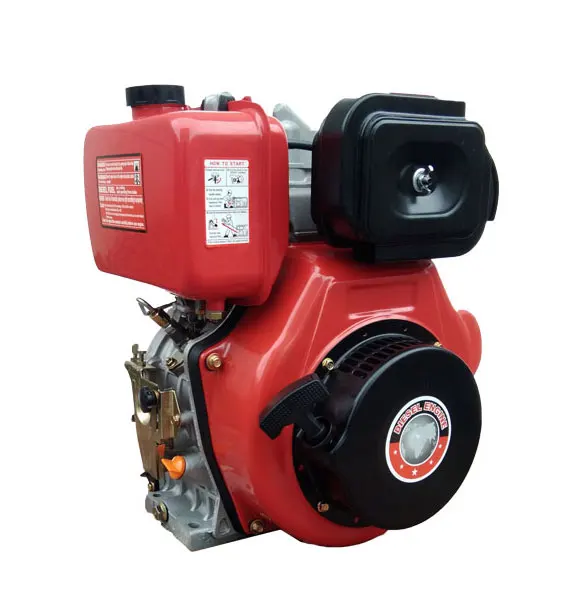

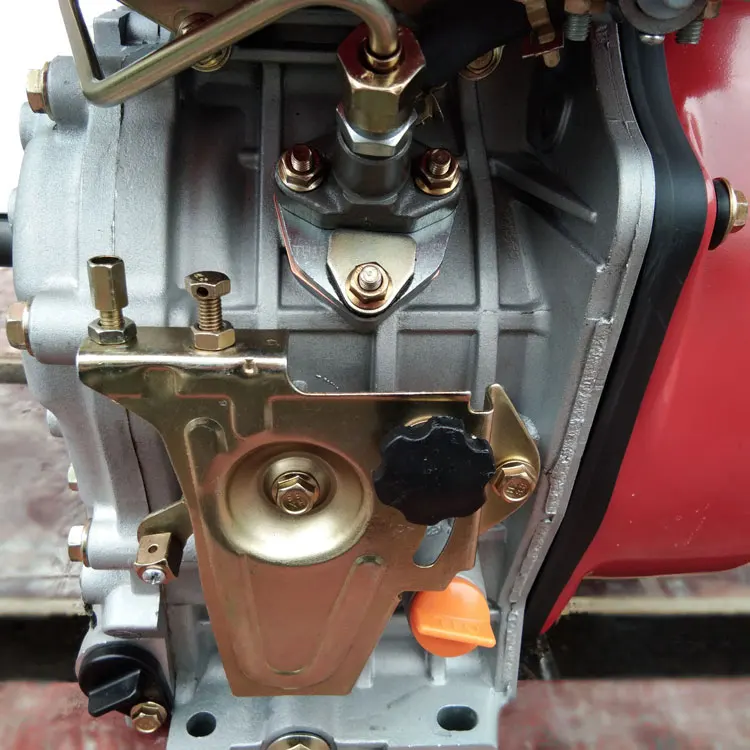

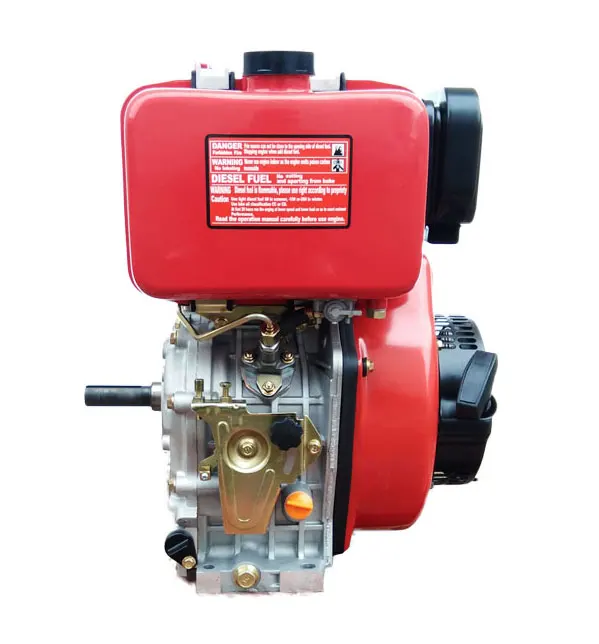

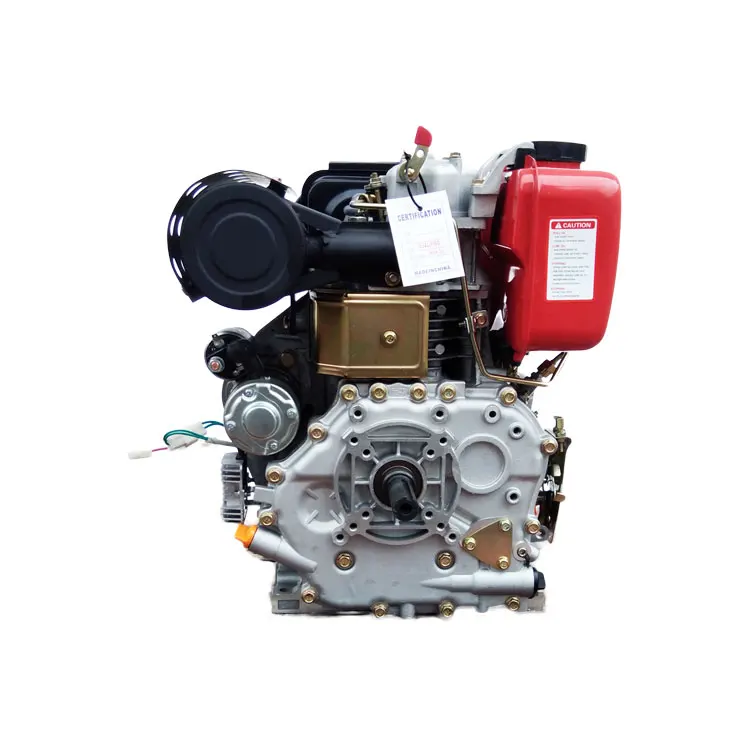

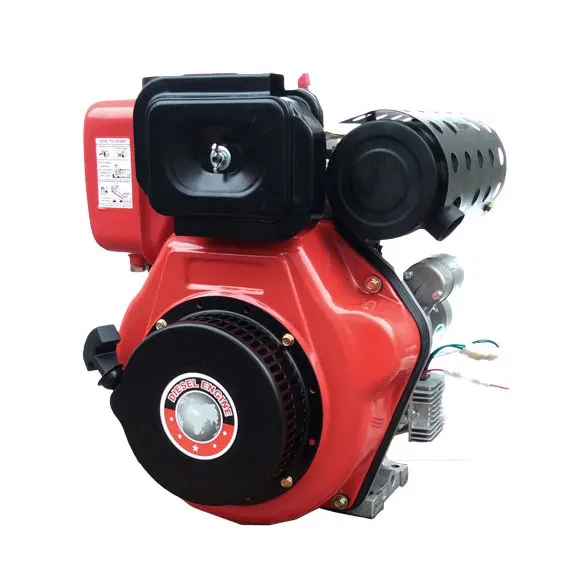

Diesel engine 188FA/FAE
1.Ultra low fuel consumption
Using the patented technology of top clearance oil pump and bottom inertia fuel injection pump, combined with the characteristics of new combustion chamber and high combustion consumption rate, its fuel consumption economy is much lower than that of gasoline engine.
2.Strong and powerful
Large reserve torque, strong power and inherent super overload capacity
3.Low noise volume
The well-designed gear transmission structure can greatly reduce vibration and noise. The patented air filter can significantly reduce the noise of intake and exhaust
4.Safe and reliable
Exquisite craftsmanship and strict quality concept ensure the safety and reliability of products
5.Wide application range
Various output forms are available for customers to choose


Engine model
HD188FA/FAE
Type
Single cylinder, four stroke, air-cooled, vertical
combustion system
Direct injection
Bore×stroke (mm)
88*75
Displacement(cc)
456
Compression ratio
19.5：1
Rated speed [RPM]
3000
3600
Rated power [kW]
6.6
6.9
Rated power [HP]
9.0
9.4

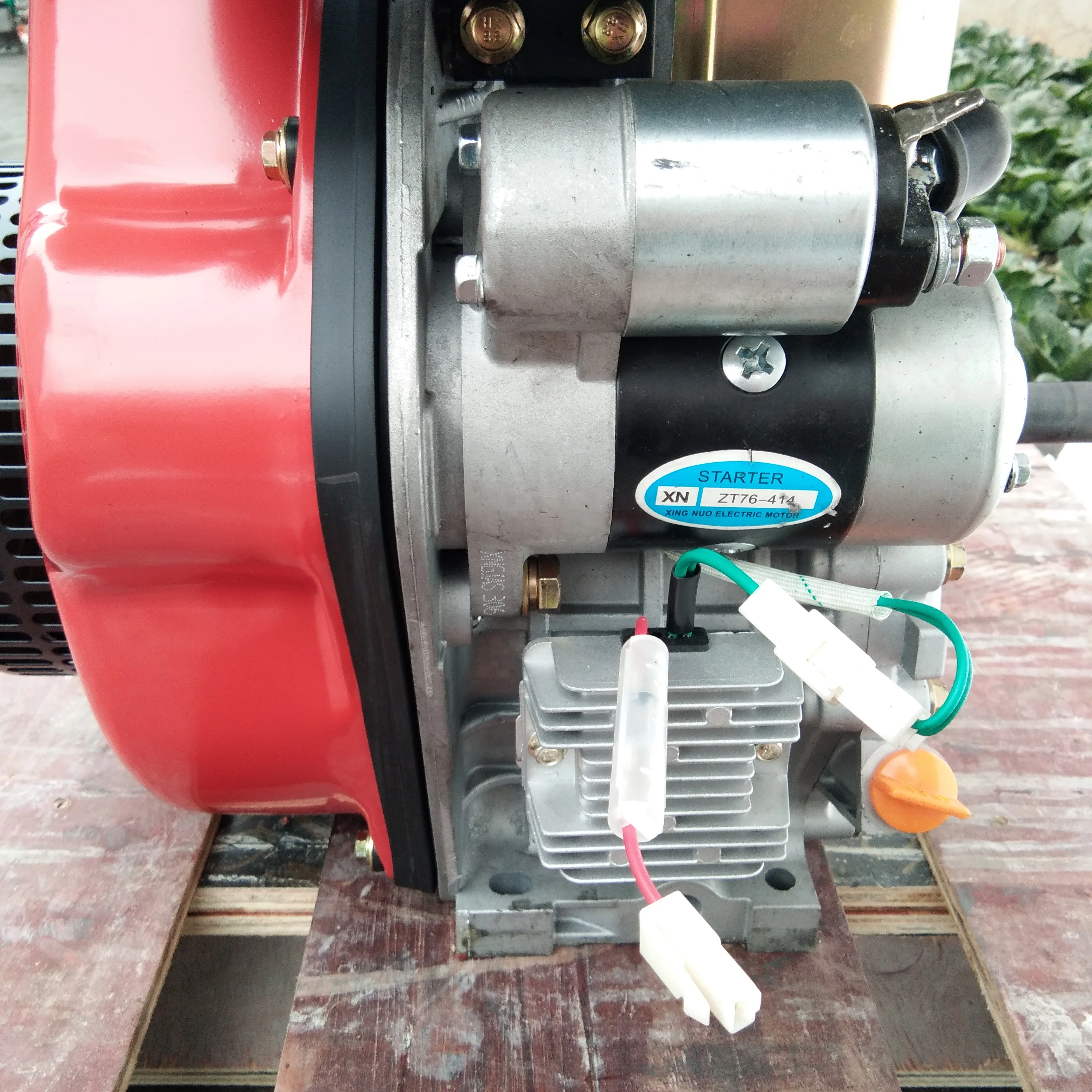

Start mode
F:Recoil
E:Electric
Tank volume (L)
5.5
Oil capacity (L)
1.65
Fuel consumption (g / kWh)
275
 280

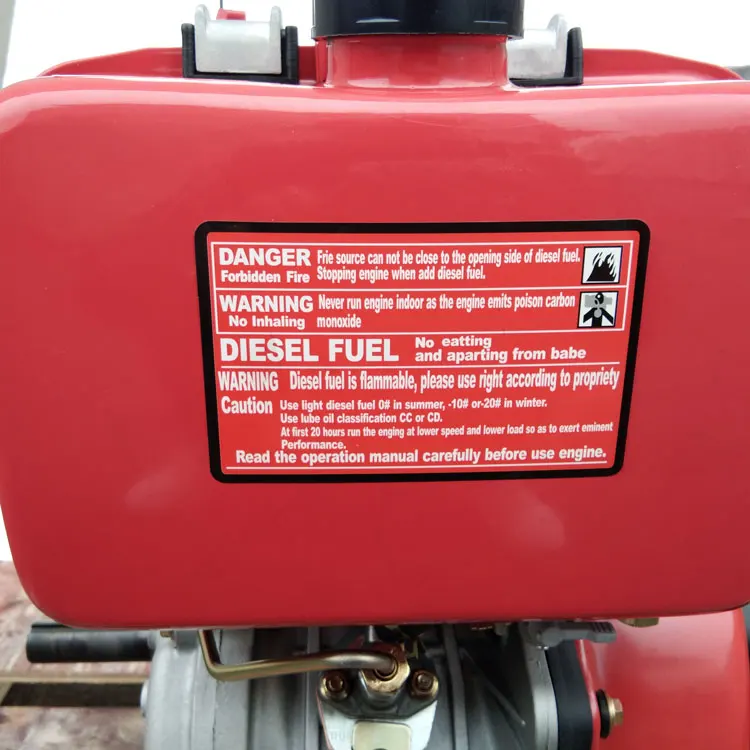

Fuel
Diesel: 0# (summer), -10# (winter)
 Lubrication oil
Sae10w30 (above CD level)
Size(mm)
417*441*494
Net weight(kg)
F: 48
 E: 53
Steering (viewed from flywheel)
Clockwise


Certifications





CE & ISO9001 certificates
In order to support our dealers' business activities around the world, our company has successively obtained ISO9001 and CE
certification to ensure that our products can enter different markets.

We‘re sincerely looking for distributors all over the world.

ATTENTION:
We can provide you
1.Factory direct price,more competitive on your market
2.High quality .We only use high quality components
3.Custom products.
4.Quick shipment.
5.Online payment.
