600ml hydrogen generator electrolyzer water electrolyzed cell electrolysis cell with PEM technology
- Category: >>>
- Supplier: Shandong Junhe Instrument Co. Ltd.
Share on (1600445014708):
Product Overview
Description
Product Description
JH-E series PEM electrolyzer cell is an advanced patented product, which is Low voltage and higher efficiency, energy-saving and of environmental protection , producing hydrogen and oxygen through the electrolysis of pure water (without adding alkali).
Working Principle
The proton exchange membrane (PEM), which only allows water and positive ions to cross between compartments. The membrane also serves as the electrolyte in the cell, eliminating the need for hazardous liquid electrolytes such as concentrated potassium hydroxide. PEM water electrolysis simply splits pure deionized water (H2O) into its constituent parts, hydrogen (H2) and oxygen (O2), on either side of this membrane. When a DC voltage is applied to the electrolyzer, water fed to the anode, or oxygen electrode, are oxidized to oxygen and protons, while electrons are released. The protons (H+ ions) pass through the PEM to the cathode, or hydrogen electrode, where they meet electrons from the other side of the circuit, and are reduced to hydrogen gas. The two reactions that occur in the cell are as
follows:
2H2O -> 4H+ + 4e- +O2
4H+ + 4e- -> 2H2

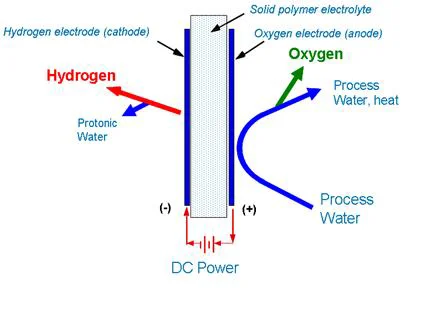

Thus, the only possible components of the streams are hydrogen, oxygen and water moisture, as shown in the following picture:
follows:
2H2O -> 4H+ + 4e- +O2
4H+ + 4e- -> 2H2
Thus, the only possible components of the streams are hydrogen, oxygen and water moisture, as shown in the following picture:
Specification
Model | JH-E600 |
Hydrogen production rate | 0-600ml/min |
Oxygen Production rate | 0-300ml/min |
Core Components | Dupont N117, Titanium mesh |
Weight | 2KG |
Diameter: Dimension(L*W*H) | Diameter: 138mm |
Technology | PEM Technology |
Membrane | Dupont N117 |
MOQ | 1pcs |
Power supply | DC 6-9V, 45A |
HS code | 854390 |
Warranty time | 12 months |
Certification | CE |

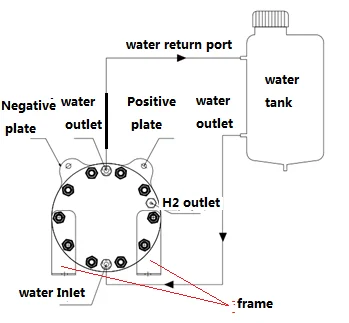

The installation method
The installation method as following:
1. The bracket of the cellis fixed in the appropriate position with the bolt of M5, and the water tank is placed on the side of the cell, and the outlet of the water tank is required to be higher than the outlet of the cell.
2. The water outlet of the water tank and the intake port of the cell are connected with the silica gel tube of φ6*9. The water outlet of the cell and the return water of the water tank are connected to form a loop.
3. The power cathode is connected to the cathode plate of the cell, and the negative electrode of the power supply connects the negative plate of the cell.
4. Connect the hydrogen outlet to the load with a φ3 stainless steel tube and tighten the nut.
5. Add de-ionized water, the water level should not be lower than the water tank outlet position, the maximum must not exceed the water tank back position. If it is found that there is no water in the silicon hose of the connected cell, the connection is not correct, and check reconnection is required.
Remarks:
2. The water outlet of the water tank and the intake port of the cell are connected with the silica gel tube of φ6*9. The water outlet of the cell and the return water of the water tank are connected to form a loop.
3. The power cathode is connected to the cathode plate of the cell, and the negative electrode of the power supply connects the negative plate of the cell.
4. Connect the hydrogen outlet to the load with a φ3 stainless steel tube and tighten the nut.
5. Add de-ionized water, the water level should not be lower than the water tank outlet position, the maximum must not exceed the water tank back position. If it is found that there is no water in the silicon hose of the connected cell, the connection is not correct, and check reconnection is required.
Remarks:
1,The power supply of the electrolytic cell is a DC Constant current power supply.
2,The water for the cell must be de-ionized or two distilled water, the resistivity is more than 1MΩ·cm,
3,The electrolysis cell will be damaged if the water is not up to the standard.
Application
★ Lab experiment and teaching
★ Laboratory Analytic instrument
★ Hydrogen healthy care industrial
★ Hydrogen beauty industrial
★ Fuel for special field
★ Hydrogen supply for fuel cell
★ Other pure H2 application field
Packing & Delivery
One piece electrolysis cell is in carton box, 20 pieces electrolysis cells are in plywood box.
Company Profile
Shandong Junhe Instrument Co.,Ltd,professionally produces and sells kinds of hydrogen generators, lab instruments and hydrogen breathing machines. With 10 years of international business experience in analytical instruments area, we have exported to more than 30 countries,including the UK, USA, Canada, the Netherlands, Germany, Indonesia, Japan, India, Australia, Saudi Arabia, New Zealand etc.Our company always put product quality and customer service in the first place. We can meet with customers' needs with the quickest speed and professional service. Welcome visit our company. We hope that we can win-win together!
FAQ
1. What is the delivery time?
Normally within 3 days. Can produce different machines according to different country, different customers requirement.
2. How does your factory do regarding quality control?
All the products has 3 days ageing testing and 100% double check before shipment.
3, How long is the warranty period?
3, How long is the warranty period?
We supply one year quality guarantee freely. Supply lifetime maintenance. After one year. Only charge raw material fees.
4.Can we use our own brand on the product, even on the gift box?
4.Can we use our own brand on the product, even on the gift box?
Yes, OEM is available for you.Welcome to contact us to negotiate your brand or logo details on the goods.
5. Are there any MOQ requirement for OEM order?
5. Are there any MOQ requirement for OEM order?
A: Yes, if OEM, For first order,it’s at least 100pcs.
