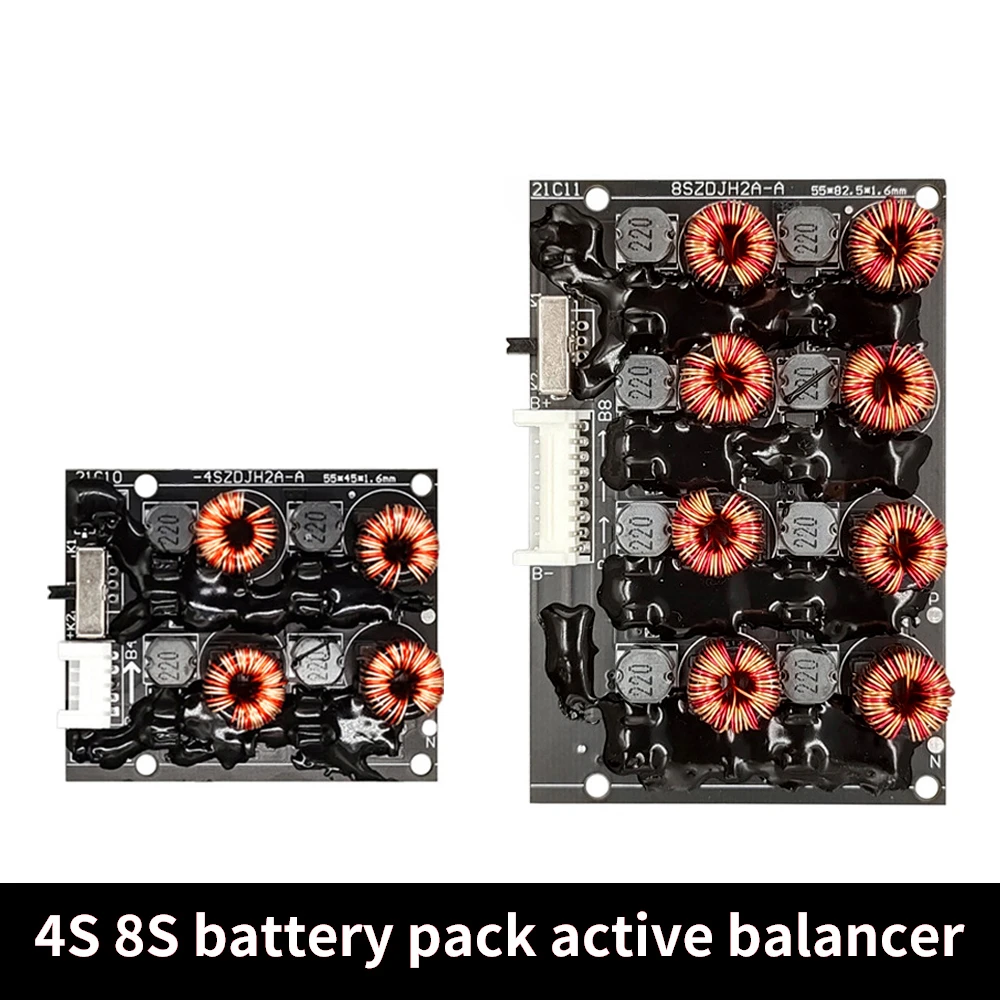

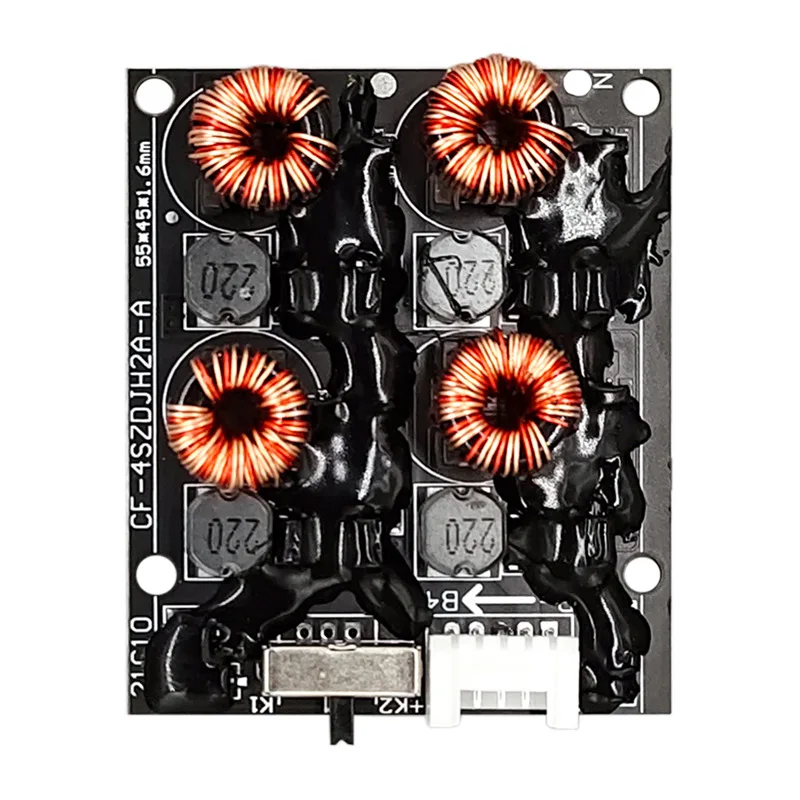

2A 4S 8S BMS Active Balancer Equalizer Lifepo4 Li ion Lipo Lithium Battery Energy Transfer Board Balance Module

1. The chip will automatically balance and detect that when the differential pressure value is greater than 0.1. it will start continuous work ---- intermittent work --- stop working.

2. Accurate balance differential pressure ≤ 0.03V.

3.The greater the voltage difference, the greater the balance current, and the maximum 2A balance current.

4.It can be used for model toy battery repair, and can also be used in combination with BMS long-term fixed battery pack.

5. Three adjustable balance modes:

K1: Turn on active balancing all the time.

Center: When cell voltage below 3V turn off active balance and sleep.

K2: Turn off active balance and and sleep.

6. Balance pressure difference:<10mV

7. Bms balance type: Active Balance

8. Applicable: 3.2V 3.7V battery pack

9. Working power consumption:<10mA

10. Cable length: about 480mm
