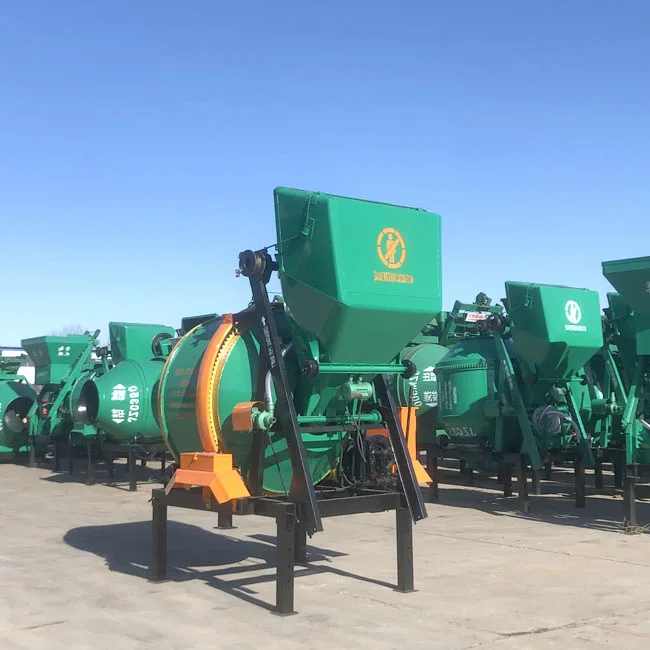

electric engine concrete mixer mini high capacity for sale mobile self loading concrete mixer in China

Product Overview

Description

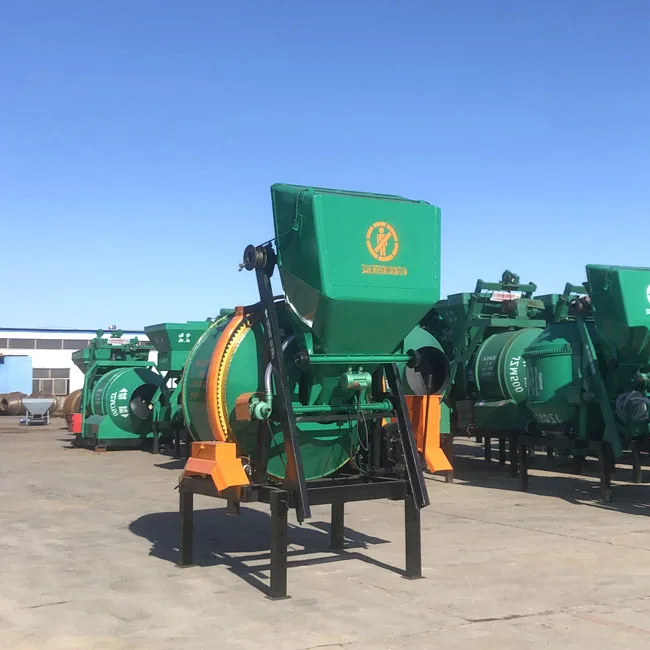

electric engine concrete mixer mini high capacity for sale mobile self loading concrete mixer in China

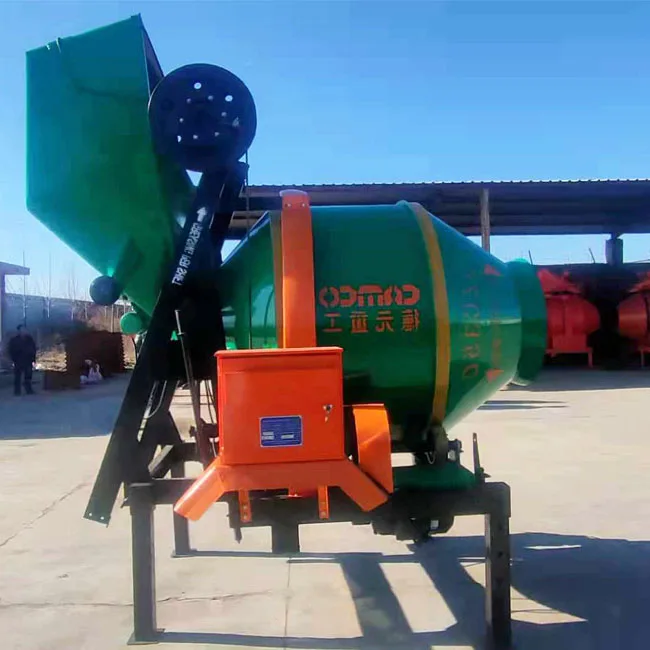

JZC series concrete mixers are the drop-style bi-pyramid reversal discharging mixers; the mixing drum is driven by the gear ring; in operation, forward rotation is mixing whereas reverse rotation is feeding; the mixers can mixplastic and semi-rigid concrete, suitable for general construction sites, road, bridge projects and a variety of concrete component factories.

Model	JZC350
Loading mode	MANUAL; ELECTRIC
Charging capacity(L)	600; 560;
Discharging capacity(L)	350
Productivity(m³/h)	10-14
Speed of drum(r/min)	14
Maximum particle size of aggregate (mm)	60
Mixing motor	5.5

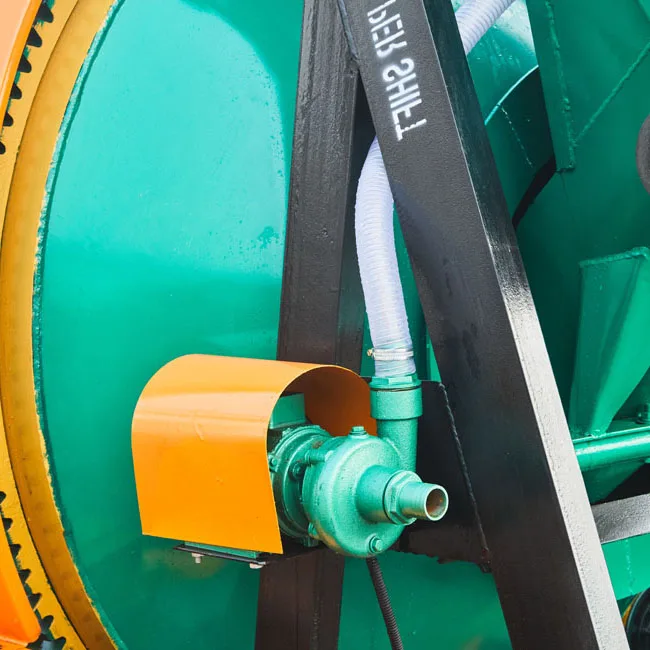

Water pump motor(kw)	0.55
Motor material	copper motor
Oil Volume	3.5L
Tyre size	6.5-16
Leg specifications(mm)	90*90*3
Maximum speed of hauling (km/h)	20
Packing dimension L×W×H(mm)	1700*2300*2550; 2766*2140*3000;  3800*2050*2690
Total weight(kg)	1350; 900;
Container loading plan(40HQ)	1750*2300*2600(7); 2800*1750*2500(4)



Camco Group was established on June 16, 1998 and headquartered in China. Now with 9 subsidiaries in Zambia, Malawi, Kenya and Cameroon, we have first-class products and perfect services, focusing on customized procurement supply chain for domestic and foreign customers. Over 20 years’ experience in Equipment and Machine business, we would like to offer one-stop solution for our customers. What we can offer is not only about agriculture machinery, agricultural processing machinery, aquaculture equipment, construction machinery and power equipment, but also the perfect after-sales as well as a comprehensive contractor for international purchasing.
