Shrink Sleeve Applicator Machine Round Flat Bottle Label Applicator Machine
- Category: >>>
- Supplier: Zhangjiagang Sky Machine Co. Ltd.
Share on (1600445164091):
Product Overview
Description

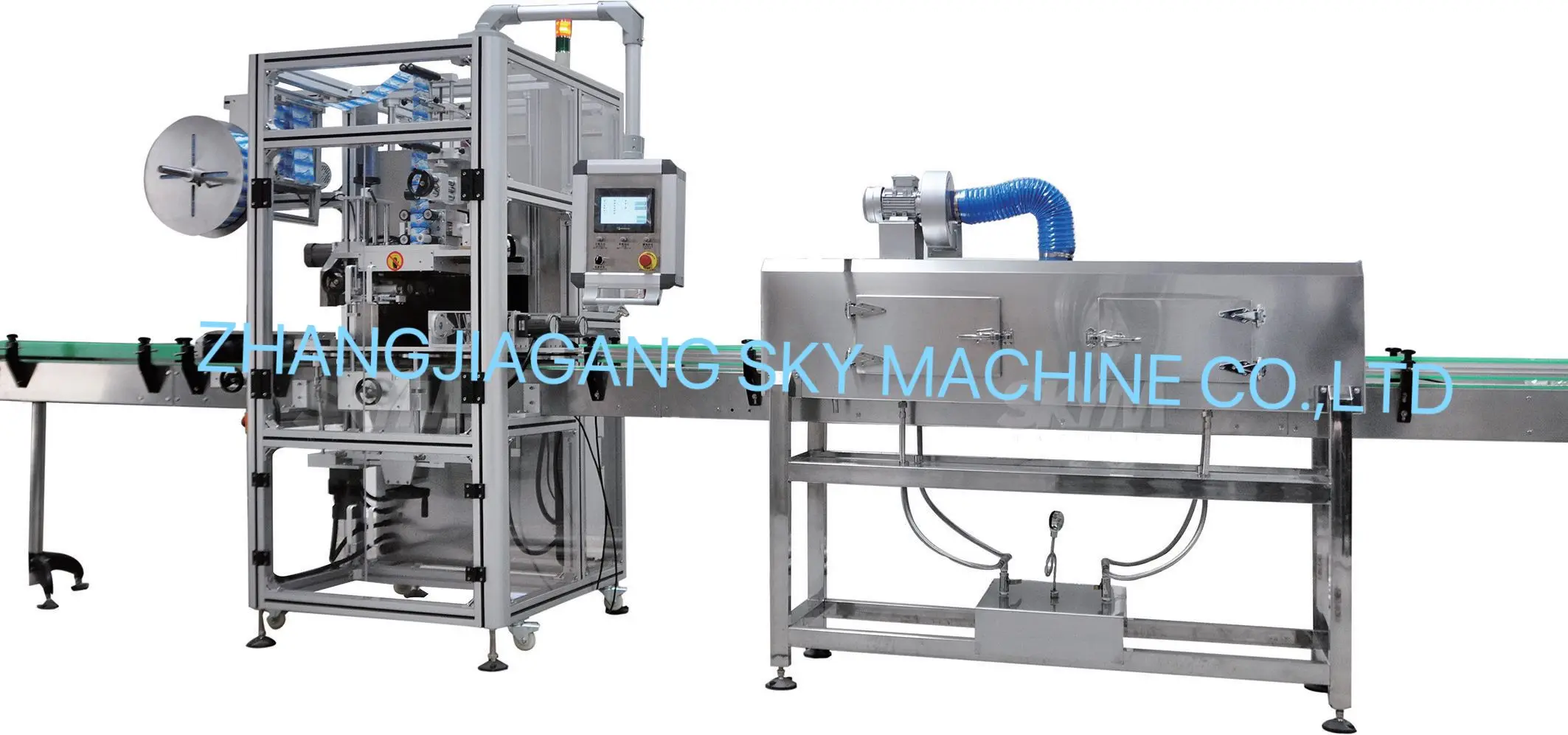

Automatic PVC Sleeve Shrink Labeling Machine
The machine adopts international advanced technology; cover the circle label on the pet bottle.And then hot shrinking to fix on the position which bottle body designated.This machine's structure is compact, and suitable for the production line of different direction and different height. The machinery part adopts combination designing of modularization, and makes the machine reasonable. The height adjustment adopts motor fluctuating; It is convenient to replace the material. The special cutter head designing, make the film-rolling cut more exactly and reliably.

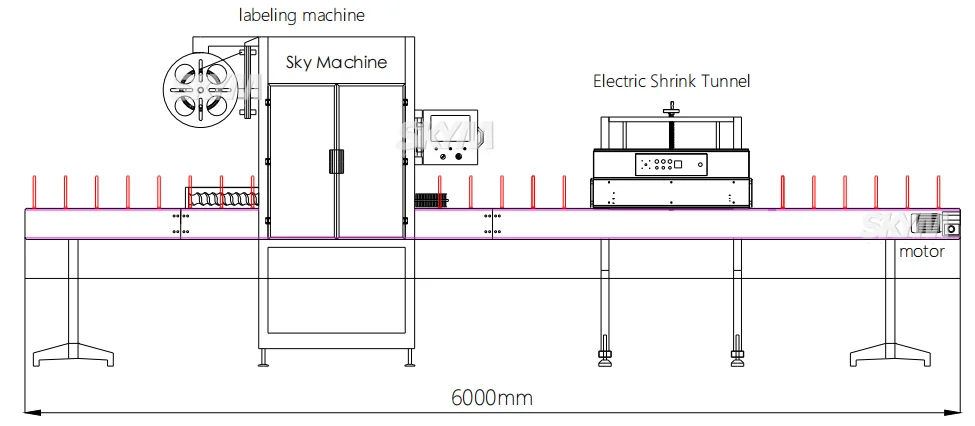

Electric Furnace Model
Steam Model

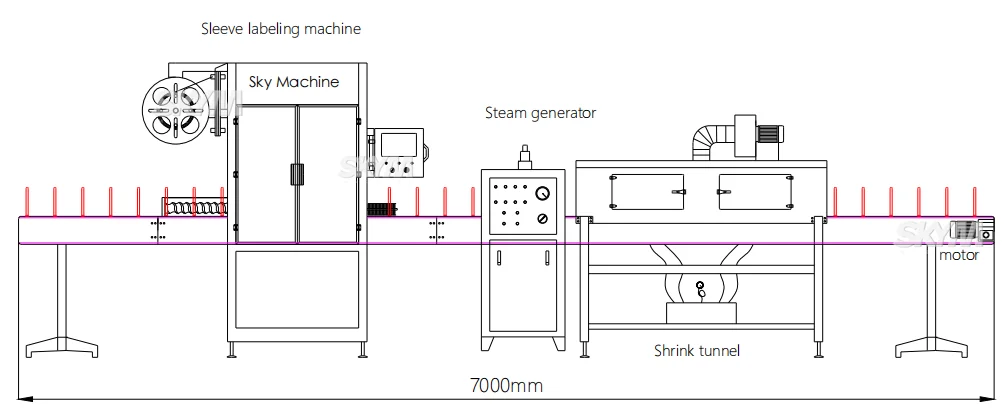

Machine Details

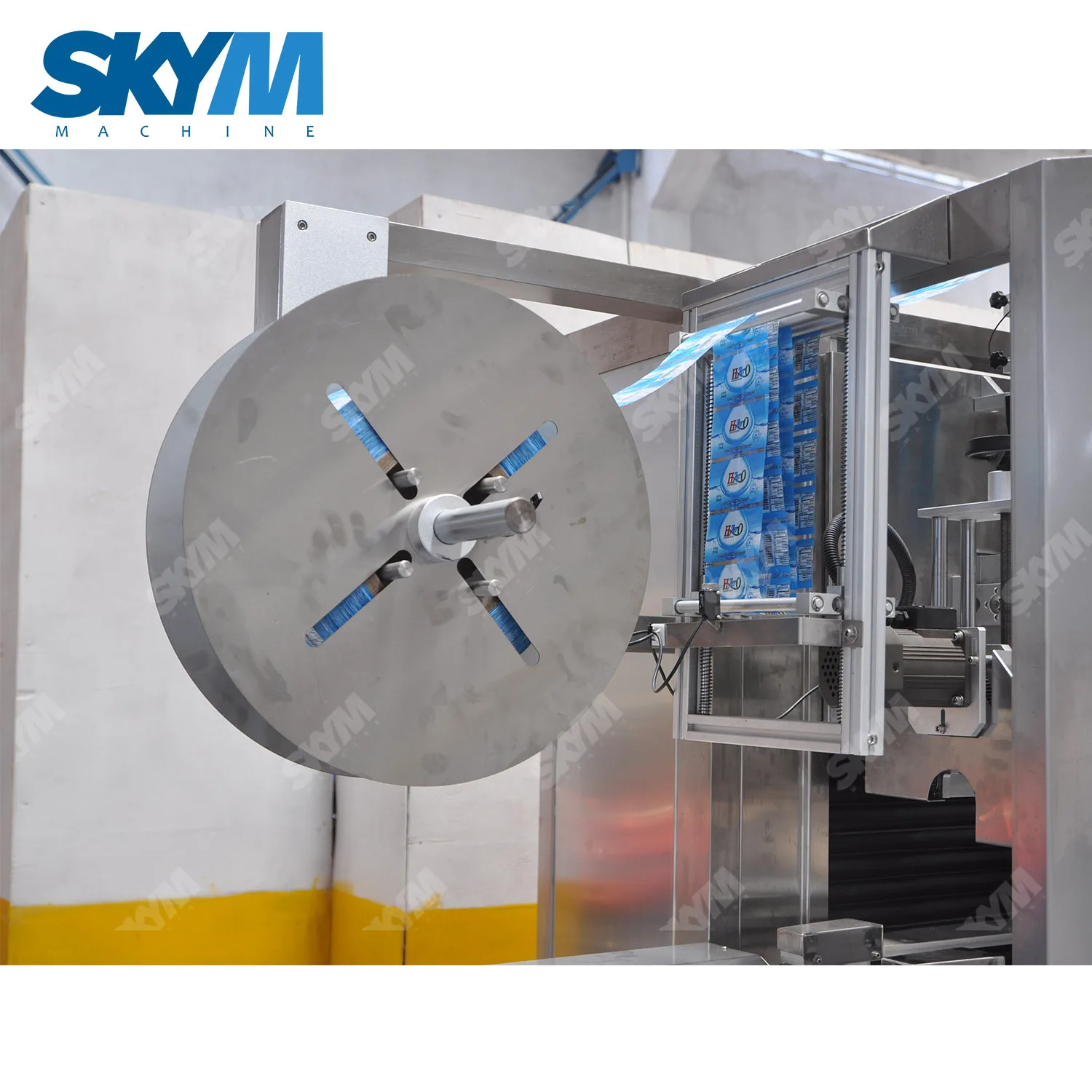

Sleeve Labeling Machine
Application: PVC / PET / OPS label sleeve
* Stainless steel Main Machine Frame / Famous electrical components
* Stainless steel Main Machine Frame / Famous electrical components

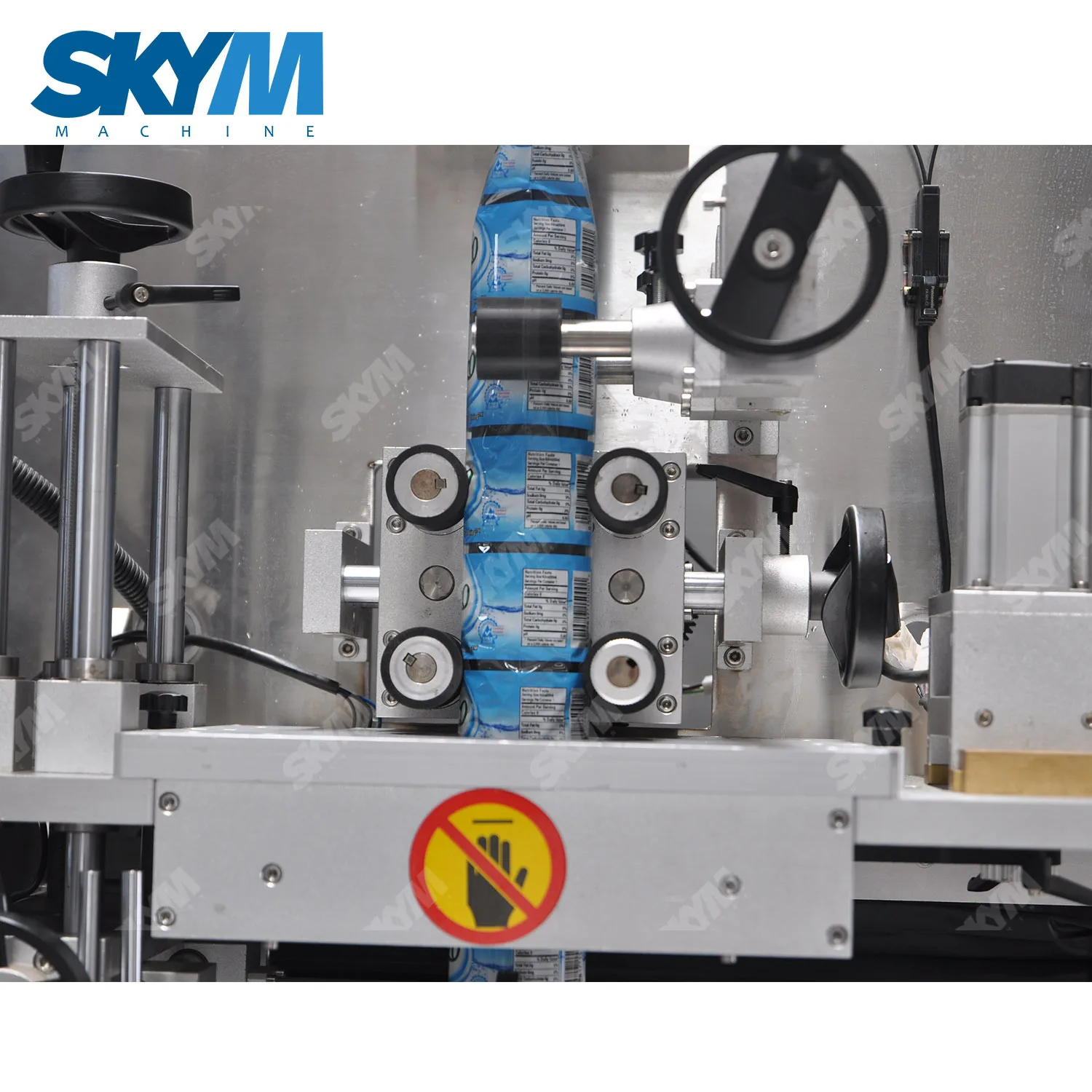

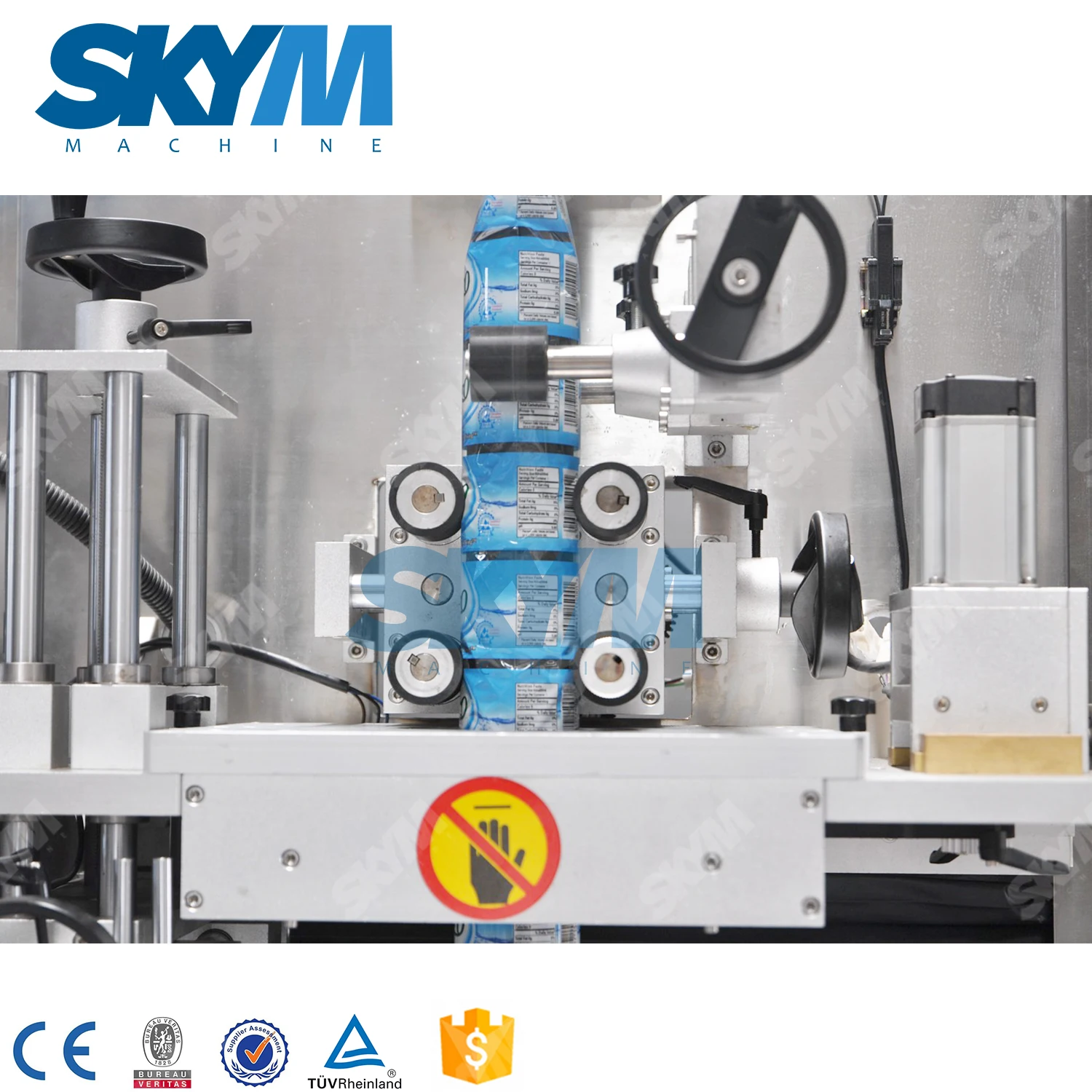

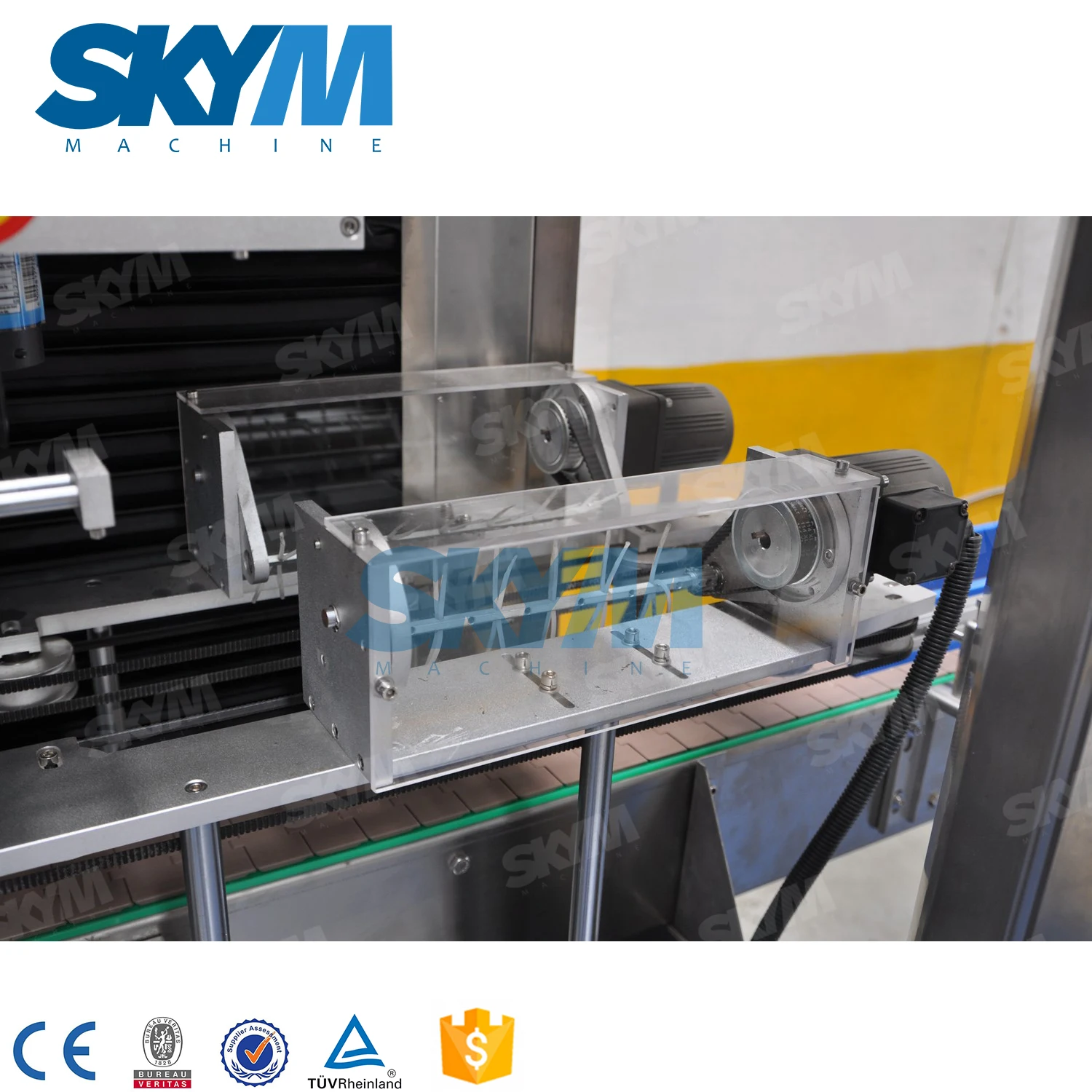

Double roller
1.Unique sleeve labeling method, using pressure sleeve labeling method.
2.The unique knife disc design can avoid changing the
knife holder and change the knife quickly and easily.
3.Middle guide rod clamping system, fast mold changing speed, no need of any instrument.
knife holder and change the knife quickly and easily.
3.Middle guide rod clamping system, fast mold changing speed, no need of any instrument.
Improved label brush down system
1.After the label is set, use the brush to reach the fixed label position.
2.Good elasticity, wear - resistant, not easy to damage, long service life.
3.Simple operation, short replacement time.
2.Good elasticity, wear - resistant, not easy to damage, long service life.
3.Simple operation, short replacement time.

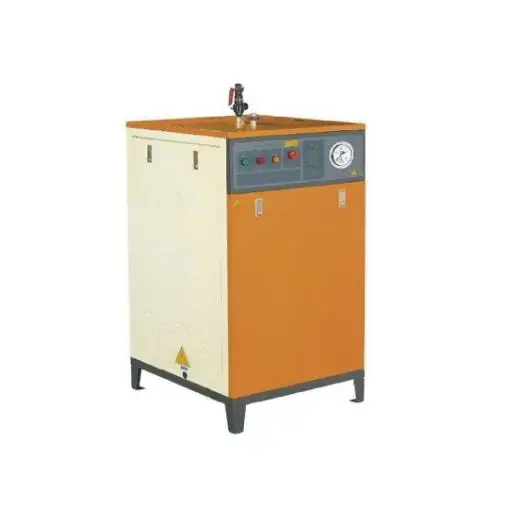

Steam Generator
The purpose of the modified equipment is to convert water into water vapor, and then input it into the steam generator through the pipeline, and shrink the label through the sprayed steam.

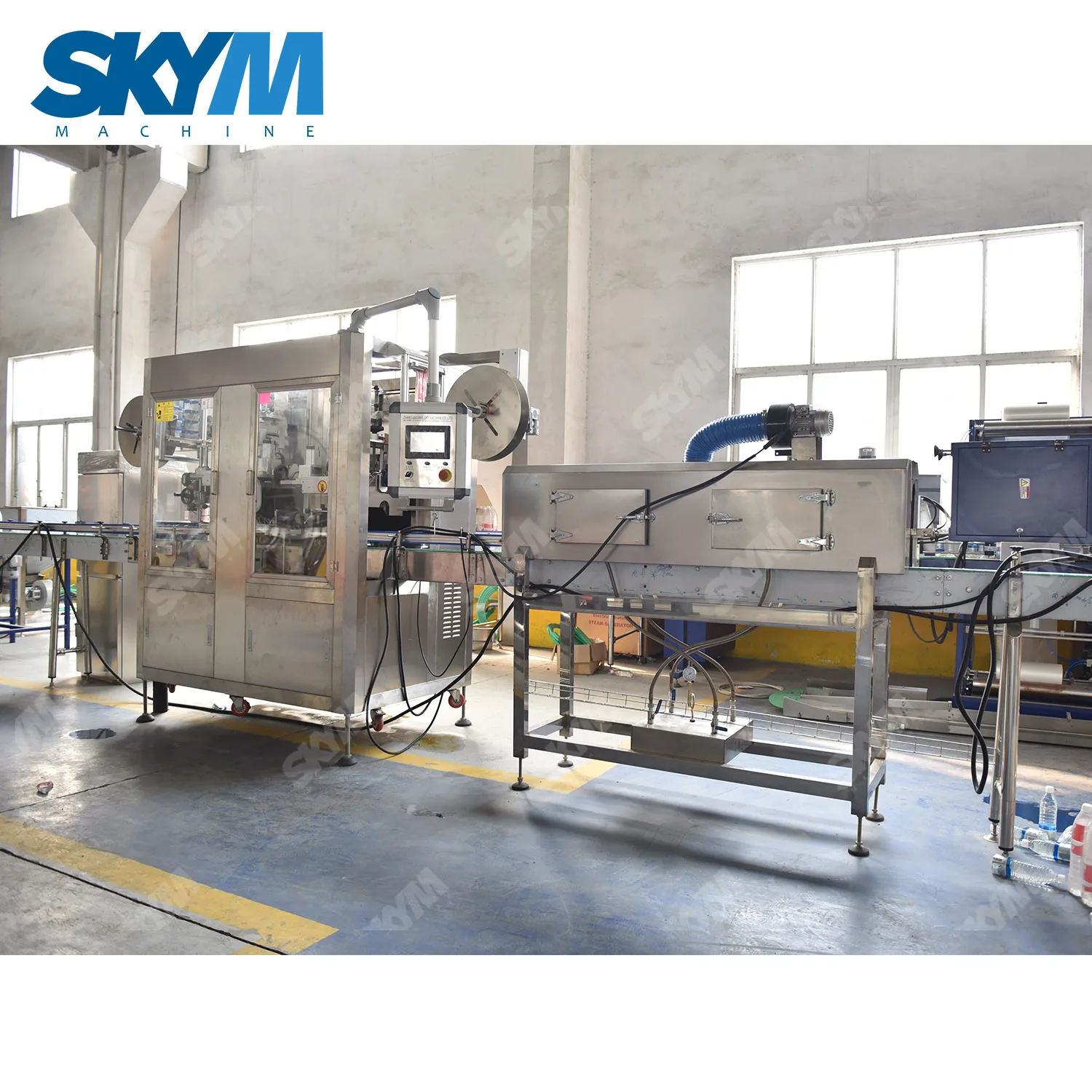

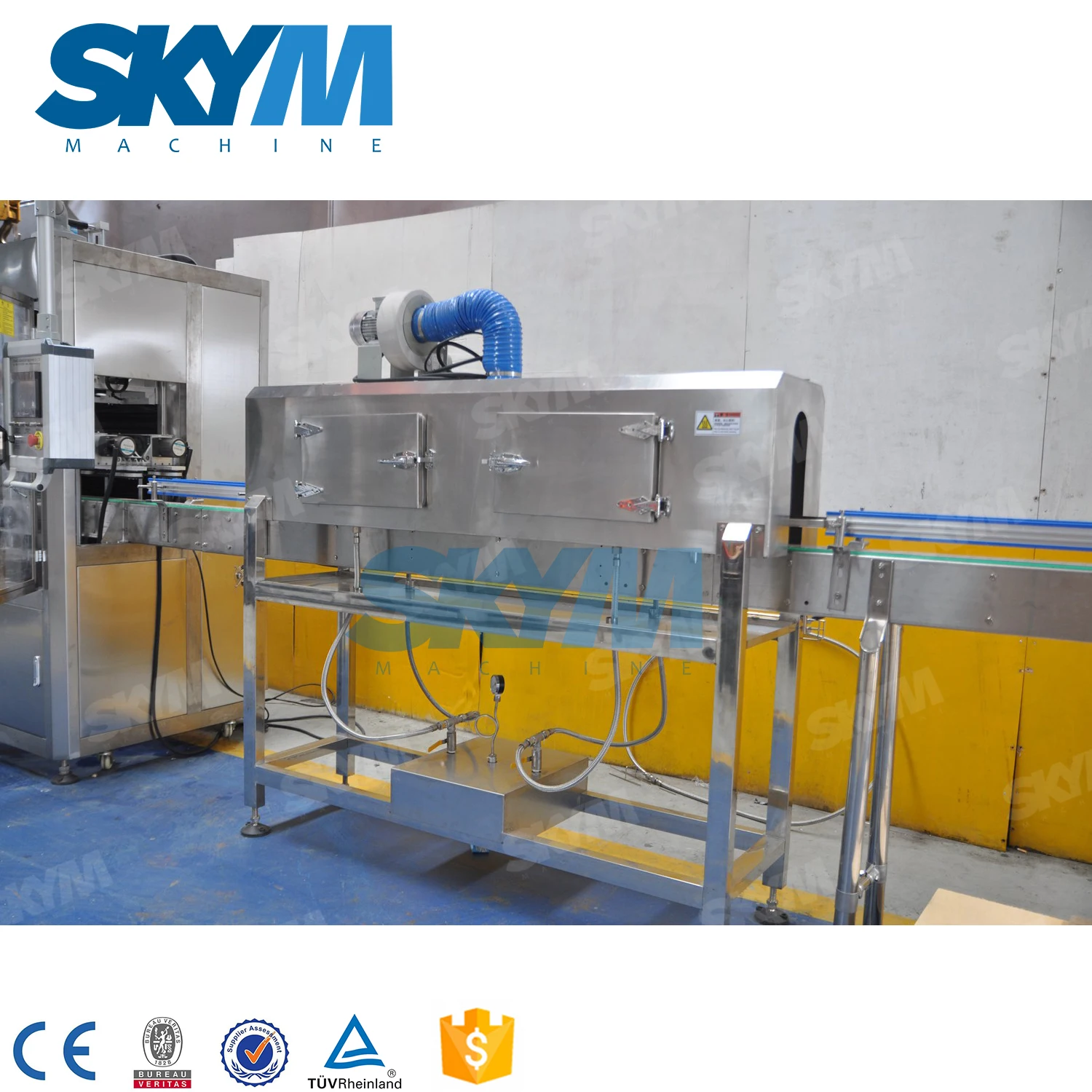

Steam Shrink Tunnel

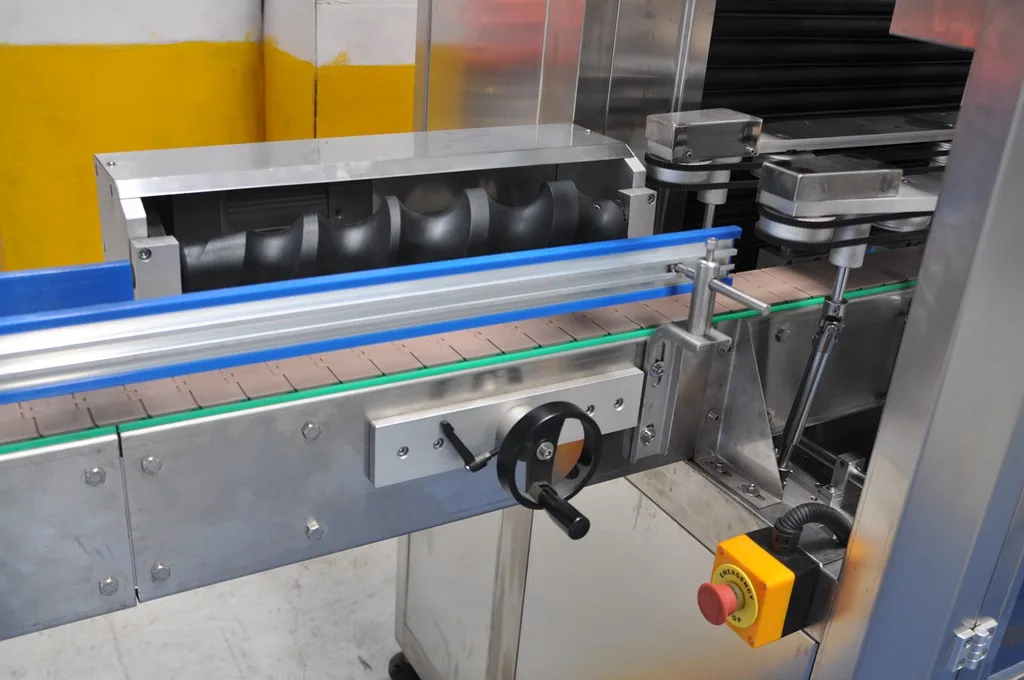

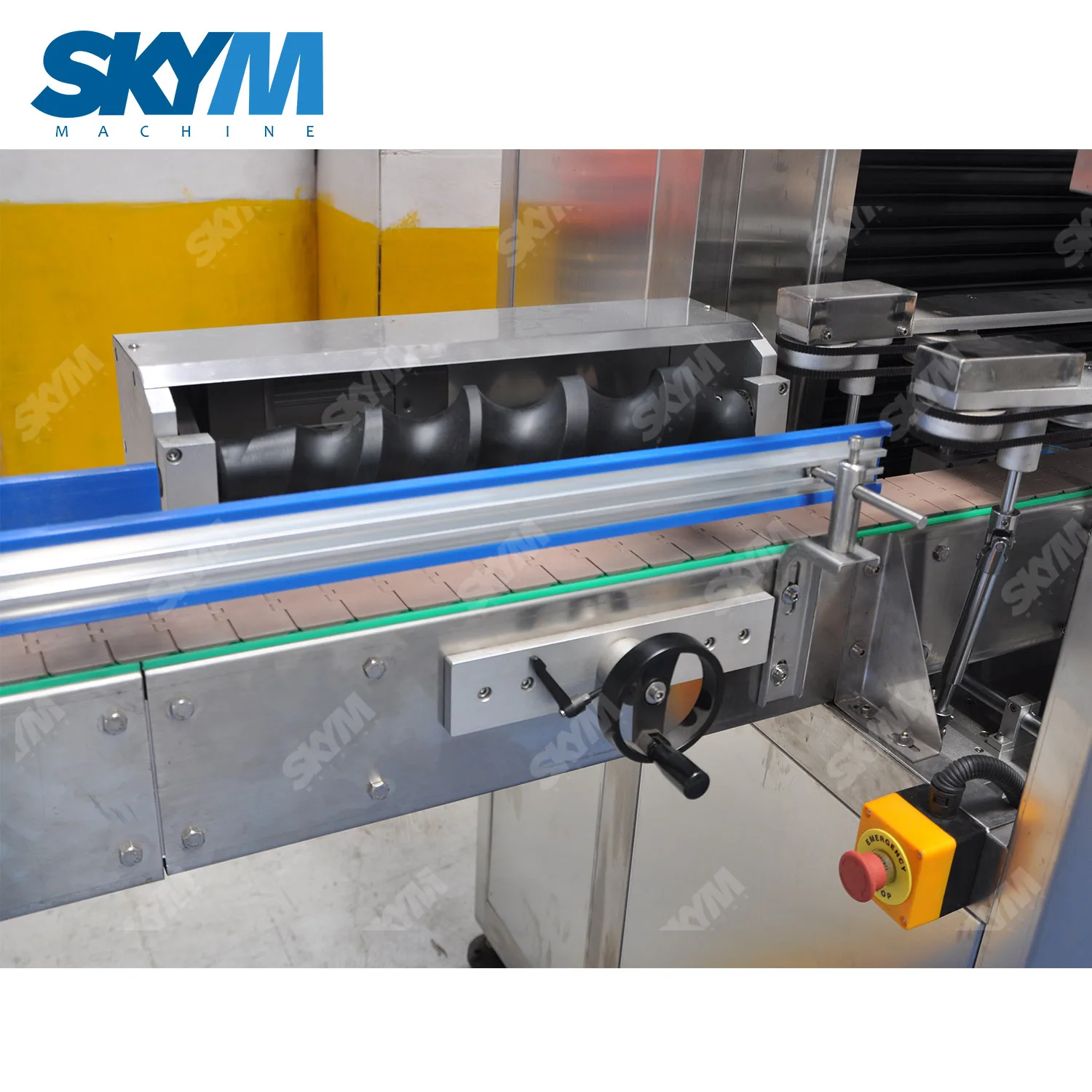

The purpose of this part is to separate the bottles to facilitate the labeling,it is fully automatic and high speed .
Label Design

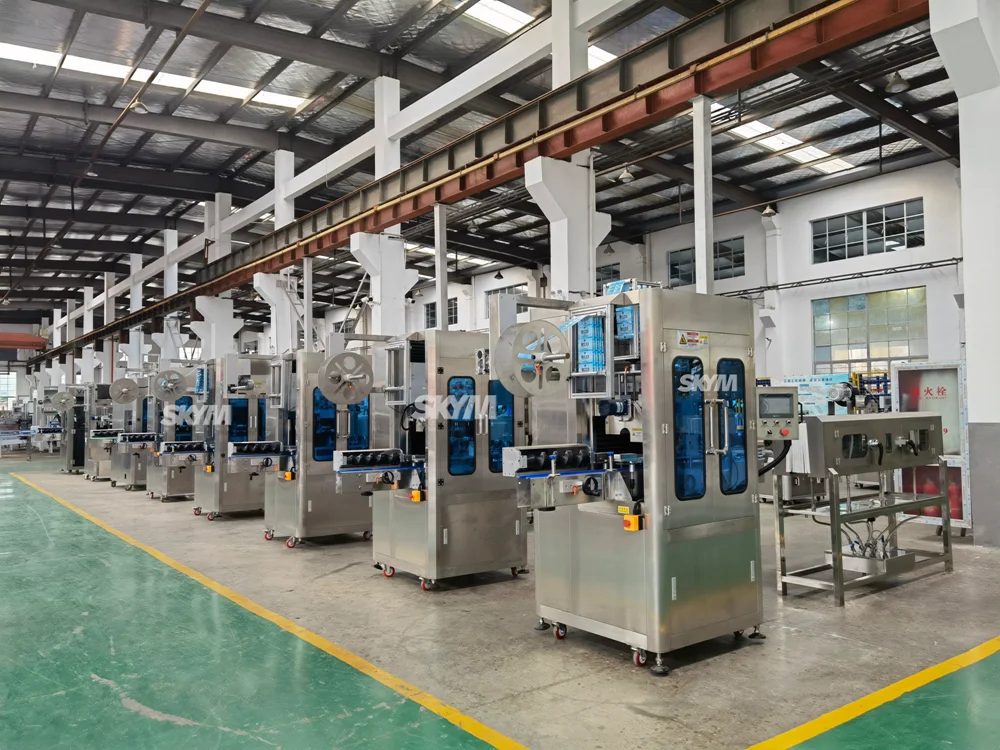

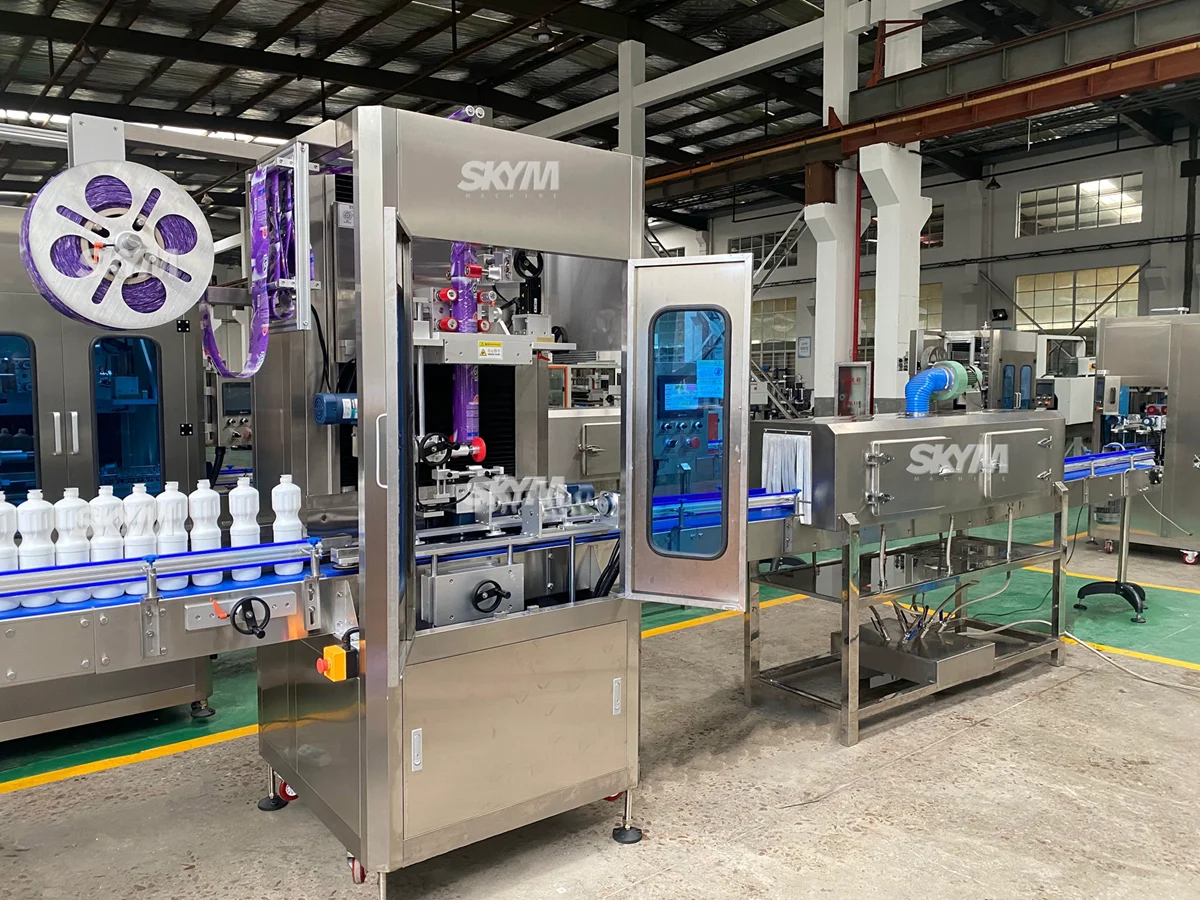

Real Picture Of Customer Factory
Product Paramenters
Model | SKYM-100 | SKYM-200 | SKYM-300 | SKYM-400 | SKYM-500 |
Capacity | 100bottle/min | 200bottle/min | 300bottle /min | 400bottle/min | 500bottle/min |
Power | Dimension:50-90 | Dimension:50-90 | Dimension:50-90 | Dimension:50-90 | Dimension:50-90 |
Suitable Label Material | PVC PET | PVC PET | PVC PET | PVC PET | PVC PET |
Label Thickness | 0.035-0.10MM | 0.035-0.10MM | 0.035-0.10MM | 0.035-0.10MM | 0.035-0.10MM |
Overall Dimension | 2400*950*2100 | 2400*950*2100 | 2400*950*2200 | 2400*950*2200 | 2400*950*2200 |
Weight | 450KG | 550KG | 600KG | 700KG | 750KG |
