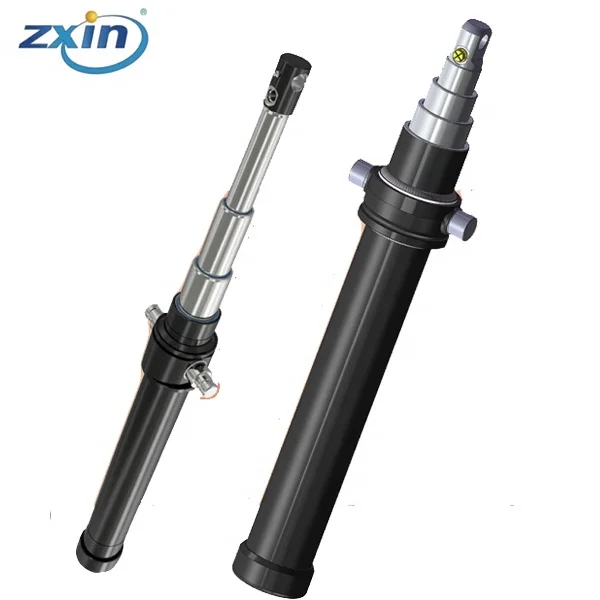

12 Ton Customized Light Duty Telescopic Hydraulic Cylinder for Tipping trailer
- Category: >>>
- Supplier: Yishui Zhongxin Machinery Co. Ltd.
Share on (1600445285580):
Product Overview
Description

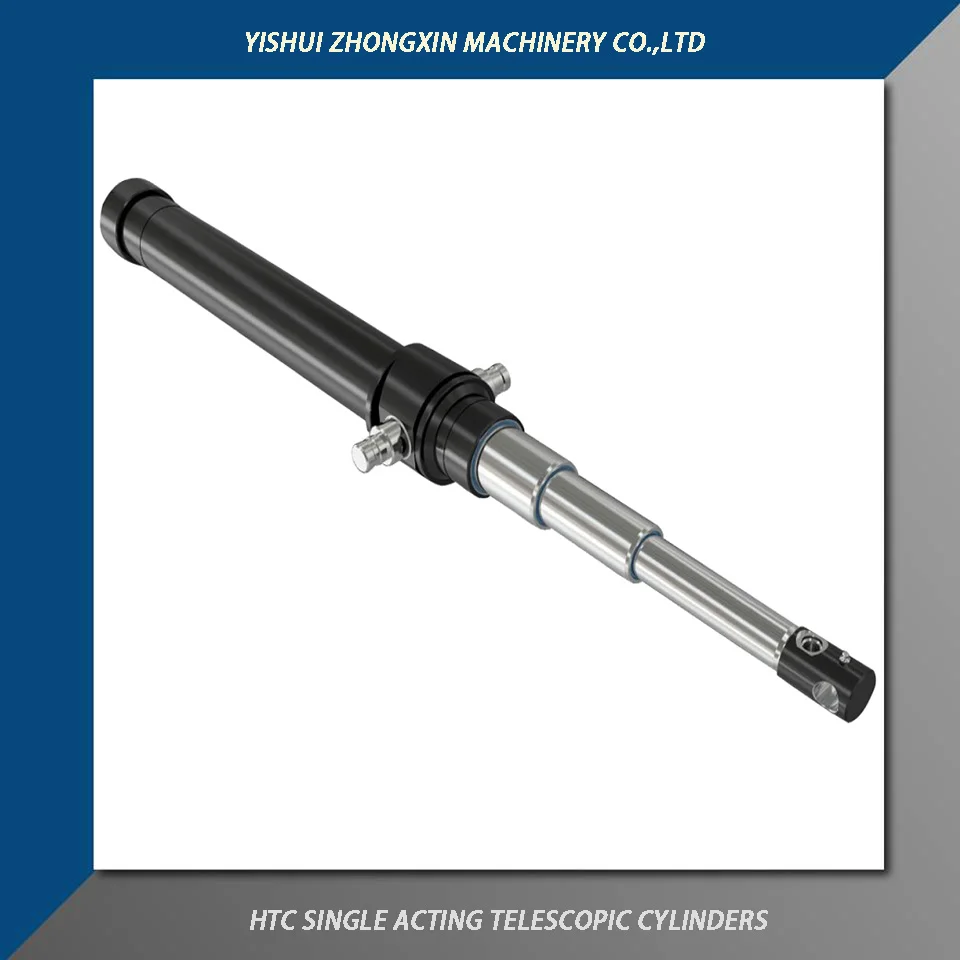

HTC Light Duty Telescopic Hydraulic Cylinder
Product Description
Application(s)
Multiple stages enable longer strokes to be achieved using less space. Ideal for dump truck boxes and dump trailers.
Multiple stages enable longer strokes to be achieved using less space. Ideal for dump truck boxes and dump trailers.

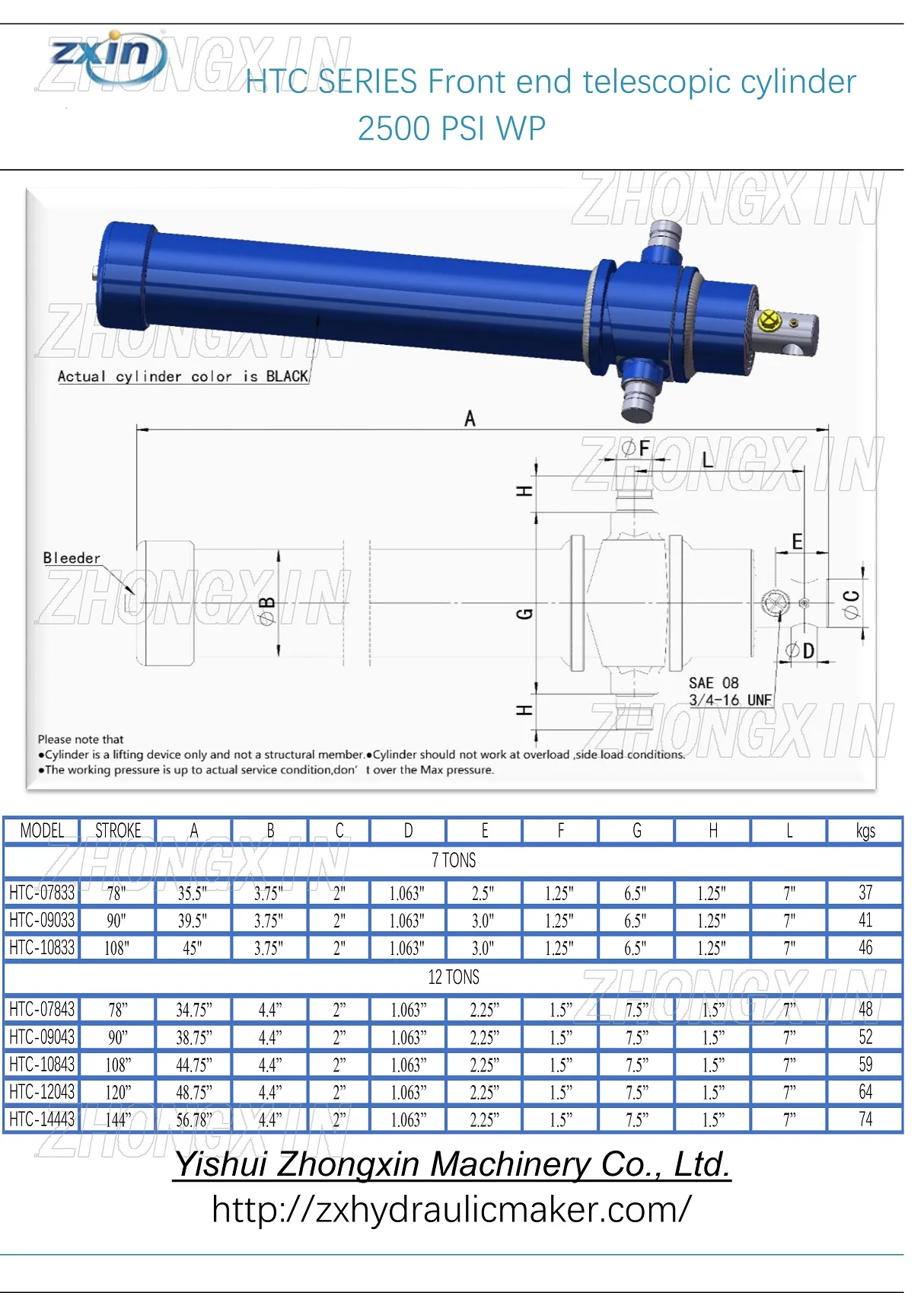

Attibutes &Specifications
Item Name | 7 Ton x 90 in. Stroke Telescopic Cylinder |
Type | Telescopic Cylinder |
Capacity(Tons) | 7 Tons |
Pressure Rating Pressure Rating(PSI) | 2500 PSI |
Stroke Length(In.) | 90 In. |
Retracted Length(in.) | 39.5 In. |
Sections O.D.(in.) | 1-3/4, 2-3/8, 3 in. |
Connection Size | 8 |
Connection Type | ORBF |
Trunnion Mount O.D.(in.) | 1-1/4 In. |
Trunnion Mount Length(in.) | 1-1/4 in. |
Pinhole Diameter(In.) | 1 In. |
Colour /Finish | Plating, coating |

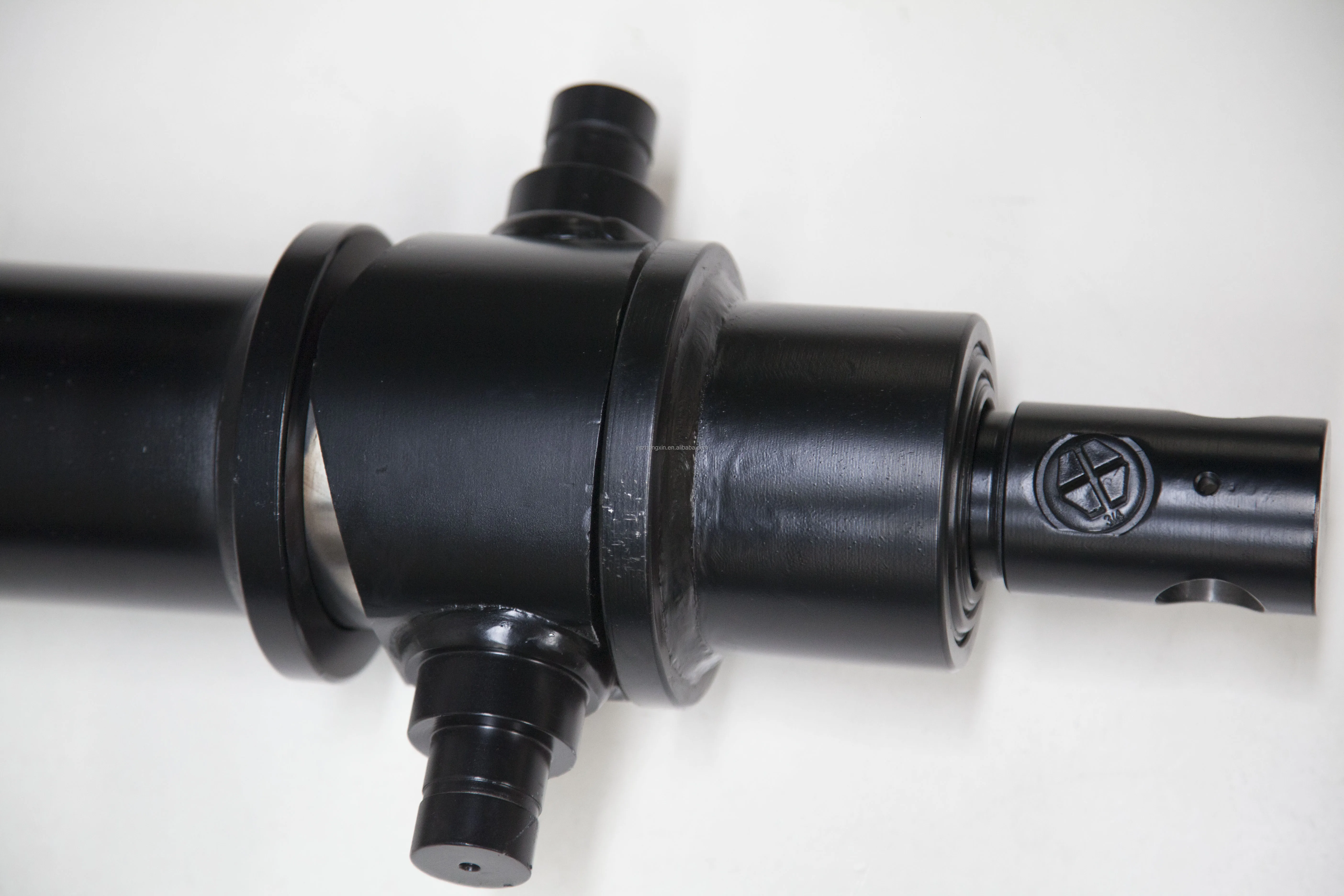

Detailed Images

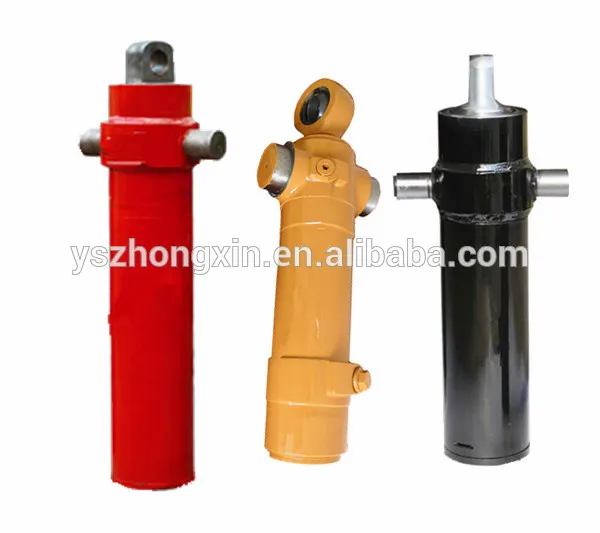

Related Products

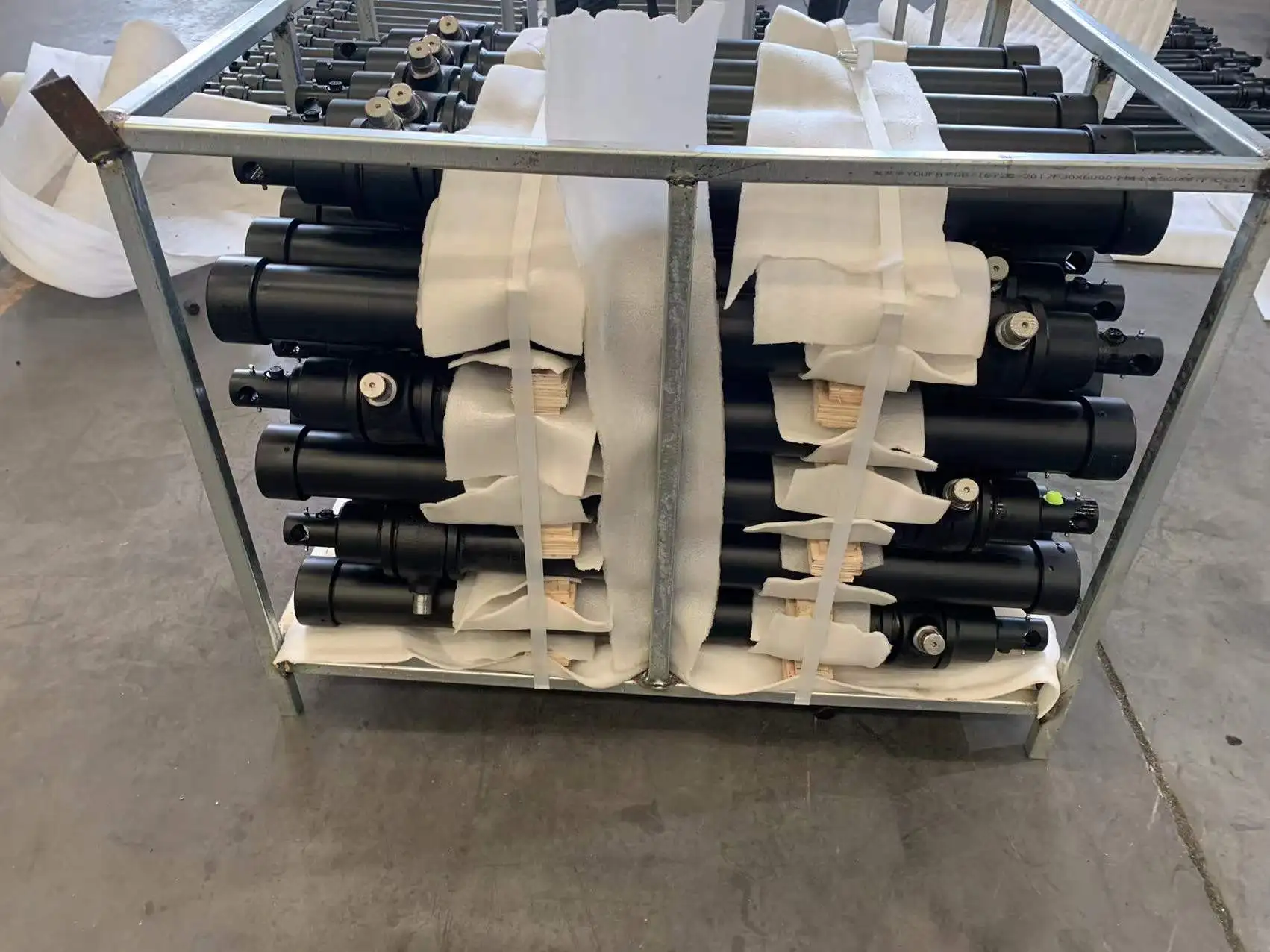

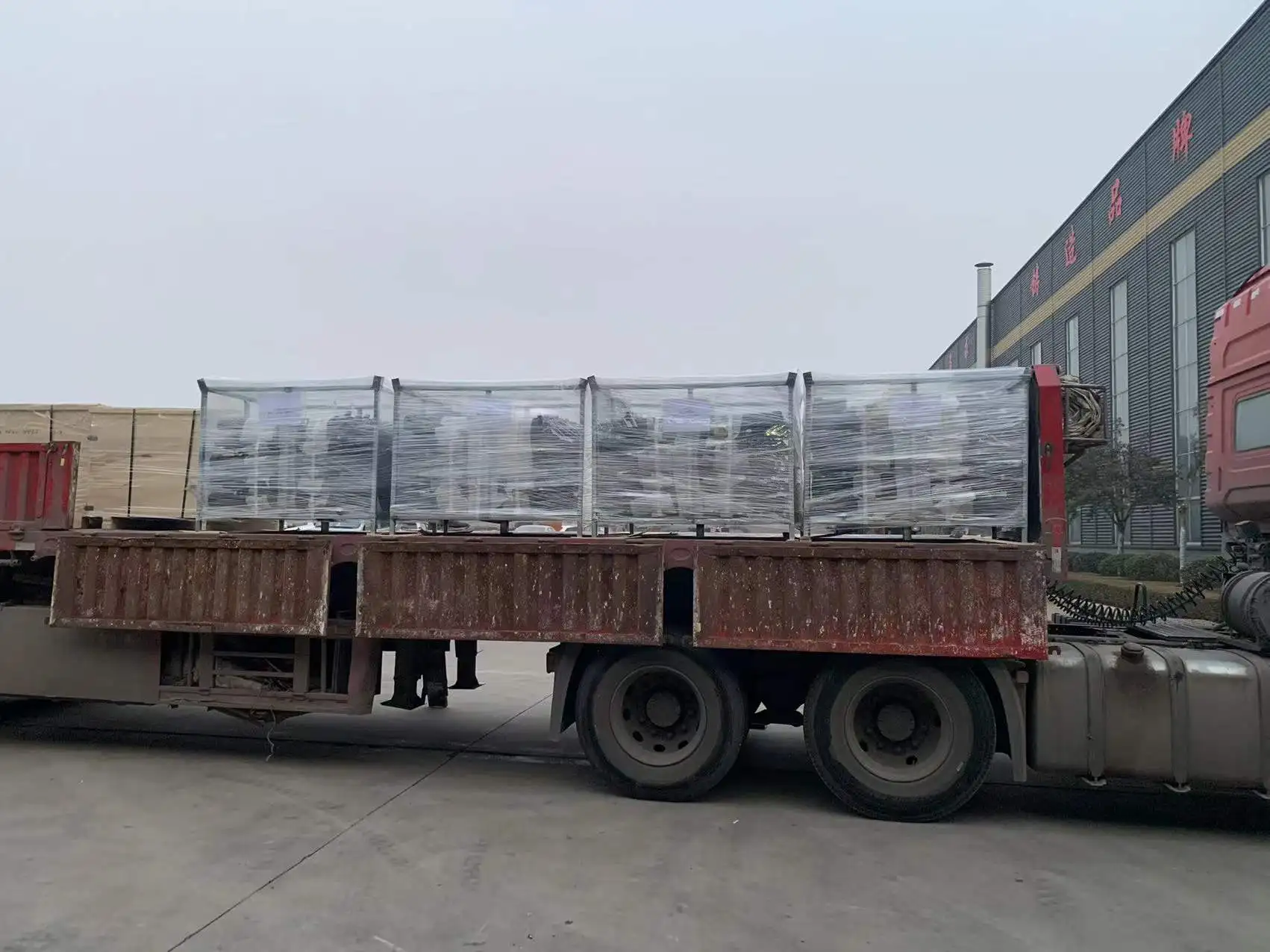

Packing&Shipping
Packing:Packed by PP bag and then in wooden box,also packed according to customer' request. Shipping:Sample can be shipped by air express or air transportation,bulk can be shipped by sea.
Company Introduction
Yishui Zhongxin Machinery Co.,ltd,Produce hydraulic Cylinders(Hydraulic Ram) since 2008,main goal has always been to provide both the china market and overseas markets with high-quality products,by using raw materials which are certified as having undergone quality control.we has the complete design and engineering capability to support your custom and standard hydraulic cylinder needs.Throughout the product life-cycle, we offer full support and development aiming to deliver continuous improvement.
Application
Zhongxin cylinders are used in a wide variety of applications and markets. We have supplied cylinders for use in:
Materials Handling
Typical applications: Mobile & Static Hoists & Cranes, Conveying Equipment, Lifting Arms & Front
End Loaders.
Agricultural
Typical applications: Tillage Bars, Harvester Headers, Spraying Equipment, Seed Drills, Wool Presses,
Slashers & Mowers.
Waste Management
Typical applications: Static & Mobile Compactors, Transfer Stations, Road Sweepers, Liquid Vacuum Trucks.
Transport
Typical applications: Trailers: Side Tippers, Car Transporters, Low Loaders, Deck Widening, Tilt Trays.
Custom as your special requirements
Materials Handling
Typical applications: Mobile & Static Hoists & Cranes, Conveying Equipment, Lifting Arms & Front
End Loaders.
Agricultural
Typical applications: Tillage Bars, Harvester Headers, Spraying Equipment, Seed Drills, Wool Presses,
Slashers & Mowers.
Waste Management
Typical applications: Static & Mobile Compactors, Transfer Stations, Road Sweepers, Liquid Vacuum Trucks.
Transport
Typical applications: Trailers: Side Tippers, Car Transporters, Low Loaders, Deck Widening, Tilt Trays.
Custom as your special requirements

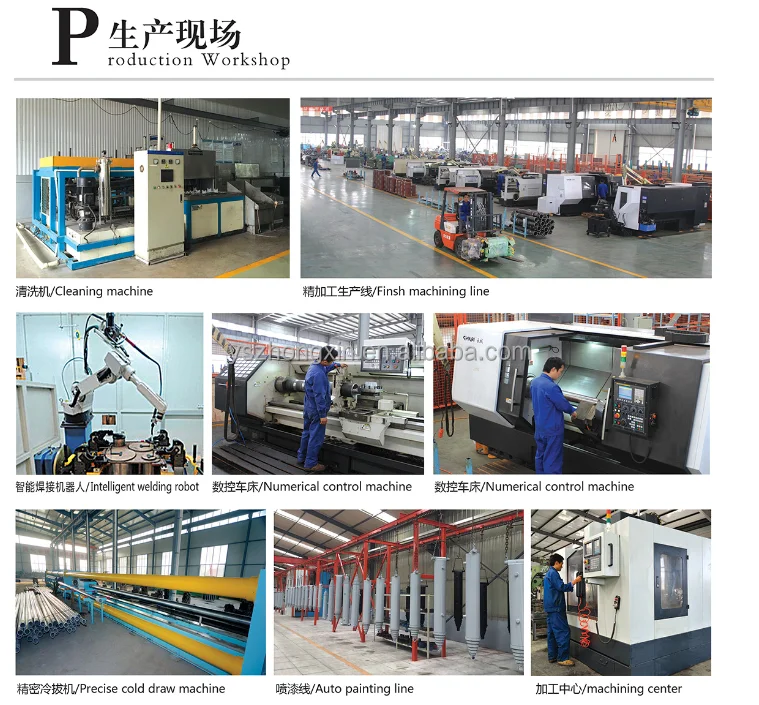

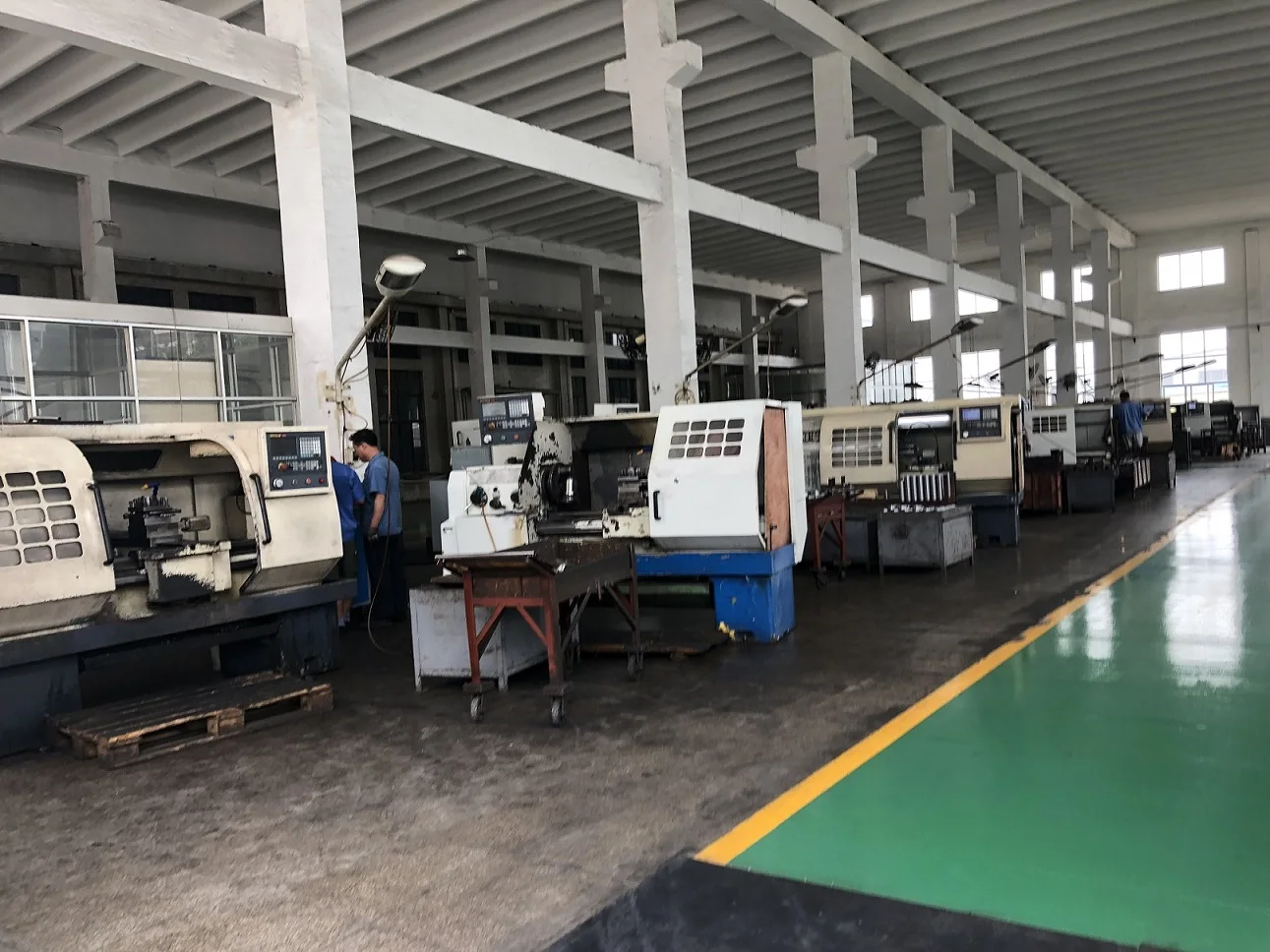

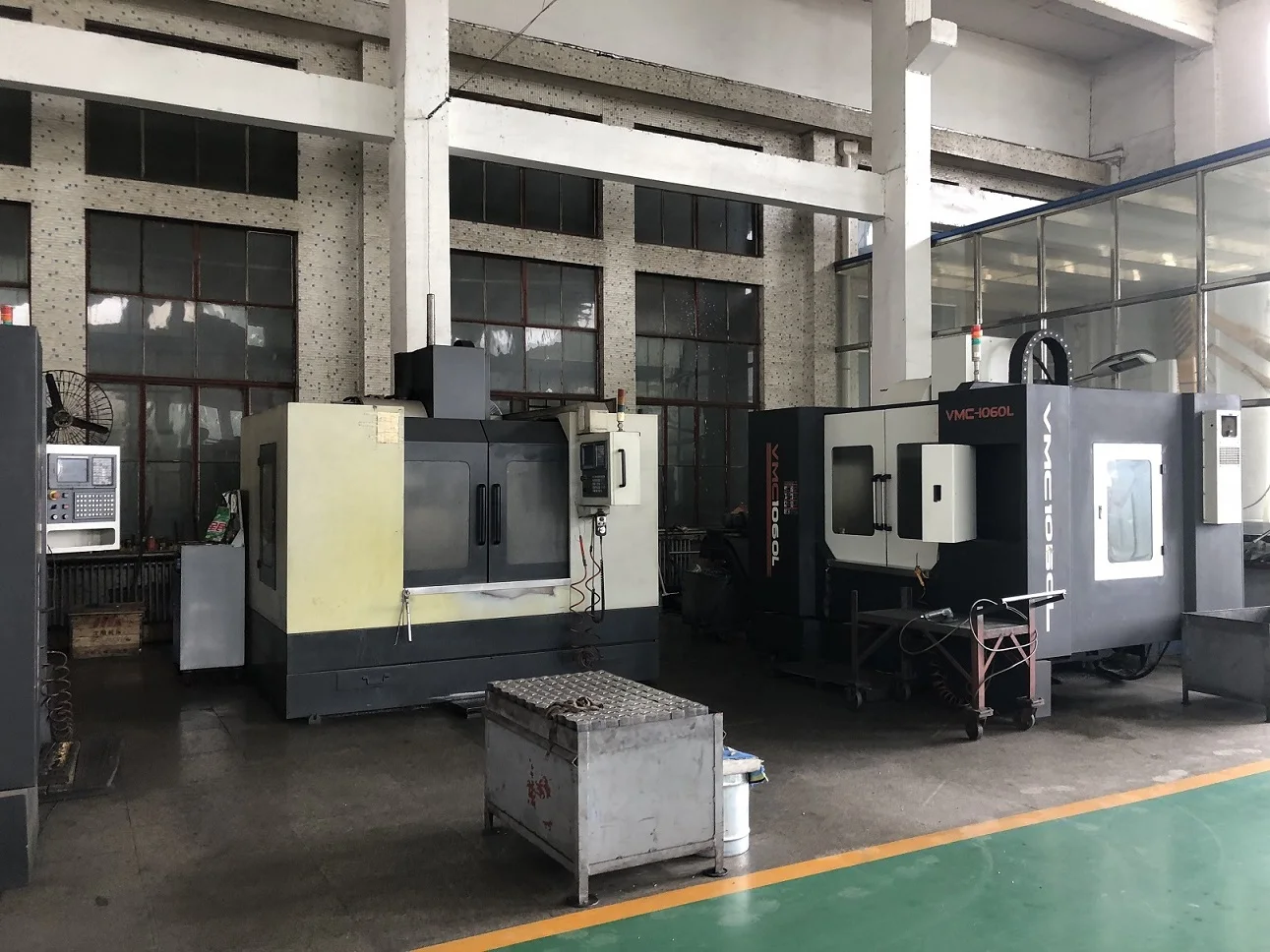

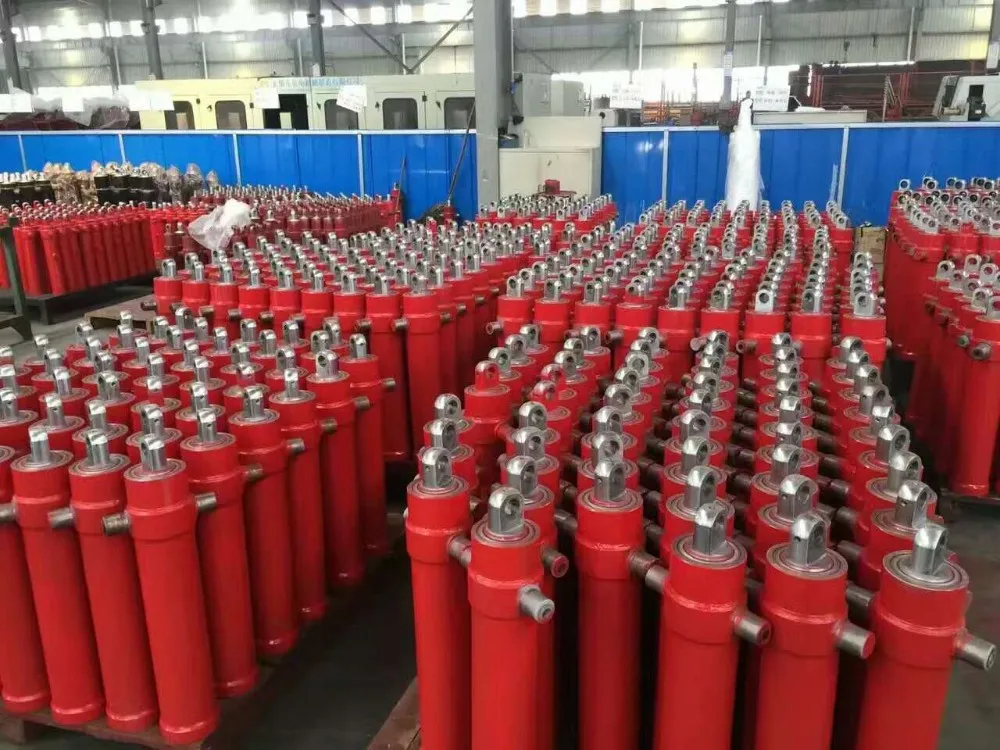

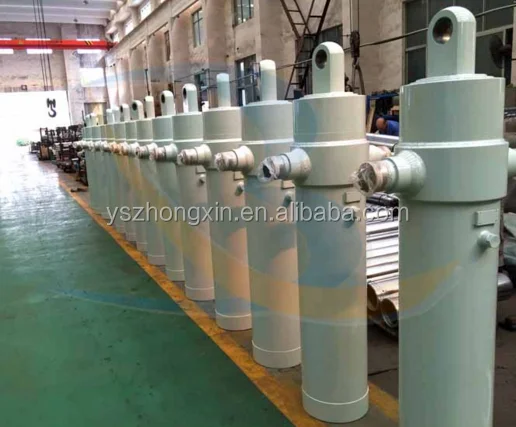

Production Plant

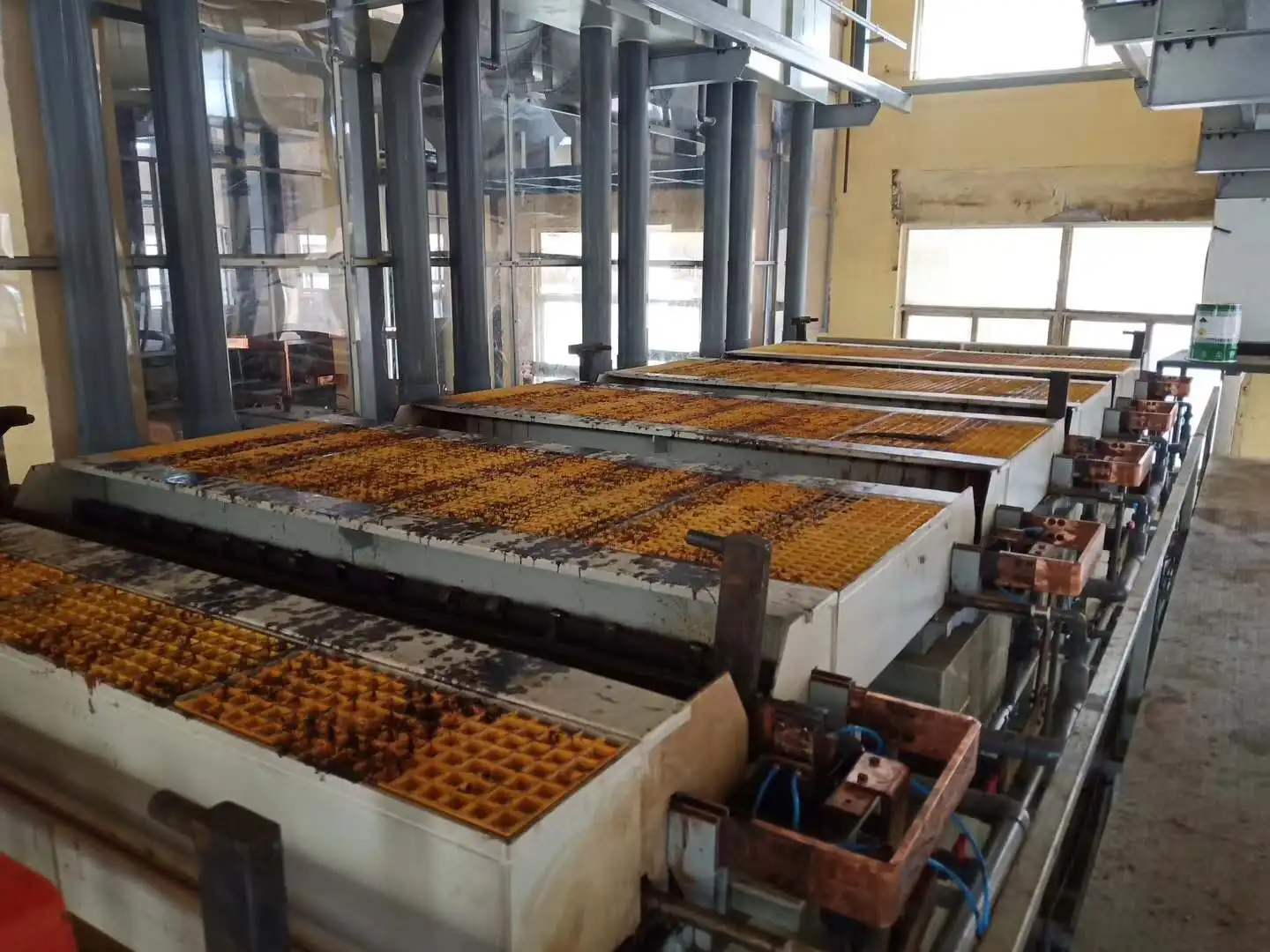

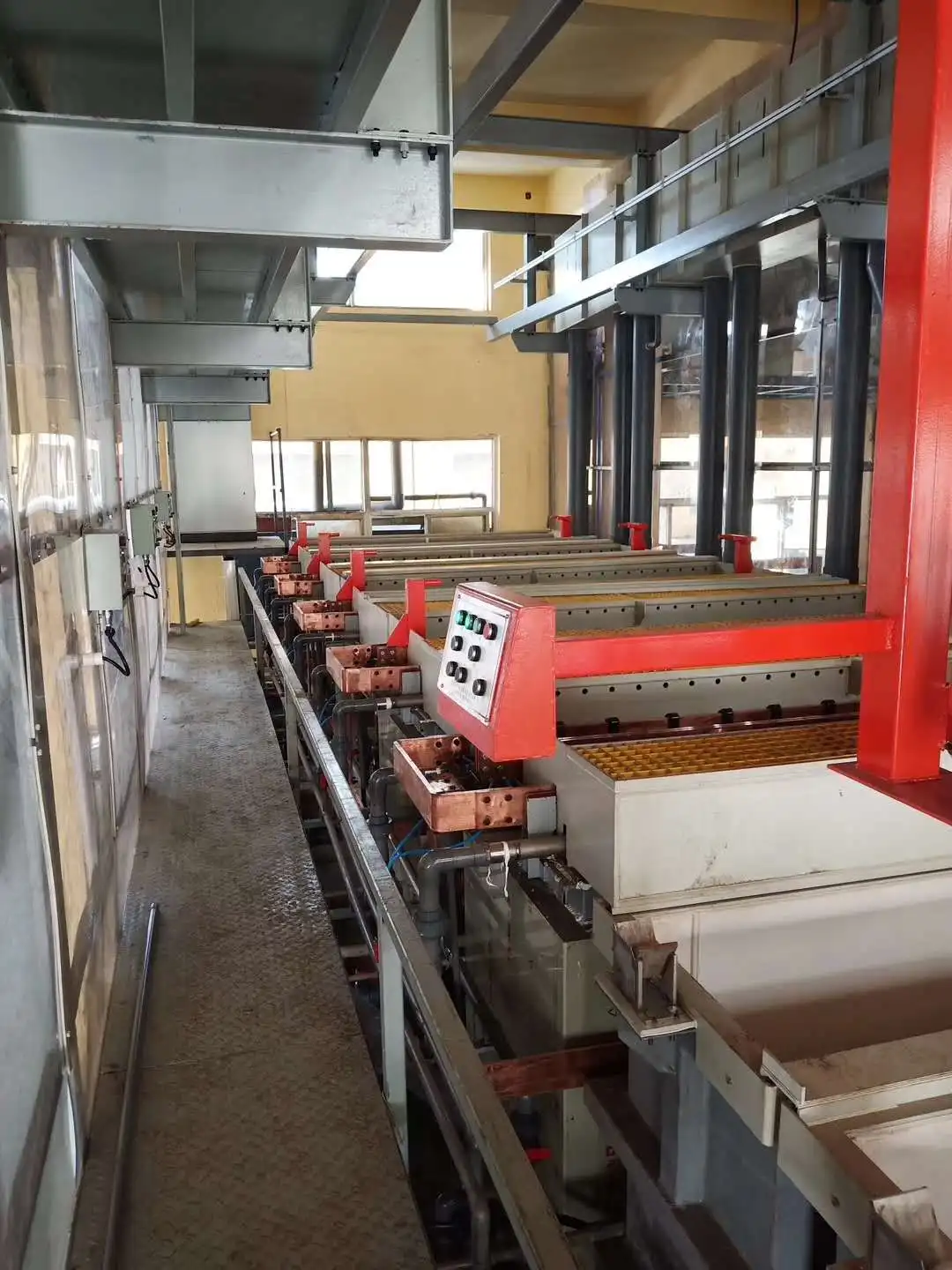

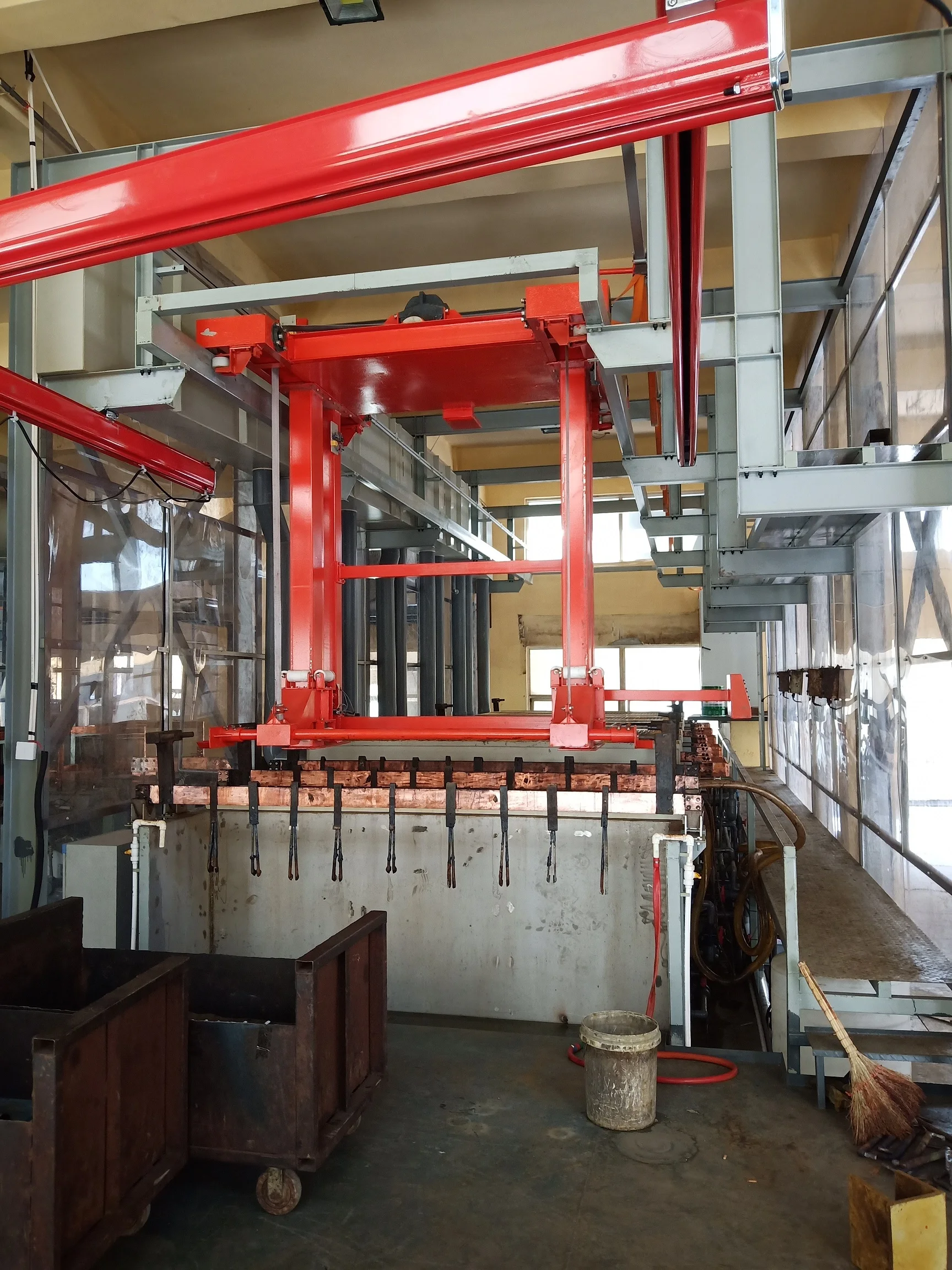

Chrome Plating Plant
FAQ
1.What kind of products do you sell?
We specialize in hydraulic cylinders and cylinder components.
Zhongxin's obligation is subject to confirmation of the claim by our inspection Dep.
Generally ,We can deduct the compensation value or send a new one or a new seal kits set in the following order.
Warranty Procedures
1,Description of failure
2,Cylinder model and manufacturing date as laser engraved on all cylinders
3,Invoice Number and Date
2.What are Your Lead times for standard Cylinders?
Generally ,It will be longer for the 1st order, because we need to issue all the set production drawings ,and some details need to double confirm. it is about 40-45 days .
For 2nd and following order, It is about 30-35 days after the deposit received.We can discuss if some special status.
3.Do you Provide technical Assistance?
Yishui Zhongxin Machinery Co.,ltd is supported by a team of dedicated and experienced hydraulic design engineers with years of knowledge in the working of hydraulic cylinders.
4.Warantty?
Generally,Zhongxin Machinery will replace or repair defective articles for free Within 1 years from time of the delivery.
This warranty doen not cover damages caused by the use of defective articles,worn out articles,wrong use of the
articles,non-observance of both above mentioned general instructions for first installation and warning ans safety measures for dumpers,as well as obvious
tampering of articles.
This warranty doen not cover damages caused by the use of defective articles,worn out articles,wrong use of the
articles,non-observance of both above mentioned general instructions for first installation and warning ans safety measures for dumpers,as well as obvious
tampering of articles.
Zhongxin's obligation is subject to confirmation of the claim by our inspection Dep.
Generally ,We can deduct the compensation value or send a new one or a new seal kits set in the following order.
Warranty Procedures
1,Description of failure
2,Cylinder model and manufacturing date as laser engraved on all cylinders
3,Invoice Number and Date
5,Seals
NOK(Japan),Hallite(UK),TRELLEBORG(Sweden),ASTON(Italy),Kaden(Italy) , or As your special requirements
