Product Overview

Description



Products Description

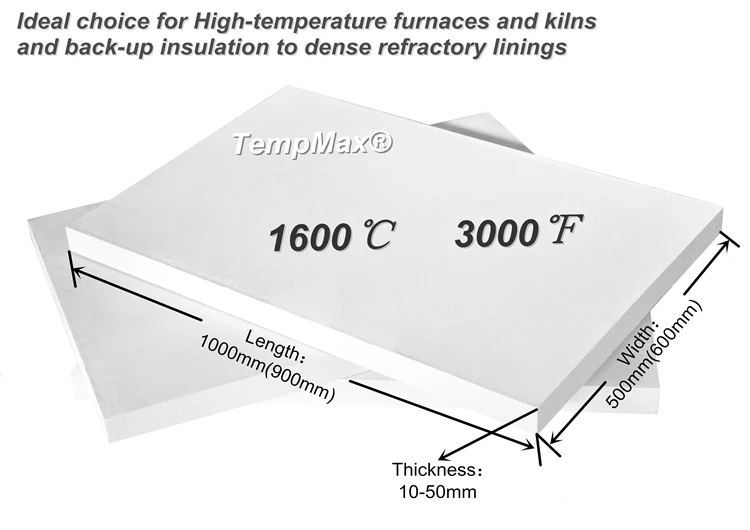

TEMPMAX ™BOARD
TempMax ™ board is manufactured in a wet forming process using TempMax™ bulk and binders.TempMax TM board has excellent thermal stability at very high operating temperatures.TempMax TM board can reduce energy costs and cycling times due to high insulating capability, as well as serving to protect refractory surfaces from thermal shock and chemical attack.


Features
Excellent thermal shock resistance
Can be machined,cut and shaped easily
High rigidity and light weight
Low thermal conductivity
Low heat storage

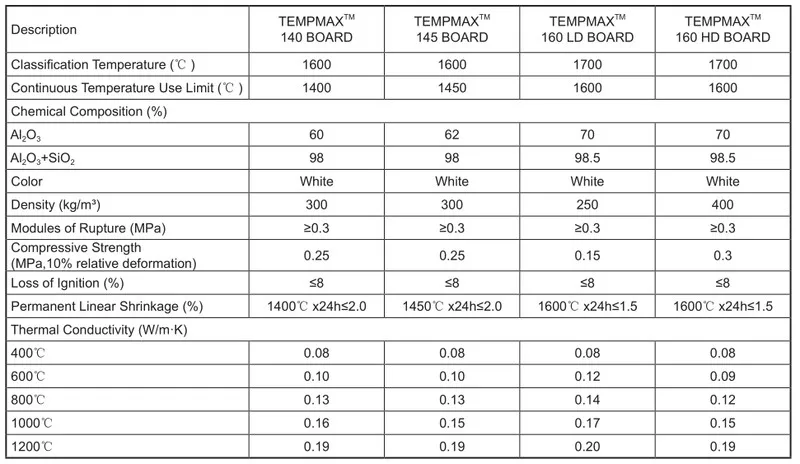

Typical Parameters




Description
TEMPMAX™
140 BOARD
TEMPMAX™
145 BOARD
TEMPMAX™
160 LD BOARD
TEMPMAX™、160 HD BOARD
Classification Temperature (℃ )
1600
1600
1600
1600
Continuous Temperature Use Limit (℃ )
1400
1450
1600
1600
Chemical Composition (%)
Al2O3
60
62
70
70
Al2O3+SiO2
98
98
98.5
98.5
Color
White
White
White
White
Density (kg/m³)
300
300
300
300
Modules of Rupture (MPa)
≥0.3
≥0.3
≥0.3
≥0.3
Compressive Strength
(MPa, 10% relative deformation)
0.25
0.25
0.25
0.25
Loss of Ignition (%)
≤8
≤8
≤8
≤8
Permanent Linear Shrinkage (%)
1400℃ x 24h ≤2.0
1450℃ x 24h ≤2.0
1600℃ x 24h ≤2.0
1600℃ x 24h ≤2.0
Thermal Conductivity (W/m·K)
400℃
0.08
0.08
0.08
0.08
600℃
0.10
0.10
0.12
0.09
800℃
0.13
0.13
0.14
0.12
1000℃
0.16
0.15
0.17
0.15
1200℃
0.19
0.19
0.20
0.19


Application




Typical Applications
Typical Applications
1
High-temperature laboratory
2
High-temperature furnaces and kilns
3
Aerospace industry
4
Back-up insulation to dense refractory linings
5
Expansion joints


Packing & Delivery






Company Profile




Luyang Energy-saving Materials Co., Ltd. was established in 1984 and listed in Shenzhen Stock Exchange in 2006(Stock Code:002088). Going through more than 30 years development, Luyang has become a world famous enterprise for new energy-saving materials researching, manufacturing and selling in the field of ceramic fibers,bio-soluble fibers, alumina fibers, rock wool fibers, microporous board and insulating firebricks. Products are in great demand nationwide and sold in more than sixty countries and regions,such as USA, Japan, Vietnam,EU. Products applied widely in the field of petrochemical refractory insulation, long-distance pipe network insulation, building fire insulation, shipping fire prevention, household appliances fire insulation, high-temperature insulation etc.




Our factory
Luyang has five production bases in Shandong,Inner Mongolia,Xinjiang,Guiyang and Suzhou. Luyang has an annual output of 300,000 tons of various ceramic fiber products and 200,000 tons of rock wool products.


Laboratory




Exhibition




Why Choose Us




FAQ


1.You are a manufacture or a trading company ?
We are a manufacturer founded in 1984, located in Shandong China, with 8 branches.We not only provide the high quality products with the best price, but also can offer the best pre-sale service and after-service.

2.What kind of product can you offer ?
Our company can offer all kind of refractory insulation materials. For example: Ceramic Fiber Products, Soluble Fiber Products,Alumina Fiber Products, Microporous Board, Insulating Firebricks, Calcium Silicate Products, Mineral Wool, Rock Wool Etc.

3.Can you provide free samples ?
Free samples are available !

4.What is your MOQ?
We don't have particular MOQ, we can accept any order for any different projects.Price depends on quantity.

5.Can we have a visit to your factory ?
Yes! Of course,welcome to visit our factory at anytime on site or online !
