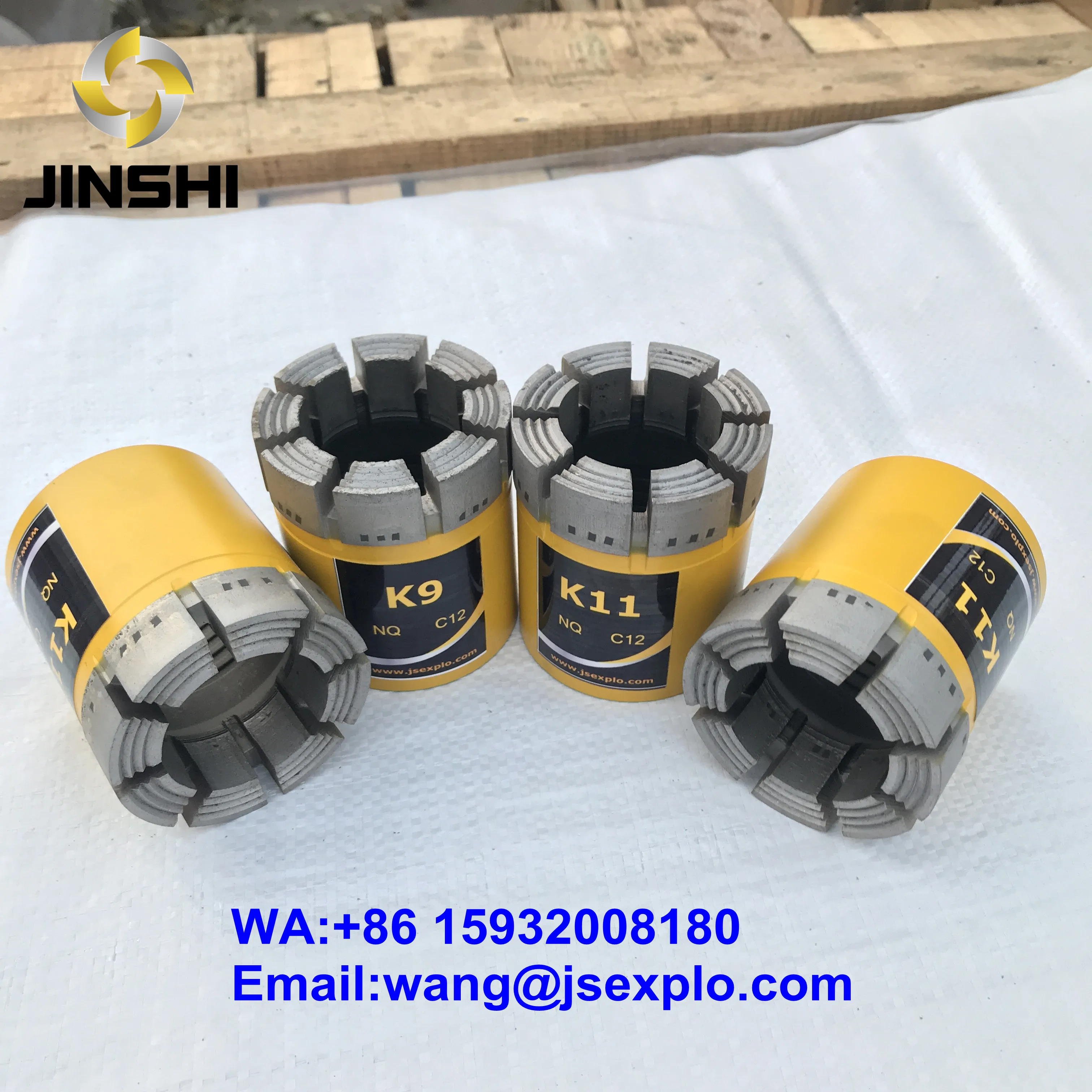

JINSHI / JS Y series High Working Performance drill bit BQ NQ HQ PQ
- Category: >>>
- Supplier: Jinshi Drilltech Co. Ltd.
Share on (1600445359340):
Product Overview
Description
Company Profile
JINSHI DRILLTECH CO LTD
Jinshi Drilltech Co.,Ltd. was founded on 11th of November 1996 with a registered capital of 53 million CNY. The company
specializes in the development, production and sales of exploration drilling tools as well as providing drilling solutions and
services. Jinshi is a national advanced technology enterprise, one of the drafters of geological drilling tool standard of China,award of second prize of National Science and Technology Progress in China.
specializes in the development, production and sales of exploration drilling tools as well as providing drilling solutions and
services. Jinshi is a national advanced technology enterprise, one of the drafters of geological drilling tool standard of China,award of second prize of National Science and Technology Progress in China.
Jinshi plant covers an area of 51,800 square meters with over 360 employees and world class intelligent production line of diamond core drilling consumables. Jinshi possesses core technology of diamond tools and knowledge of deep hole drilling tools. A dedicated testing lab and strict adherence to the I S O 9 0 0 1 quality control system ensure every piece is qualified. Standard drilling units make hands-on experience in high efficiency drilling available to Jinshi. Jinshi takes drilling industry in China to a high speed train and makes us come into a high efficient and safety drilling expert.
FEATURES AT A GLANCE

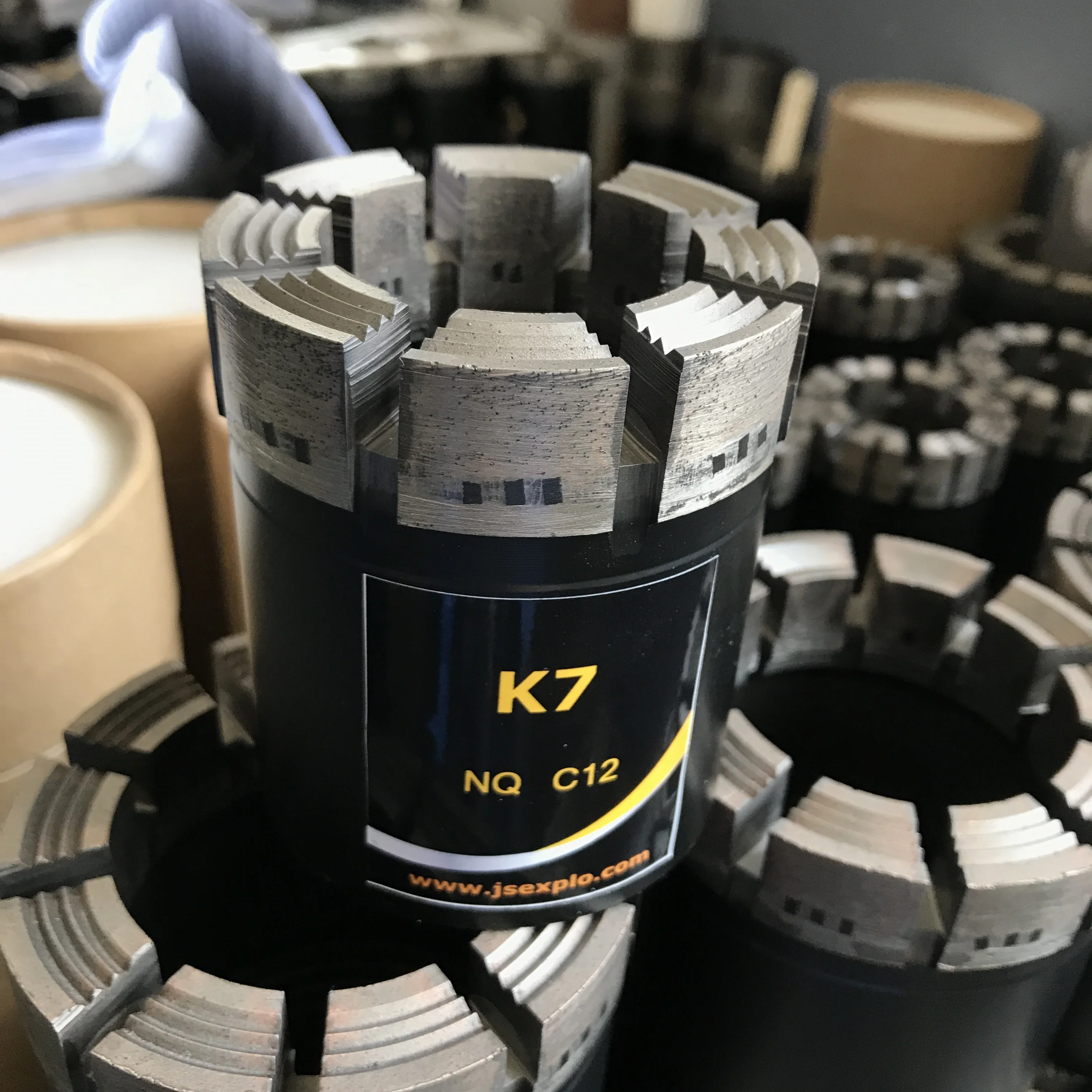

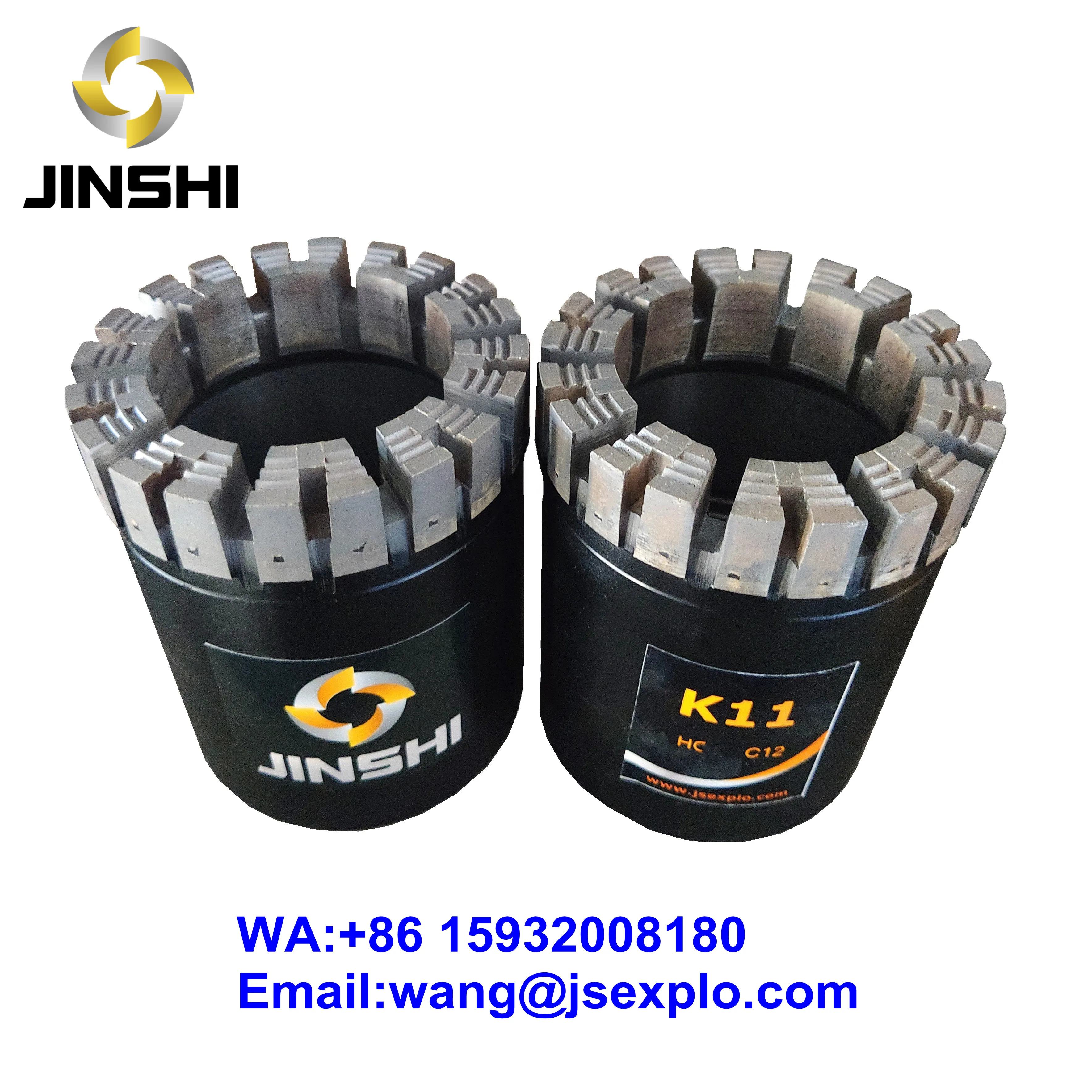

JINSHI K Series Impregnated Diamond Bits are most widely used series in the company.
Matrix Types Available: K1, K3, K5, K7, K9, K11
Matrix Heights Available: 6mm, 9mm, 12mm, 15mm, 25mm
Standard Profile: Point Profile
Standard Waterway Number: Size A-4, Size B-6, Size N-8, Size H-10, Size P-12
Matrix Types Available: K1, K3, K5, K7, K9, K11
Matrix Heights Available: 6mm, 9mm, 12mm, 15mm, 25mm
Standard Profile: Point Profile
Standard Waterway Number: Size A-4, Size B-6, Size N-8, Size H-10, Size P-12
Matrix & Waterway
Drilling Site
Turbo and Pointed Profile
PRODUCT SPECIFICATIONS
Bit Matrix | K1 | K3 | K5 | K7 | K9 | K11 | |||
Rock Hardness | Select K1 in case of low working lifte of K3 | Soft Rock Medium Hard Rock Hard Rock | Select K11 without footage of K9 | ||||||
Grain Size of Rock | Large Grain Medium Grain Fine Grain | ||||||||
Breakage of Rock | Serious Breakage Normal Breakage Complete | ||||||||
Drill Rig Power | High Power Medium Power Low Power | ||||||||
Seq. | Sizes | Item | OD*ID (mm) | Matrix Height | Matrix Available |
1 | AQ | Drill Bit | 47.6*27.0 | 9mm | K9 |
2 | BQ | Drill Bit | 59.5*36.3 | 9mm, 12mm | K7, K9 |
3 | BQ2/BQTK | Drill Bit | 59.5*40.7 | 9mm, 12mm | K7, K9 |
4 | NQ | Drill Bit | 75.3*47.6 | 9mm, 12mm | K3, K5, K7, K9 |

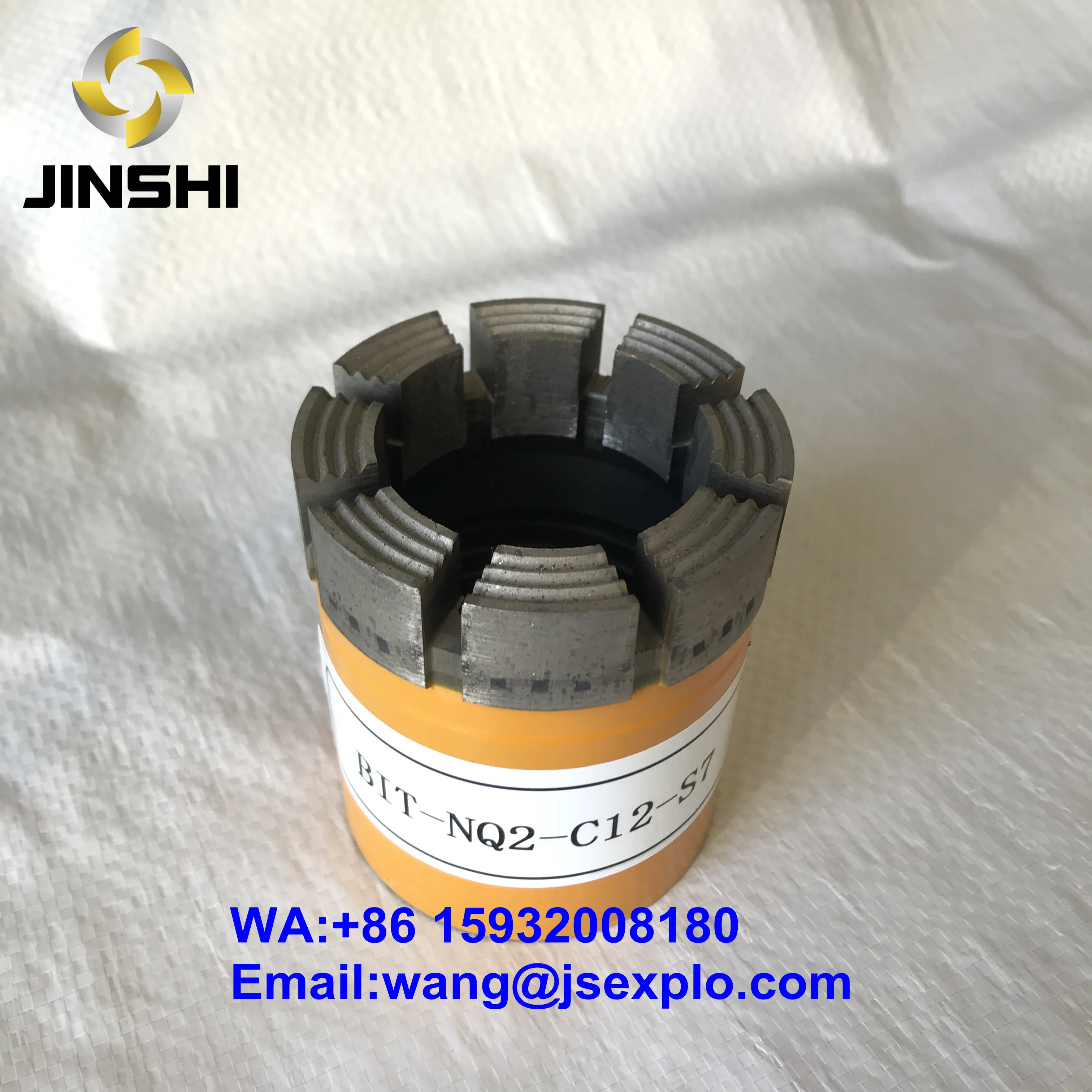

5 | NQ2 | Drill Bit | 75.3*50.8 | 9mm, 12mm | K7, K9 |
6 | HQ | Drill Bit | 95.6*63.5 | 9mm, 12mm | K3, K5, K7, K9 |
7 | PQ | Drill Bit | 122.0*85.0 | 9mm, 12mm | K3, K5, K7, K9 |
8 | SQ | Drill Bit | 147.6*102.0 | 9mm | K7 |
SIMILAR PRODUCTS
PRODUCT CONFIGURATION
Q Series: AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT, SQ
T2 series: T2-46, T2-56, T2-66, T2-76, T2-86, T2-101
T6 series: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146B series: B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
Other series: TW, WG, WM, MLC, LTK
Non-standard also can be made as your demand
T2 series: T2-46, T2-56, T2-66, T2-76, T2-86, T2-101
T6 series: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146B series: B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
Other series: TW, WG, WM, MLC, LTK
Non-standard also can be made as your demand
Wireline Core Barrel
Normal Finished Bit
Rock Core Recovery
Our Advantages
1. Professional Team & Experience:
1. Professional Team & Experience:
Our expert team in this area has an experience of more than 20 years.
2. World-Class Intelligent Facilities:
2. World-Class Intelligent Facilities:
We own precision CNC machine, milling machine, quenching machine, precision lathe, sintering machine and other
advanced equipments.
3. Selected High Quality Raw Materials:
3. Selected High Quality Raw Materials:
We select raw materials from leading big steel factories, such as BAO STEEL, TANG STEEL, HEBEI STEEL GROUP which
are the best and largest raw material manufacturers in China.
4. Strict Physical/Chemical Testing Procedures:
are the best and largest raw material manufacturers in China.
4. Strict Physical/Chemical Testing Procedures:
We have own lab in our factory to make sure our products can meet the requirements of design and process, and
provide reliable testing data.
5. Short Delivery Time:
5. Short Delivery Time:
Normal production takes 7 days. And we in stock standard products which can be shipped very soon.
6. Safe Package & Shipment:
6. Safe Package & Shipment:
Standard export packages with well protection or in wooden/steel cases.
7. Best After-Sale Service:
7. Best After-Sale Service:
Timely communication & response especially for trouble shooting. We got good reputation around the world since all these years.
Successful Project
Project in Africa
Project in South America
Project in Mongolia
SALES AND SERVICE NETWORK
Exhibition & Conference
FAQ
1. Are you a manufacturer, trading company or a third party?
We are a manufacturer and our factory produces full line of diamond drilling tools & equipment.
We are a manufacturer and our factory produces full line of diamond drilling tools & equipment.
2. Where is your factory located? How can I get to your factory?
We are in Tangshan City, China, where is near Beijing & Tianjin, we can pick you up at the airports or railway stations.
3. If I will need to stay at your place for few days, is it possible to book the hotel for me?
It’s always our pleasure to book a nice hotel for you.
4. What is your minimum order quantity?
8. Is your price competitive?
Only good quality product we supply. Surely we will give you best factory price based on superior product and service.
9. May I know which payment will be accepted by your company?
We do 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by L/C are available.
10.How can I get the after-service & quality guarantee?
3. If I will need to stay at your place for few days, is it possible to book the hotel for me?
It’s always our pleasure to book a nice hotel for you.
4. What is your minimum order quantity?
Our MOQ is 1 pc.
5. Can you send me free samples?
We're happy to provide small value free samples at your delivery cost.
6. Can you do customized products?
Yes, we are happy to do customized products if you can provide drawing or samples.
7. Can you do private label, such as put on our logo?
Yes, put on your logo is available.
Yes, put on your logo is available.
8. Is your price competitive?
Only good quality product we supply. Surely we will give you best factory price based on superior product and service.
9. May I know which payment will be accepted by your company?
We do 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by L/C are available.
10.How can I get the after-service & quality guarantee?
We will replace the products by free if the problems were caused by us. If it is the men-made problems,we may also send the products,however it will be charged. Any problems, you may call us directly.
